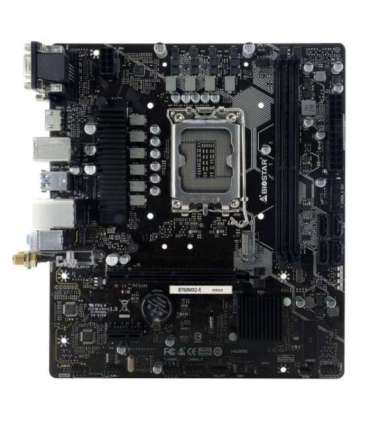

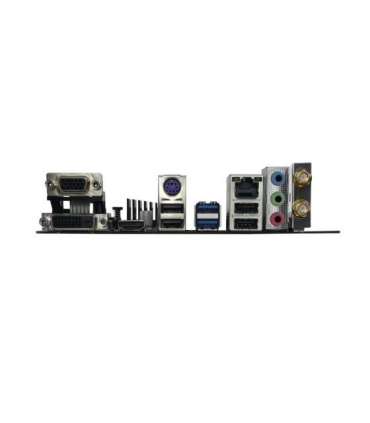

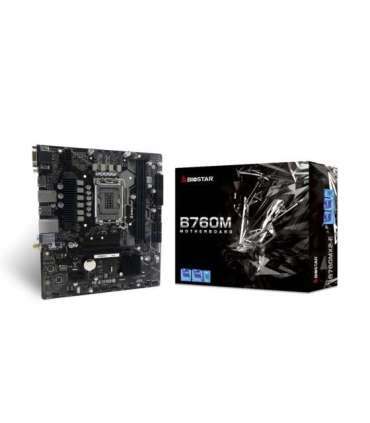

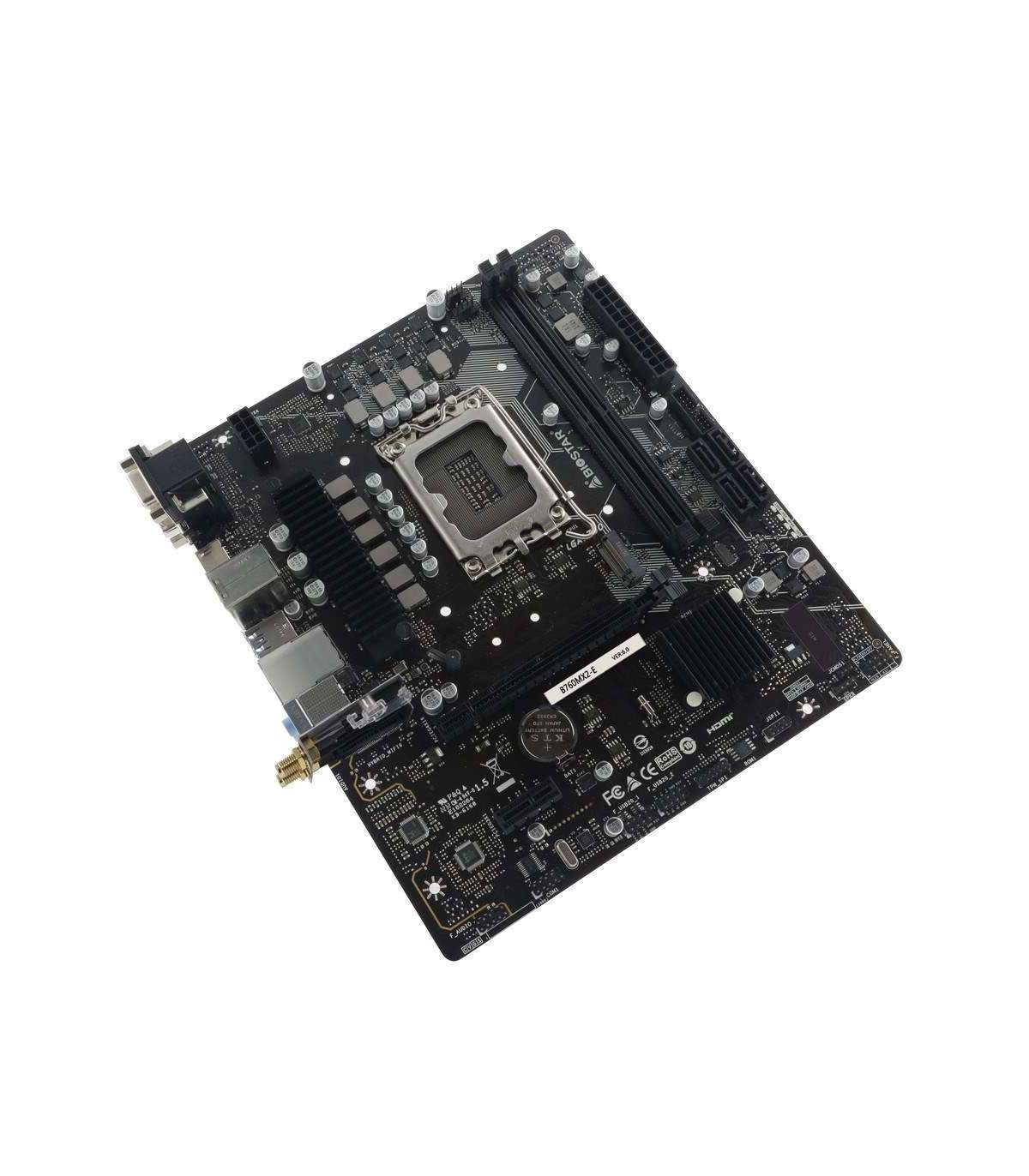

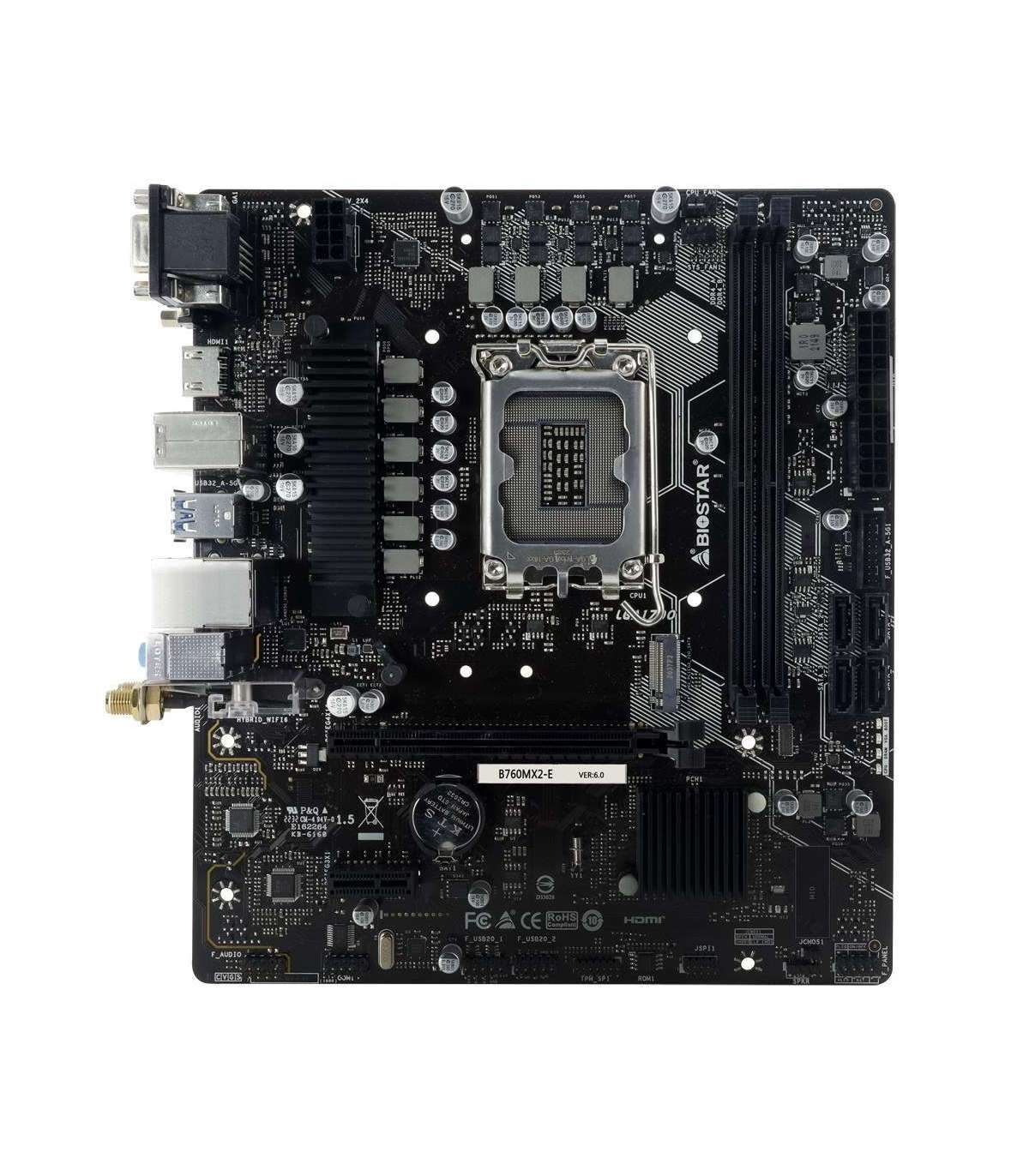

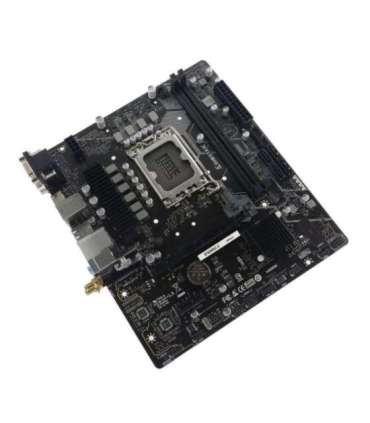

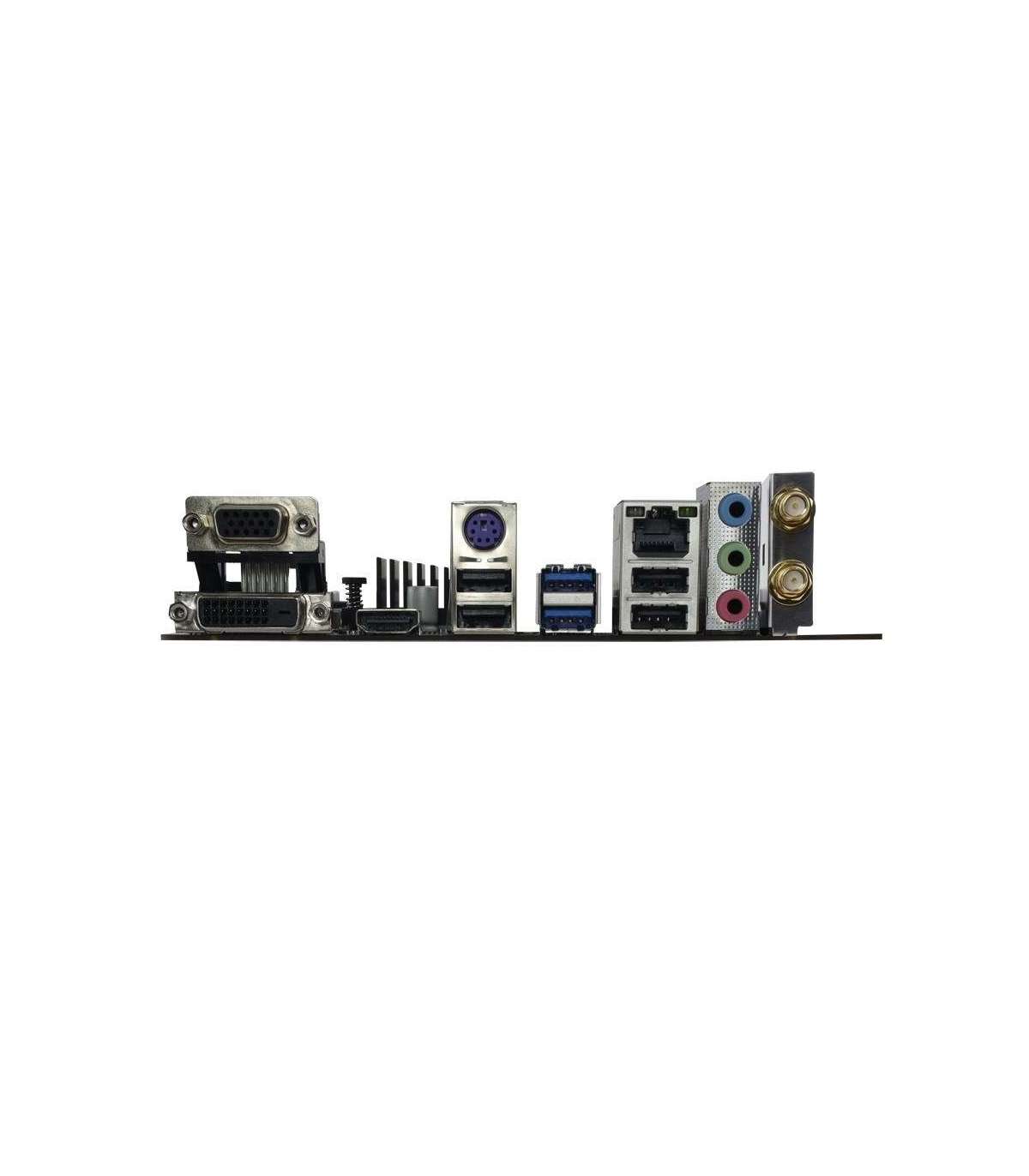

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

208 mm

Laius

236 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel B760

HDMI ports quantity

1

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5200
5400
5600
6000

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

1

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Drivers included

Yes

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Cooling type

Passive

Number of Wi-Fi antenna ports

1

PCI Express x4 (Gen 4.x) slots

1

Yes (no WiFi card included)

Yes (no WiFi card included)

Number of M.2 (E) slots

1

Set contents

WiFi antenna accessories

Audio ports quantity

3

DVI ports quantity

1
