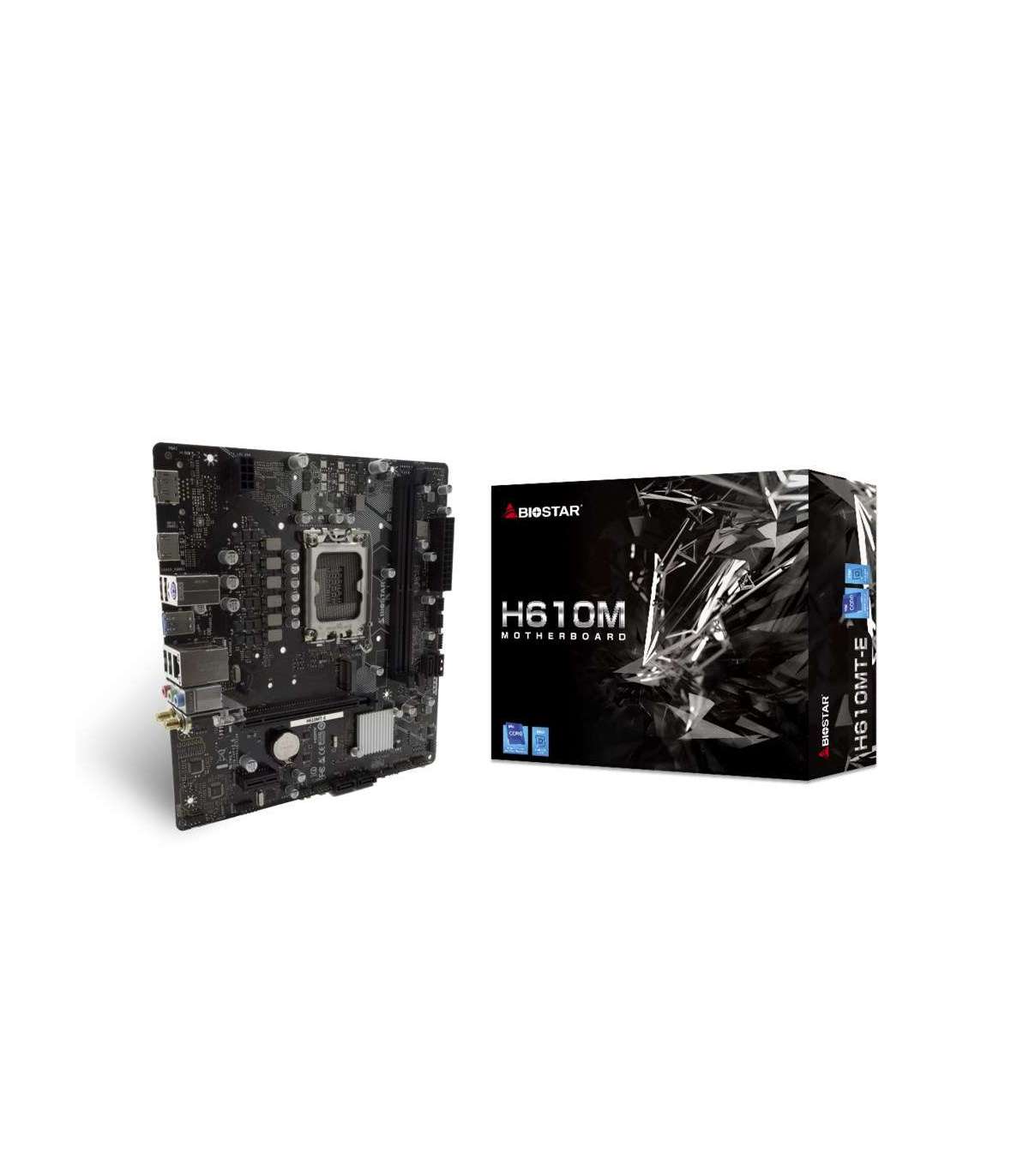

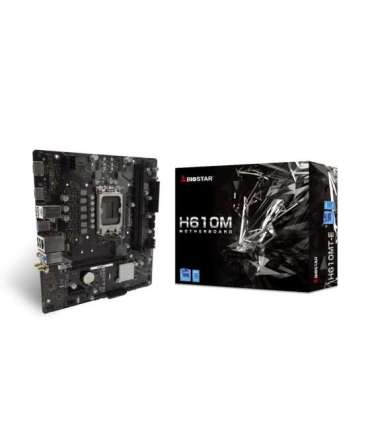

Biostar H610MT-E motherboard Intel H610 LGA 1700 micro ATX

Lisainfo

Depth

228 mm

Laius

216 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H610

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

1866
2133
2400
2666 MHz
2933
3200

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Drivers included

Yes

Parallel processing technology support

Not supported

Number of SATA III connectors

4

TPM connector

Yes

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
