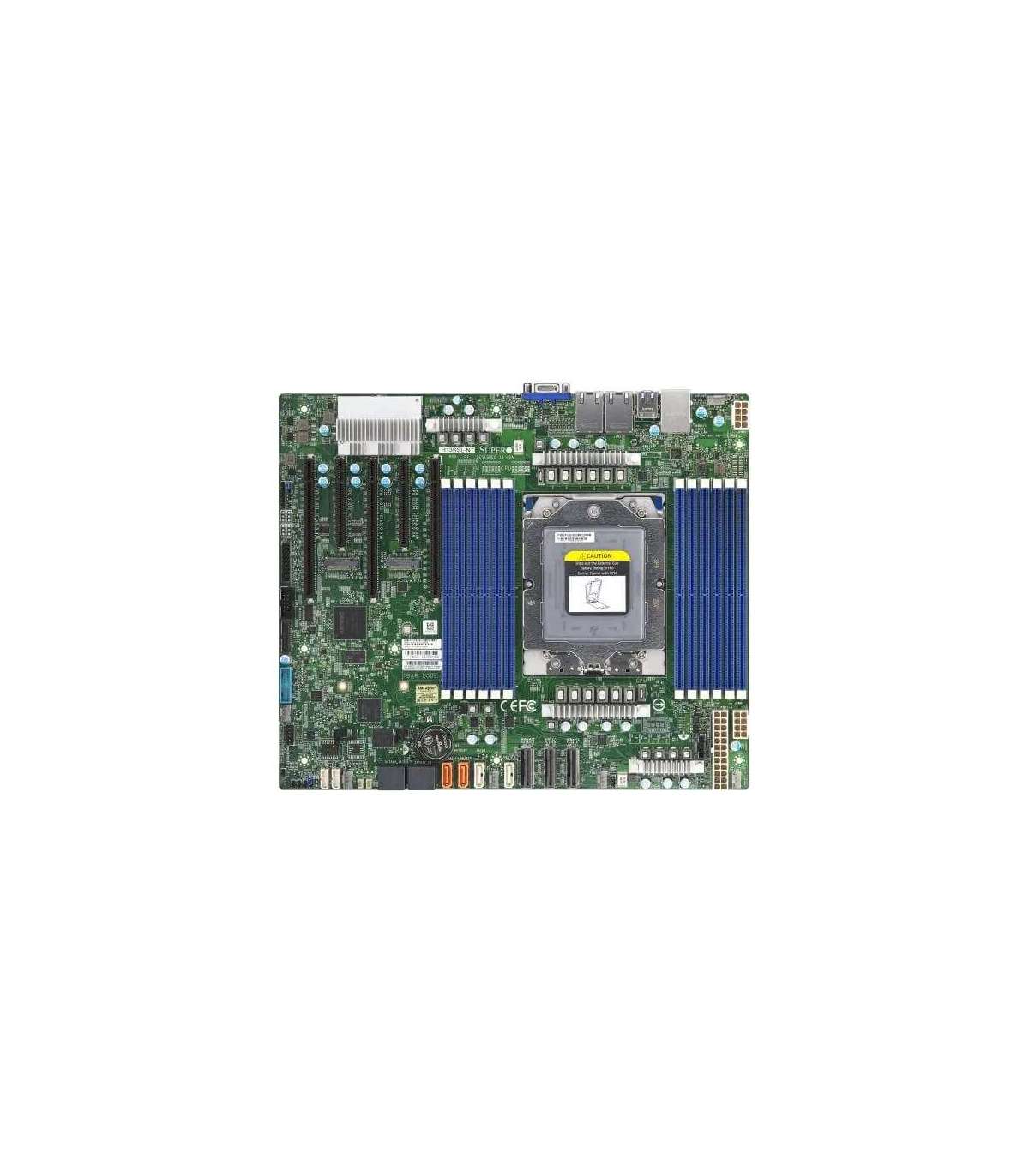

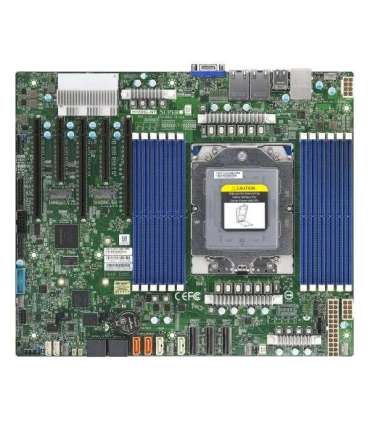

Supermicro H13SSL-NT AMD SoC Socket SP5 ATX

Lisainfo

Depth

256.5 mm

Laius

304.8 mm

Storage temperature (T-T)

10 - 35 °C

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

5 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

No

Ethernet interface type

10 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

3 TB

Motherboard chipset

AMD SoC

Processor socket

Socket SP5

Compatible processor series

AMD EPYC

Motherboard form factor

ATX

Motherboard chipset family

AMD

Supported memory clock speeds

4800

Memory slots type

DIMM

Number of memory slots

12

Supported memory types

DDR5-SDRAM

LAN controller

Broadcom BCM57416

Number of chassis fan connectors

6

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

AMI

Number of HDDs supported

8

Supported storage drive interfaces

M.2, SATA III

VGA (D-Sub) ports quantity

1

ECC сompatibility

ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

8

TPM connector

Yes

Supported storage drive types

HDD & SSD

Supported memory clock speed (max)

4800 MHz

Supported memory module capacities

16GB
24GB
32GB
40GB
48GB
64GB
80GB
96GB
128GB
192GB
256GB

PCI Express x16 (Gen 5.x) slots

3

COM ports quantity

1

BIOS memory size

32 Mbit

Memory voltage

1.1 V

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

IPMI LAN (RJ-45) port

Yes
