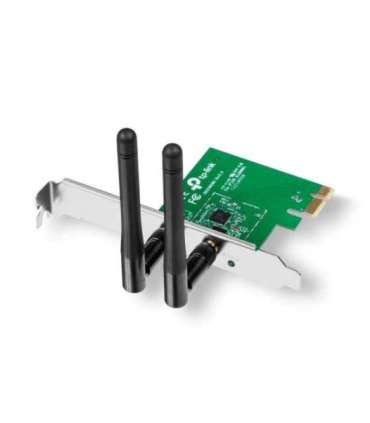

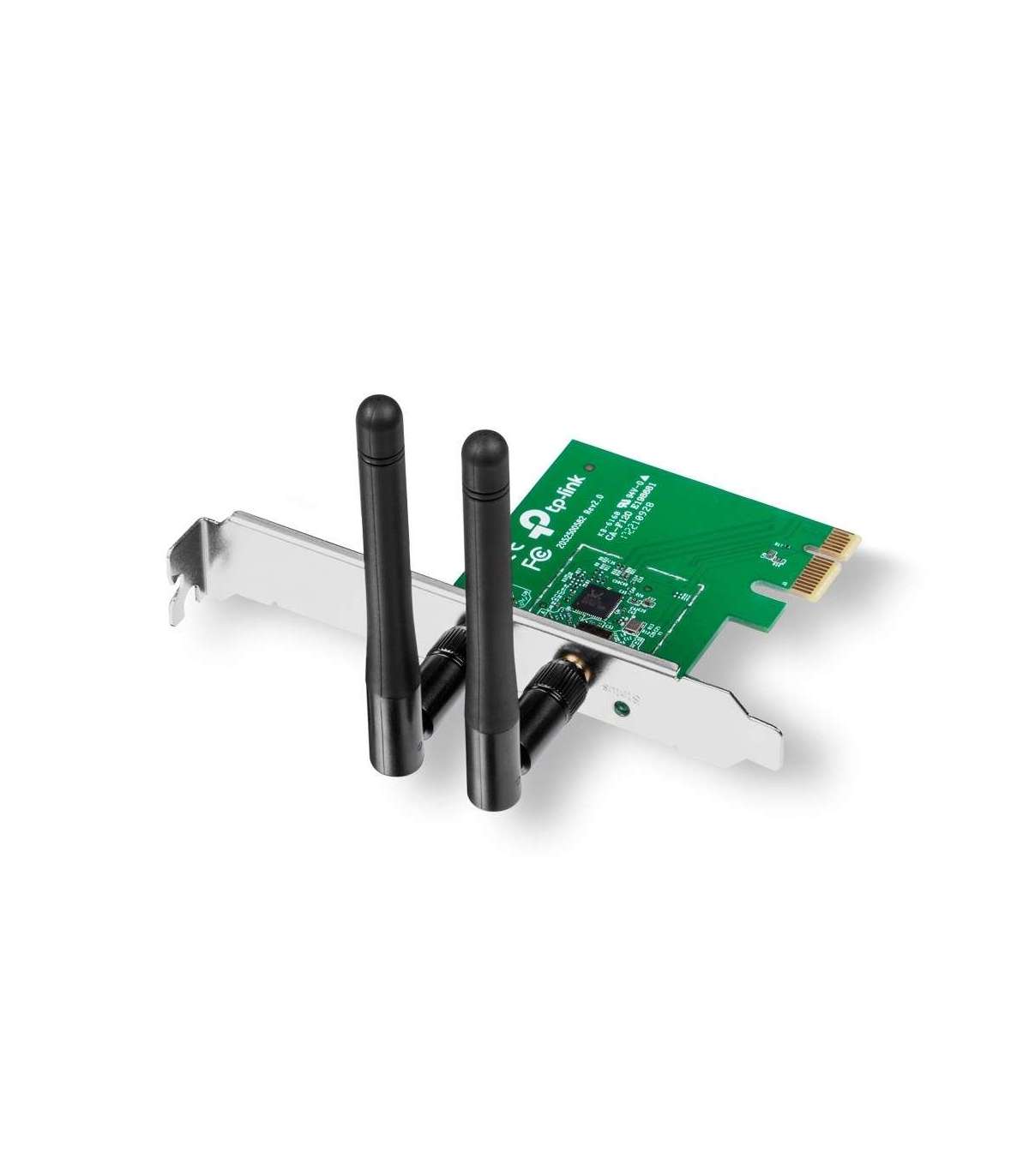

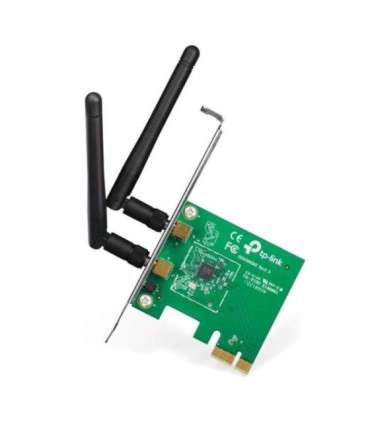

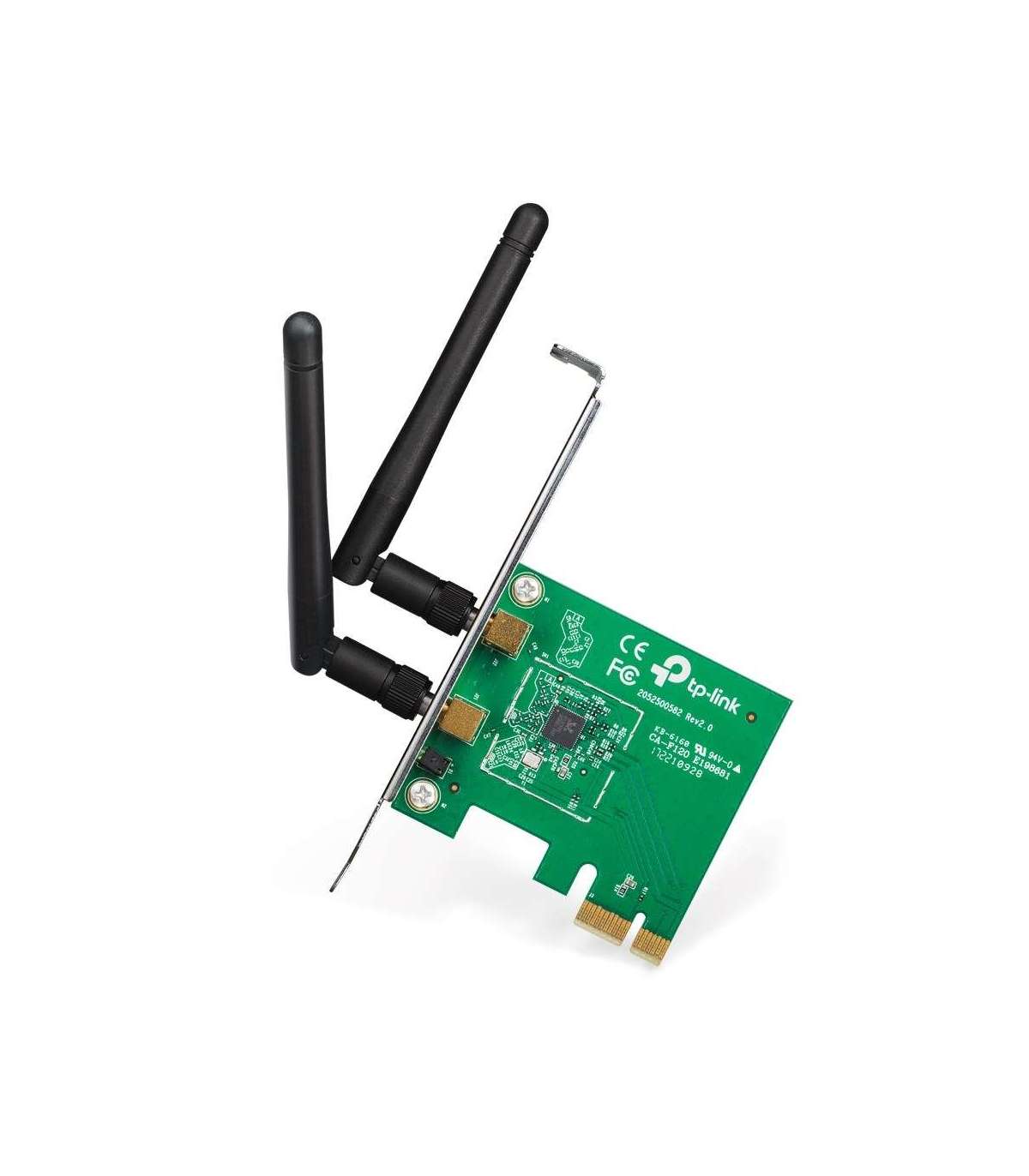

TP-Link TL-WN881ND network card Internal WLAN 300 Mbit/s

Характеристики

Depth

51 mm

Height

3.3 mm

Width

59.7 mm

Package weight

170 g

Product colour

Green

Security algorithms

64-bit WEP
128-bit WEP
WPA-PSK
WPA2-PSK
WPS

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Wi-Fi standards

802.11b
802.11g
Wi-Fi 4 (802.11n)

Wi-Fi band

Single-band (2.4 GHz)

Top Wi-Fi standard

Wi-Fi 4 (802.11n)

Antenna design

External

LED indicators

Yes

Networking standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 7
Windows 7 Enterprise
Windows 7 Enterprise x64
Windows 7 Home Basic
Windows 7 Home Basic x64
Windows 7 Home Premium
Windows 7 Home Premium x64
Windows 7 Professional
Windows 7 Professional x64
Windows 7 Starter
Windows 7 Starter x64
Windows 7 Ultimate
Windows 7 Ultimate x64
Windows 7 x64
Windows 8
Windows 8 Enterprise
Windows 8 Enterprise x64
Windows 8 Pro
Windows 8 Pro x64
Windows 8 x64
Windows 8.1
Windows 8.1 Enterprise
Windows 8.1 Enterprise x64
Windows 8.1 Pro
Windows 8.1 Pro x64
Windows 8.1 x64
Windows 10
Windows 10 Education
Windows 10 Education x64
Windows 10 Enterprise
Windows 10 Enterprise x64
Windows 10 Home
Windows 10 Home x64
Windows 10 IOT Core
Windows 10 IoT Enterprise
Windows 10 Pro
Windows 10 Pro x64
Windows 10 x64

Linux operating systems supported

Yes

Package width

201.5 mm

Package depth

152.5 mm

Package height

41.5 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

Harmonized System (HS) code

85176990

Warnings

Avoid contact with water or moisture.
Do not expose to high temperatures.
Keep out of the reach of children.

Sustainability compliance

Yes

Modulation

16-QAM
64-QAM
DBPSK
DQPSK
OFDM

Antenna gain level (max)

2 dBi

Antenna connector type

RP-SMA

WLAN data transfer rates supported

11
54
150
300 Mbit/s

Frequency range

2.4 - 2.4835 GHz

Operating modes

Infrastructure mode

Antenna direction type

Omni-directional

Wi-Fi

Yes

Component for

PC

Antenna

Yes

Internal

Yes

Maximum data transfer rate

300 Mbit/s

Interface

WLAN

Host interface

PCI Express

Connectivity technology

Wireless

Resource CD

Yes
