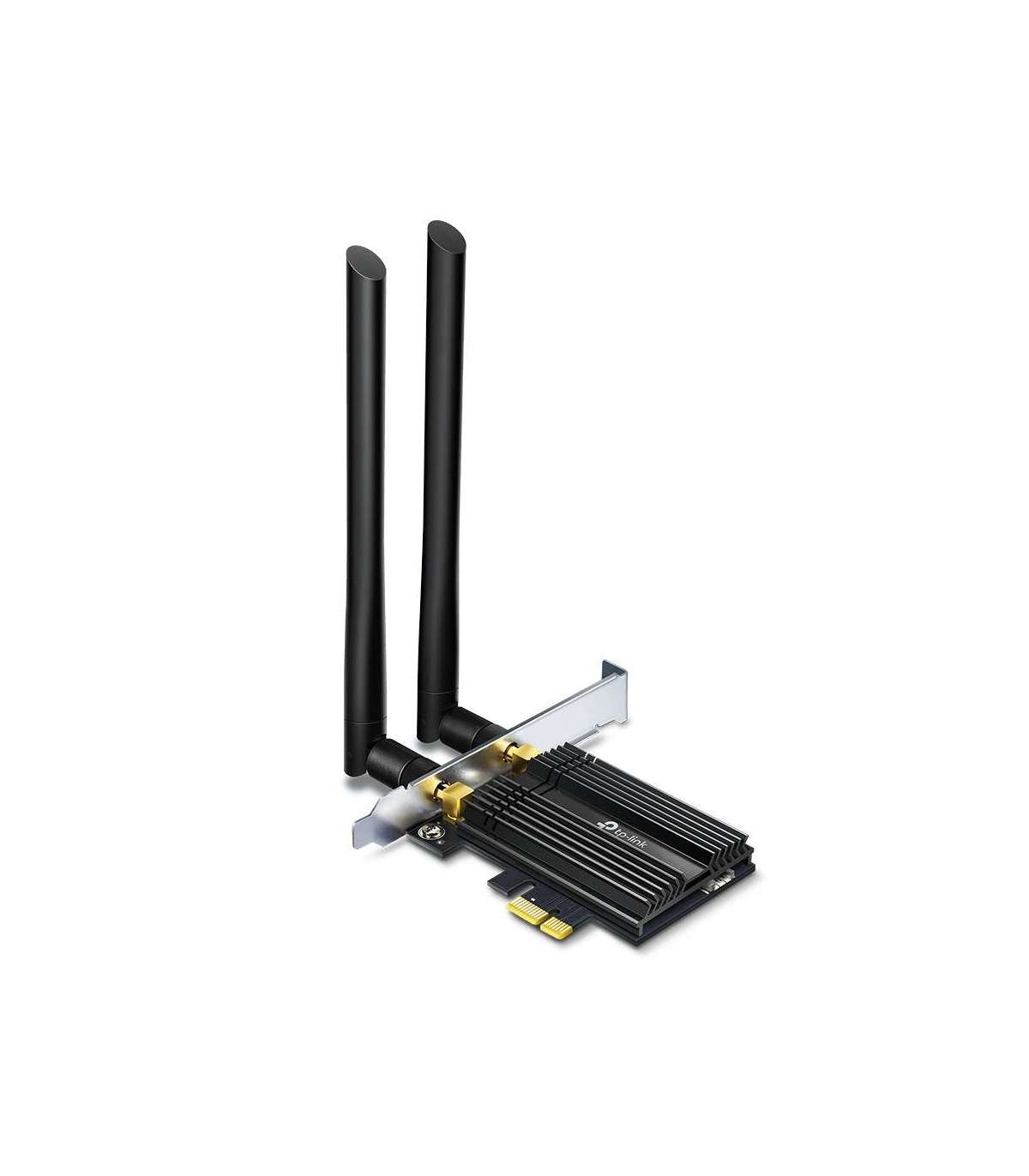

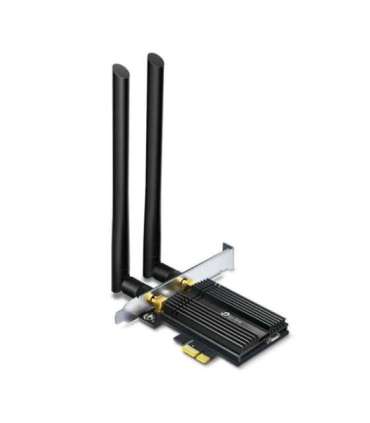

TP-LINK AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter

Характеристики

Depth

120.8 mm

Height

21.5 mm

Width

95.2 mm

Package weight

270 g

Product colour

Black
Metallic

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Antenna design

External

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 10 x64

Package width

200 mm

Package depth

150 mm

Package height

39 mm

Sustainability certificates

RoHS

Modulation

16-QAM
64-QAM
256-QAM
DBPSK
DQPSK
OFDM

WLAN data transfer rates supported

54
300 Mbit/s
574
1733 Mbit/s
2402

Frequency range

2.4 - 5 GHz

Wi-Fi

Yes

Antenna

Yes

Internal

No

Maximum data transfer rate

2402 Mbit/s

Interface

WLAN / Bluetooth

Host interface

PCI Express

Connectivity technology

Wireless
