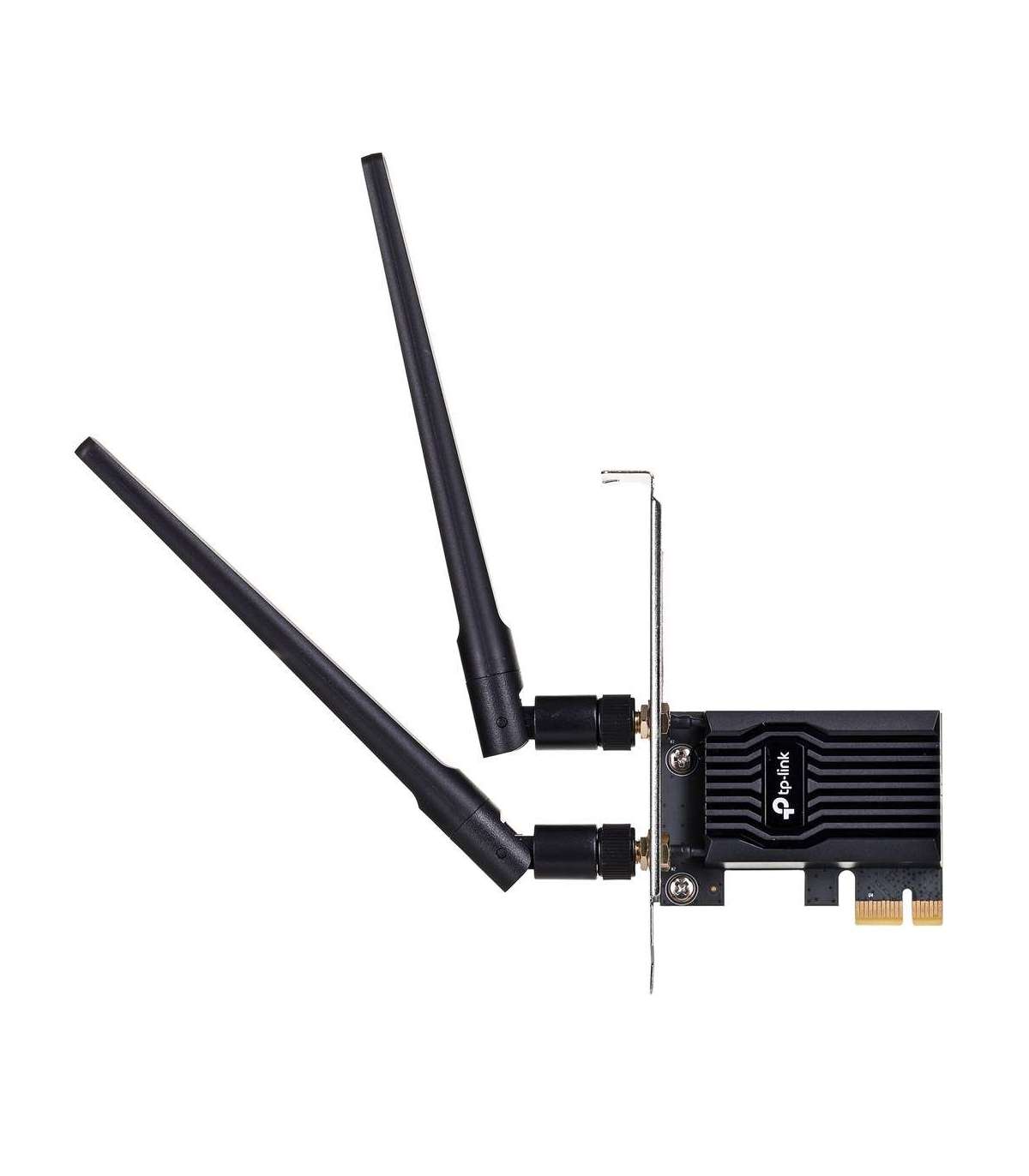

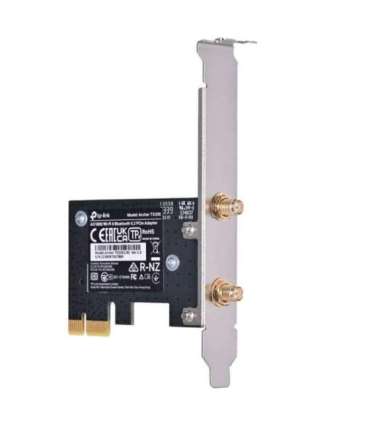

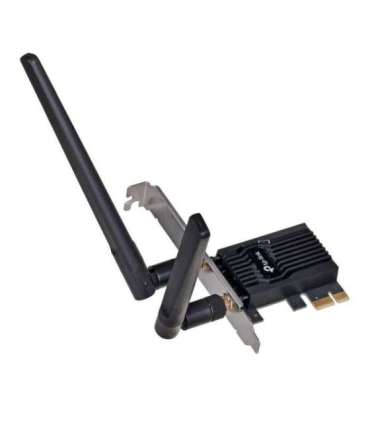

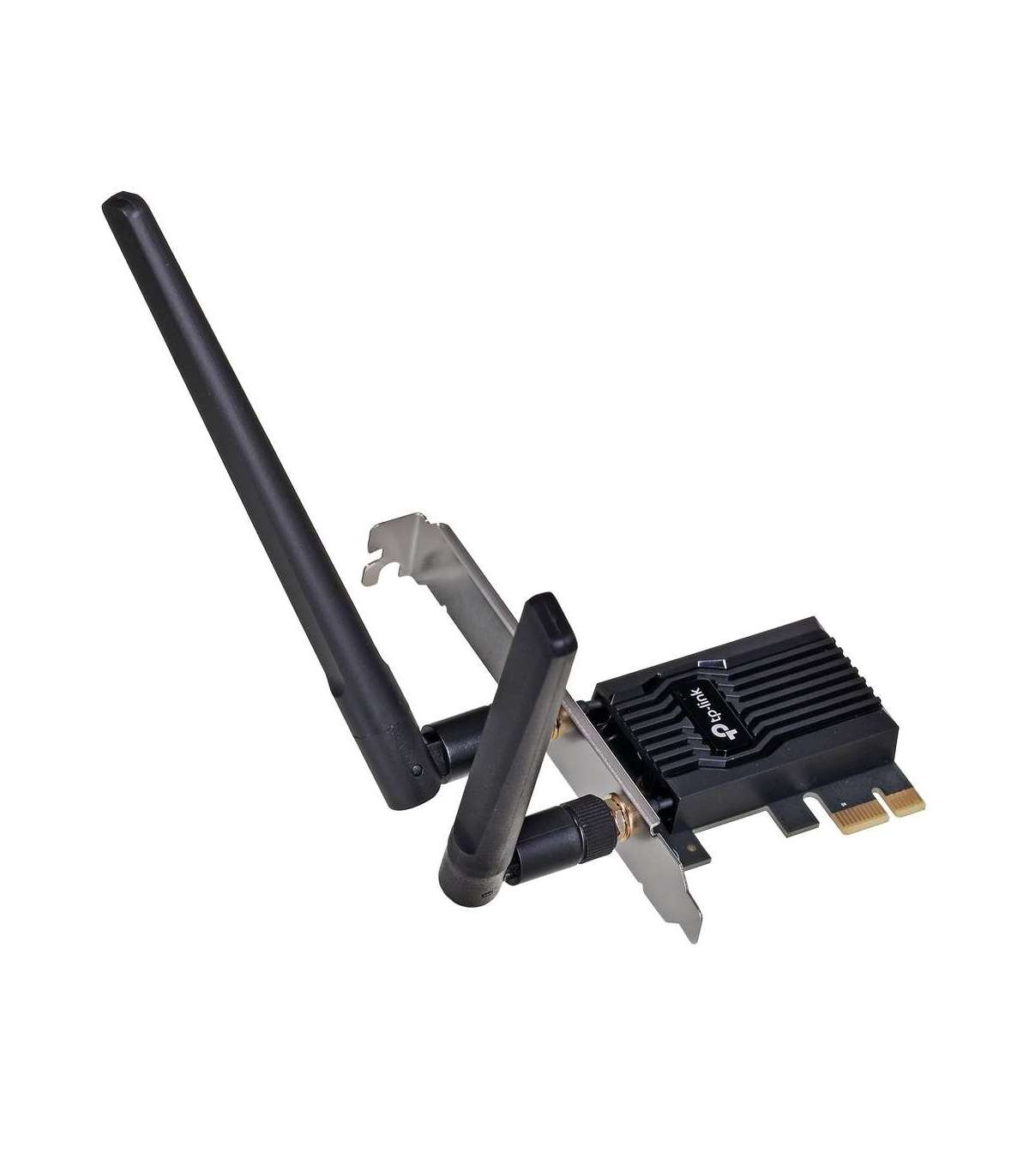

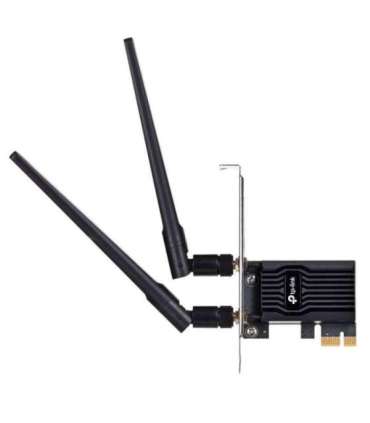

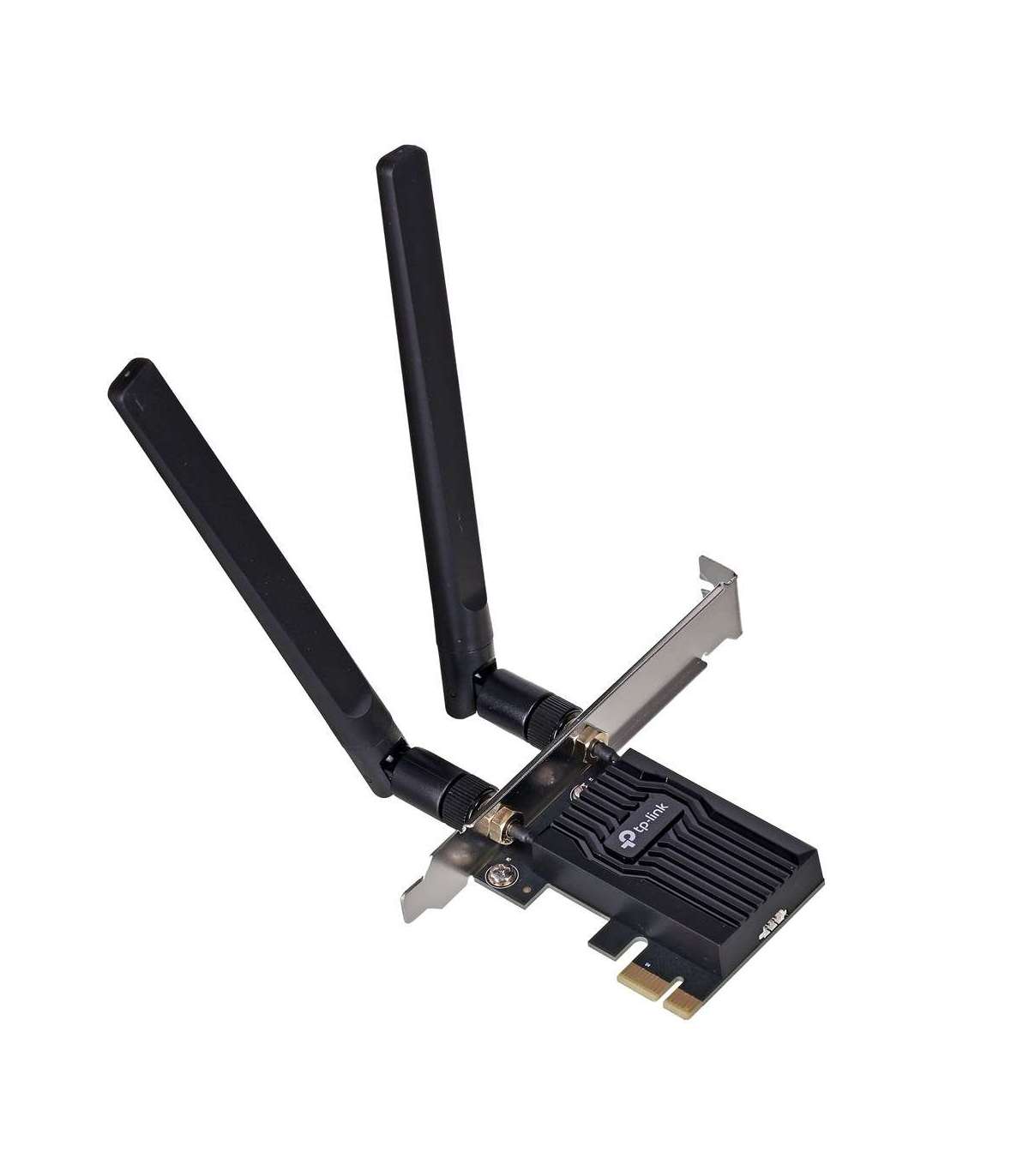

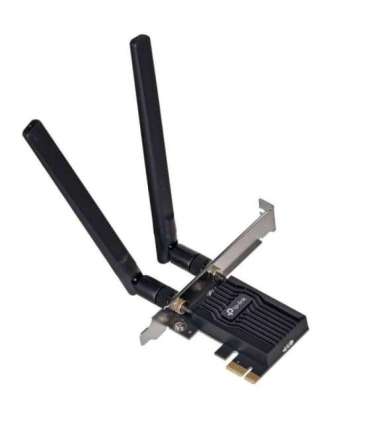

TP-Link AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Характеристики

Depth

78.5 mm

Height

20.9 mm

Width

120.8 mm

Package weight

220 g

Product colour

Black

Security algorithms

64-bit WEP
128-bit WEP
802.1x RADIUS
WPA
WPA-PSK
WPA2
WPA2-PSK
WPA3

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Antenna design

External

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 10 Education x64
Windows 10 Enterprise x64
Windows 10 Home x64
Windows 10 Pro x64
Windows 10 x64
Windows 11 Enterprise x64
Windows 11 x64

Package width

201.5 mm

Package depth

152.5 mm

Package height

41.5 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

Warnings

Avoid contact with water or moisture.
Do not expose to high temperatures.
Keep out of the reach of children.

Sustainability compliance

Yes

Sustainability certificates

CE
Federal Communications Commission (FCC)
RoHS

Modulation

16-QAM
64-QAM
256-QAM
1024-QAM
CCK
DBPSK
DQPSK
OFDM

Plug and Play

Yes

WLAN data transfer rates supported

11
54
300 Mbit/s
574
867 Mbit/s
1200 Mbit/s

Operating modes

Infrastructure mode

Wi-Fi

Yes

Component for

PC/Server

Antenna

Yes

Internal

Yes

Maximum data transfer rate

1800 Mbit/s

Interface

WLAN / Bluetooth

Host interface

PCI Express

Connectivity technology

Wireless

Bluetooth version

5.2

Bluetooth

Yes

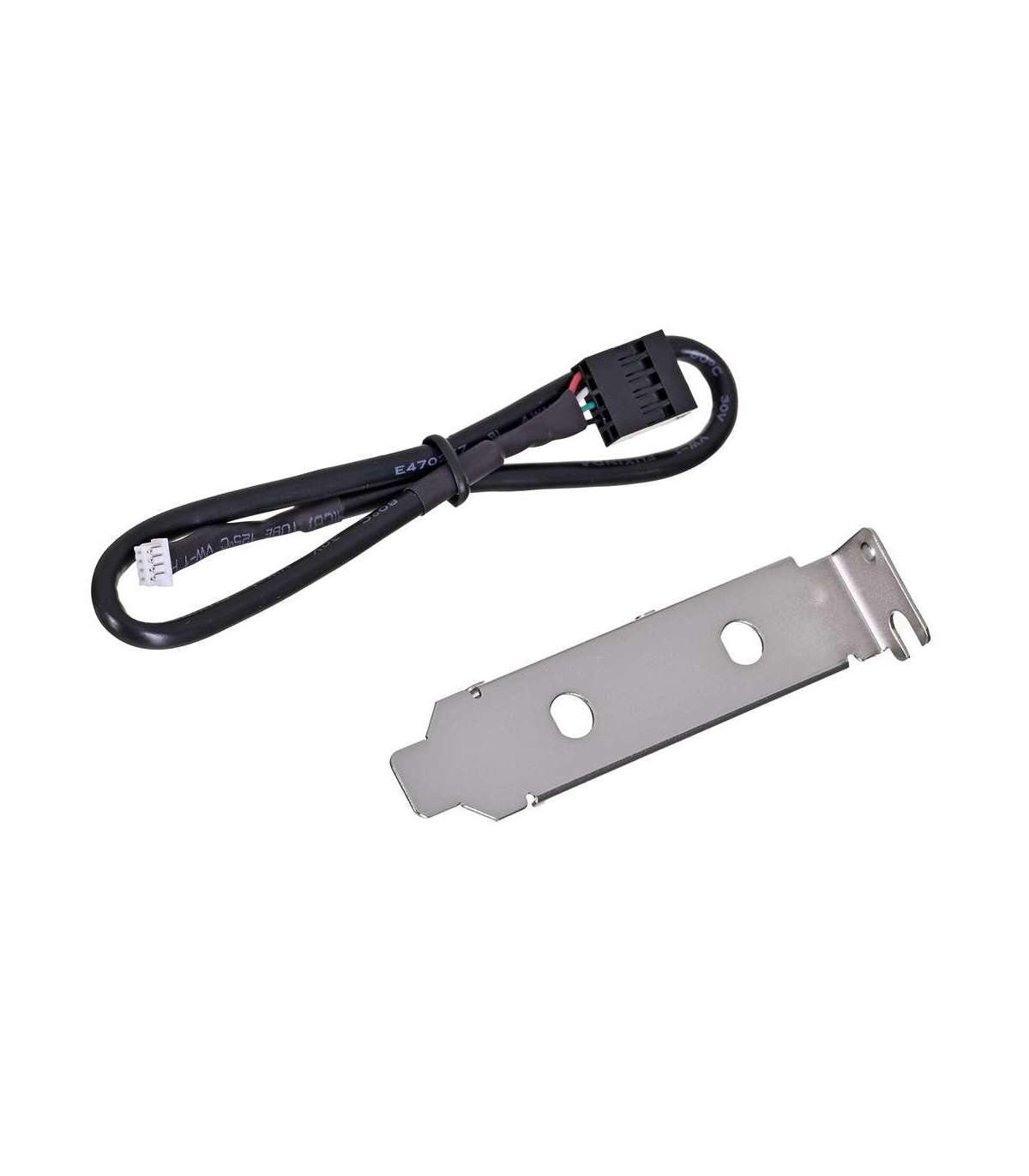

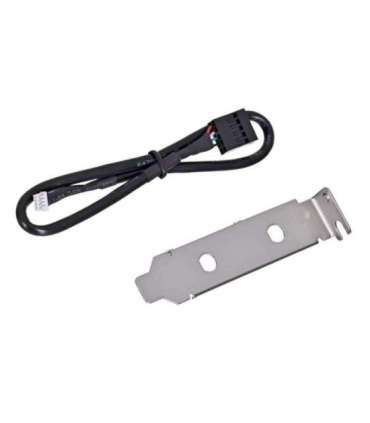

Mounting brackets included

Yes

Transmitting power (FCC)

27 dBm

Transmitting power (CE)

23 dBm

Resource CD

Yes

Bluetooth header cable

Yes
