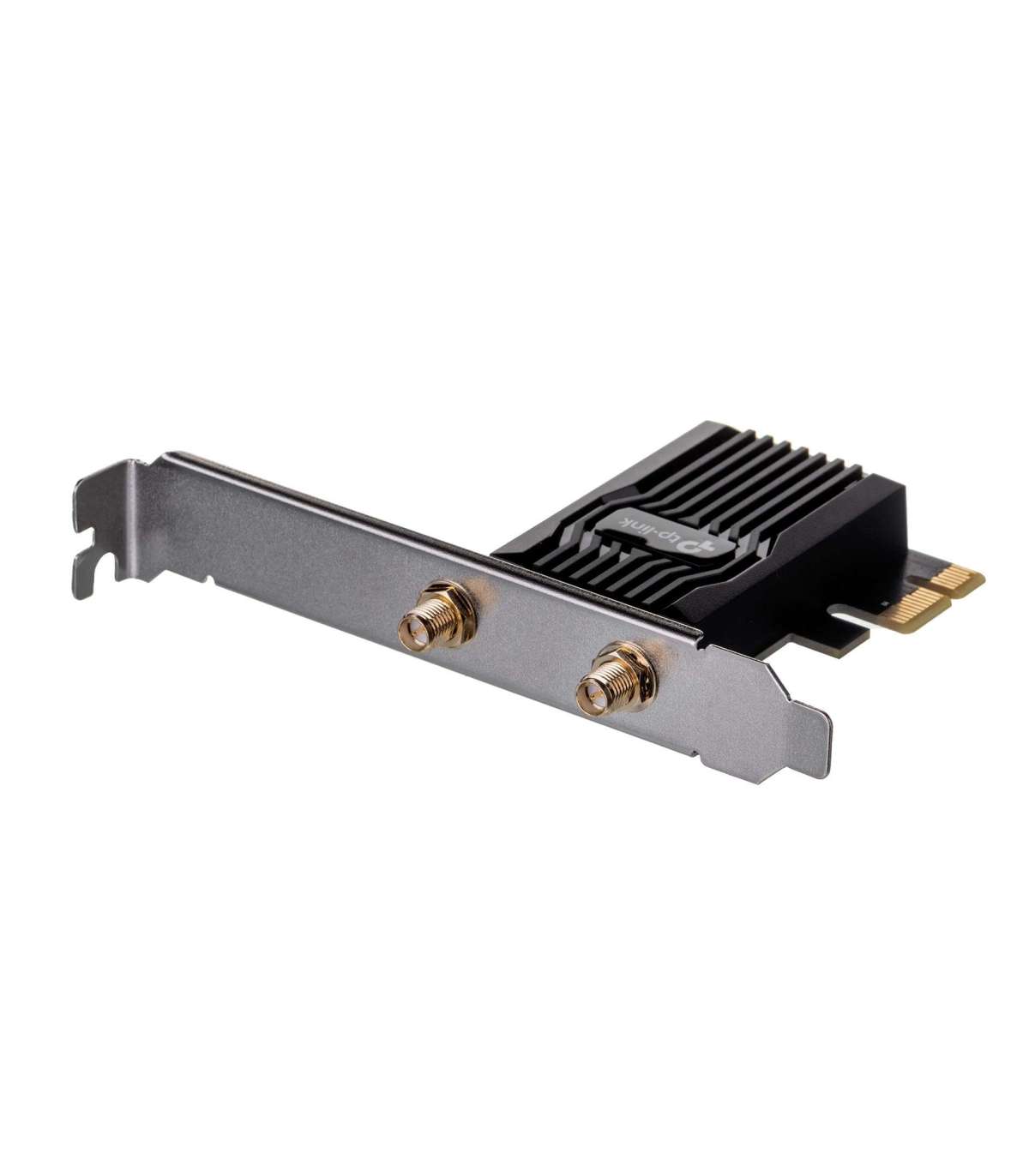

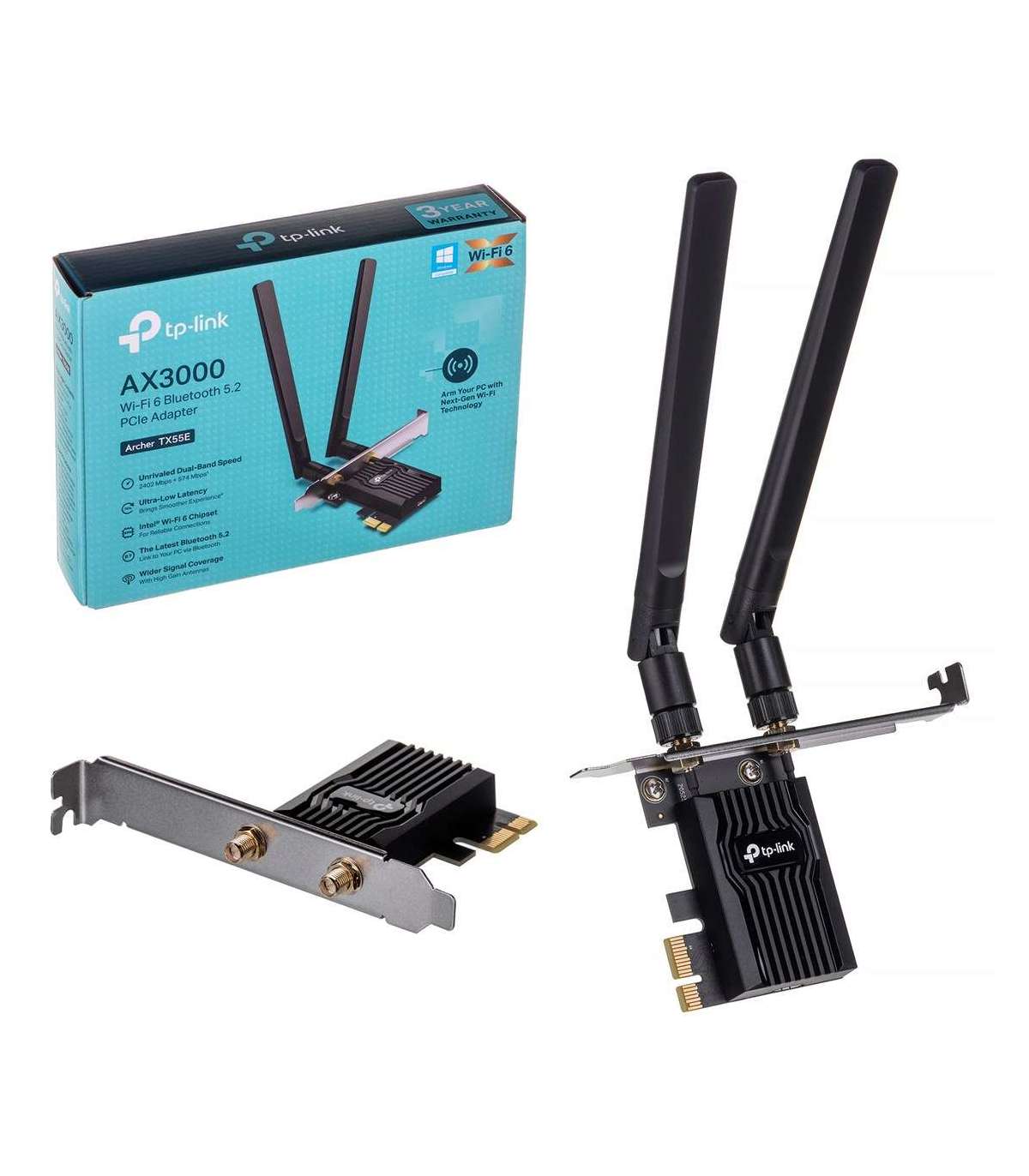

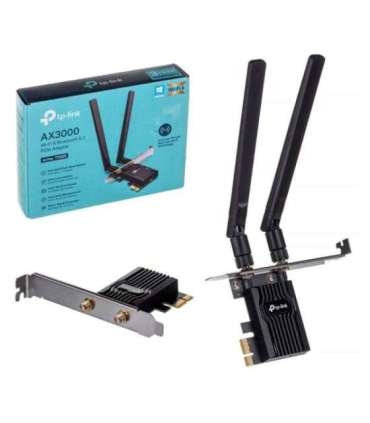

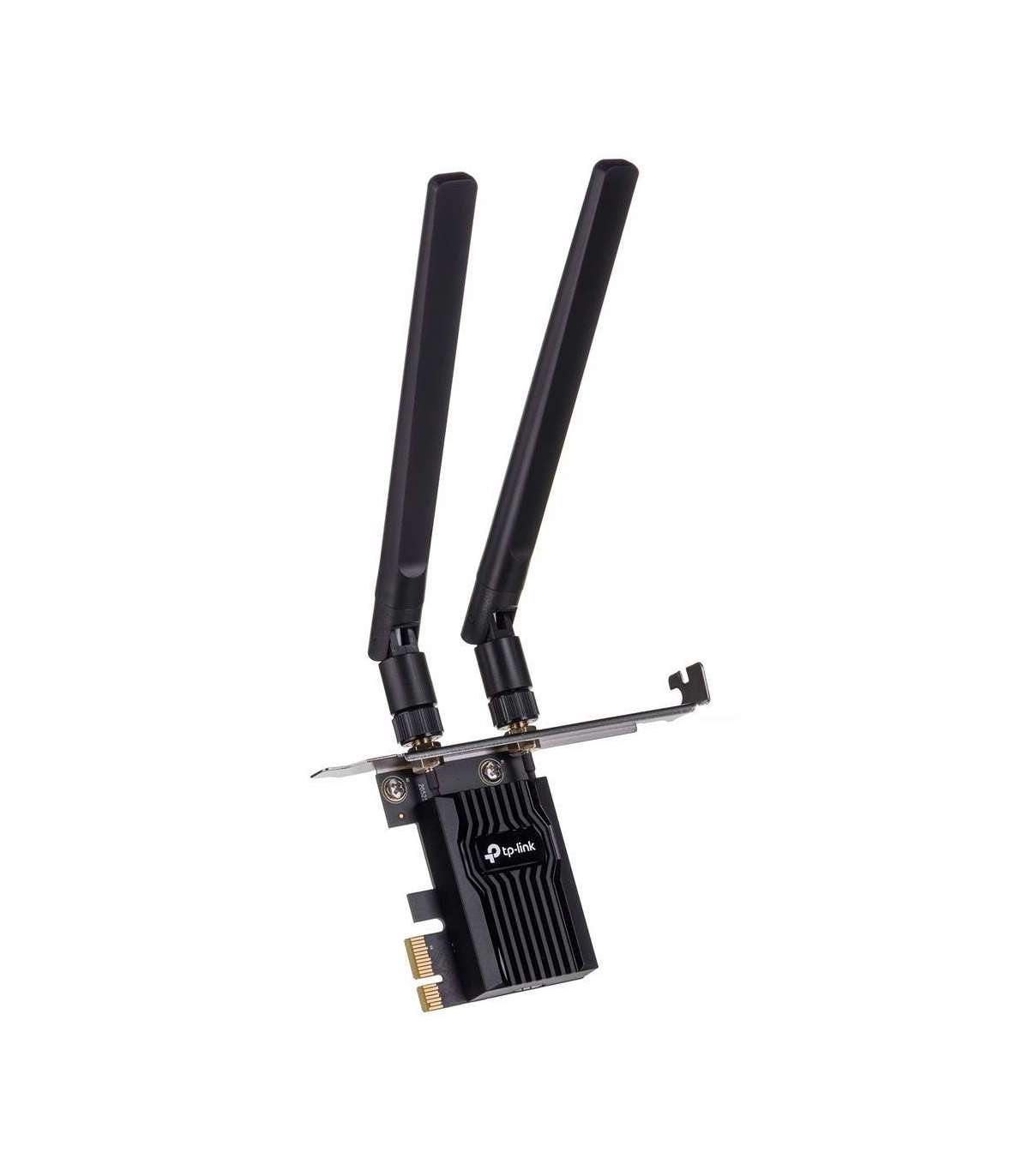

TP-Link ARCHER TX55E network card WLAN / Bluetooth 2402 Mbit/s

Характеристики

Depth

36 mm

Height

11.5 mm

Width

55 mm

Product colour

Black

Security algorithms

64-bit WEP
128-bit WEP
802.1x RADIUS
WPA
WPA-PSK
WPA2
WPA2-PSK
WPA3

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Antenna design

External

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11g
IEEE 802.11n

Windows operating systems supported

Windows 10 x64

Sustainability certificates

RoHS

Certification

CE, FCC, RoHS

Modulation

16-QAM
64-QAM
256-QAM
1024-QAM
CCK
DQPSK
OFDM

WLAN data transfer rates supported

11
54
300 Mbit/s
574
1733 Mbit/s
2402

Frequency range

2.4 - 5 GHz

Wi-Fi

Yes

Internal

No

Maximum data transfer rate

2402 Mbit/s

Interface

WLAN / Bluetooth

Host interface

PCI Express

Connectivity technology

Wireless

Bluetooth version

5.2

Bluetooth

Yes

Compatible operating systems

Windows 10 (64-bit) only

Resource CD

Yes
