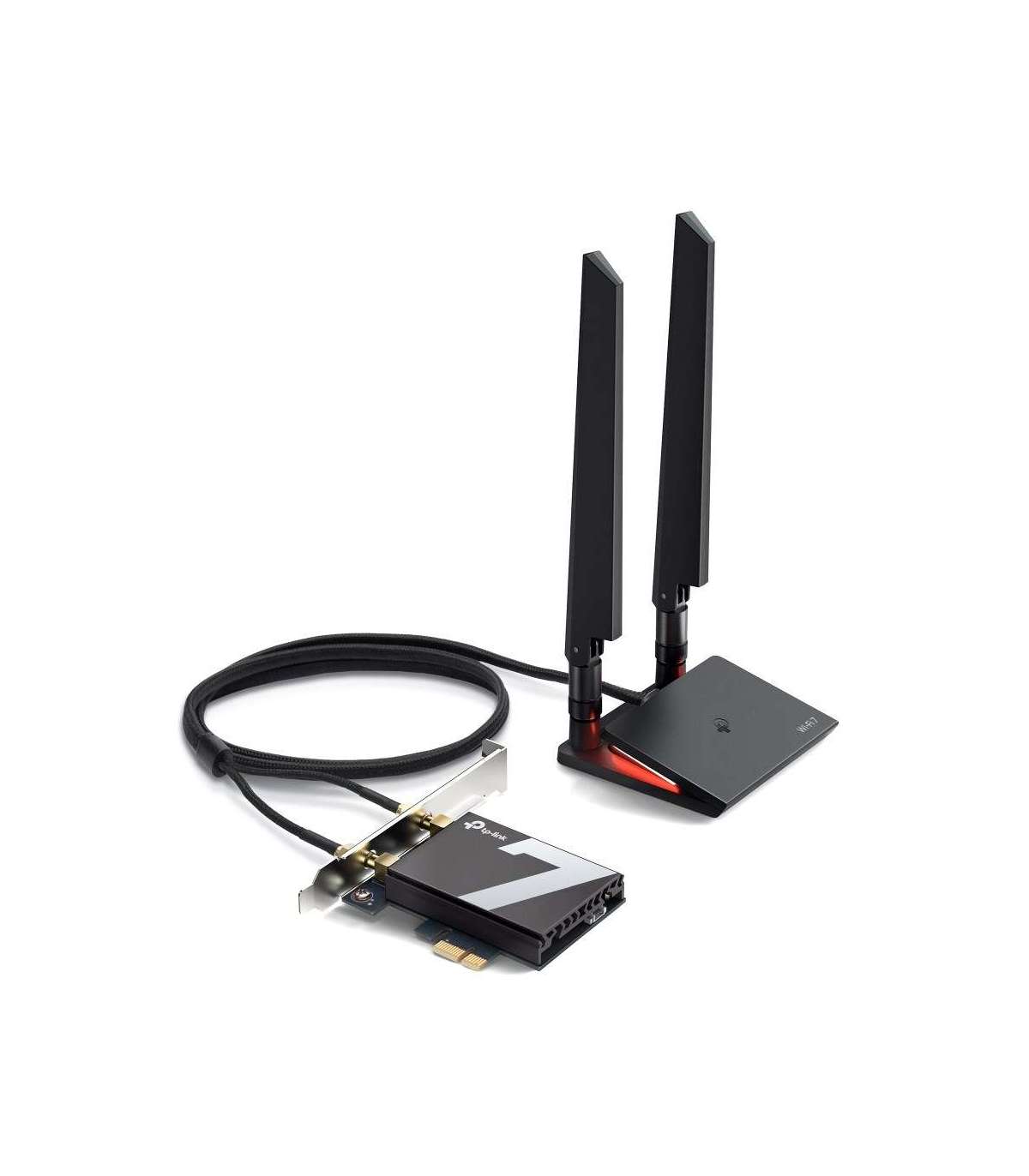

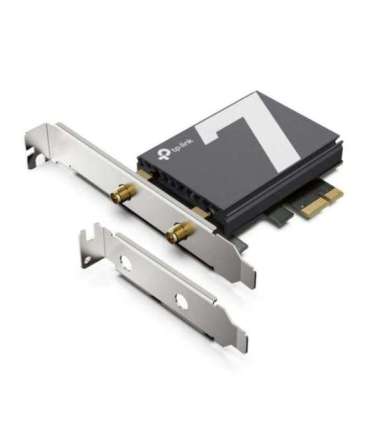

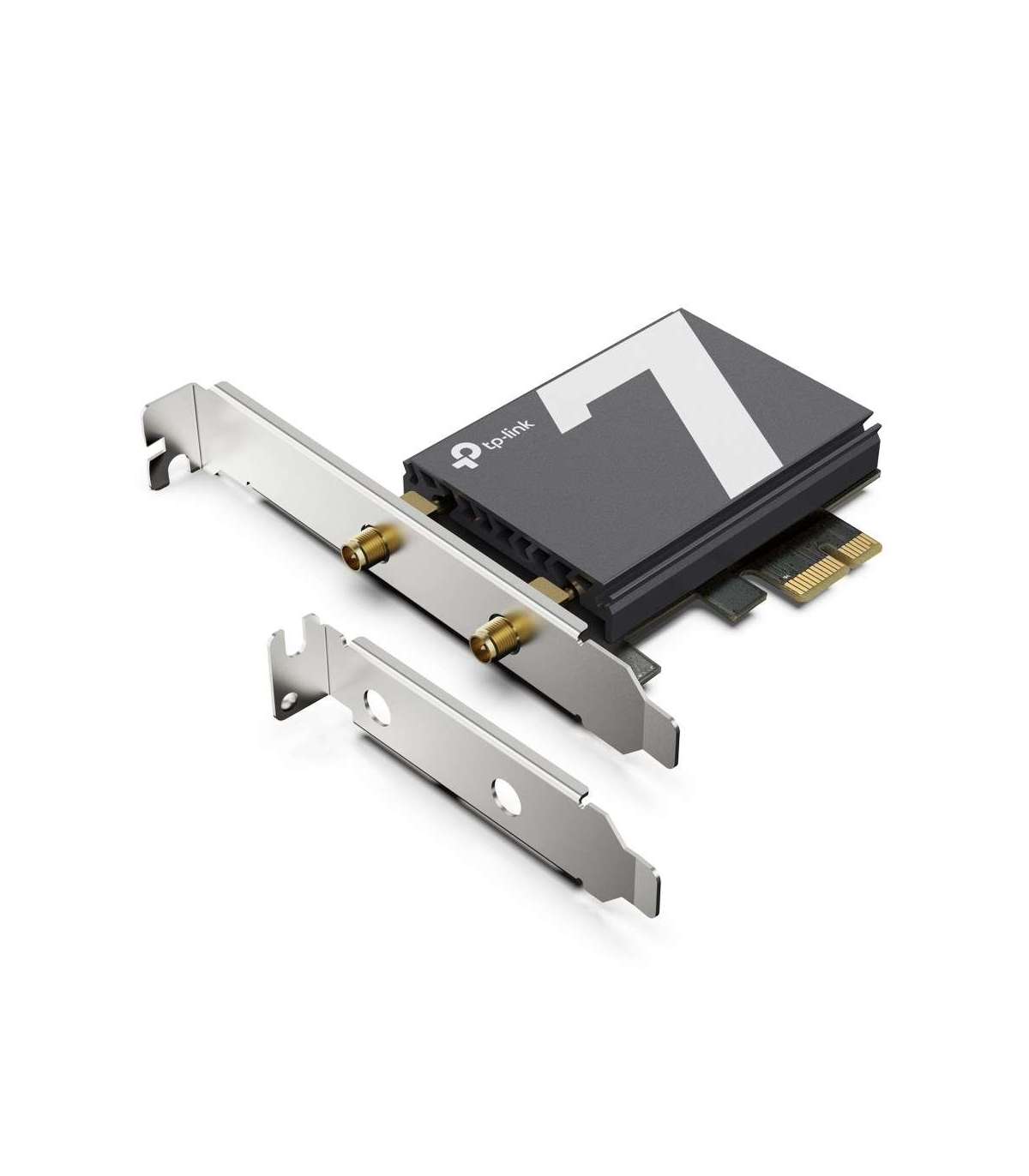

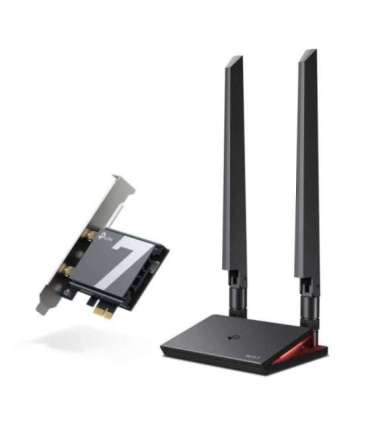

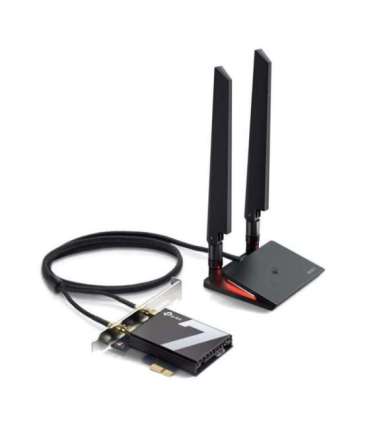

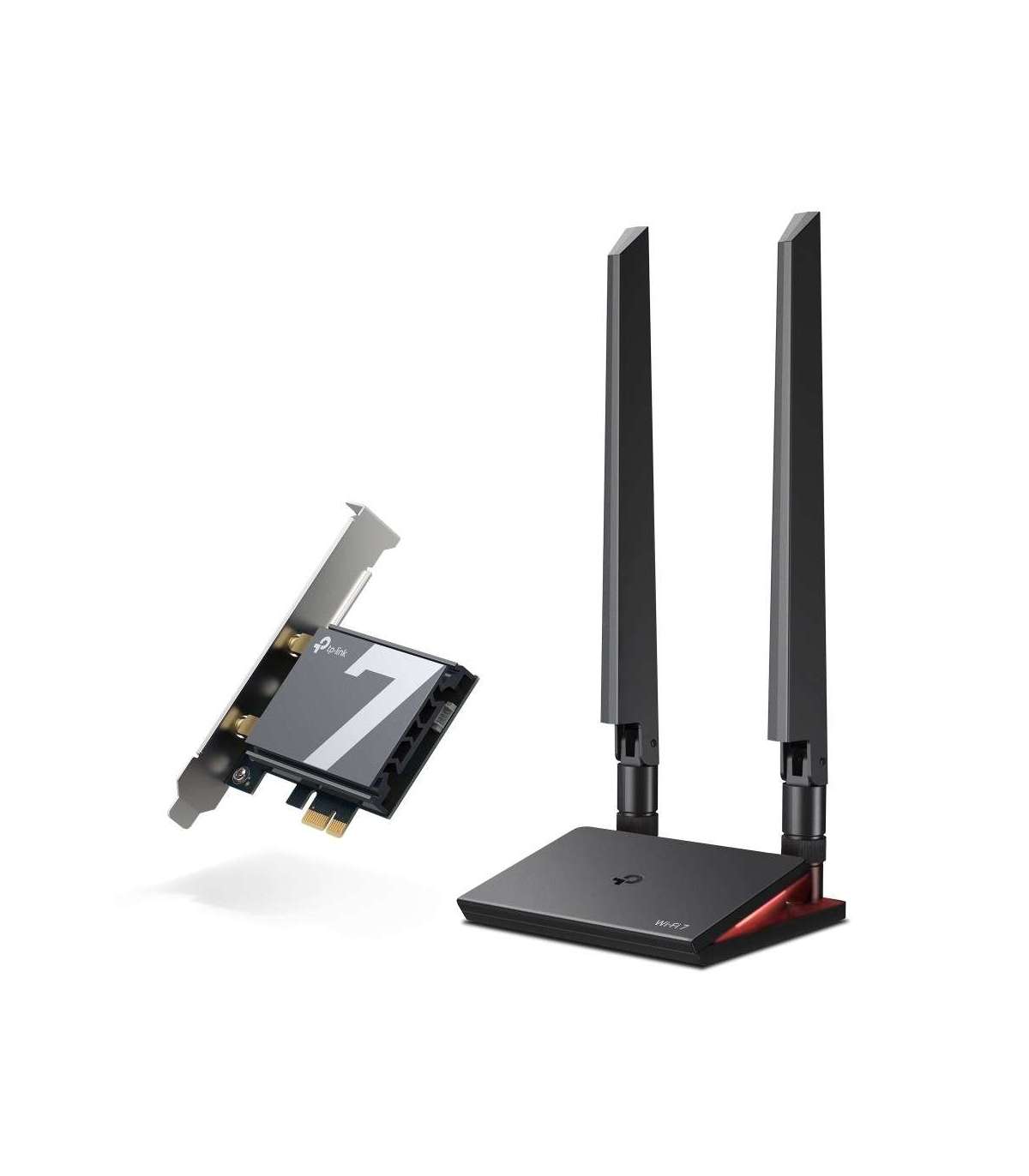

TP-Link Archer BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

Характеристики

Depth

120.8 mm

Height

21.5 mm

Width

95.2 mm

Product colour

Black

Security algorithms

WPA
WPA-PSK
WPA2
WPA2-PSK
WPA3

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)
Wi-Fi 7 (802.11be)

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Antenna design

External

LED indicators

Yes

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11be
IEEE 802.11g
IEEE 802.11n

Warnings

Avoid contact with water or moisture.
Do not expose to high temperatures.
Keep out of the reach of children.

Certification

FCC/CE/IC/NCC/JRF/VCCI/BSMI

Receiver sensitivity

6 GHz: 11ax HE20 MCS0: -94 dBm; 11be EHT320 MCS13: -44dBm; 5 GHz: 11ac VHT20 MCS0: -94 dBm; 11be EHT160 MCS13: -48dBm; 2.4 GHz: 11n HT20 MSC0: -95 dBm; 11be EHT40 MSC13: -56dBm

Wi-Fi

Yes

Component for

PC

Antenna

Yes

Internal

Yes

Maximum data transfer rate

9300 Mbit/s

Interface

WLAN / Bluetooth

Host interface

PCI Express

Connectivity technology

Wireless
