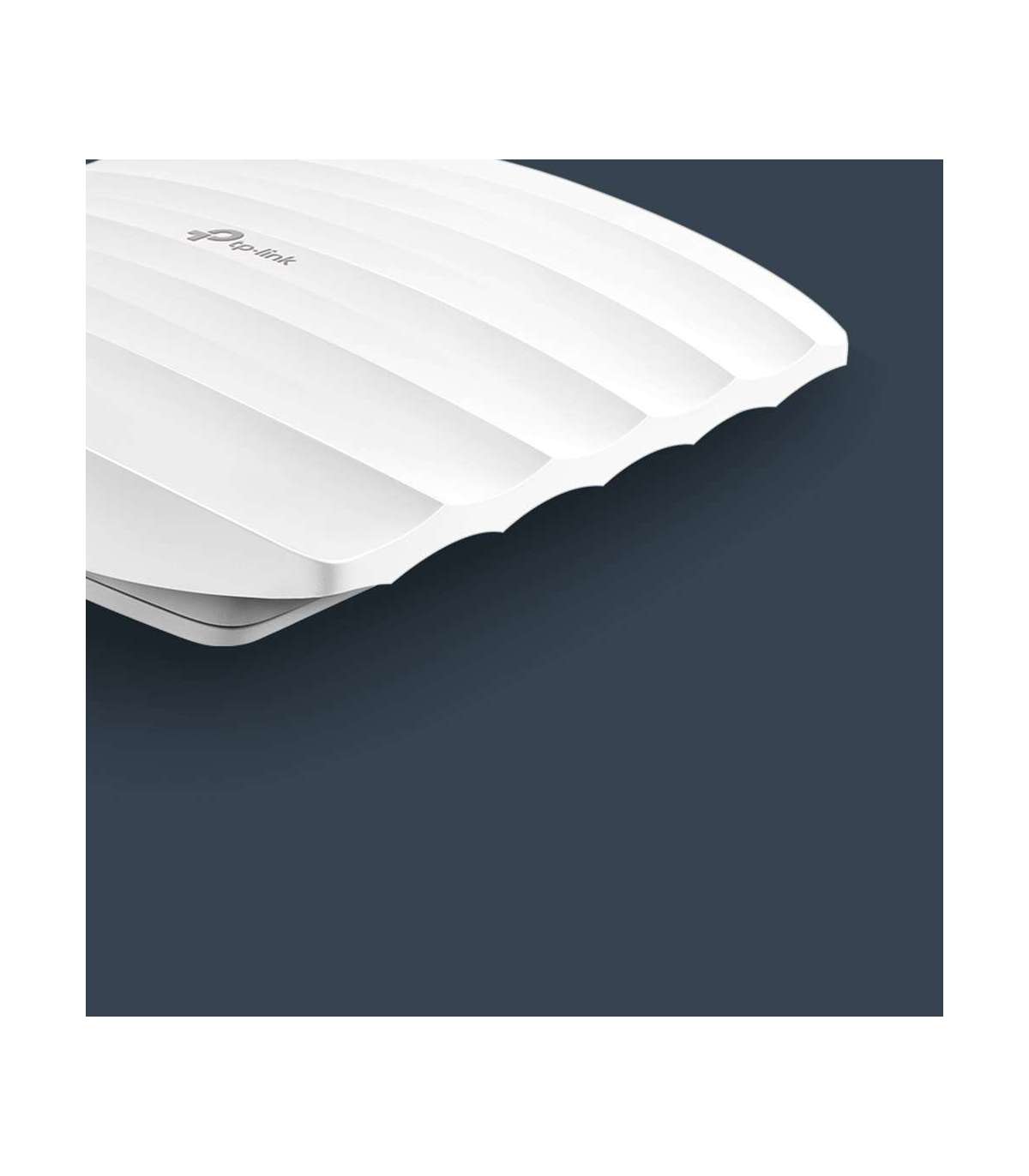

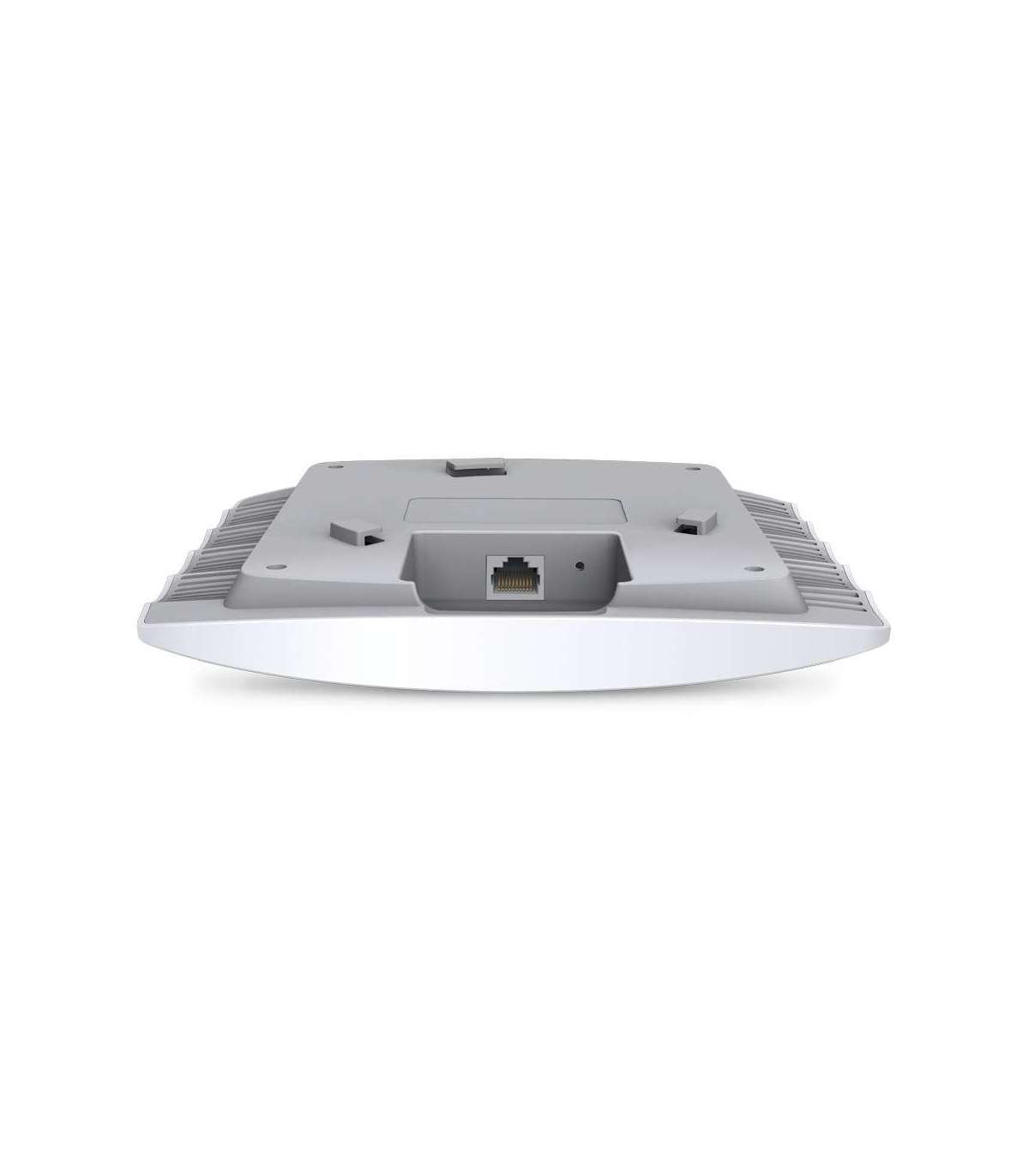

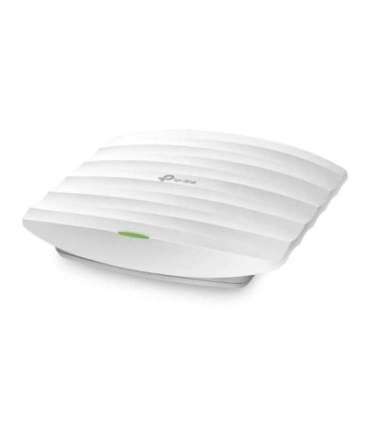

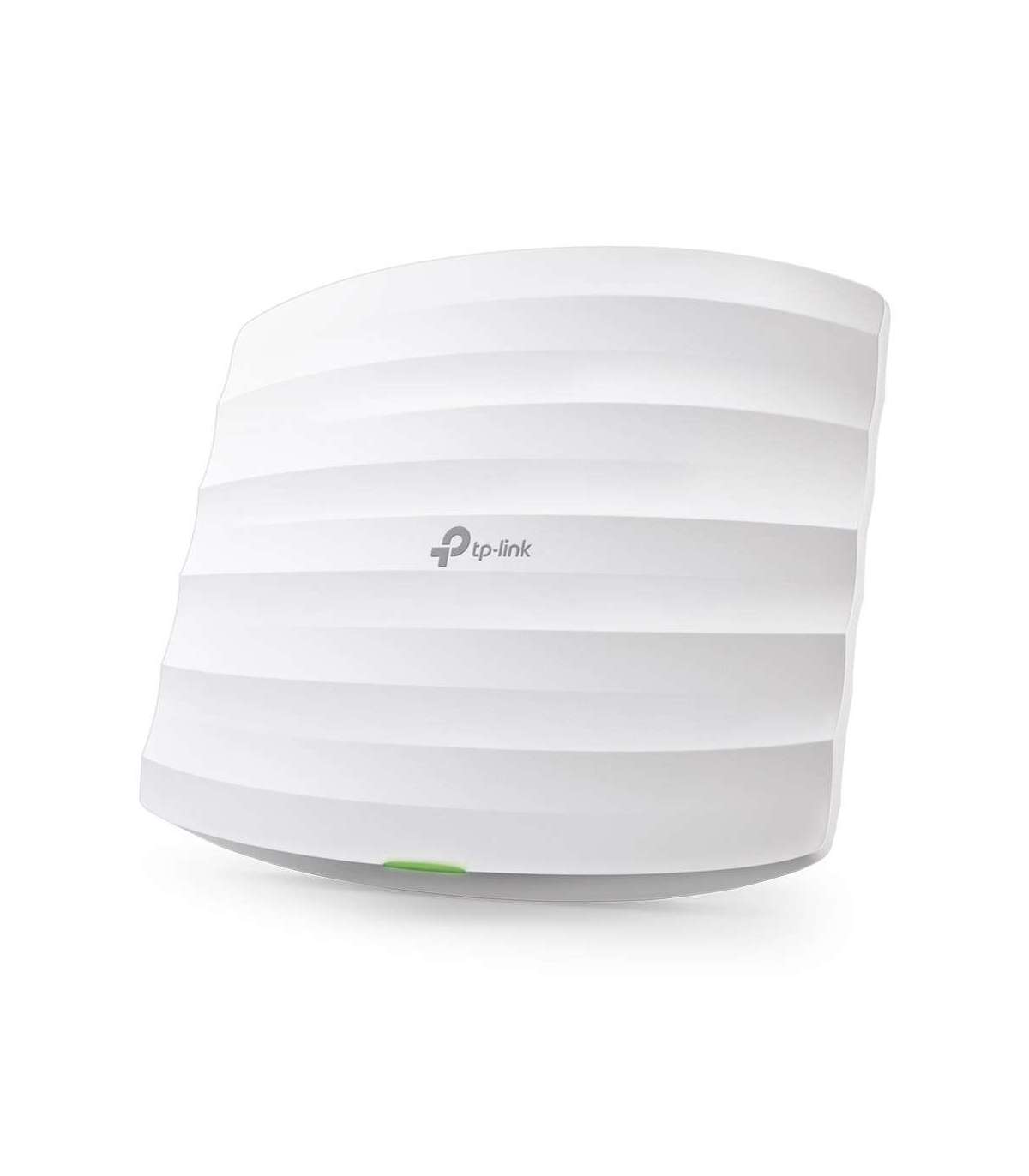

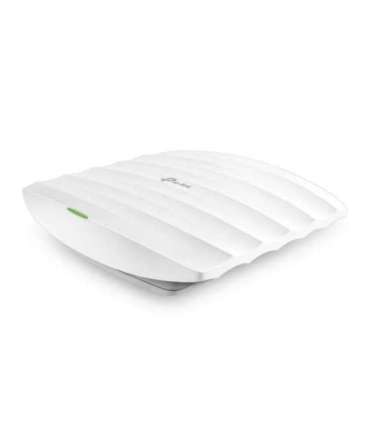

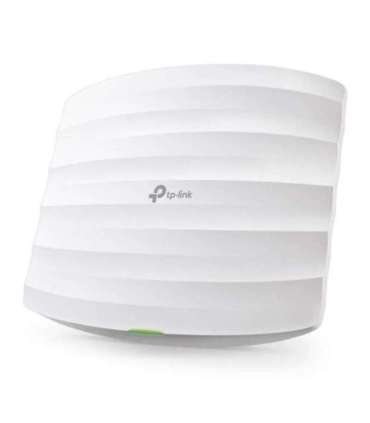

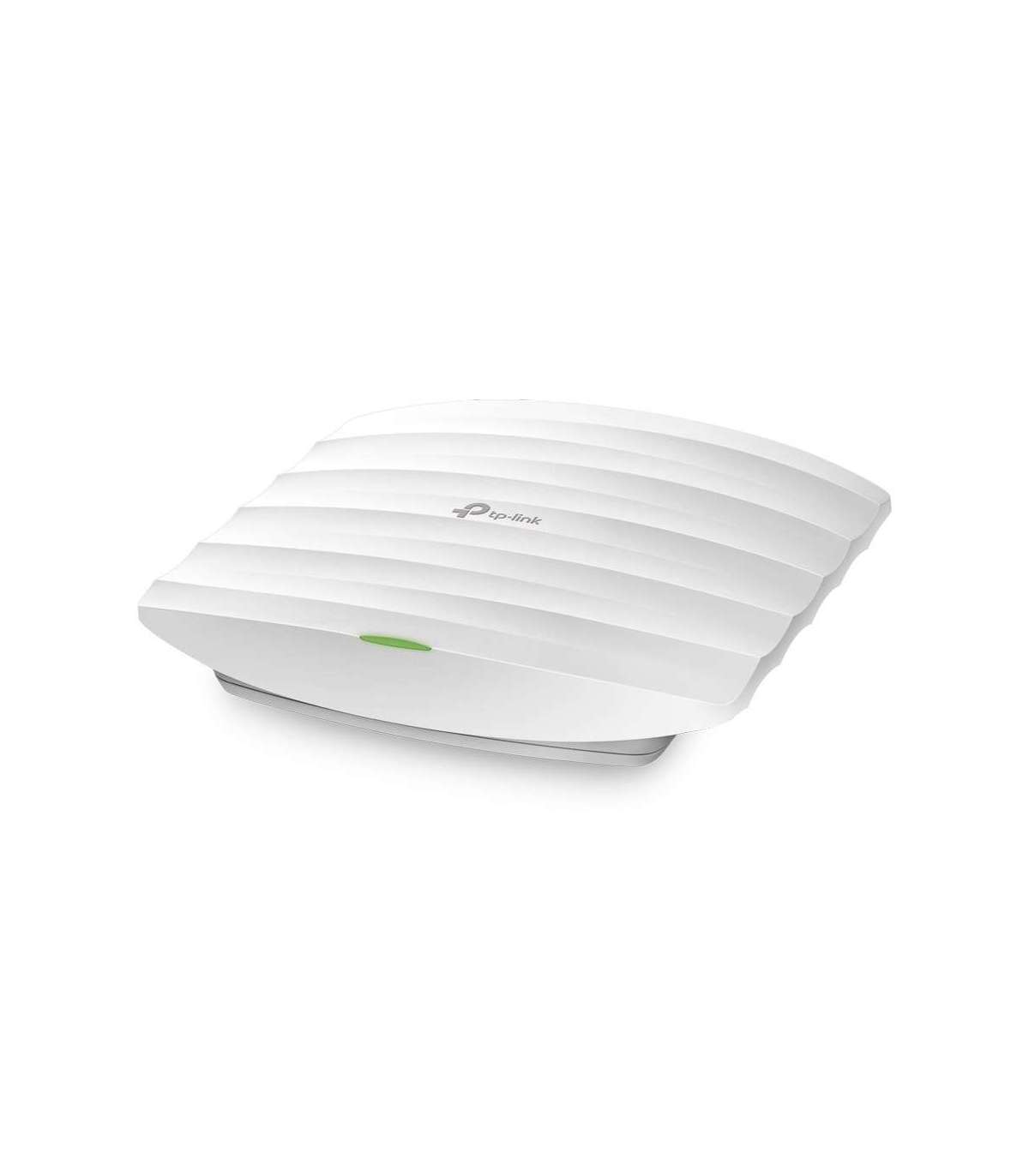

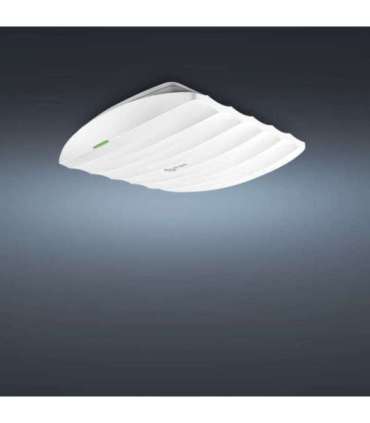

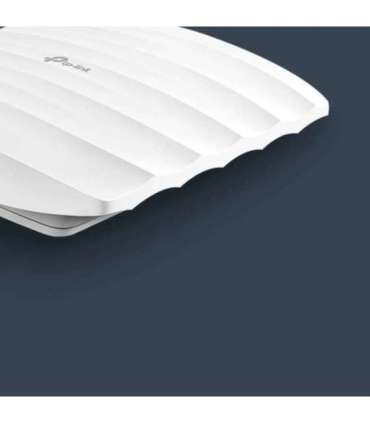

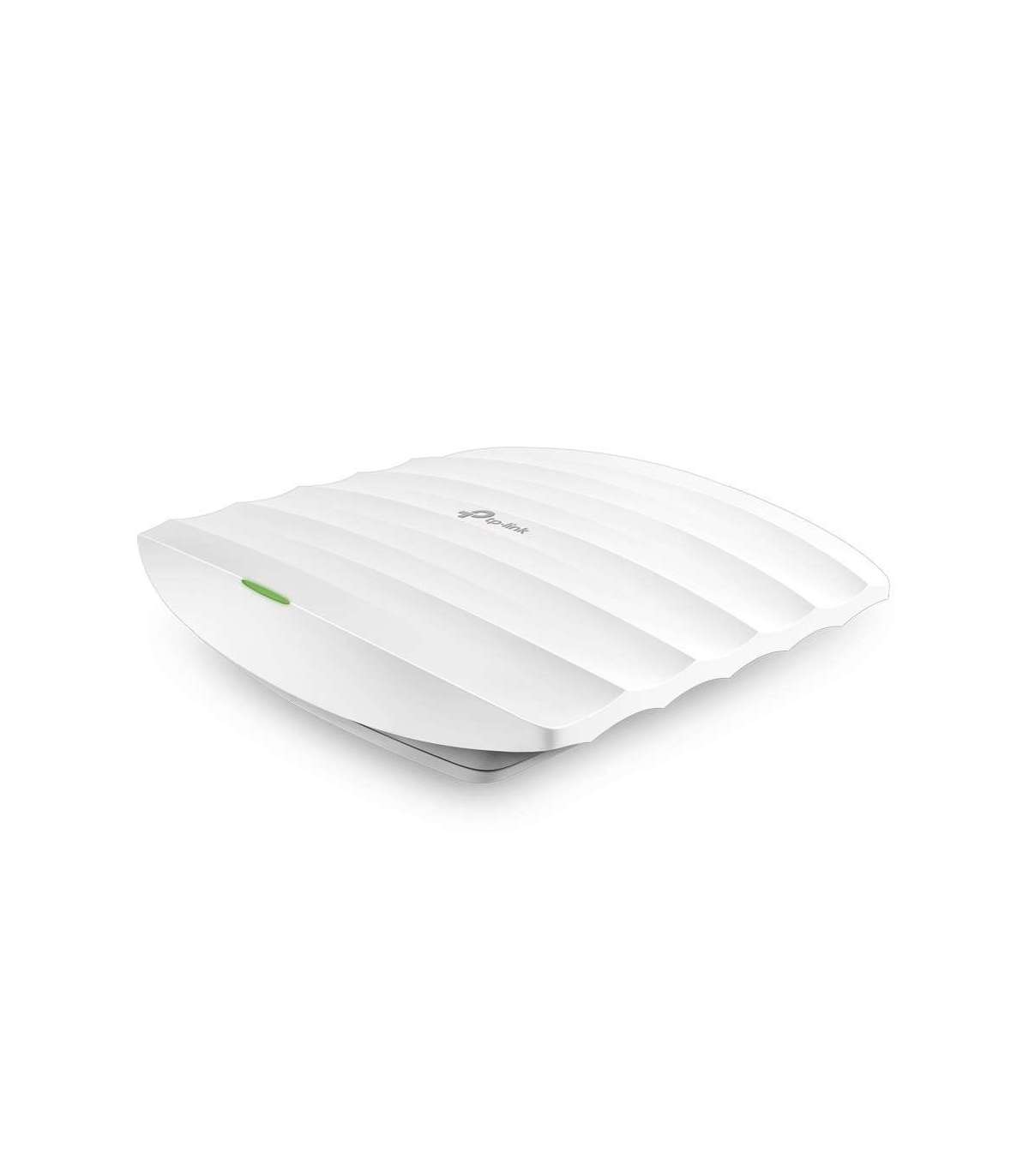

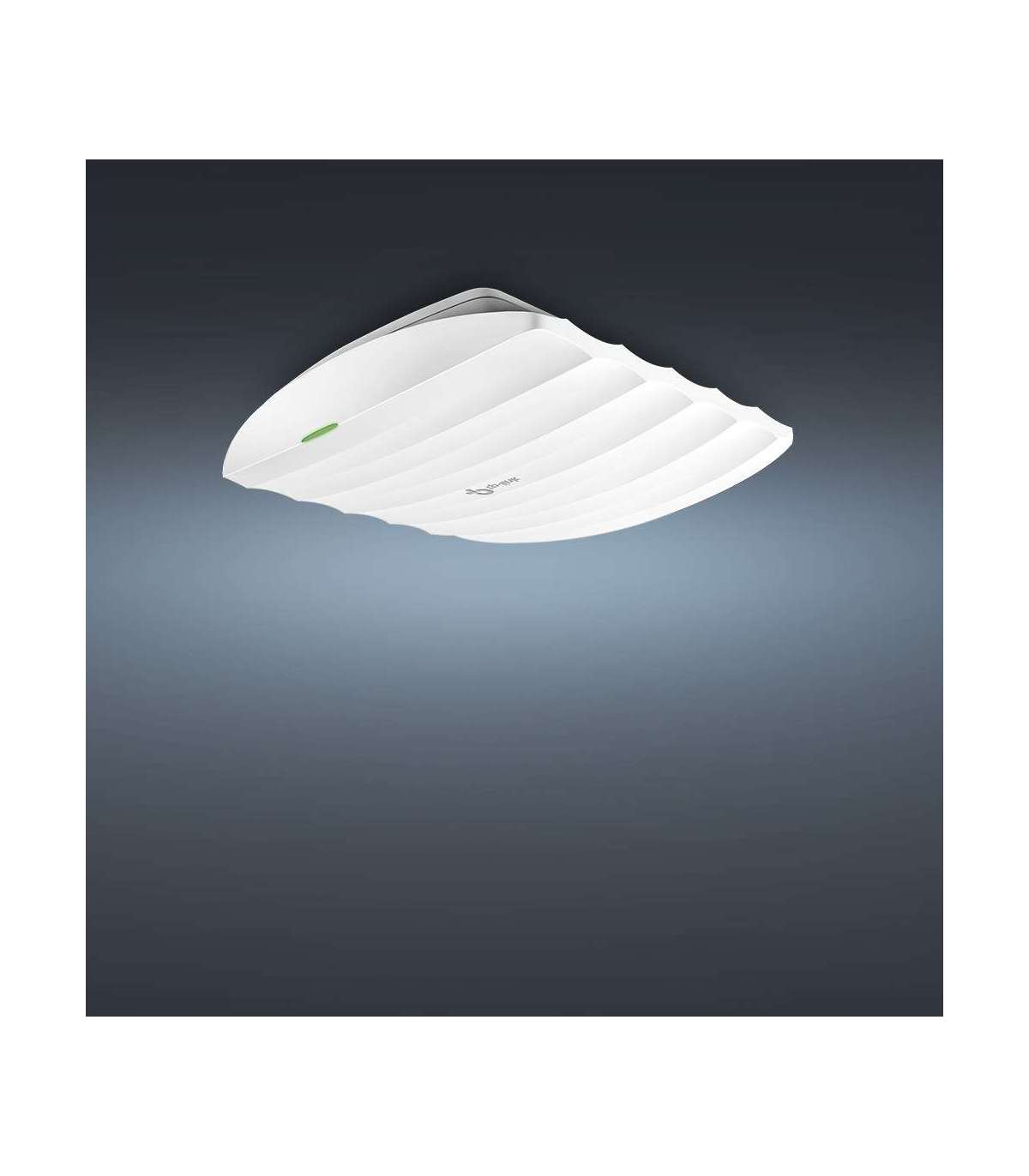

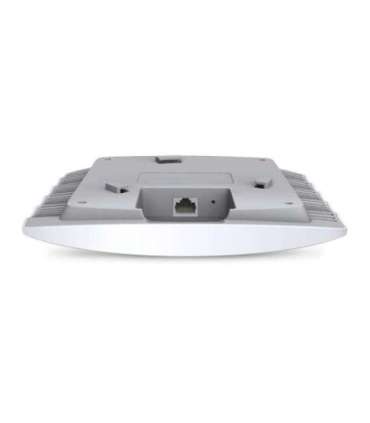

TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point

Lisainfo

Depth

170.5 mm

Kõrgus

29.7 mm

Laius

189.5 mm

Package weight

720 g

Quantity per pack

1 pc(s)

Product colour

Valge

Security algorithms

64-bit WEP
128-bit WEP
152-bit WEP
HTTPS
SNMP
SNMPv2
SSH
WPA
WPA-PSK
WPA2-Enterprise
WPA2-PSK

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Cables included

AC

Ethernet LAN (RJ-45) ports

1

Antennas quantity

2

LED indicators

Power

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s

Cabling technology

10/100Base-T(X)

Networking standards

IEEE 802.1x
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

246 mm

Package depth

268 mm

Package height

69 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

Harmonized System (HS) code

85176990

Sustainability compliance

Yes

Antenna type

Internal

AC input voltage

24 V

Quick start guide

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

4 dBi

Power over Ethernet (PoE)

Yes

Power consumption (typical)

2.8 W

Frequency band

2.4 - 2.4835 GHz

Receiver sensitivity

300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER

Package type

Box

Antenna direction type

Omni-directional

Maximum data transfer rate

300 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

No

Placement

Ceiling, Wall

PoE adapter included

Yes

Virtual LAN features

VLAN mapping

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

VLAN support

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Syslog

Yes

Number of SSID supported

8

Service Set Identifier (SSID) features

Multiple SSIDs

Transmitting power (FCC)

21 dBm

Transmitting power (CE)

19 dBm

Wireless isolation

Yes

Rate limiting

Yes
