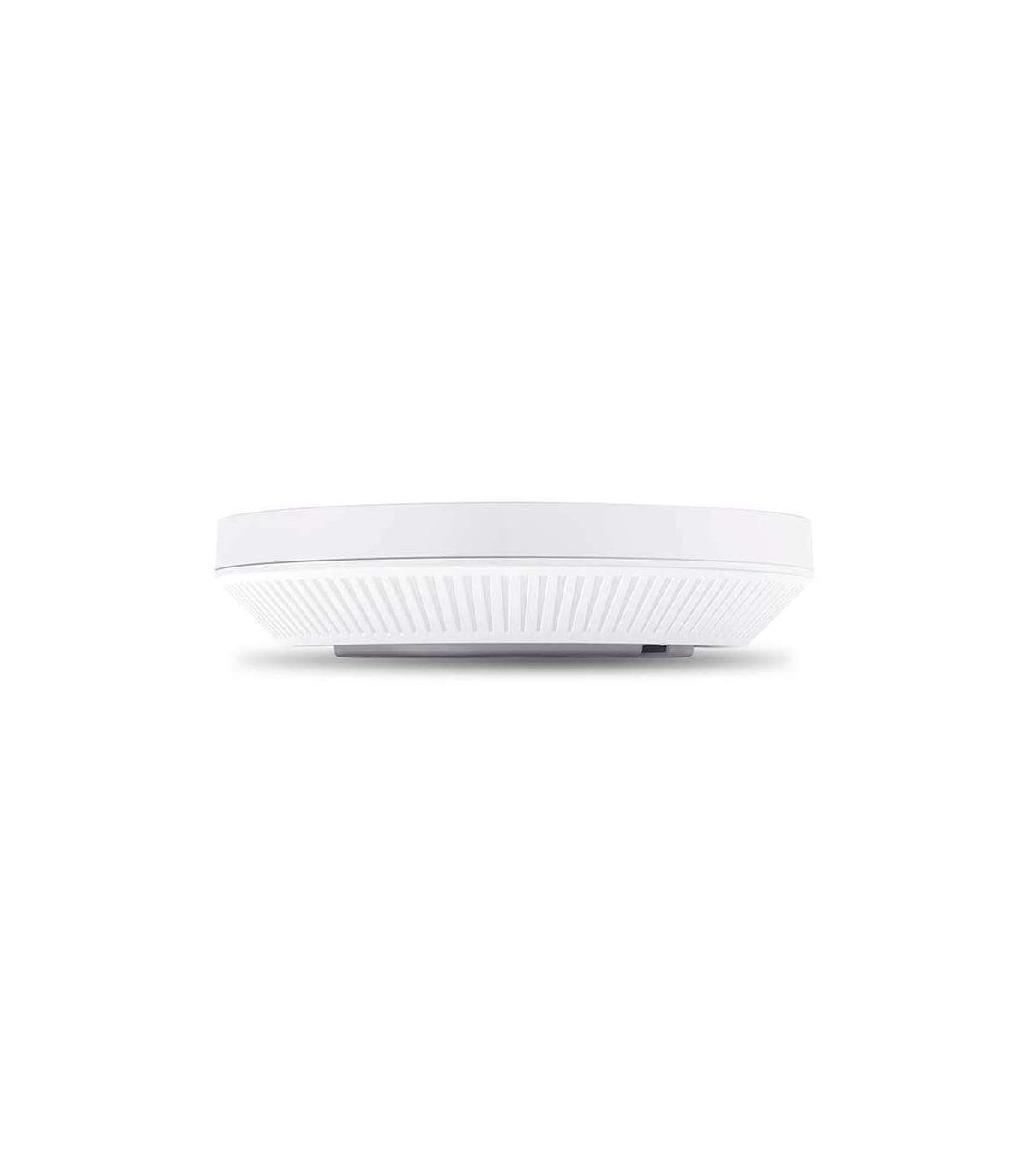

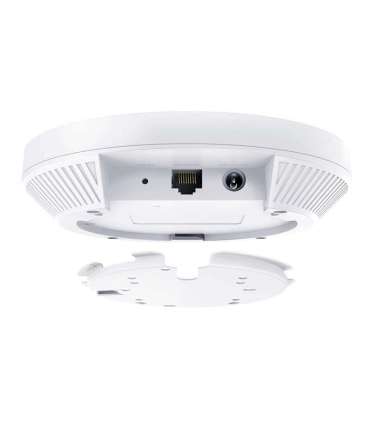

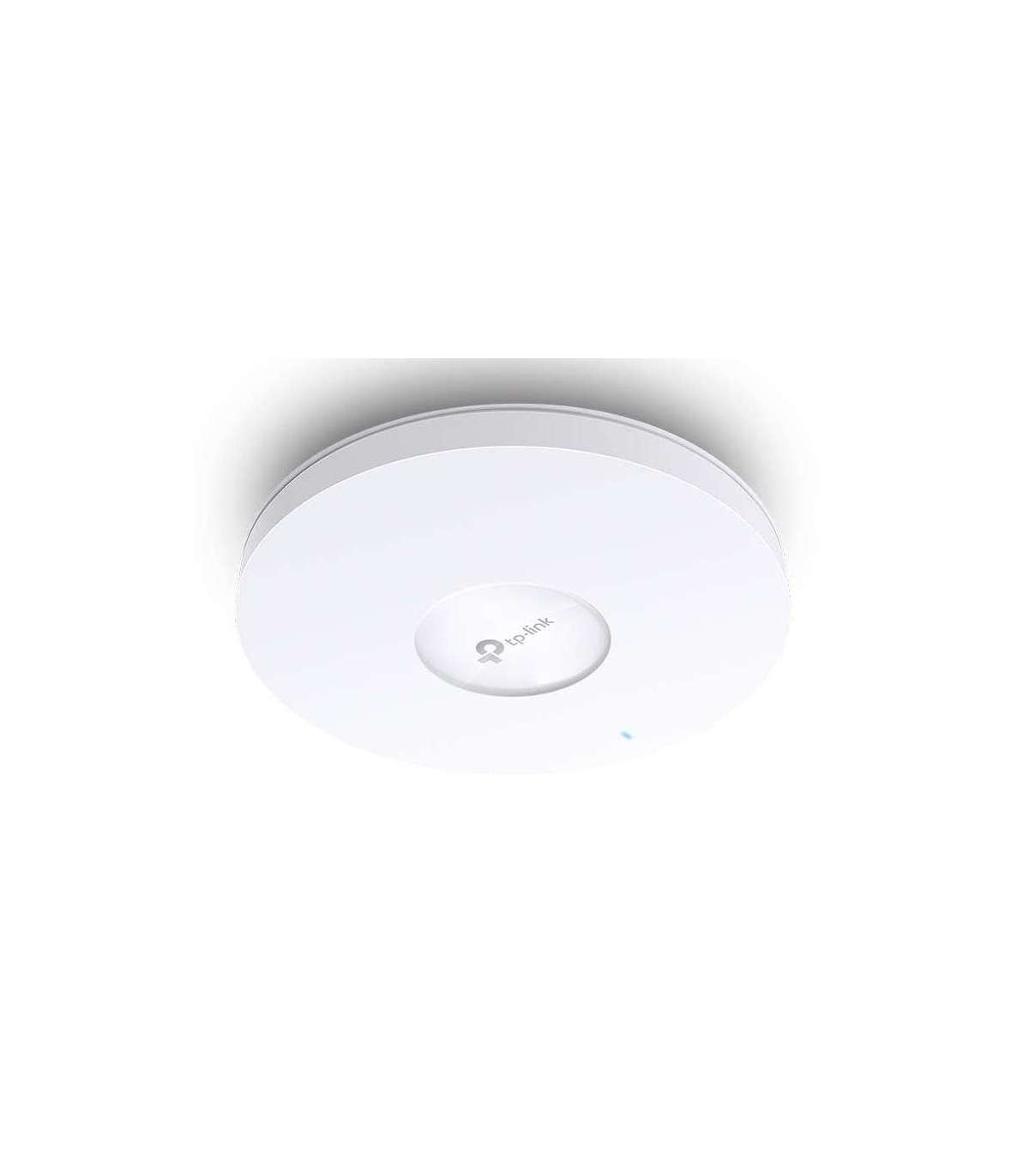

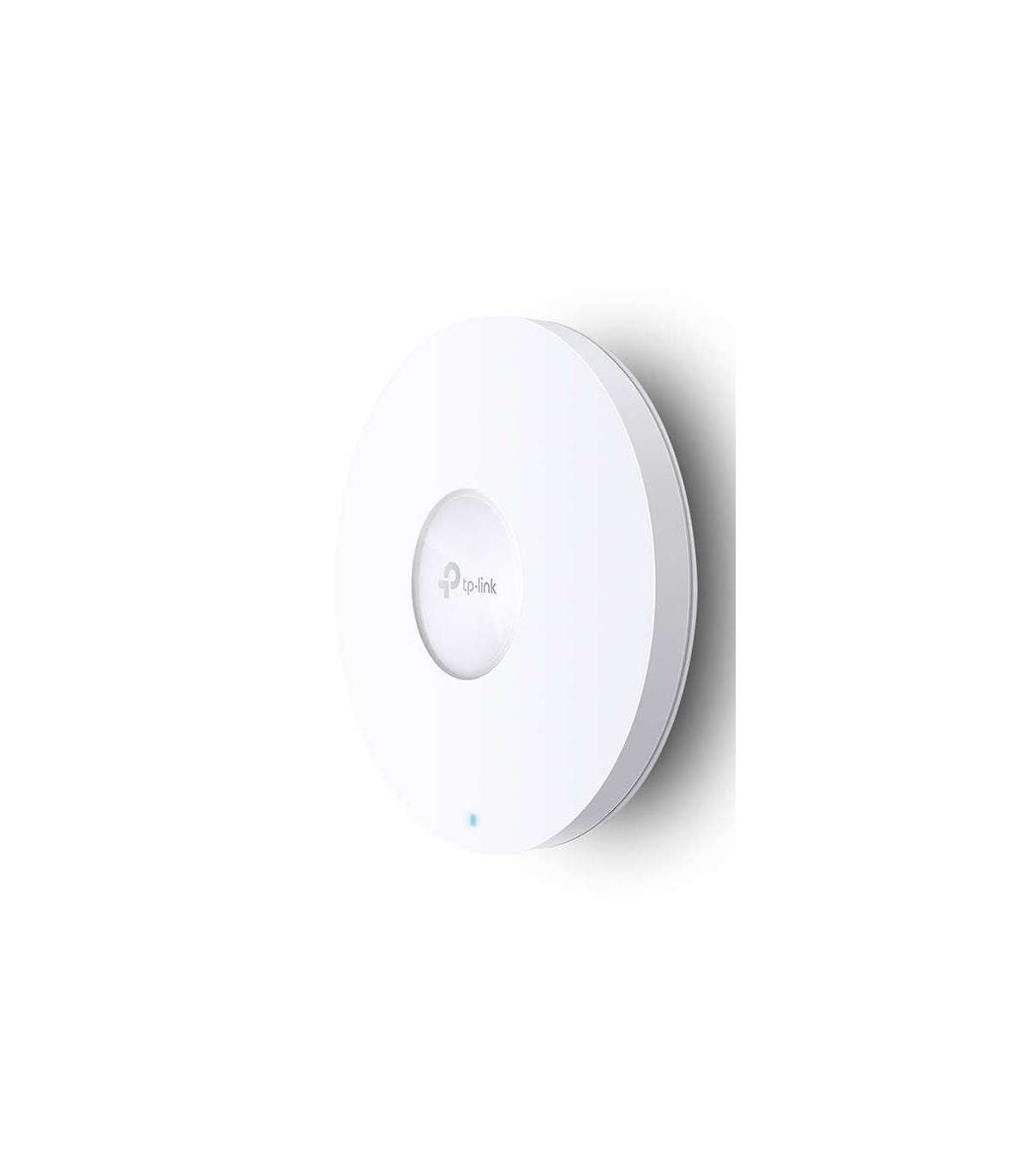

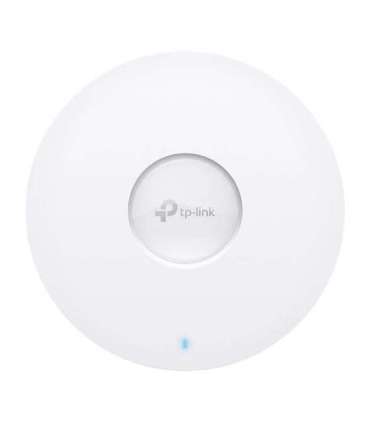

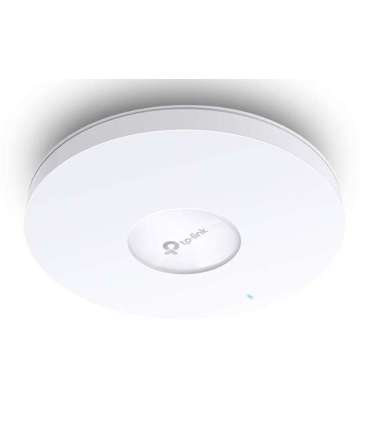

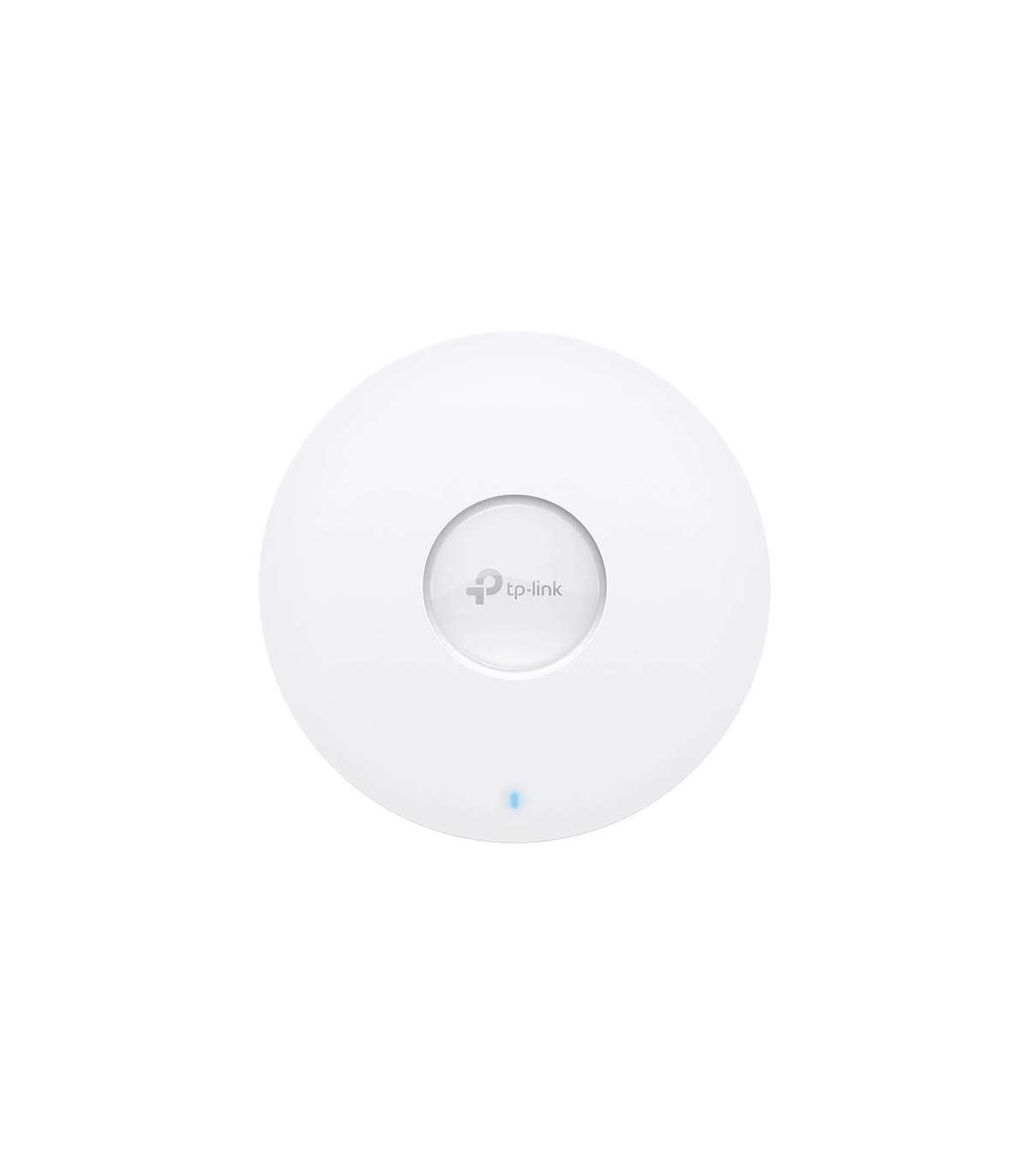

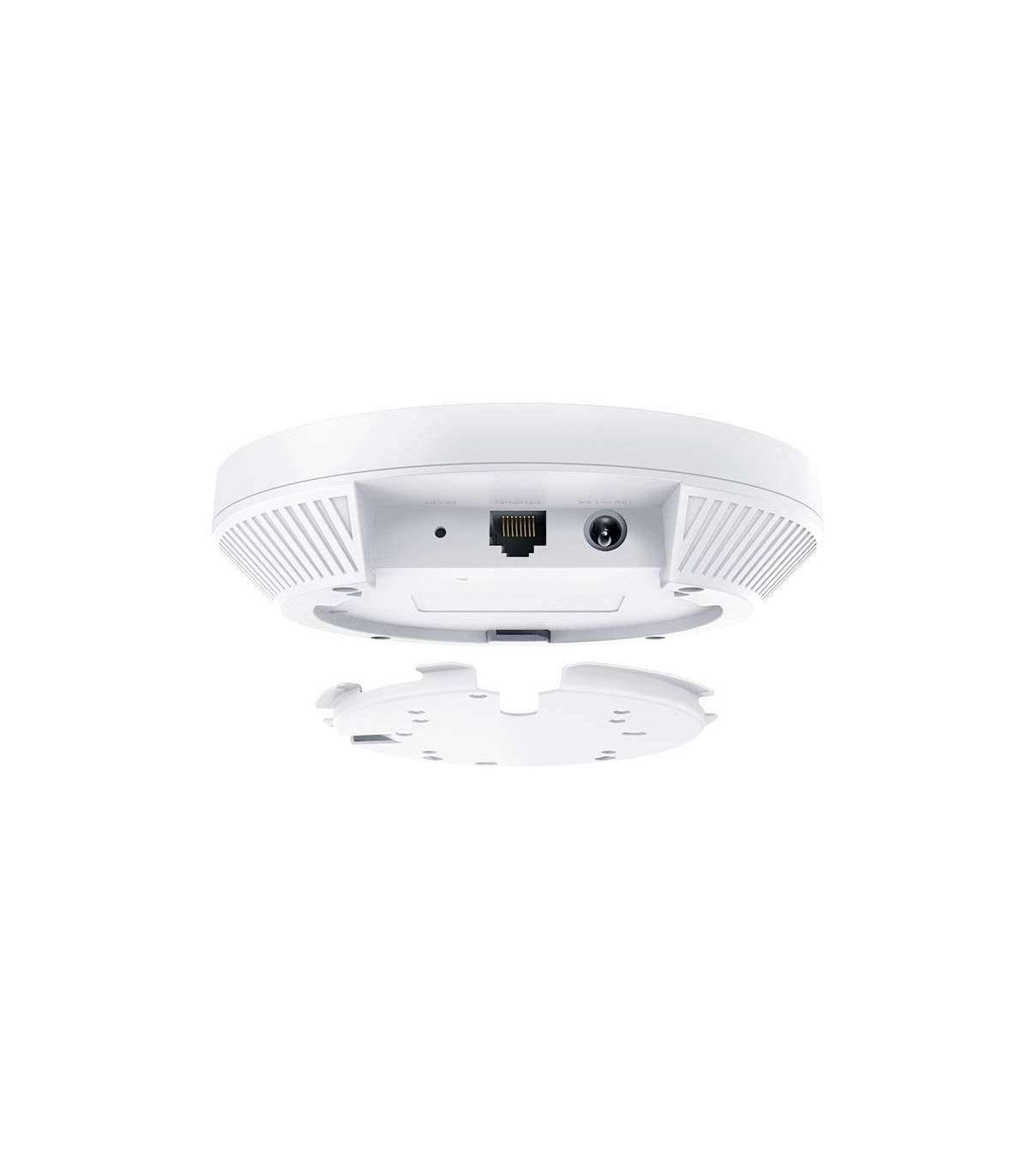

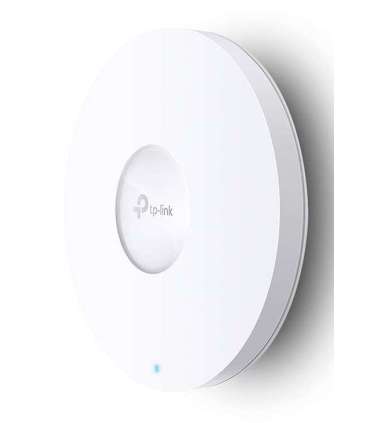

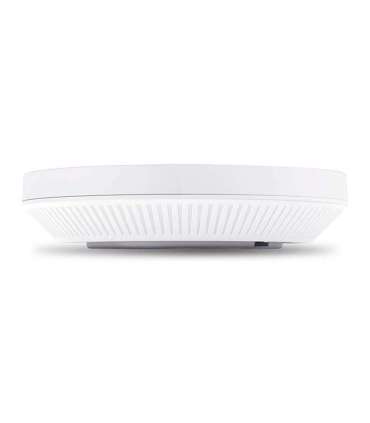

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point

Lisainfo

Depth

160 mm

Kõrgus

33.6 mm

Laius

160 mm

Quantity per pack

1 pc(s)

Product colour

Valge

Security algorithms

HTTPS
SNMP
SNMPv2
SNMPv3
WPA
WPA2
WPA3

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 90 °C

Operating relative humidity (H-H)

0 - 40%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Ethernet LAN (RJ-45) ports

1

Antennas quantity

4

LED indicators

Yes

Web-based management

Yes

Ethernet LAN data rates

100 Mbit/s
1000

Networking standards

IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

DC-in jack

Yes

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Antenna type

Internal

Quick start guide

Yes

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

5 dBi

Power over Ethernet (PoE)

Yes

MIMO

Yes

Power consumption (typical)

9.6 W

Input current

1 A

Frequency band

2.4 - 5 GHz

Power consumption (max)

10.6 W

BeamForming

Yes

Maximum data transfer rate

1775 Mbit/s

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

Yes

Placement

Ceiling, Wall

Spread spectrum method

OFDMA

MIMO type

Multi User MIMO

Maximum data transfer rate (5 GHz)

1201 Mbit/s

6 GHz

No

Maximum data transfer rate (2.4 GHz)

574 Mbit/s

VLAN support

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Automatic channel selection

Yes

Number of SSID supported

16

Band steering

Yes

Wireless isolation

Yes

Rate limiting

Yes

DC voltage range

12 V

Automatic channel scanning

Yes

Management platform

Omada

Airtime Fairness (ATF)

Yes
