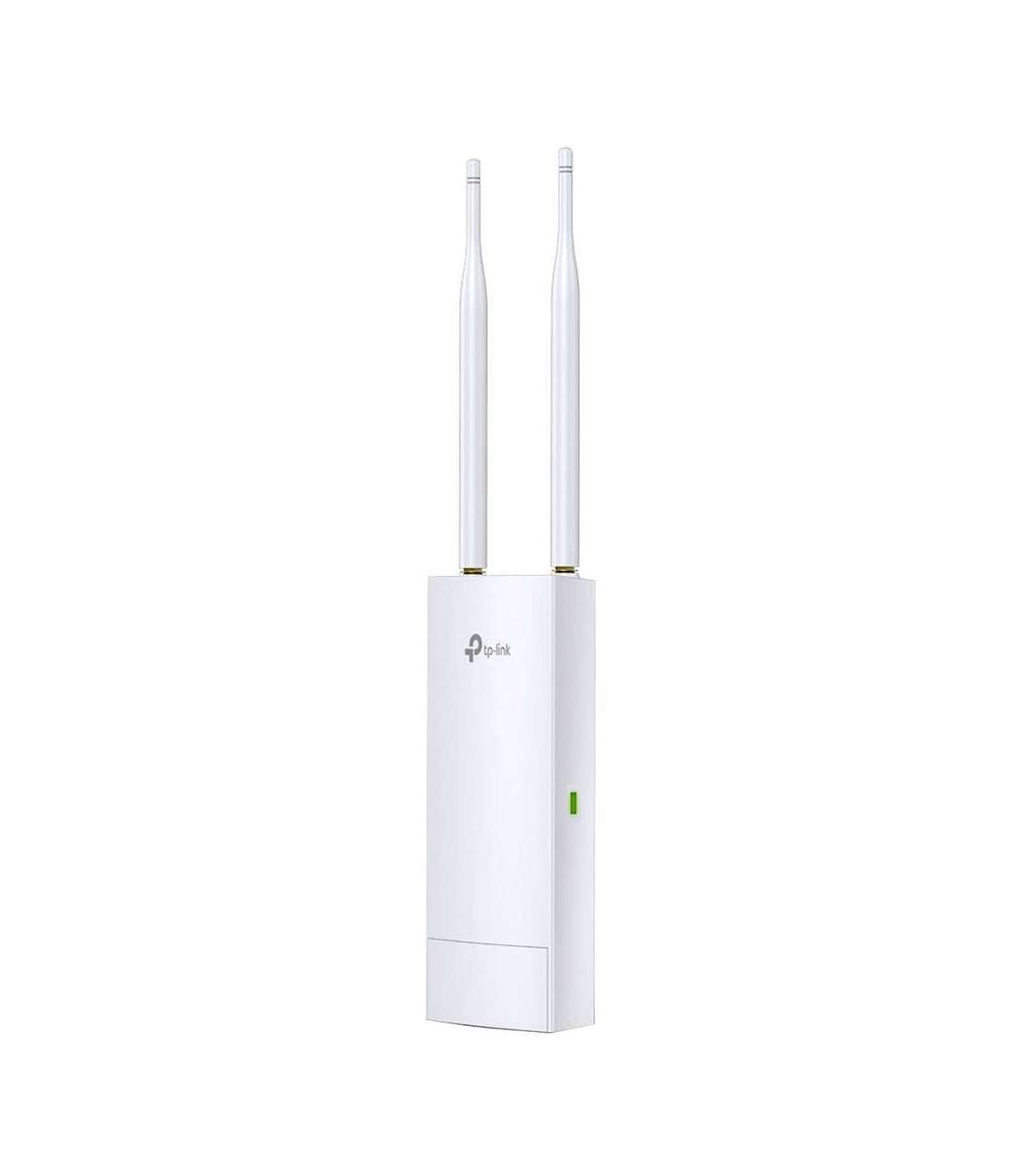

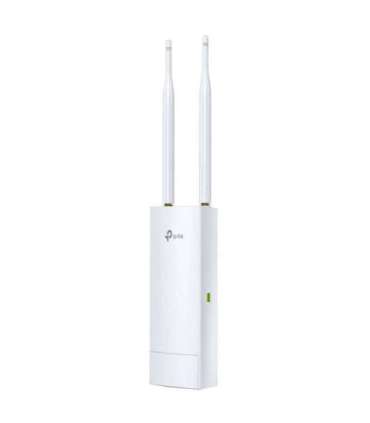

TP-Link Omada 300Mbps Wireless N Outdoor Access Point

Lisainfo

Depth

46 mm

Kõrgus

27 mm

Laius

216 mm

Package weight

620 g

Quantity per pack

1 pc(s)

Product colour

Valge

Output voltage

24 V

Output current

0.6 A

Security algorithms

WPA-Enterprise
WPA-PSK
WPA2-Enterprise
WPA2-PSK

Access Control List (ACL)

Yes

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-30 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Reset button

Yes

Cables included

AC

Ethernet LAN (RJ-45) ports

1

Antennas quantity

2

LED indicators

Power

MAC address filtering

Yes

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ethernet LAN data rates

10
100 Mbit/s

Networking standards

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Package width

140 mm

Package depth

270 mm

Package height

100 mm

Compliance certificates

CE
Federal Communications Commission (FCC)
RoHS

Warnings

Avoid direct contact with water.
Do not expose to prolonged moisture.
Electronic products should be recycled at specialist electronic waste collection facilities.

Sustainability compliance

Yes

Antenna included

Yes

Certification

CE, FCC, RoHS

Antenna type

External

Wi-Fi Multimedia (WMM)/(WME)

Yes

Antenna gain level (max)

3 dBi

Management protocols

HTTP/HTTPS, SNMP, Telnet

Power over Ethernet (PoE)

Yes

Frequency band

2.4 GHz

Package type

Box

Power consumption (max)

3.12 W

Antenna direction type

Omni-directional

Maximum data transfer rate

300 Mbit/s

International Protection (IP) code

IP65

Mounting kit

Yes

2.4 GHz

Yes

5 GHz

No

Placement

Pole, Wall

PoE adapter included

Yes

Antenna features

Detachable antenna

Virtual LAN features

Tagged VLAN
VLAN mapping

6 GHz

No

Maximum data transfer rate (2.4 GHz)

300 Mbit/s

VLAN support

Yes

Power over Ethernet (PoE) type supported

Passive PoE

Syslog

Yes

Automatic channel selection

Yes

Number of SSID supported

8

Service Set Identifier (SSID) features

Multiple SSIDs

Transmitting power (FCC)

22 dBm

Transmitting power (CE)

20 dBm

Wireless isolation

Yes

Rate limiting

Yes

Remote Authentication Dial-In User Service (RADIUS)

Yes
