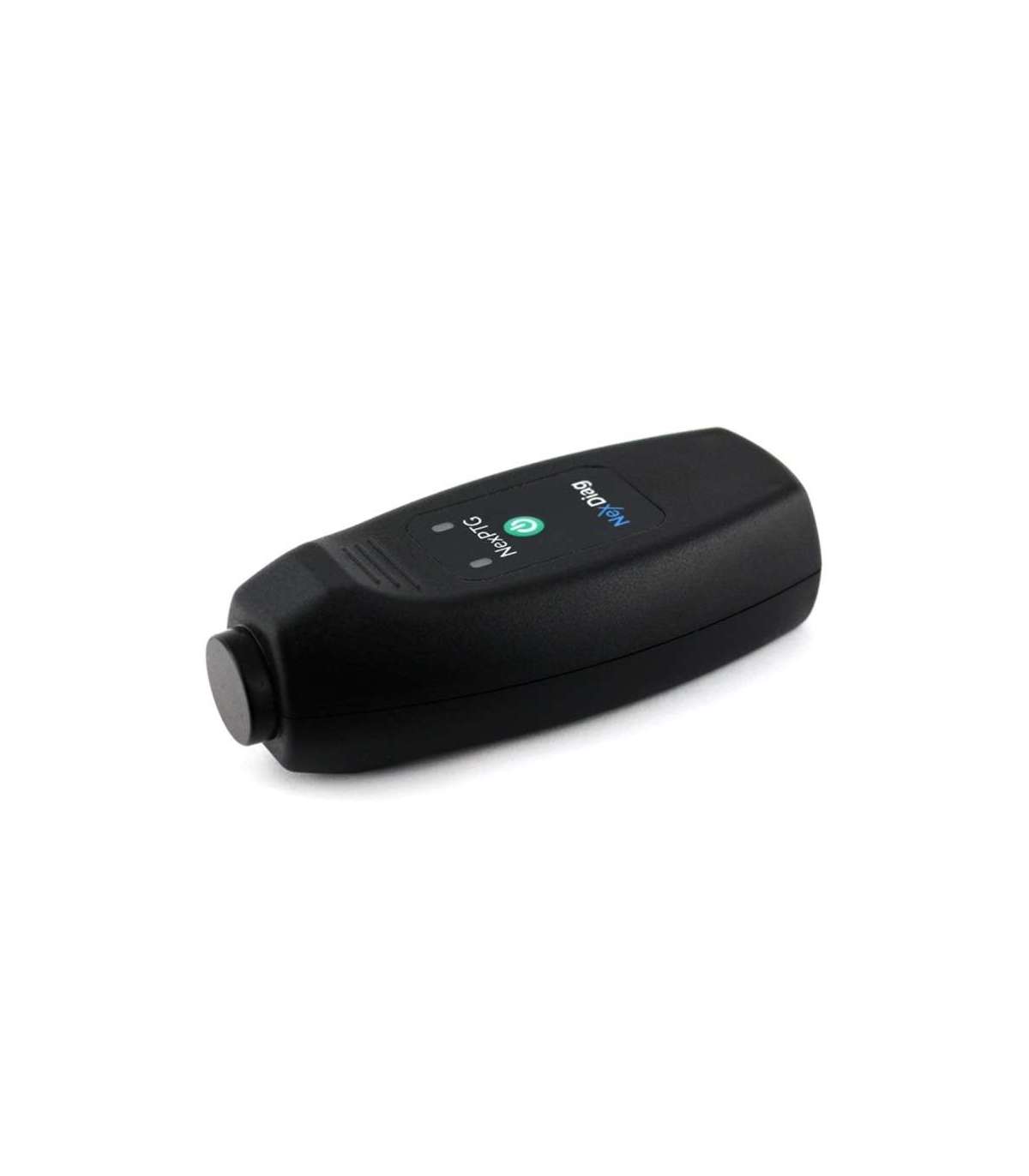

Advanced Paint thickness gauge

Description:

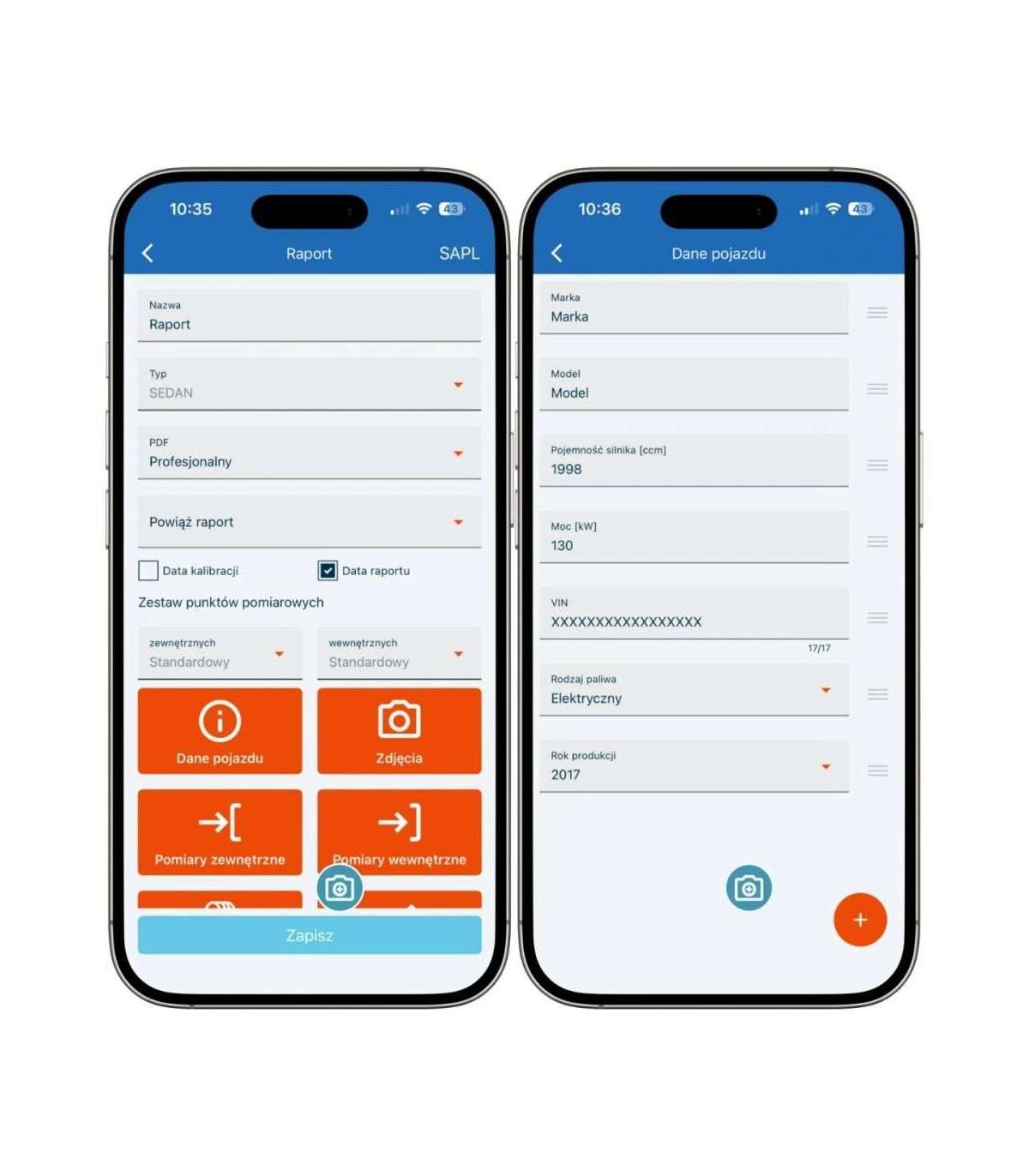

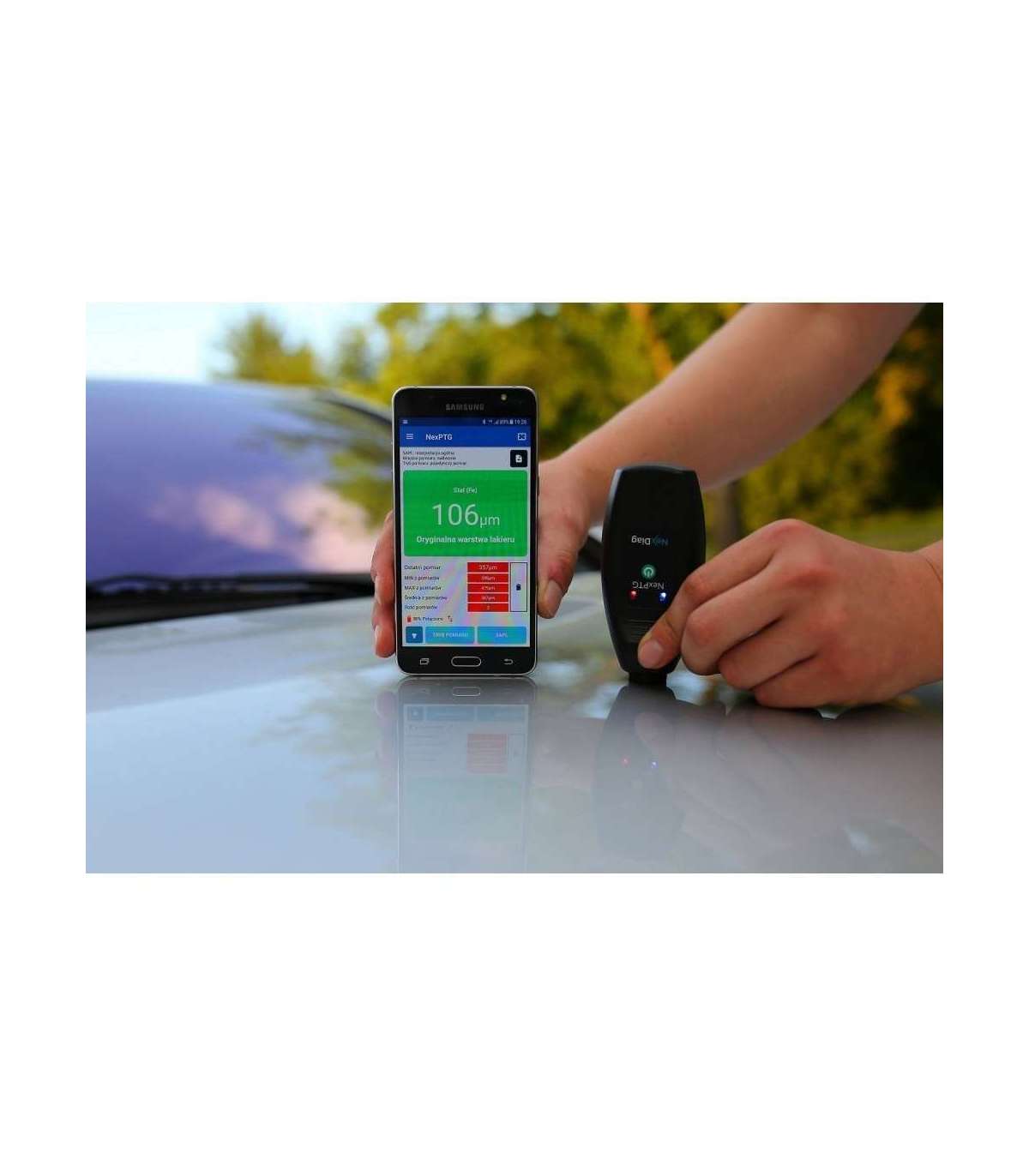

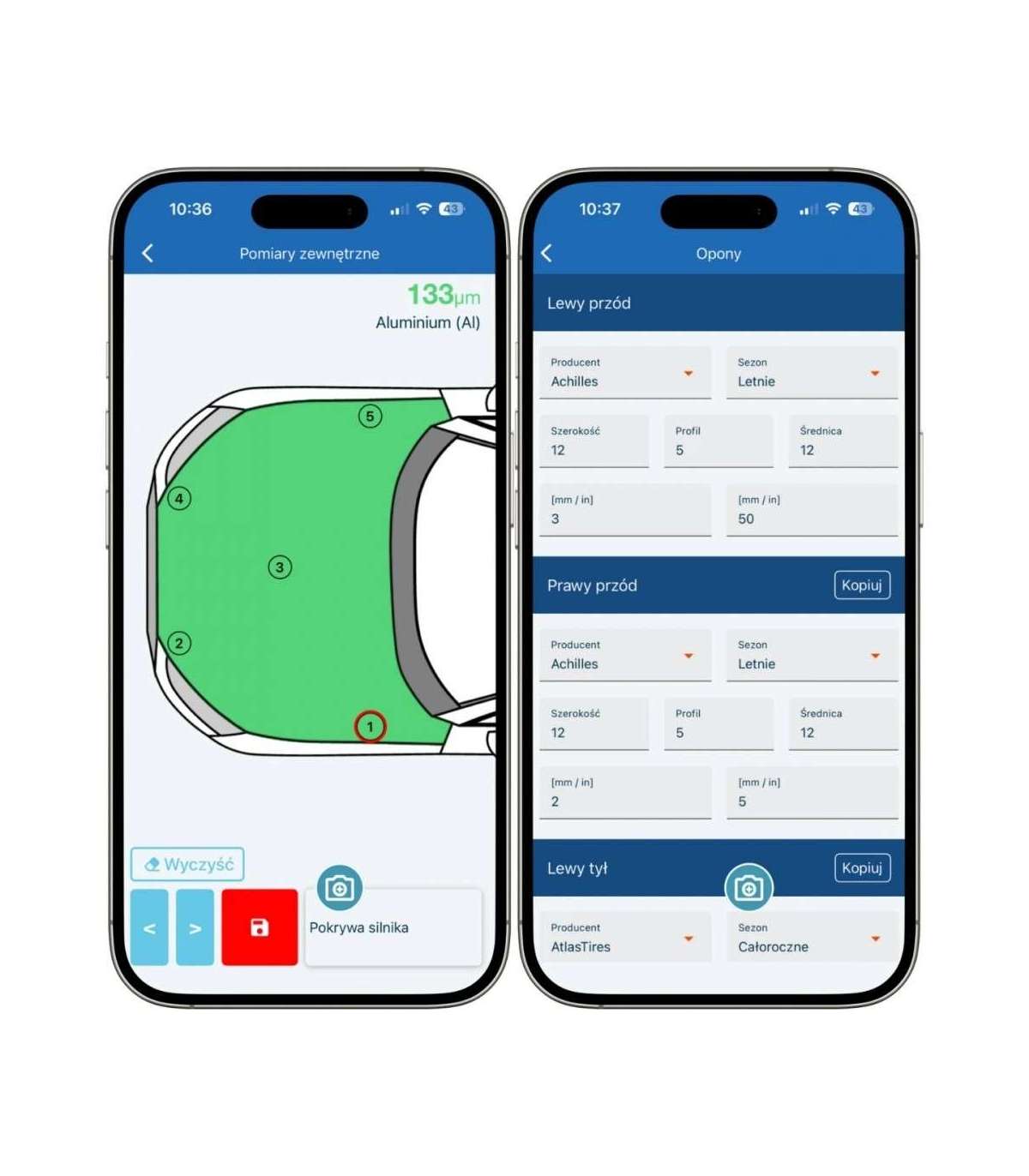

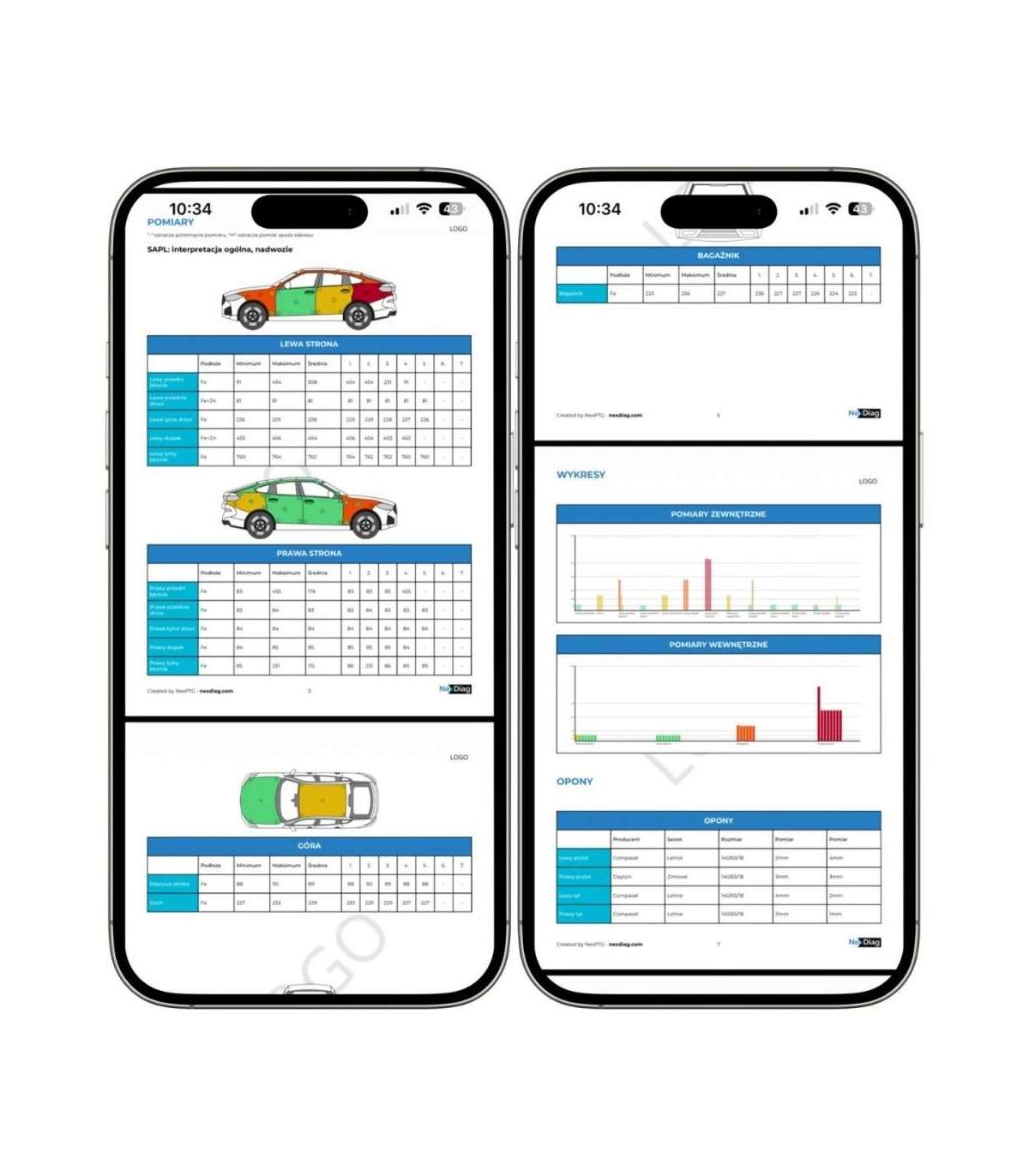

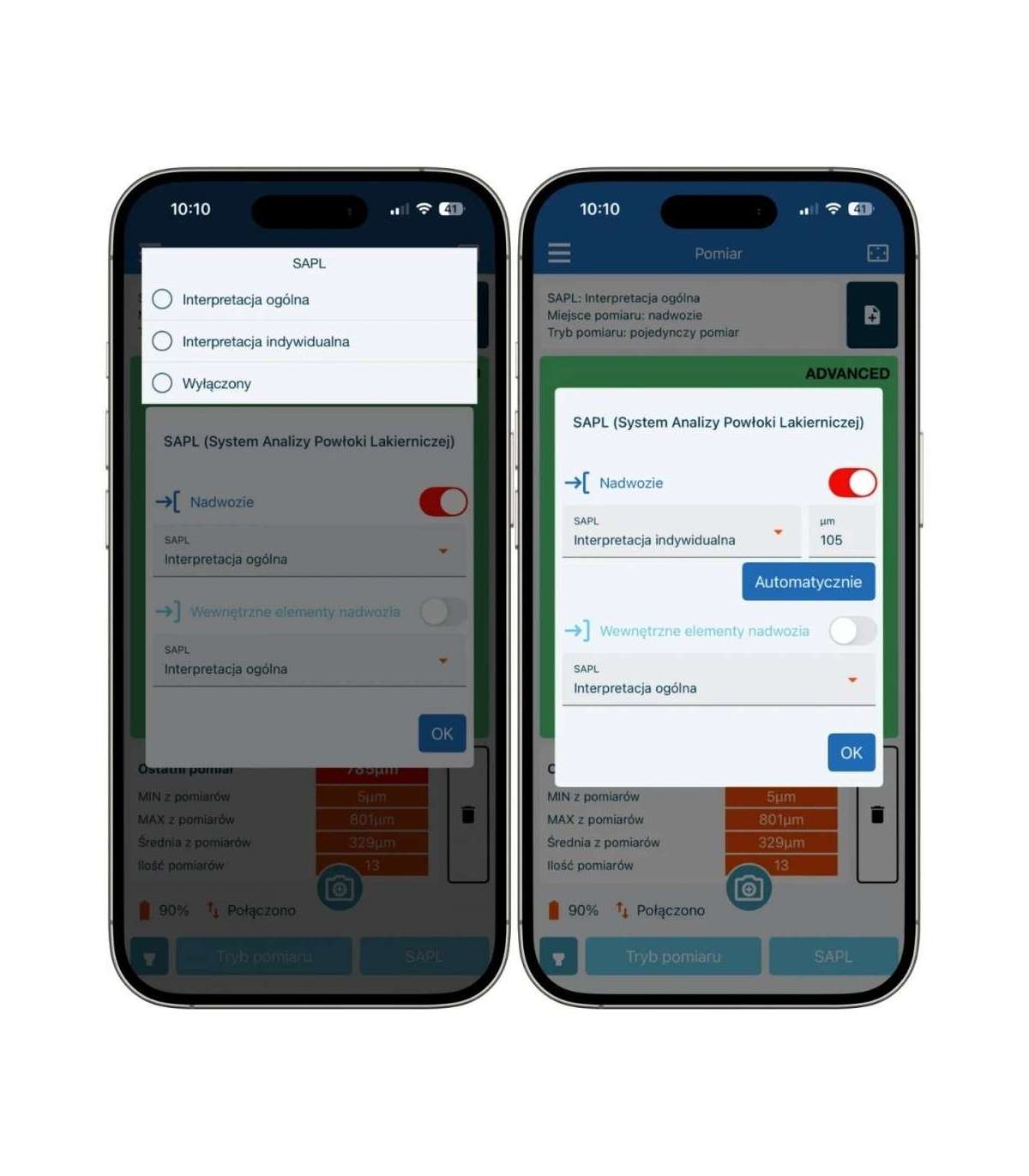

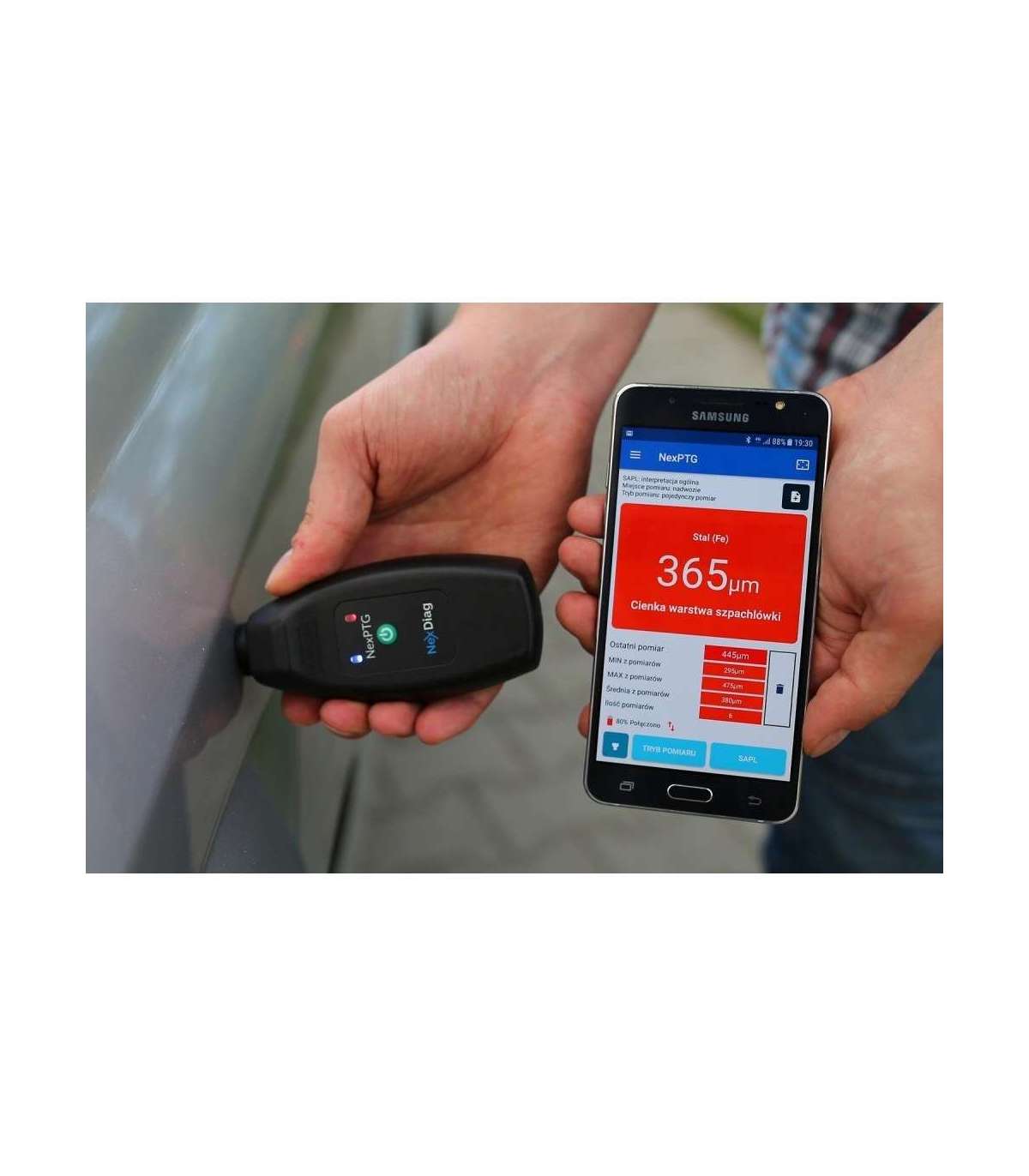

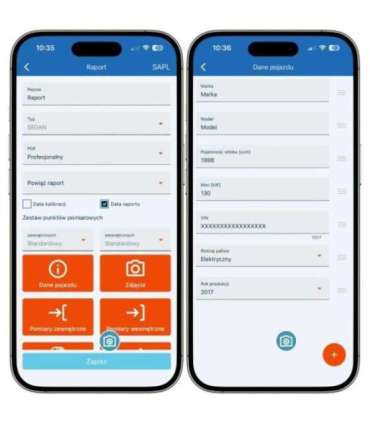

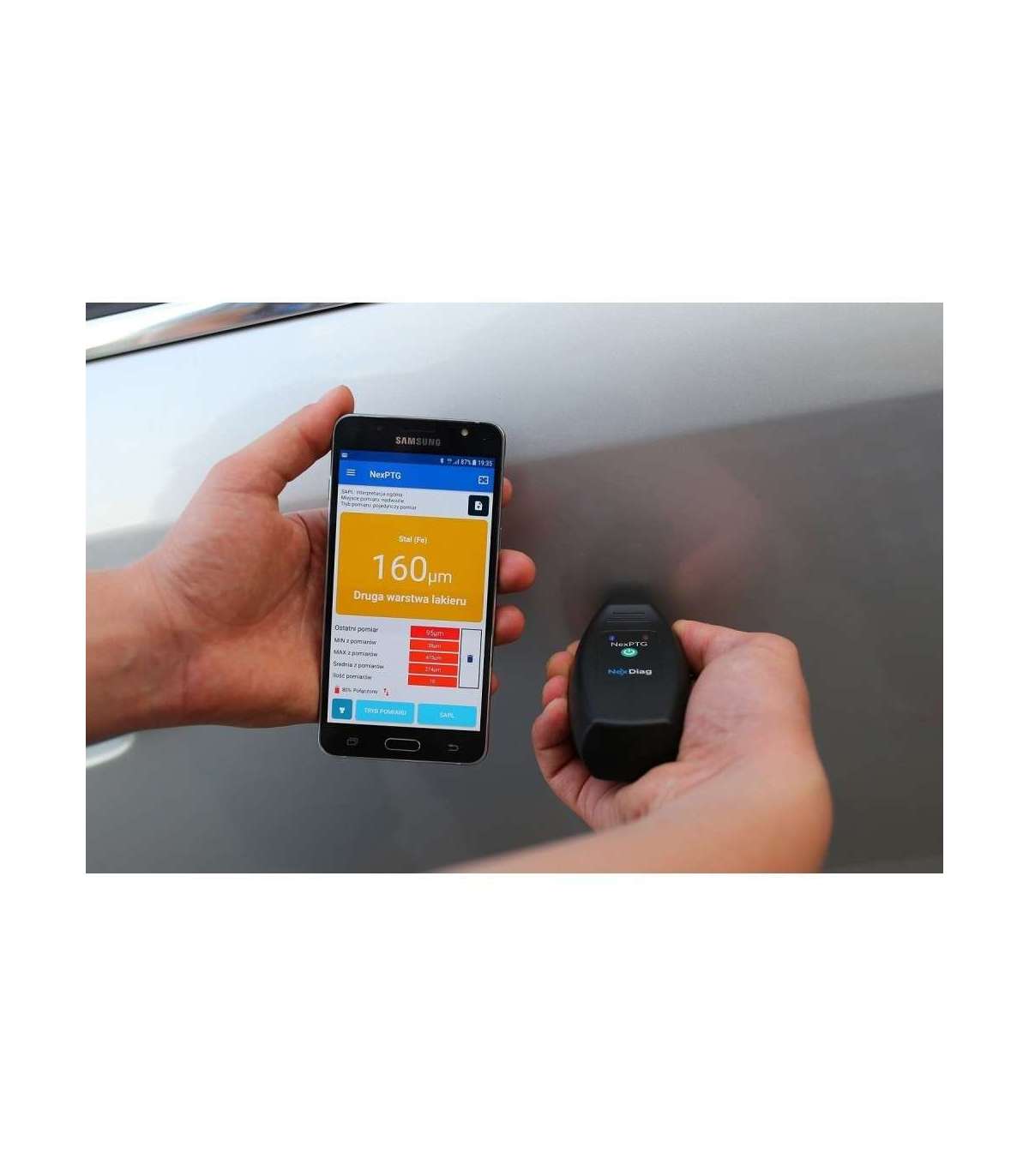

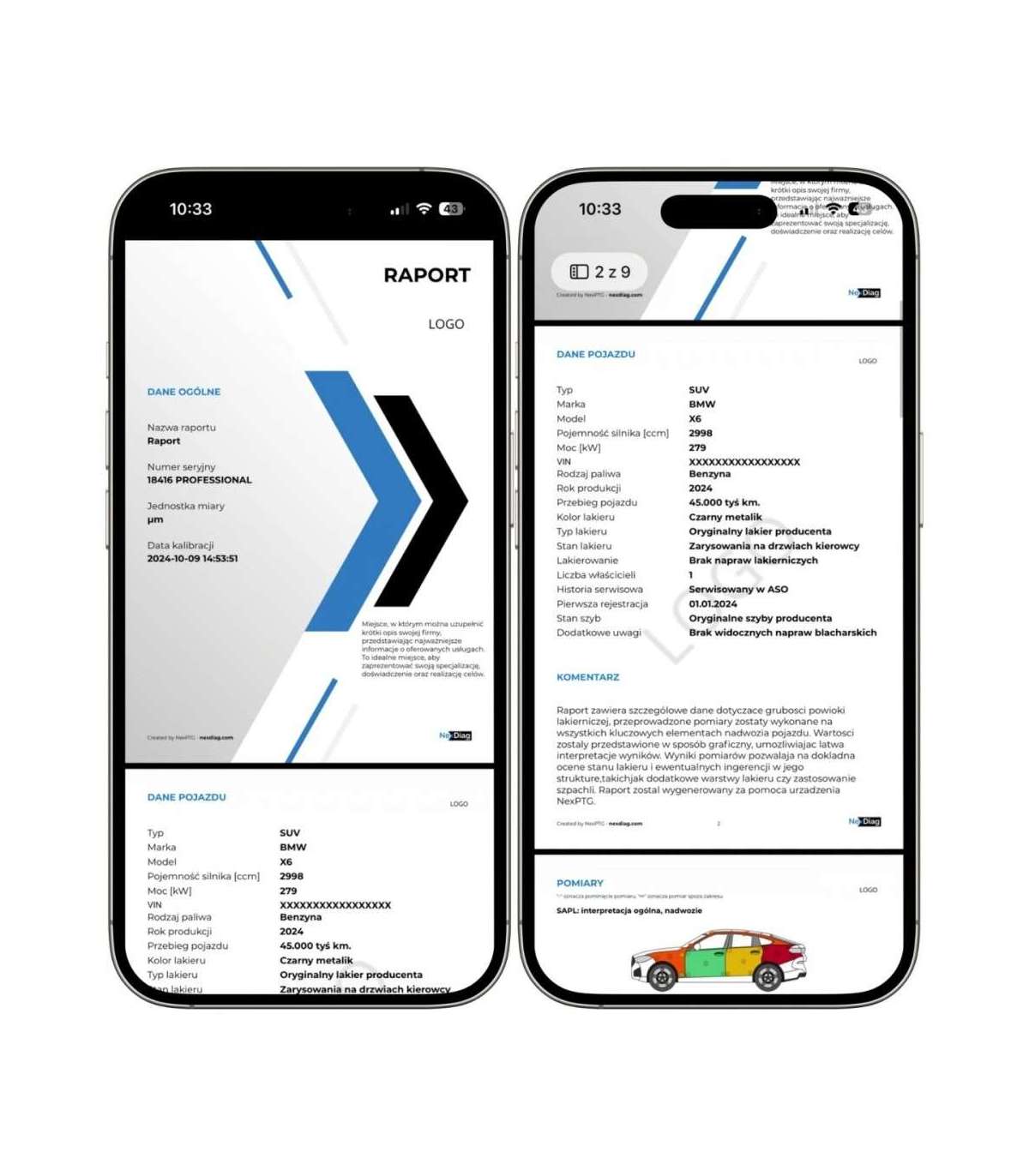

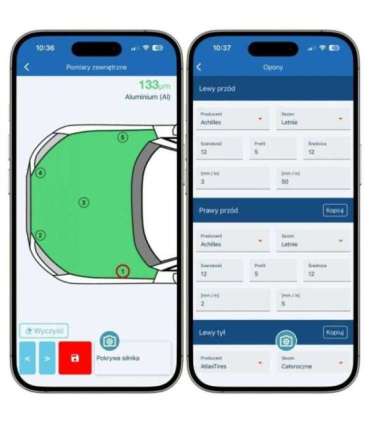

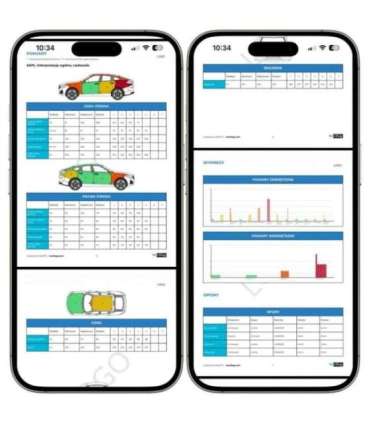

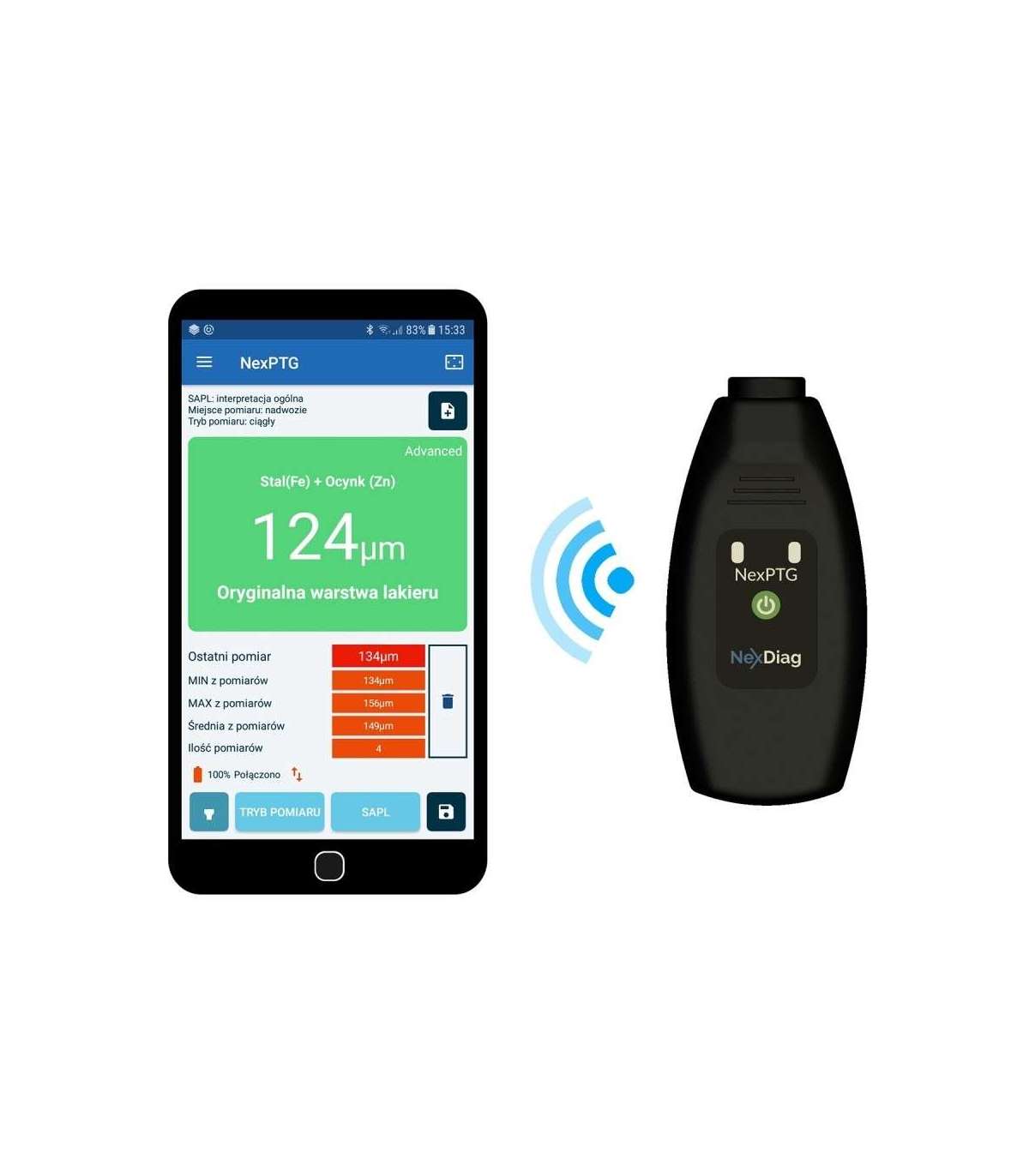

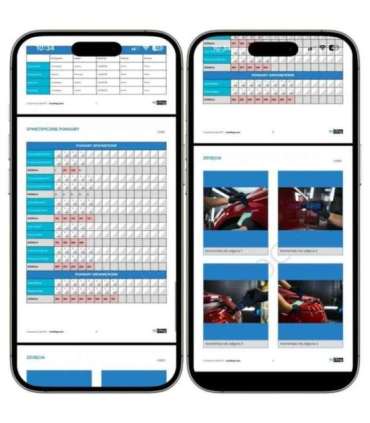

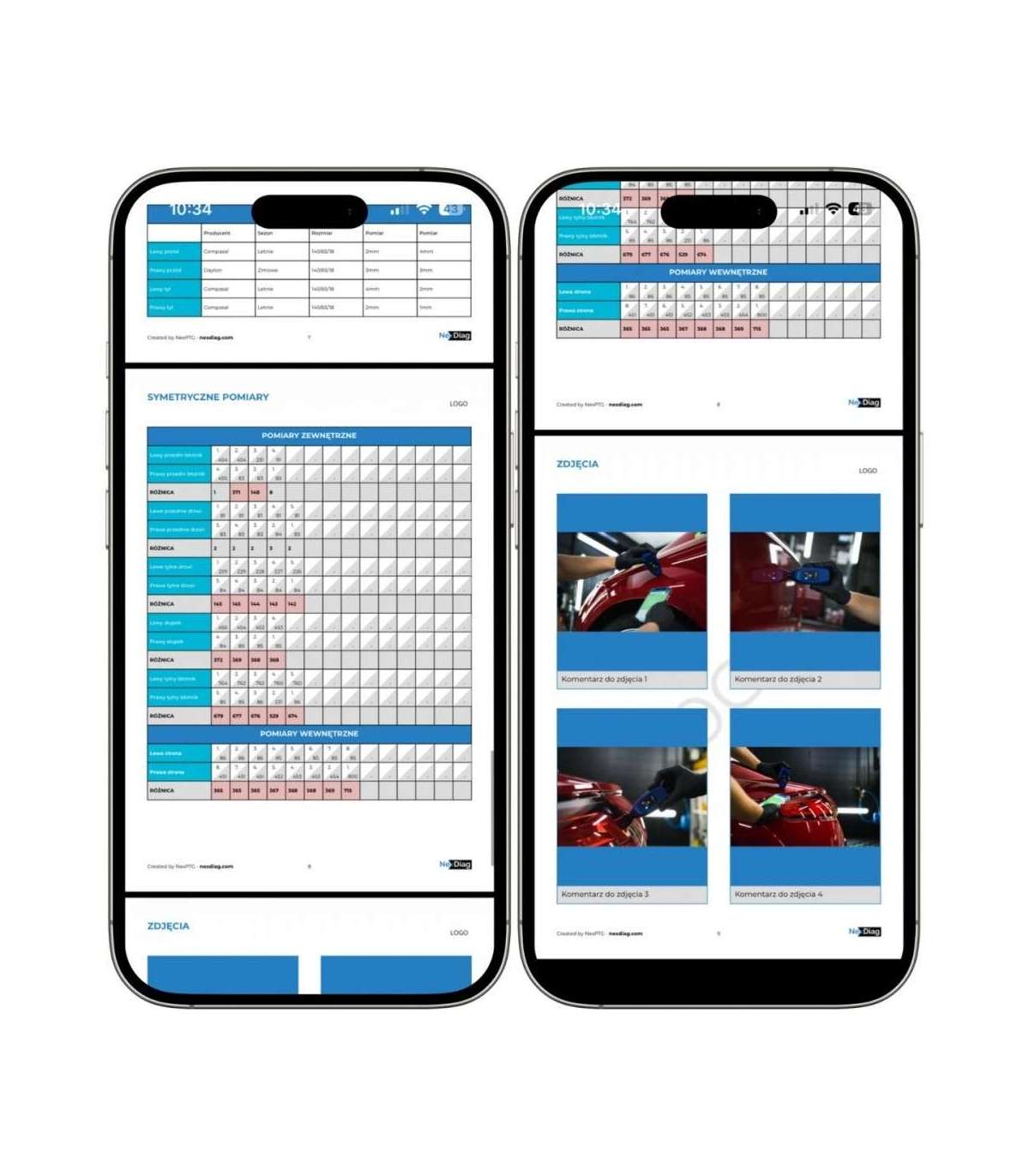

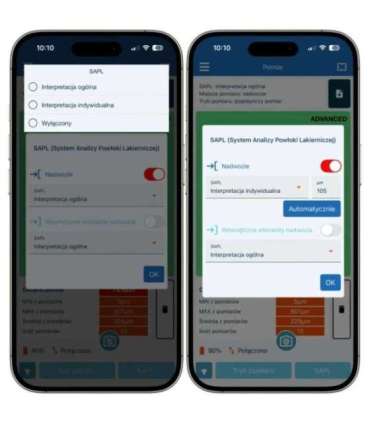

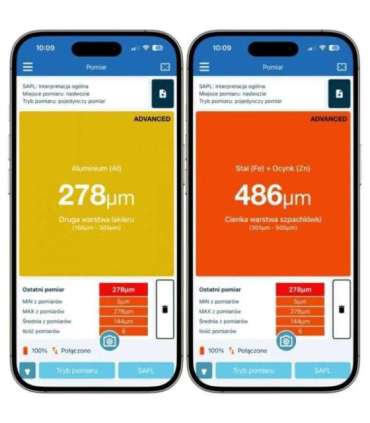

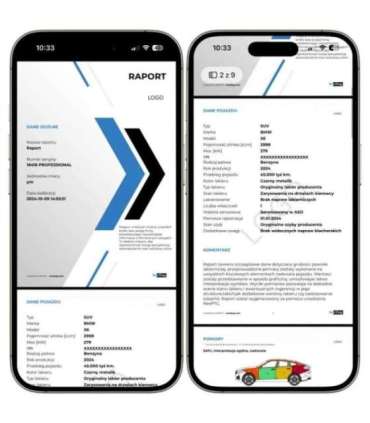

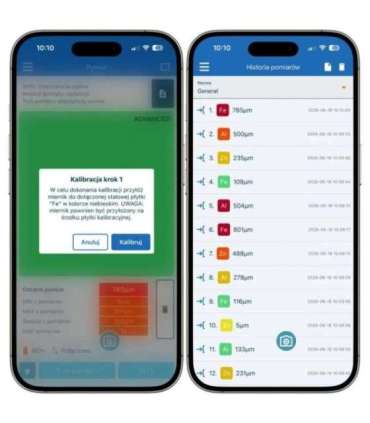

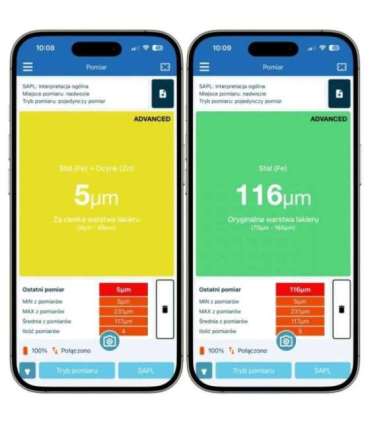

The NexPTG Advanced is an enhanced version of the NexPTG paint thickness gauge, enabling quick, accurate, and intuitive inspection of vehicle paintwork. A significant advantage of the NexPTG Advanced is its wide measurement range of up to 2200 um and three-stage warnings: text, graphic, and audible. The device also offers improved reading accuracy and additional features such as suggested measurement points, a shopping guide, measurement history export, and a report creation function. The NexPTG Advanced gauge automatically recognizes and examines paintwork on steel, aluminum, and galvanized steel components, allowing you to inspect almost any car. Thanks to the innovative, enhanced Paint Coating Analysis System, you can instantly analyze the paintwork on the entire bodywork, and the app helps interpret the measurement results. The built-in memory allows you to save up to 2000 measurement results. NexPTG Advanced comes with a dedicated, free app that can be installed on any iOS or Android mobile device. Connecting to your phone guarantees unprecedented accuracy and precision, as well as extensive capabilities unattainable with traditional meters. Users can generate and export advanced measurement reports, access suggested measurement points, a shopping guide, or switch languages to one of nine available versions.

APPLICATIONS Recommended for anyone requiring precise and stable measurements. Exporting measurement history and creating advanced reports make it ideal for car repair shops, dealerships, and vehicle inspection stations.

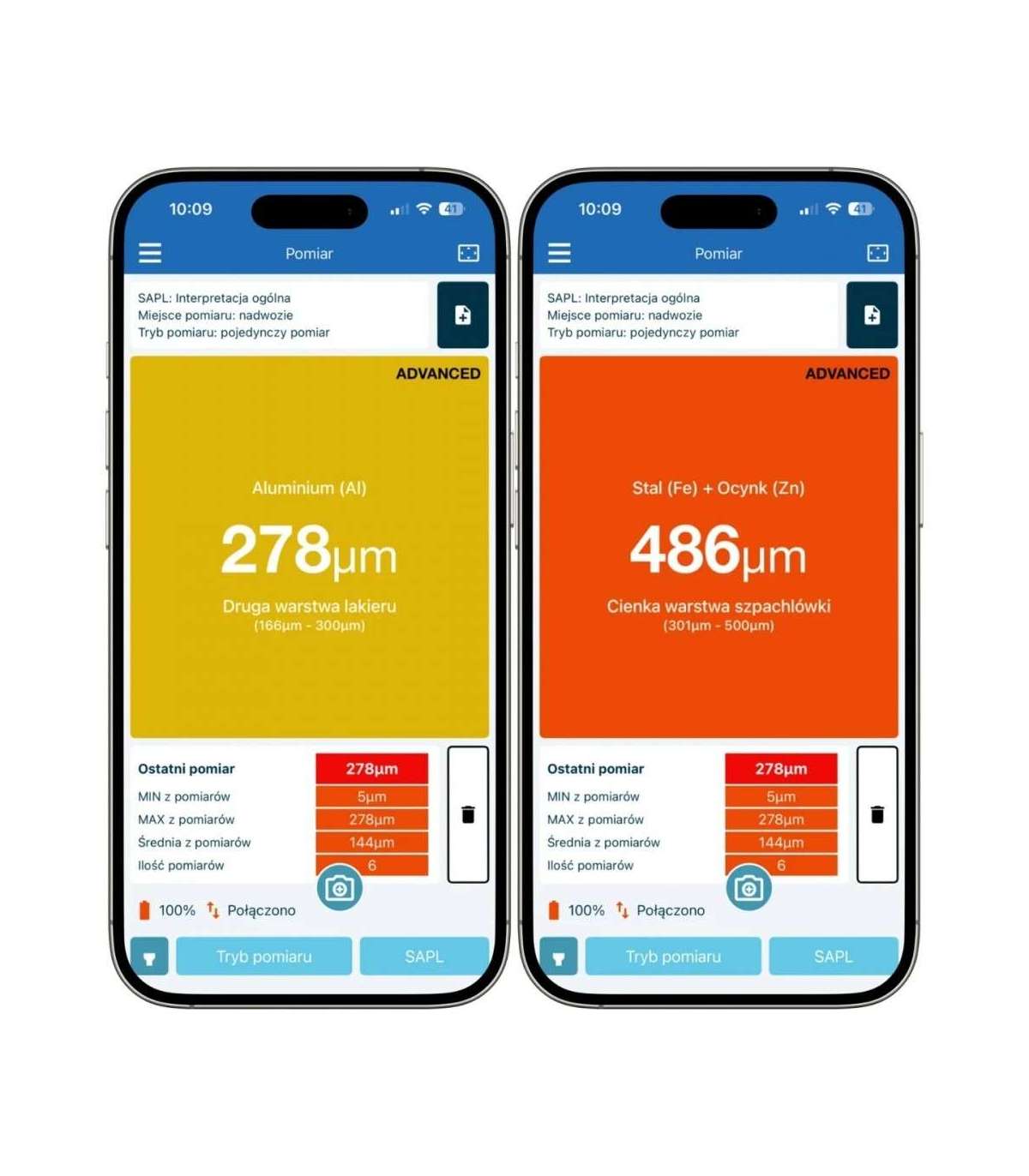

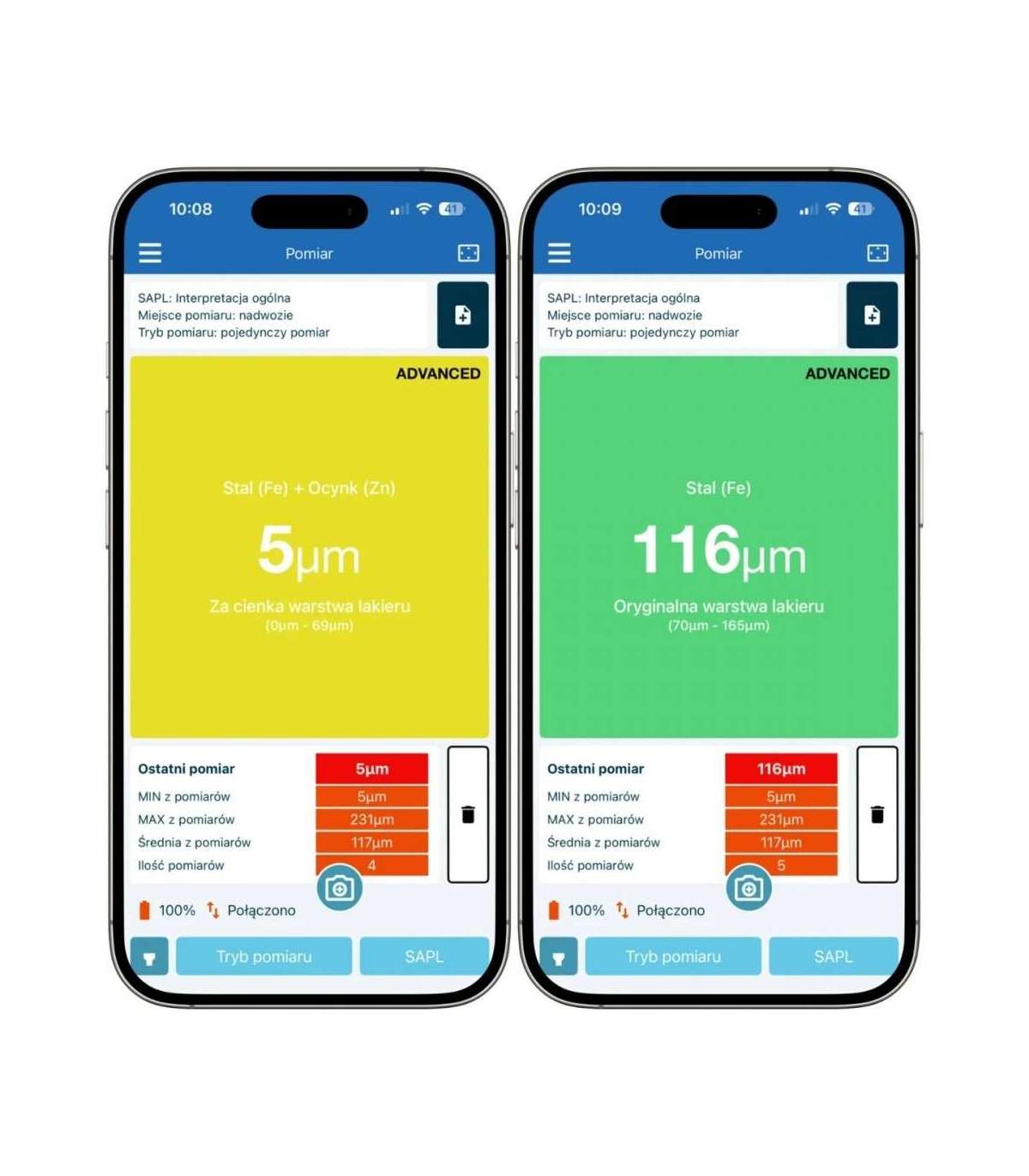

ADVANTAGES Innovative, advanced Paint Coating Analysis System for easy measurement Wide measurement range: 0 ~ 2200 um High accuracy and repeatability of results Memory for storing 2000 measurement results Measurements on steel, galvanized steel, and aluminum 3-stage warnings: text, graphic, and audible Advanced, free app available for iOS and Android devices Option to change the language to one of 9 available versions Suggested measurement points and a shopping guide Create advanced reports and export measurement history Long battery life: up to 100 hours

Special functions:

Measurement range 0 ~ 2200 um (0 ~ 86.61 mils) Measurement resolution 1 um (0.04 mils) Measurement units um, mils Measurement modes Continuous Substrate types tested: Steel, galvanized steel, aluminum* * Galvanized steel recognition - beta version, recognition in the range 0 ~ 600 um Measurement speed +- 10 measurements / 1 sec. Probe Type: Traditional (flat tip) Probe Housing: Flat Measuring on Curves: No Signaling: Messages: Text, Graphics, Sound Display: Smartphone Screen App Compatibility: Free to download from Google Play or the App Store Languages: Polish, English, German, French, Italian, Spanish, Russian, Czech, Persian Compatibility: iOS and Android devices Memory: 2000 measurement results Housing: Black ABS plastic Connectors: Bluetooth 4.0 LE - for communication with Android and iOS devices Additional Features: Paint Coating Analysis System (SAPL) - extended Includes 2 x AA alkaline batteries Instruction Manual in Polish Power Supply: Power Source: 2 x 1.5V AA alkaline batteries (included) Battery Life: Up to 100 hours of continuous operation Energy Saving Yes Battery discharge indication: Yes

Environment requirements:

Temperature: -20 ~ 40°C

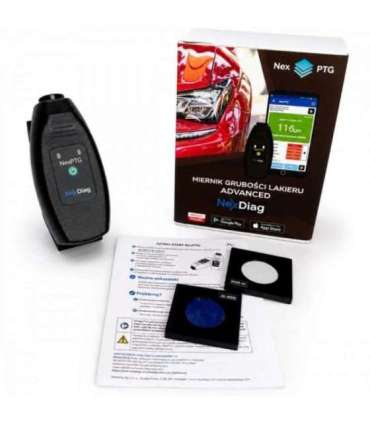

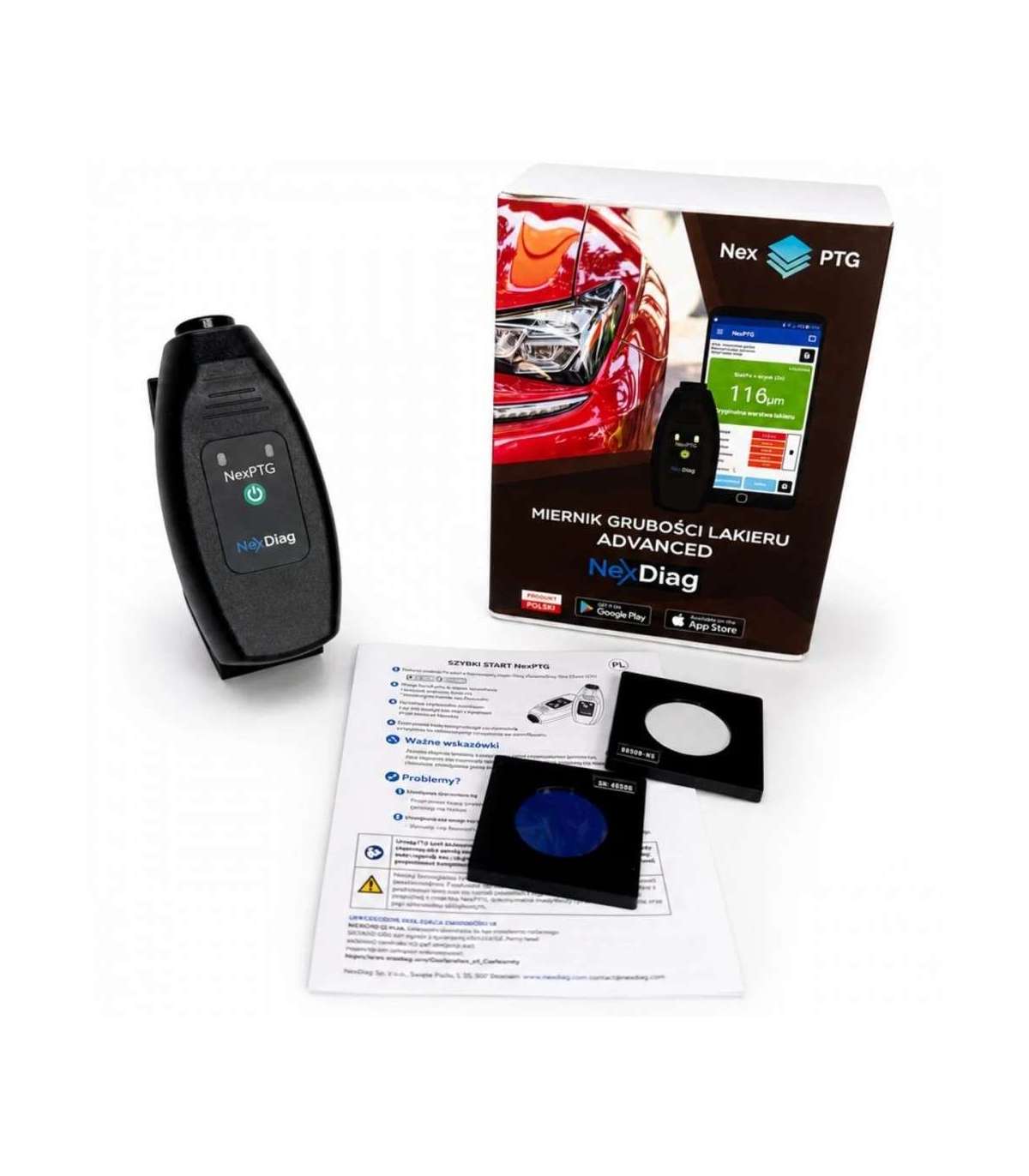

Accessories included:

• 2 AA alkaline batteries
• Instruction manual in Polish
• Device calibration plates

Dimensions:

50 x 28 x 108 mm
