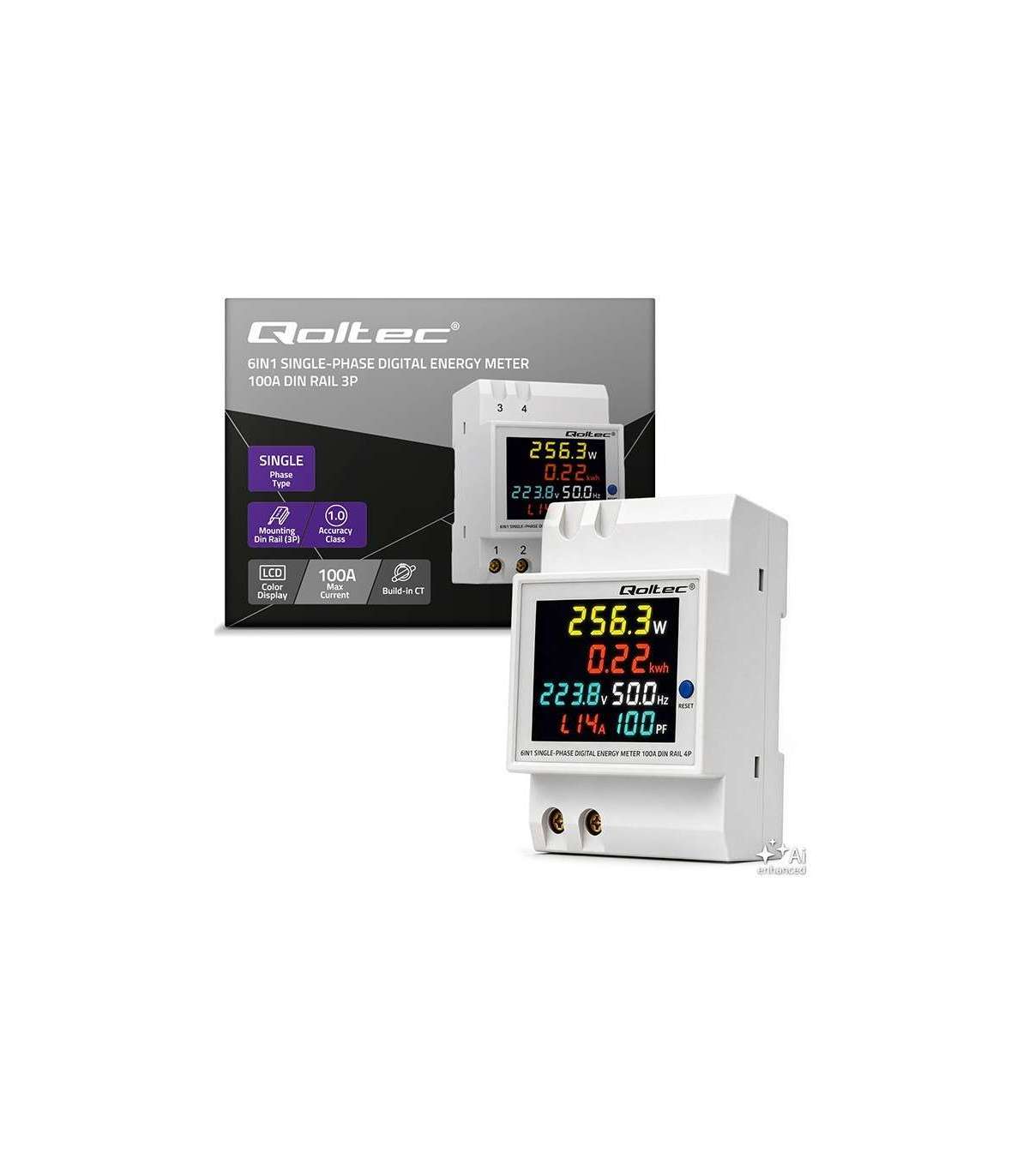

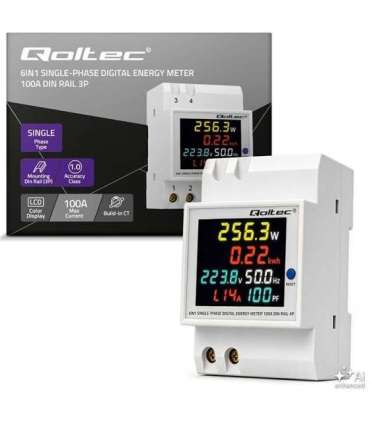

Single phase energy consumption meter 100A

Description:

Investing in energy savings and consumption monitoring

The 6-in-1 multifunctional digital energy meter enables real-time monitoring of the key parameters of a single-phase electrical installation. The device simultaneously measures AC voltage, AC current, active power, power factor, frequency and electricity consumption, making it easy to monitor the operation of connected loads.

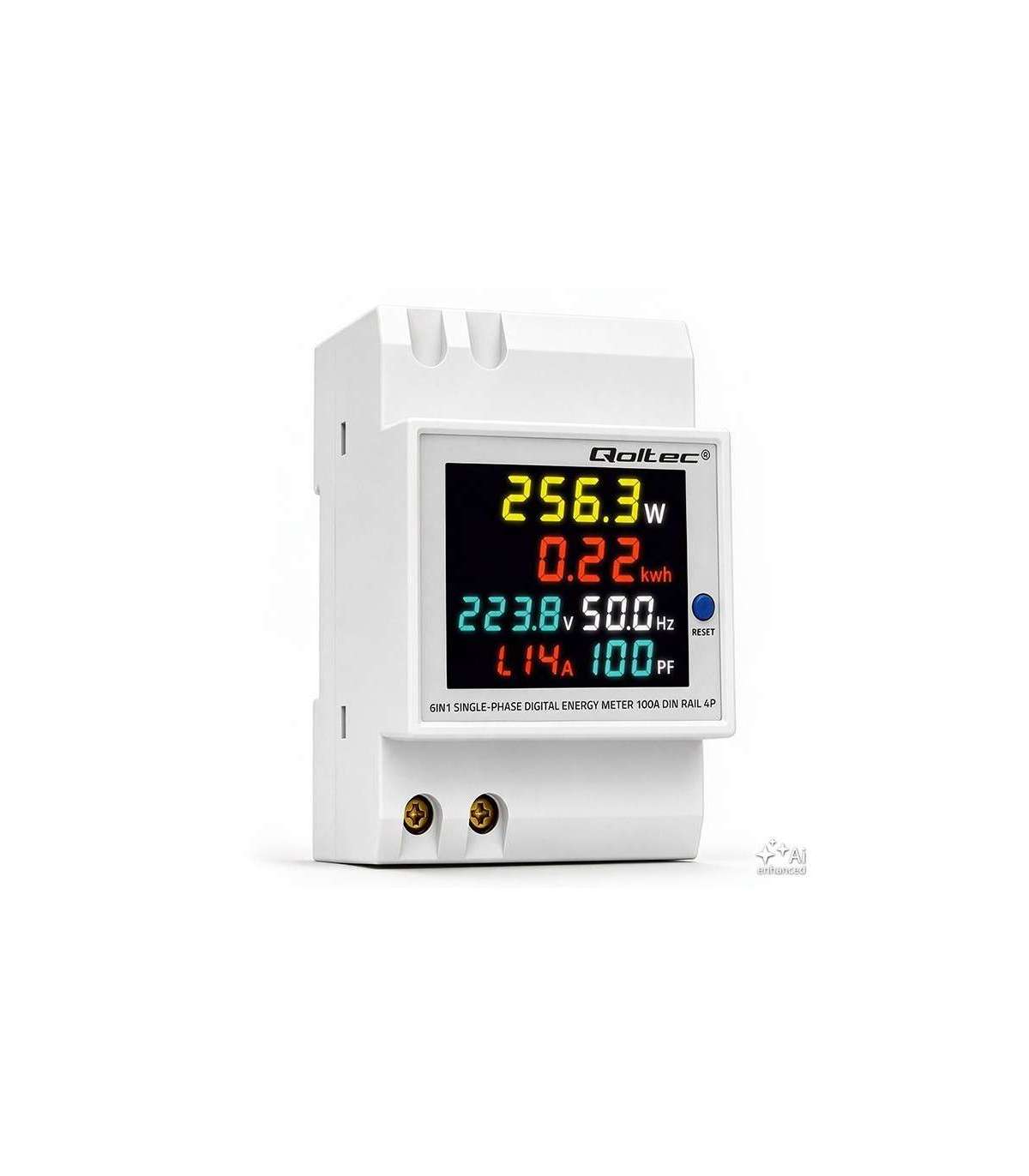

Colour LCD display showing 6 measurement parameters

The clear colour LCD display allows you to quickly check current measurement values, whilst the maximum current measurement range of up to 100A enables the device to be used in installations with varying loads.

• AC voltage,
• AC current,
• active power,
• power factor,
• frequency,
• electrical energy.

Convenient and accurate monitoring

Key product features:

• Designed for single-phase installations,
• 6 measurement functions: AC voltage, AC current, active power, power factor, frequency and electrical energy,
• Unidirectional, measures energy regardless of the direction of flow,
• Maximum current measurement range: 100 A,
• Standard installation of the device in a distribution board on a 35 mm DIN rail,
• Energy consumption measurement displayed in kWh,
• Current measurement using a current transformer (CT),
• Features a colour LCD display for monitoring measurements,
• Complies with IEC 62053-21 and DIN EN 50022 standards,
• Accuracy class 1.0.

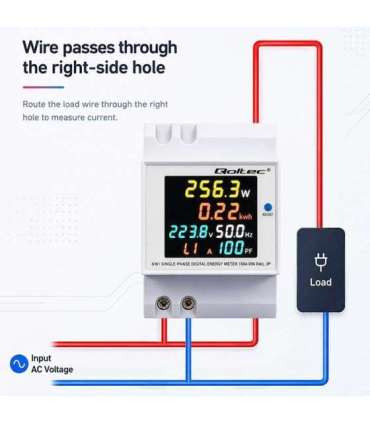

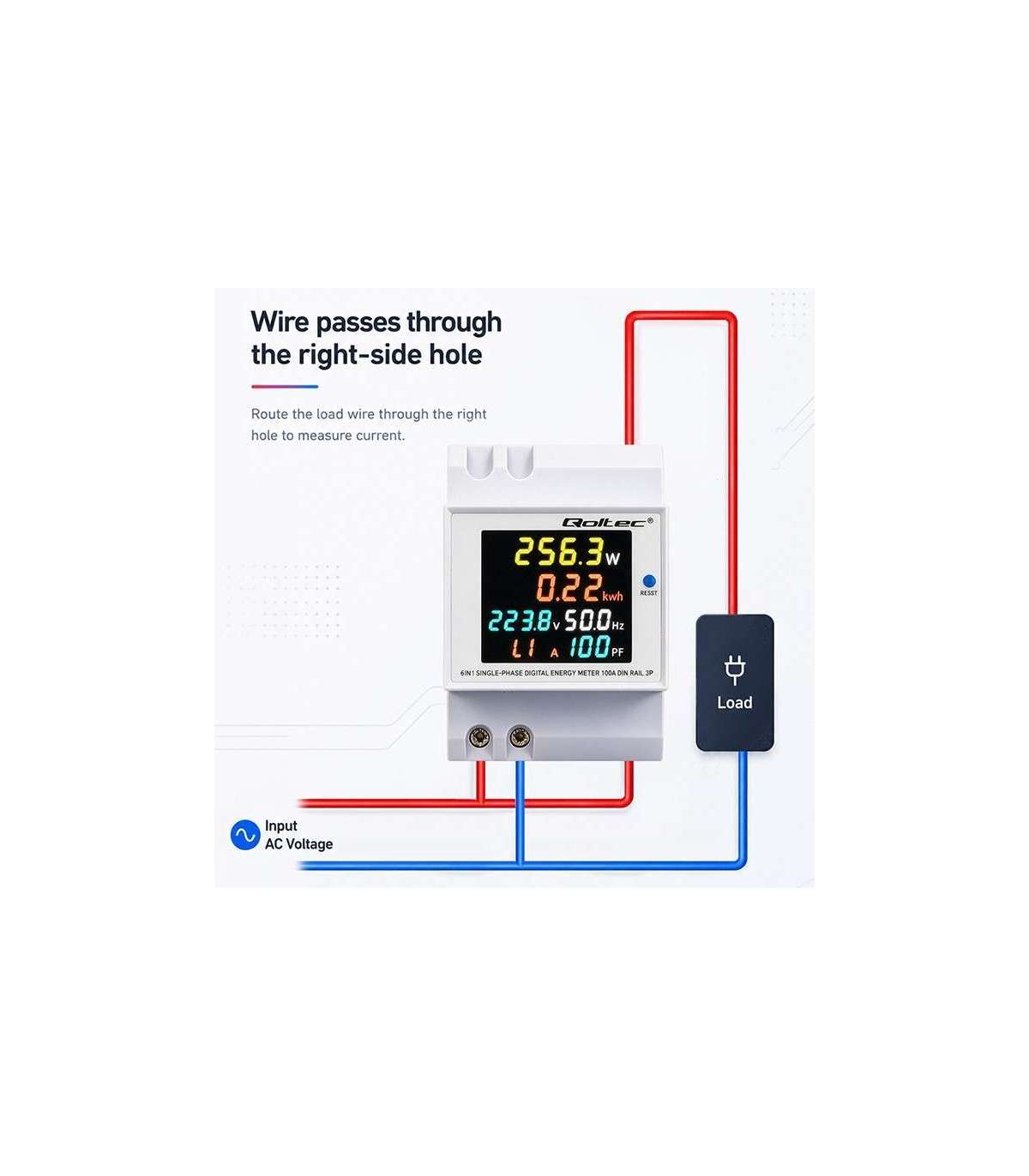

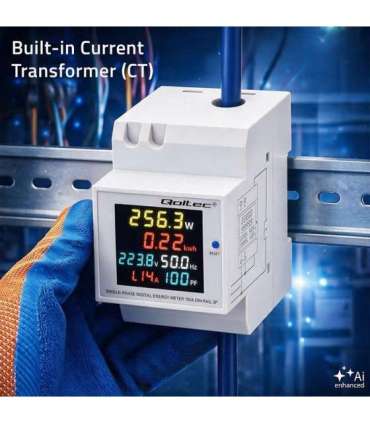

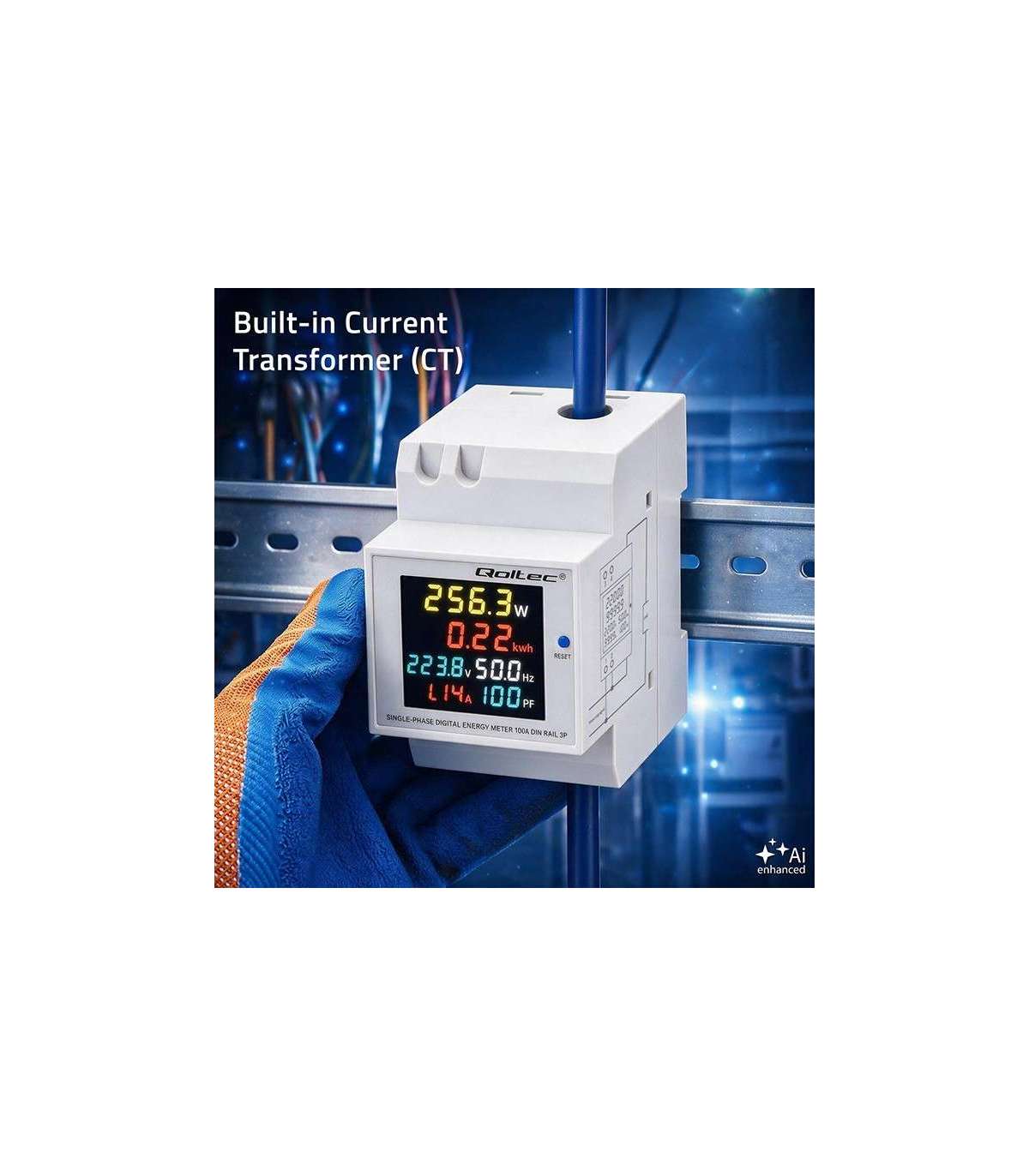

Built-in CT current transformer convenient measurement without interrupting the circuit

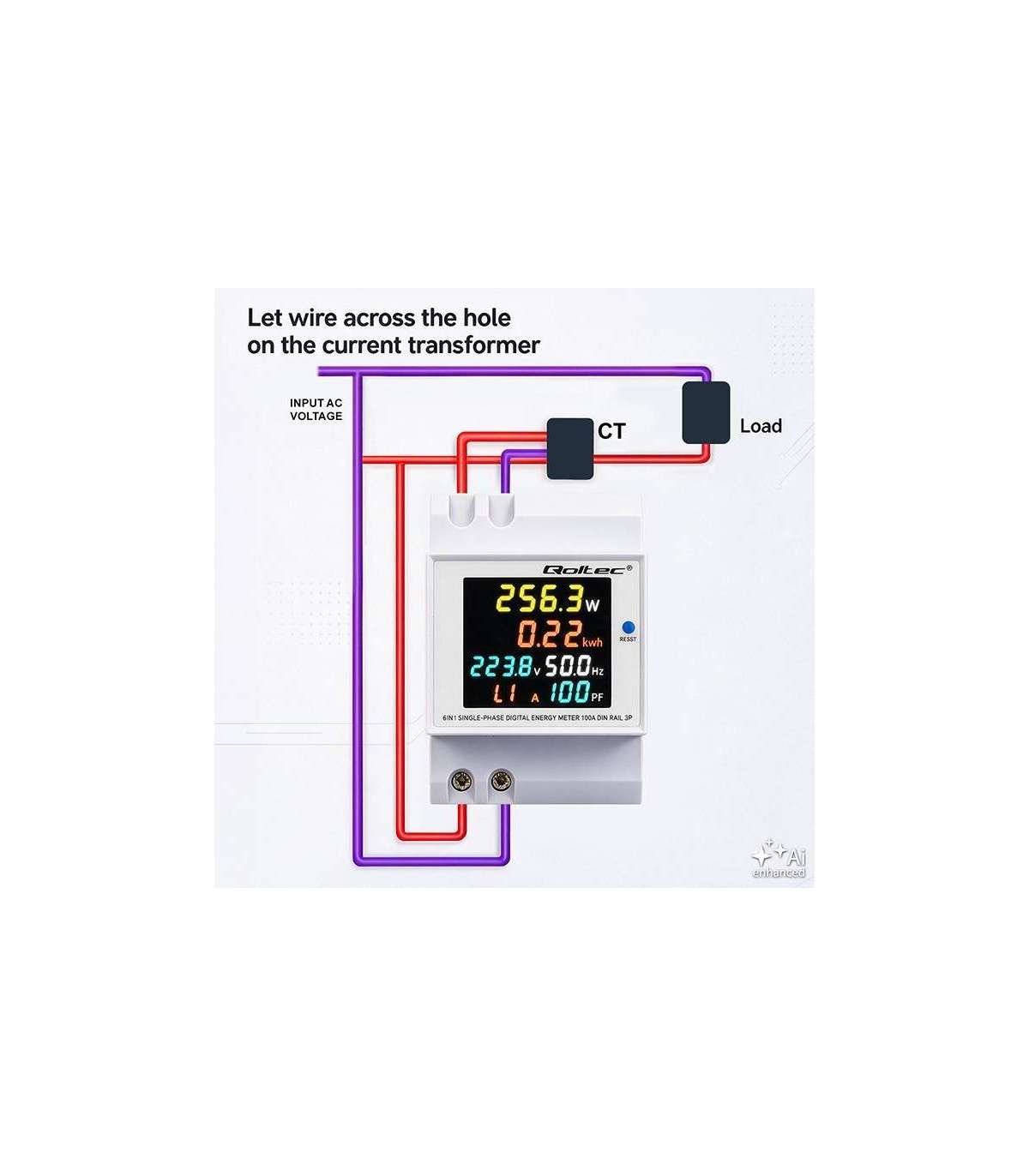

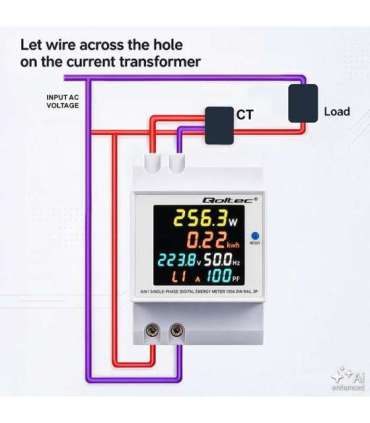

The meter is fitted with a built-in current transformer (CT) with an 11 mm diameter bore through which the cable being measured is passed. The design allows for the use of copper cables with a cross-sectional area of up to approximately 12 mm, and the maximum current measurement range is 100 A. The version with an external current transformer (CT) with a 15 mm bore allows cables with a larger cross-section, approximately 2125 mm, to be passed through, thereby expanding the meters range of applications in electrical installations.

Special functions:

• Measurement of active energy by single-phase loads
• Complies with the DIN EN 5002 standard
• Following a power cut, the meter displays the last recorded value; it has a memory function
• The electricity meter can be reset when the power is switched on

Environment requirements:

Operating temperature: -20°C to +70°C

Accessories included:

• Single-phase electronic meter
• 2 x User manuals (Polish and English)
• Warranty card

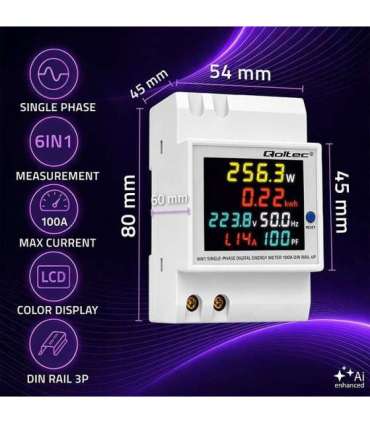

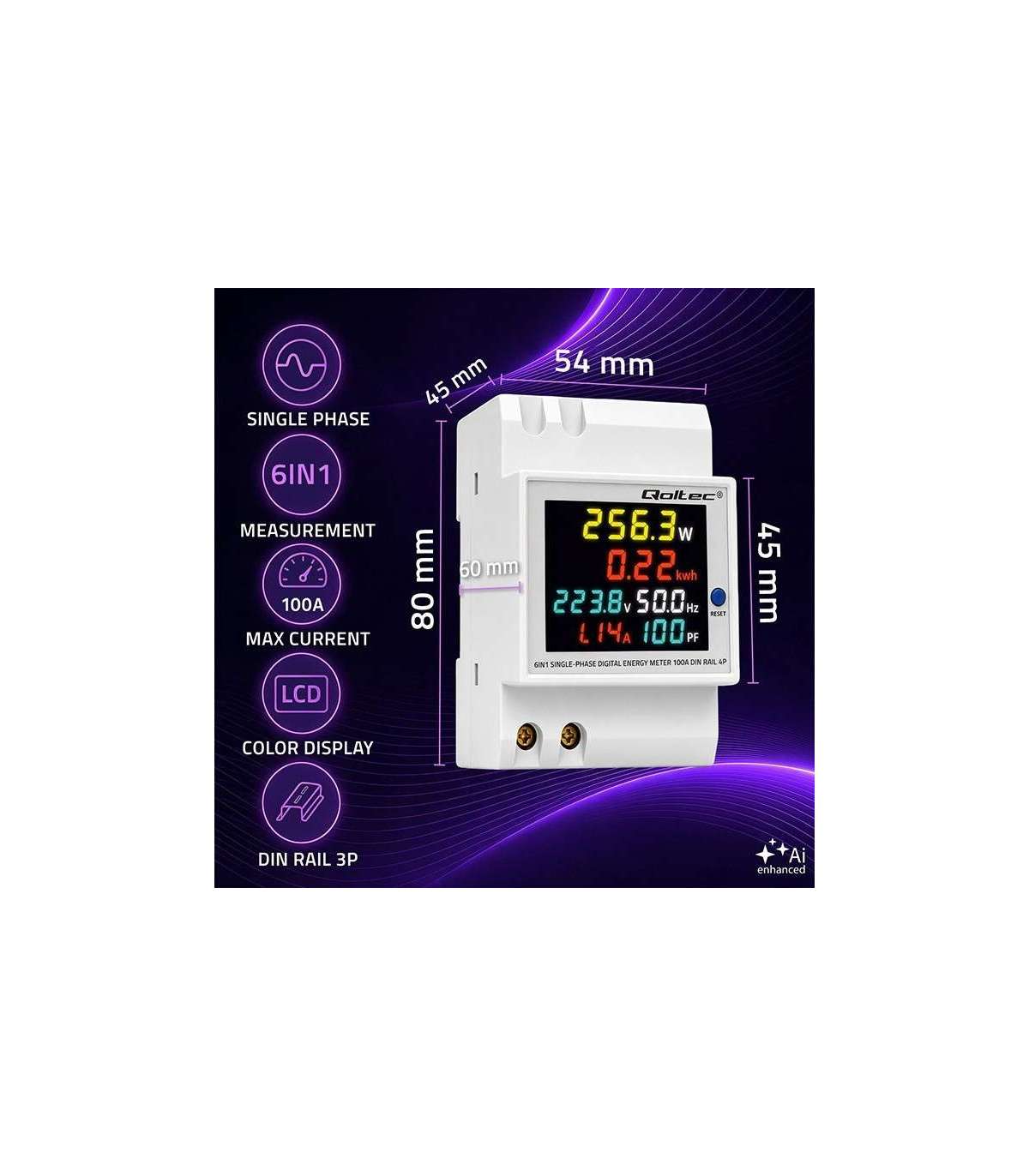

Dimensions:

64 x 54 x 80 mm
