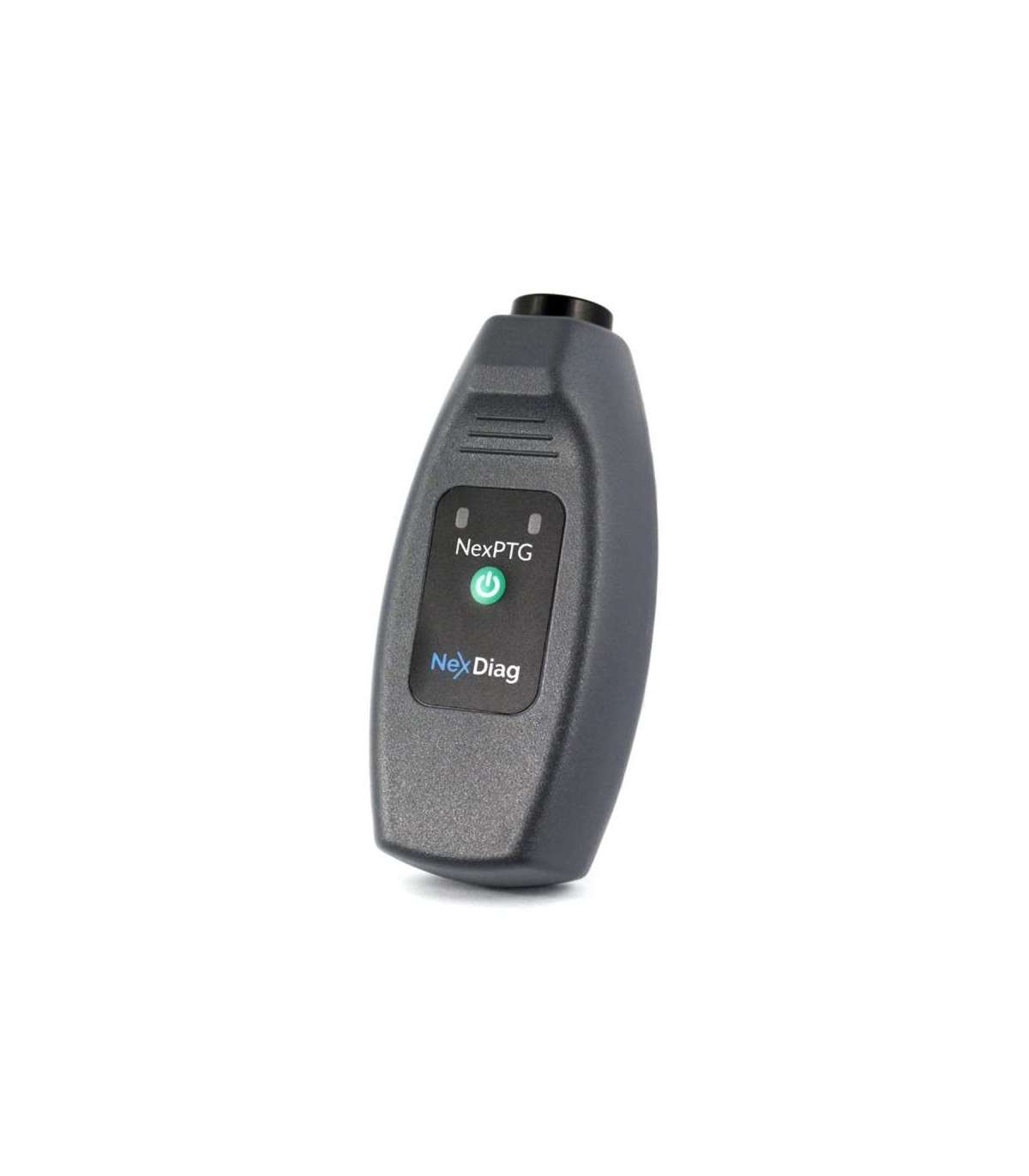

NexPTG Standard Paint thickness gauge

Description:

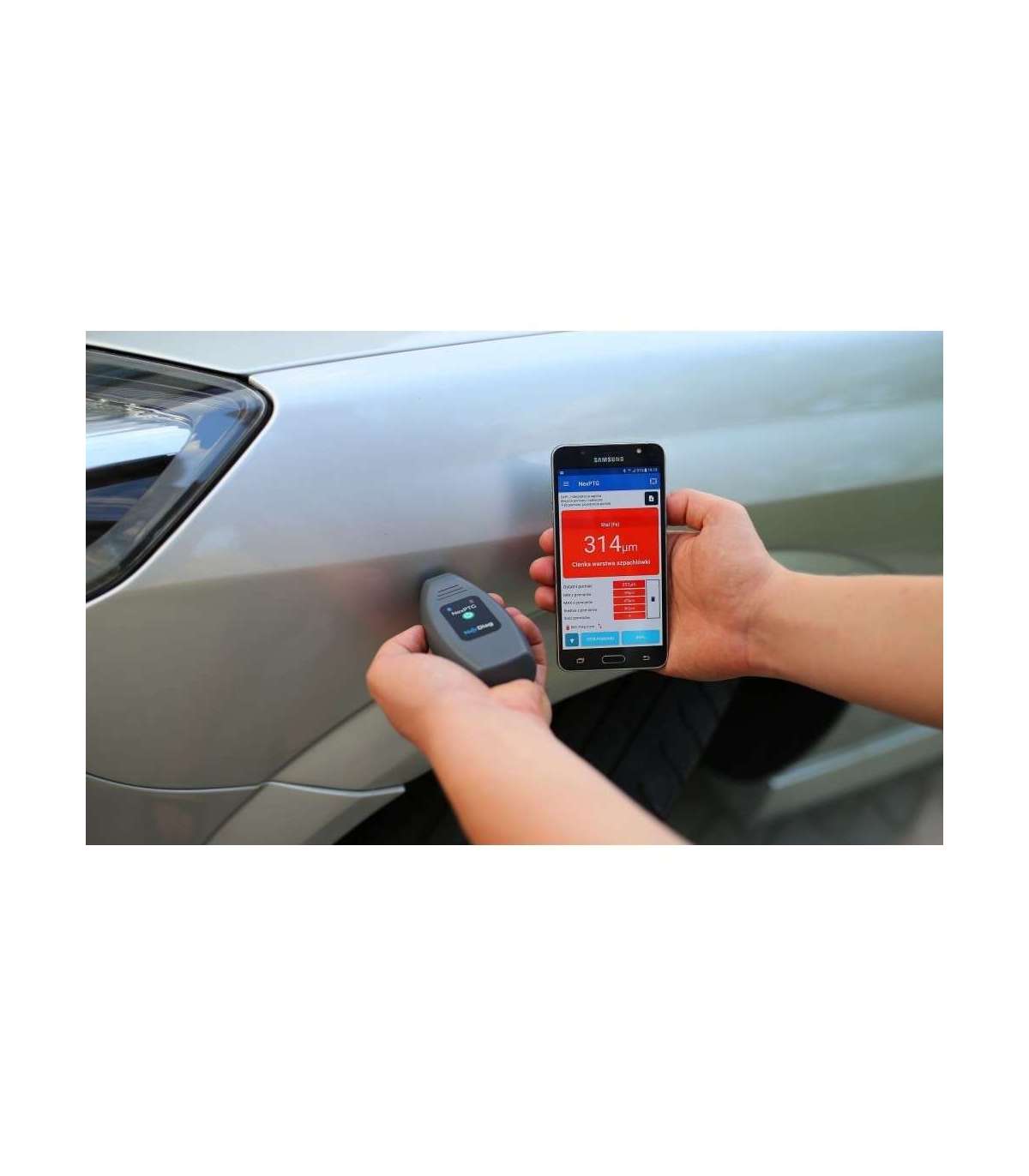

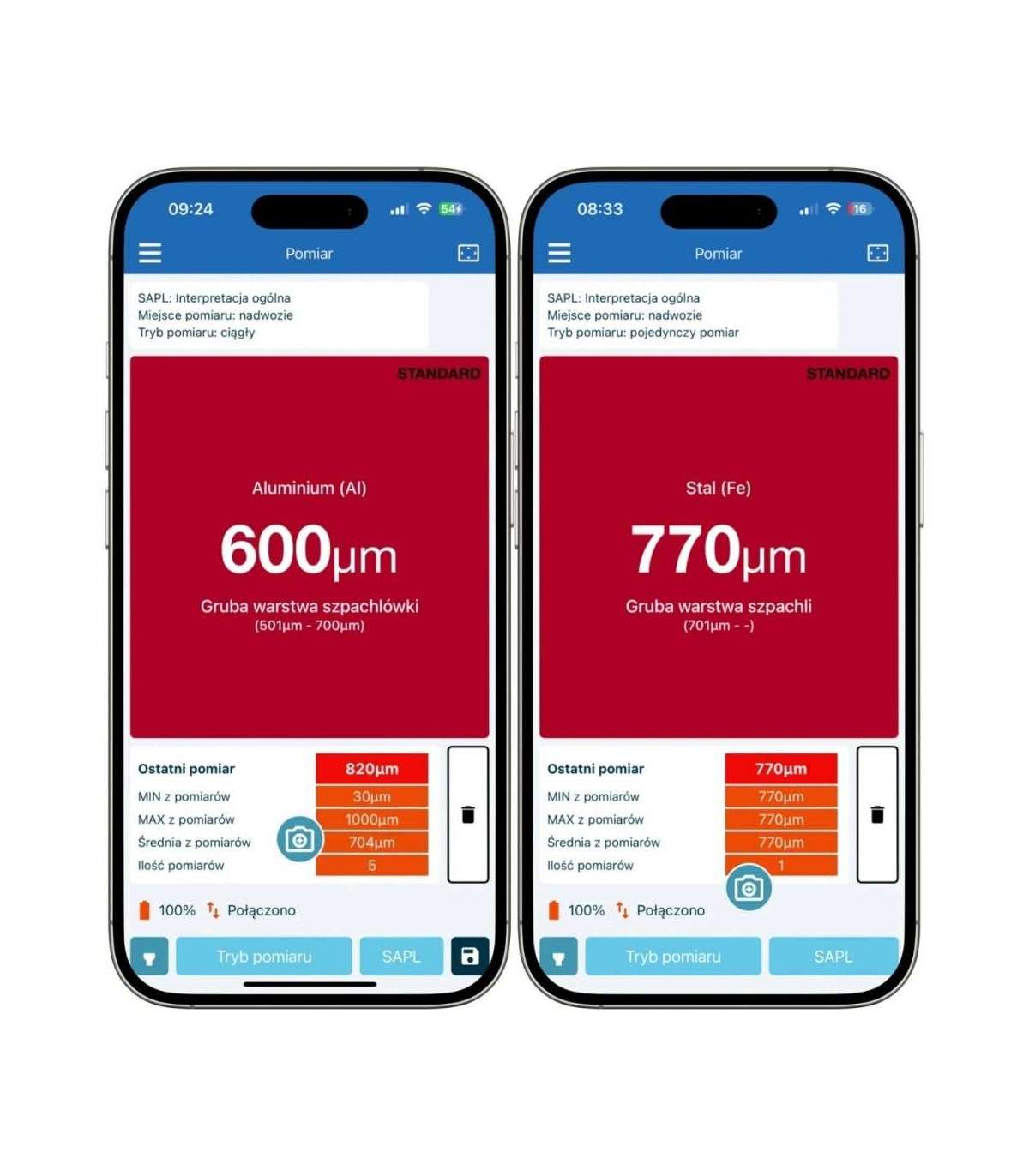

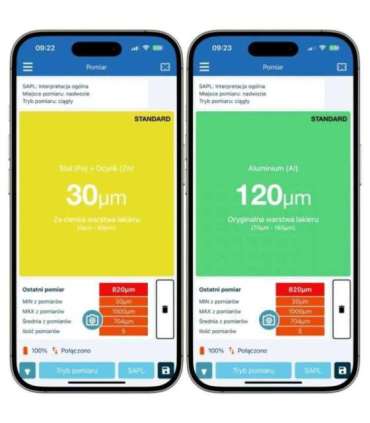

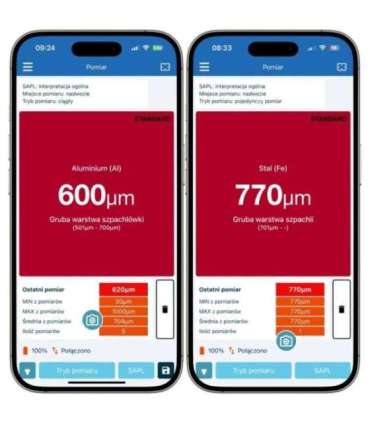

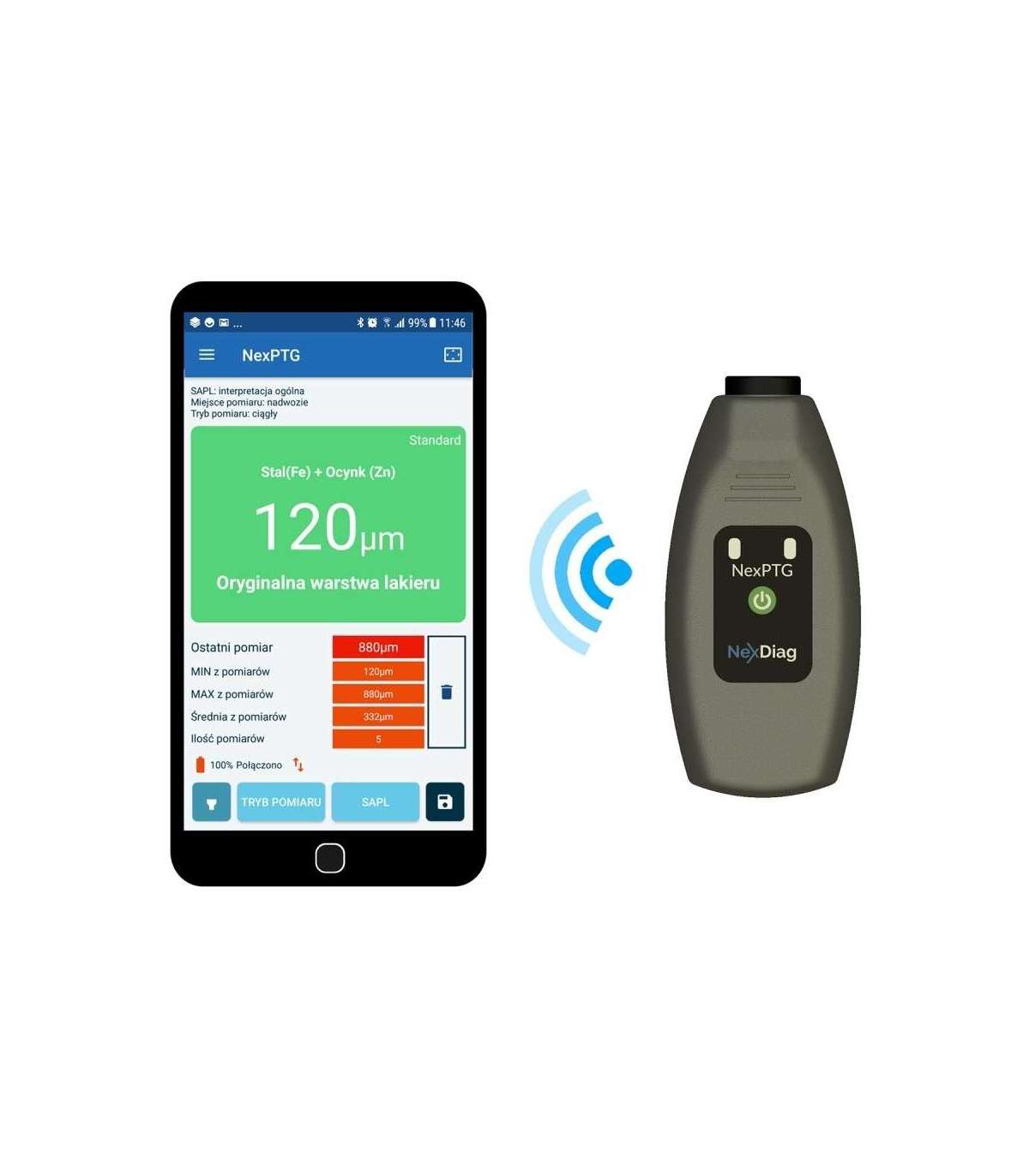

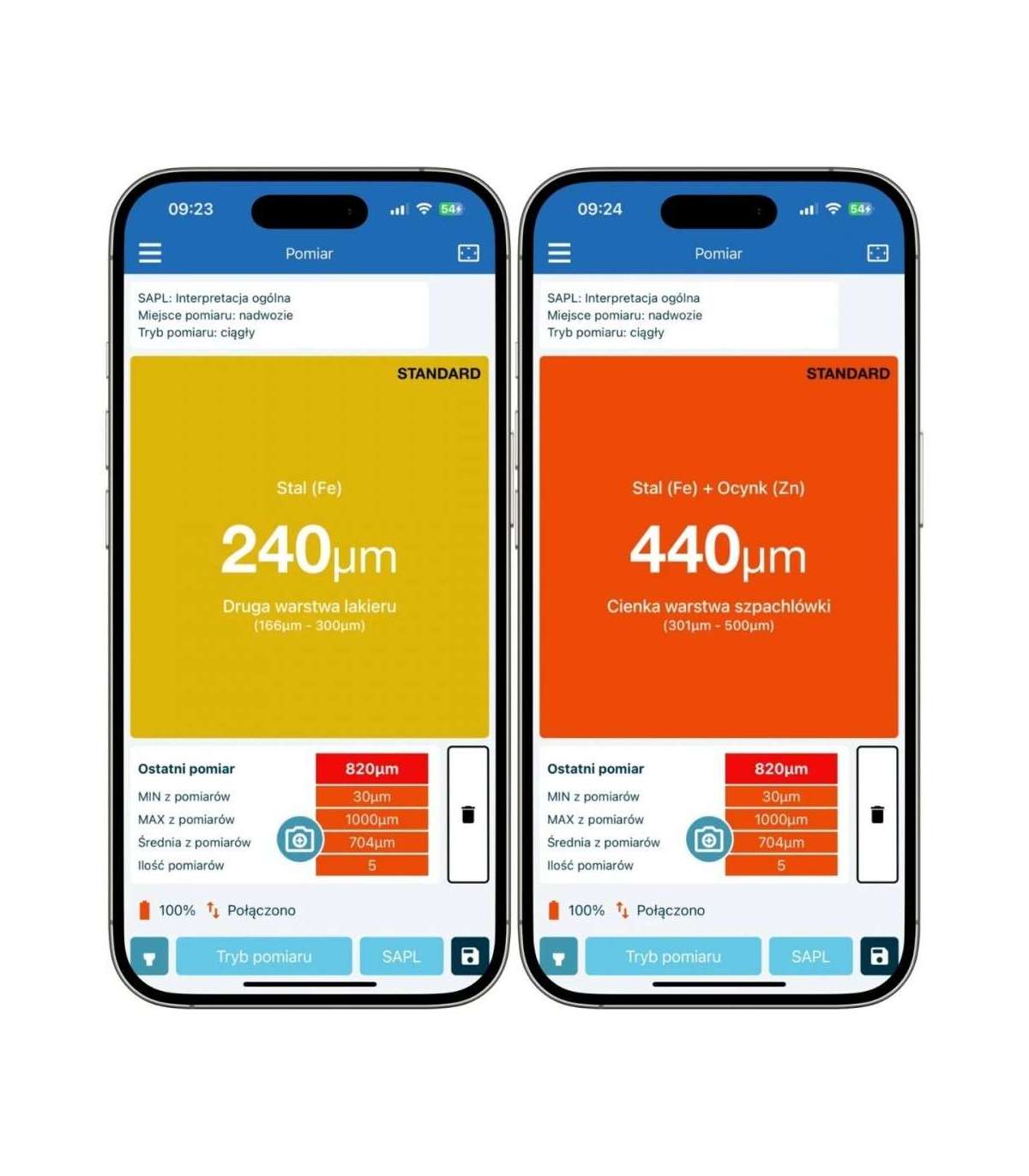

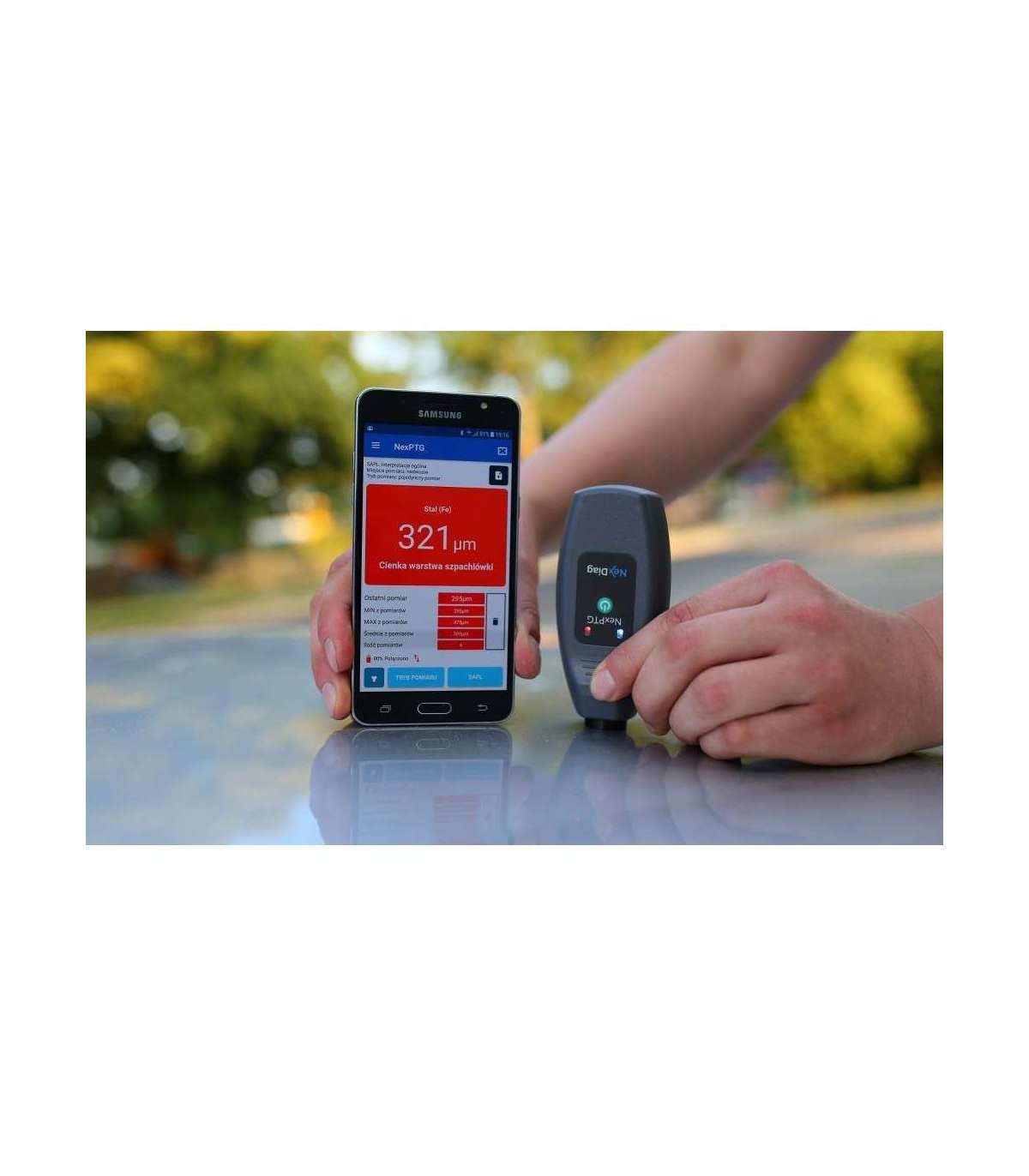

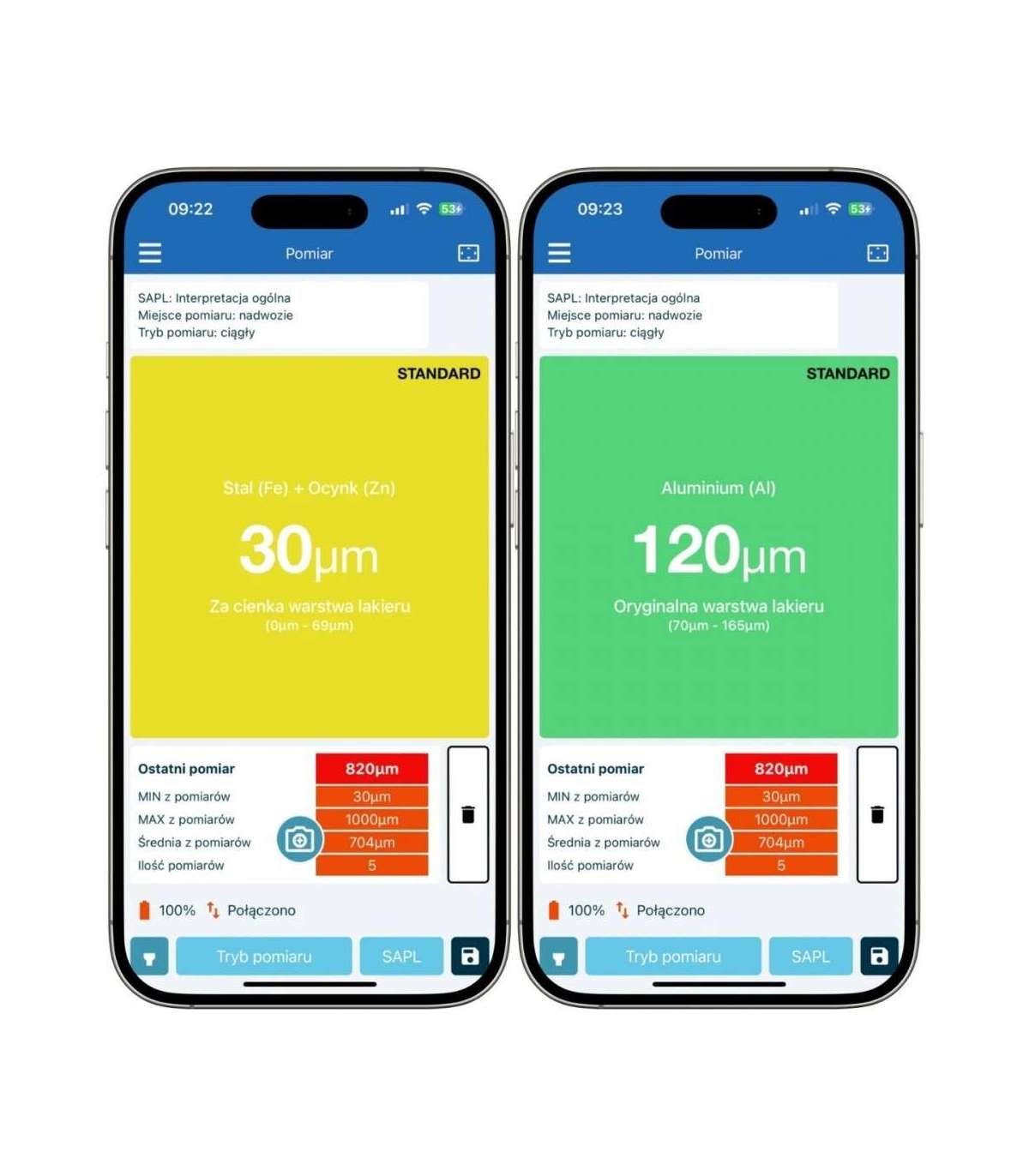

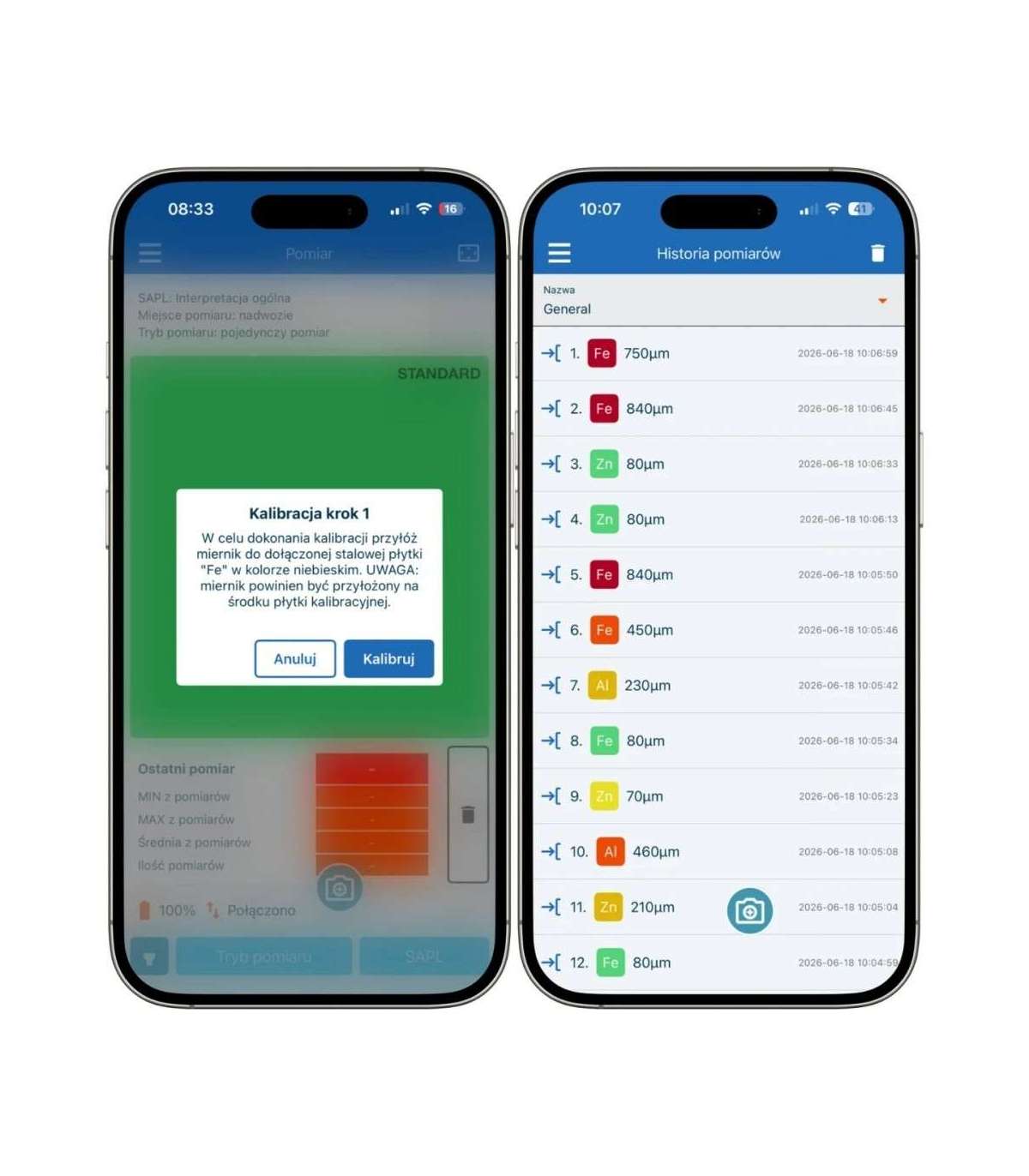

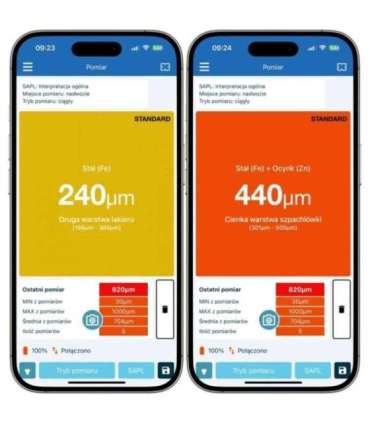

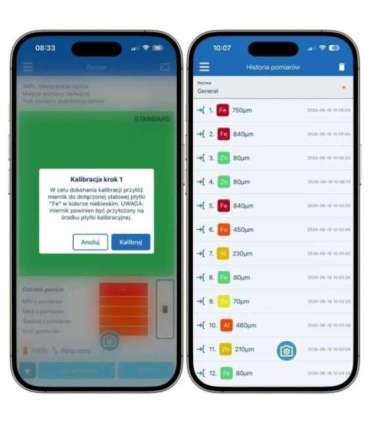

The NexPTG Standard is the basic version of the NexPTG paint thickness gauge, which enables quick, accurate, and intuitive vehicle inspections. The gauge automatically recognizes and examines paint coatings on steel, aluminum, and galvanized steel components, allowing for inspection of almost any car. Thanks to the innovative Paint Coating Analysis System, you can instantly analyze the paint on the entire bodywork, and the app helps interpret the measurement results. The device also has built-in memory for storing 300 measurement results and provides three-level alerts: text, graphic, and audible. The NexPTG Standard comes with a dedicated, free app that can be installed on any iOS or Android mobile device. Connecting to a smartphone, the device guarantees unprecedented accuracy and precision, offering vast capabilities unattainable with traditional gauges. The extensive app allows users to perform benchmark tests, view measurement statistics, or switch the language to one of nine available versions. APPLICATIONS Ideal for dealerships, car repair shops, and vehicle inspection stations. Also recommended for anyone who wants to thoroughly inspect a car before buying or selling it. ADVANTAGES Innovative, basic Paint Coating Analysis System that simplifies measurement High accuracy and repeatability of results Memory for storing 300 measurement results Measurements on steel, galvanized steel, and aluminum 3-stage warnings: text, graphic, and audible Advanced, free app available for iOS and Android devices Option to change the language to one of 9 available versions Suggested measurement points and a shopping guide Create advanced reports and export measurement history Long battery life: up to 100 hours

Special functions:

Measurement range 0 ~ 1000 um (0 ~ 39.37 mils) Measurement resolution 10 um (0.4 mils) Measurement units um, mils Measurement modes Continuous Substrate types tested: Steel, galvanized steel* * Galvanized steel recognition - beta version, recognition in the range 0 ~ 600 um Measurement speed +- 10 measurements / 1 sec. Probe Type: Traditional (flat tip) Probe Housing: Flat Measuring on Curves: No Signaling: Messages: Text, Graphics, Sound Display: Smartphone Screen App Compatibility: Free to download from Google Play or the App Store Languages: Polish, English, German, French, Italian, Spanish, Russian, Czech, Persian Compatibility: iOS and Android devices Memory: 300 measurement results Housing: Gray ABS plastic Connectors: Bluetooth 4.0 LE - for communication with Android and iOS devices Additional Features: Paint Coating Analysis System (SAPL) - basic Includes 2 x AA alkaline batteries Instruction Manual in Polish Power Supply: Power Source: 2 x 1.5V AA alkaline batteries (included) Battery Life: Up to 100 hours of continuous operation Power Saving: Yes Signaling: battery discharge Yes

Environment requirements:

Temperature: -20 ~ 40°C

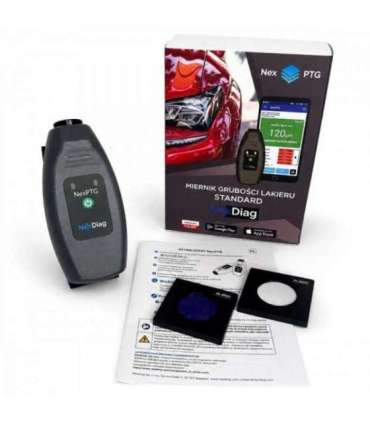

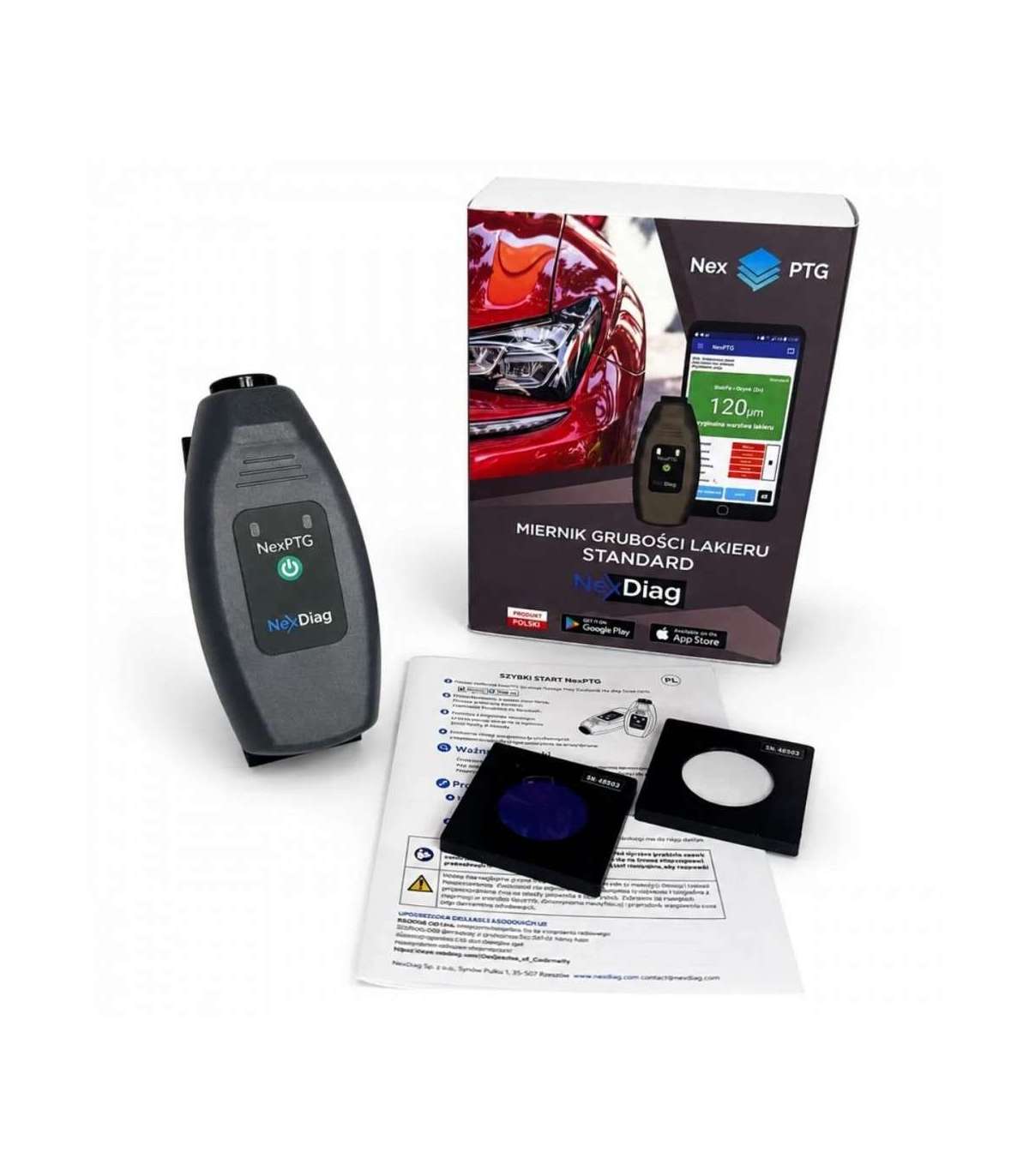

Accessories included:

• 2 AA alkaline batteries
• Instruction manual in Polish
• Device calibration plates

Dimensions:

50 x 28 x 108 mm
