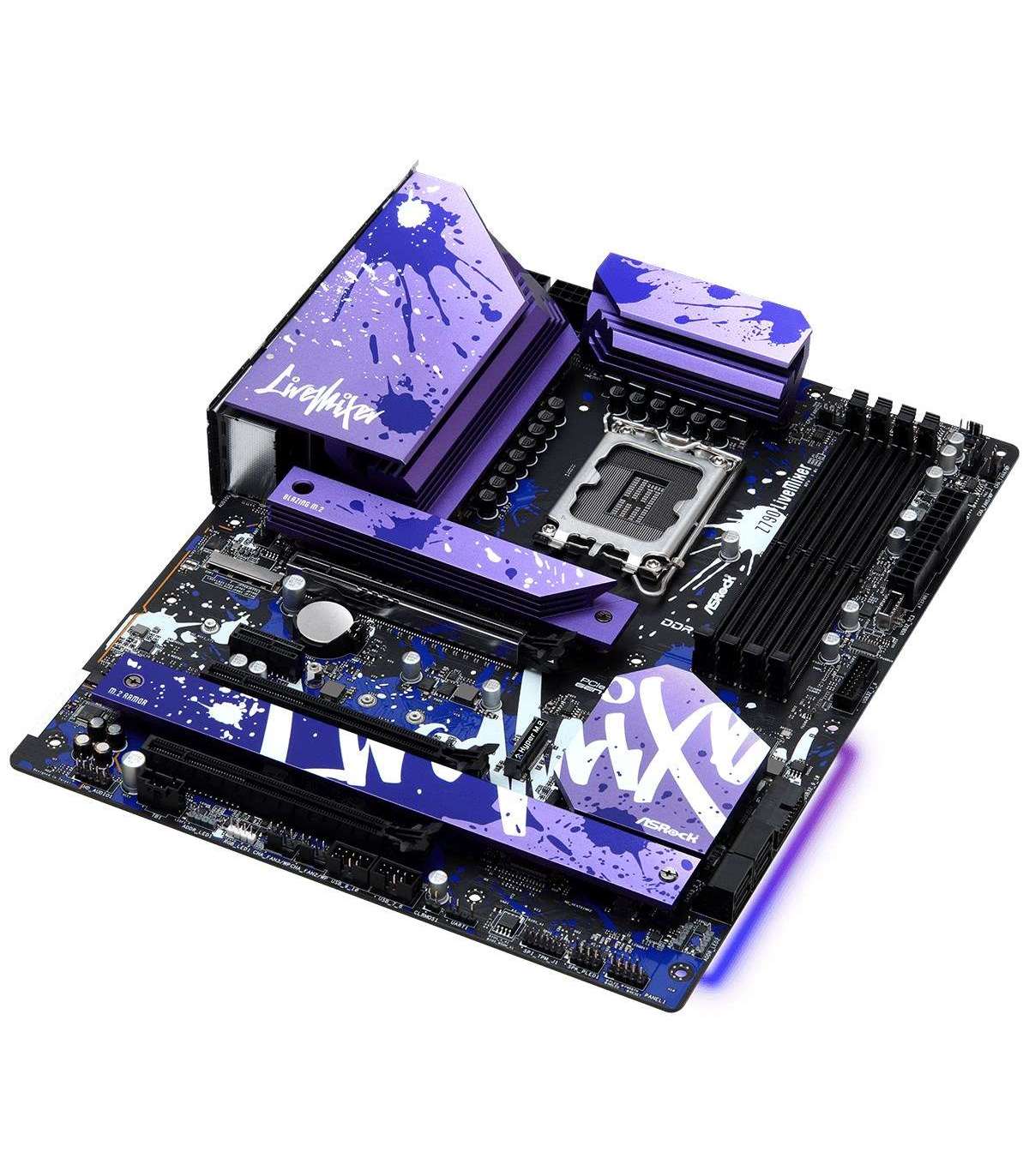

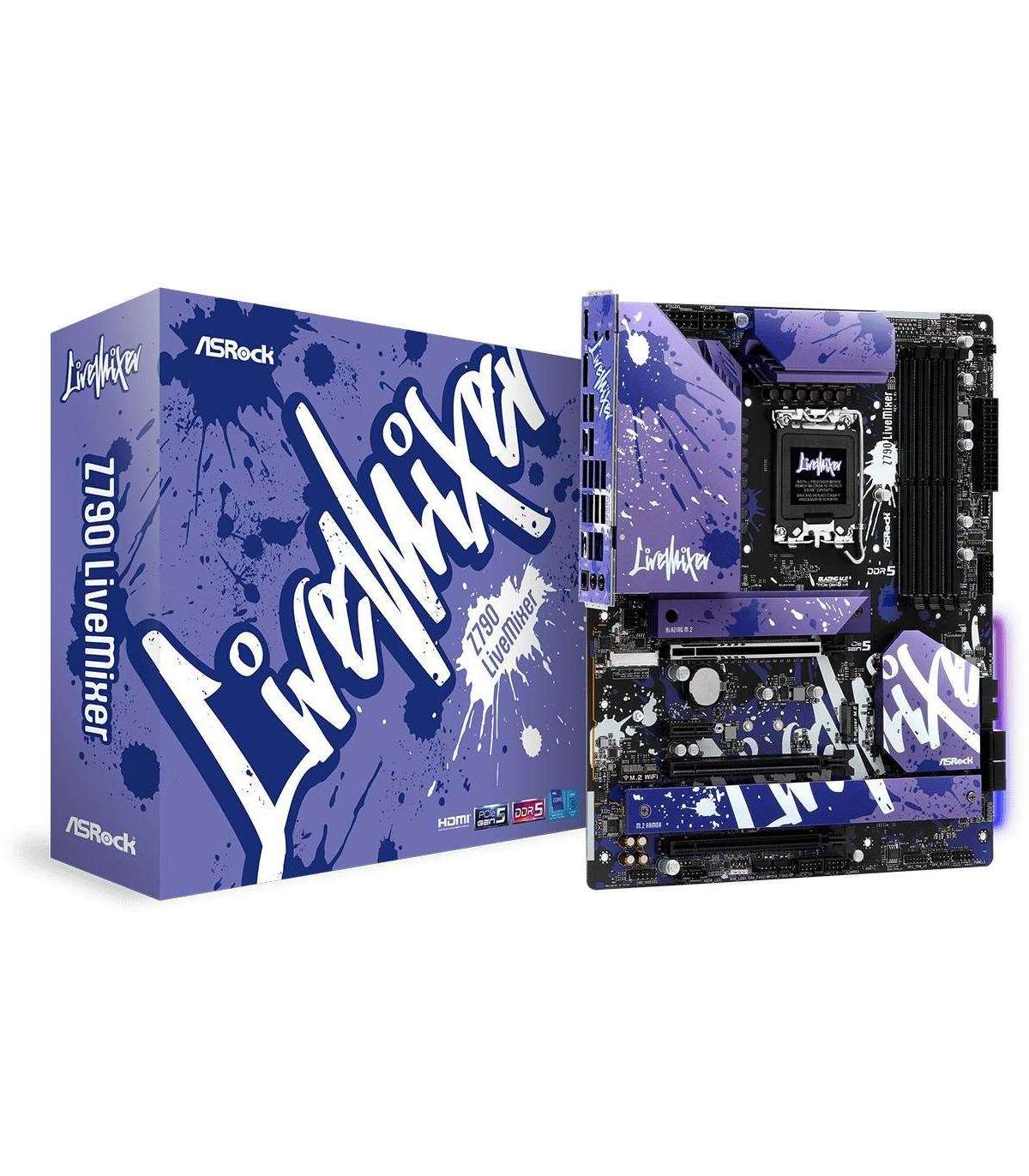

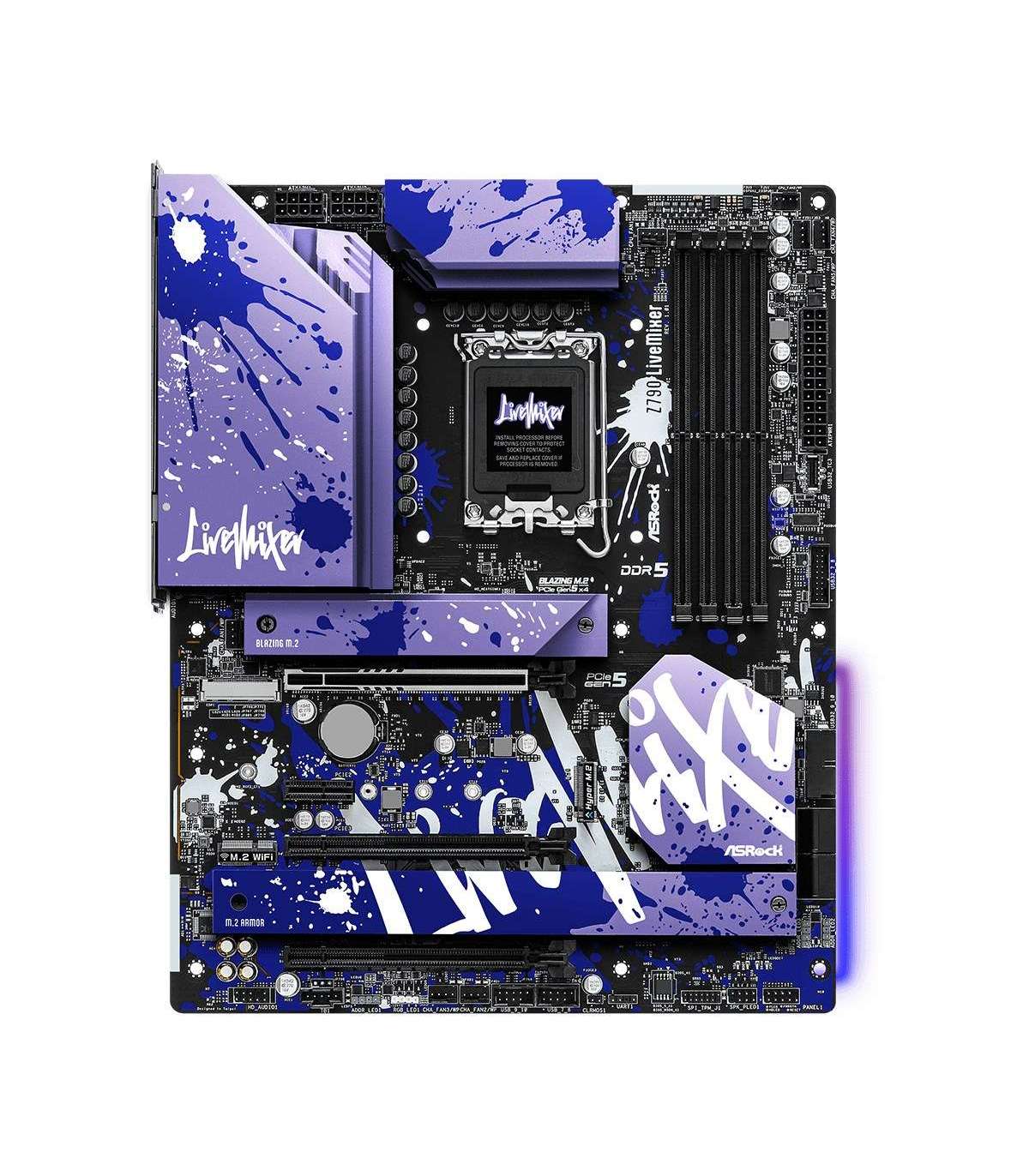

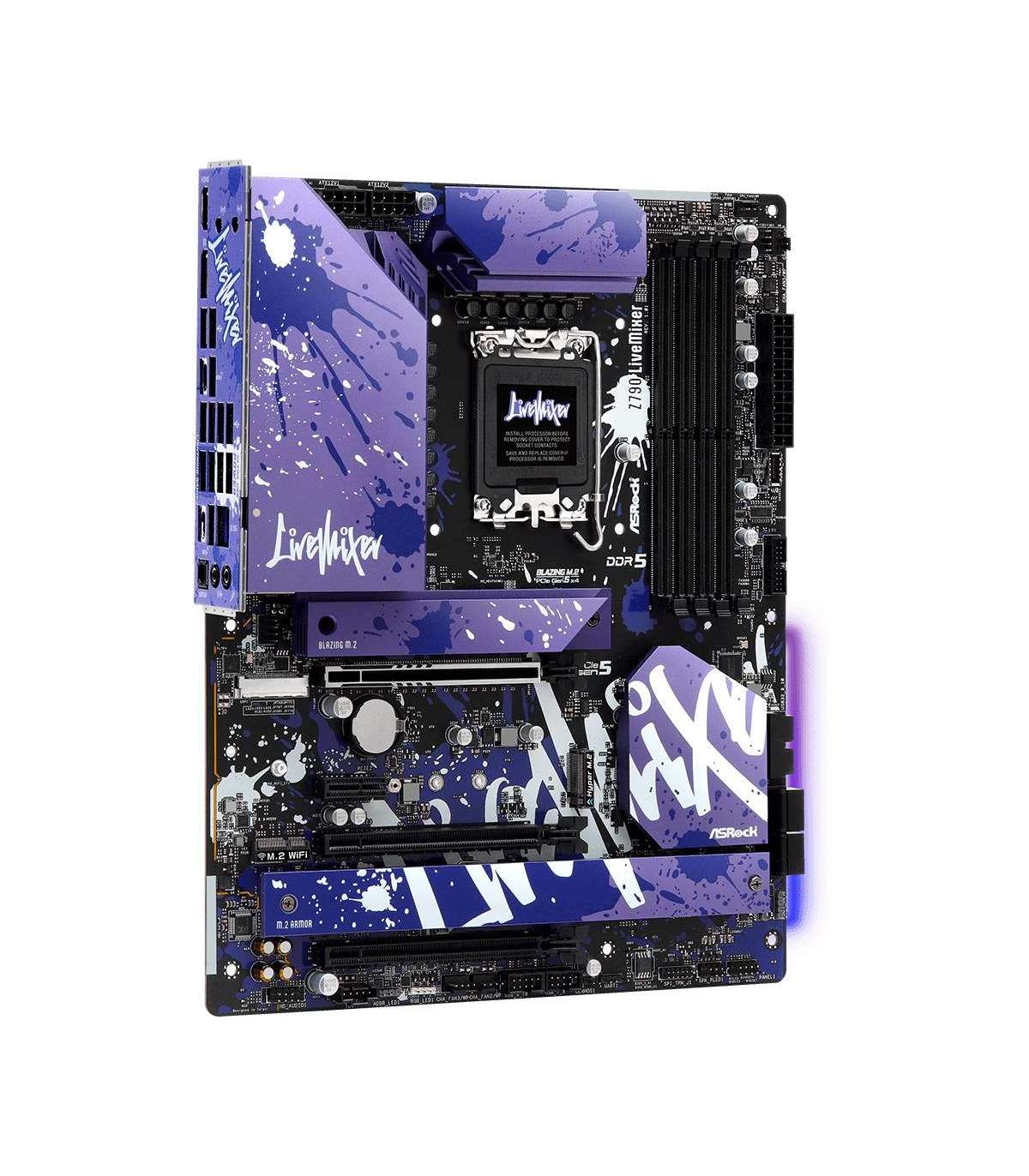

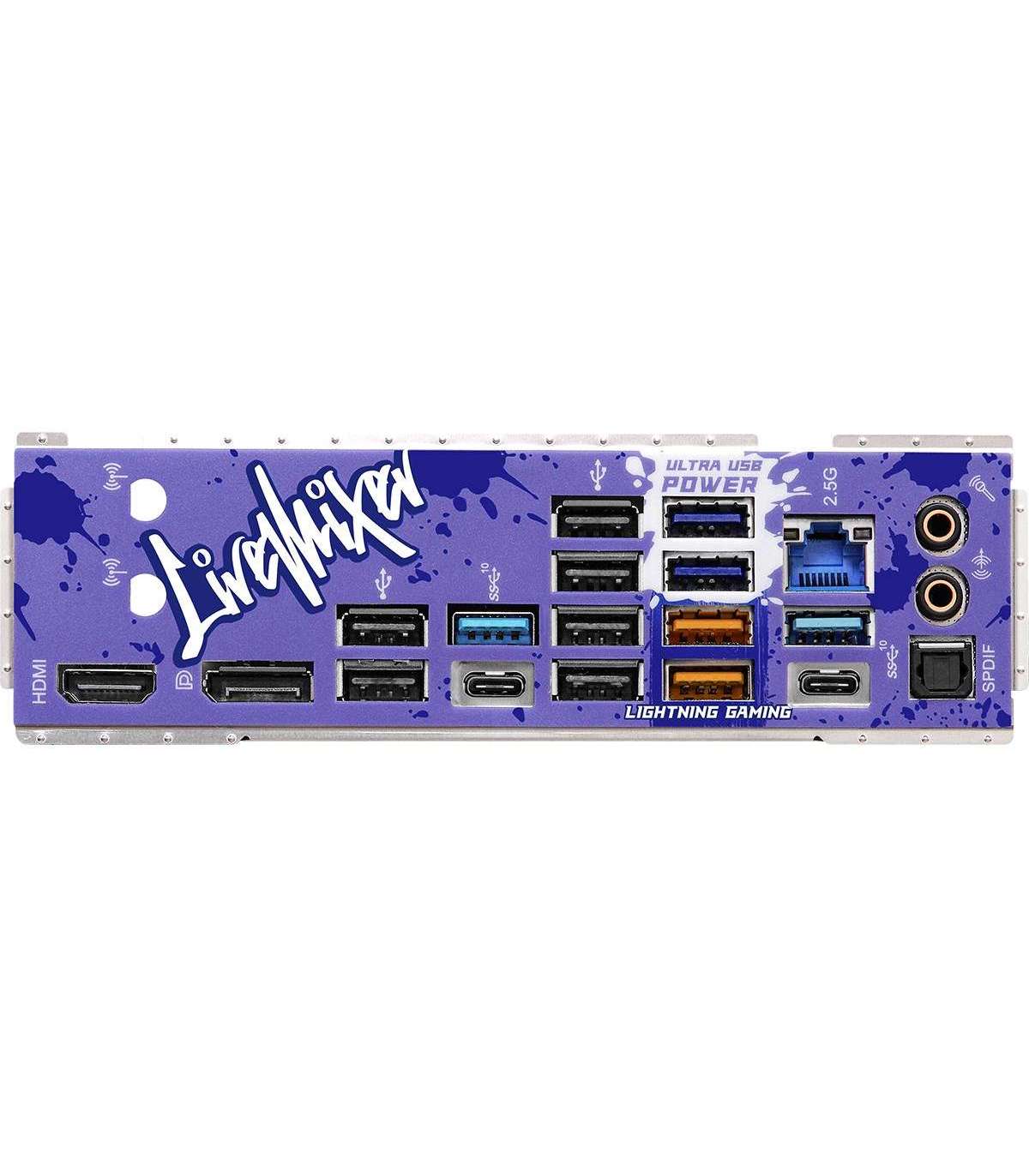

Asrock Z790 LiveMixer Intel Z790 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

6

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel Z790

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

2

Number of M.2 (M) slots

1

EPS power connector (8-pin)

Yes

RAID support

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1
