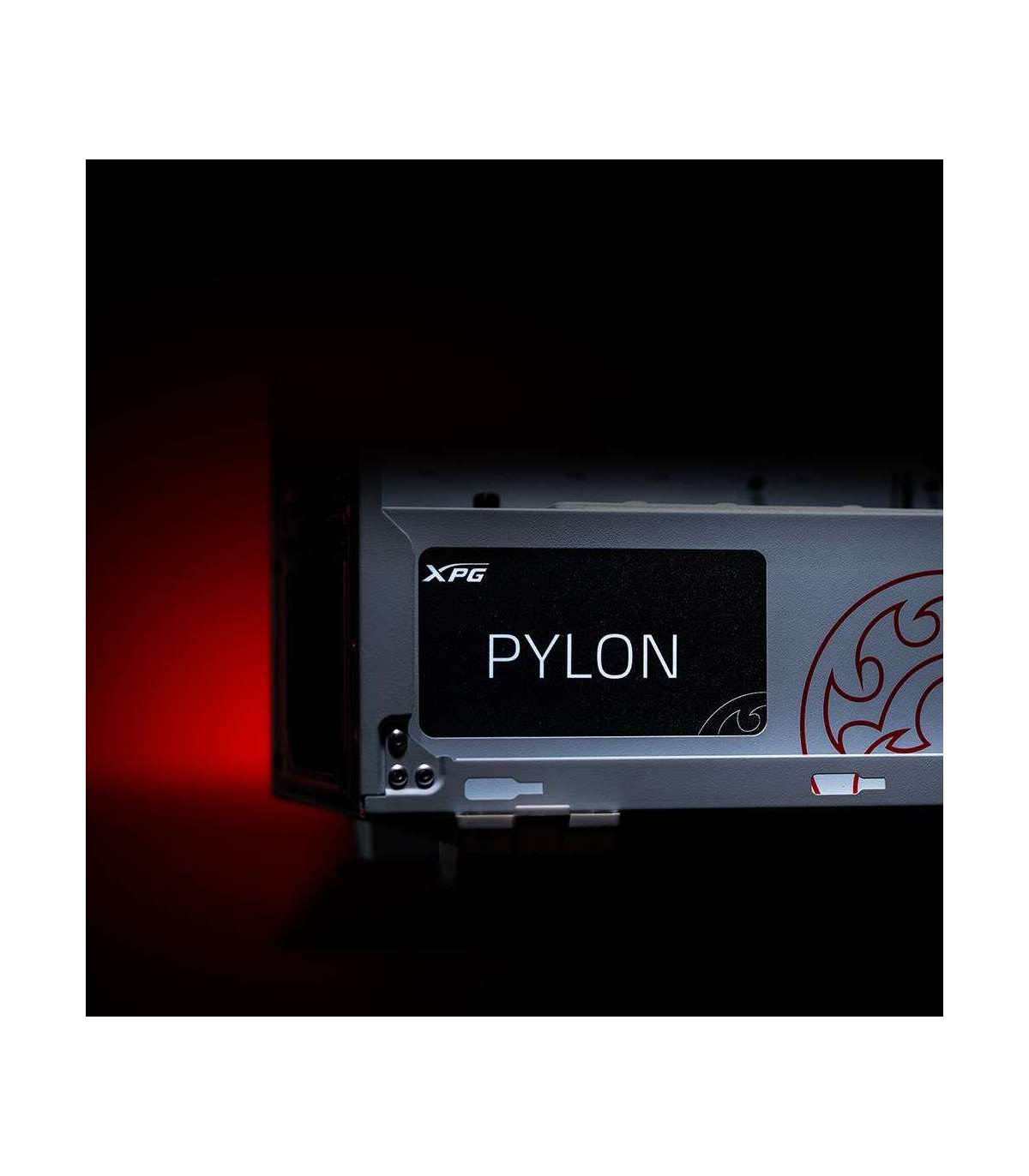

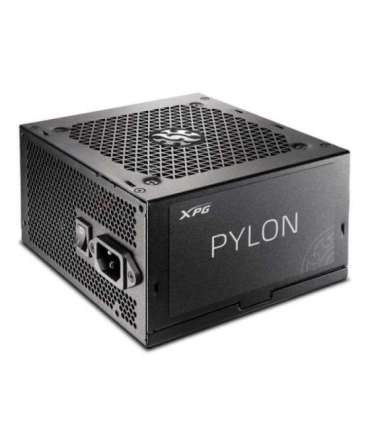

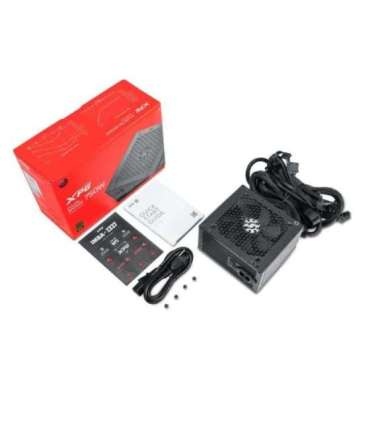

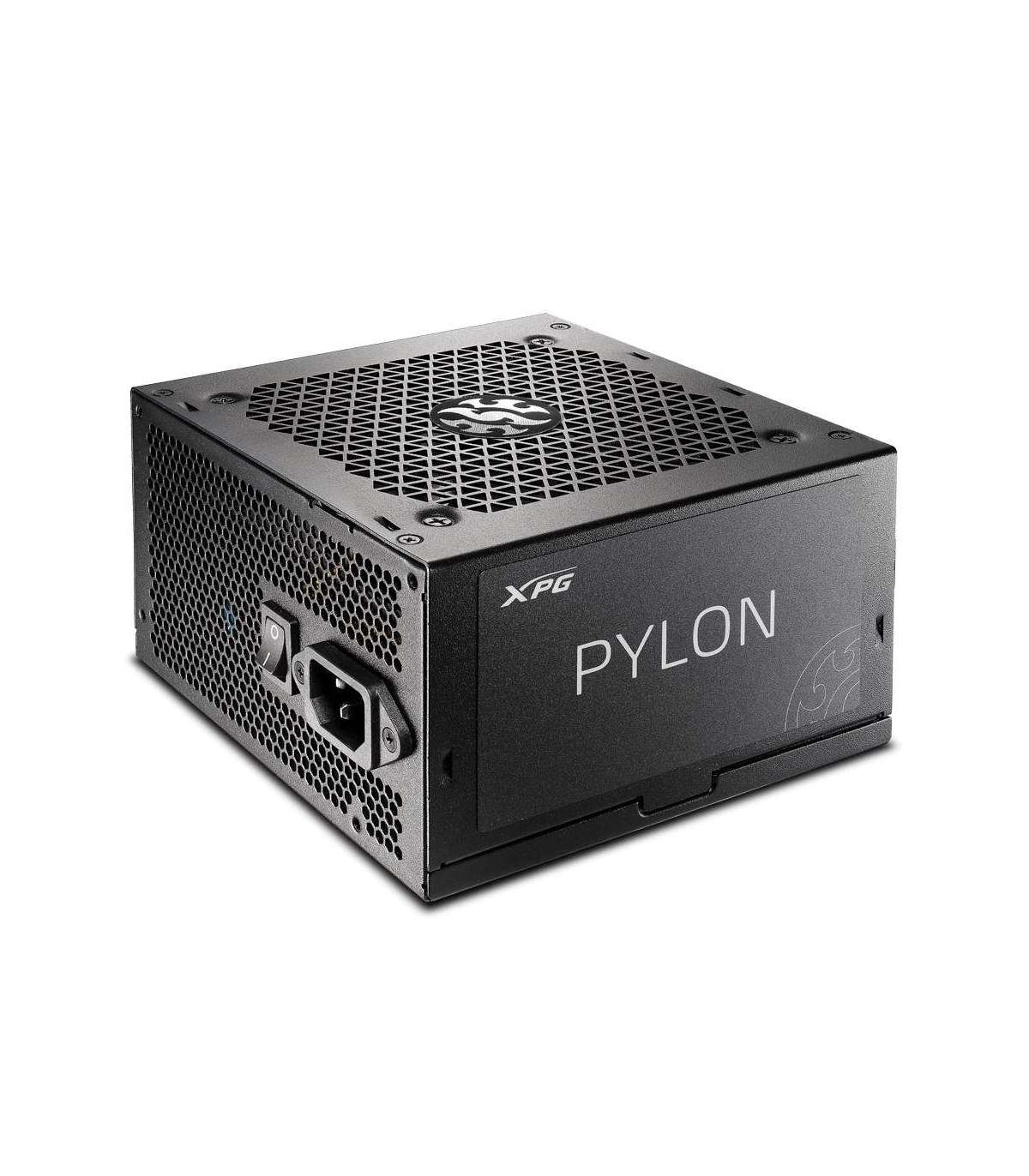

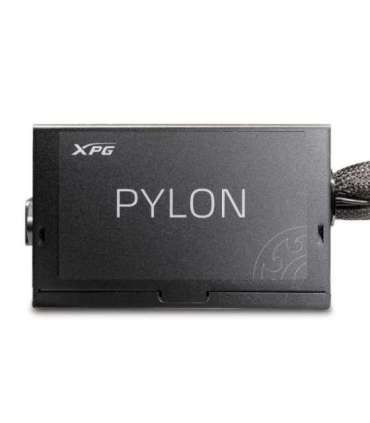

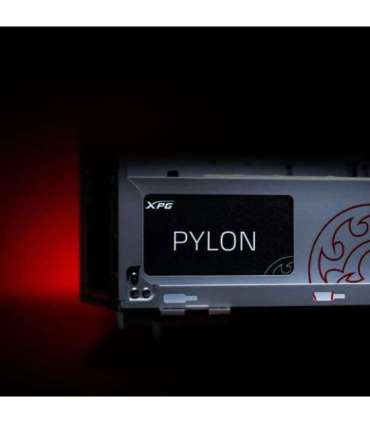

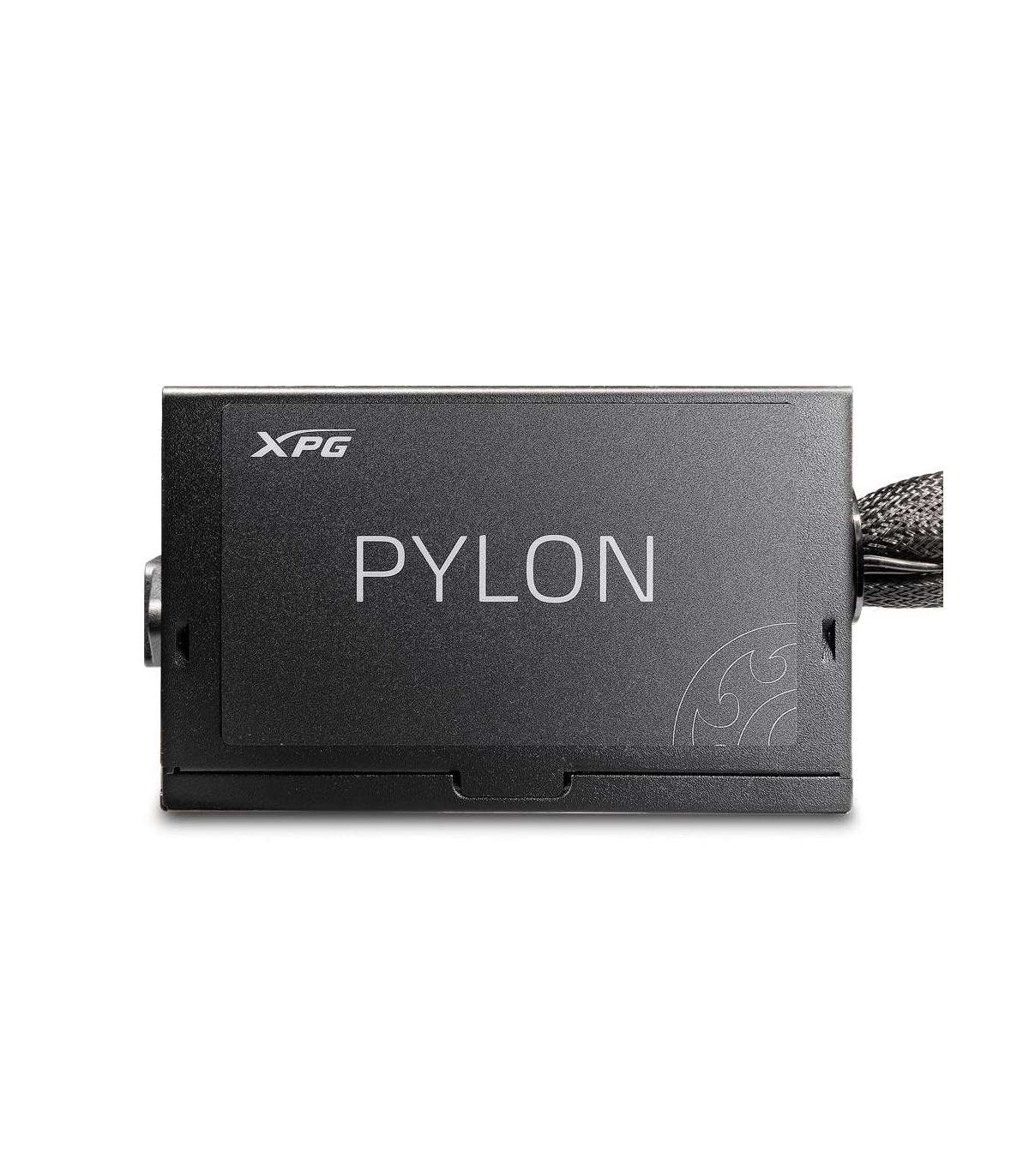

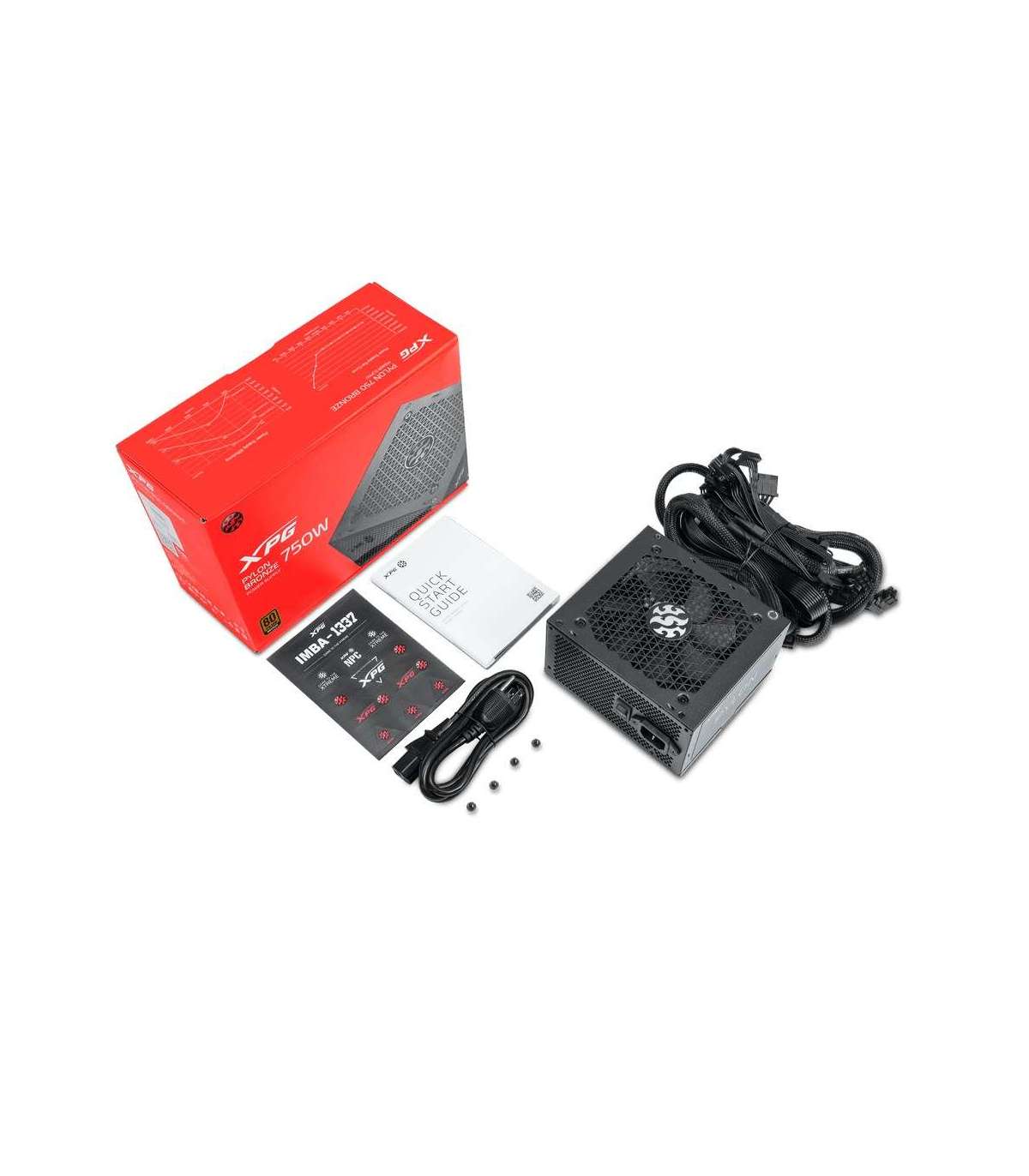

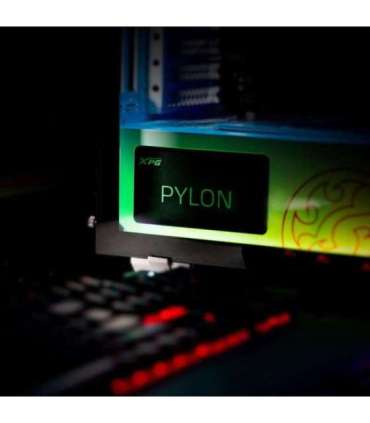

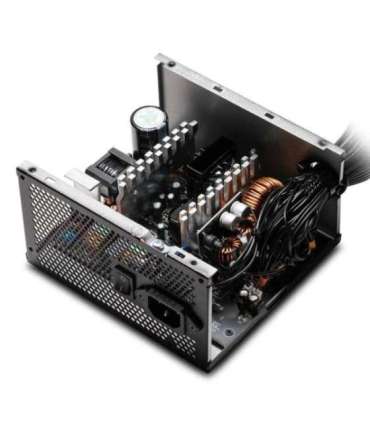

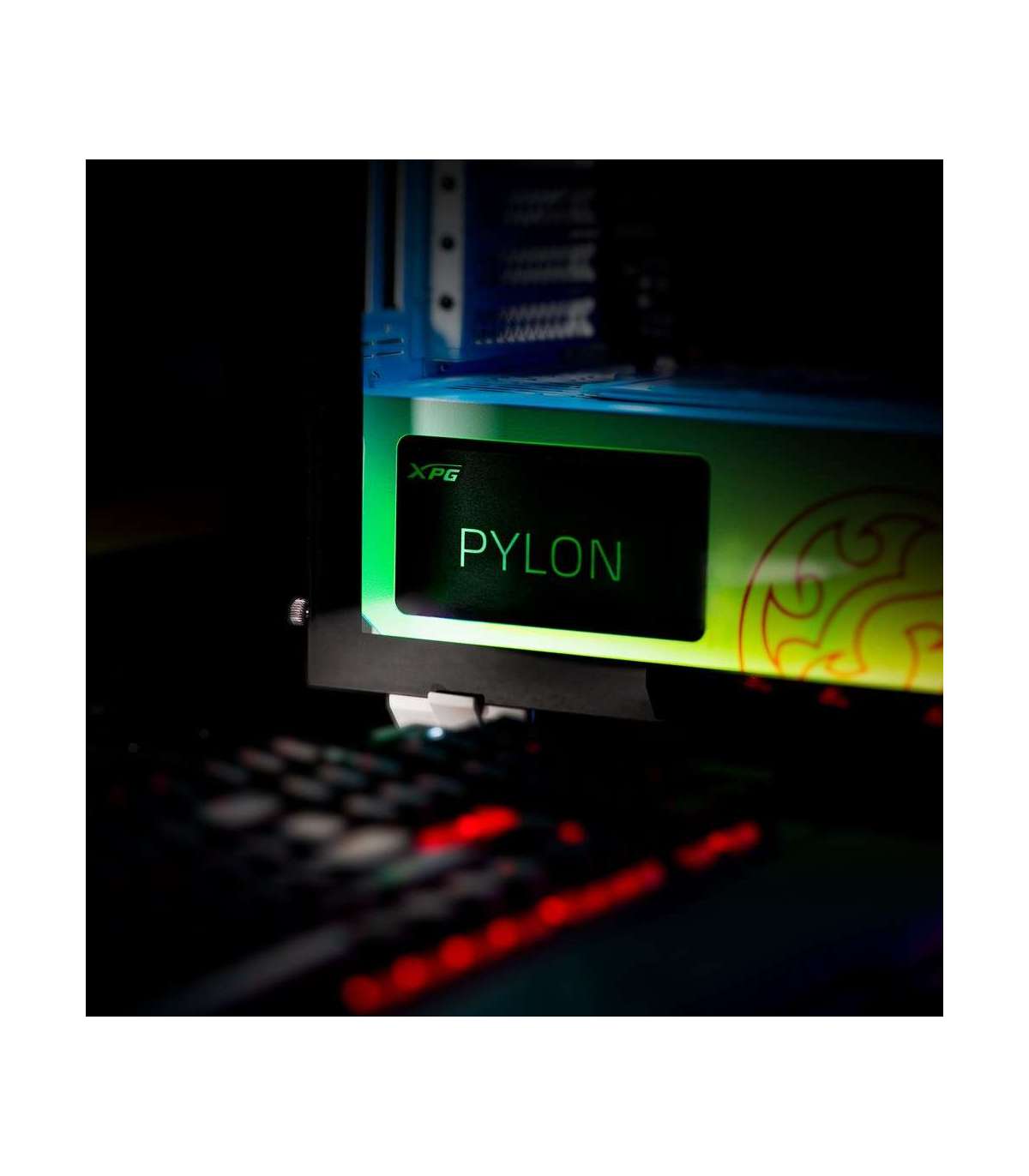

XPG PYLON 650W Power Supply

Lisainfo

Depth

150 mm

Kõrgus

86 mm

Laius

140 mm

Product colour

Must

Cables included

AC

Compliance certificates

RoHS

Harmonized System (HS) code

84733020

Warnings

Do not open the case - risk of electric shock.

Sustainability compliance

Yes

Sustainability certificates

ErP

Certification

CE / CB(62368+60950) / FCC(IC) / EAC / CCC / TUV / cTUVus / TUV-S / RCM / NOM / BSMI / KC

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Input current

10/5 A

Mean time between failures (MTBF)

100000 h

ATX Power connector (24-pin)

Yes

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

1

Purpose

PC

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Bronze

Total power

650 W

Power protection features

Over current
Overheating
Over power
Over voltage
Short circuit
Under voltage

Bearing technology

FDB

Power Factor Correction (PFC) type

Active

Combined power (-12V)

3.6 W

Max output current (+12V)

54 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

12.5 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Combined power (+12V)

648 W

Max output current (+5Vsb)

2.5 A

Max output current (-12V)

0.3 A

ATX version

2.4

Power supply unit (PSU) form factor

ATX

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

4

Motherboard power connector

24-pin ATX

Cabling type

Non-Modular

EPS power connector (4+4 pin)

Yes

Power factor

0.99
