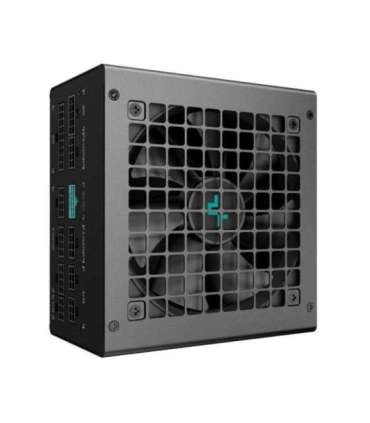

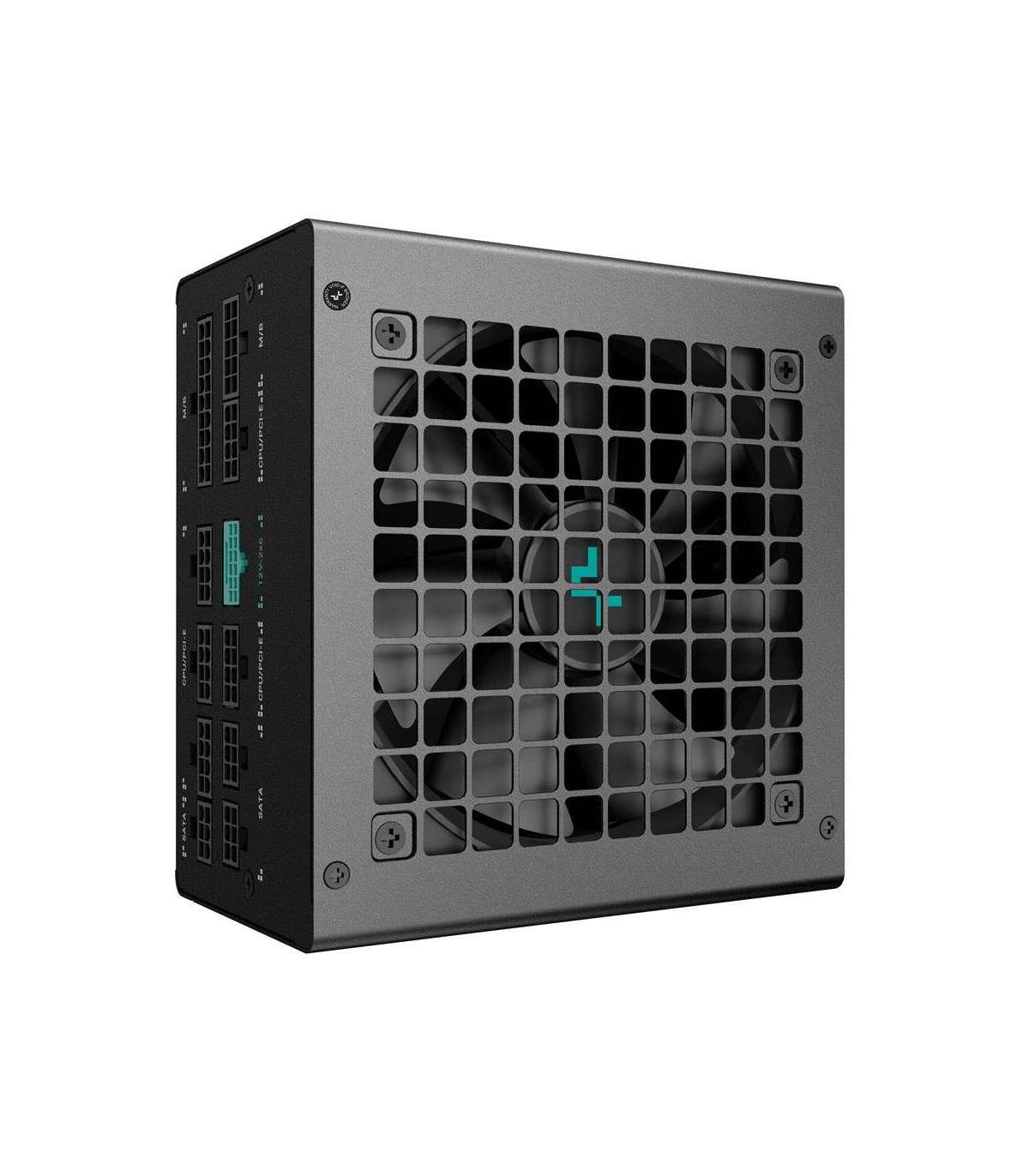

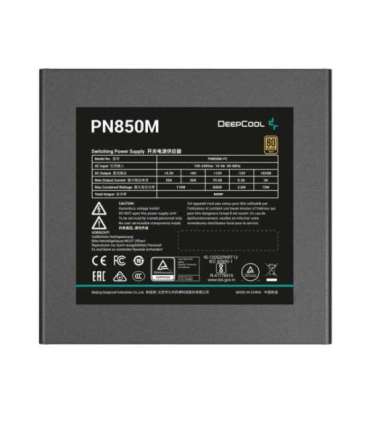

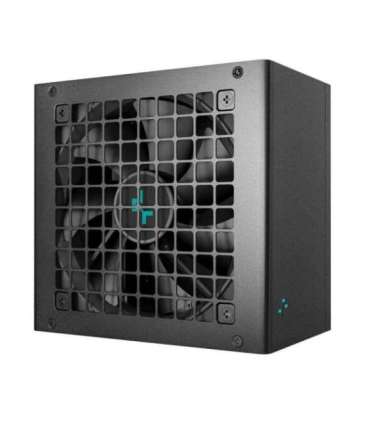

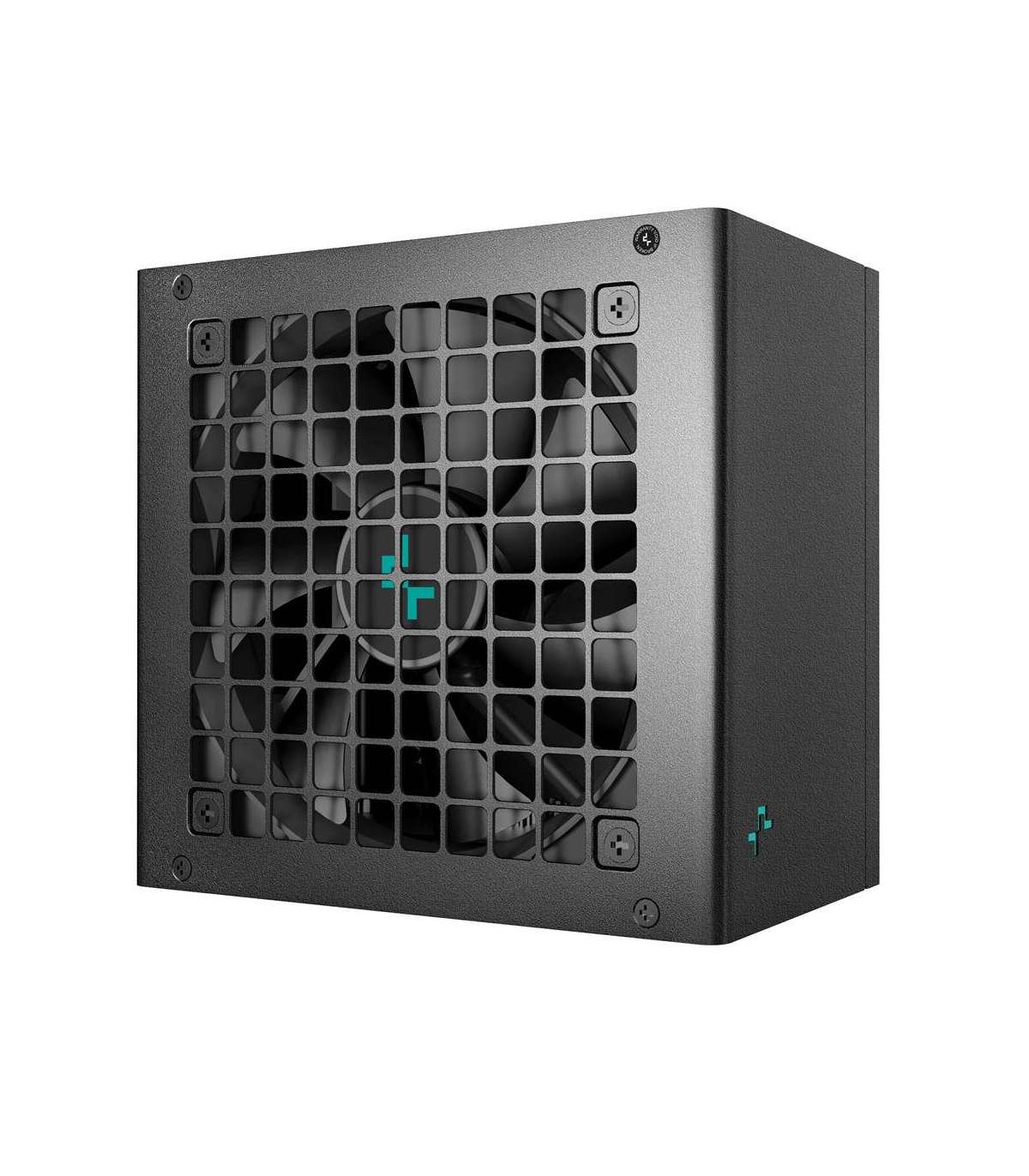

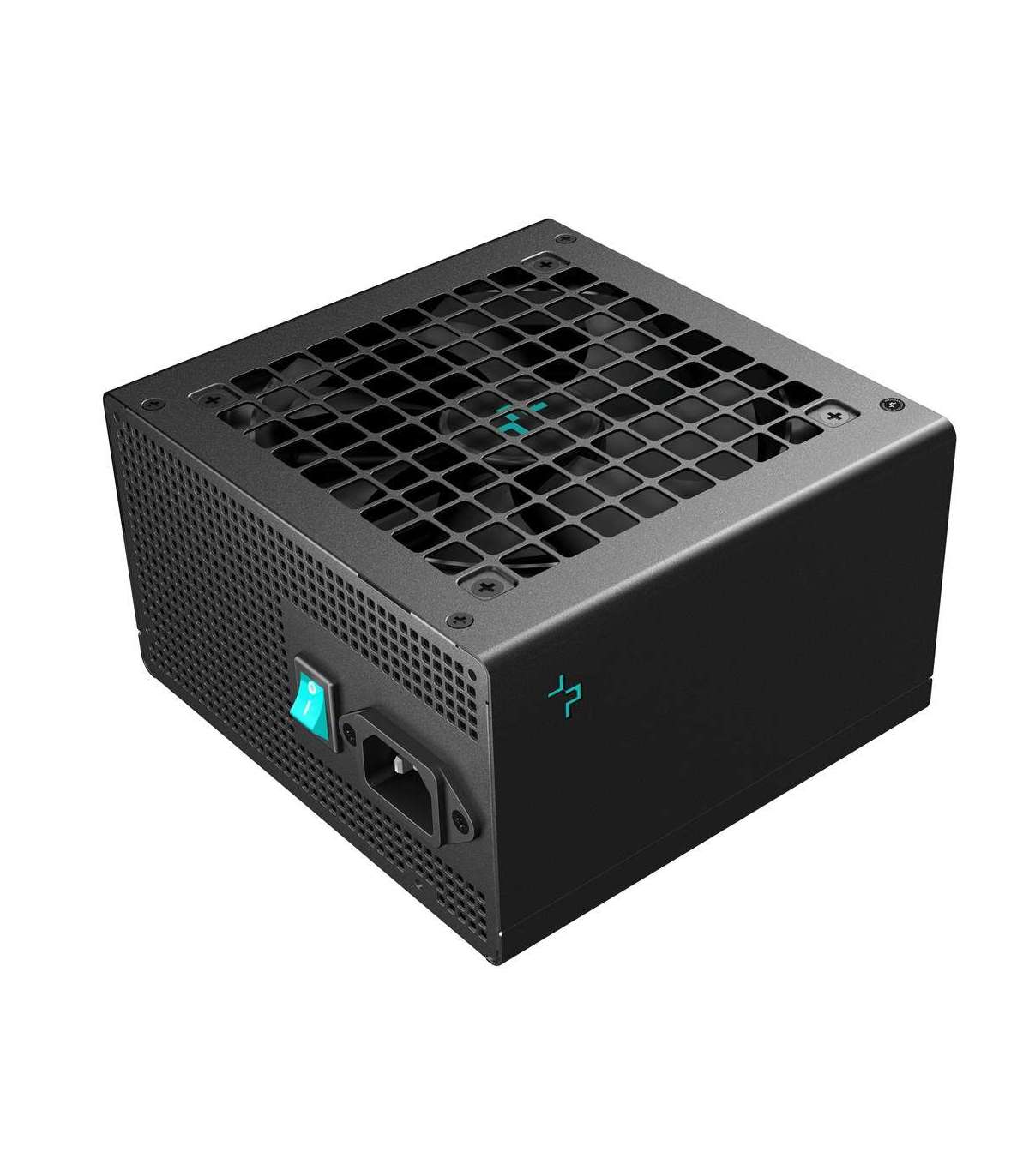

Gamer Storm PN850M power supply unit 850 W 20+4 pin ATX ATX Black

Lisainfo

Depth

140 mm

Kõrgus

86 mm

Laius

150 mm

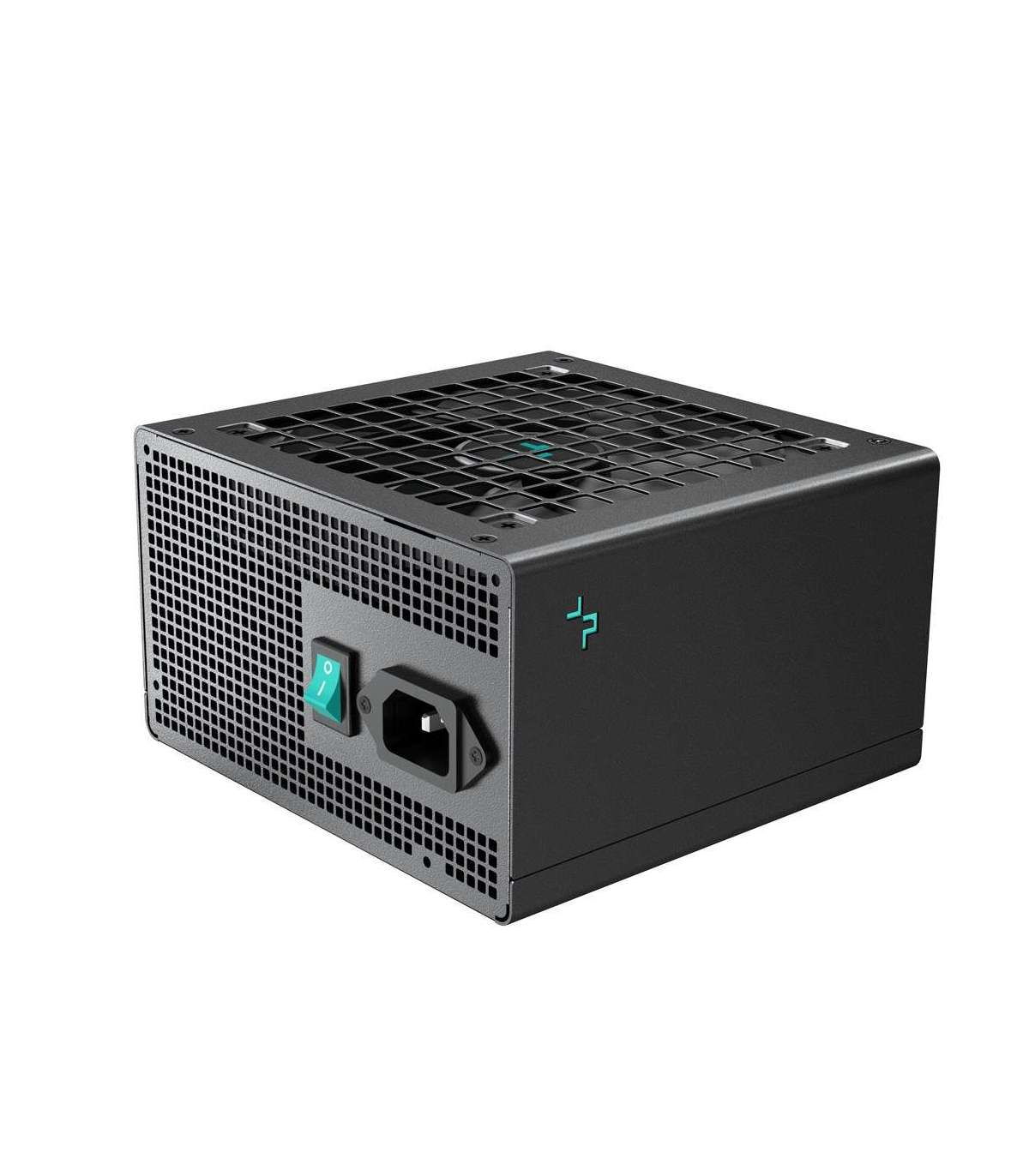

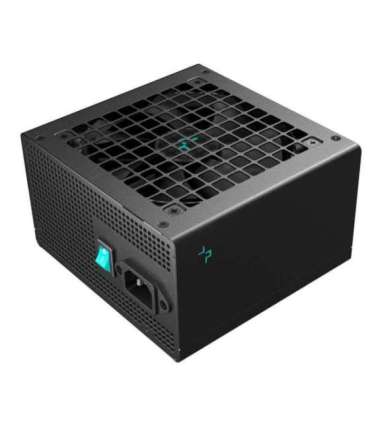

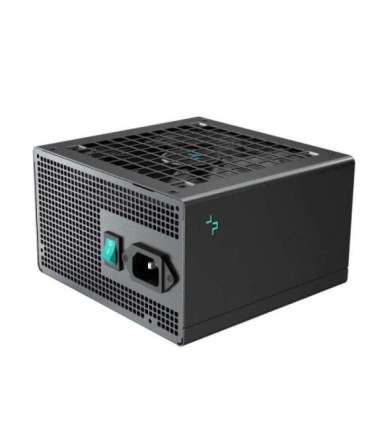

On/off switch

Yes

Product colour

Must

Operating temperature (T-T)

0 - 40 °C

Cables included

AC

Compliance certificates

CCC
CE
EAC
Federal Communications Commission (FCC)
RCM
RoHS
WEEE

Sustainability compliance

Yes

Sustainability certificates

ErP
Triman

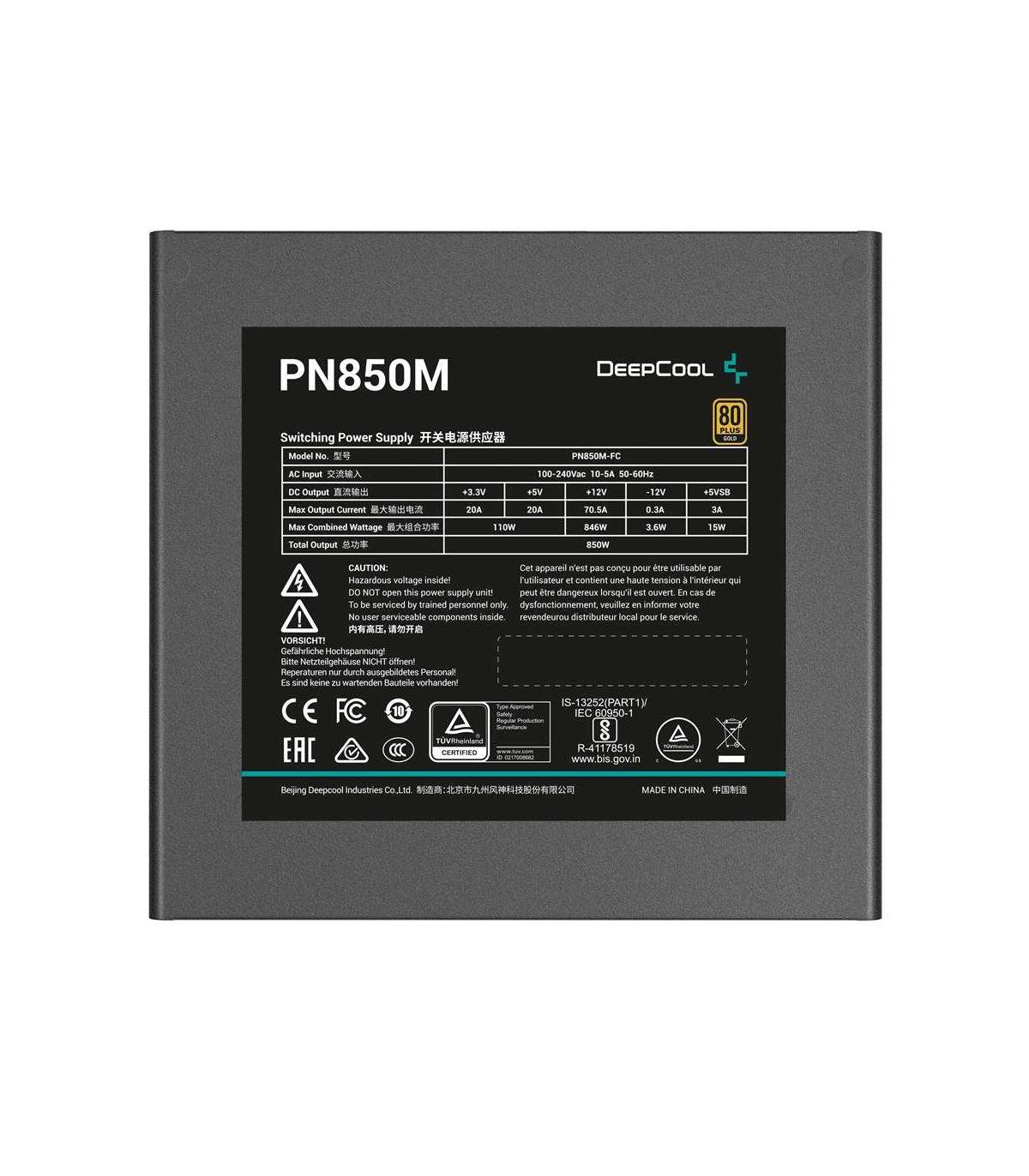

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Input current

10 - 5 A

Package type

Box

Mean time between failures (MTBF)

100000 h

Cooling type

Active

Peripheral (Molex) power connectors (4-pin)

2

Efficiency

90%

Purpose

PC

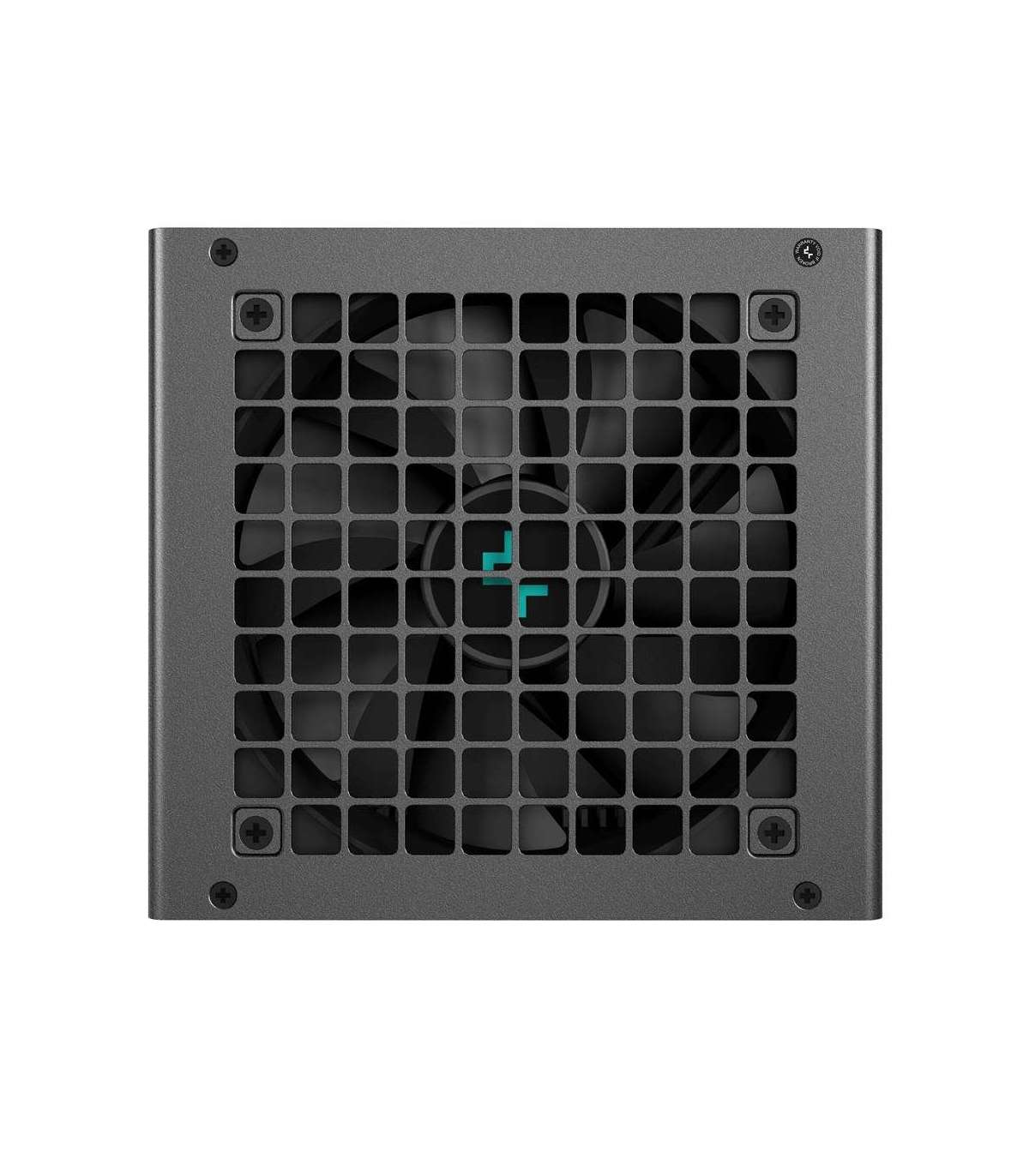

Number of fans

1 fan(s)

Fan diameter

12 cm

80 PLUS certification

80 PLUS Gold

Total power

850 W

Power protection features

No load operation
Overheating
Over power
Over voltage
Short circuit
Surge & inrush protection (SIP)
Surge protection
Under voltage

Bearing technology

FDB

Power Factor Correction (PFC) type

Active

Fan location

Top

Combined power (-12V)

3.6 W

Max output current (+12V)

70.5 A

Combined power (+3.3V)

110 W

Combined power (+5Vsb)

15 W

Max output current (+5V)

20 A

Max output current (+3.3V)

20 A

Combined power (+5V)

110 W

Hold time

16 ms

Power Good signal delay range

100 - 150 ms

Combined power (+12V)

846 W

Max output current (+5Vsb)

3 A

Max output current (-12V)

0.3 A

ATX version

3.1

Power supply unit (PSU) form factor

ATX

Cable tie(s) included

Yes

Number of SATA power connectors

8

PCI Express power connectors (6+2 pin)

3

Motherboard power connector

20+4 pin ATX

SATA power cable length

450 mm
550
650
750

Peripheral (Molex) power cable length

850 mm

CPU power cable length

70 cm

CPU power connector (4+4 pin)

Yes

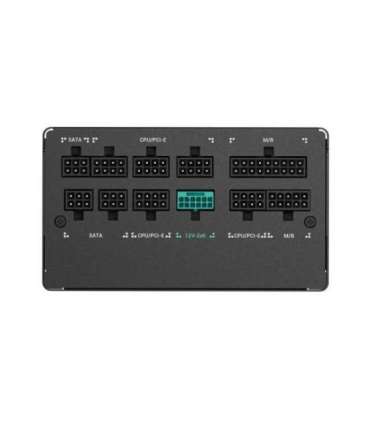

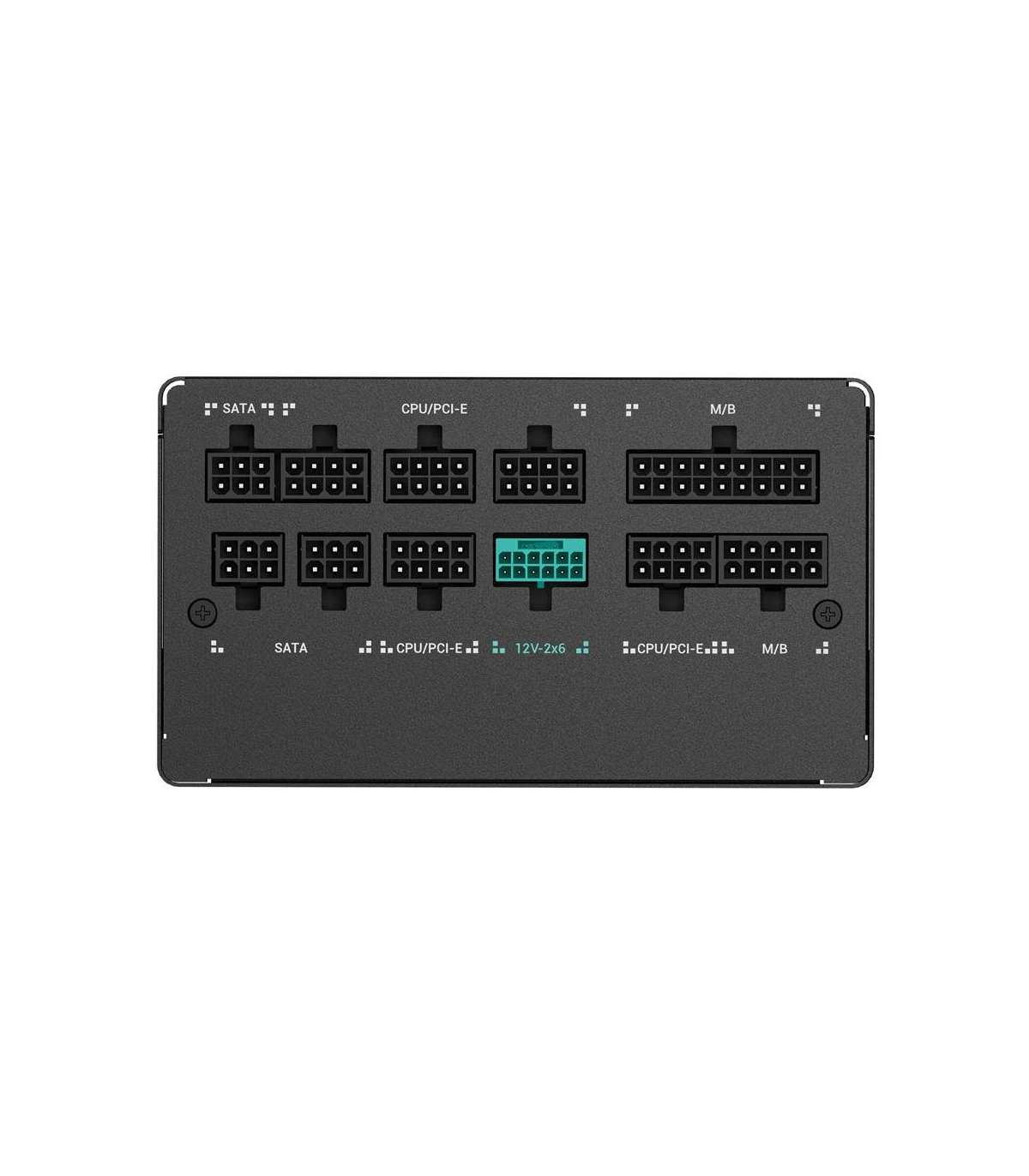

Cabling type

Fully-Modular

ATX power connector (20+4 pin)

Yes

Motherboard power cable length

55 cm

PCI Express power connectors (16-pin)

1
