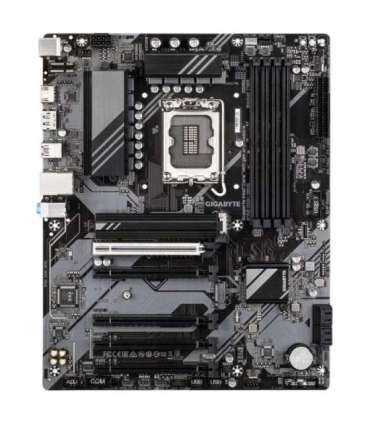

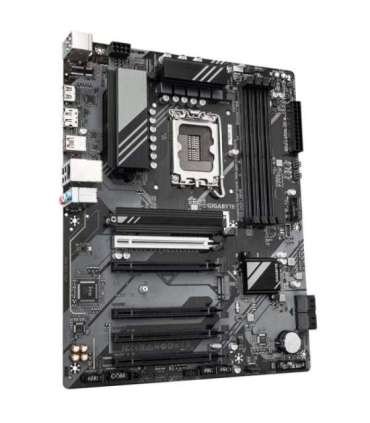

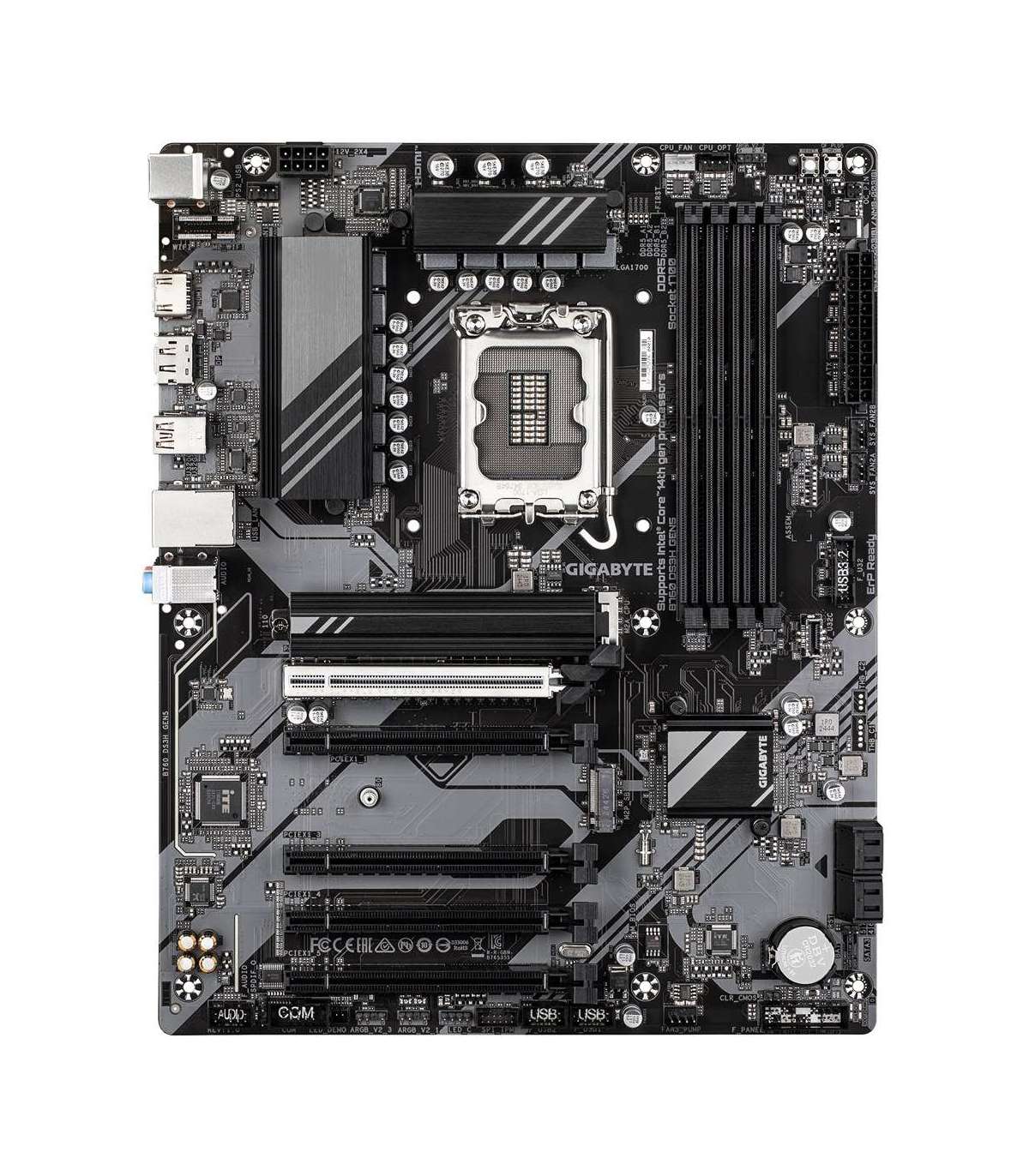

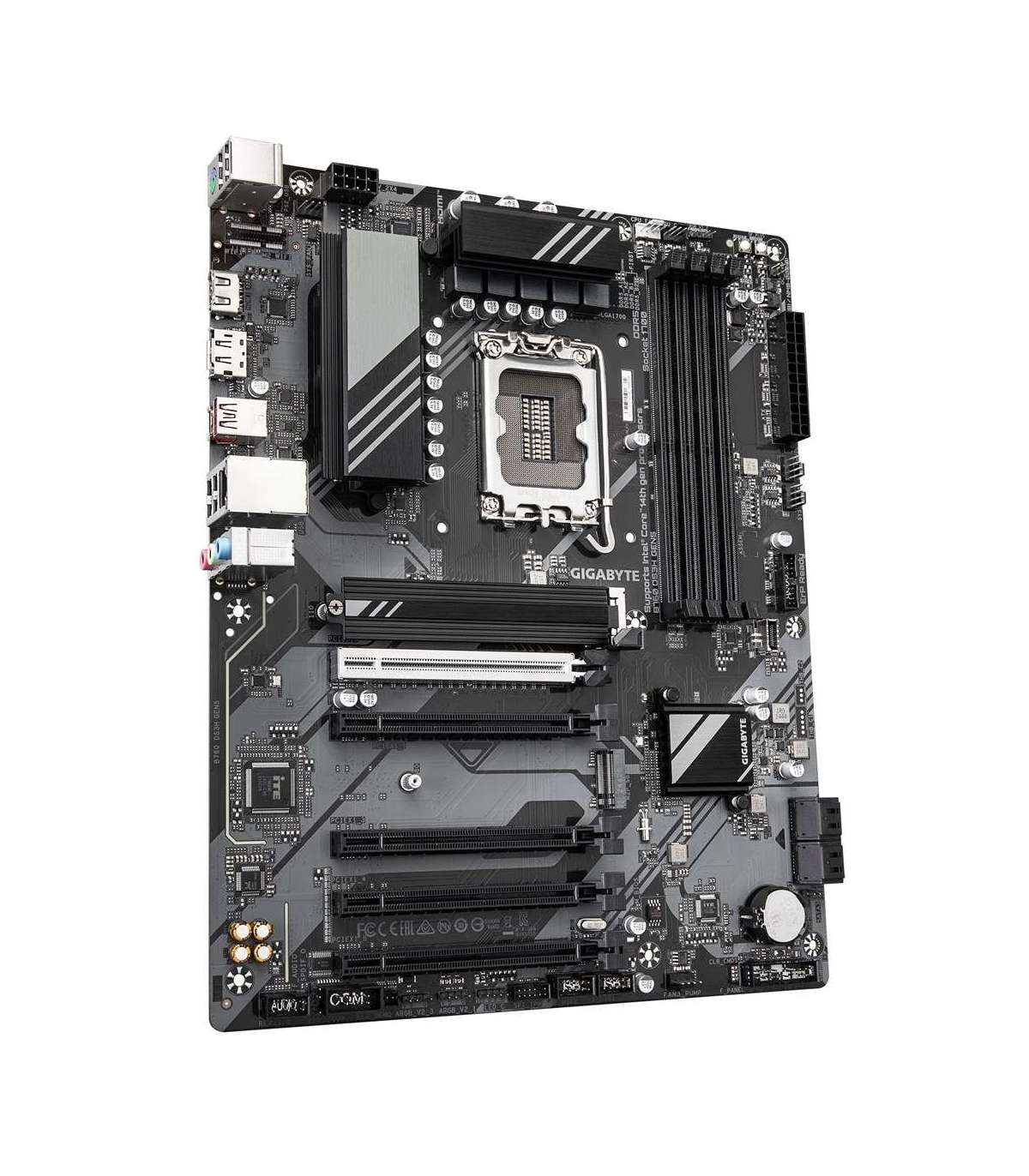

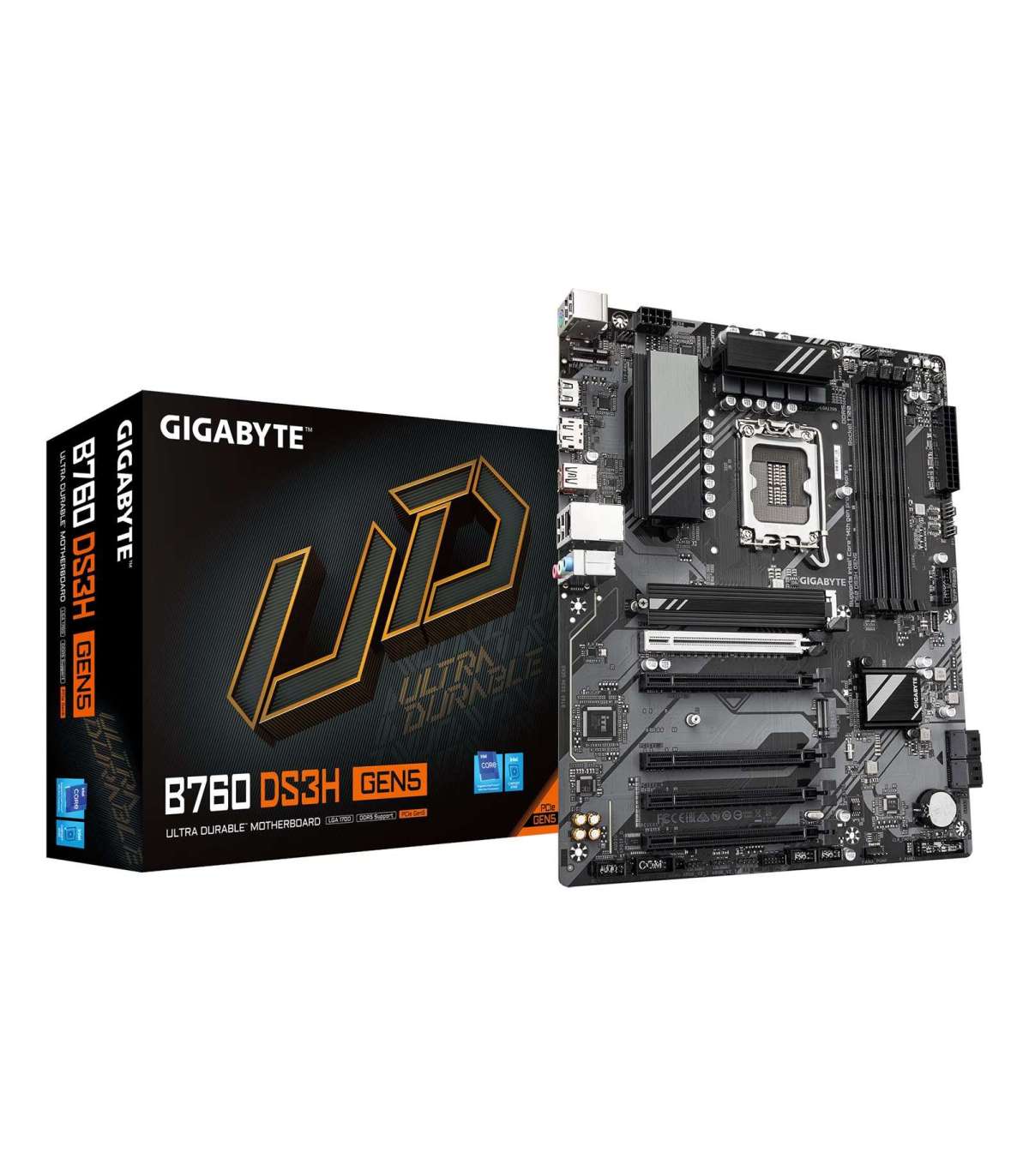

Gigabyte B760 DS3H GEN5 - 1700 ATX motherboard

Lisainfo

Depth

244 mm

Kaal

1.32 kg

Kõrgus

35 mm

Laius

305 mm

Package weight

1.5 kg

Product colour

Dark brown

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Package width

335 mm

Package depth

270 mm

Package height

80 mm

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Maximum internal memory

256 GB

Country of origin

China

Motherboard chipset

Intel B760 Express

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Number of battery cells

1

Memory channels

Dual-channel

Battery weight

3 g

Audio chip

Realtek ALC897

Bundled software

Norton® Internet Security (OEM version)
LAN bandwidth management software

USB 3.2 Gen 2x2 Type-C ports quantity

1

Warranty period

3 year(s)

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel Core i3 12th Gen
Intel Core i3 13th Gen
Intel Core i3 14th Gen
Intel Core i5 12th Gen
Intel Core i5 13th Gen
Intel Core i5 14th Gen
Intel Core i7 12th Gen
Intel Core i7 13th Gen
Intel Core i7 14th Gen
Intel Core i9 12th Gen
Intel Core i9 13th Gen
Intel Core i9 14th Gen
Intel® Celeron®
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4400 MHz
4800
5200
5600

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

PS/2 ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

4

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

HDCP

Yes

Supported memory clock speed (max)

5600 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Batteries included

Yes

Number of storage drives supported

6

RAID support

Yes

Battery type

CR2032

Lithium weight per battery

0.07 g

Products per shipping (inner) case

1 pc(s)

DirectX version

12.0

Line-in

Yes

S/PDIF out connector

Yes

Cooling type

Passive

Maximum internal memory per slot

64 GB

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

2

Number of RGB LED pin headers

4

Number of water pump connectors

2

Screws included

Yes

DisplayPort version

1.2

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Serial port headers

1

PCI Express x16 (Gen 5.x) slots

1
