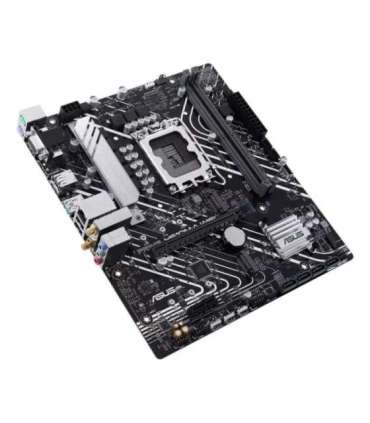

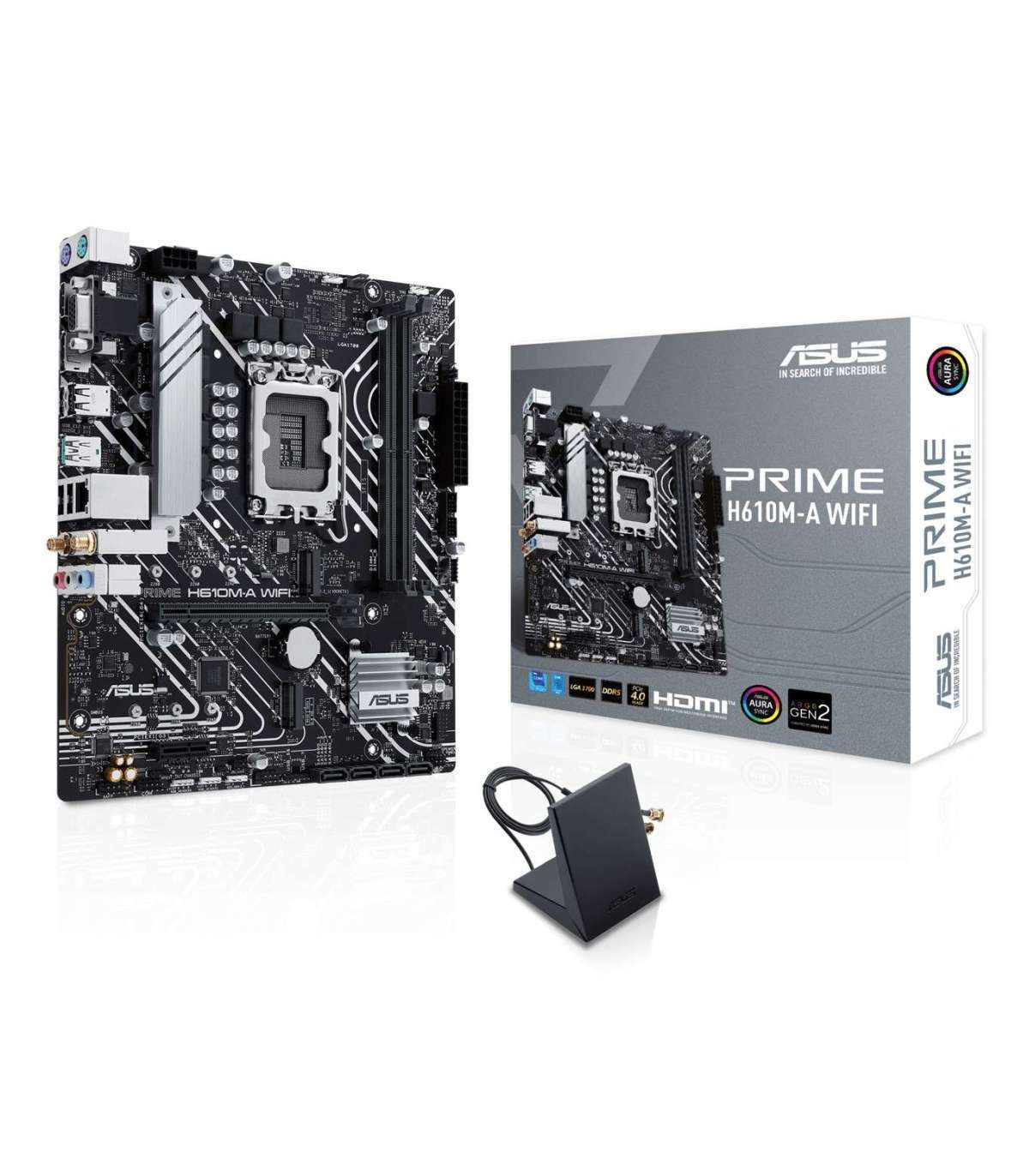

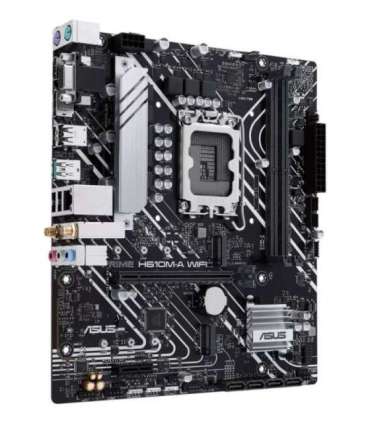

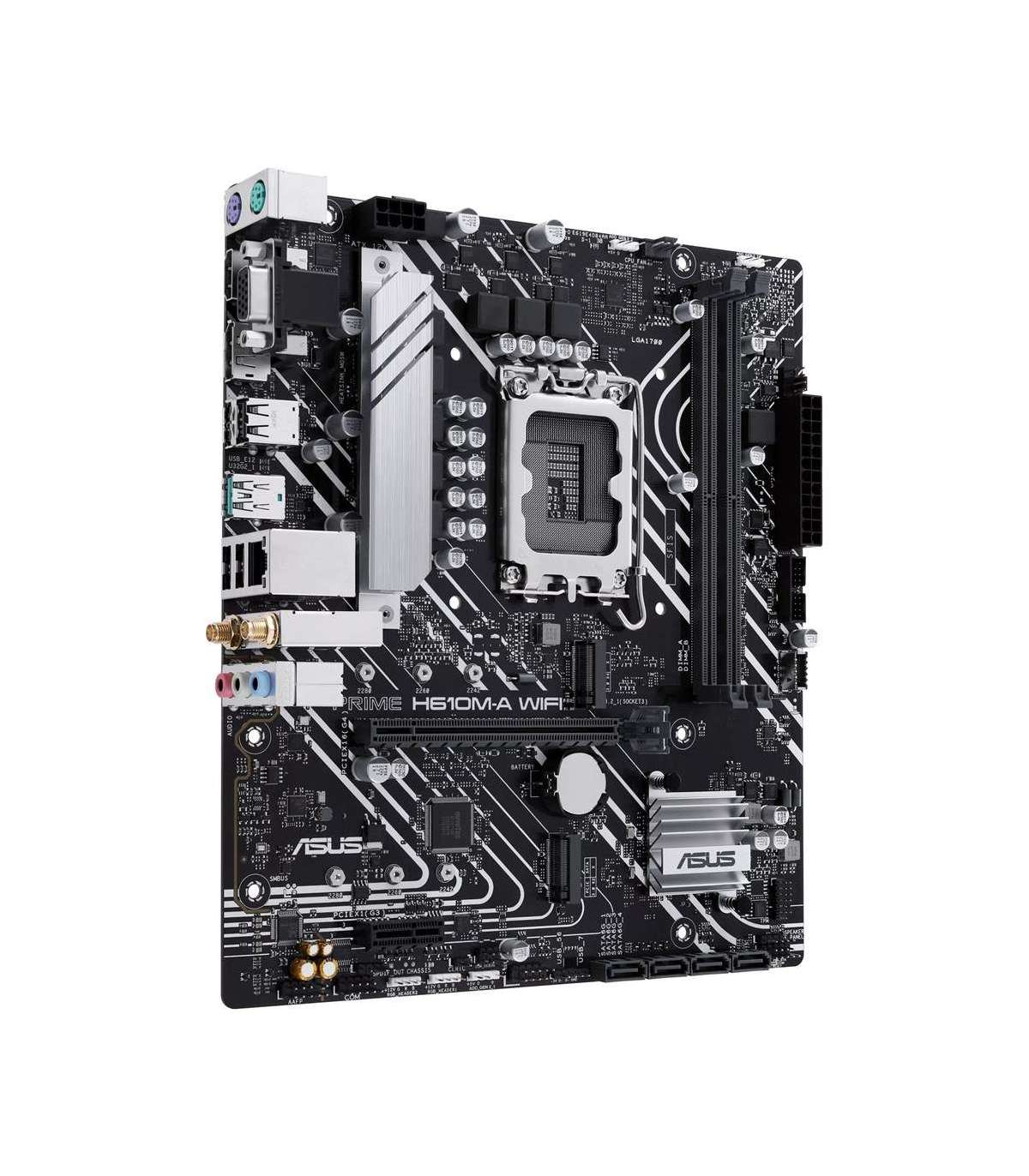

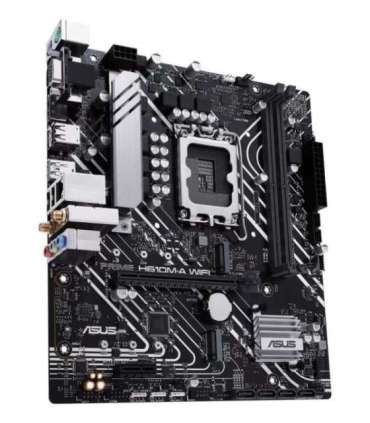

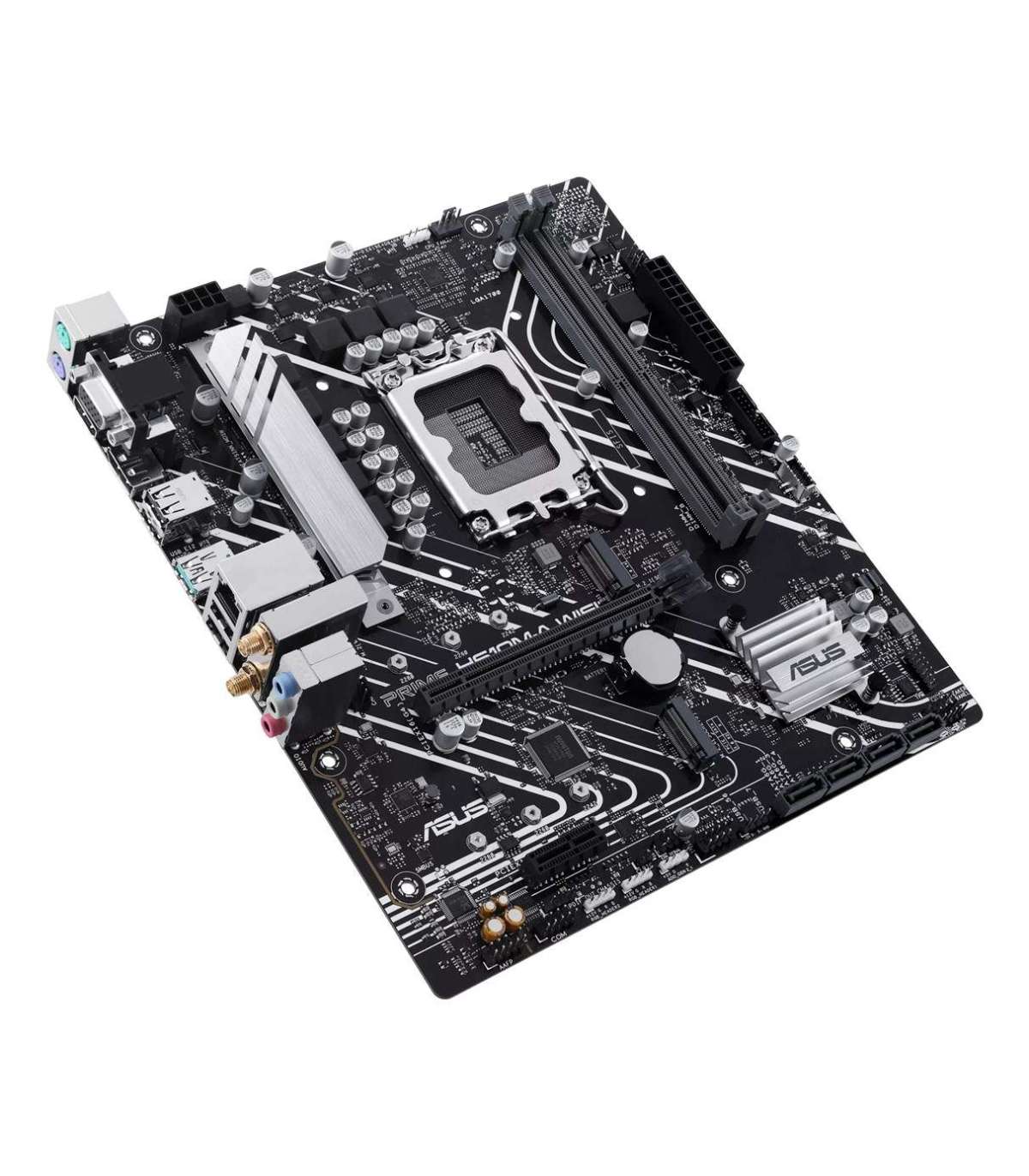

ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX

Lisainfo

Depth

216 mm

Laius

244 mm

Package weight

1.07 kg

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

Yes

Component for

PC

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

96 GB

Bluetooth version

5.0

Bluetooth

Yes

Motherboard chipset

Intel H610

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5600 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

6

Audio connector

Yes

Line-in

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

Clear CMOS button

Yes

WiFi-AP antenna jack

1

BIOS memory size

128 Mbit
