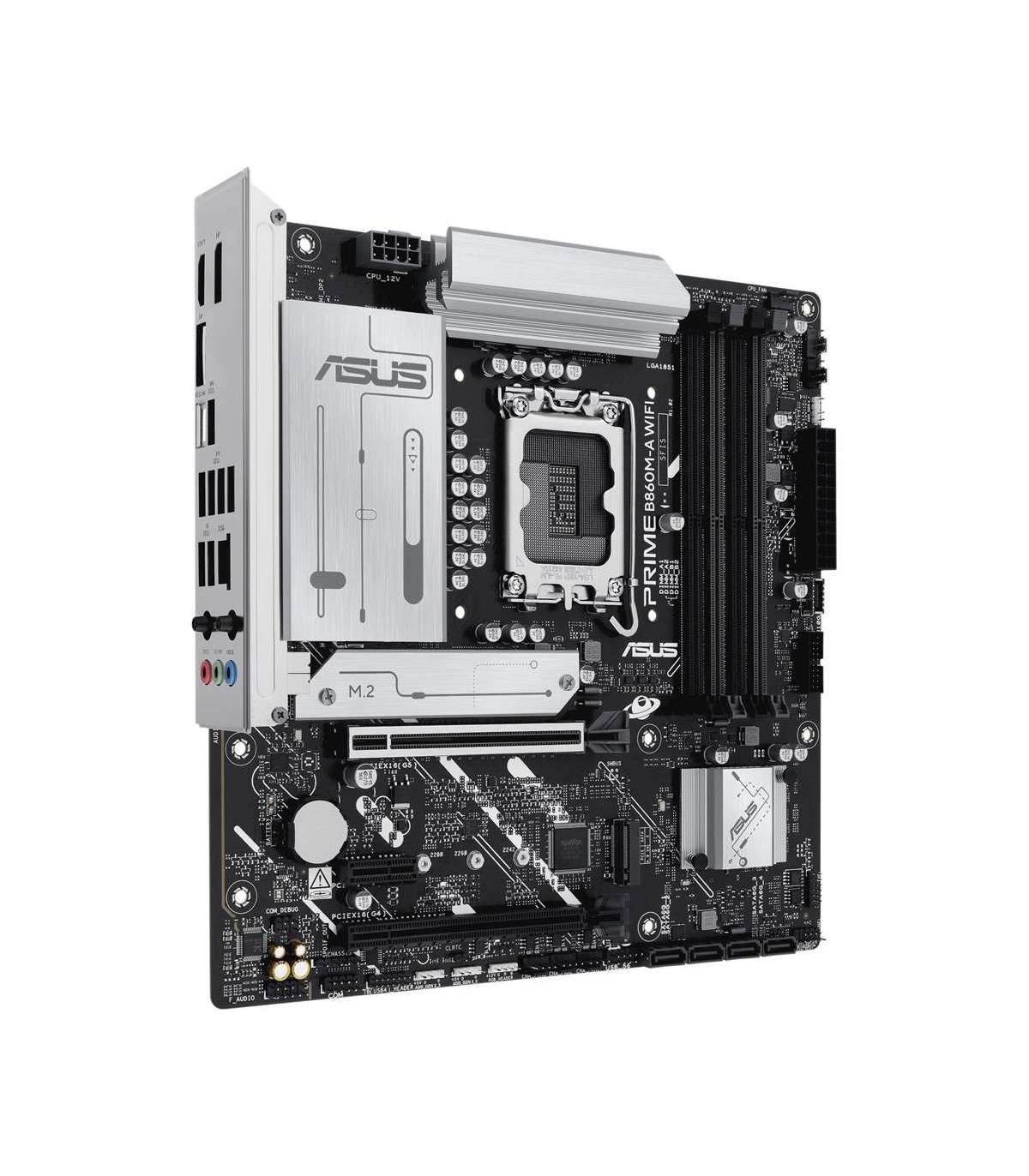

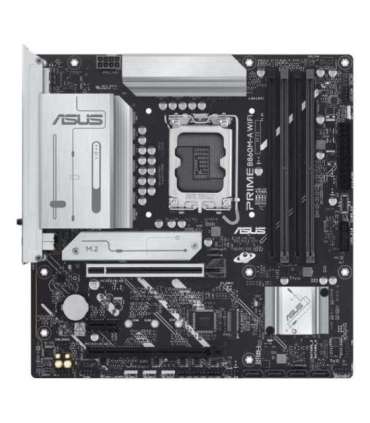

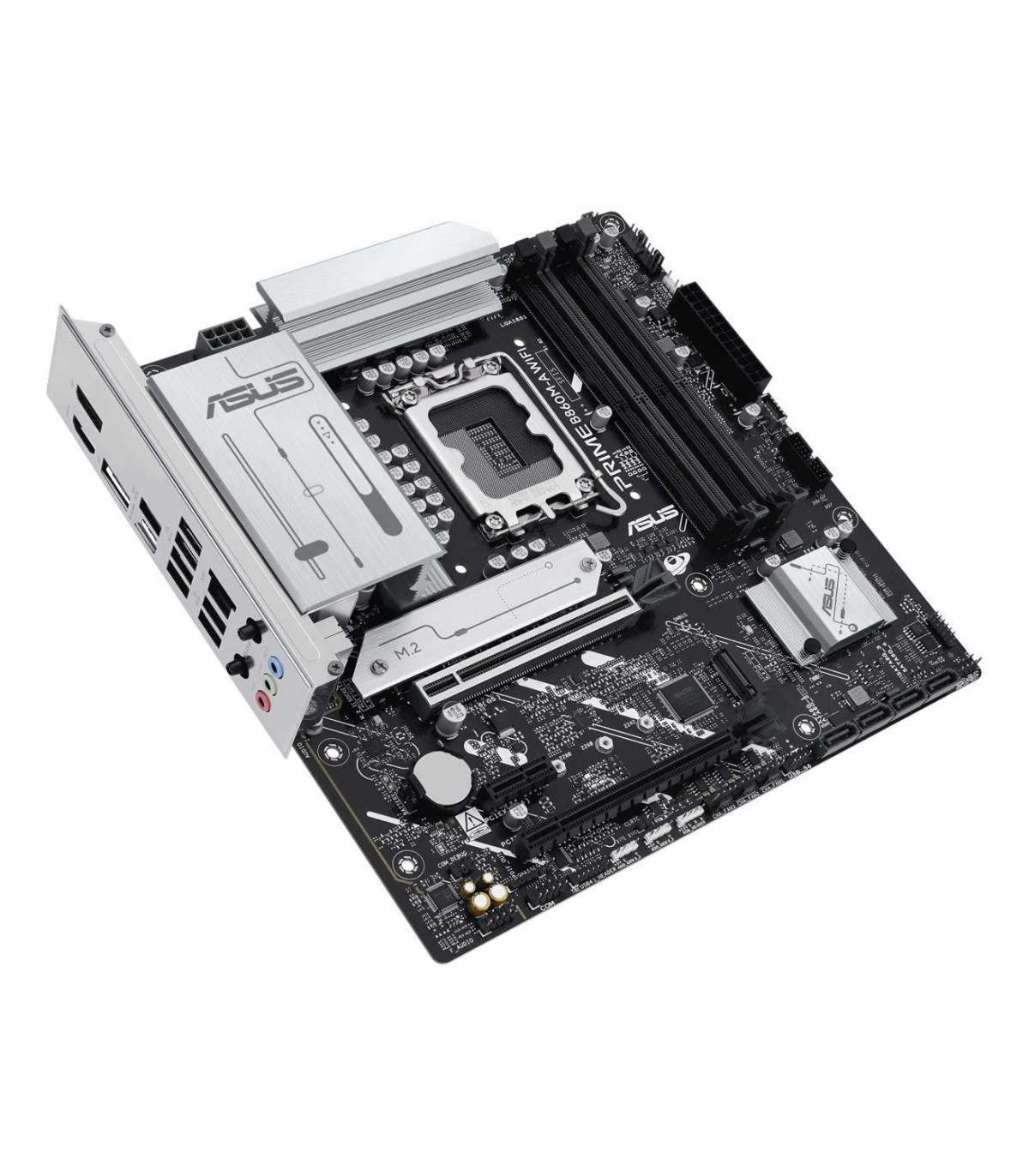

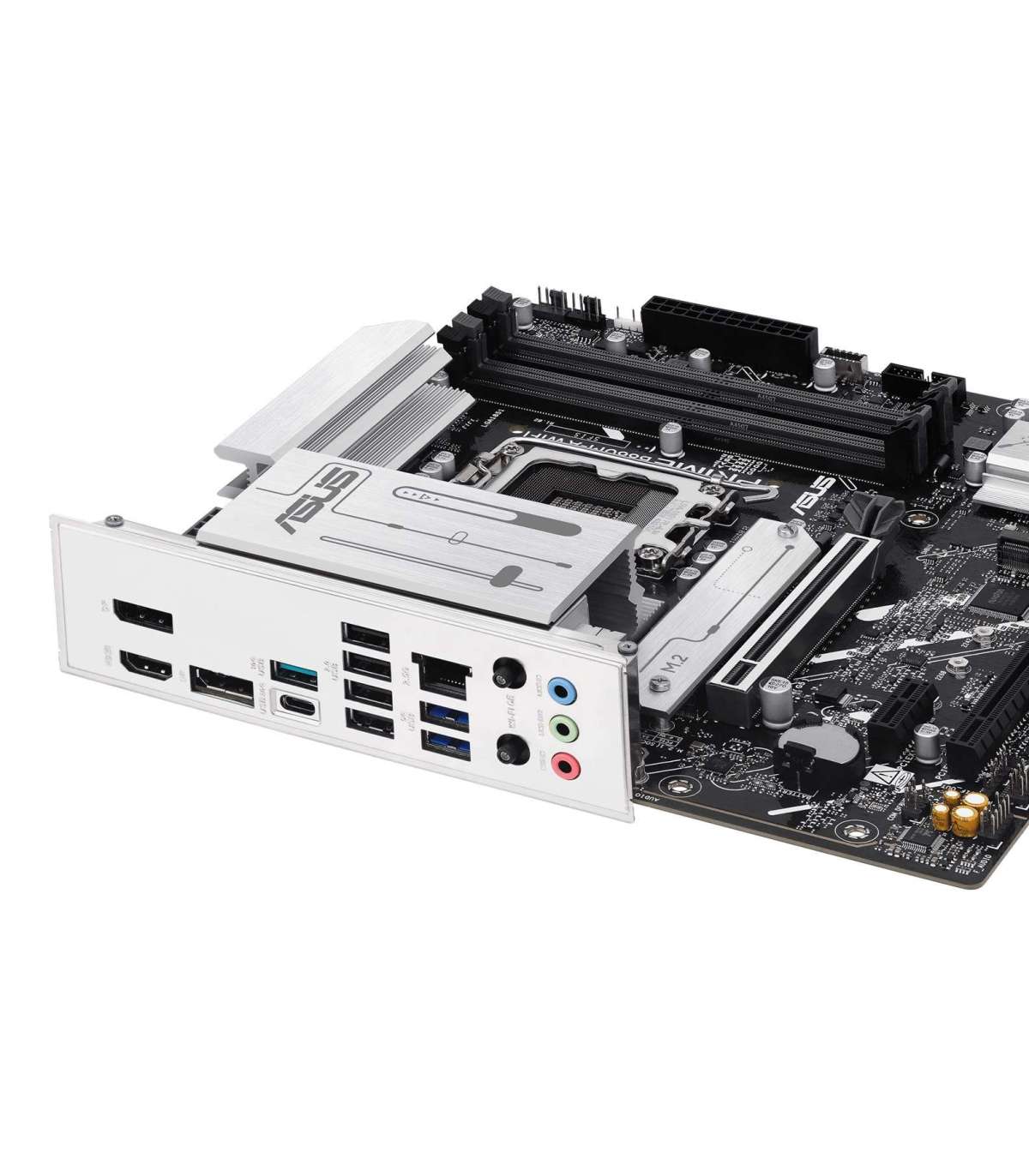

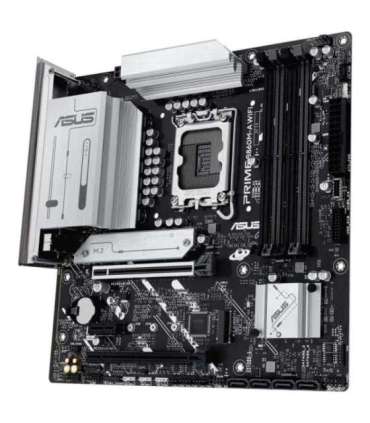

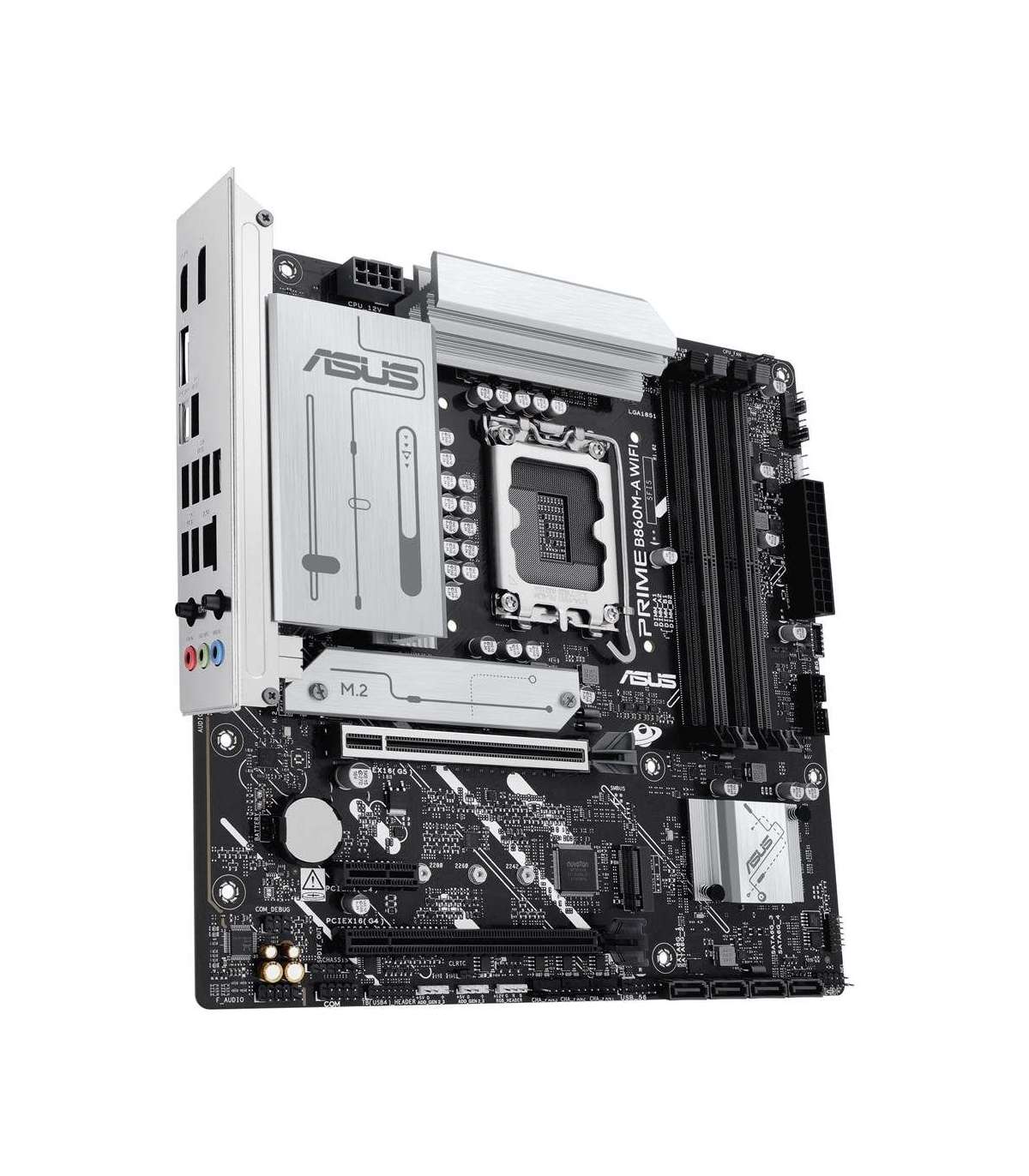

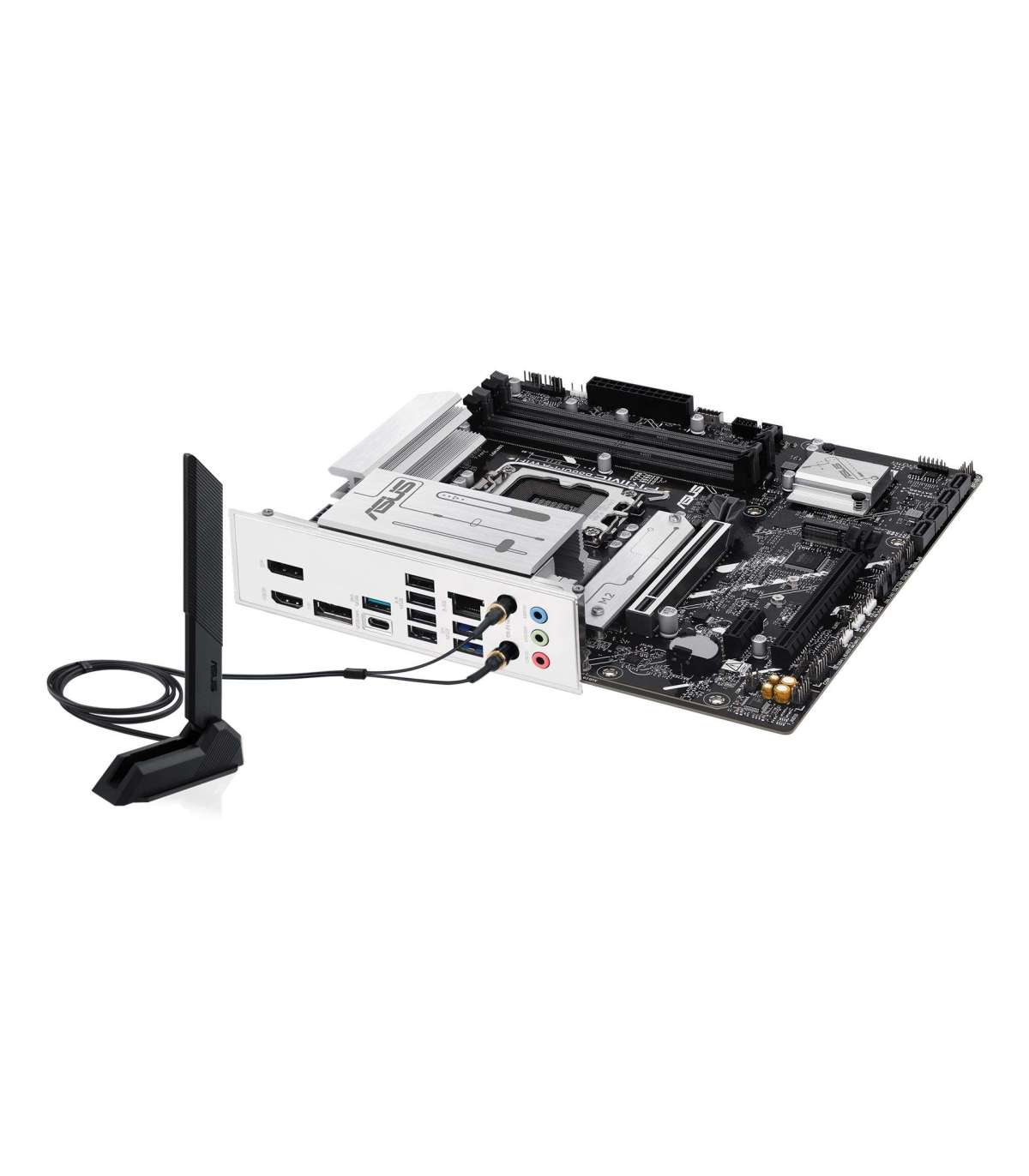

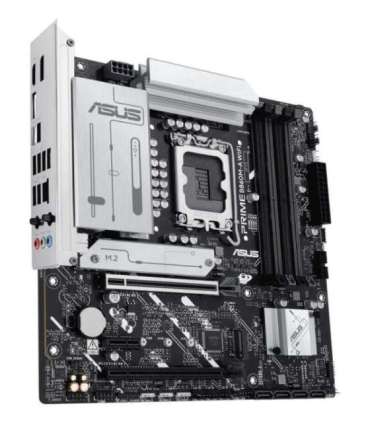

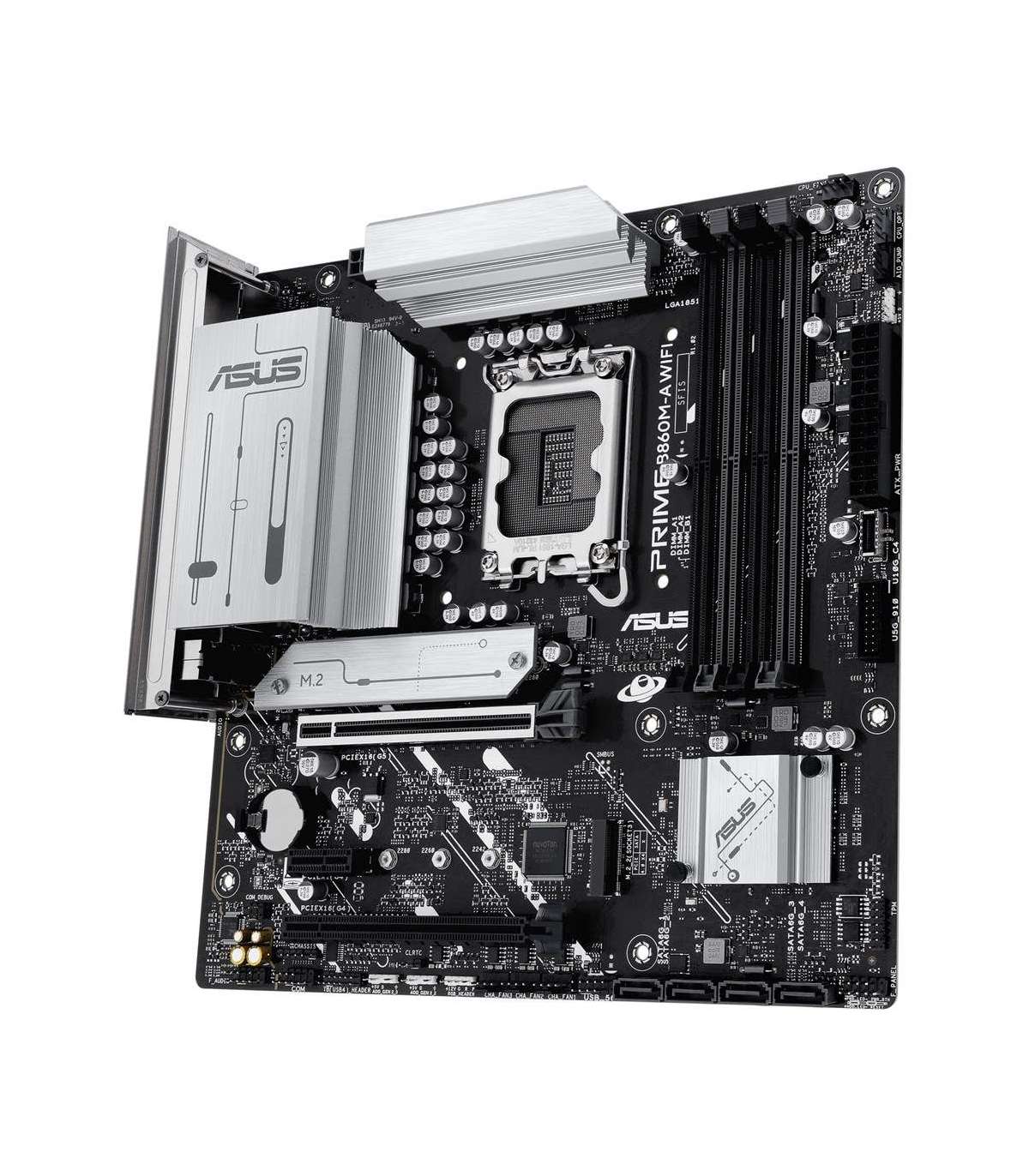

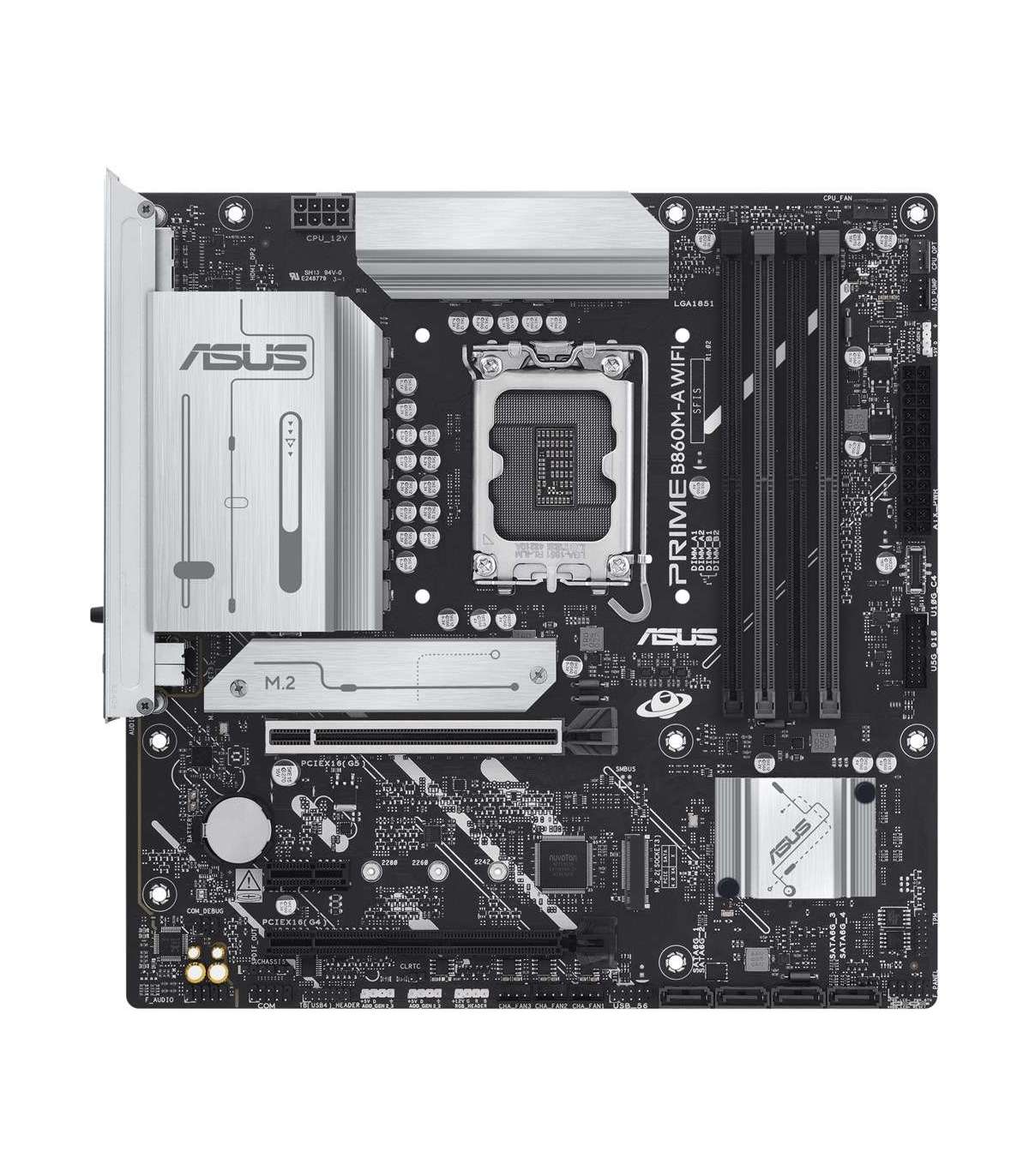

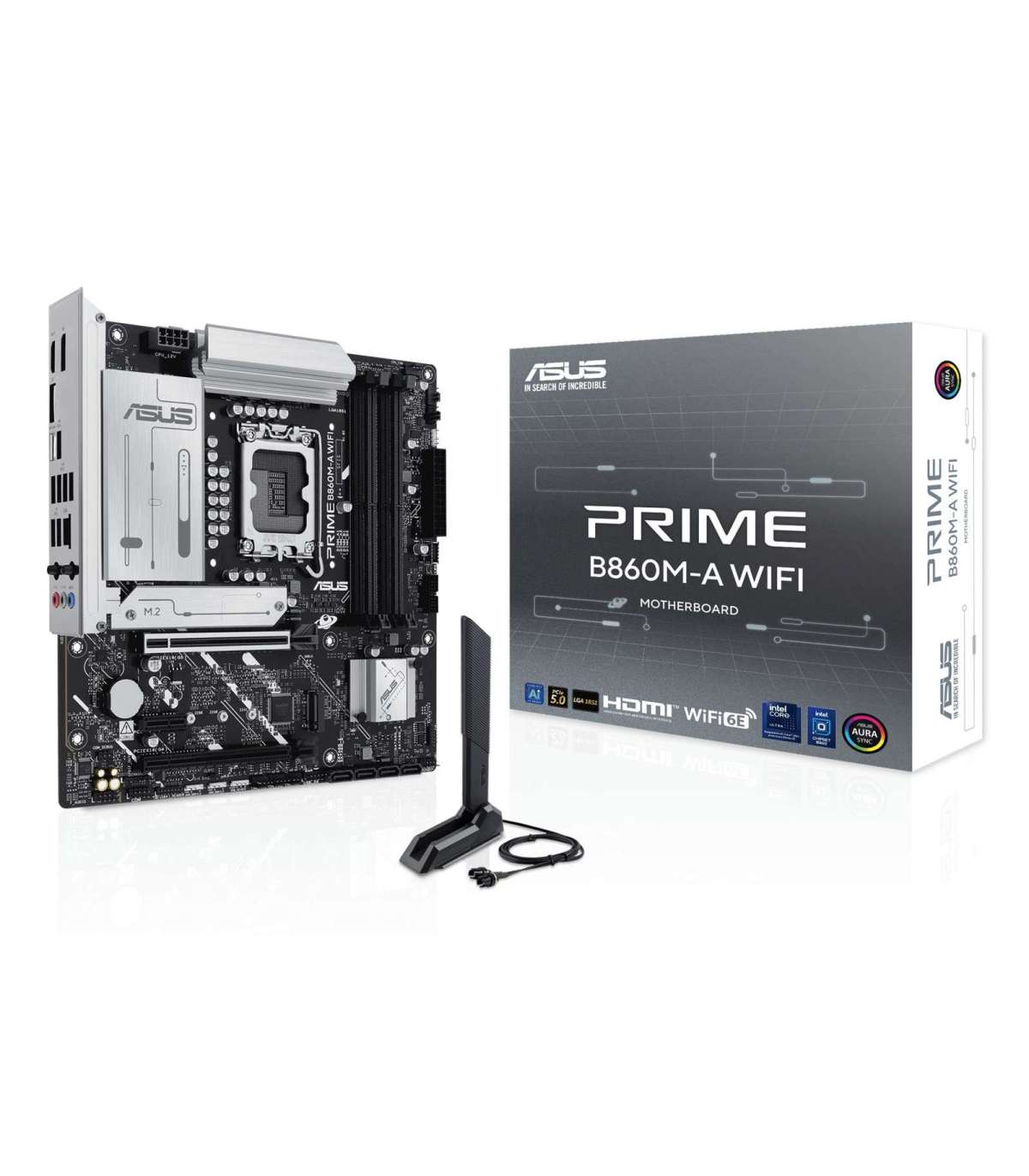

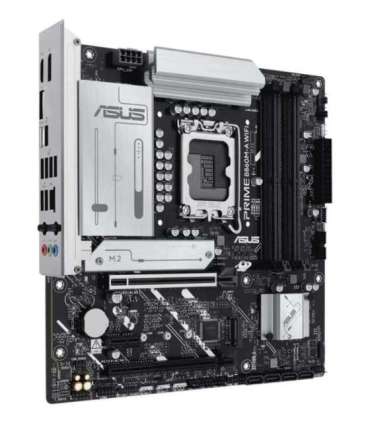

ASUS PRIME B860M-A WIFI Intel B860 LGA 1851 (Socket V1) micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Package weight

1.44 kg

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Warnings

Do not open or modify the motherboard to prevent damage.
In case of installation problems, contact a qualified service technician.
When disposing of the product, follow local regulations for the recycling of electronics.

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B860

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

1

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

LGA 1851

Front panel connector

Yes

Number of storage drives supported

6

RAID support

Yes

S/PDIF out connector

Yes

Screws included

Yes

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

WiFi-AP antenna jack

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1
