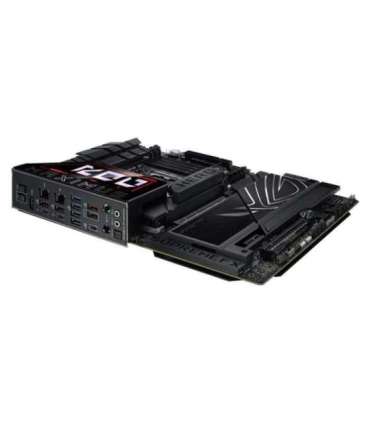

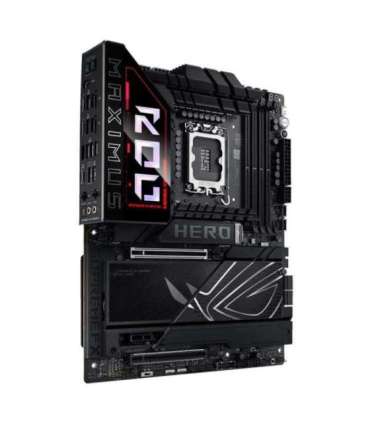

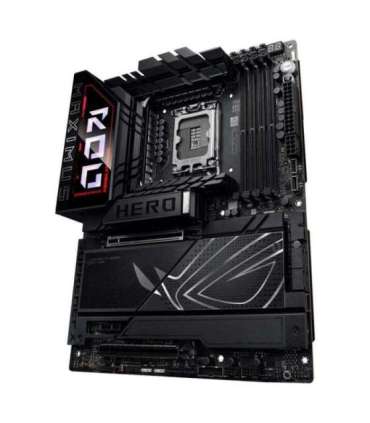

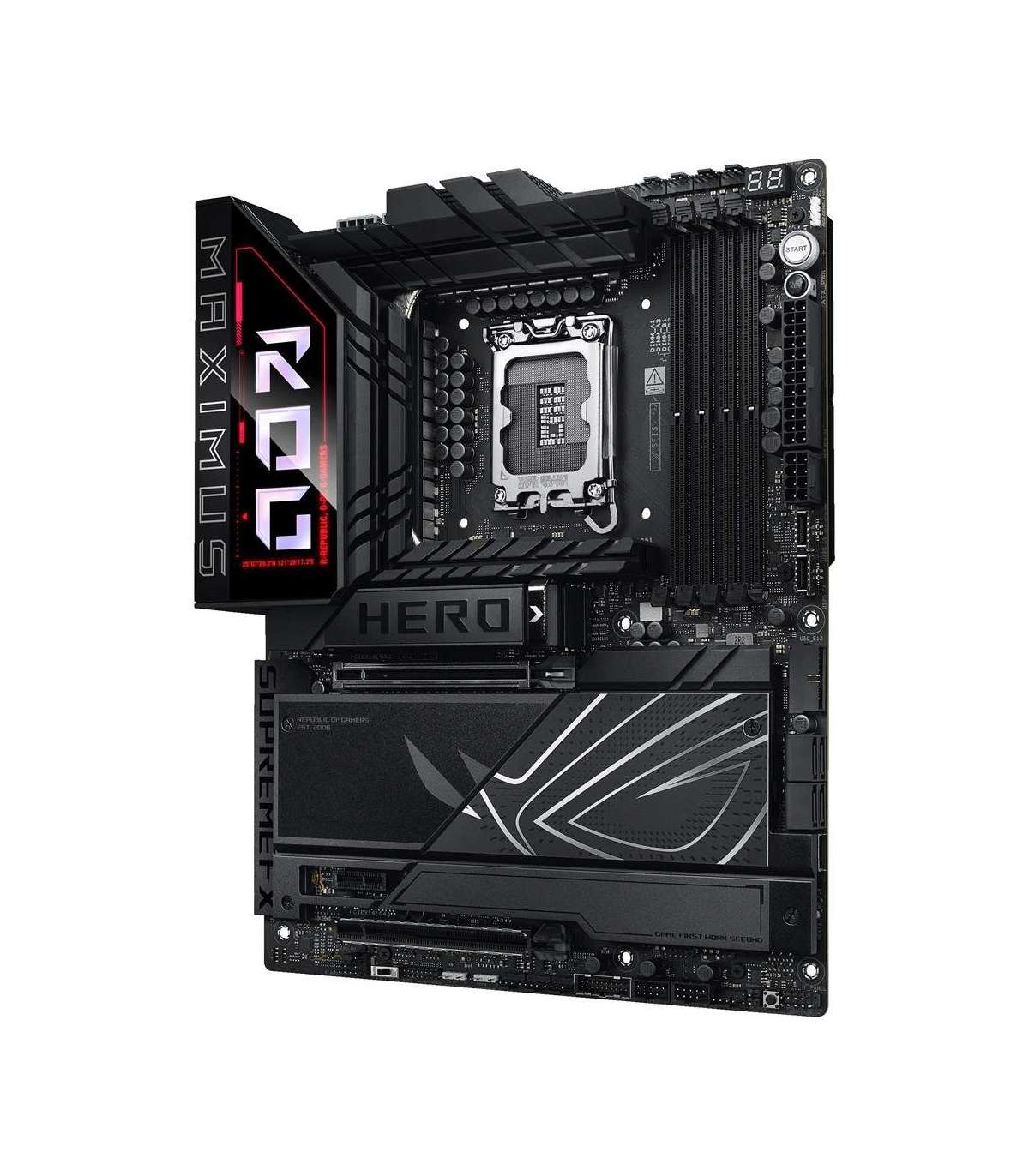

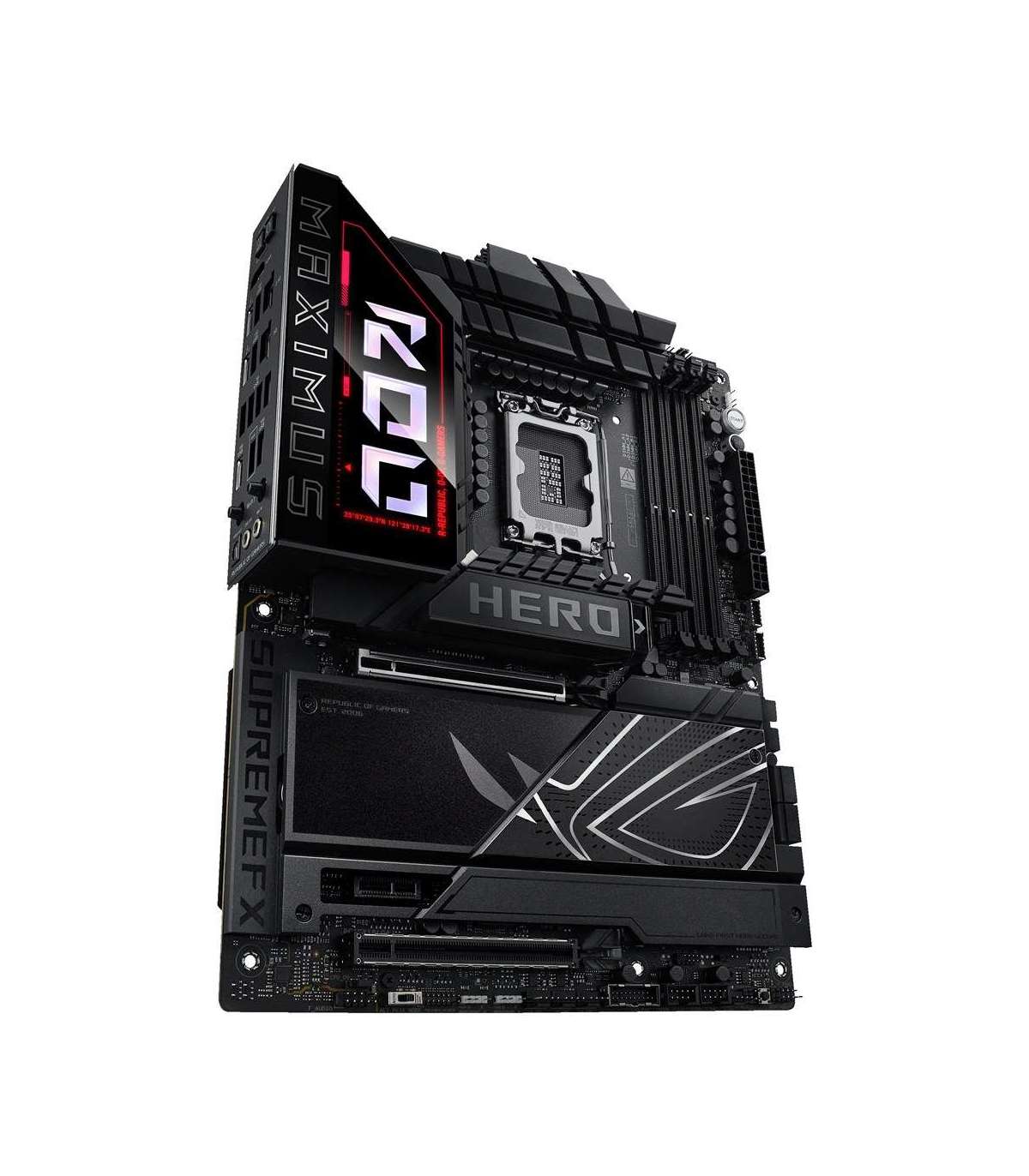

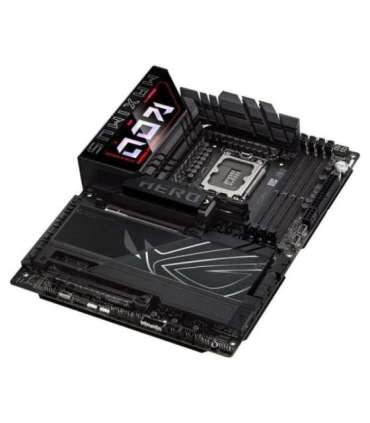

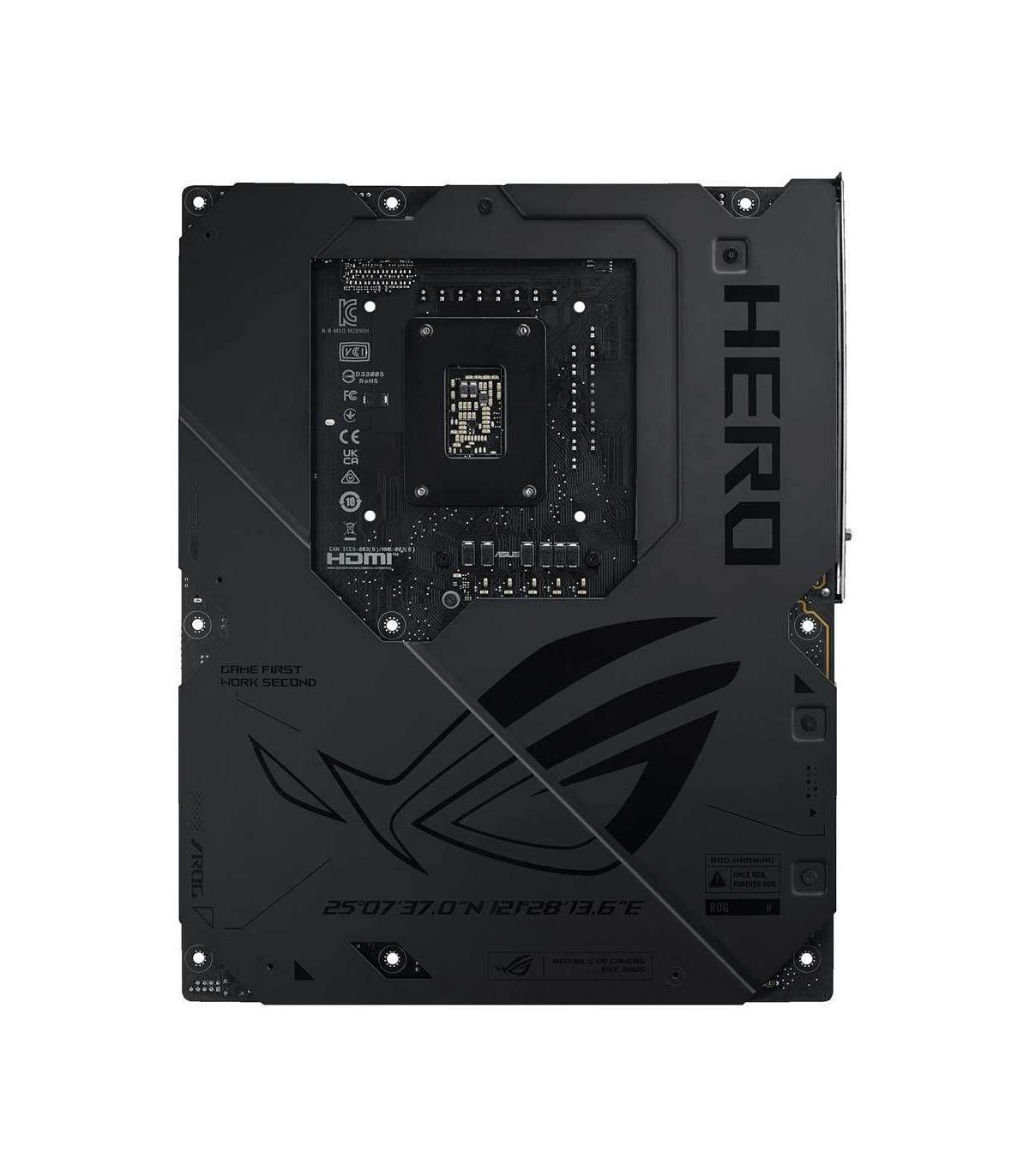

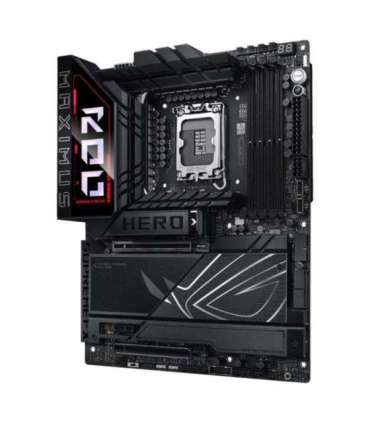

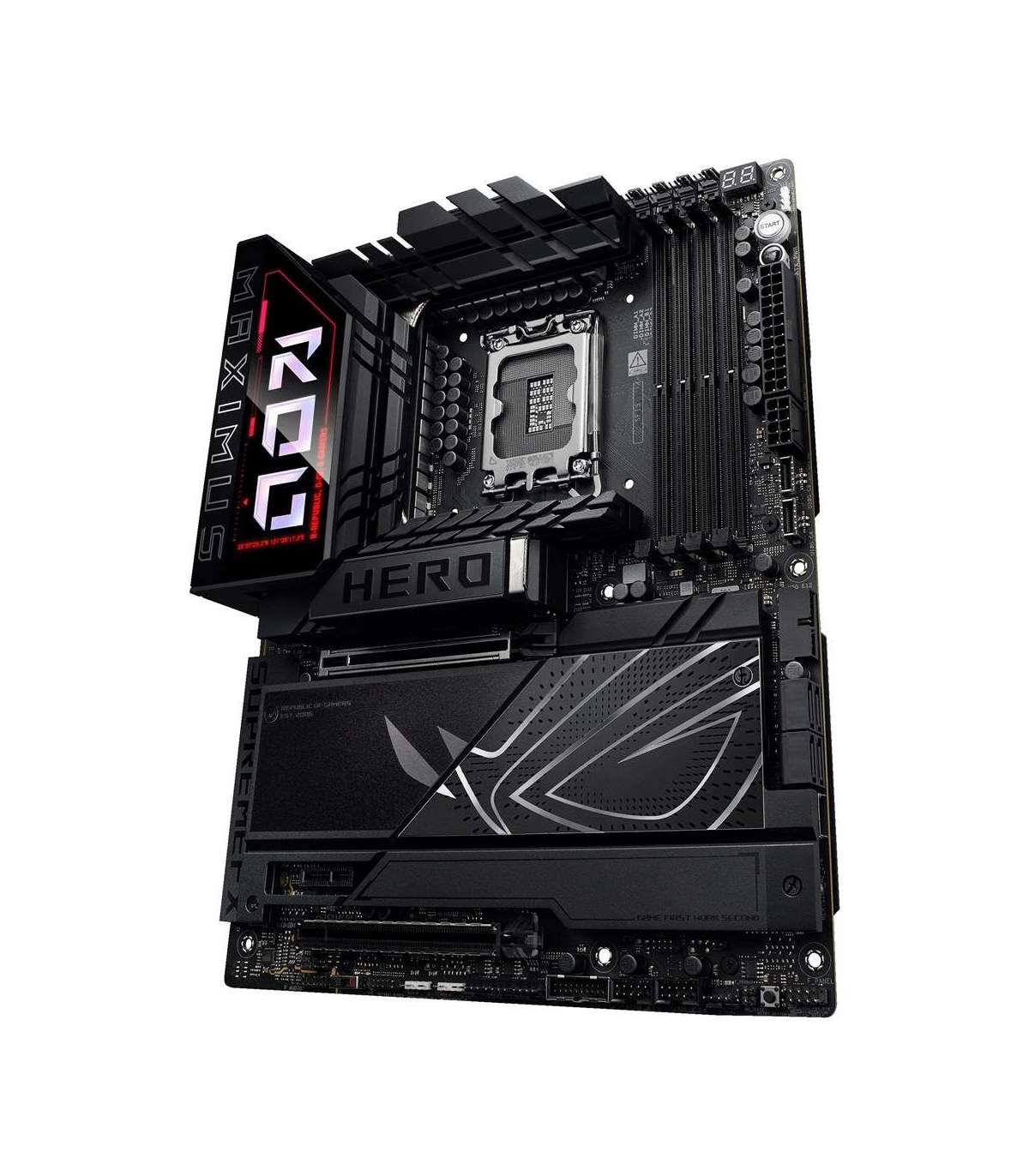

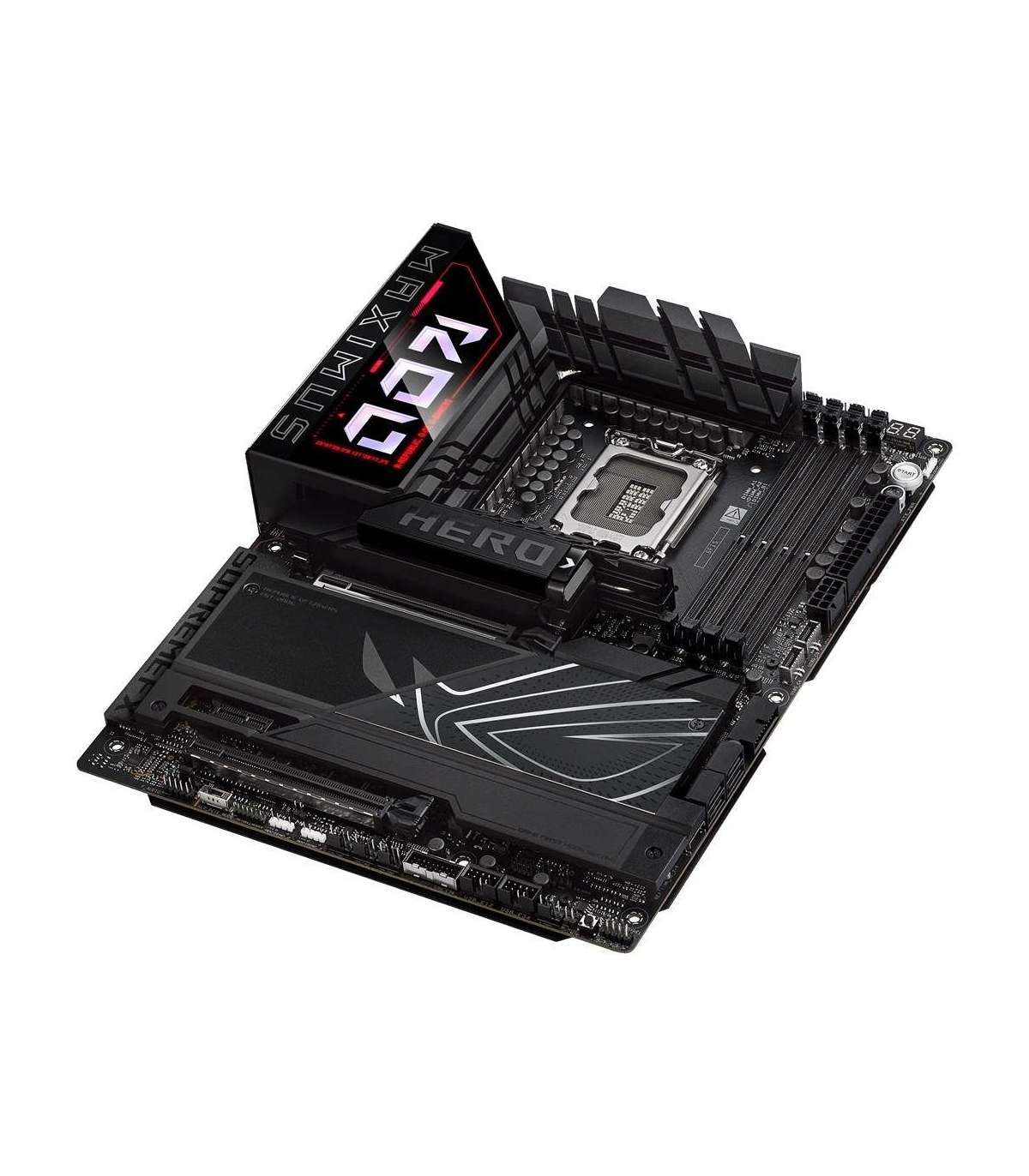

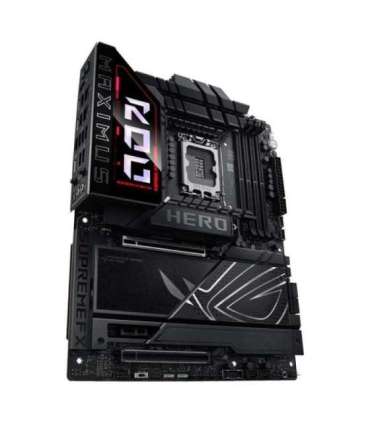

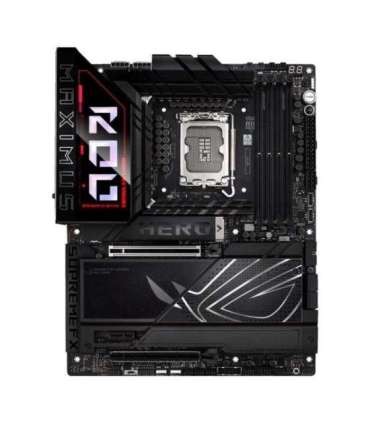

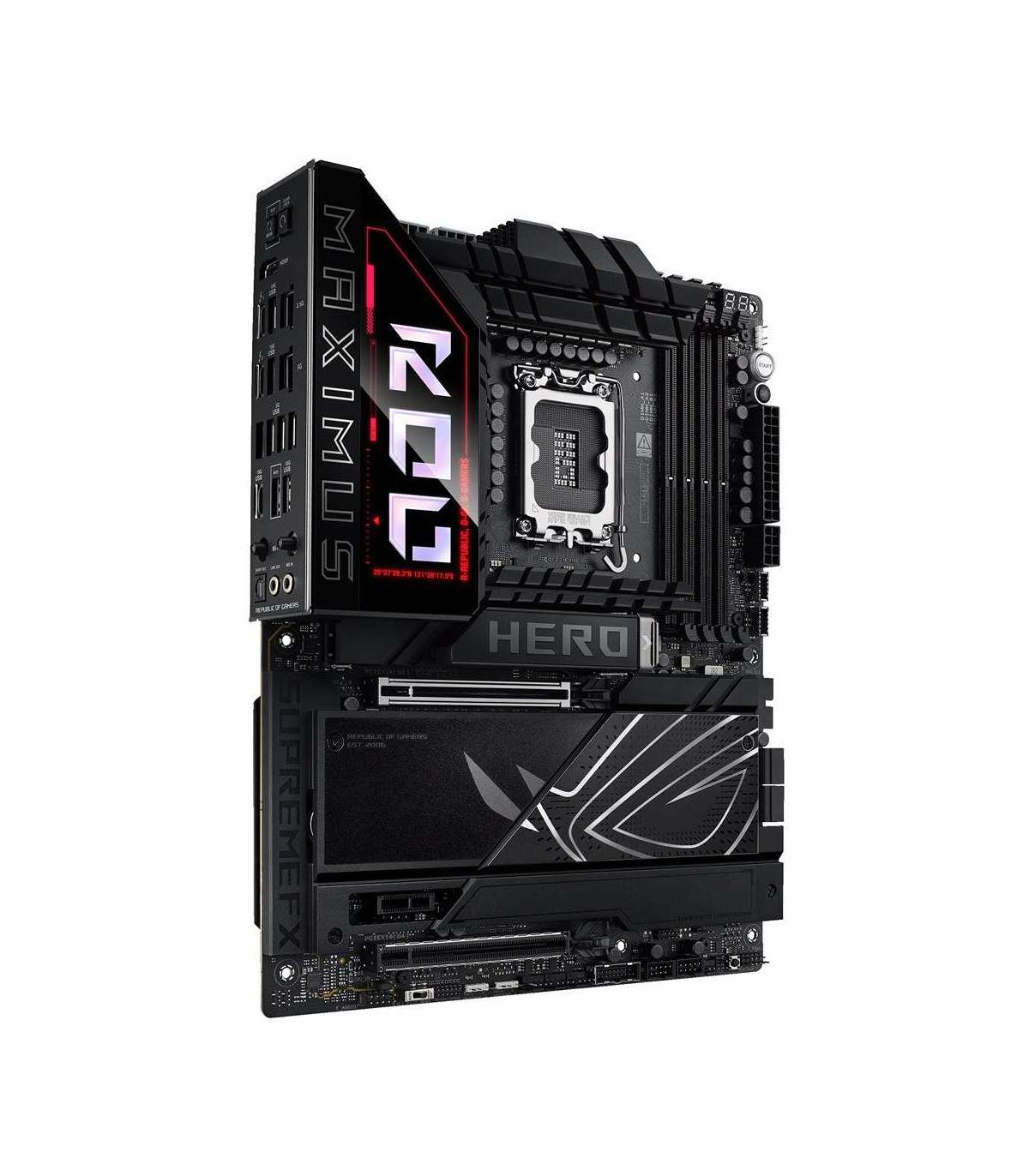

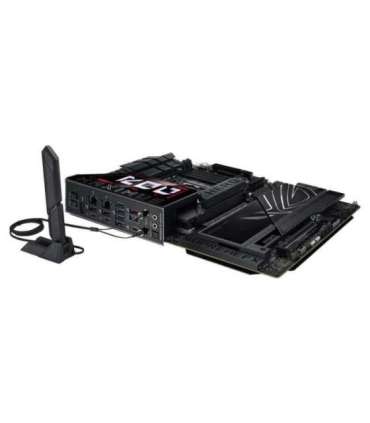

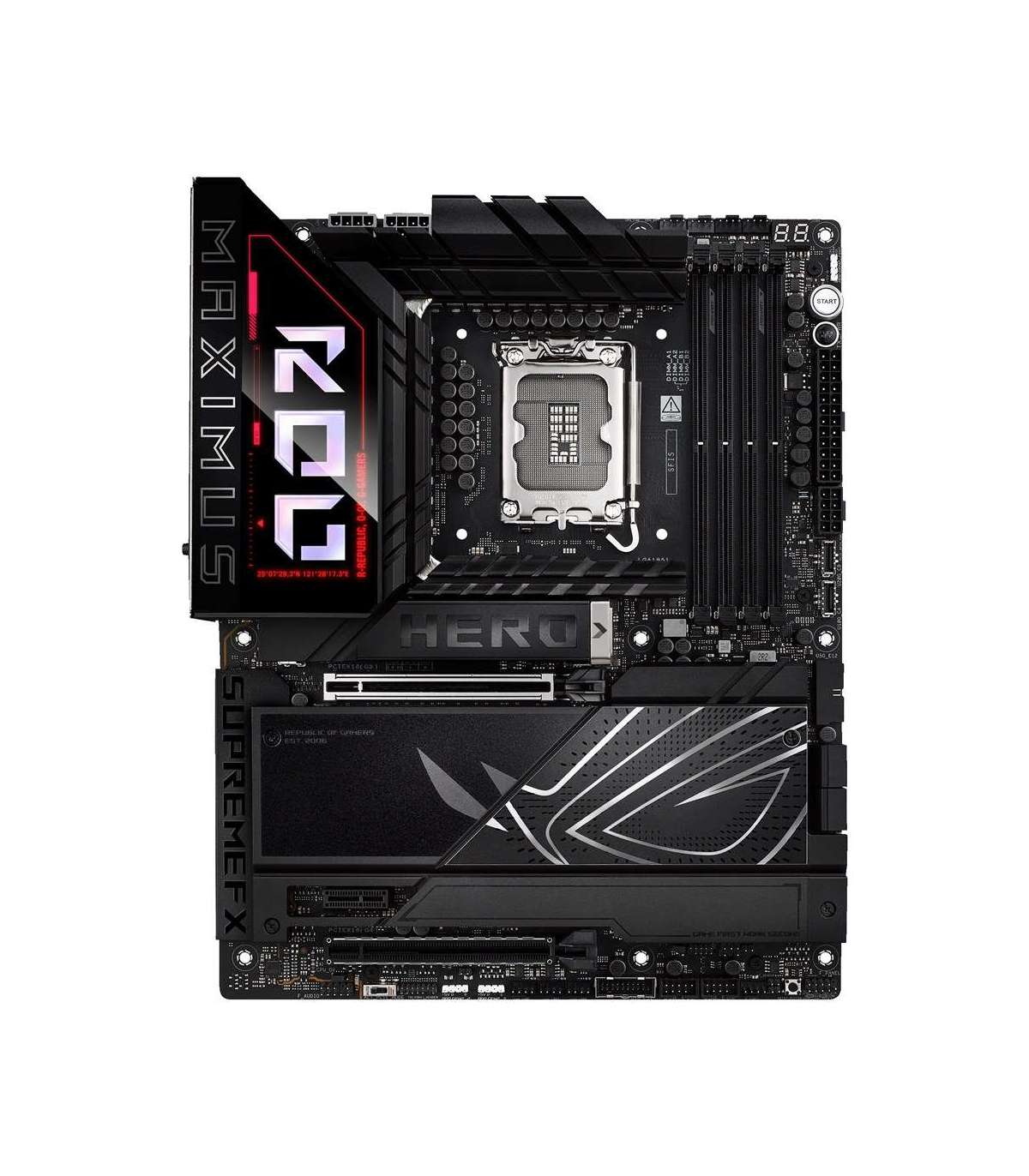

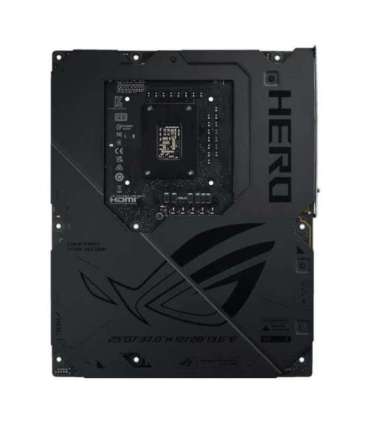

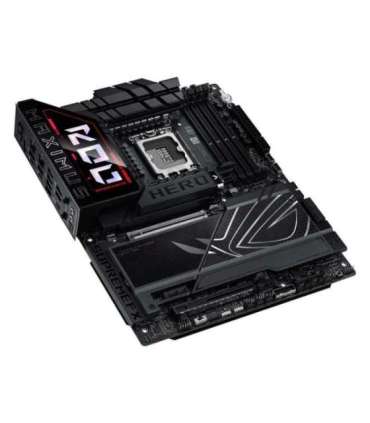

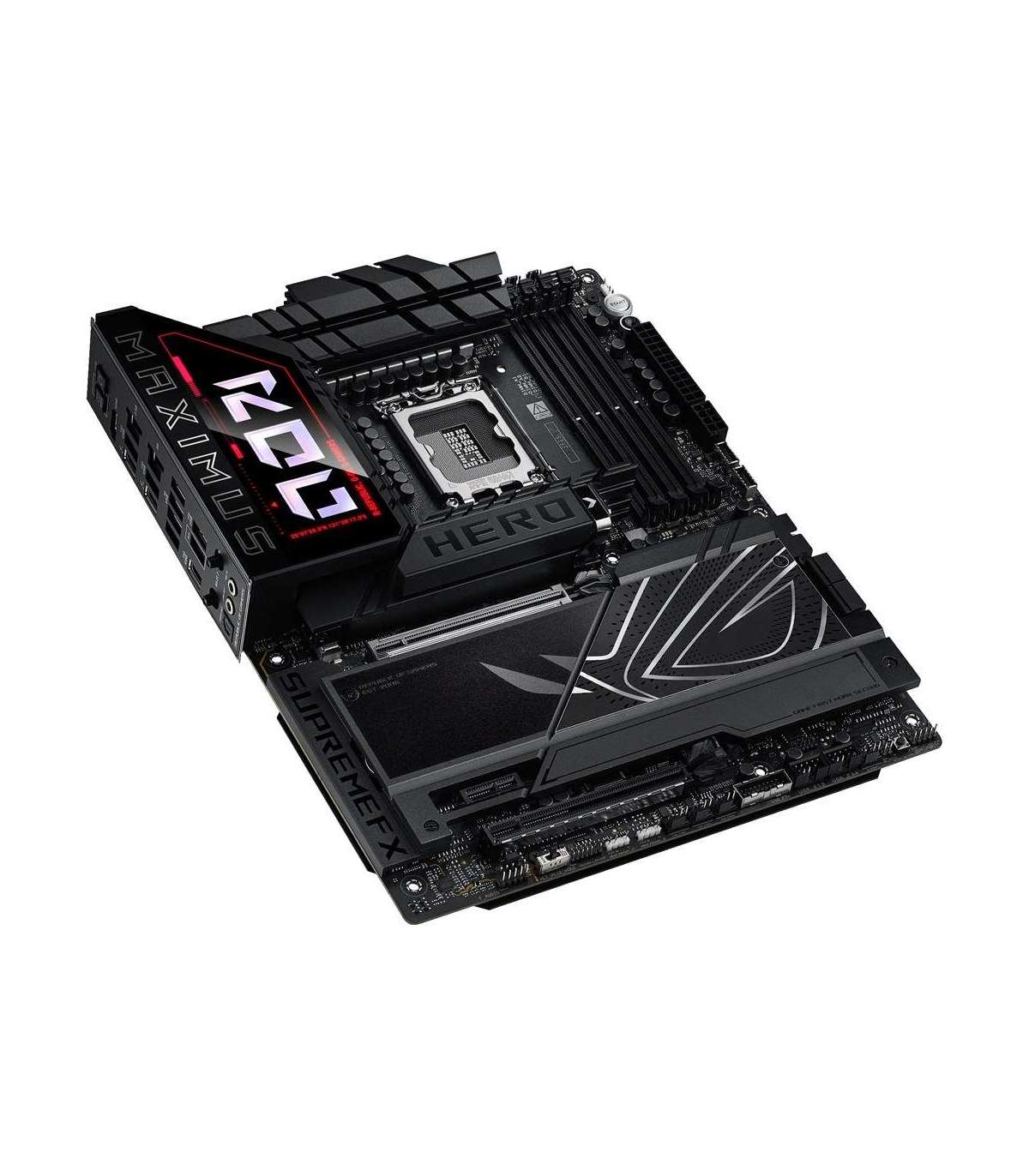

ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Product colour

Must

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet LAN (RJ-45) ports

2

Windows operating systems supported

Windows 11

Package width

370 mm

Package depth

312 mm

Package height

108 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet
5 Gigabit Ethernet

Processor manufacturer

Intel

USB connector type

USB Type-A
USB Type-C

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.4

Bluetooth

Yes

Motherboard chipset

Intel Z890

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4082

USB 2.0 connectors

2

Processor socket

LGA 1851 (Socket V1)

Compatible processor series

Intel Core Ultra (Series 2)

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

ECC сompatibility

Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

6

Supported memory clock speed (max)

8800 MHz

EPS power connector (8-pin)

Yes

Number of storage drives supported

10

RAID support

Yes

Clear CMOS button

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

1

Thunderbolt headers

1

USB 3.2 Gen 2x2 connectors

1

PCI Express x16 (Gen 5.x) slots

1

Thunderbolt ports quantity

2
