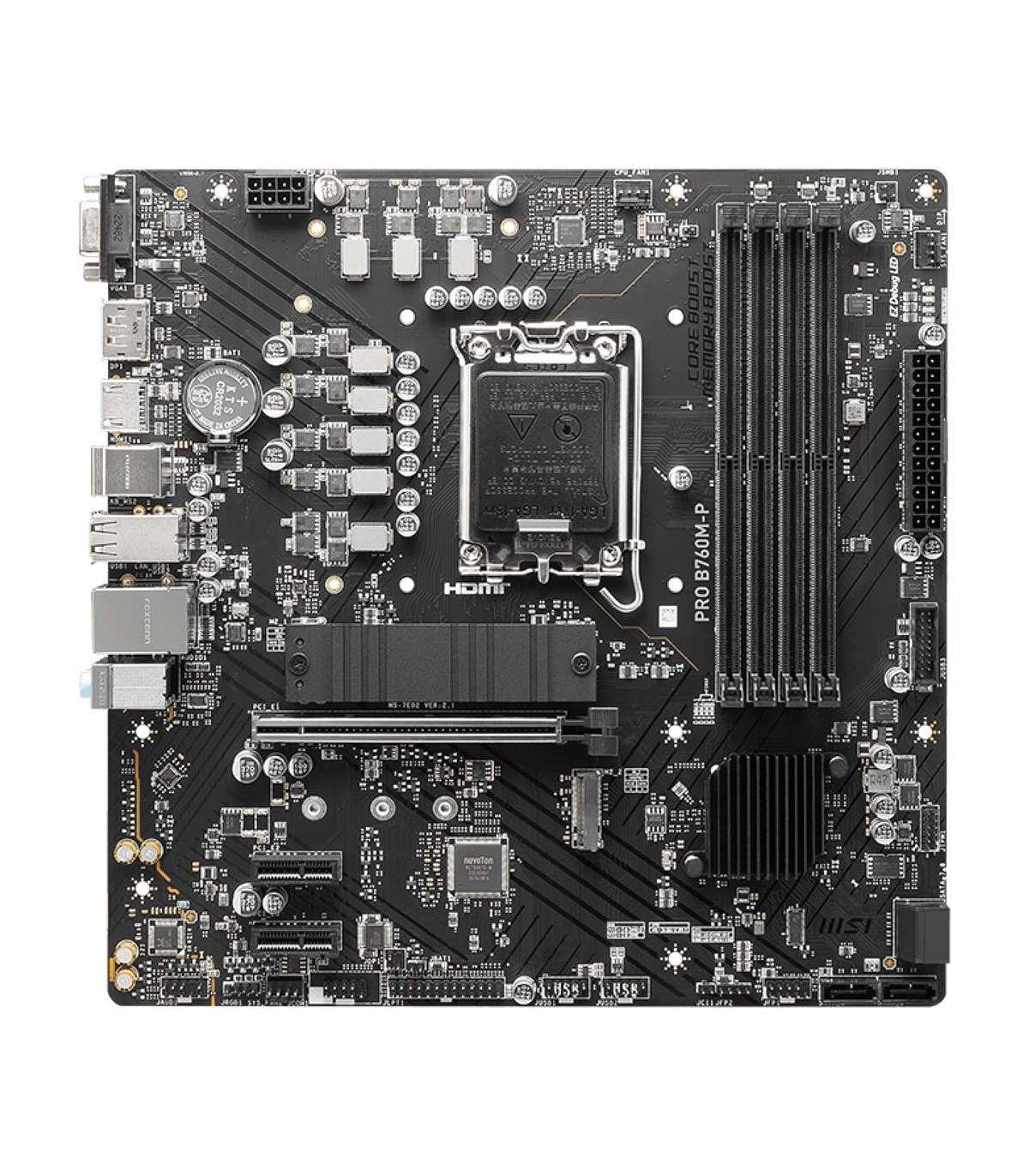

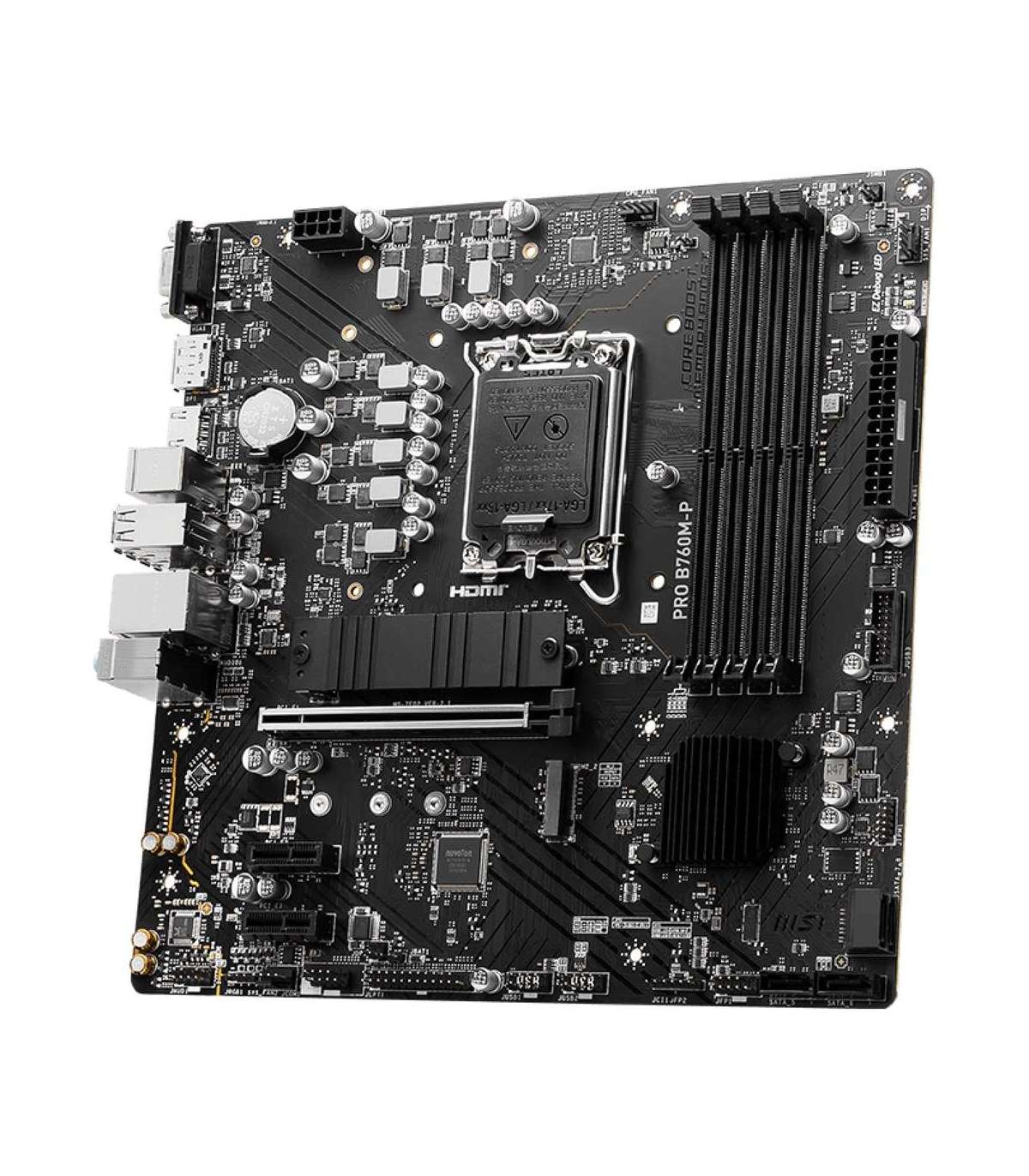

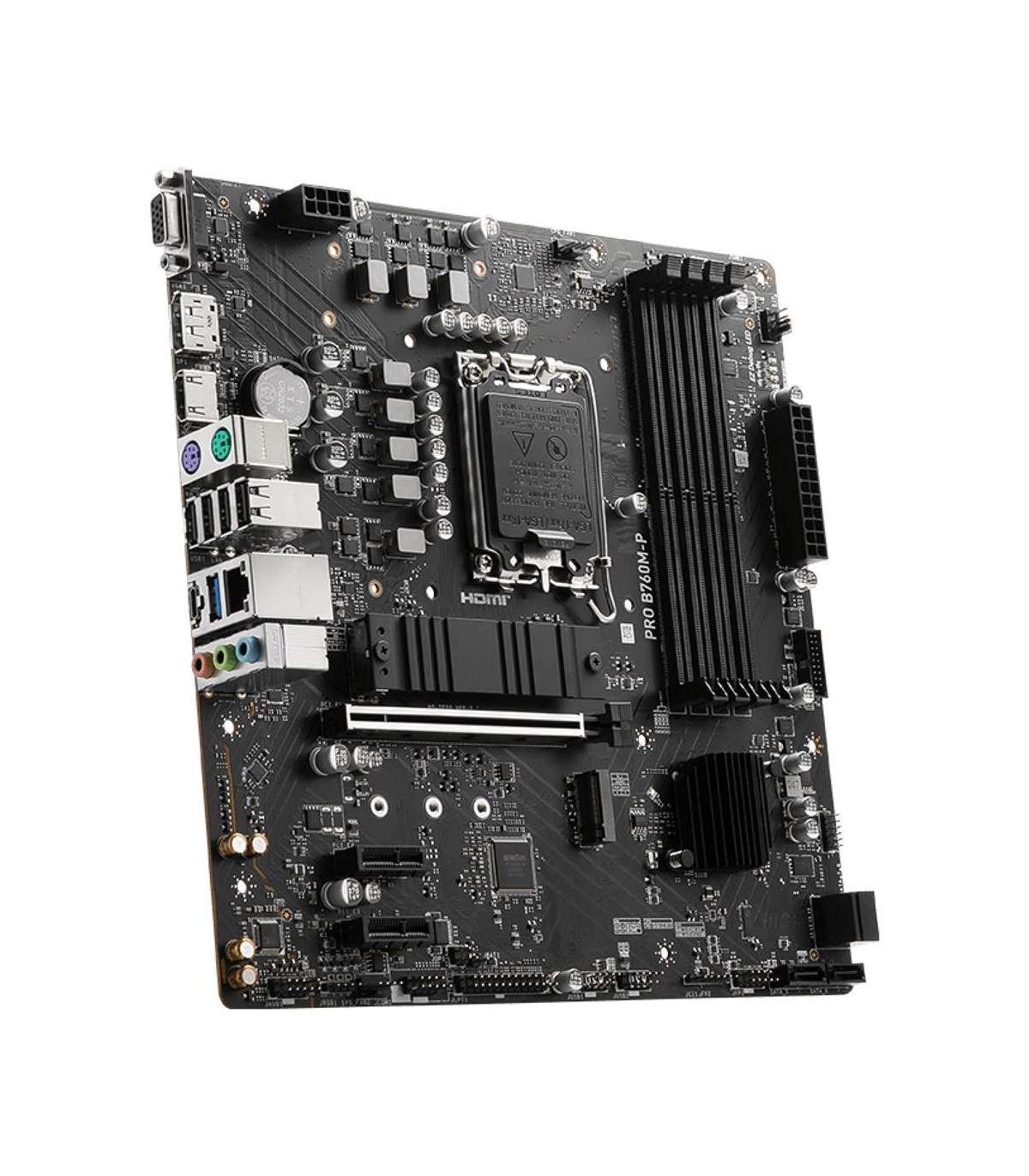

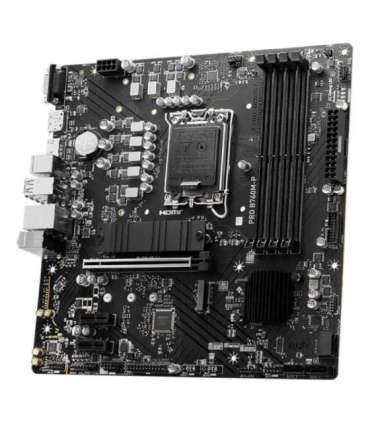

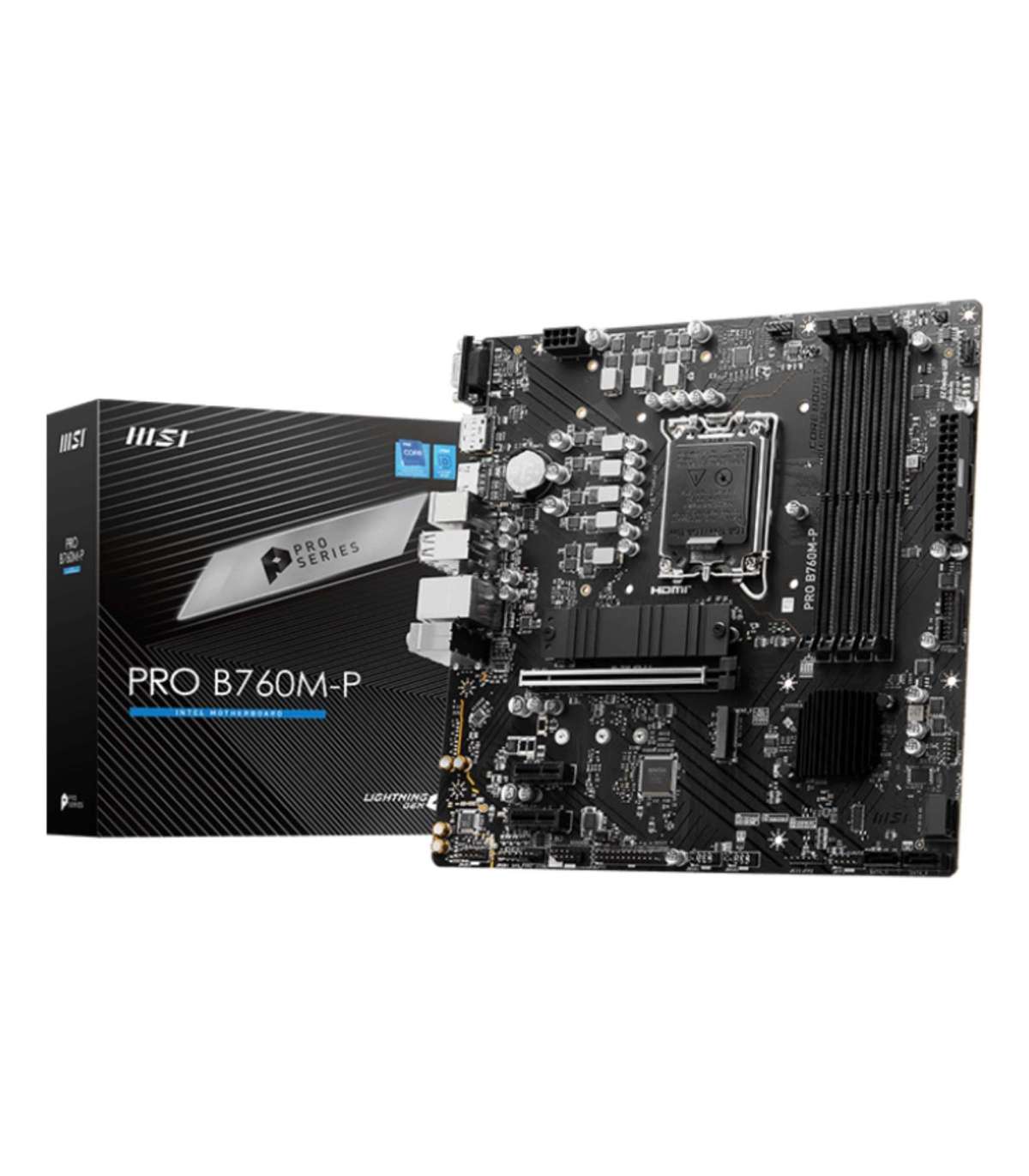

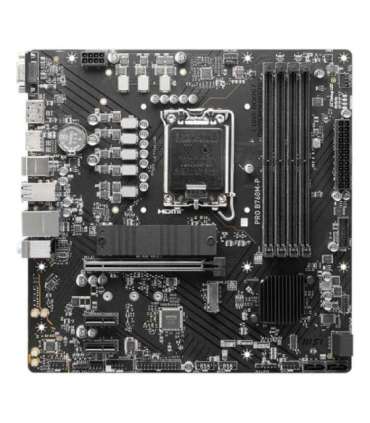

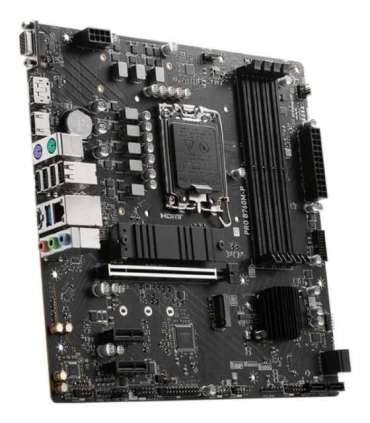

MSI PRO B760M-P motherboard Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

243.8 mm

Laius

243.8 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

192 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

1.4

HDMI ports quantity

1

Audio chip

Realtek ALC897

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Pentium® Gold

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5000
5200
5400
5600
5800
6000
6200
6400
6600 MHz
6800

Unbuffered memory

Yes

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8111H

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

SATA III

PS/2 ports quantity

2

VGA (D-Sub) ports quantity

1

Microphone in

Yes

ECC сompatibility

Non-ECC

Number of SATA III connectors

4

Chassis intrusion connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Supported processor sockets

LGA 1700

Front panel connector

Yes

Number of storage drives supported

6

RAID support

Yes

Line-in

Yes

DisplayPort version

1.4

PCI Express x1 (Gen 4.x) slots

2

Parallel connector

Yes
