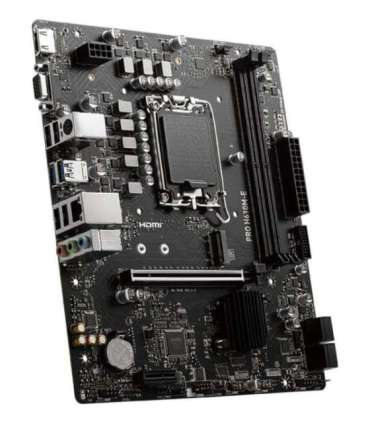

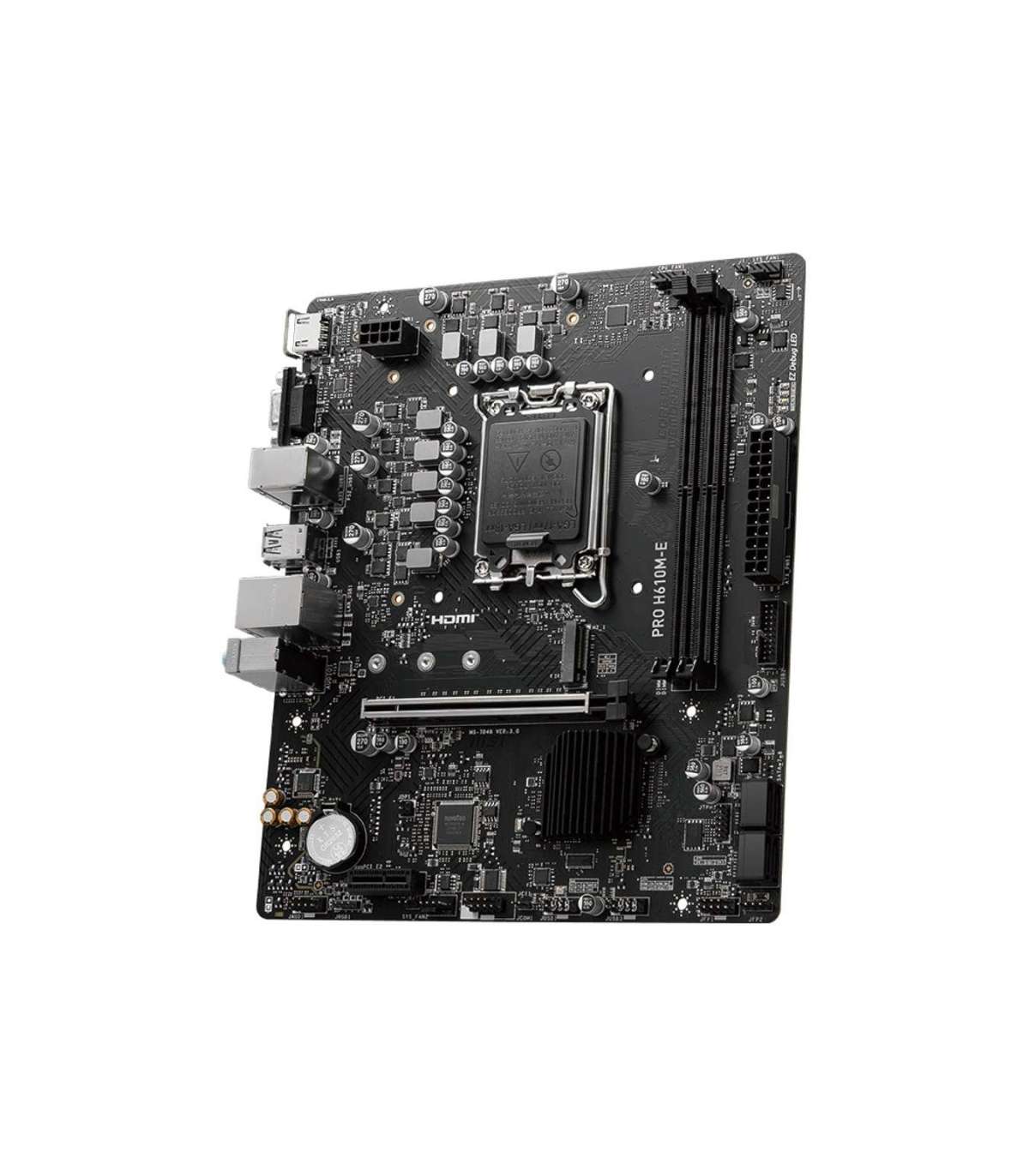

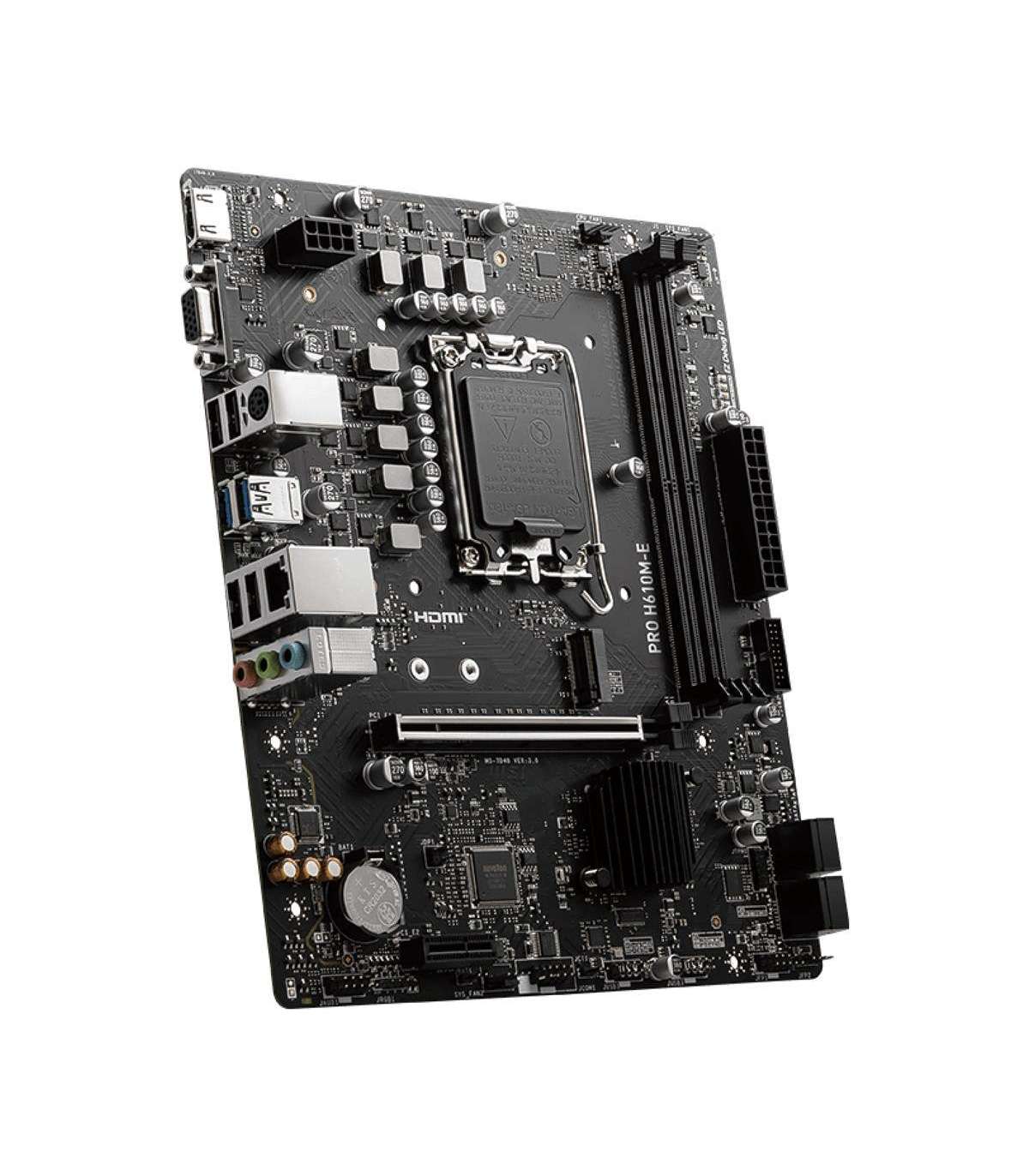

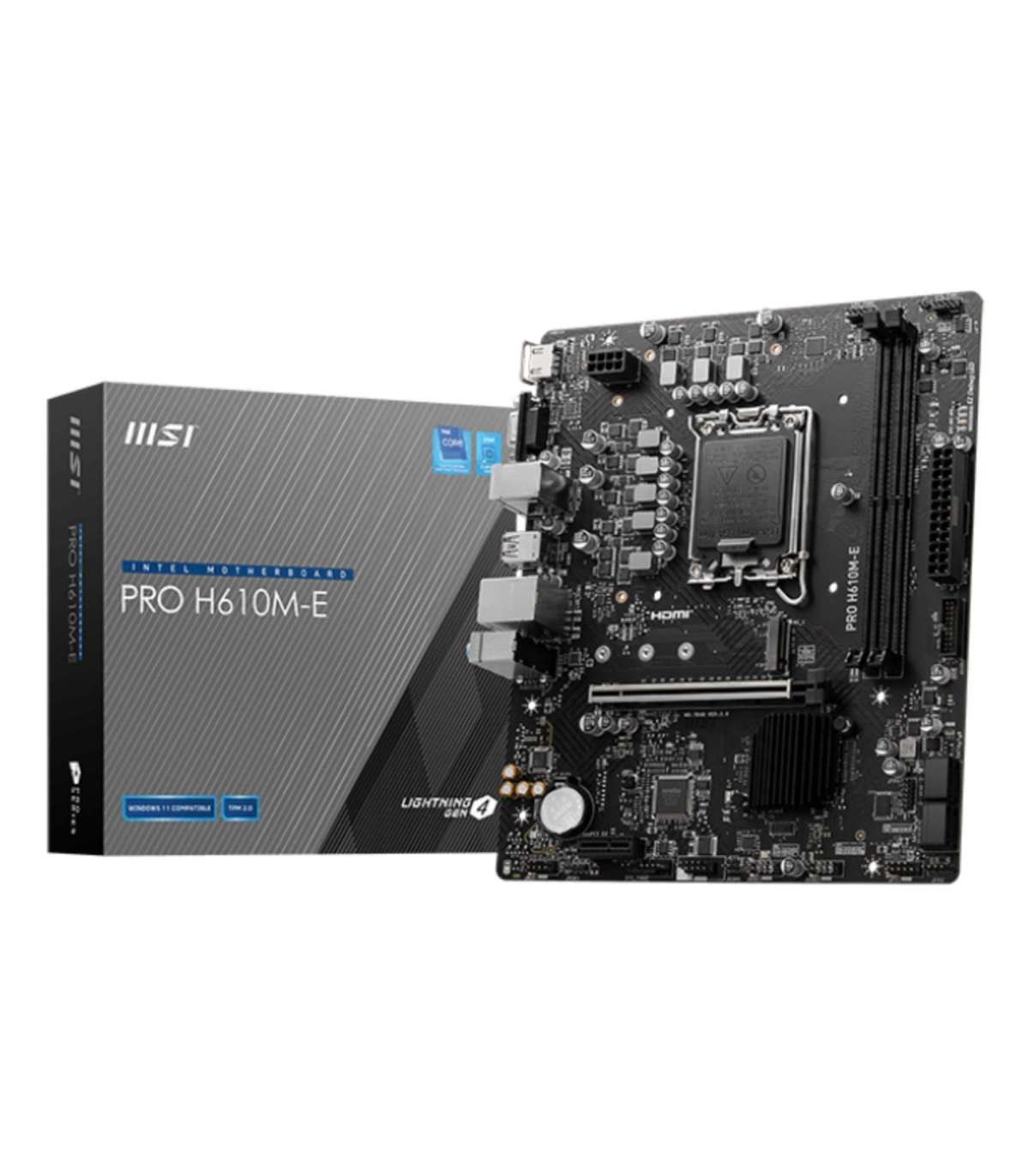

MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX

Lisainfo

Depth

236.2 mm

Laius

200 mm

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

96 GB

Motherboard chipset

Intel H610

HDMI version

1.4

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

2

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel Pentium G
Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

5600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

2

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Drivers included

Yes

Number of SATA III connectors

4

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Supported processor sockets

LGA 1700

EPS power connector (8-pin)

Yes

RAID support

Yes

Supported memory module capacities

4GB
8GB
16GB
32GB

Audio connector

Yes

Cooling type

Active

Thunderbolt headers

2
