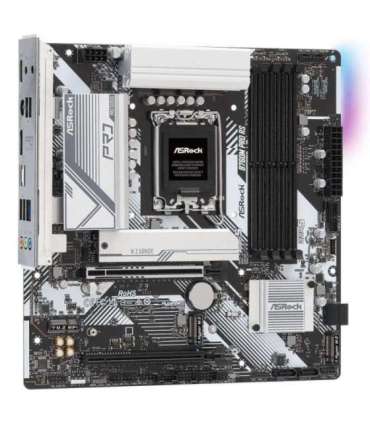

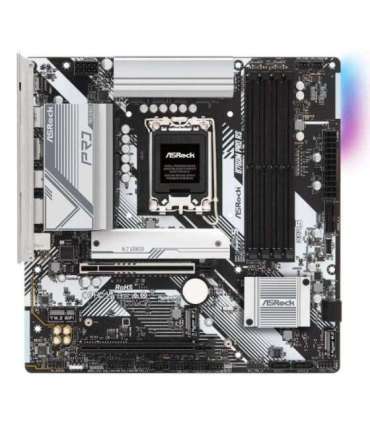

Asrock B760M Pro RS Intel B760 LGA 1700 micro ATX

Lisainfo

Depth

244 mm

Laius

244 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

256 GB

Motherboard chipset

Intel B760

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

6

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

Number of M.2 (M) slots

1

Line-in

Yes

DisplayPort version

1.4

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1
