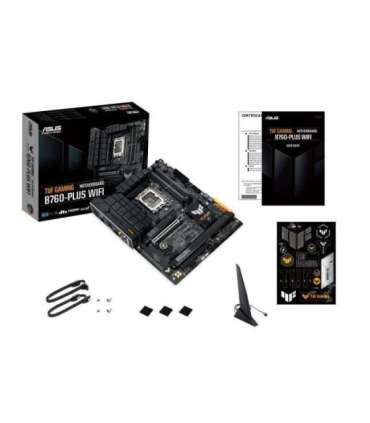

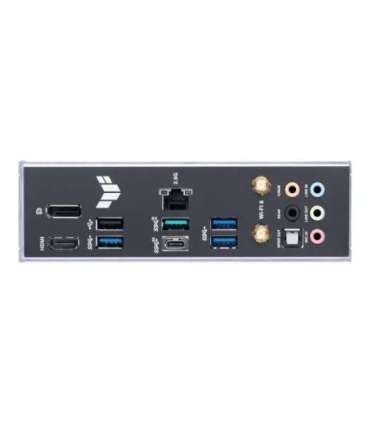

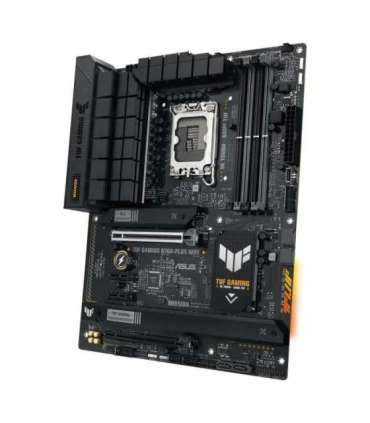

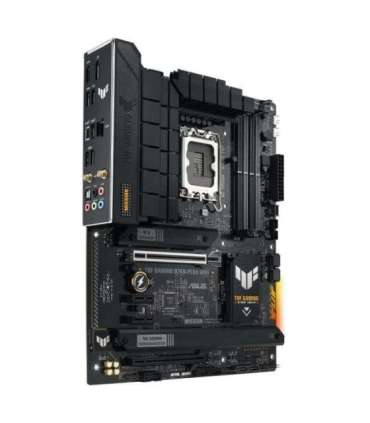

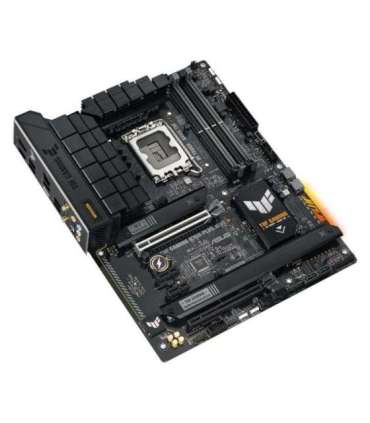

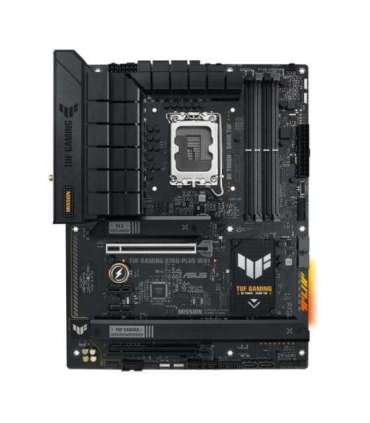

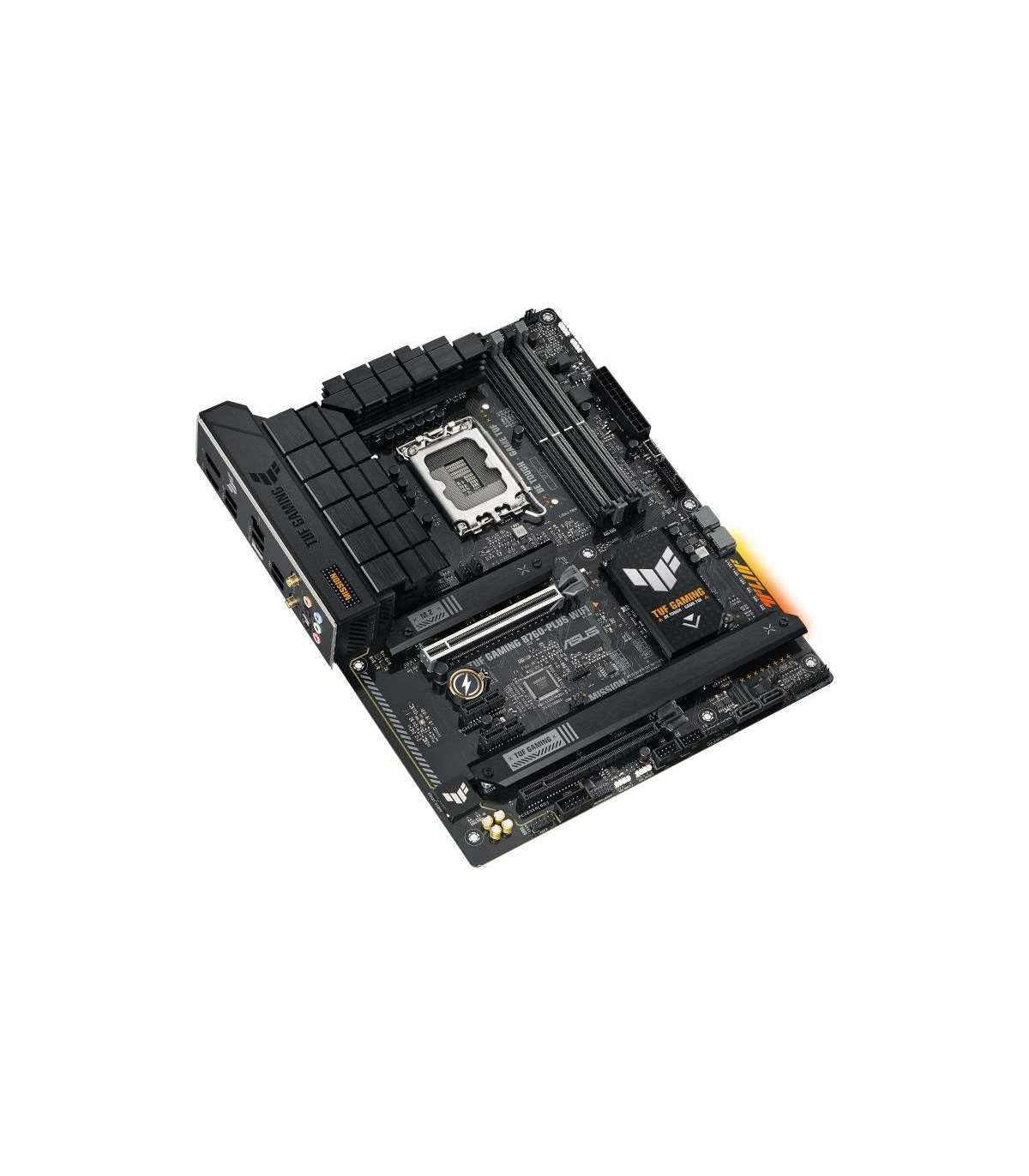

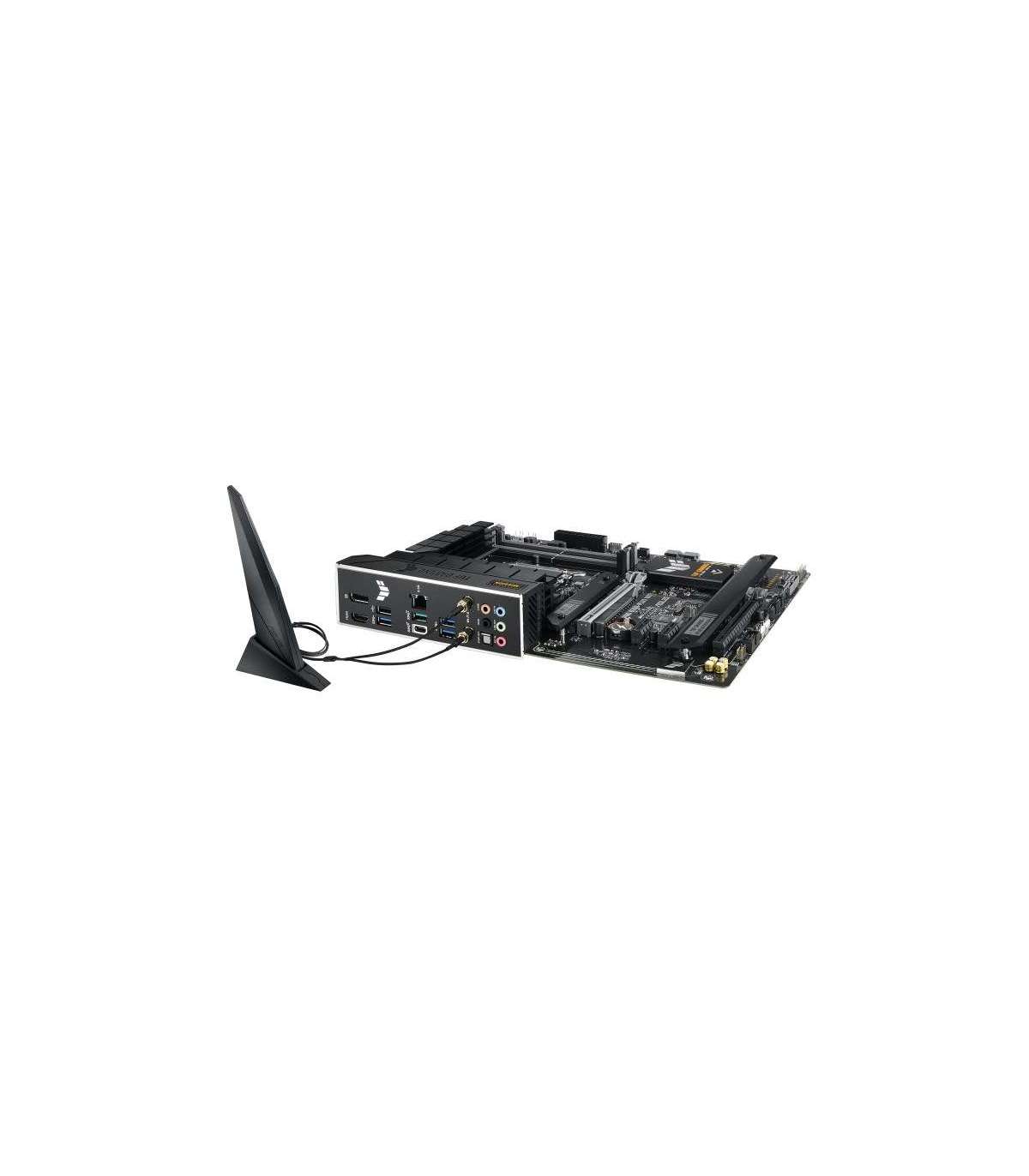

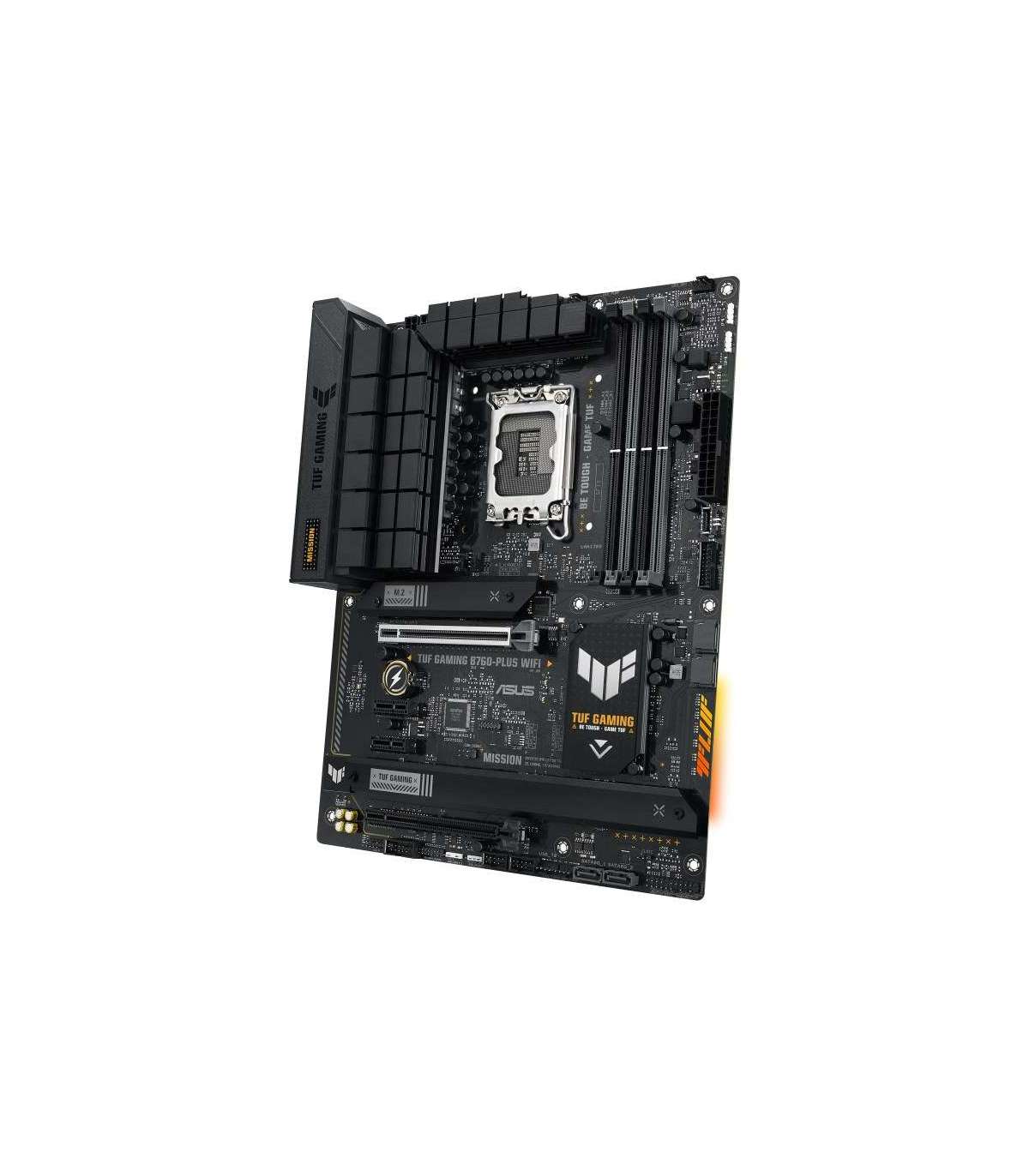

ASUS TUF Gaming B760-Plus WIFI Intel B760 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Package weight

1.16 kg

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Package width

328 mm

Package depth

266 mm

Package height

53 mm

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

Intel B760

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

3

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 5.0, SATA III

VGA (D-Sub) ports quantity

1

PCI Express x1 (Gen 3.x) slots

2

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

5066 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

7

RAID support

Yes

Line-in

Yes

S/PDIF out connector

Yes

Cooling type

Passive

DisplayPort version

1.4

Peripheral (Molex) power connectors (4-pin)

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1
