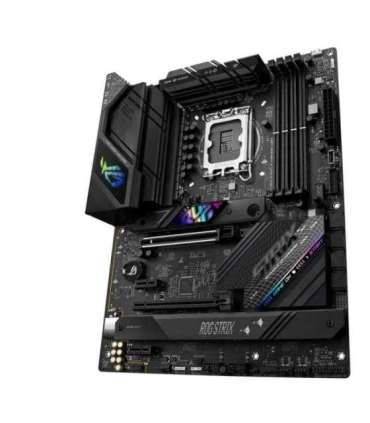

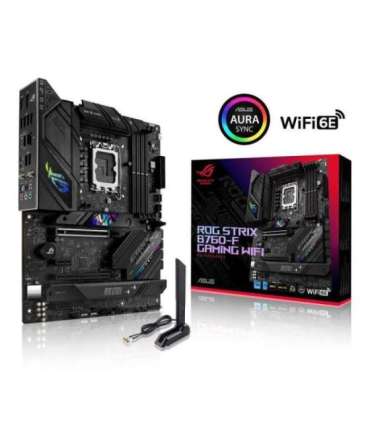

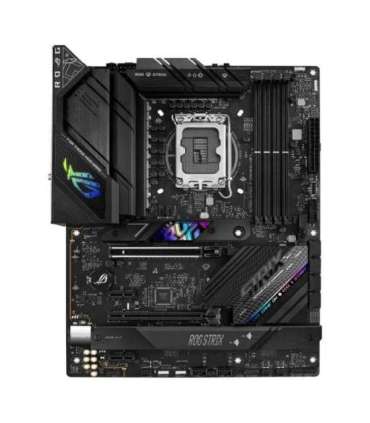

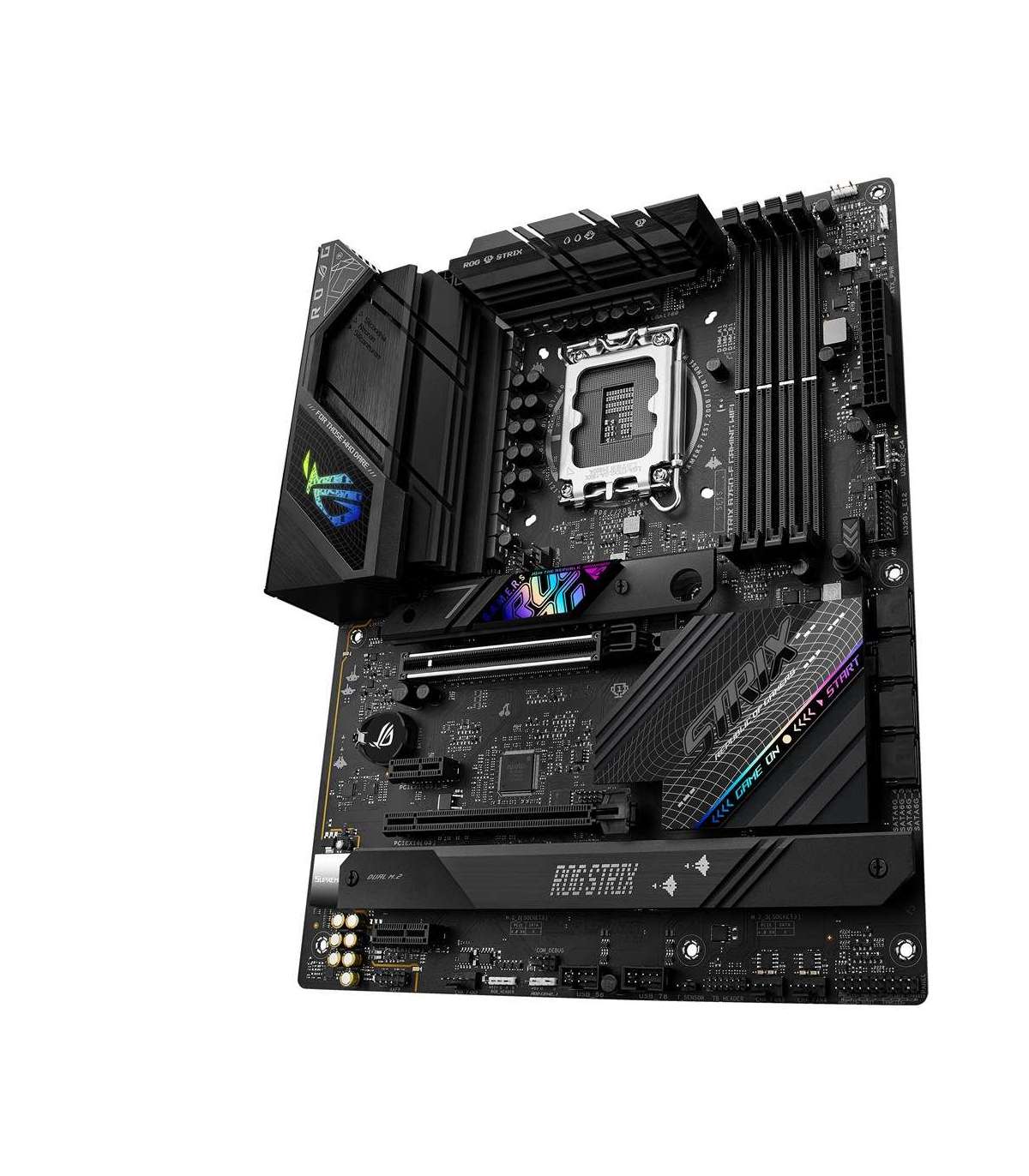

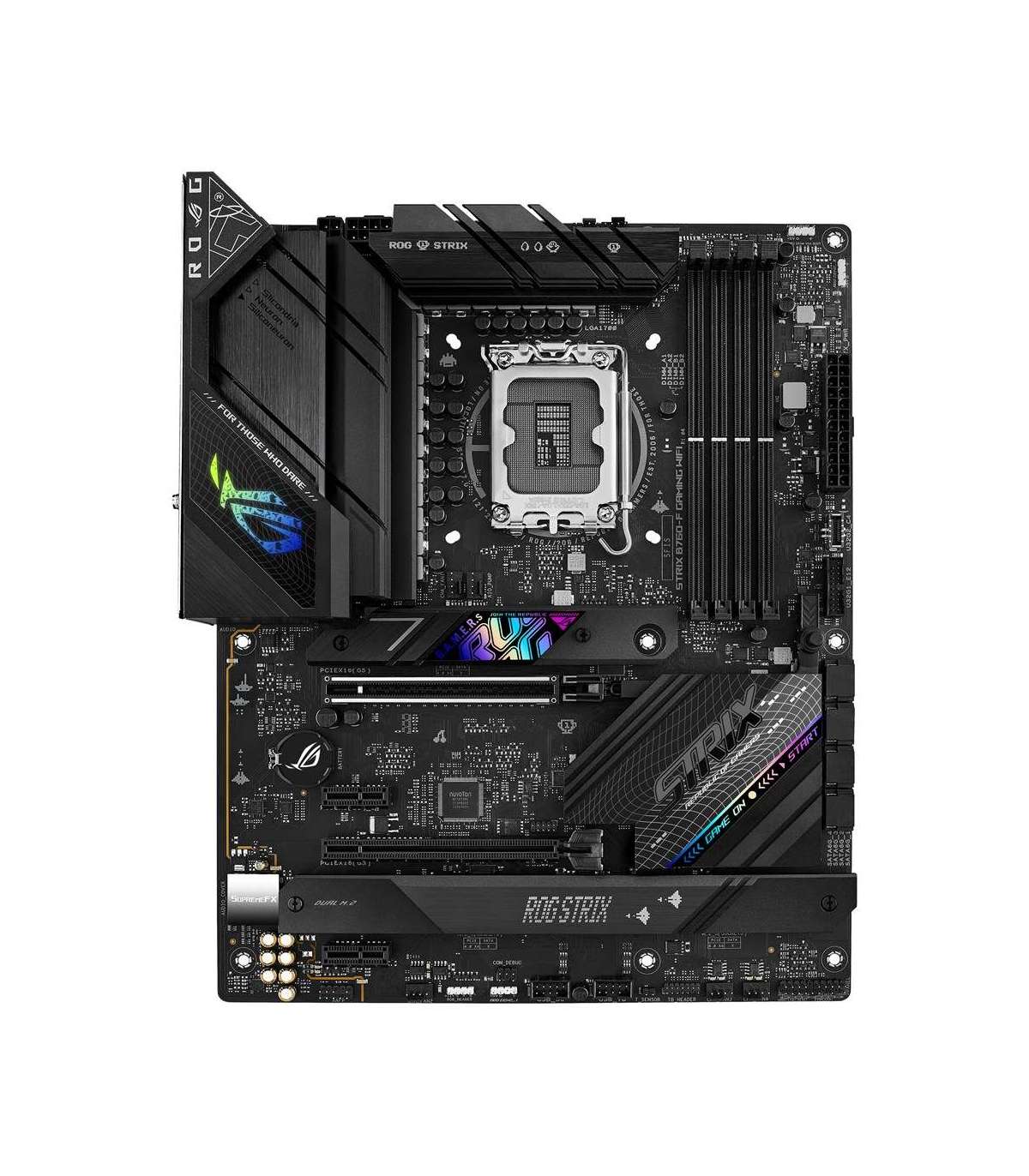

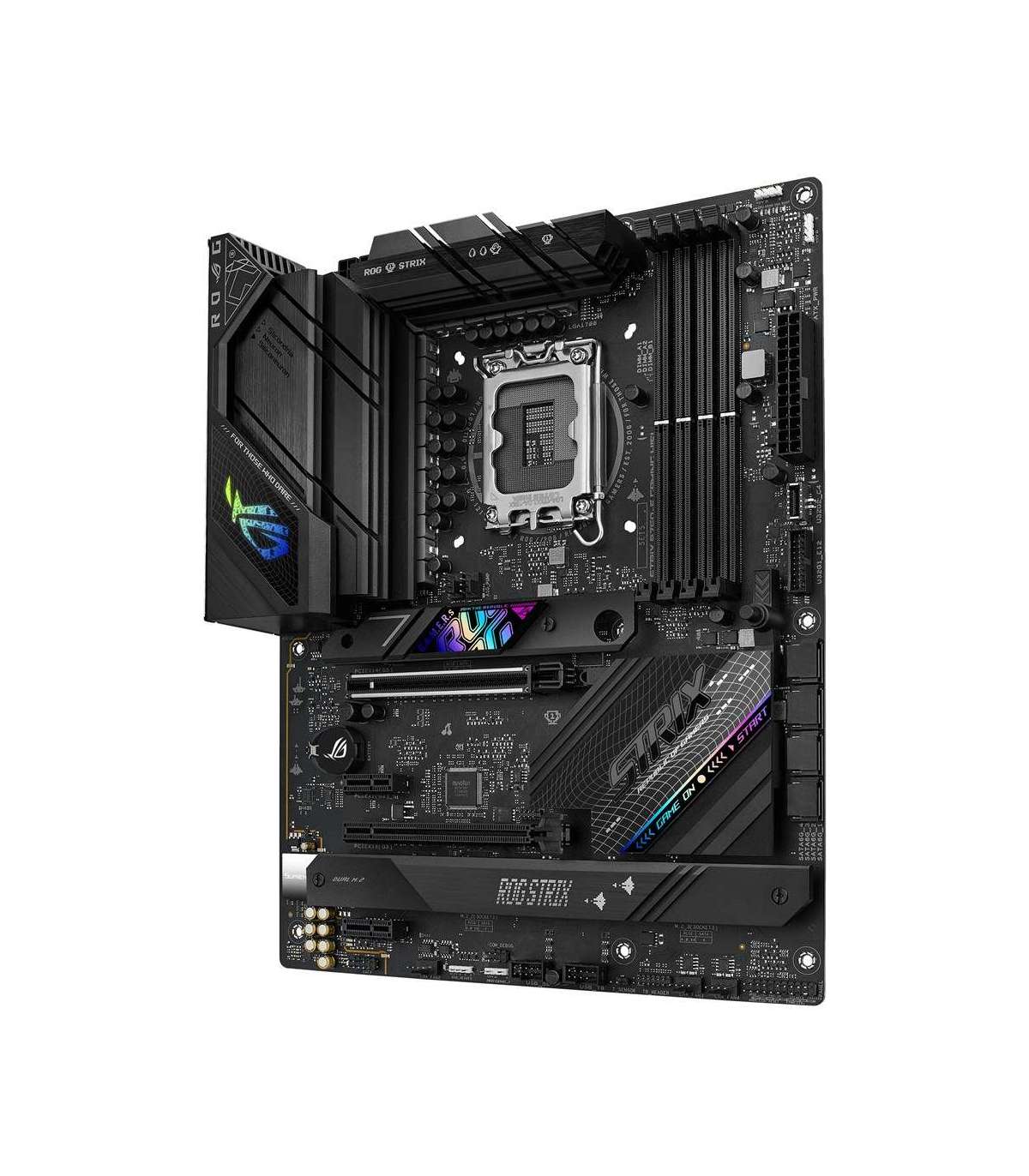

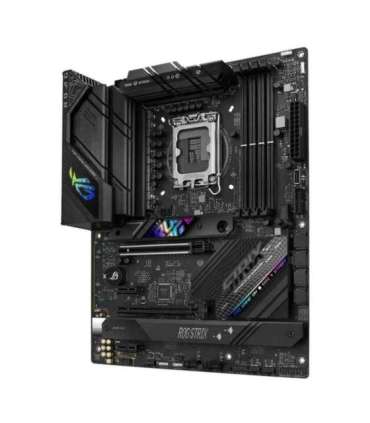

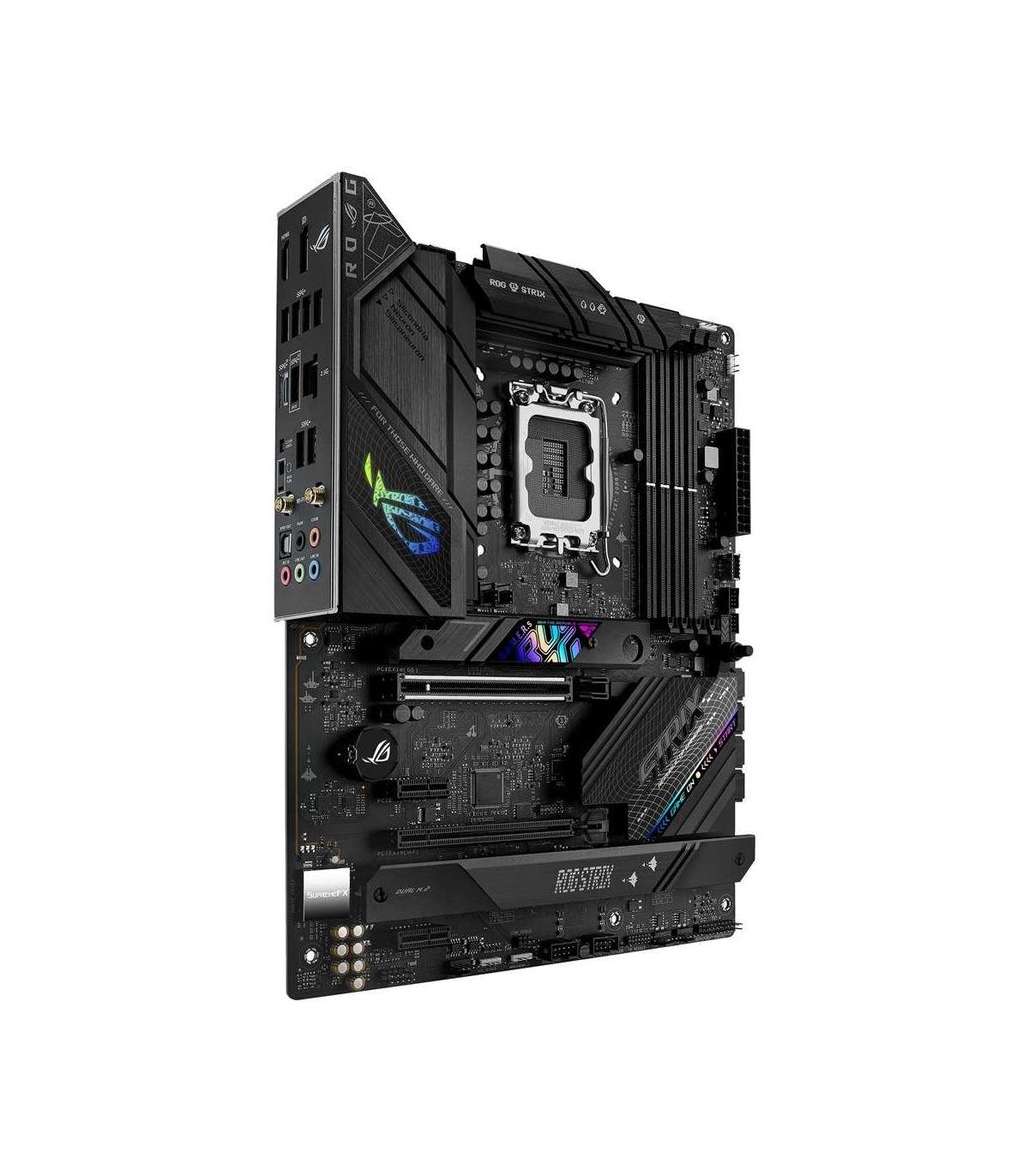

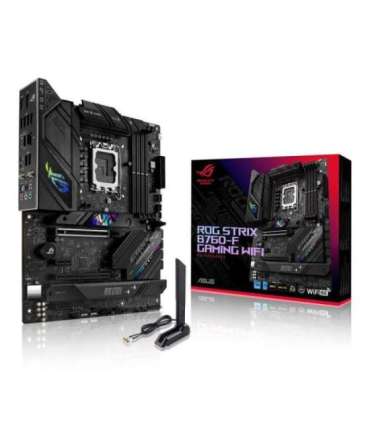

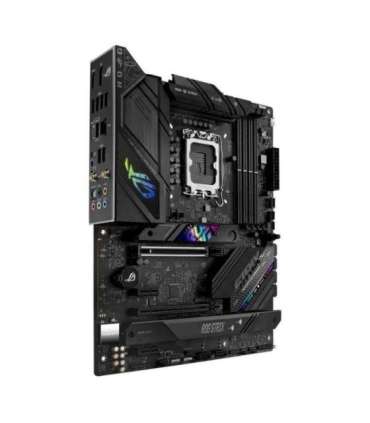

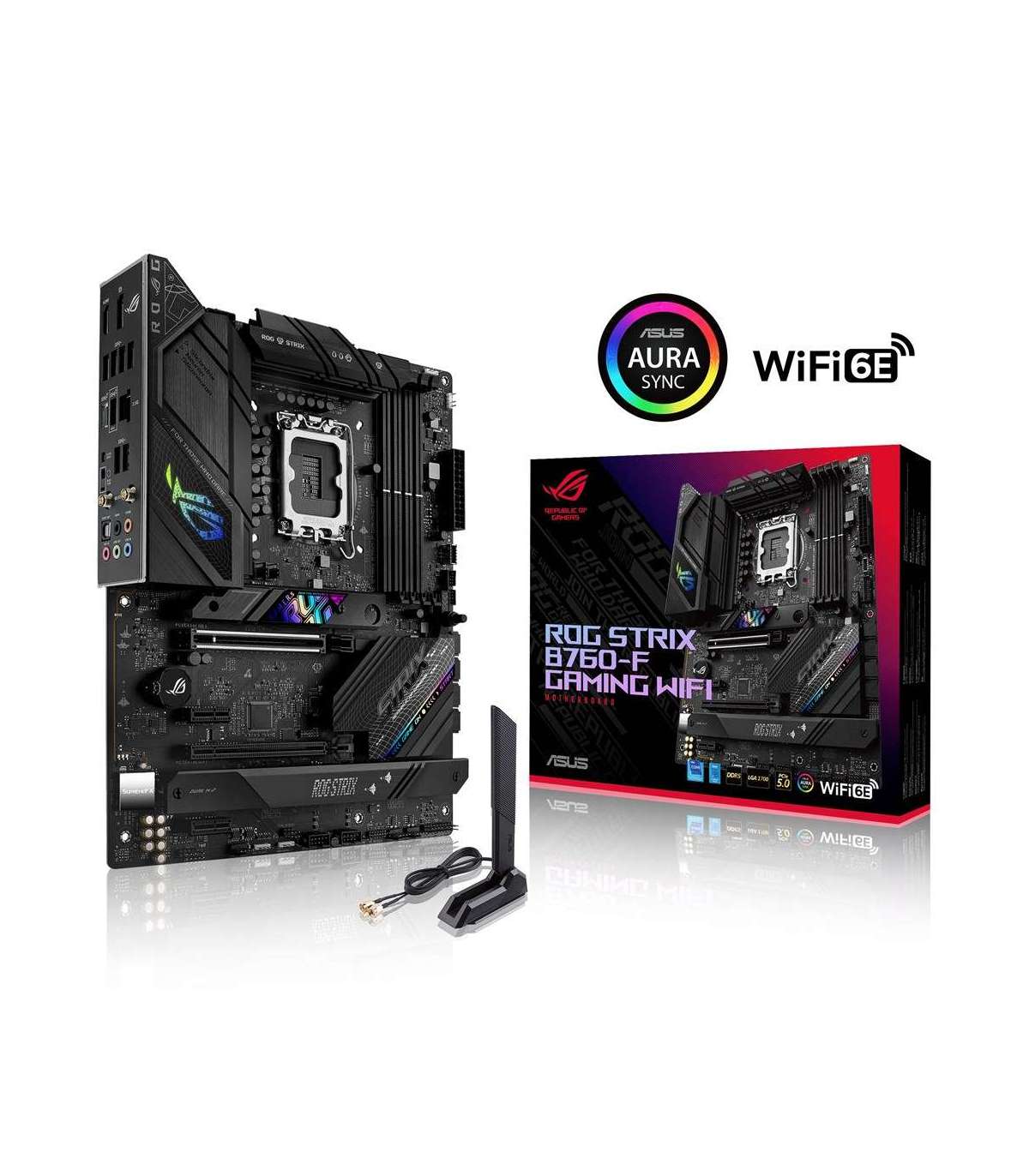

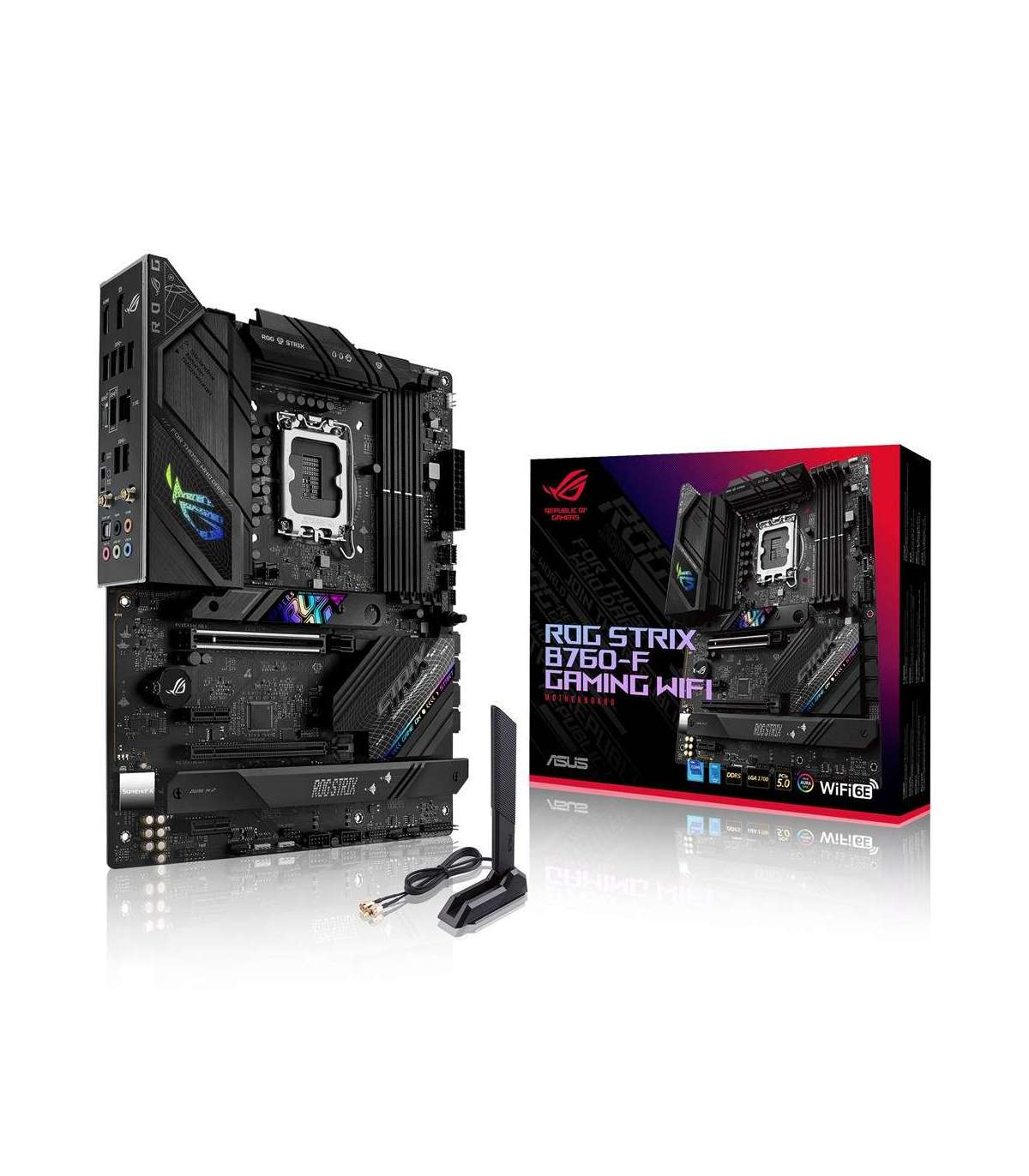

ASUS ROG STRIX B760-F GAMING WIFI Intel B760 LGA 1700 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Package weight

1.27 kg

Product colour

Must

Power source type

ATX

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6 (802.11ax)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

Package width

280 mm

Package depth

71 mm

Package height

265 mm

Warnings

Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

6

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

Intel B760

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

4800 MHz
5000
5200
5400
5600
5800
6000
6200
6400
6600 MHz
6800
7000 MHz
7800 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

2

ECC сompatibility

Non-ECC

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RGB LED pin header

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

S/PDIF out port

Yes

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

Supported memory clock speed (max)

7800 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of storage drives supported

7

RAID support

Yes

Line-in

Yes

Cooling type

Passive

DisplayPort version

1.4

Clear CMOS button

Yes

WiFi-AP antenna jack

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Thunderbolt headers

1

PCI Express x16 (Gen 5.x) slots

1

Back-to-BIOS button

Yes

User guide

Yes
