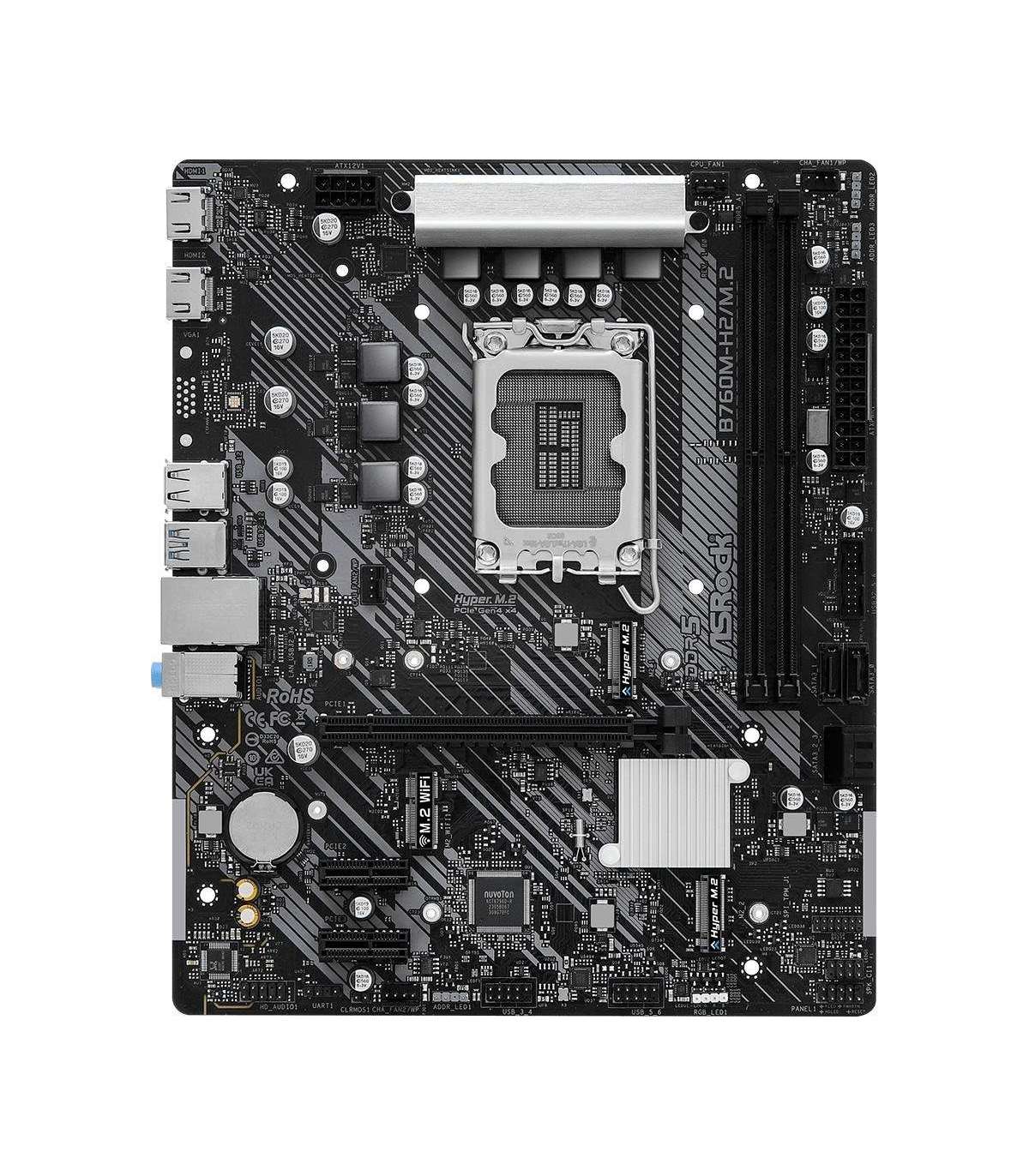

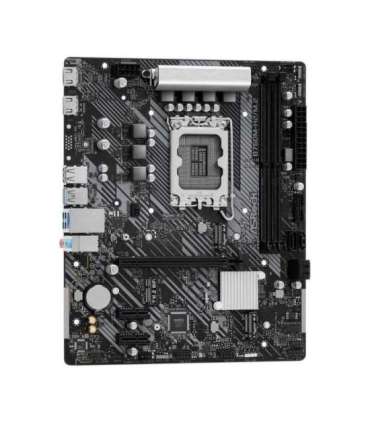

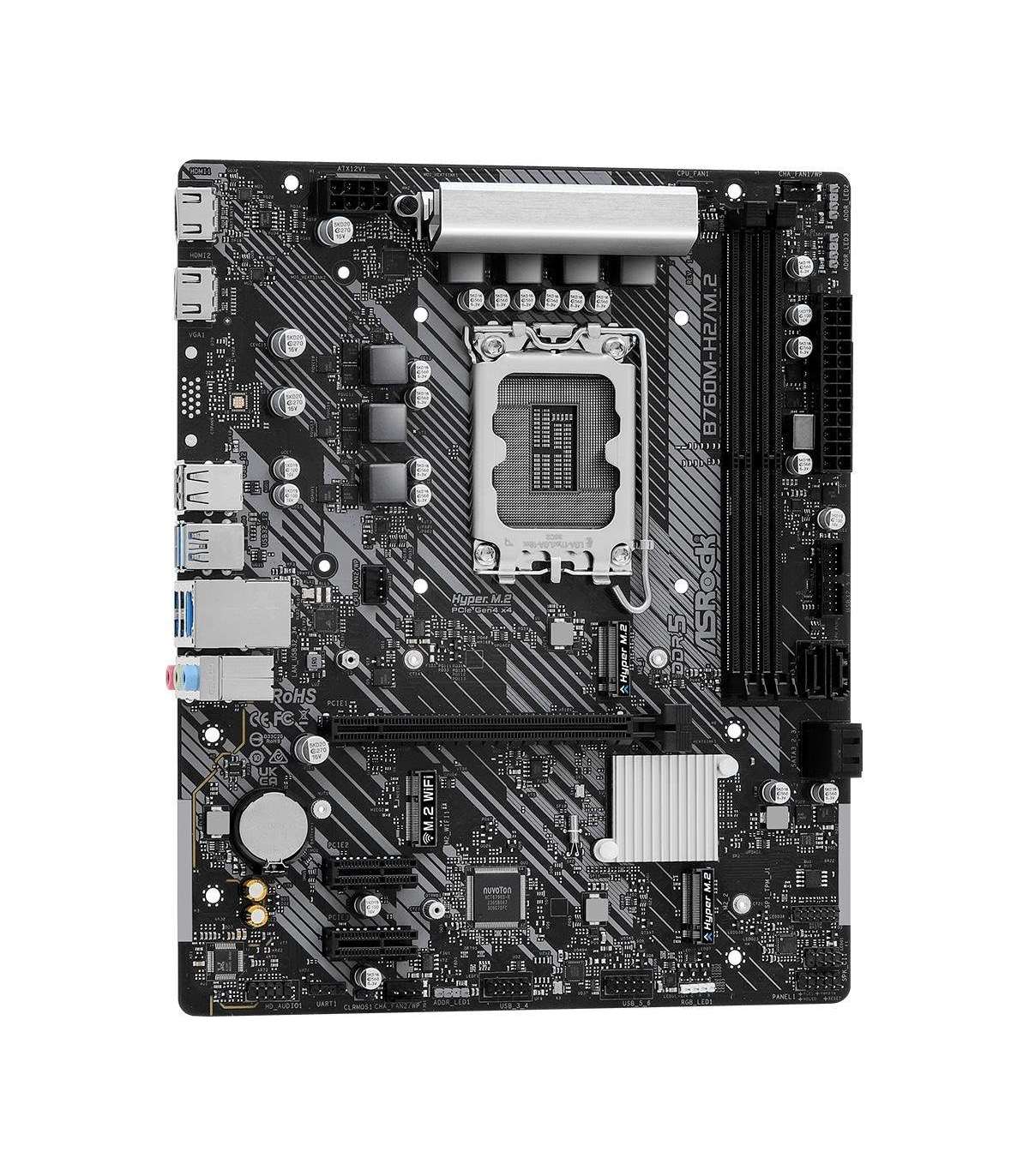

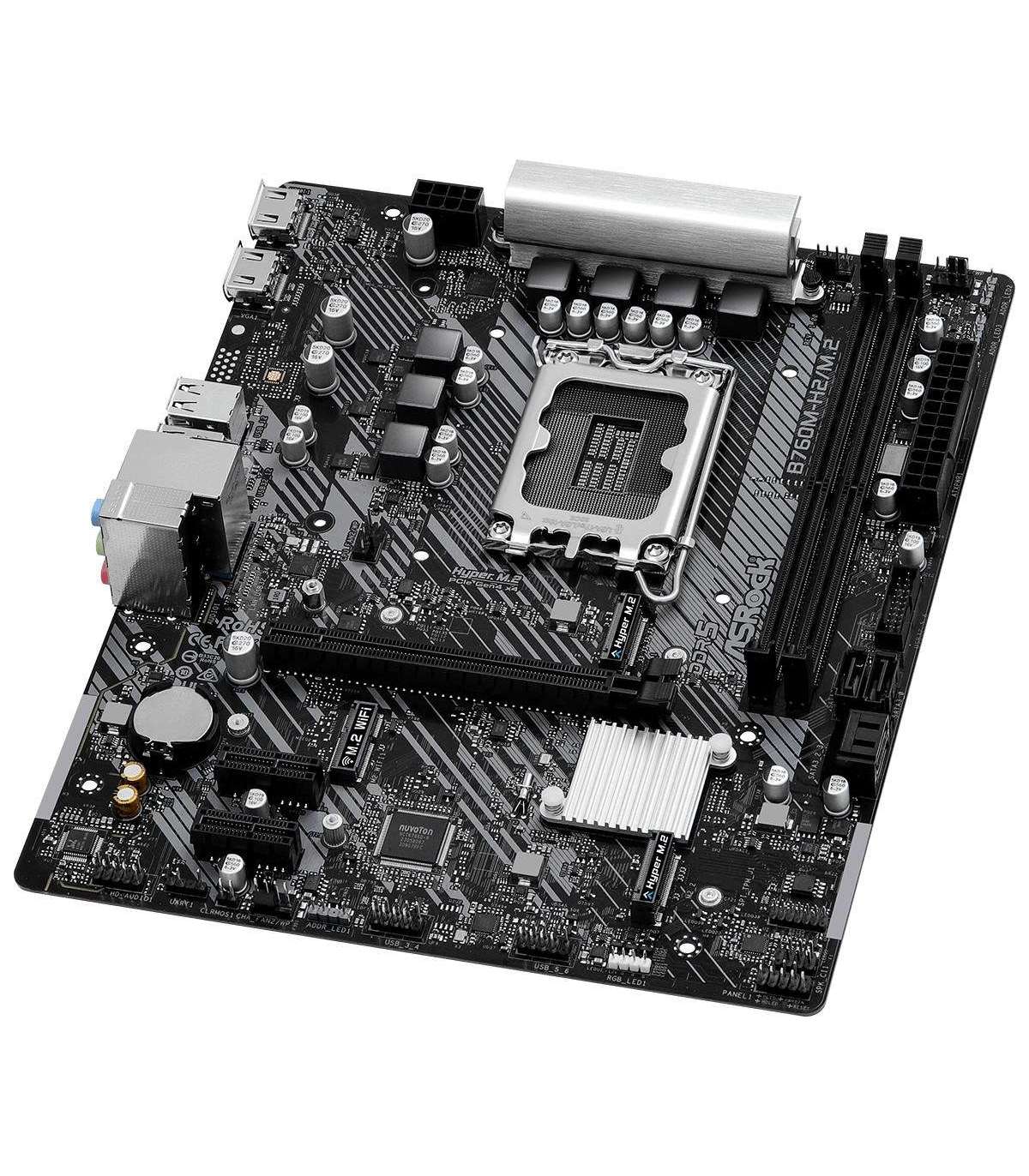

ASRock B760M-H2/M.2 motherboard

Lisainfo

Depth

201 mm

Laius

244 mm

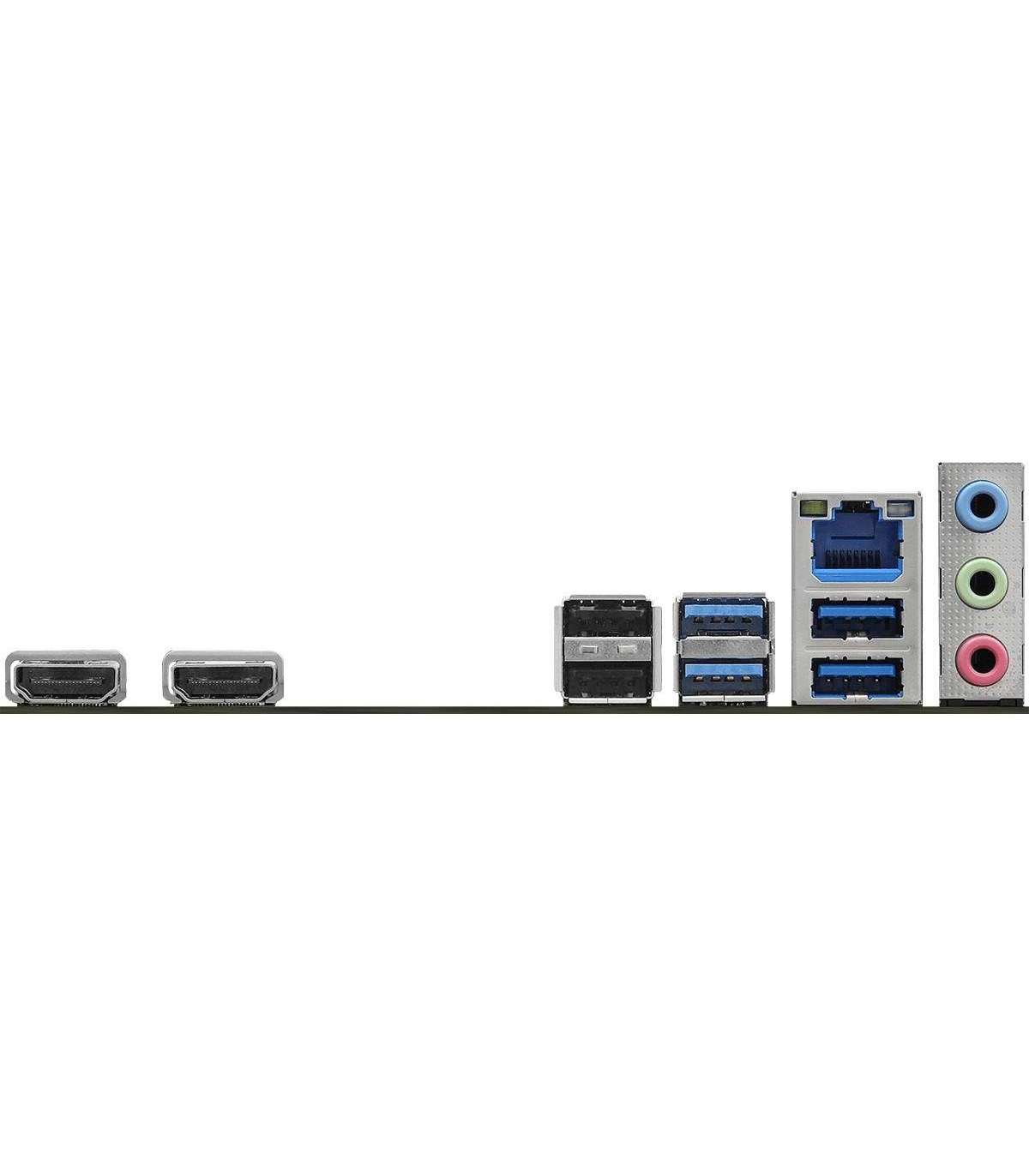

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes (Requires antenna)

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

96 GB

Motherboard chipset

Intel B760

HDMI ports quantity

2

Audio chip

Realtek ALC897

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PCI Express x1 (Gen 3.x) slots

2

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Number of SATA III connectors

4

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

RAID support

Yes

WiFi-AP antenna jack

2

LED connector

Y

Number of audio jack connectors

3

12V power connector (8-pin)

Y
