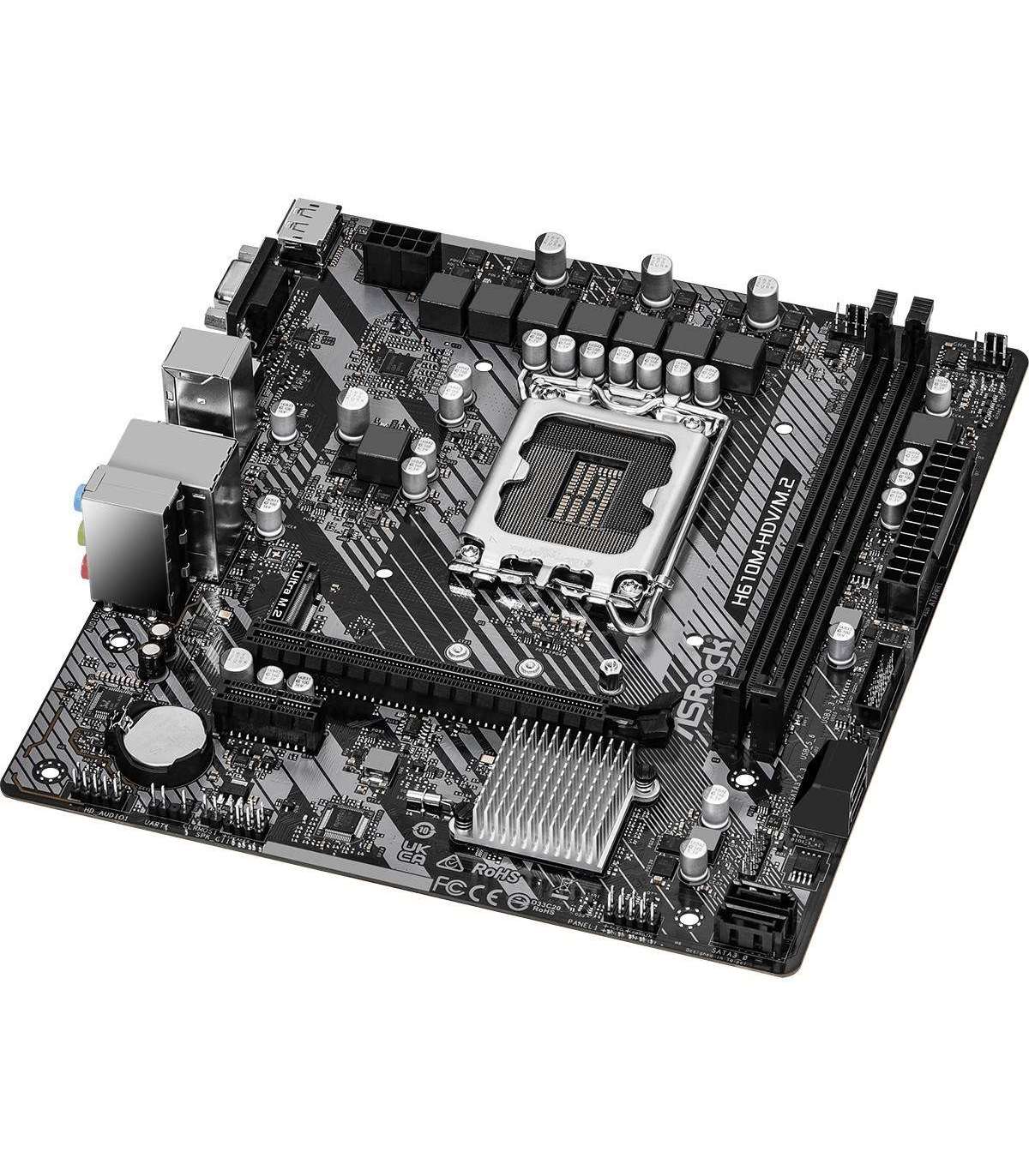

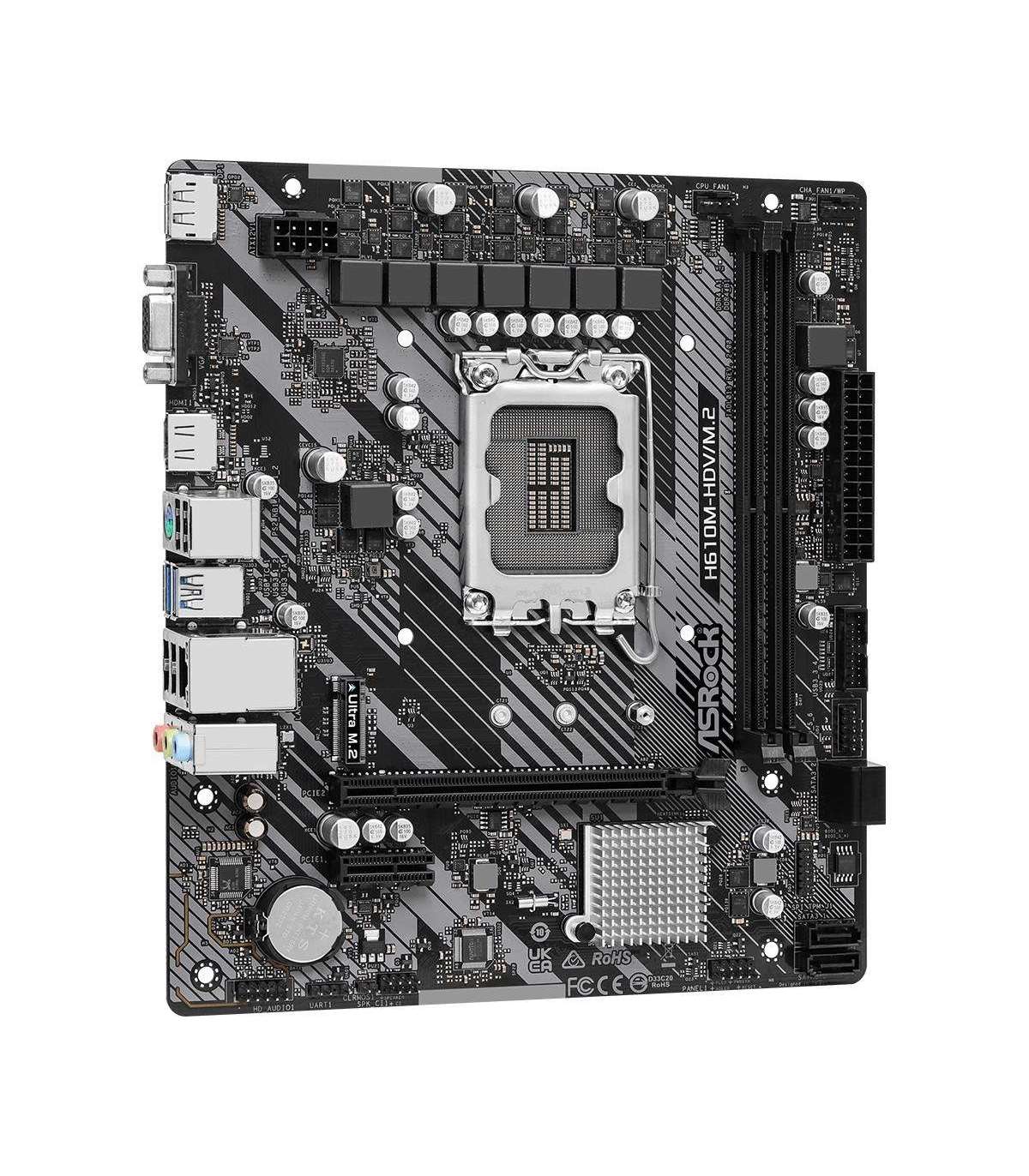

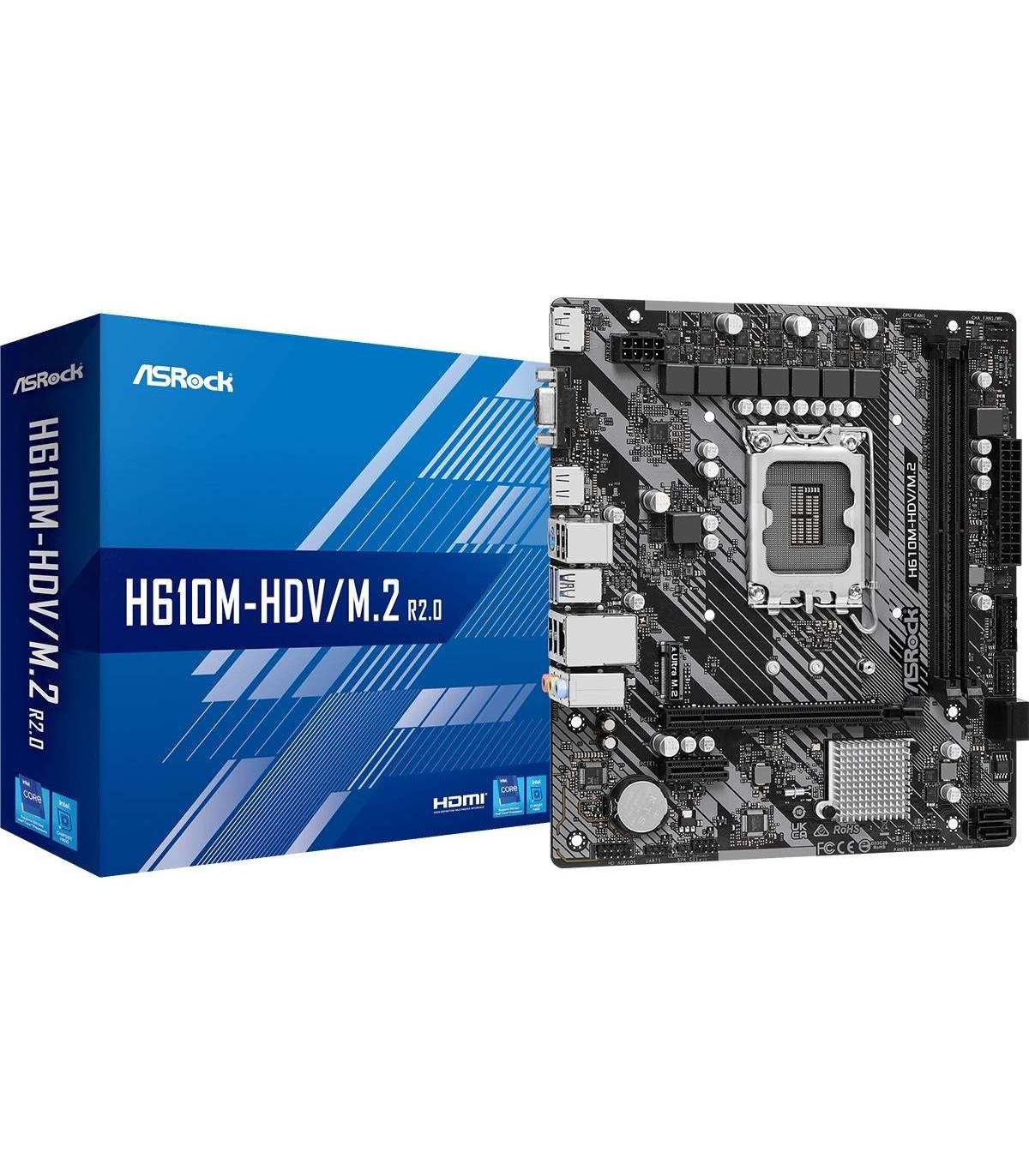

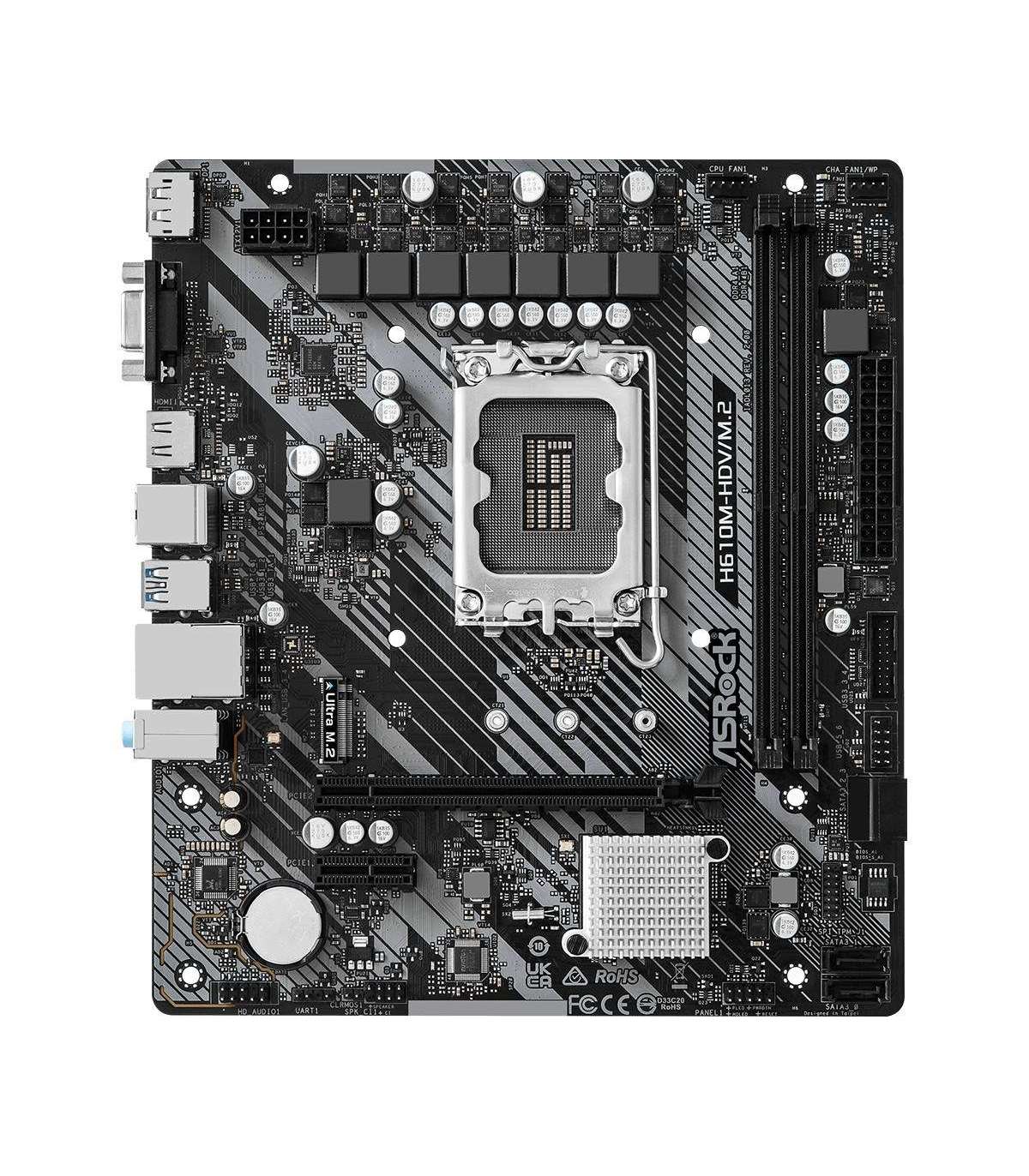

ASRock H610M-HDV/M.2 R2.0 motherboard

Lisainfo

Depth

193 mm

Laius

220 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

64 GB

Motherboard chipset

Intel H610

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

1

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium®

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Supported memory clock speeds

3200

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

1

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

PCI Express x1 (Gen 3.x) slots

1

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

PC health monitoring

CPU
Fan
Temperature
Voltage

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

HDCP

Yes

Line-in

Yes

DisplayPort version

1.4

MIC input

1
