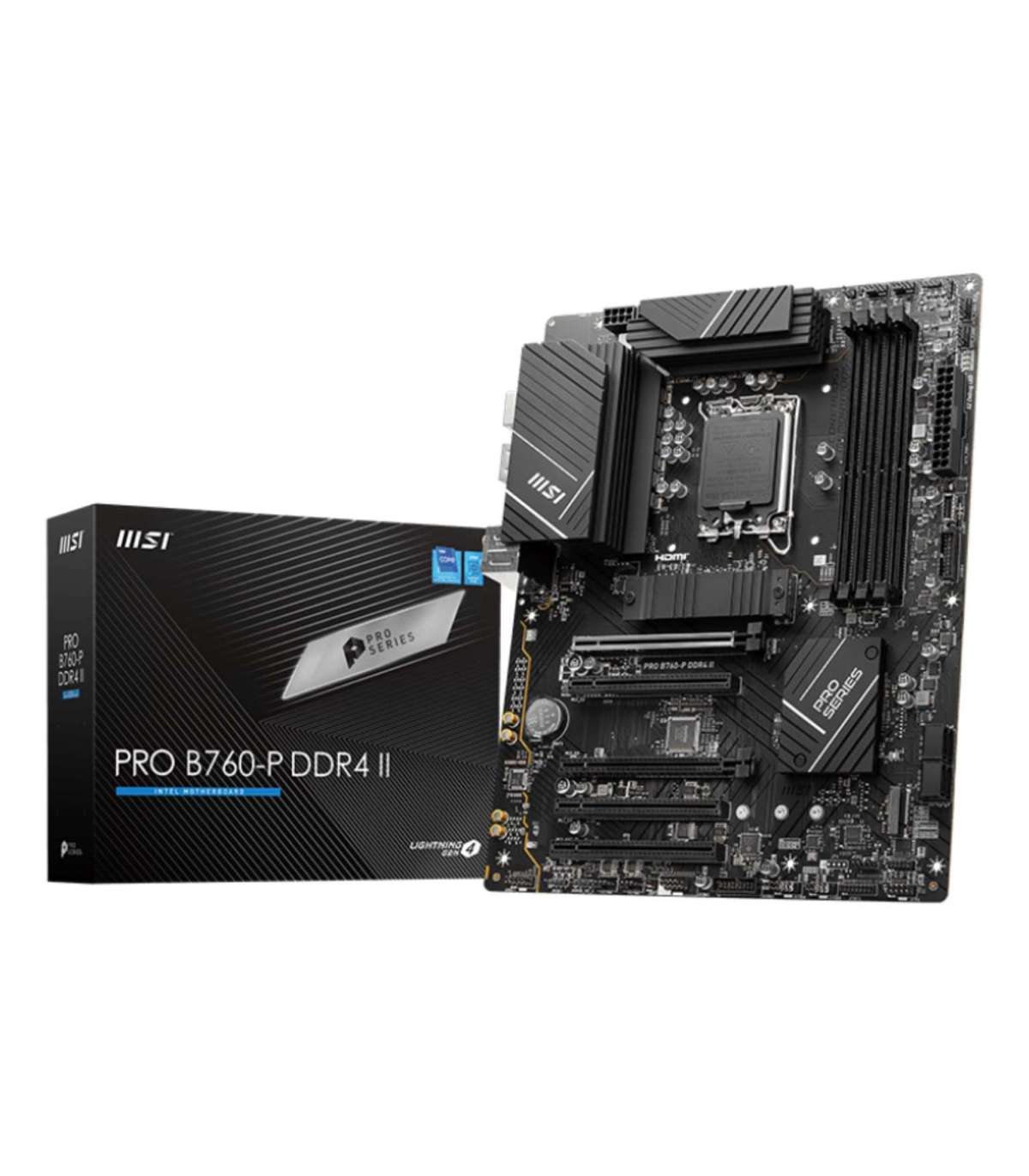

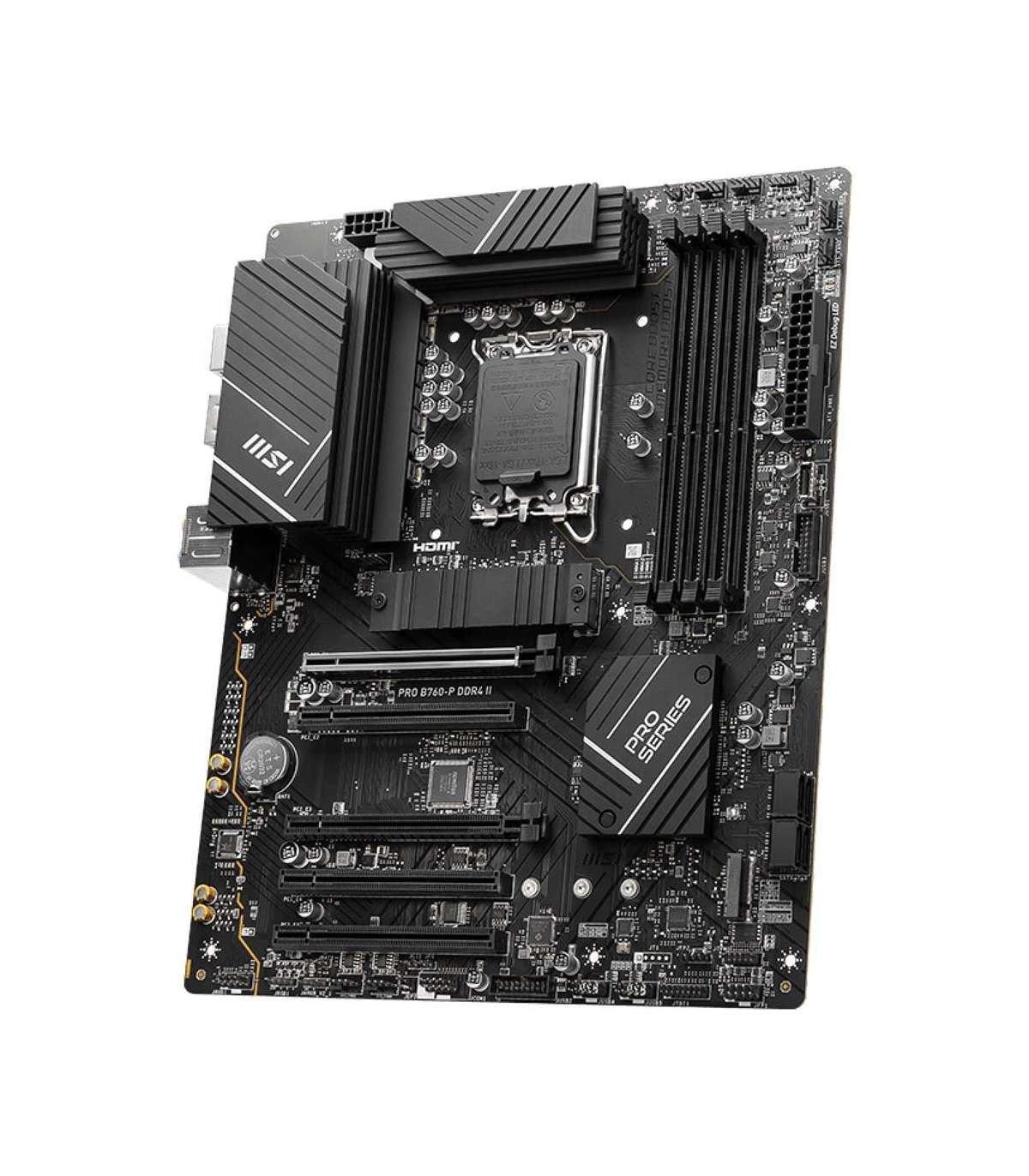

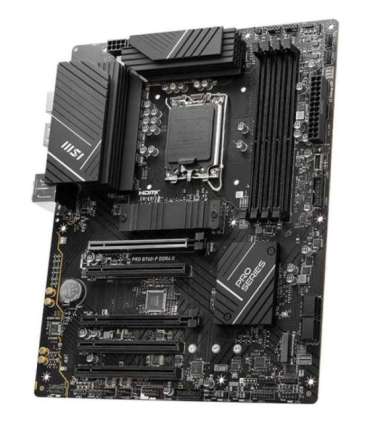

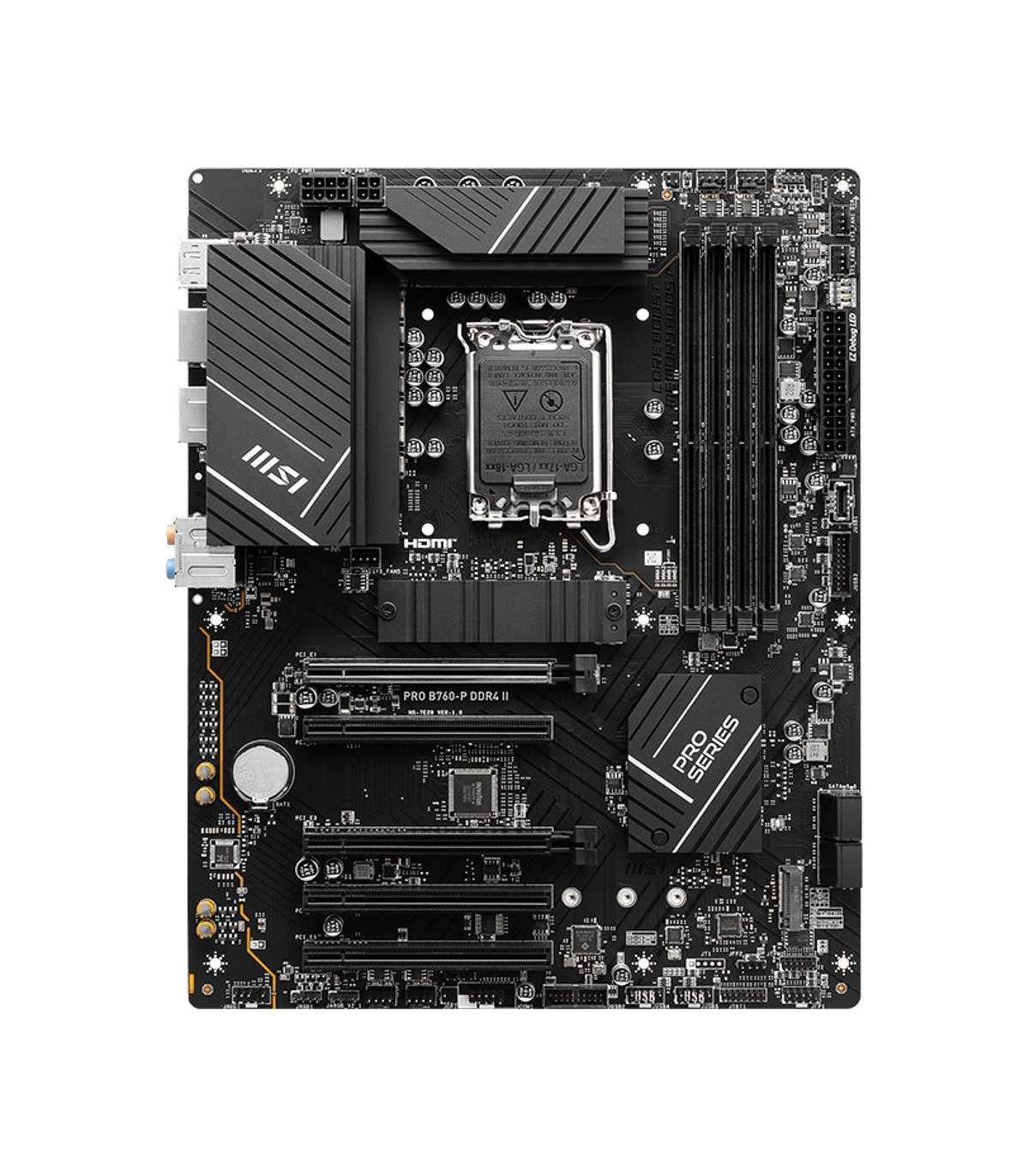

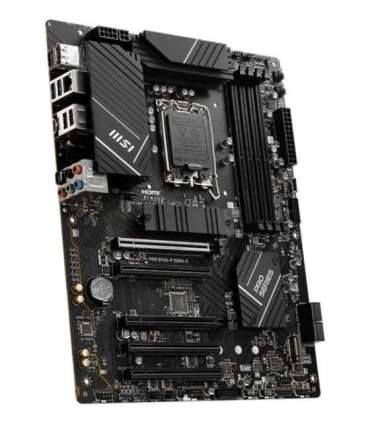

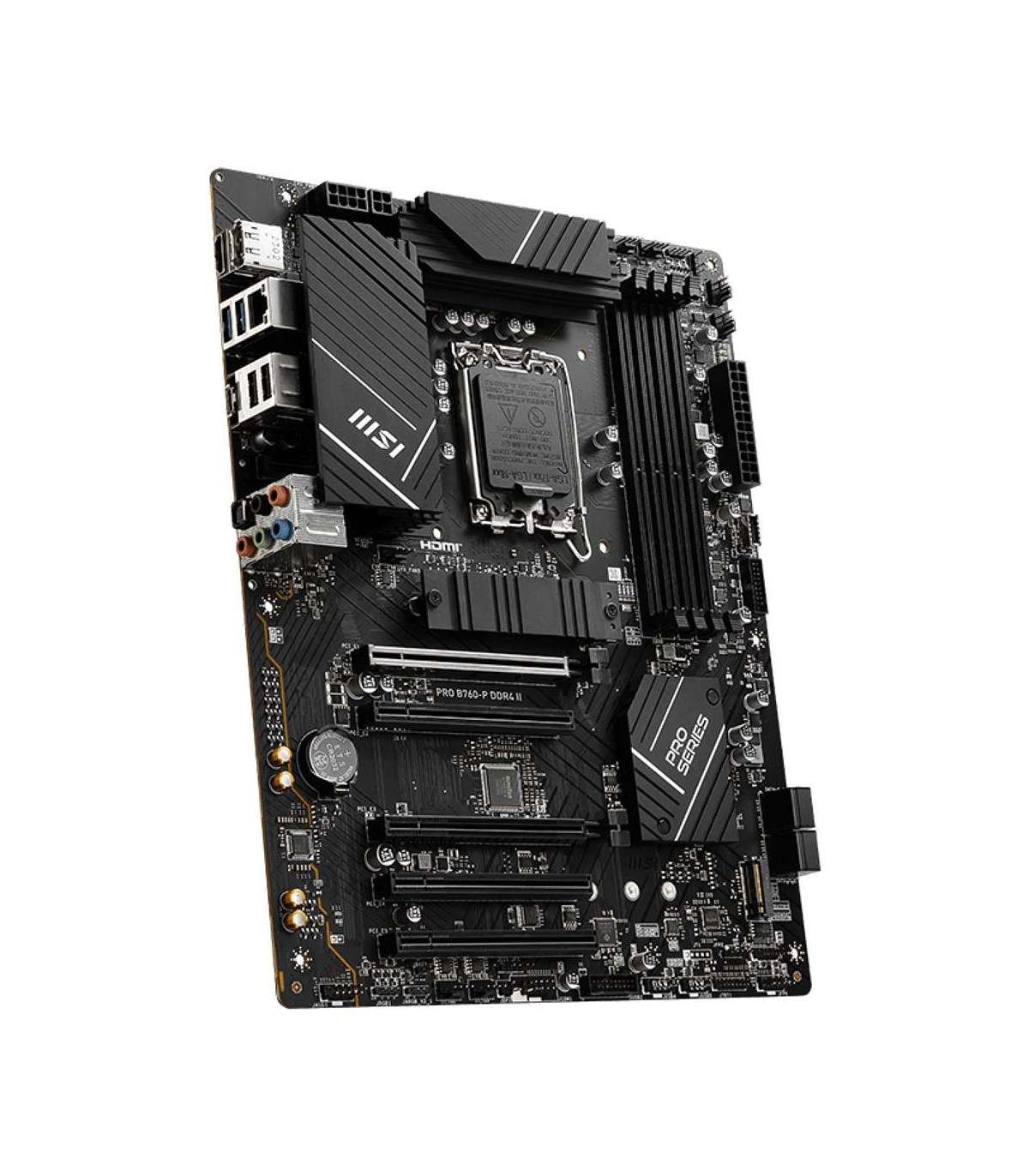

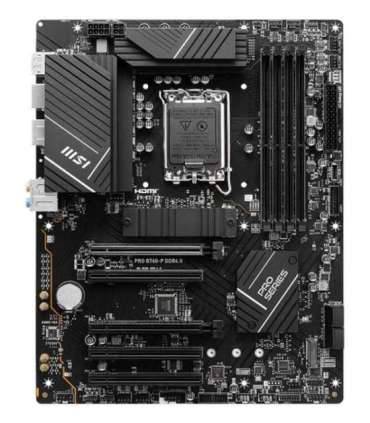

MSI PRO B760-P DDR4 II motherboard Intel B760 LGA 1700 ATX

Lisainfo

Depth

304.8 mm

Laius

243.8 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

Warnings

Avoid direct contact with electronics to prevent electrostatic damage.
Before starting any maintenance or installation, disconnect the product from the power supply.
Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

Motherboard chipset

Intel B760

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC897

USB 2.0 connectors

4

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8125-BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

Supported storage drive interfaces

SATA III

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

Drivers included

Yes

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported memory clock speed (max)

5333 MHz

Front panel connector

Yes

RAID support

Yes

Power fan connector

Yes

S/PDIF out connector

Yes

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x1 (Gen 4.x) slots

2

PCI Express x4 (Gen 4.x) slots

1
