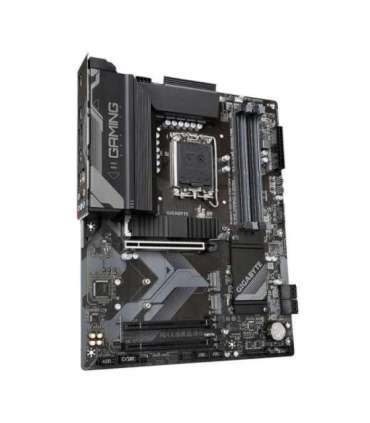

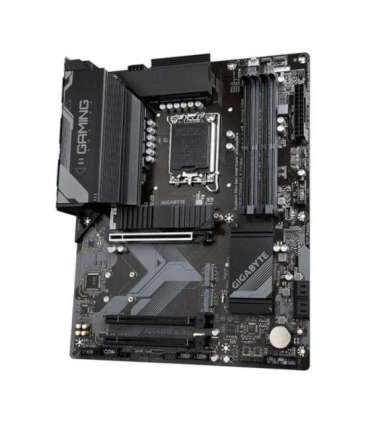

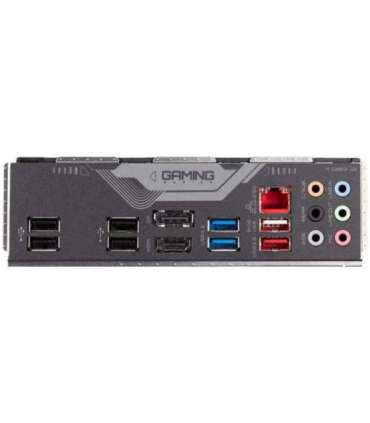

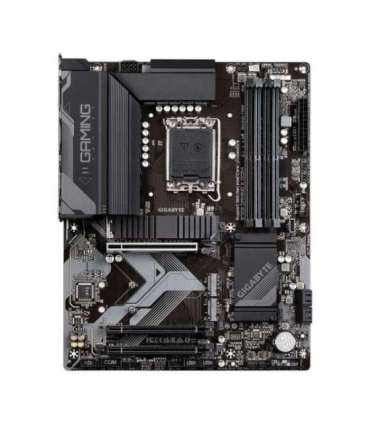

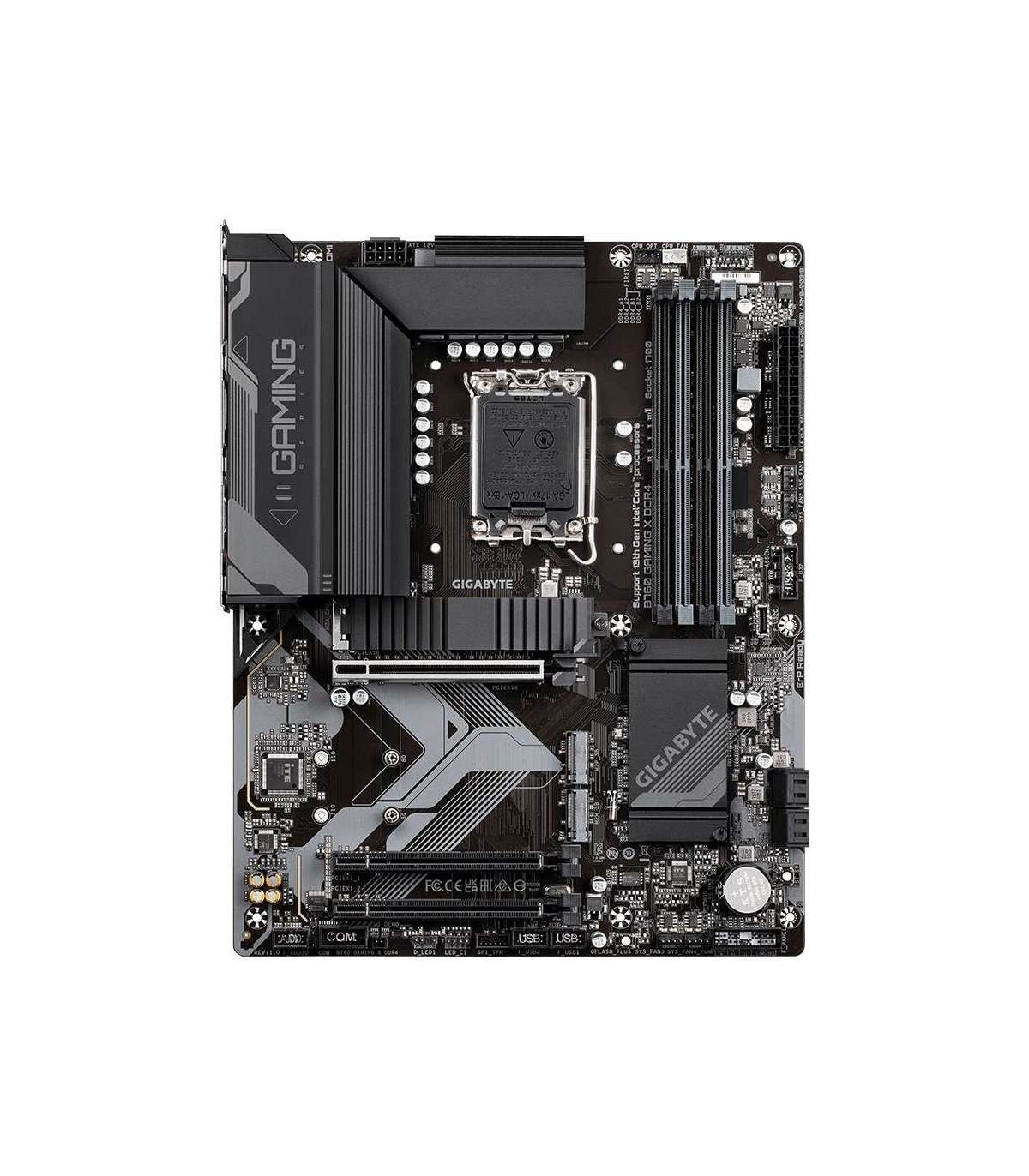

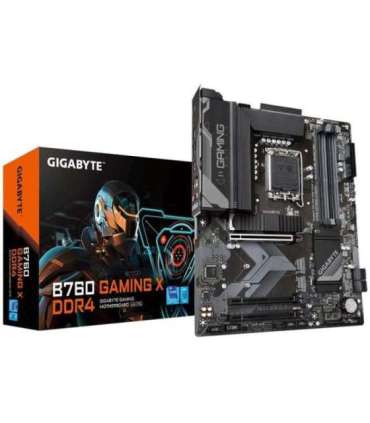

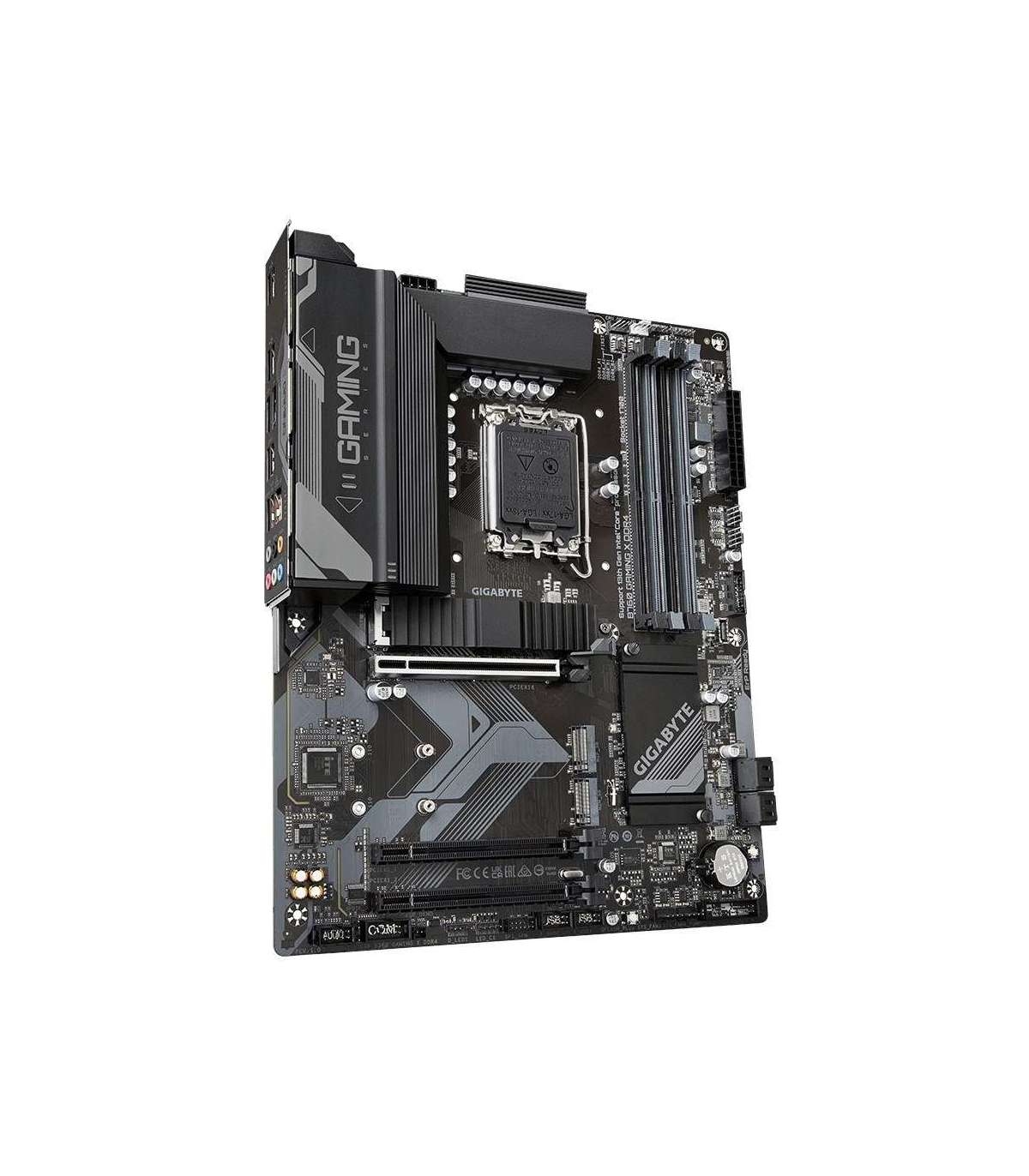

Gigabyte B760 GAMING X DDR4 1.0 motherboard

Lisainfo

Depth

244 mm

Laius

305 mm

Power source type

ATX

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10
Windows 11

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

5

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

Intel

Maximum internal memory

128 GB

HDMI ports quantity

1

Memory channels

Dual-channel

Headphone outputs

1

USB 2.0 connectors

2

Processor socket

LGA 1700

Compatible processor series

Intel® Celeron®
Intel® Core™ i3
Intel® Core™ i5
Intel® Core™ i7
Intel® Core™ i9
Intel® Pentium® Gold

Motherboard form factor

ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666 MHz
2933
3000
3200
3300
3333
3400
3466
3600
3666
3733
3800
3866
4000
4133 MHz
4266
4300
4400
4500
4600
4700
4800 MHz
4933 MHz
5000
5133
5333 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA III

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

2

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2304 pixels

PC health monitoring

Fan
Temperature
Voltage
Water cooling

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

LGA 1700

HDCP

Yes

Supported memory clock speed (max)

5333 MHz

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Desktop Management Interface (DMI) version

2.7

Number of storage drives supported

6

RAID support

Yes

Line-in

Yes

S/PDIF out connector

Yes

Serial port headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

HDCP version

2.3

Number of USB 3.2 Gen 2 Type-A ports

1
