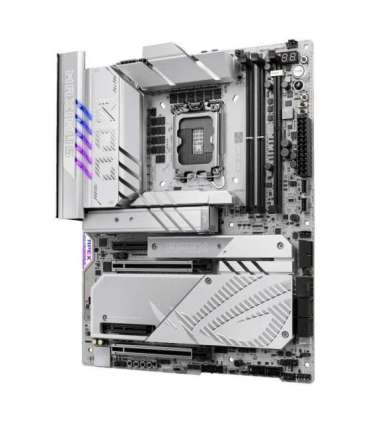

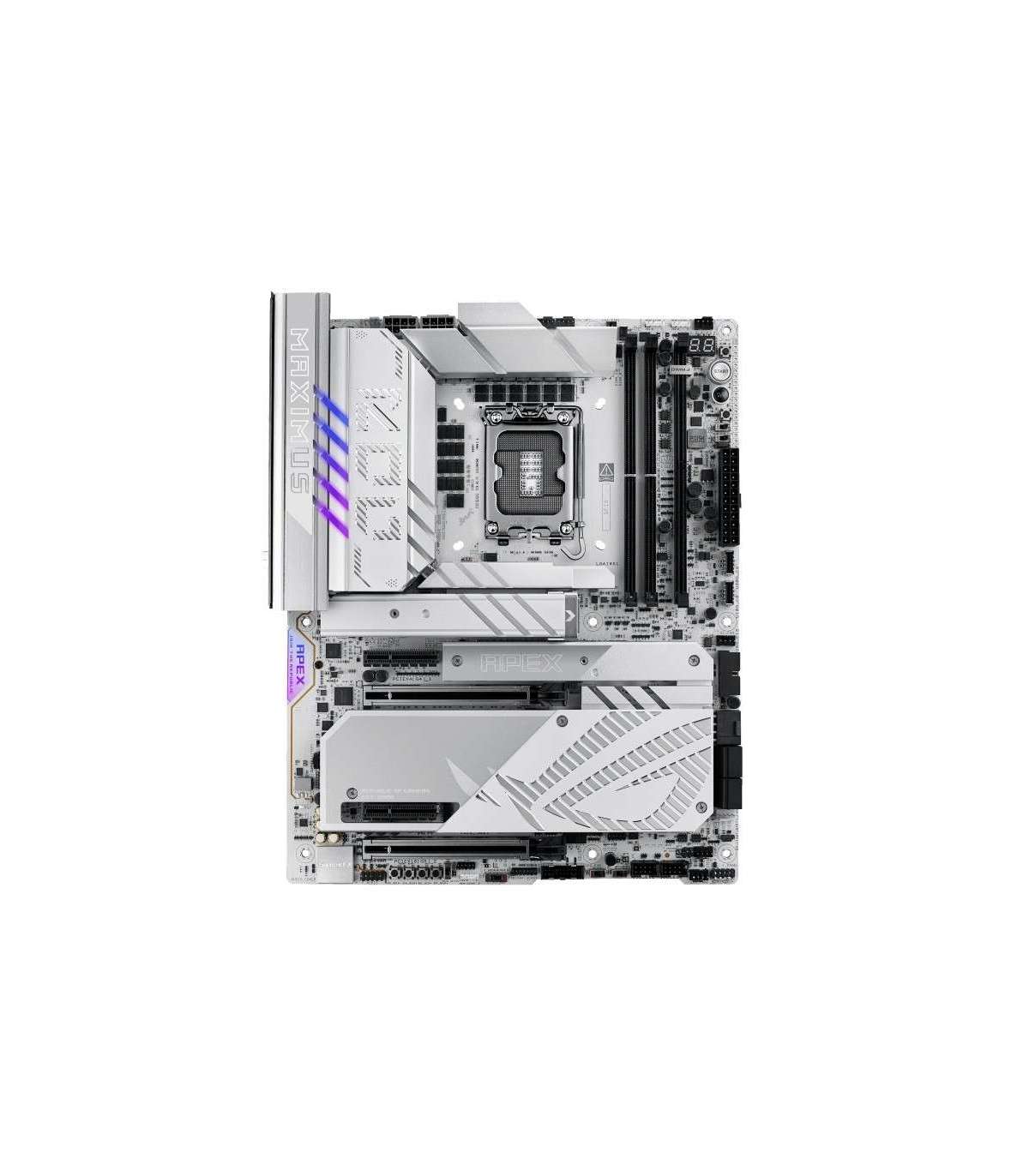

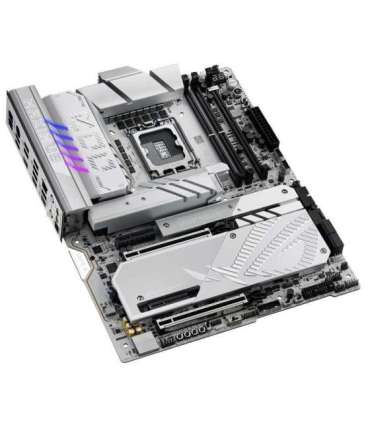

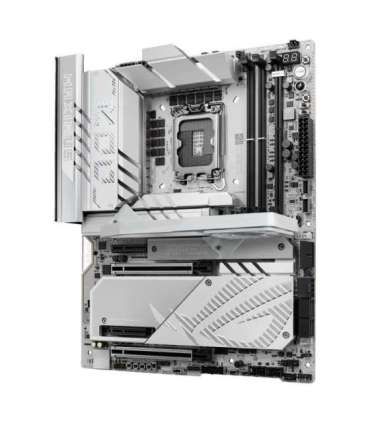

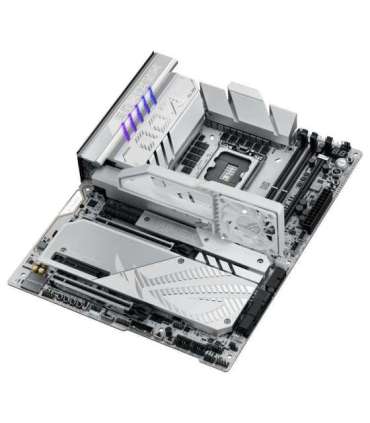

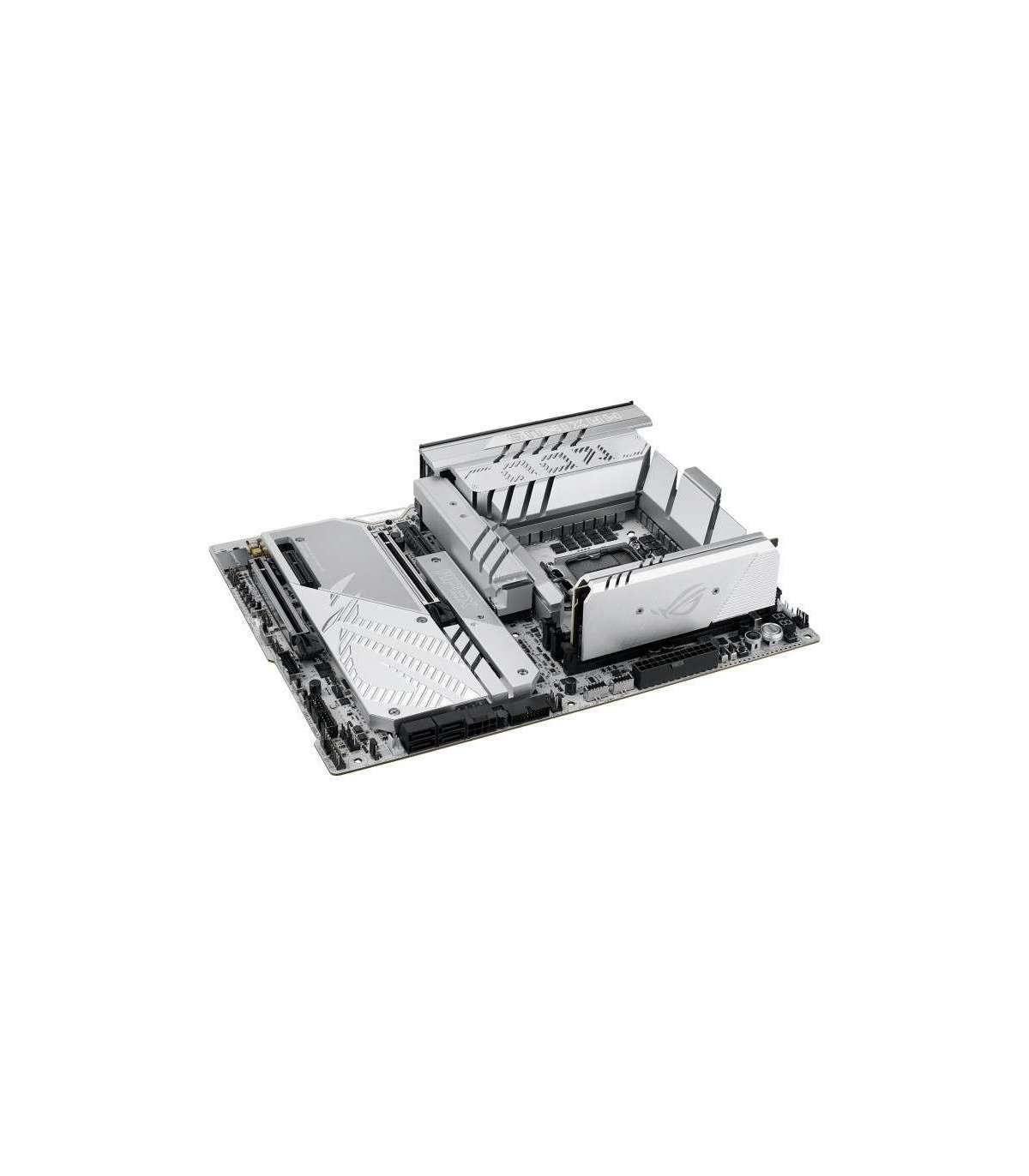

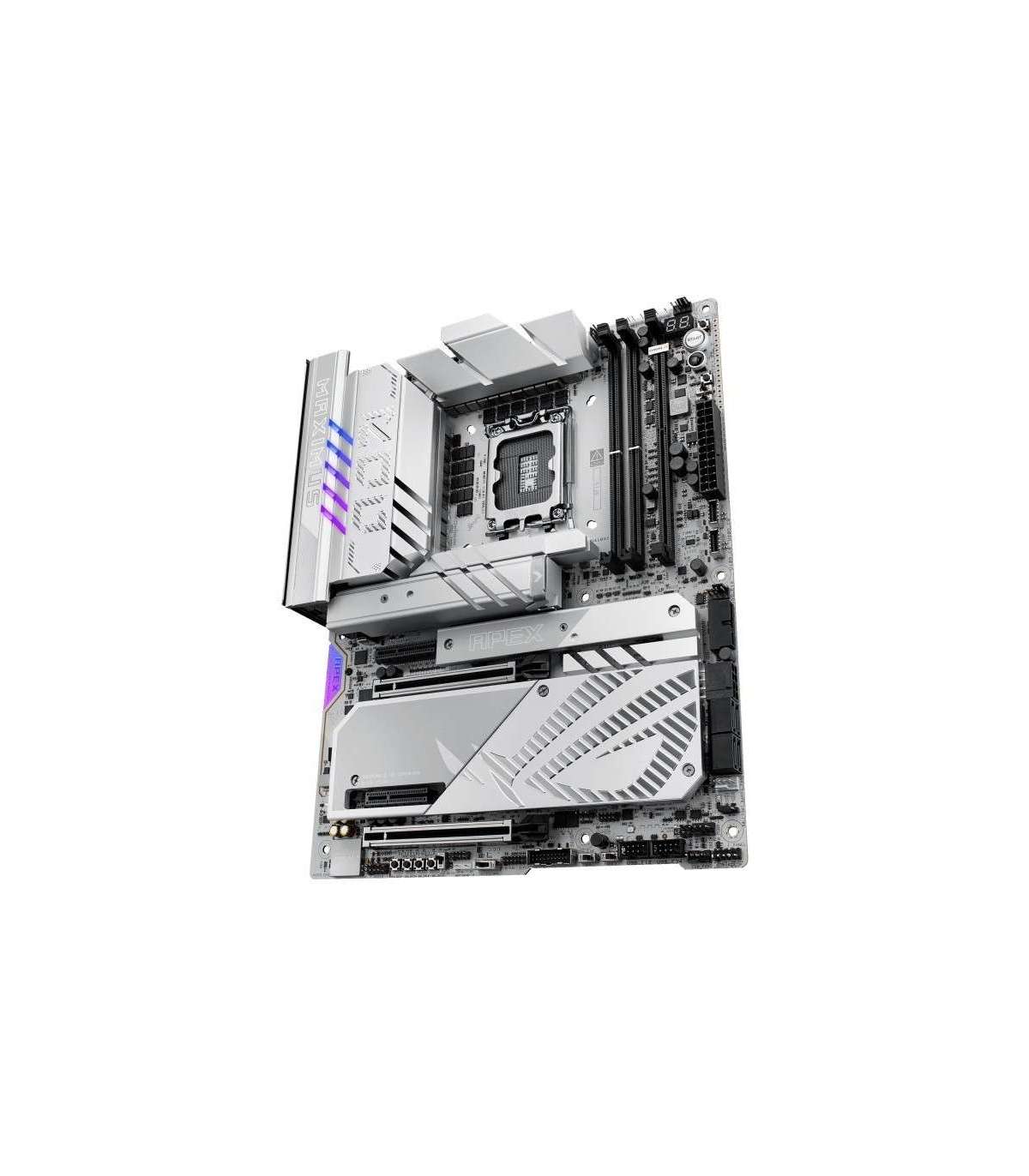

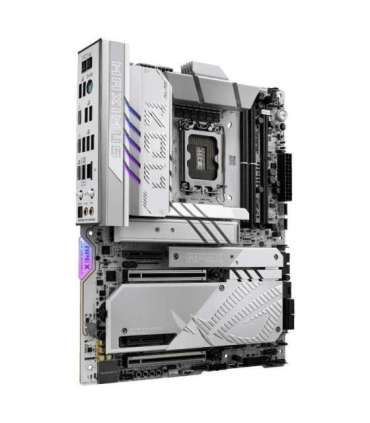

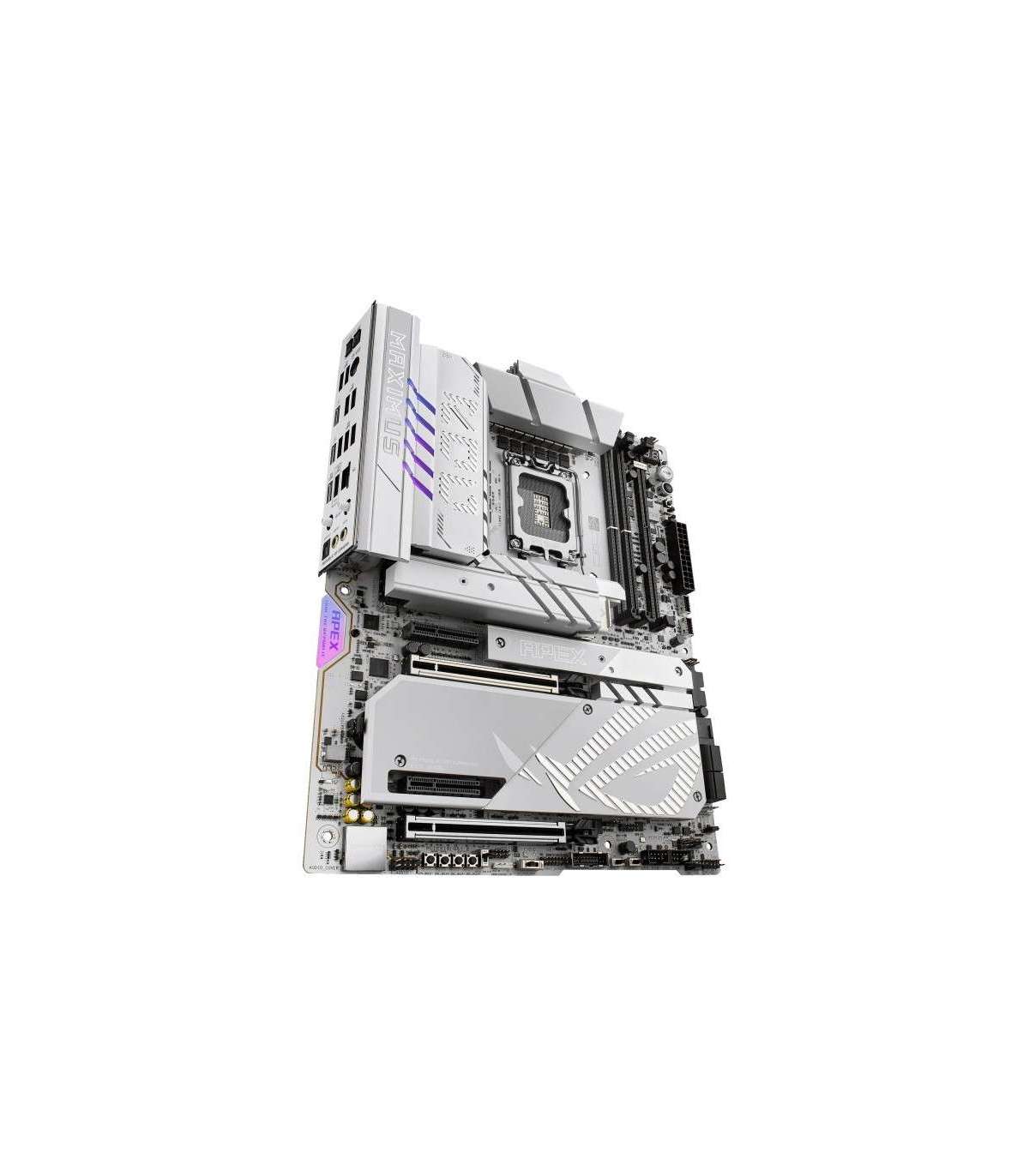

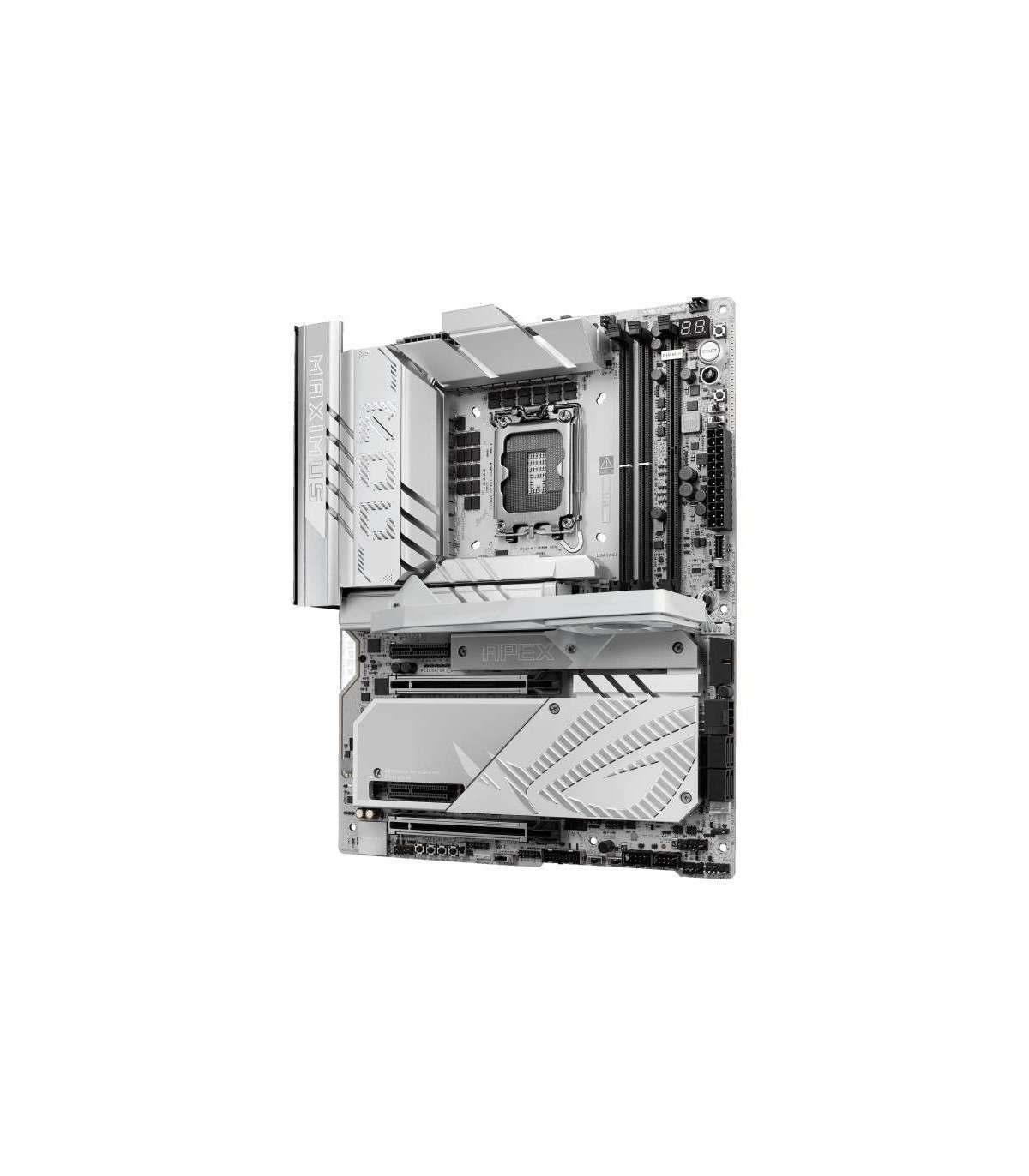

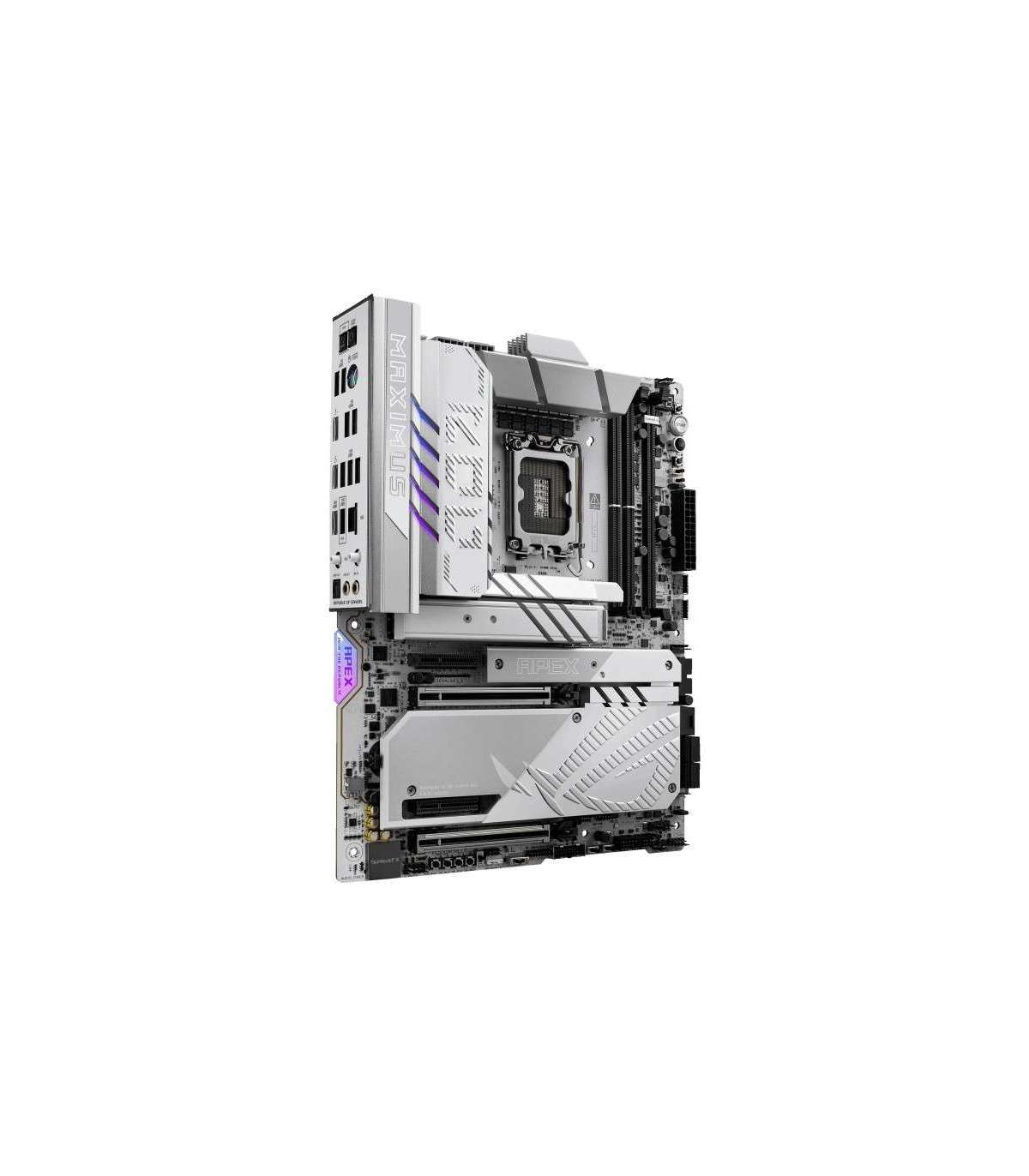

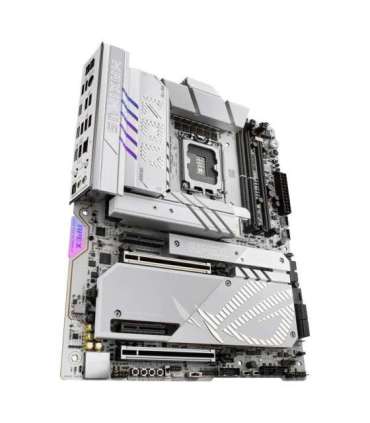

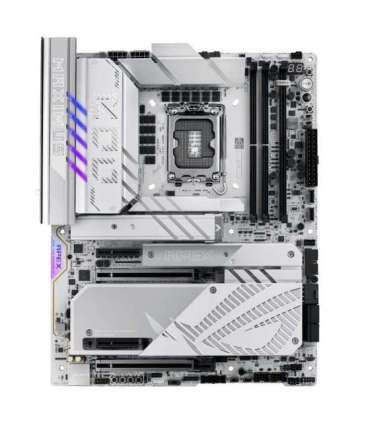

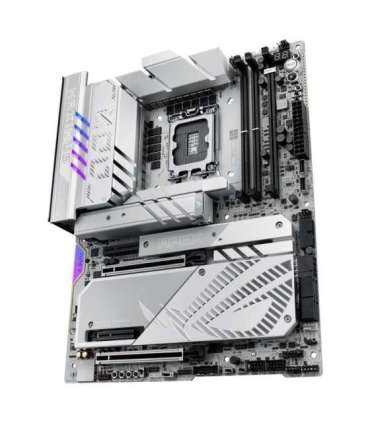

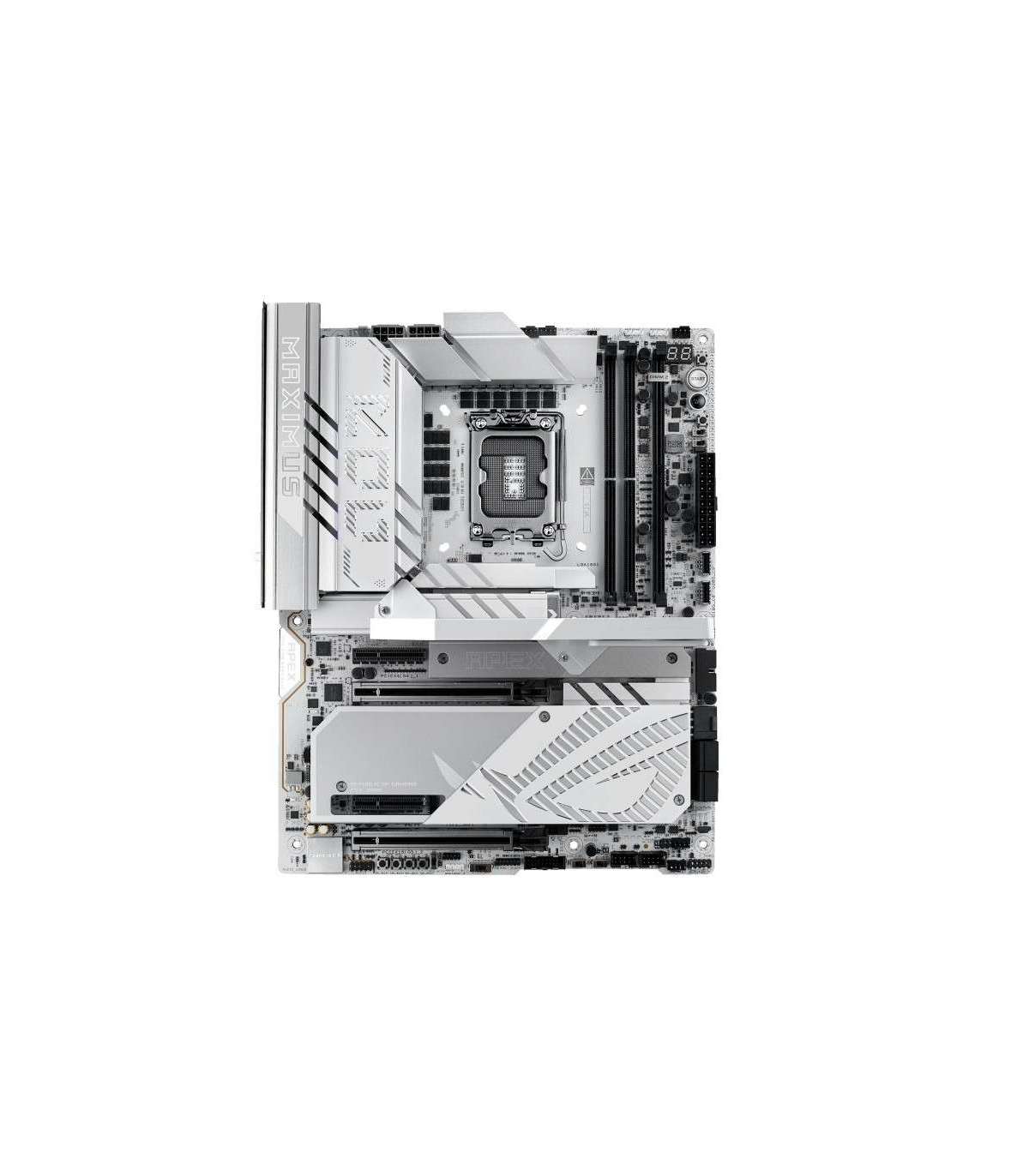

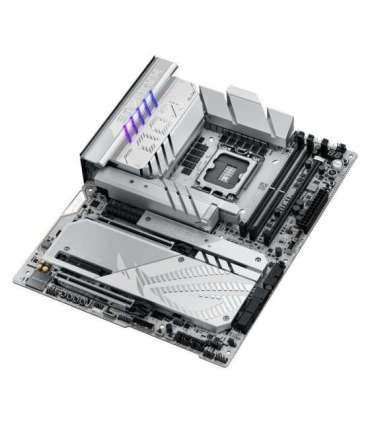

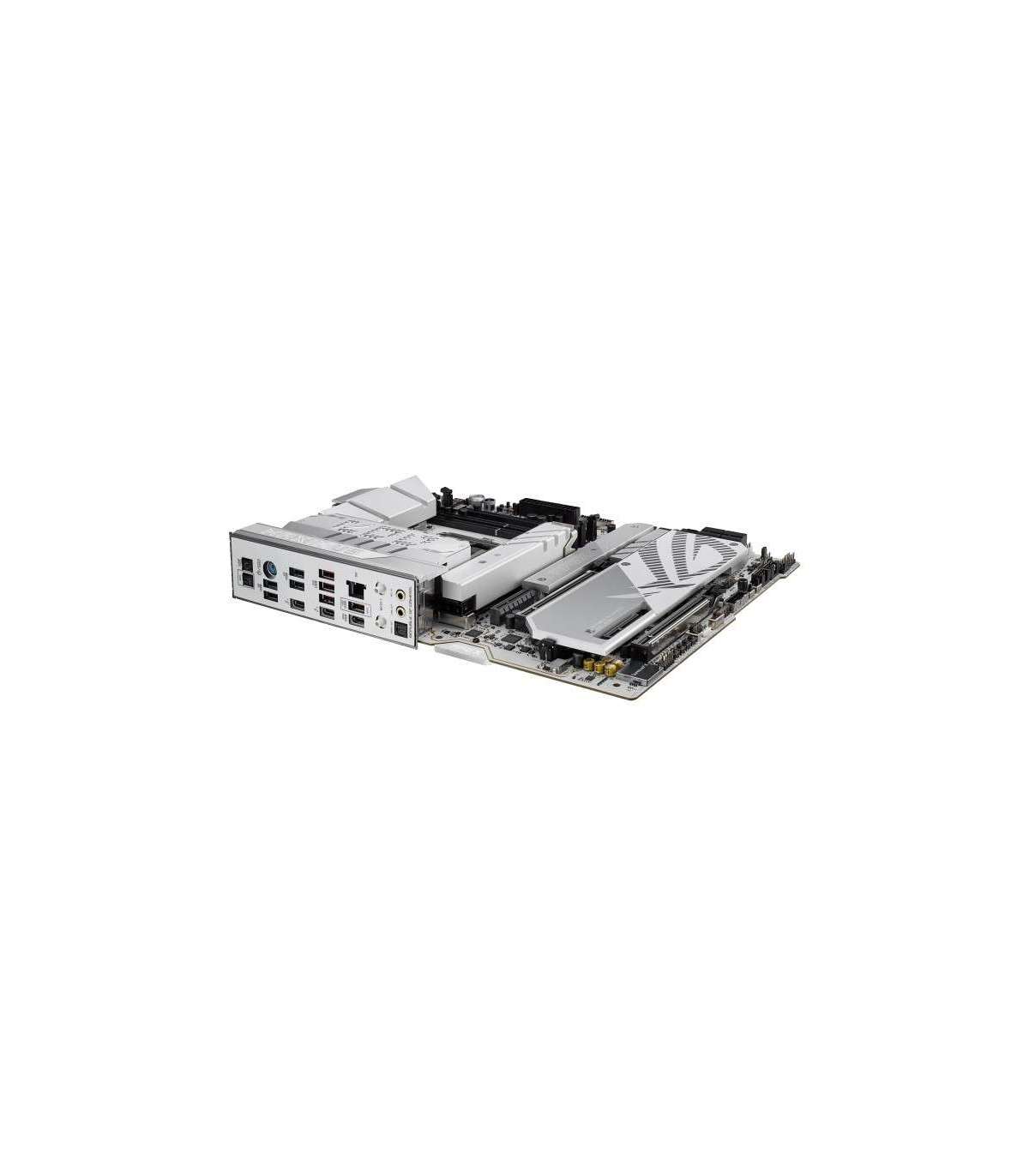

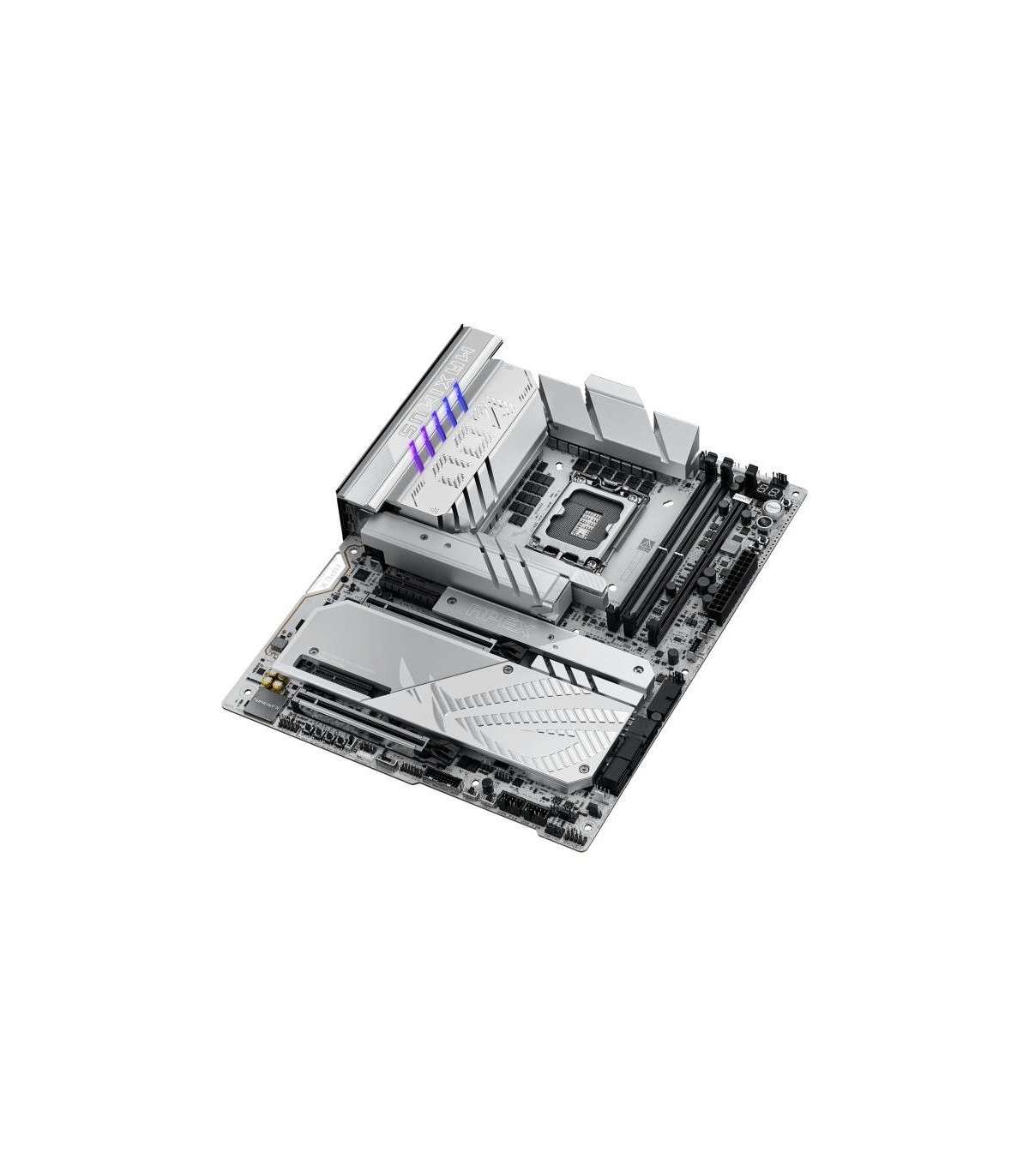

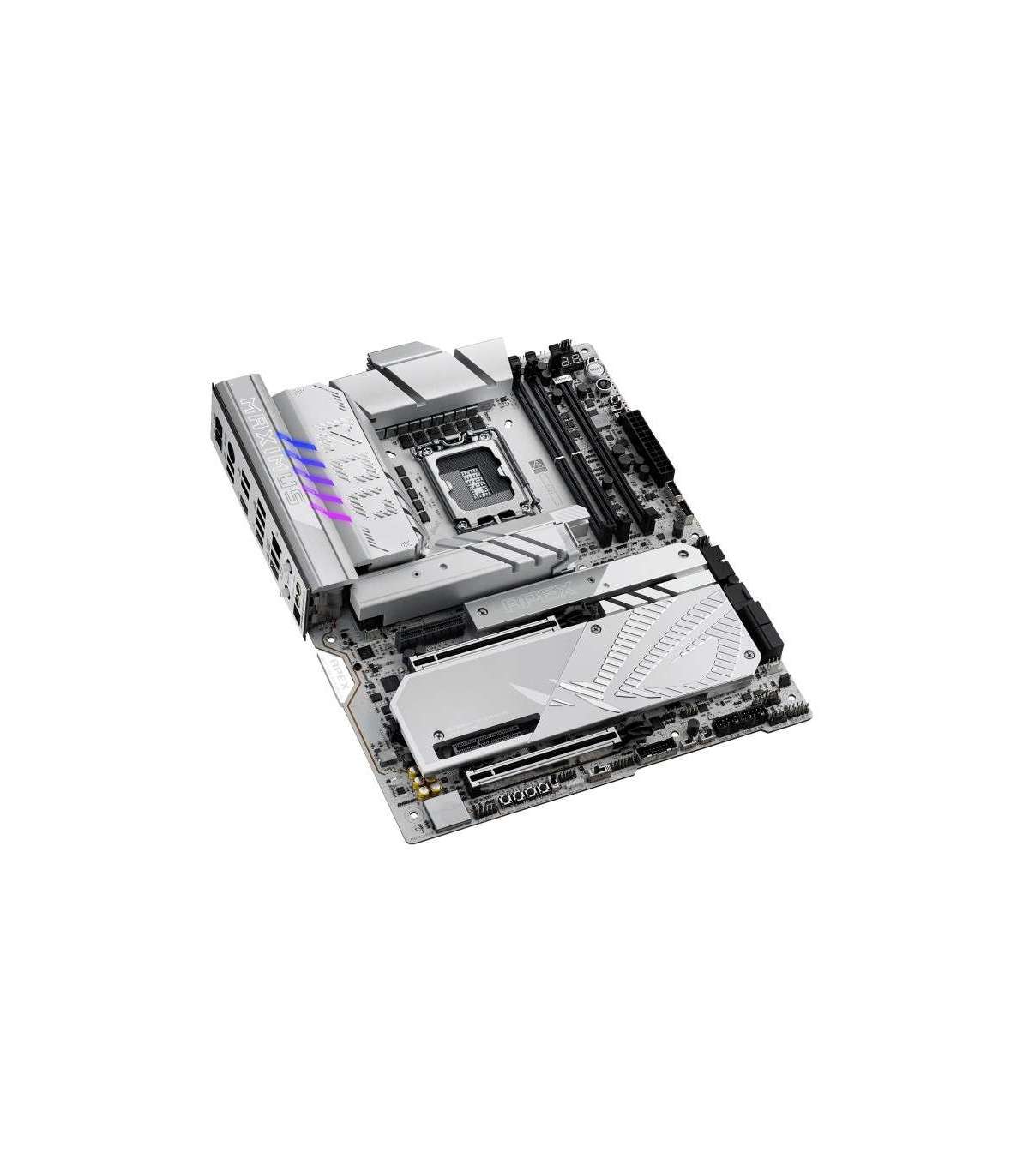

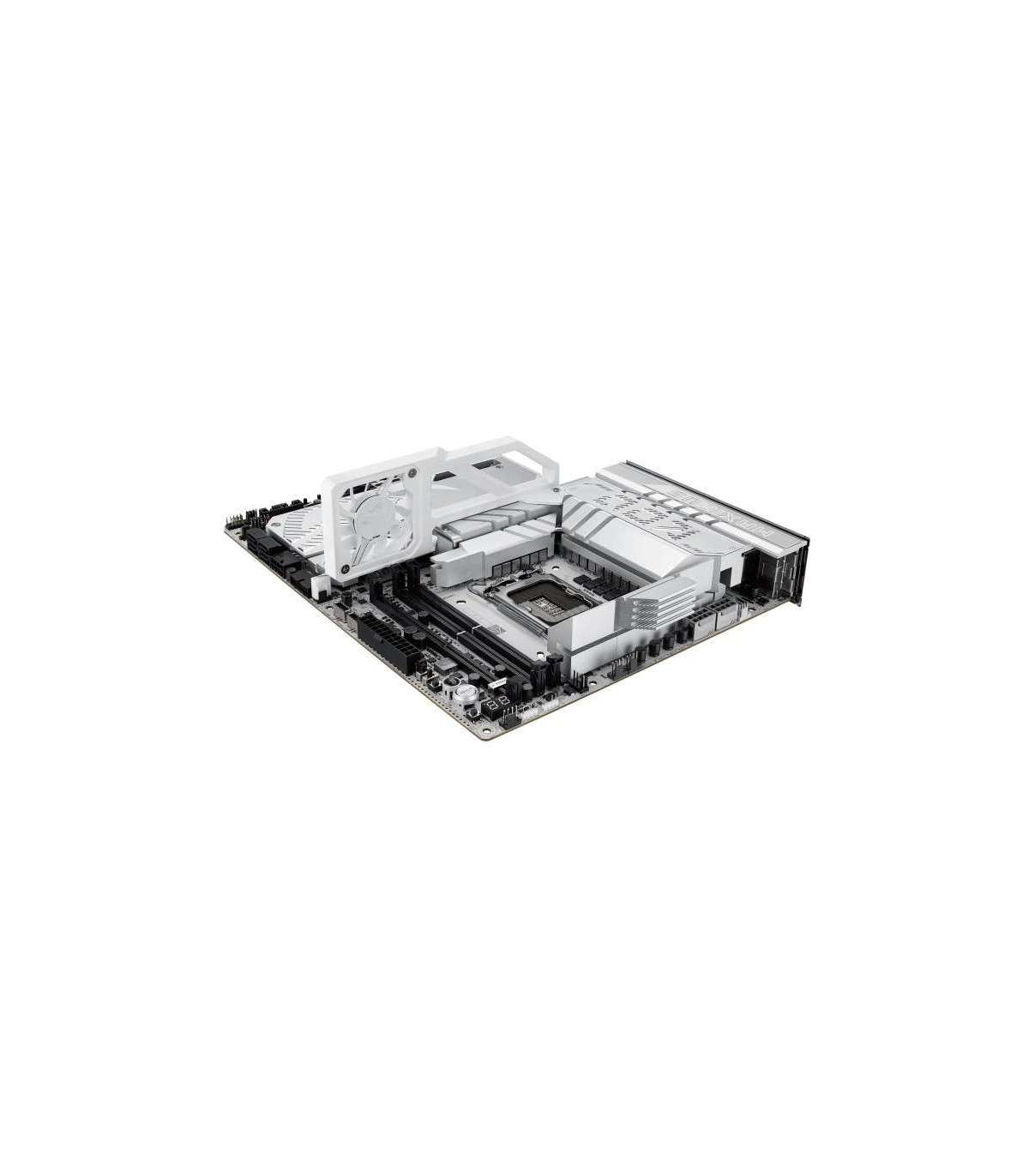

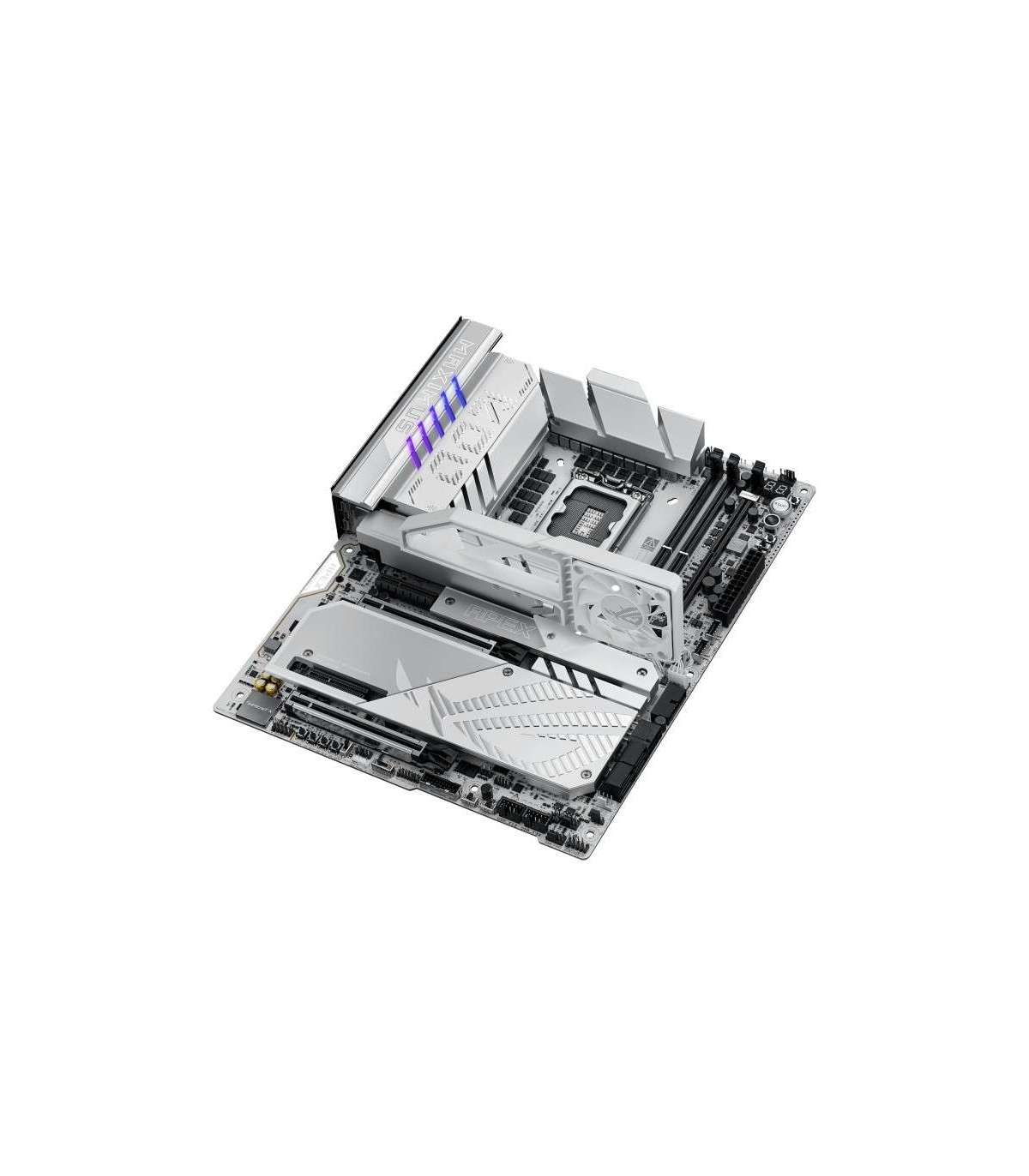

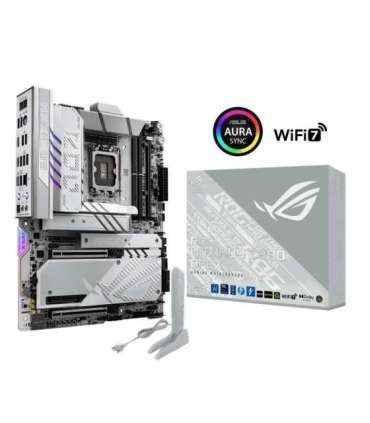

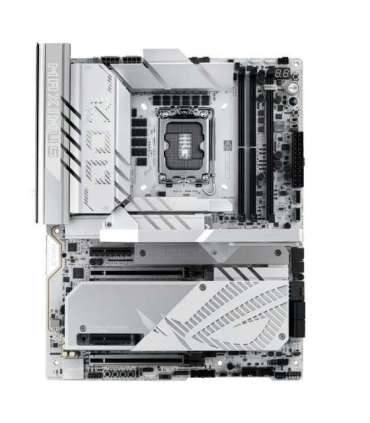

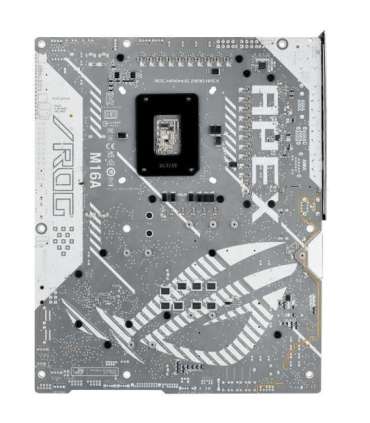

Motherboard ROG MAXIMUS Z890 APEX s1851 4DDR5 TB4 ATX/90MB1IP0-M0EAY0

Description:

ROG Maximus Z890 APEX
The ROG Maximus Z890 Apex motherboard fully supports Intel Core Ultra 2 processors. It's precision-engineered to deliver maximum overclocking potential, continuing the series' legacy with this next-generation model. With exceptional power and dual DDR5 memory, overclocking enthusiasts can achieve and exceed their goals for record-breaking CPU and memory performance. For users who prefer lighter colors, the ROG Maximus Z890 Apex motherboard features a gray-toned finish with polished metallic accents, elegant contours, and a silver-dominated color palette.

Model:

ROG MAXIMUS Z890 APEX

Chipset type:

Intel Z890 Chipset

Detailed data on disk/drive interfaces:

Support Intel Core Ultra Processors(series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
Intel Z890 Chipset
DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Graphics:

2 x Intel Thunderbolt 4 (USB Type-C) ports support DisplayPort and Thunderbolt video output**
* Graphics specifications may vary depending on processor type. For updates, visit www.intel.com.
**Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, with a maximum total bandwidth of up to 23.8 Gbps or 16 Gbps/16 Gbps. For supported resolutions, see DisplayPort 2.1 specifications.
*** VGA resolution support depends on processor or graphics card resolutions.

Sound card:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

• Impedance sensing for front and rear headphone outputs
• Supports: jack detection, streaming, and front-panel microphone jack remapping
• High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR
• Supports playback up to 32-bit/384 kHz on the front panel

Audio Features

• SupremeFX Shielding Technology
• Savitech SV3H712 Amplifier
• Gold-plated audio jacks
• Rear optical S/PDIF output
• Premium audio capacitors
• Audio shield

*A chassis with an HD audio module on the front panel is required for 7.1 Surround Sound audio output.
**The rear-panel LINE OUT port does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the case or use a USB audio device.

Network interface:

Ethernet

• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard

Wireless and Bluetooth

• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands**
• Supports Wi-Fi 7 320 MHz band, up to 5.8 Gbps transfer speeds.
• Bluetooth v5.4***

*Wi-Fi features may vary by operating system.
For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
**The Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.
***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Special functions:

Extreme OC Kit
- FlexKey Button
- LN2 Mode
- ProbeIt
- ReTry Button
- Safe Boot Button
- Start Button
- Slow Mode
Extreme Engine Digi+
- SMD Capacitor
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim PCIe Slot (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Dashboard
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- Q-Slot
ASUS Thermal Solution
- M.2 Backplate
- M.2 Heatsink
- VRM Heatsink Design
ASUS EZ DIY
- BIOS Button FlashBack
- Clear CMOS button
- CPU socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Dual BIOS
Front panel USB 20Gbps with Quick Charge 4+ support
- Support: Up to 60W fast charging and USB Wattage Watcher*
- Output: 5/9/15/20V max 3A, PPS: 3.321V max 3A
- PD3.0 and PPS compliant
* To support 60W, connect the power cable to the 8-pin PCIe power connector, otherwise only 27W will be supported.

BIOS:

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Dimensions:

30.5 cm x 24.4 cm

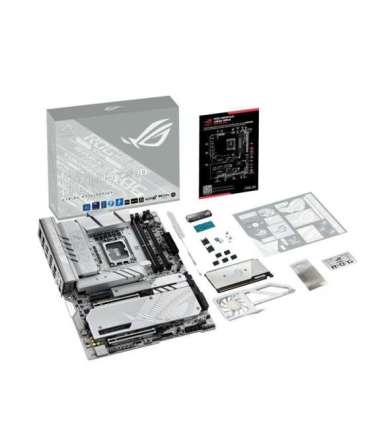

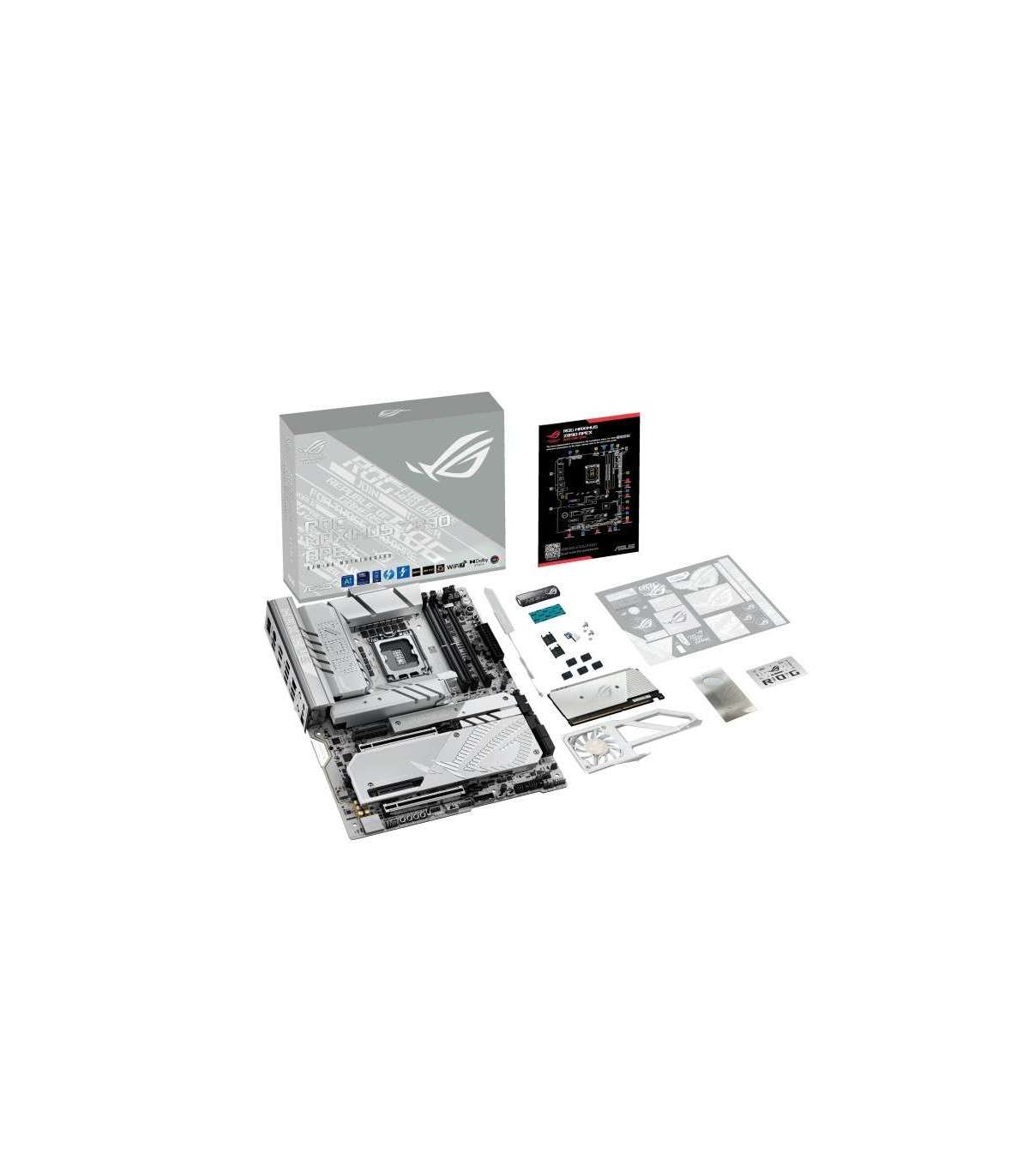

Accessories included:

• ROG DIMM.2 with Heatsink
• M.2 Spacer for ROG DIMM.2
• 2 x M.2 Screw Packs for ROG DIMM.2
• Thermal Pad for M.2 22110
• ROG Memory Fan Kit
• ASUS Q-Slide WiFi Antenna
• Q-Connector
• ROG VIP Card
• 3 x M.2 Q-Slide Packs
• 5 x M.2 Backplate Rubber Packs
• ROG Bottle Opener
• USB Drive with Tools and Drivers
• Quick Start Guide

Software:

ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- Power Saving
- HWiNFO
ASUS AI Advisor
ASUS Driver Hub
ASUS GlideX
Turbo Vcore
Adobe Creative Cloud (Free Trial)
Thunderbolt Share
USB Wattage Watcher
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
NPU Boost
