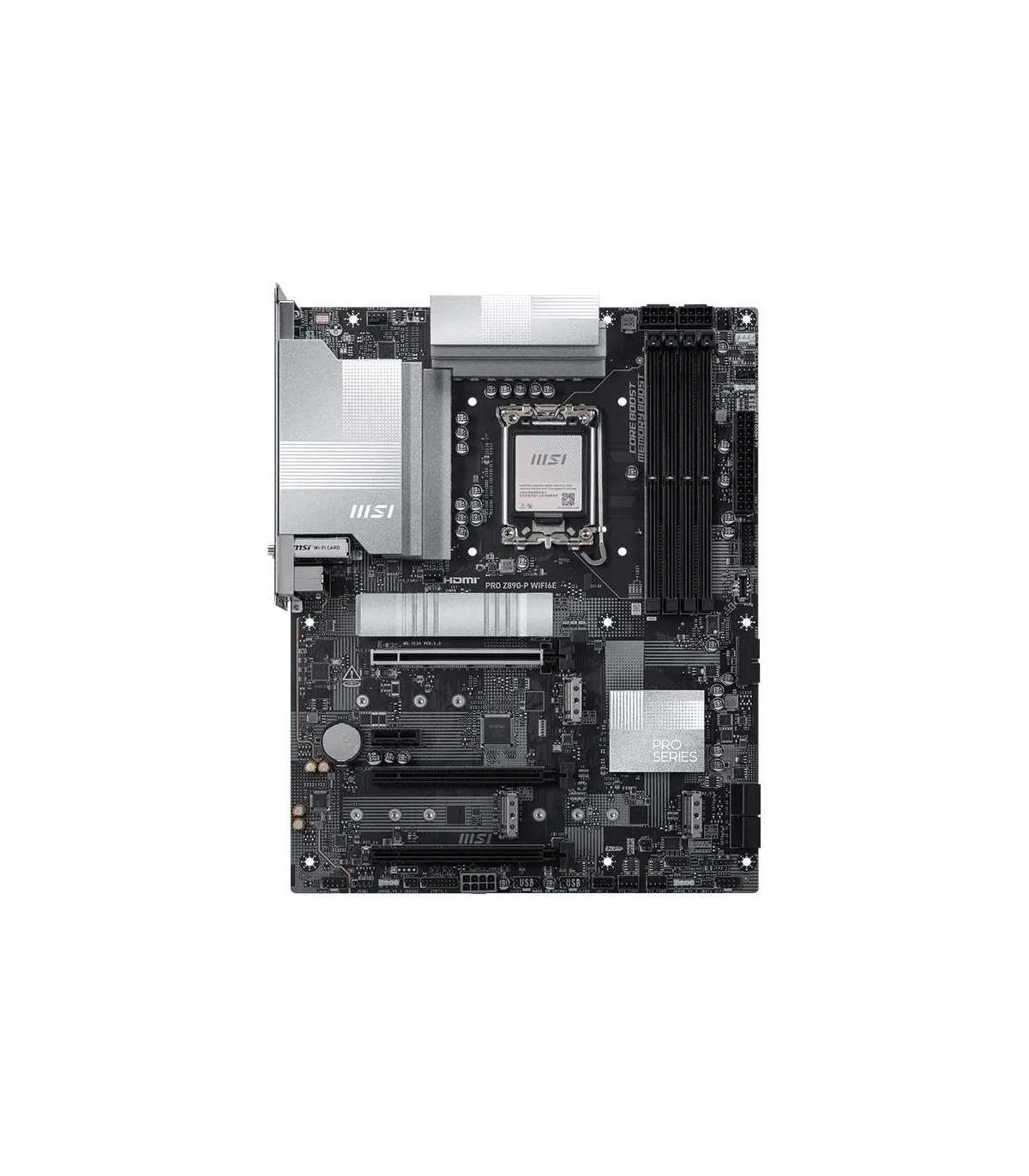

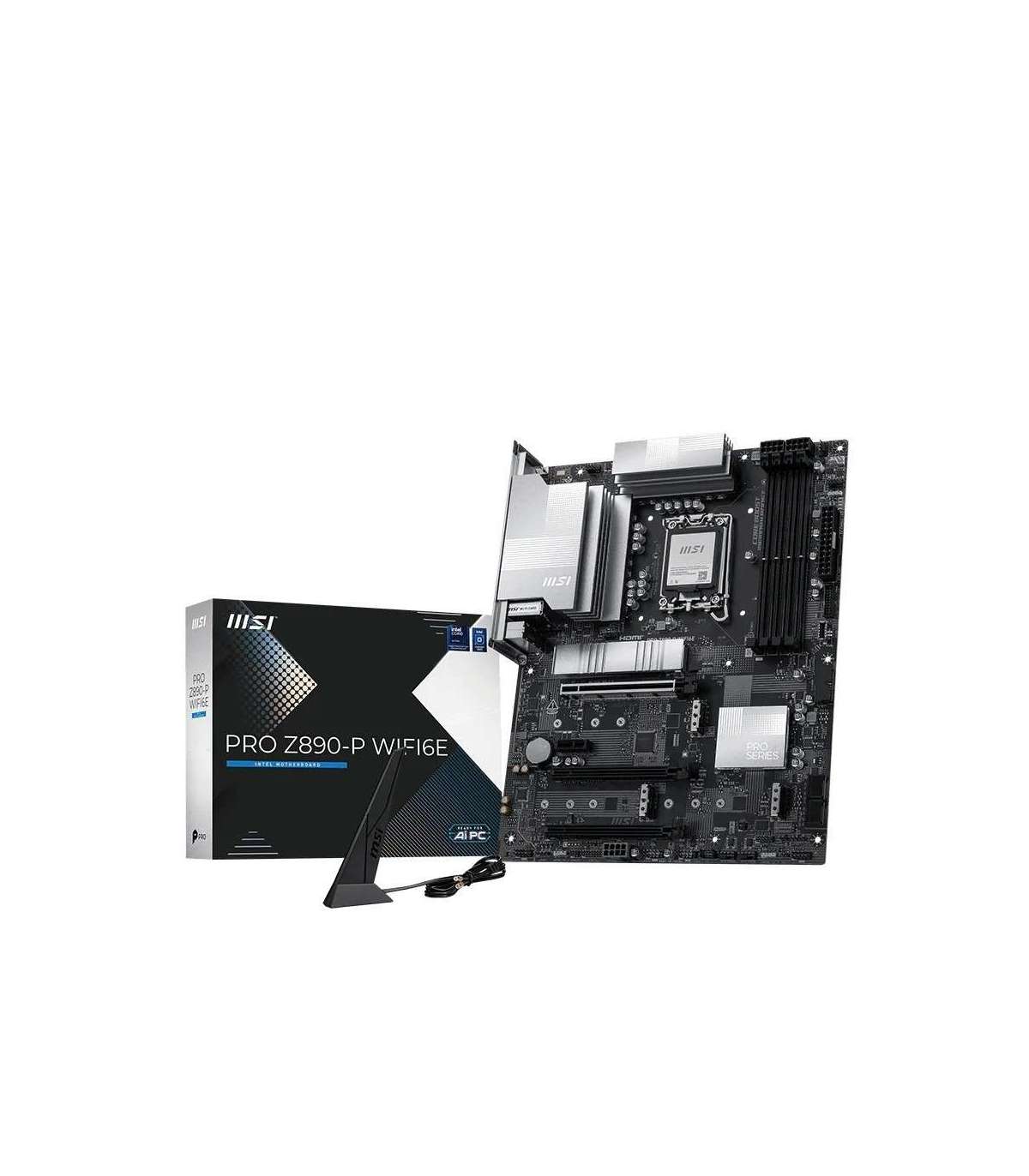

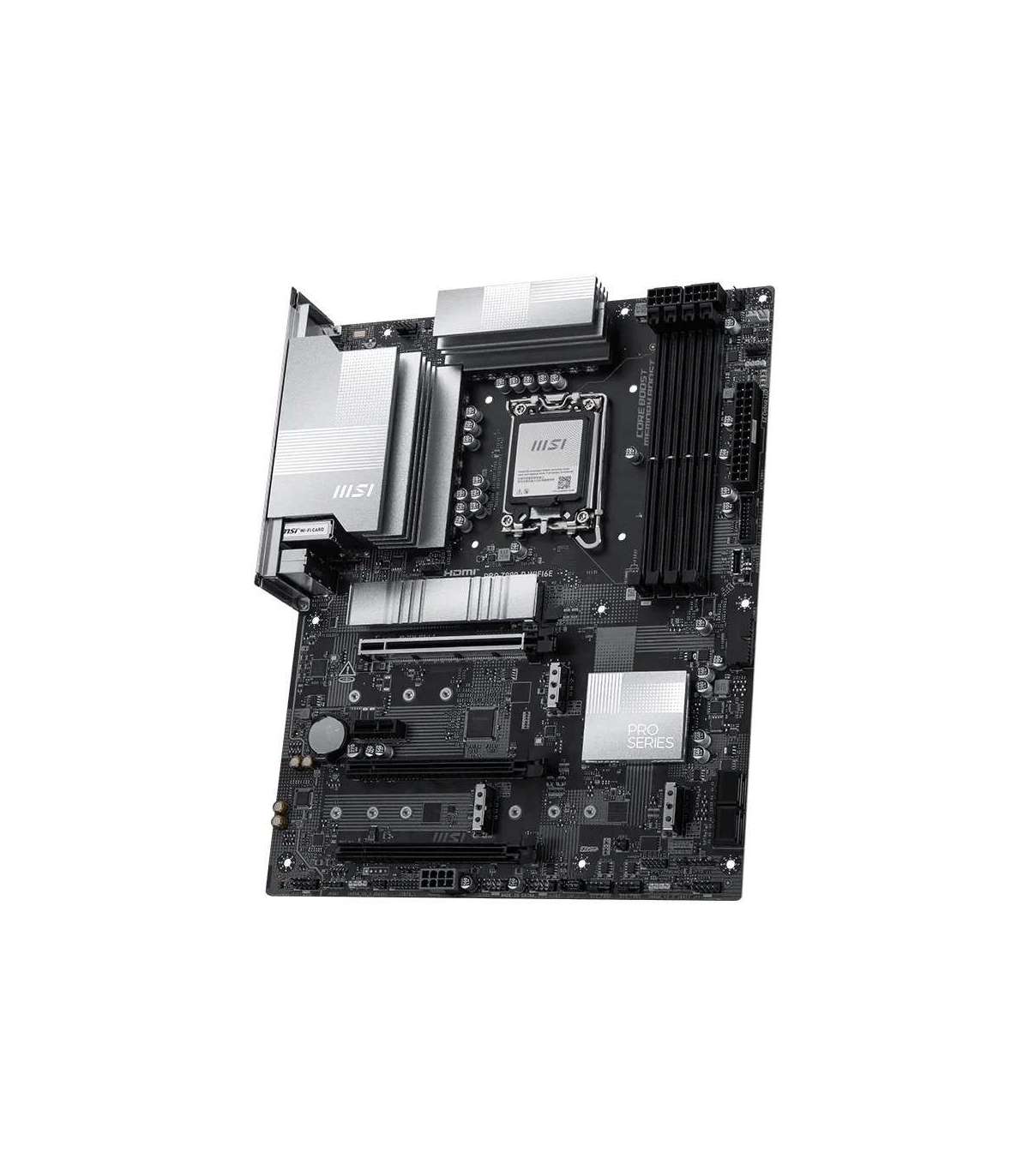

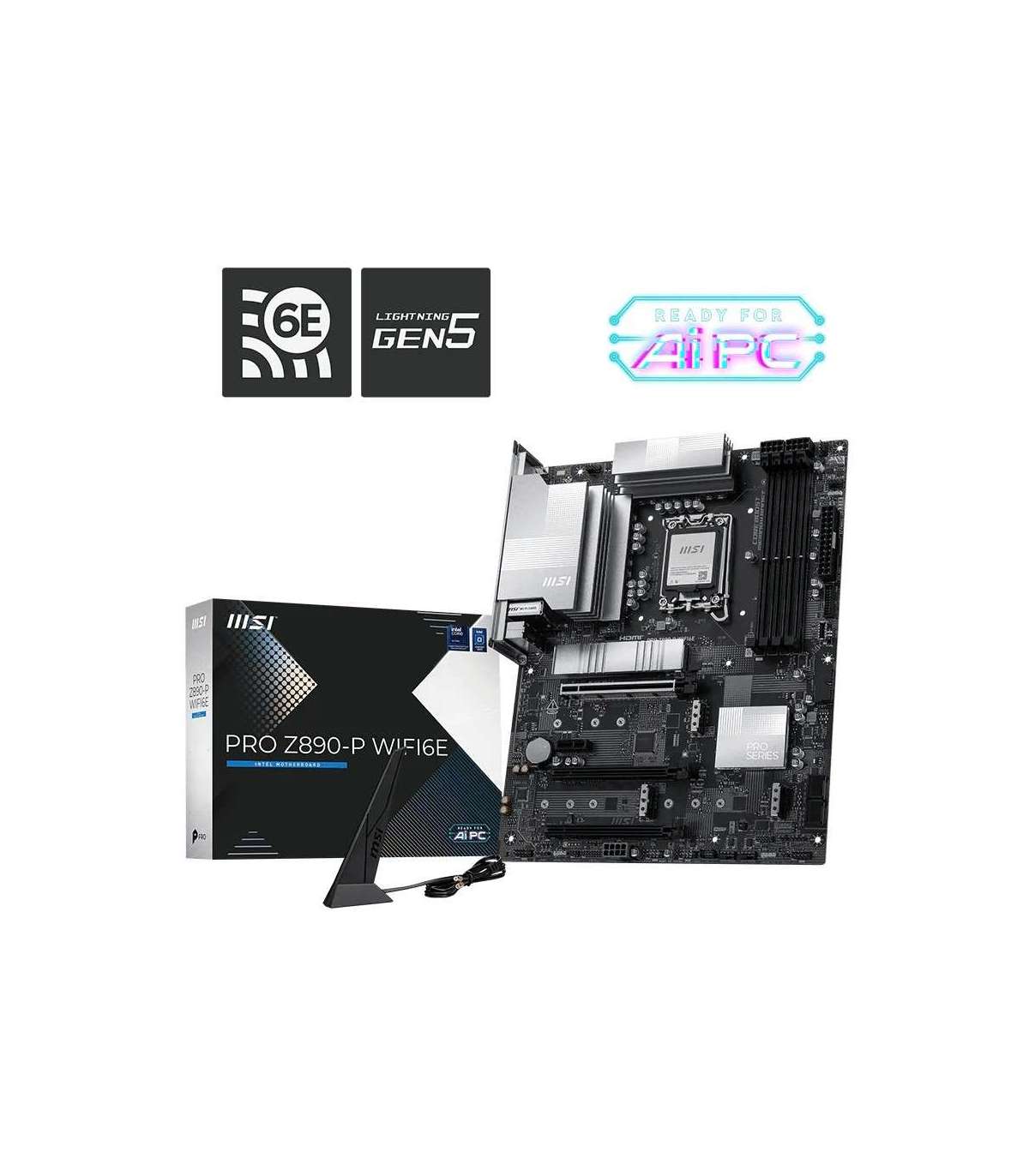

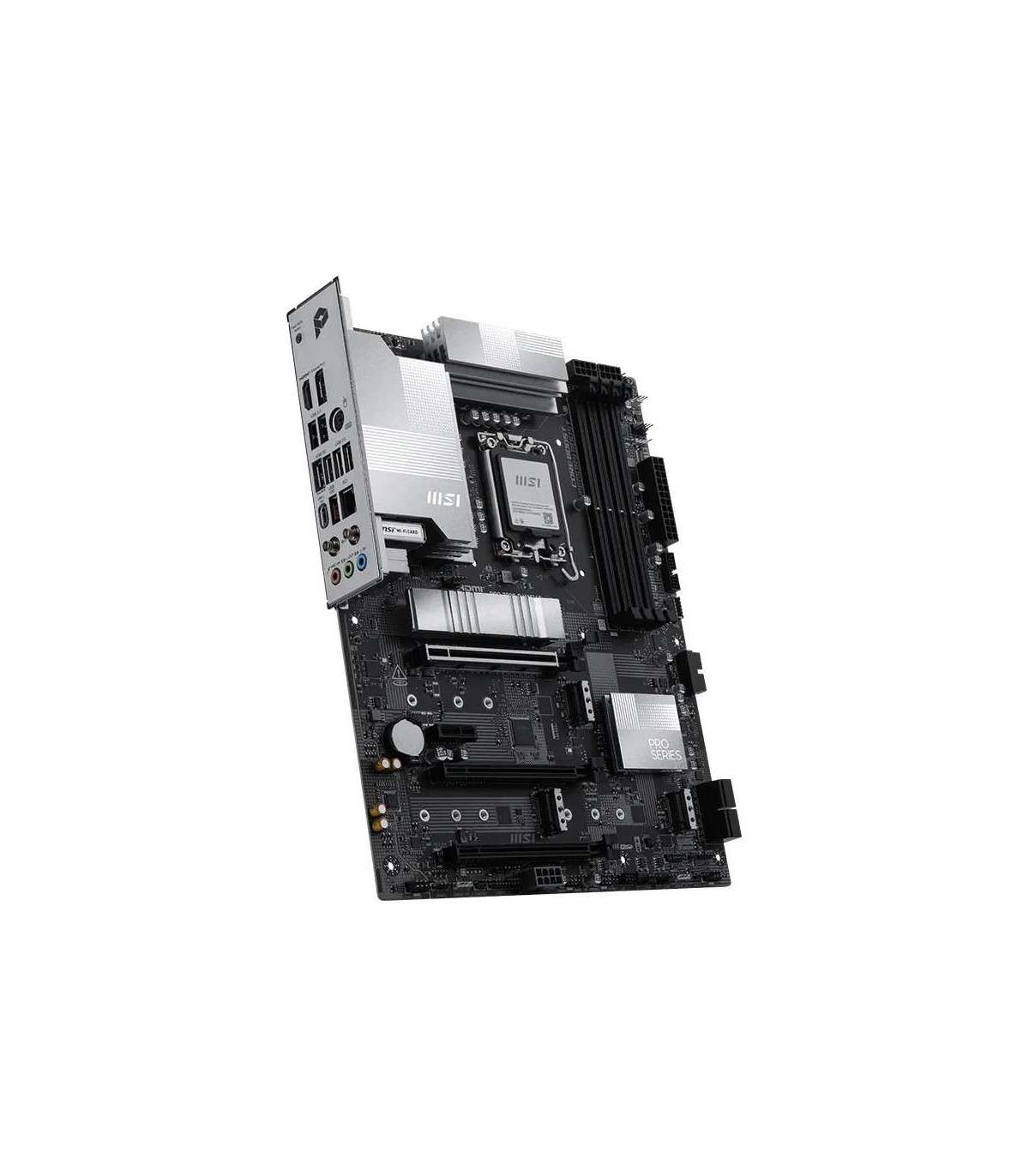

Motherboard PRO Z890-P WIFI6E s1851 4DDR5 HDMI/DP ATX
250,7 €
(KM-ga)
Kuumakse al. 12.43€
Viide:
PRO Z890-P WIFI6E
Bränd:
1.62 kg
Lisa võrdlusesse0
Tasumine kättesaamisel
Description:
PRO Z890-P WIFI6E
PRO Z890-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.
- Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and pcb fabric peak
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- 5G LAN with Wi-Fi 6E Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Model:
PRO Z890-P WIFI6E
Chipset type:
INTEL Z890
Detailed data on disk/drive interfaces:
4 x M.2:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4 x SATA 6G
Graphics:
- 1 x HDMI (Support HDMI 2.1, maximum resolution of 4K 60Hz)
- 1 x DisplayPort (Support DisplayPort 1.4, maximum resolution of 4K 60Hz)
Sound card:
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio
Network interface:
LAN: Realtek 8126 5Gbps LAN
WIRELESS LAN & BLUETOOTH:
- Wi-Fi 6E module
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth 5.3, FIPS, FISMA
Dimensions:
243.84 x 304.8 mm
Designation:
CE+WEEE
PRO Z890-P WIFI6E
Lisainfo
- Expansion slots
- 1 x PCIe x 1
3 x PCIe x 16
- RAID
- Yes
- Protsessori seeria
- Series 2
- Processor family
- Intel Core Ultra
- Chipset manufacturer
- Intel
- Memory type
- DDR5
- Memory bus frequency
- 4800 MHz
5600 MHz
6400 MHz
7200 MHz
9200 MHz
- Max memory size
- 256
- CPU socket
- LGA1851
- Integrated CPU
- No
- Max. number of SATA devices
- 4
- Network interface
- 1 x 10/100/1000/2500/5000 Mbit/s
Bluetooth
Wi-Fi 802.11a/b/g/n/ac/ax
- USB ports at back panel
- 8
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

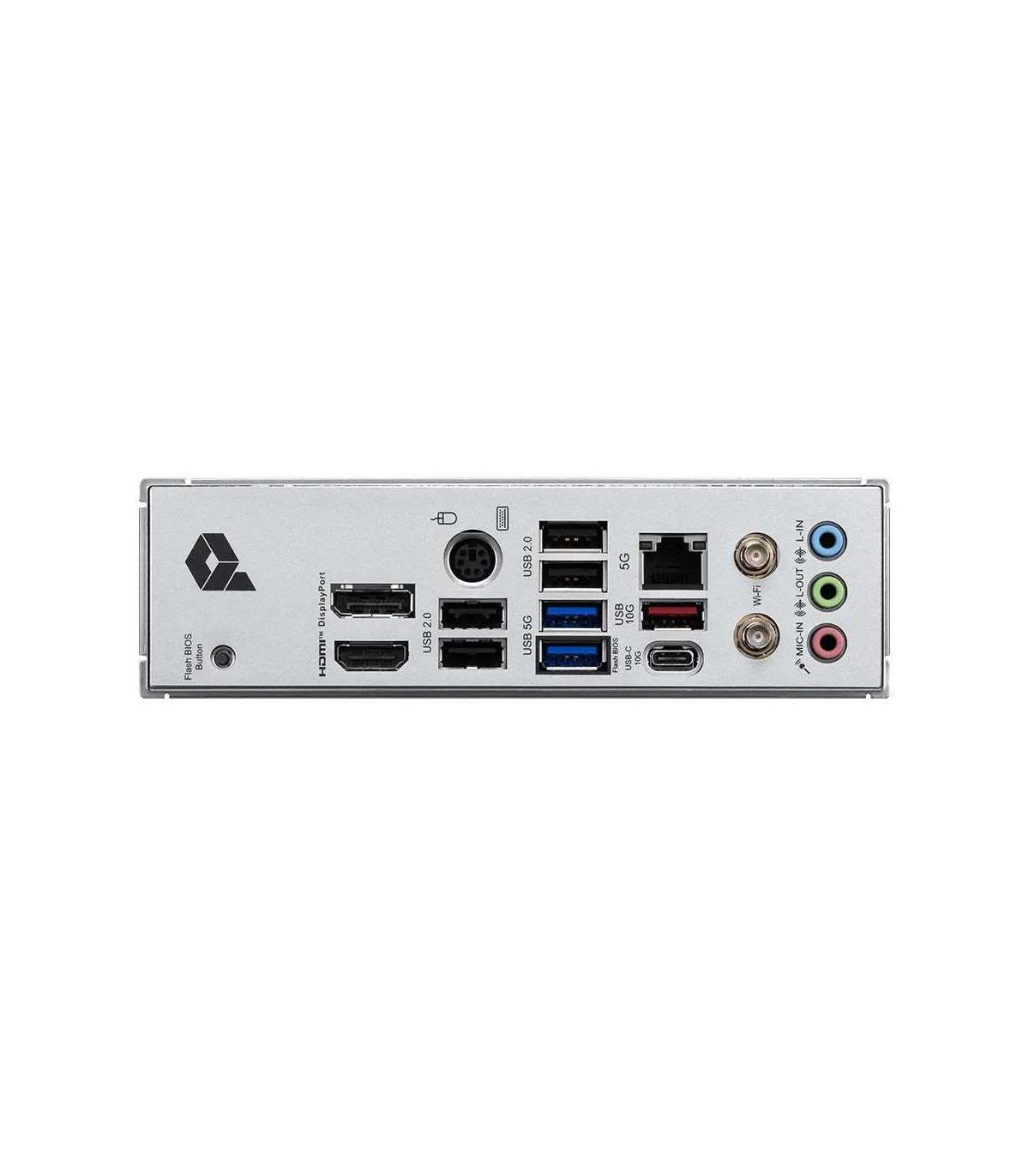

- External connectors
- 1 x DisplayPort
1 x HDMI
1 x Line In
1 x Line Out
1 x MIC
1 x PS/2 Keyboard/MouseCombo
1 x RJ-45
1 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
2 x SMA
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
1 x 4pin CPU fan
1 x 8-pin PCIe
1 x 24pin ATX zasilanie
1 x Chassis intrusion header
1 x Front panel audio header
1 x RGB LED strip header
1 x TPM header
1 x Tuning Controller connector
1 x USB 3.2 Gen 2x2 Type-C
2 x 8pin 12V
2 x System panel header
3 x Addressable LED
4 x M.2
4 x SATA III 6Gb/s
4 x USB 2.0/1.1
4 x USB 3.2 Gen 1 Type-A
5 x 4pin Chassis fan
- Form factor
- ATX
- Supported operating systems
- Windows 11
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- Number of DDR5 slots
- 4
