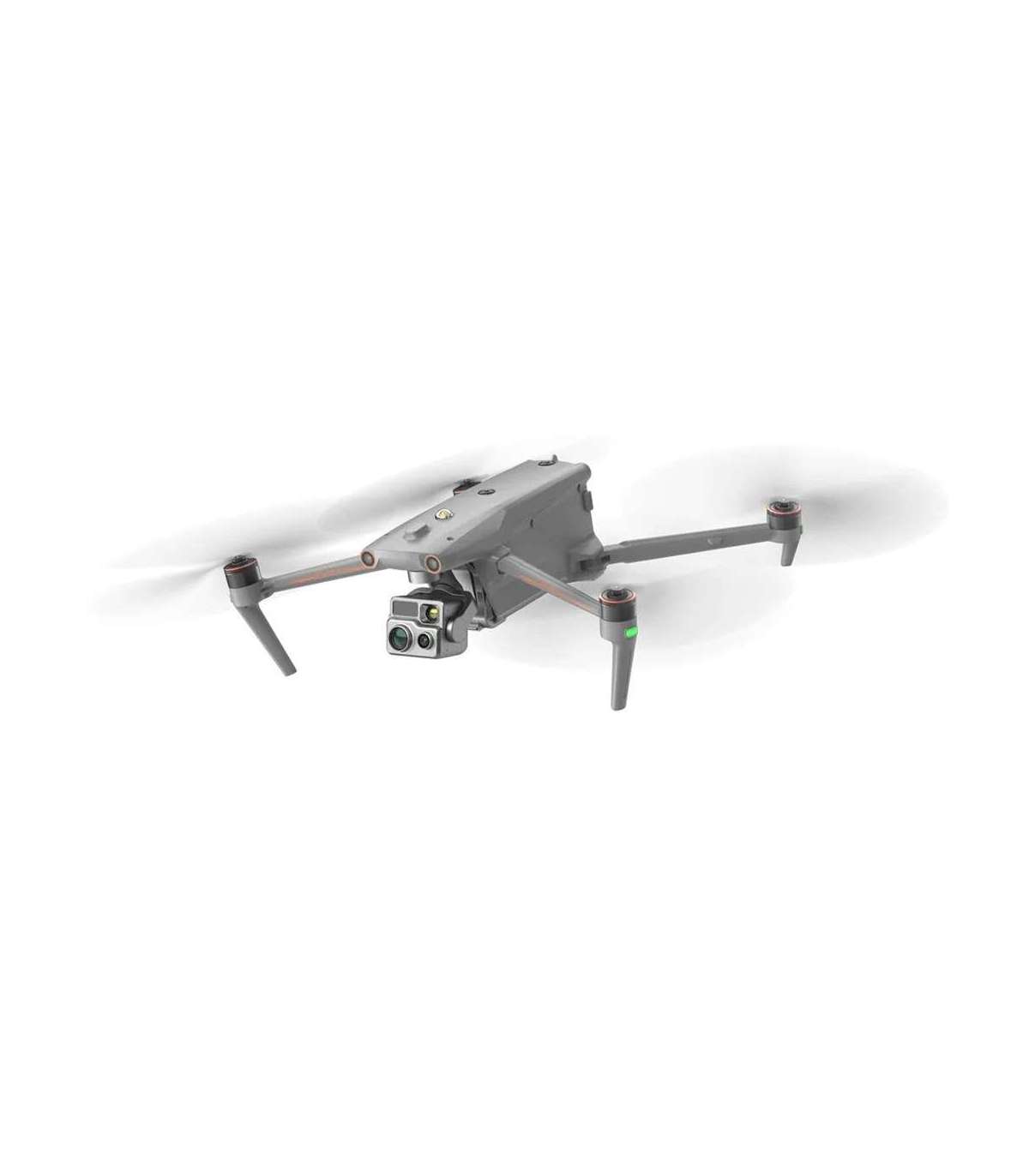

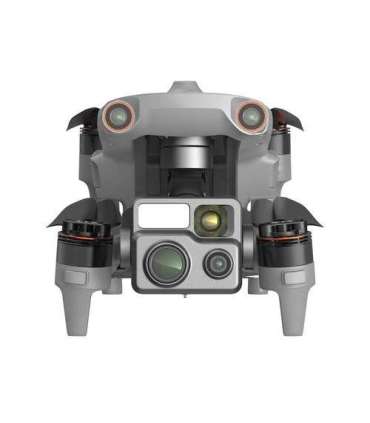

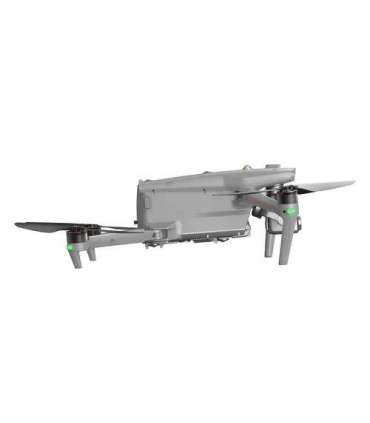

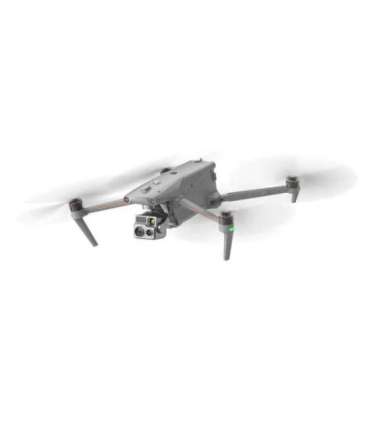

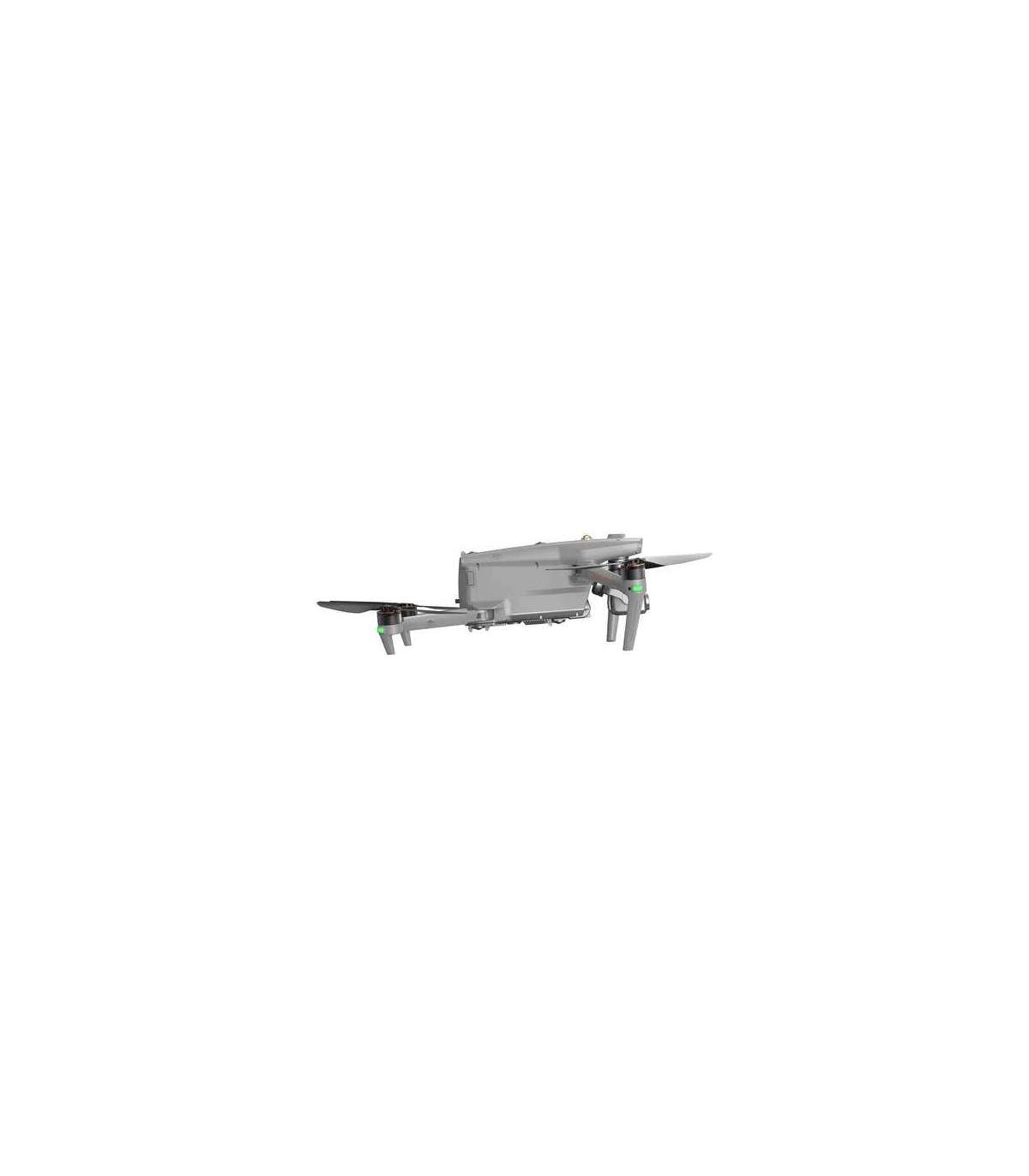

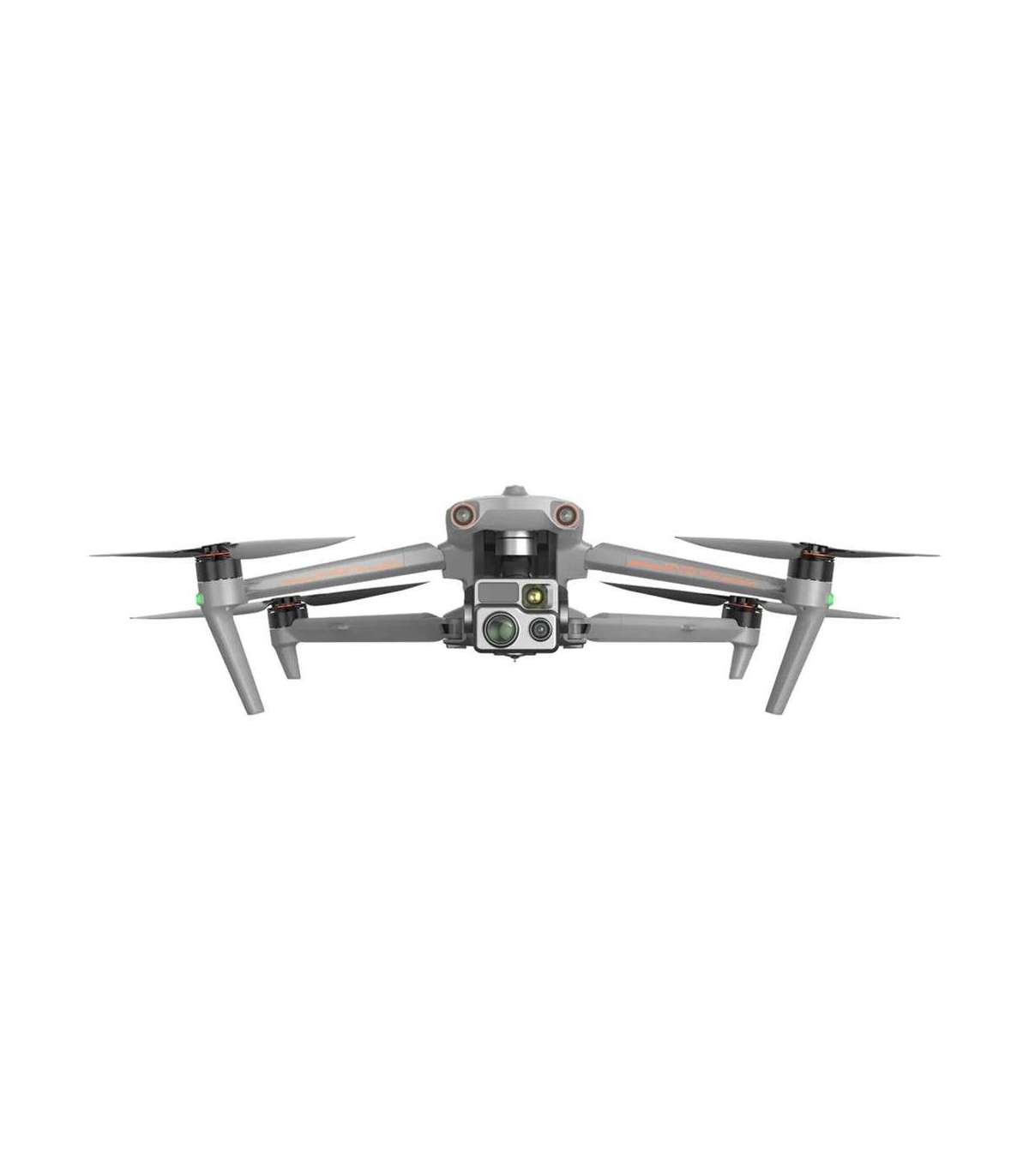

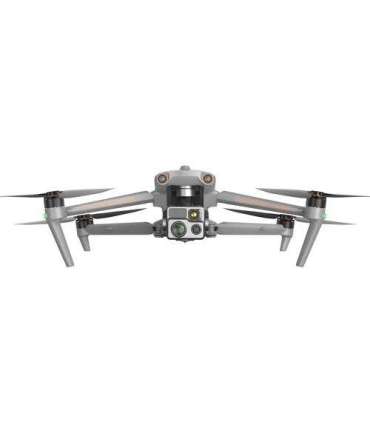

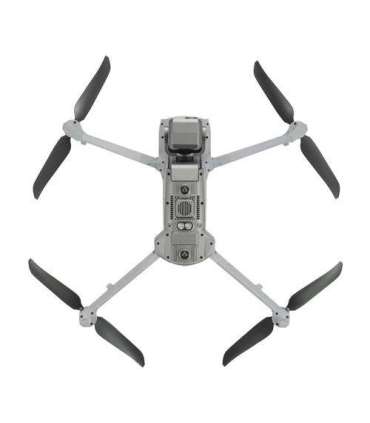

Autel EVO MAX 4T V2 Standard Bundle drone

Lisainfo

Kaal

1,665 kg

Product colour

Hall

Operating temperature (T-T)

-25 - 50 °C

Cables included

USB Type-C to USB Type-A

Antennas quantity

2

Memory card slot(s)

Yes

Warnings

In the event of a product failure, follow local regulations for the disposal of electronic devices and batteries.
The drone may pose health and safety risks if used incorrectly. Read the user manual before use.
The product contains lithium-ion batteries, which may be flammable. Avoid damaging them.

Manual

Yes

Housing material

Polycarbonate (PC), ABS

Operated via Android devices

Yes

Dedicated application

Autel Enterprise

Frequency band

2.4 GHz/5.2 GHz/5.8 GHz/900 MHz

International Protection (IP) code

IP43

Built-in display

Yes

Display type

TFT-LCD

Display diagonal

20.1 cm (7.9")

Battery capacity

8070 mAh

Battery technology

Lithium Polymer (LiPo)

Built-in battery

Yes

Compatible memory cards

MicroSD (TransFlash)

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Bluetooth version

5.0

Bluetooth

Yes

Touchscreen

Yes

Display resolution

2048 x 1536 px

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Battery voltage

14.76 V

Removable battery

Yes

USB 2.0 Type-A ports quantity

1

Megapixel (approx.)

48 MP

Refresh rate

60 Hz

Number of batteries

2

Power Delivery

Yes

Maximum memory card size

1 TB

Maximum frame rate

30 fps

Digital zoom

16x

Galileo

Yes

GLONASS

Yes

GPS (satellite)

Yes

Supported video modes

4K
1080p

Optical zoom

2,7 - 10x

Set contents

Autel V3 controller

Charging via USB C

Yes

Type

Drone

Carrying case

Yes

Battery charger included

Yes

Easy to use

Yes

Replaceable battery

No
Yes

Maximum operating distance

25000 m

Obstacle detection

Yes

Remotely operated

Yes

Obstacle sensing system

Yes

Operating frequency (RF)

902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz

Applications supported

Autel Sky

Artificial intelligence (AI) functions

Yes

Number of rotors

4 rotors

Maximum speed

23 m/s

BDS

Yes

Maximum Propeller Rotational Speed

7500 rpm

Interference protection

Yes

Laser measuring range

5 - 1200 m

Autonomous Flight Planning

Yes

Start-up time

15 s

Number of axis

3

Maximum flight time

42 min

Maximum take-off height

4500 m

Maximum wind resistance (take-off and landing)

12 m/s

Maximum angular velocity

120°/s

Sensor system type

Multidirectional

Built-in memory capacity

128 GB

Wide-angle camera

Yes

Takeoff weight (max)

1999 g

Ventilation type

Passive

Number of propeller blades

2

Propeller material

Carbon fiber
Nylon

Zoom camera (telephoto)

Yes

Strobe

Yes

Laser distance measurer

Y

Thermal imaging camera

Yes

Number of cameras

3

USB port voltage

17 V

Total output power

120 W

Operating temperature (transmitter)

-20 - 40 °C

Cooperation with applications

Android

Auto landing function

Yes

Auto return function

Yes

Moving control functions

Backward
Downward
Forward
Turn left
Turn right
Upward

Flight modes

Follow Me mode

Auto takeoff function

Yes

Propeller diameter

27,94 cm

Wheelbase diagonal

46,7 cm

Product dimensions when open (WxDxH)

563 x 657 x 147 mm

Transmitter dimensions

269 x 302 x 87 mm

Transmitter weight

1,195 kg

Number of drones

1

Leash included

Y

Spare propeller(s) included

1 pairs

Screwdriver

Yes

Camera resolution

8000 x 6000 pixels

ISO sensitivity (max)

6400

ISO sensitivity (min)

100

Live view

Yes

Temperature measuring range

-20°C do 150°C / 0°C do 550°C

Sensor

CMOS 1/2"

Effective sensor resolution (thermal module)

640 x 512 pixels

Focal length of zoom camera (telephoto)

35 mm, equivalent: 64-234mm

Accuracy of temperature measurement

±2°C

Thermovision

Y

Aperture

F2.8 - F4.8

Maximum hybrid zoom

160x

Video streaming

Yes

Fixed focal length

2.4 cm

Rated capacity (mAh)

9248 mAh

Battery voltage (transmitter)

11,55 V

Battery capacity (transmitter)

5800 mAh

Battery life (transmitter)

2,5 - 4 h

Built-in WiFi

Yes

Bluetooth transmitter power

20 dBm

Transmission system

Autel SkyLink 3.0

Image transmission - transmitter power (EIRP)

CE: ≤20dBm -2.4G, ≤14dBm - 5.8G
FCC: ≤33dBm
SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G

Transmission range

8 km (CE)
15 km (FCC)

Maximum resolution & refresh rate (HDMI)

1920x1080@60Hz
