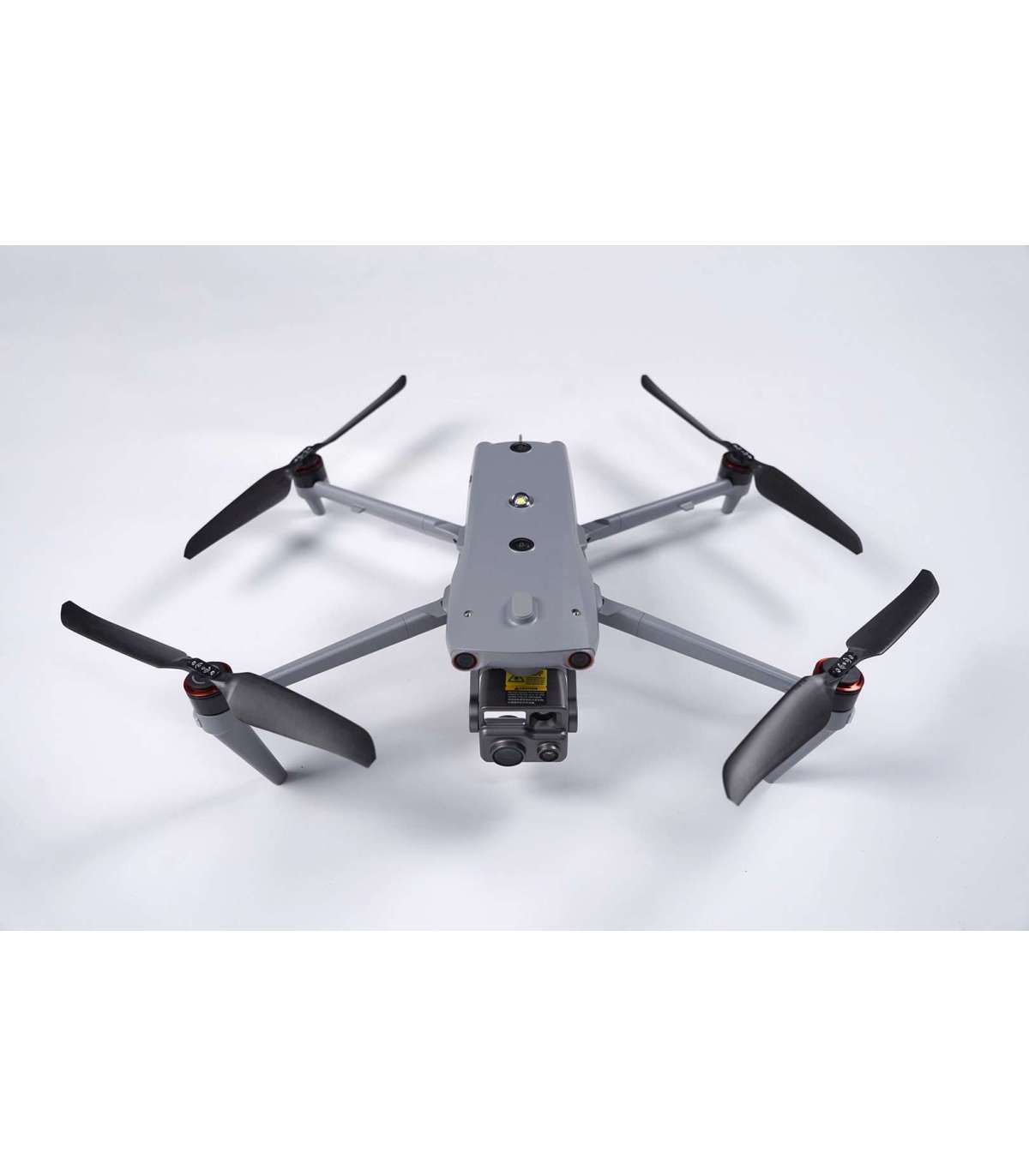

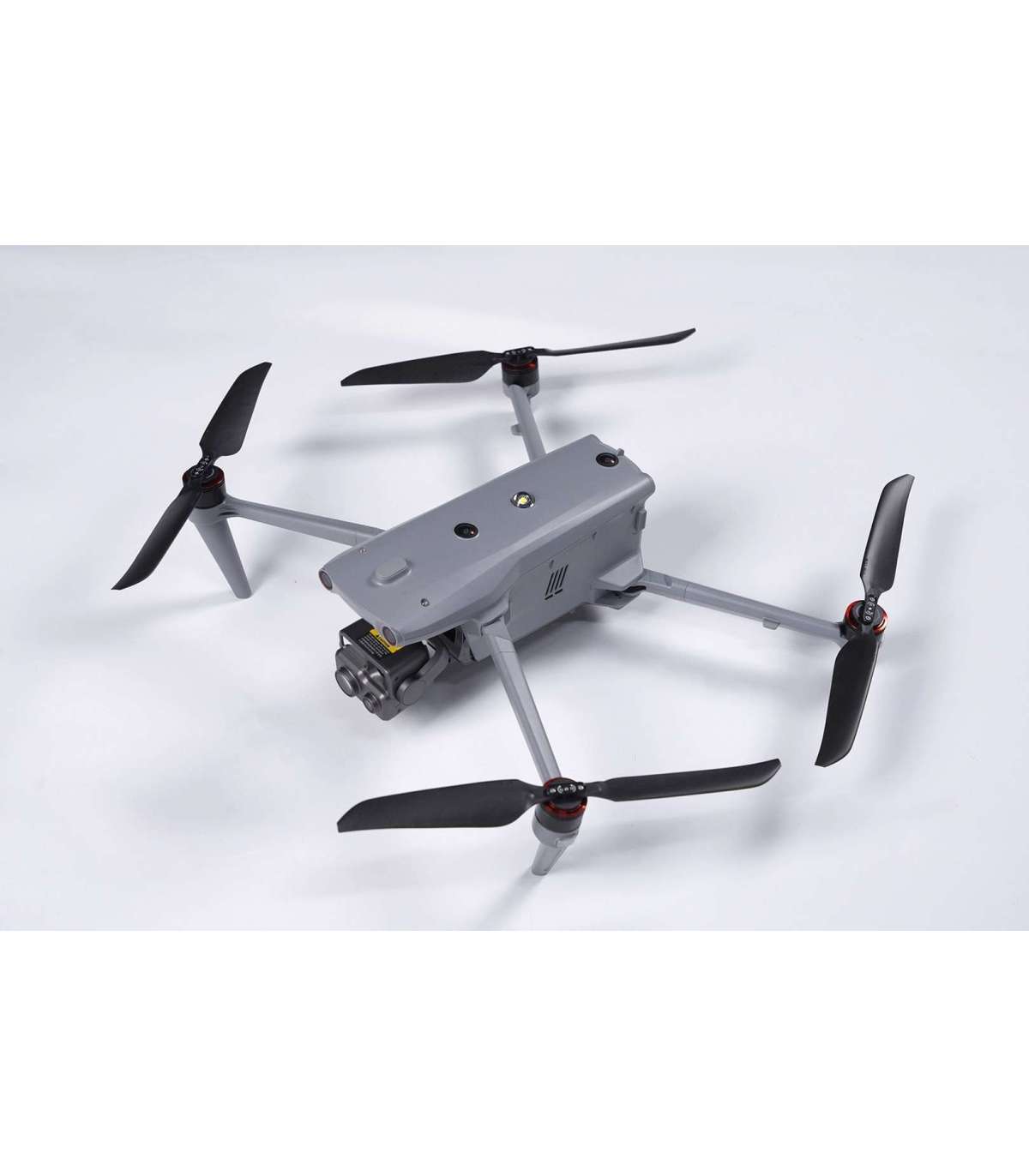

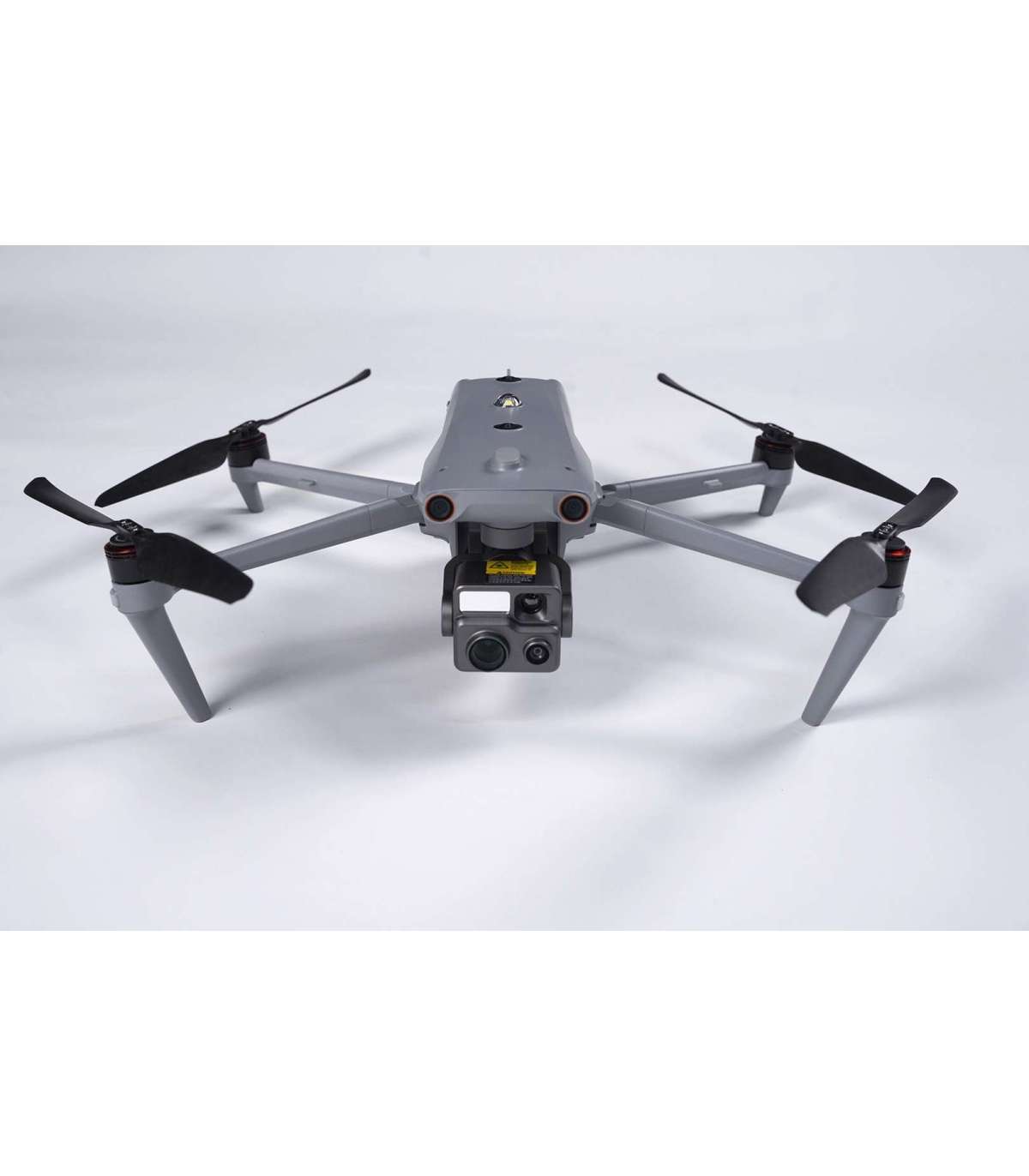

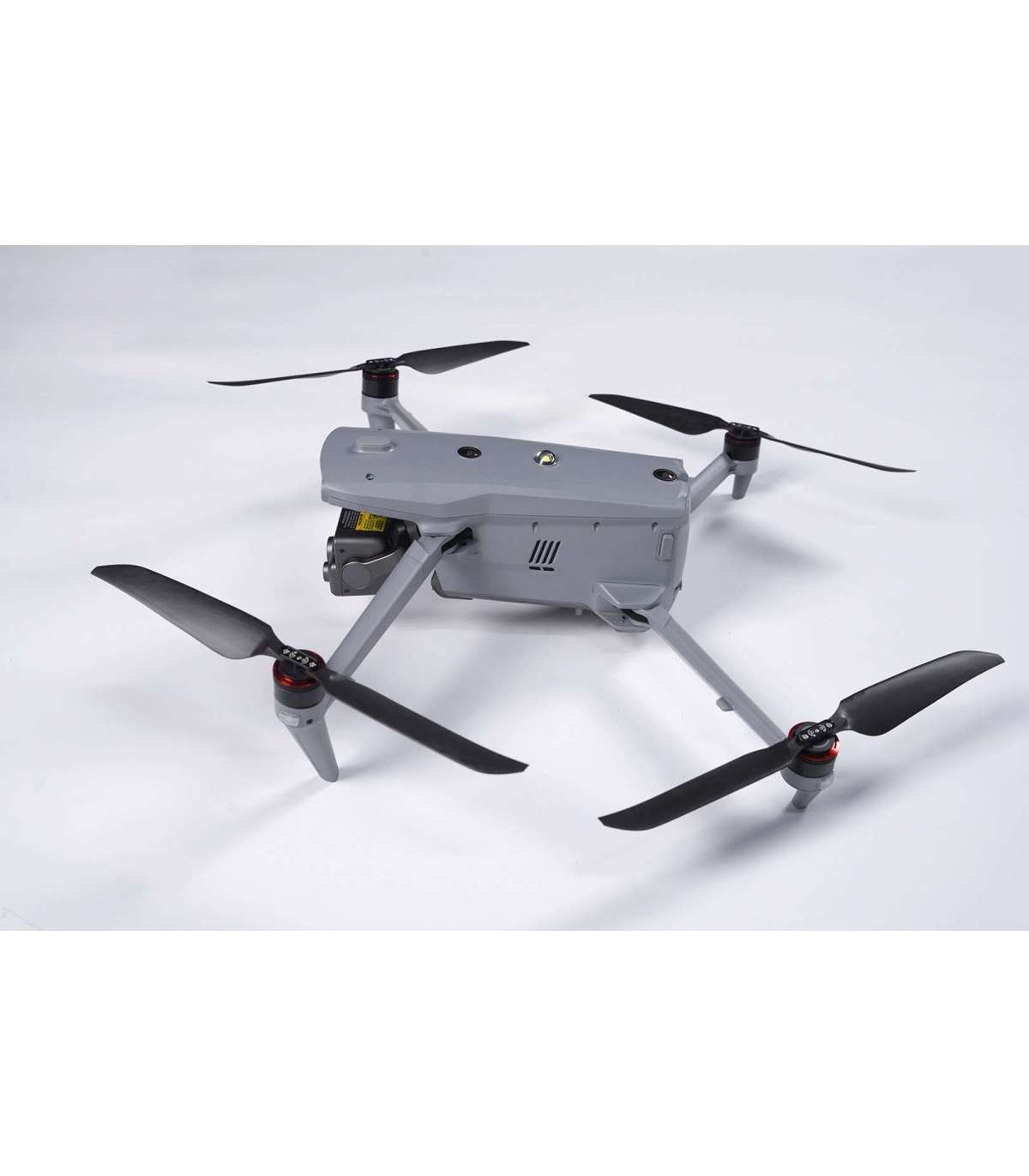

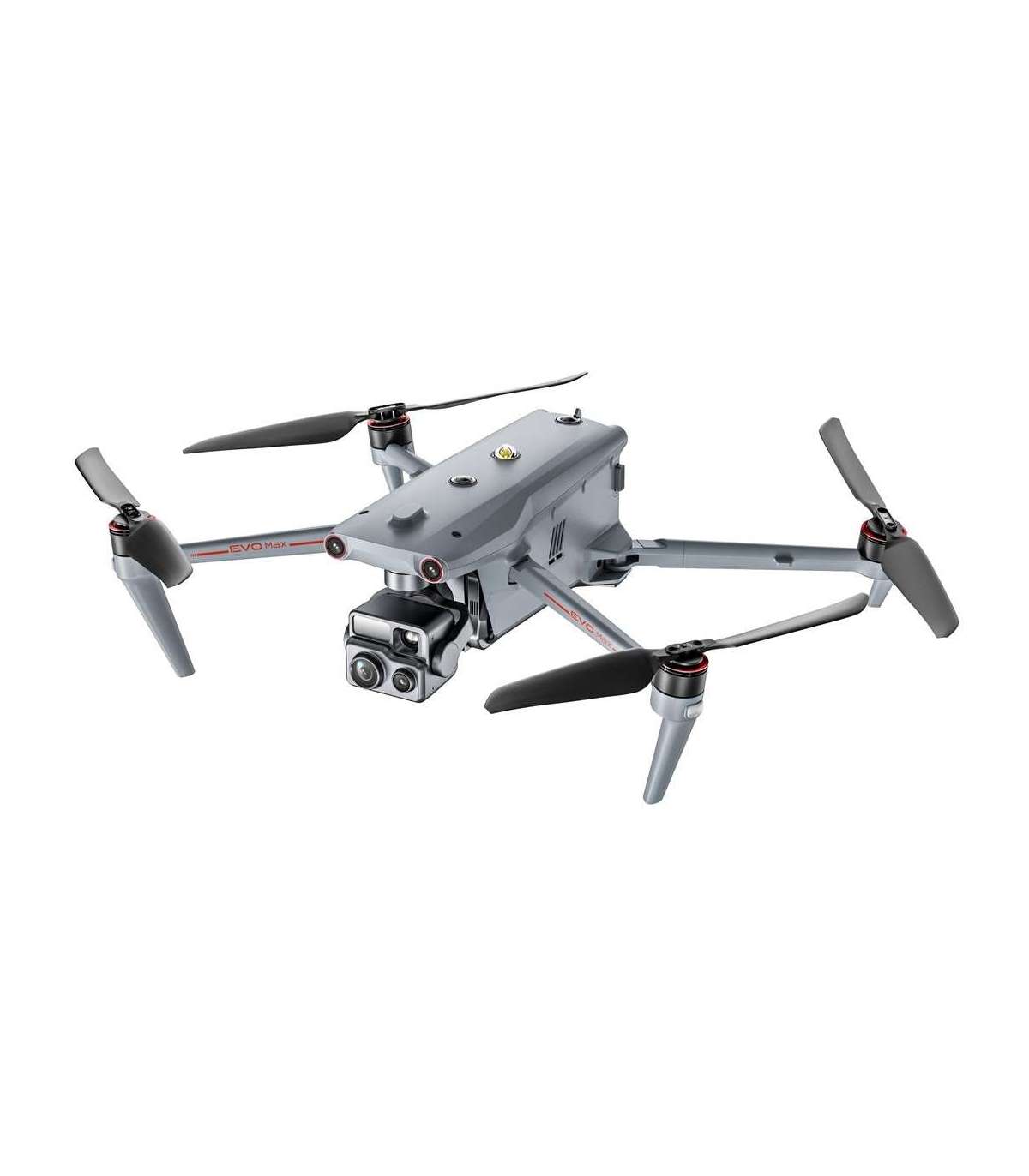

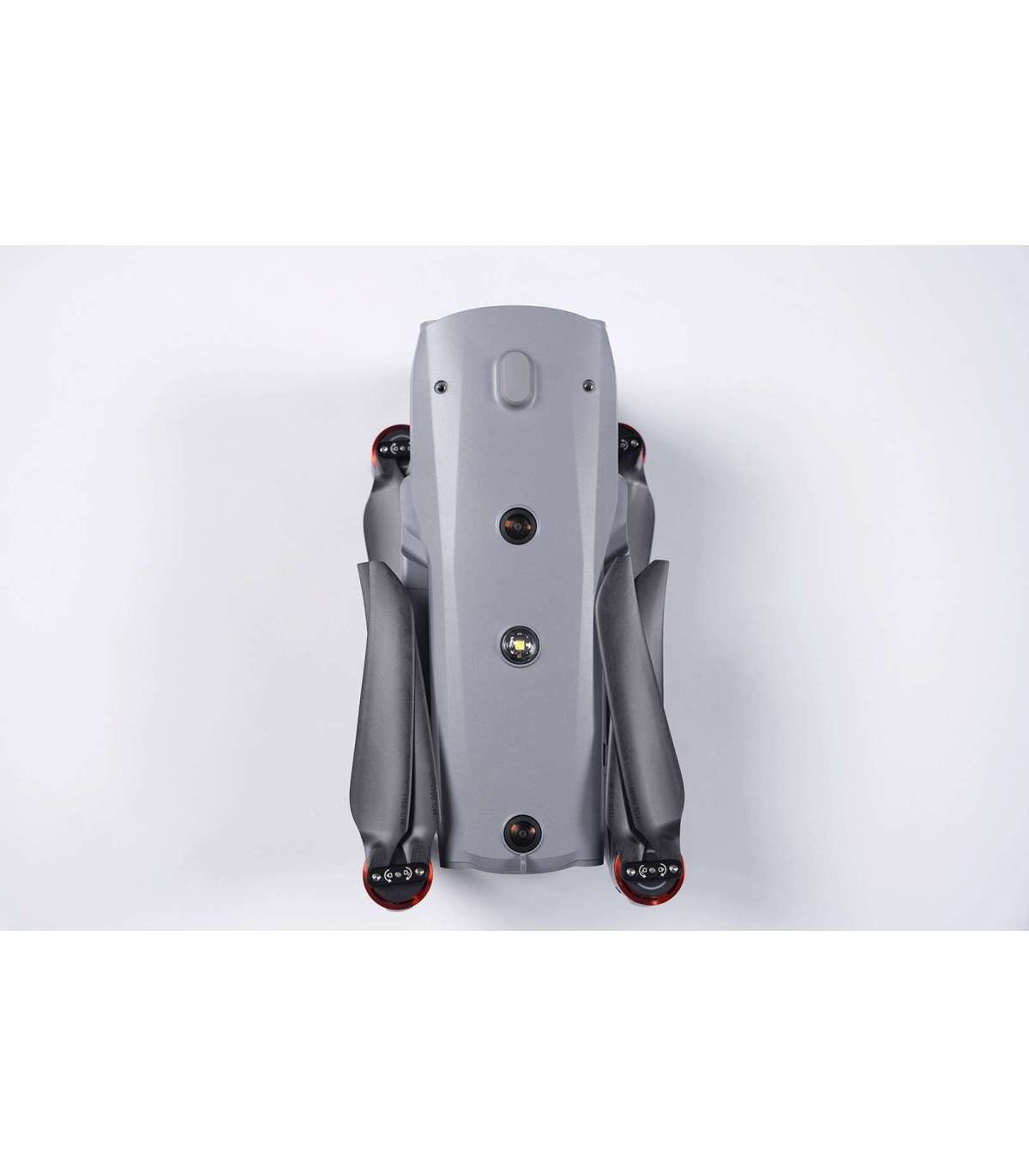

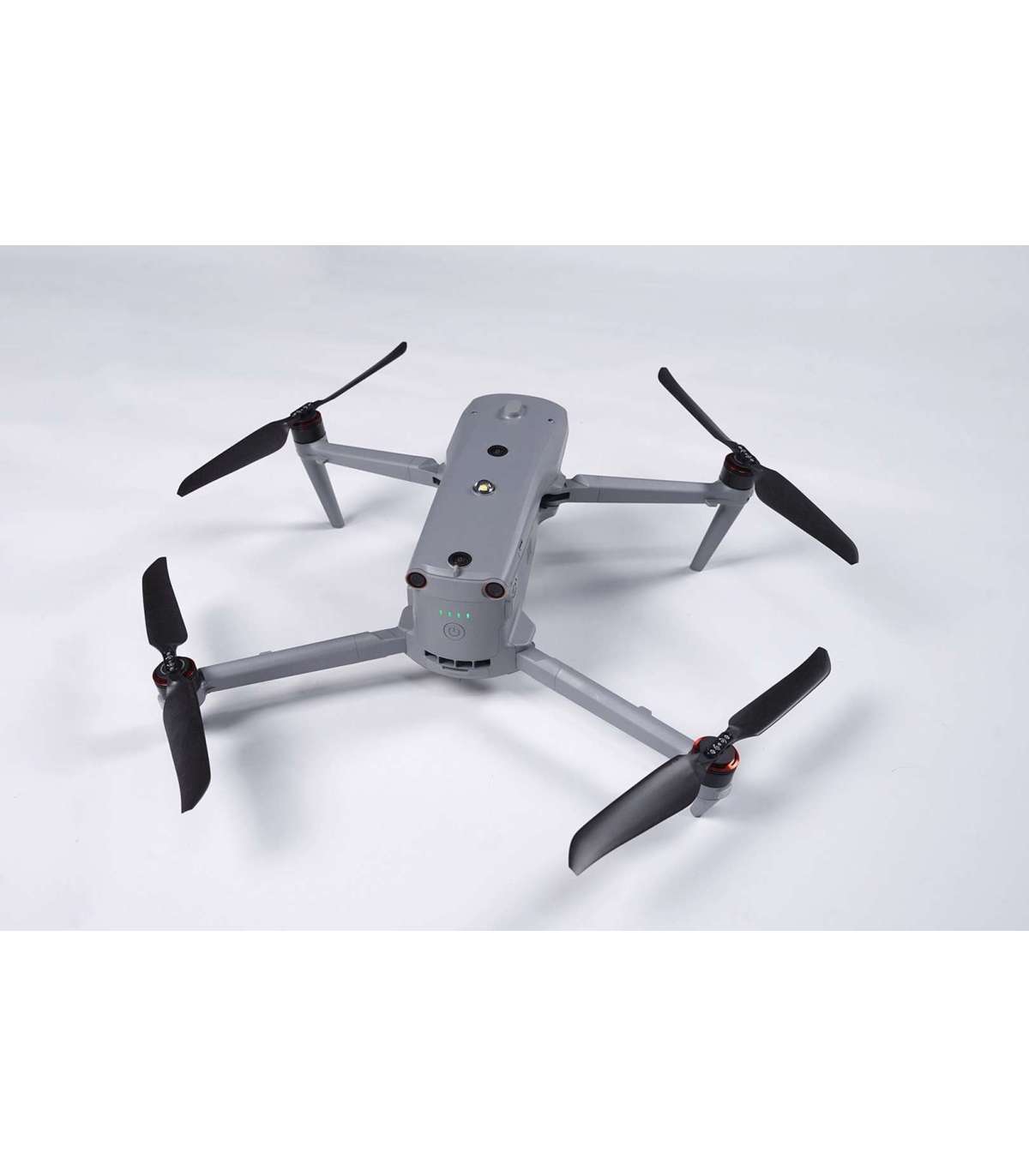

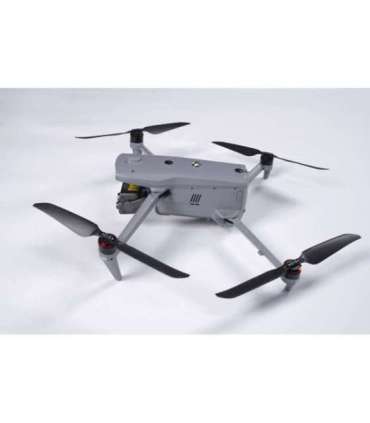

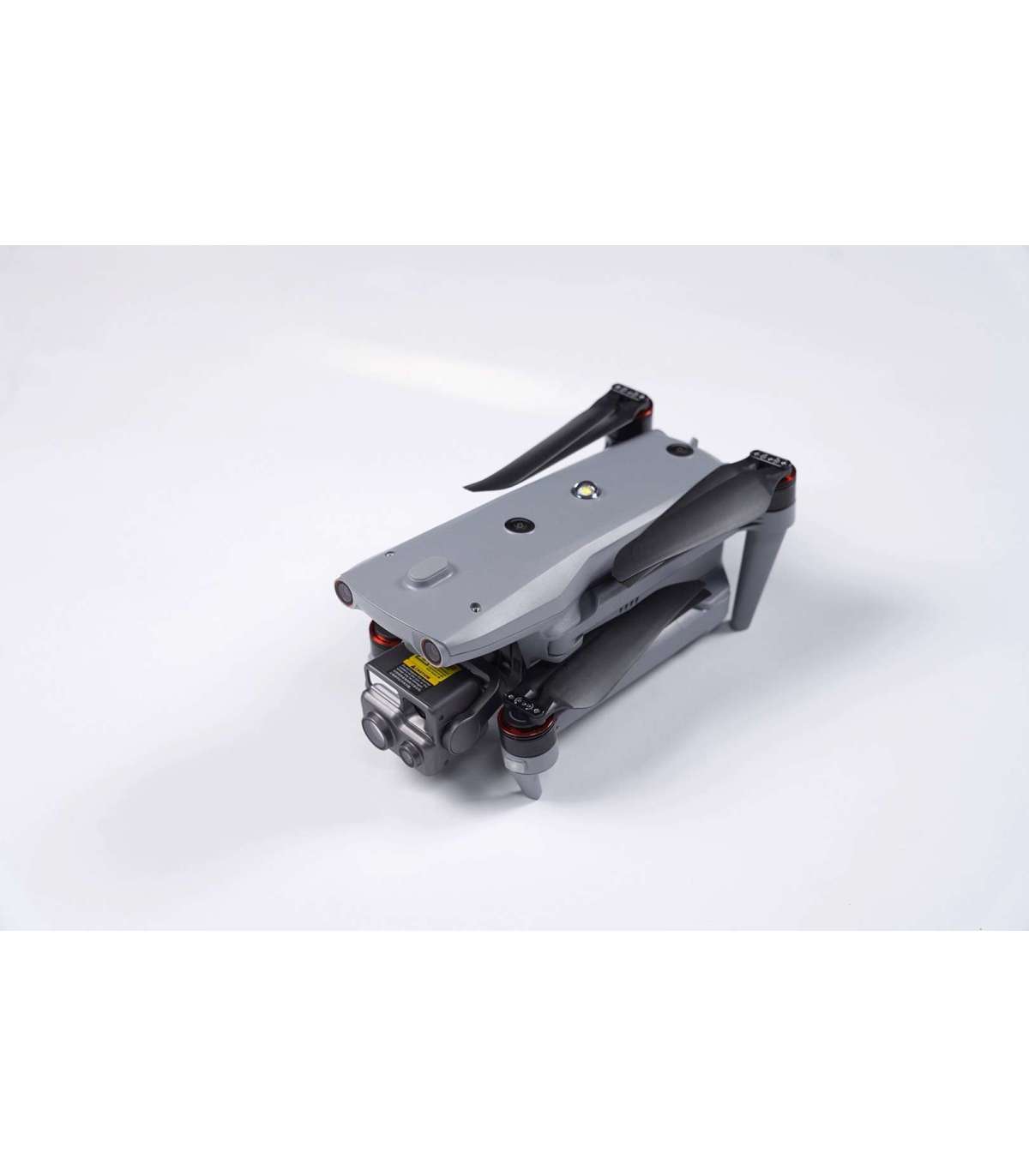

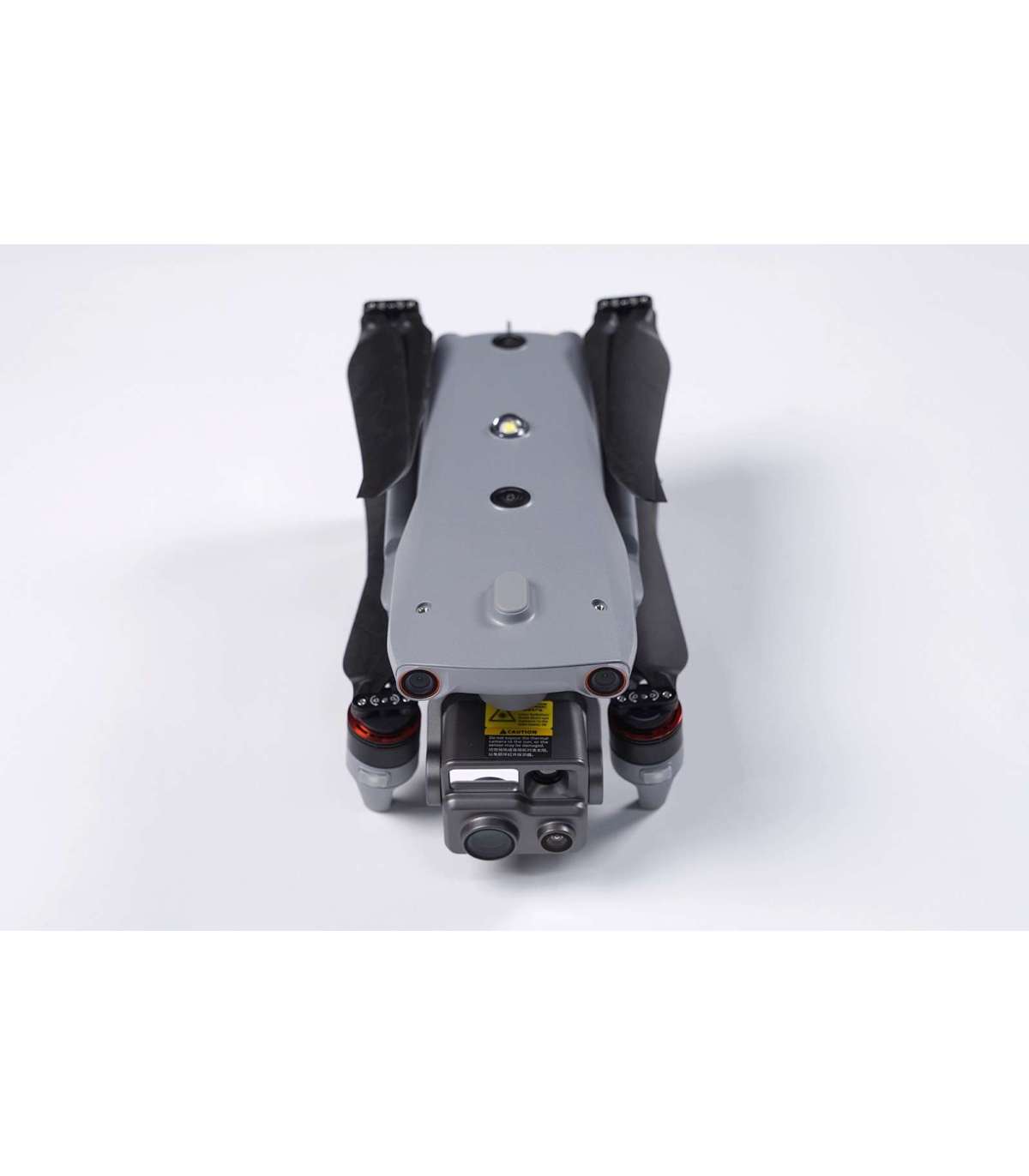

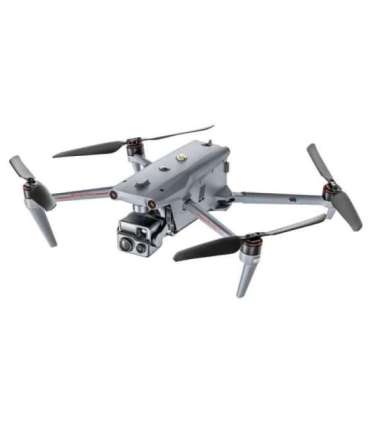

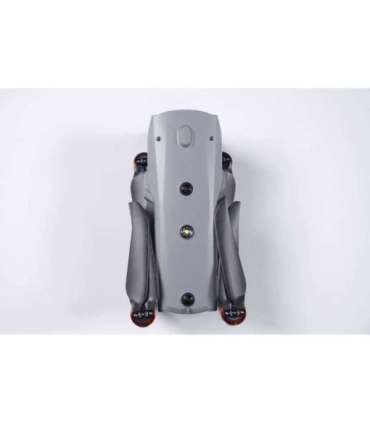

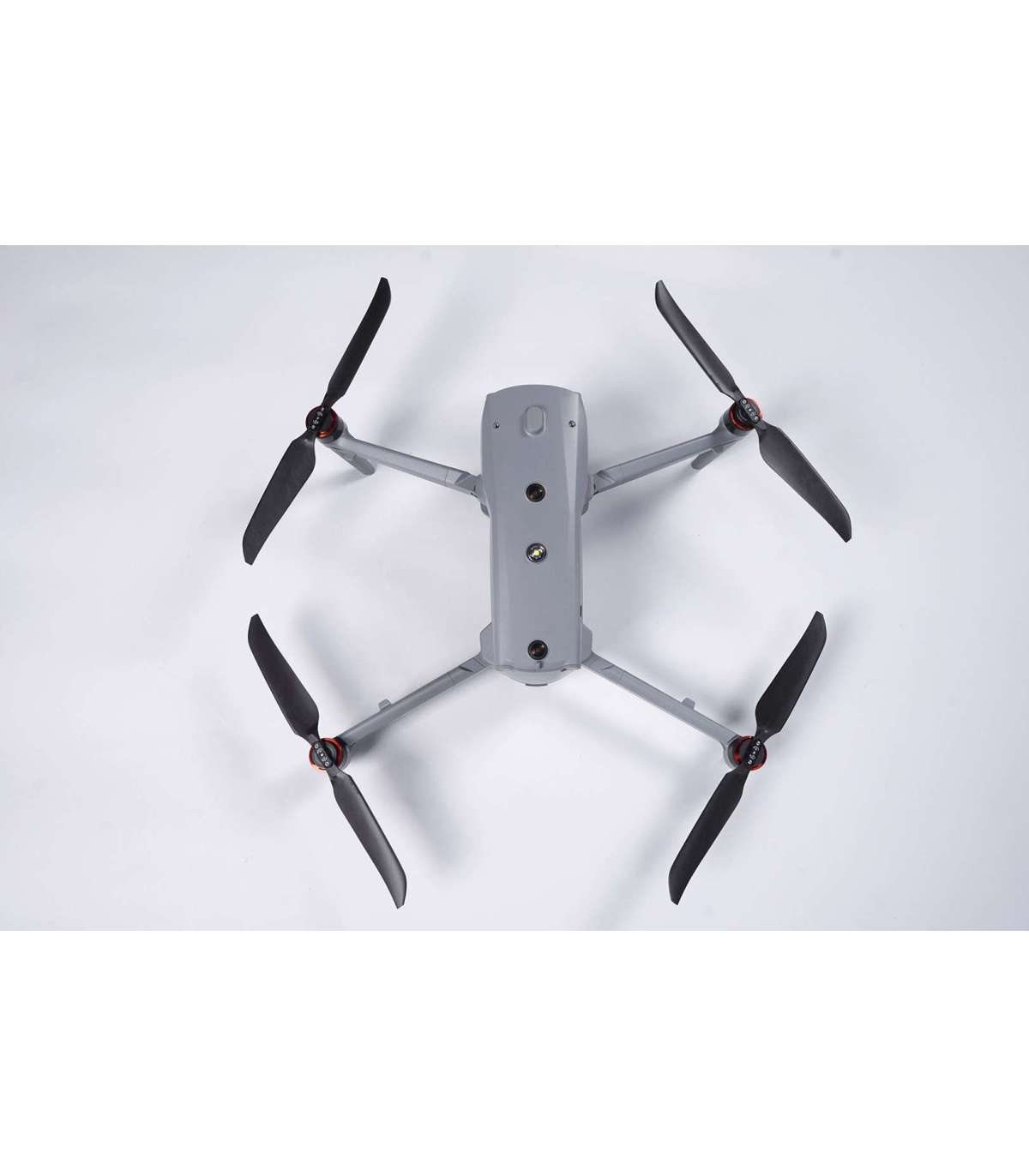

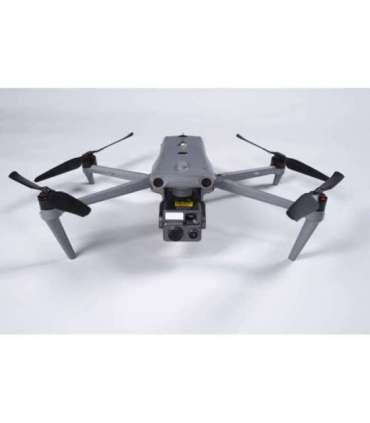

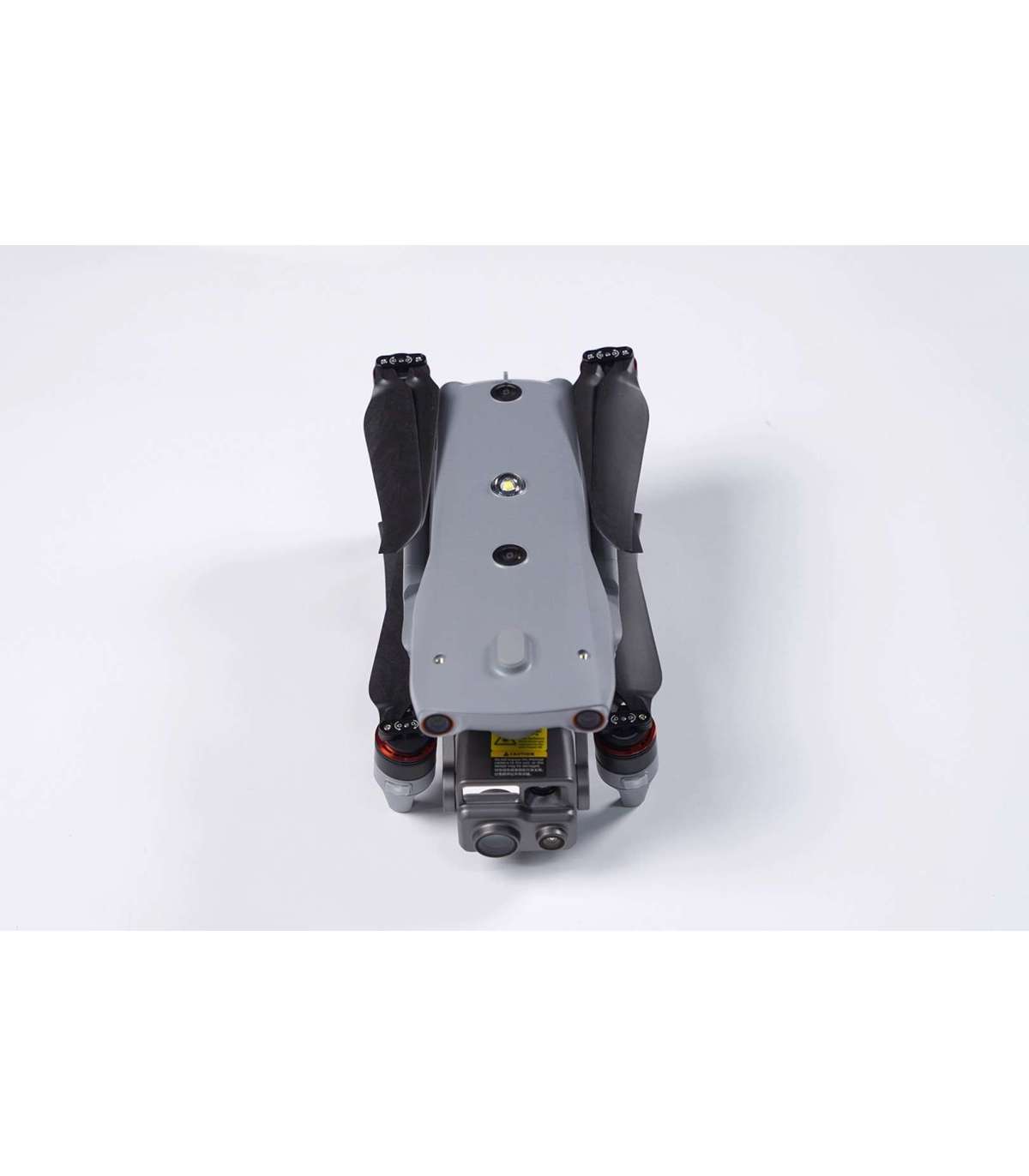

Autel EVO MAX 4T V2 Standard Bundle drone

Lisainfo

Antennas quantity

2

Memory card slot(s)

Yes

Dedicated application

Autel Enterprise

AC adapter frequency

50/60 Hz

Bluetooth

Jah

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 2.0 Type-A ports quantity

1

Megapixel (approx.)

48 MP

Refresh rate

60 Hz

Number of batteries

1

Power Delivery

Yes

Maximum frame rate

30 fps

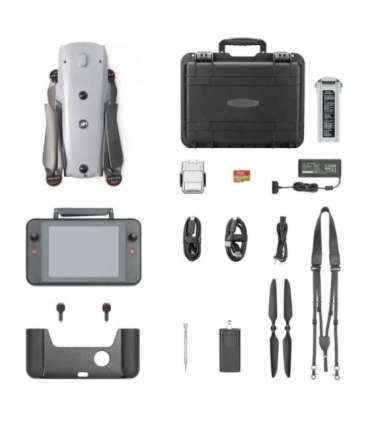

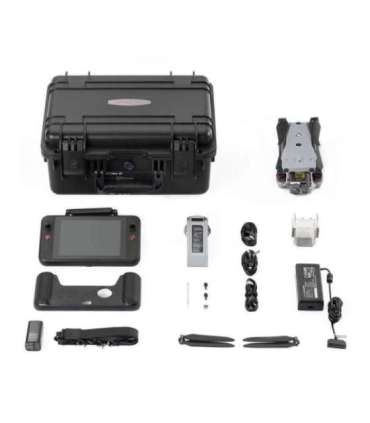

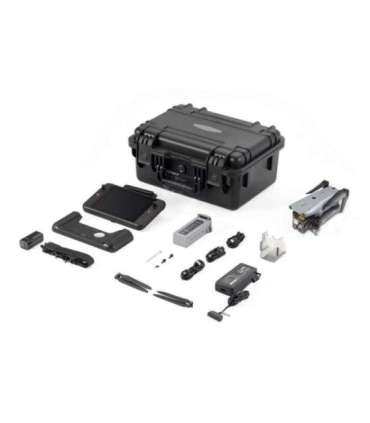

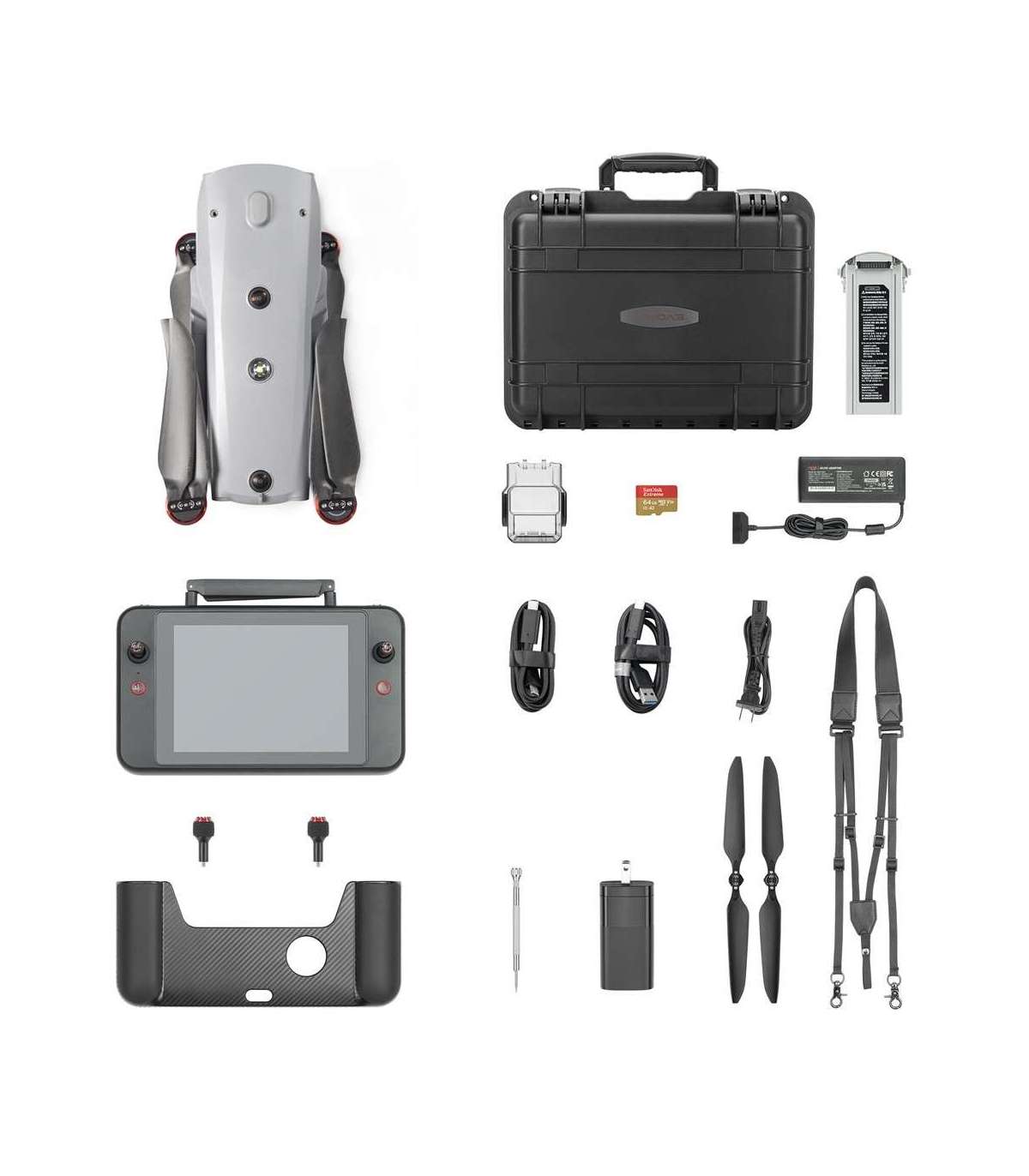

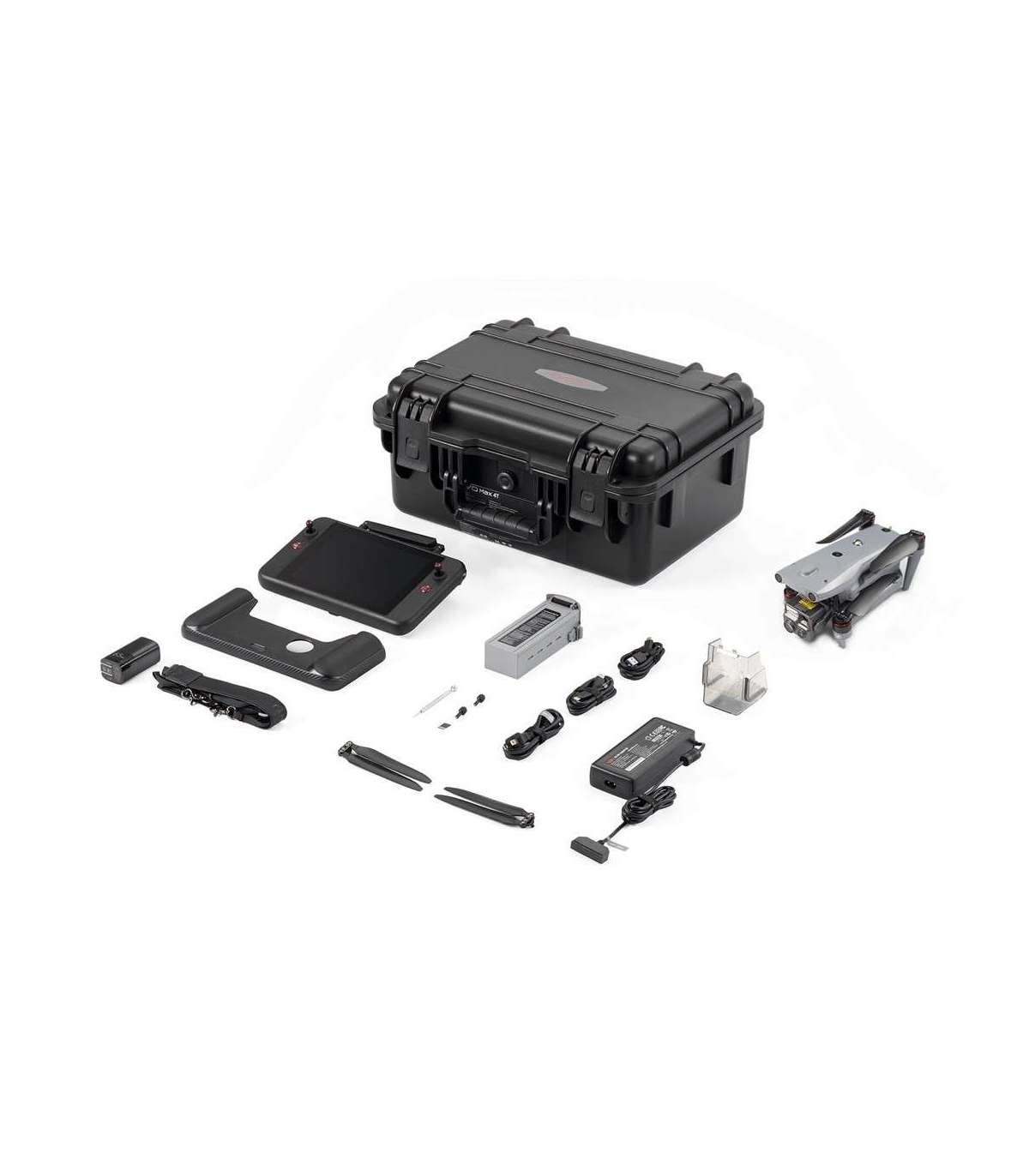

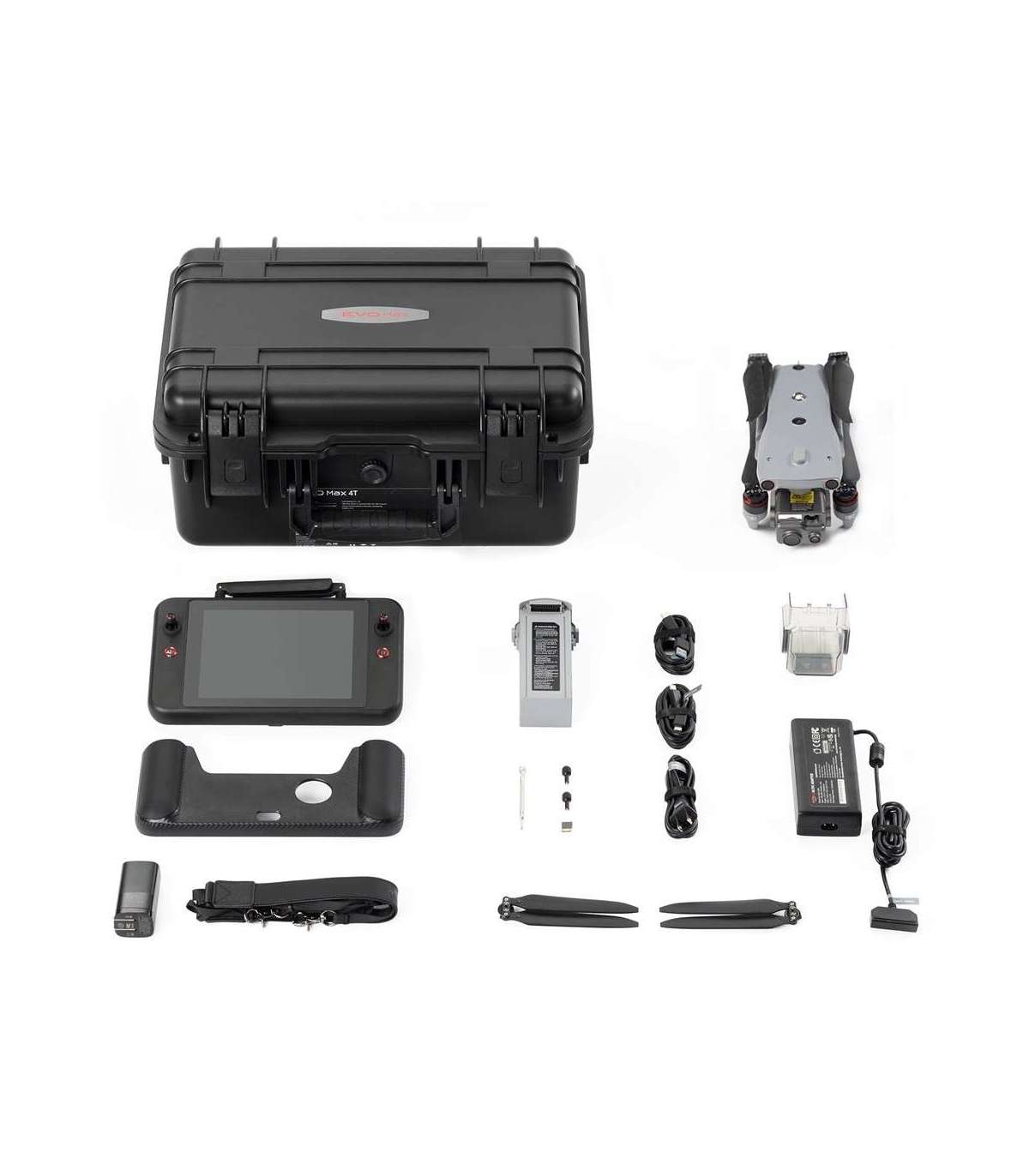

Set contents

Autel V3 controller

Battery charger included

Yes

Easy to use

Yes

Replaceable battery

No
Yes

Obstacle detection

Yes

Obstacle sensing system

Yes

Operating frequency (RF)

902-928 MHz, (FCC), 2.400-2.4835 GHz, 5.725-5.850 GHz

Applications supported

Autel Sky

Artificial intelligence (AI) functions

Yes

Number of rotors

4 rotors

Maximum speed

23 m/s

BDS

Yes

Maximum Propeller Rotational Speed

7500 rpm

Interference protection

Yes

Laser measuring range

5 - 1200 m

Autonomous Flight Planning

Yes

Number of axis

3

Maximum flight time

42 min

Maximum take-off height

4500 m

Maximum wind resistance (take-off and landing)

12 m/s

Maximum angular velocity

120°/s

Sensor system type

Multidirectional

Built-in memory capacity

128 GB

Wide-angle camera

Yes

Takeoff weight (max)

1999 g

Ventilation type

Passive

Number of propeller blades

2

Propeller material

Carbon fiber
Nylon

Zoom camera (telephoto)

Yes

Strobe

Yes

Laser distance measurer

Y

Thermal imaging camera

Yes

Number of cameras

3

USB port voltage

17 V

Total output power

120 W

Operating temperature (transmitter)

-20 - 40 °C

Cooperation with applications

Android

Auto landing function

Yes

Auto return function

Yes

Moving control functions

Backward
Downward
Forward
Turn left
Turn right
Upward

Flight modes

Follow Me mode

Auto takeoff function

Yes

Propeller diameter

27,94 cm

Wheelbase diagonal

46,7 cm

Product dimensions when open (WxDxH)

563 x 657 x 147 mm

Transmitter dimensions

269 x 302 x 87 mm

Transmitter weight

1,195 kg

Number of drones

1

Leash included

Yes

Spare propeller(s) included

1 pairs

Screwdriver

Yes

Live view

Yes

Sensor

CMOS 1/2"

Effective sensor resolution (thermal module)

640 x 512 pixels

Focal length of zoom camera (telephoto)

35 mm, equivalent: 64-234mm

Accuracy of temperature measurement

±2°C

Thermovision

Y

Aperture

F2.8 - F4.8

Maximum hybrid zoom

160x

Video streaming

Yes

Rated capacity (mAh)

9248 mAh

Battery voltage (transmitter)

11,55 V

Battery capacity (transmitter)

5800 mAh

Battery life (transmitter)

2,5 - 4 h

Built-in WiFi

Yes

Bluetooth transmitter power

20 dBm

Transmission system

Autel SkyLink 3.0

Image transmission - transmitter power (EIRP)

CE: ≤20dBm -2.4G, ≤14dBm - 5.8G
FCC: ≤33dBm
SRRC: ≤20dBm - 2.4G, ≤33dBm - 5.8G/5.7G

Transmission range

8 km (CE)
15 km (FCC)

Maximum resolution & refresh rate (HDMI)

1920x1080@60Hz

Kaal

1,665 kg

Tüüp

Drone

Bluetoothi versioon

5.0

Ekraani diagonaal

20.1 cm (7.9")

Puutetundlik ekraan

Jah

ISO tundlikkus (maks.)

6400

Töötemperatuur (T-T)

-25 - 50 °C

Digitaalne suum

16x

Optiline suum

2,7 - 10x

Sisseehitatud ekraan

Yes

Käsiraamat

Jah

Ekraani tüüp

TFT-LCD

Ühilduvad mälukaardid

MicroSD (TransFlash)

Aku mahtuvus

8070 mAh

Kaablid kaasas

USB Type-C to USB Type-A

Aku tehnoloogia

Lithium Polymer (LiPo)

GPS (satelliit)

Jah

ISO-tundlikkus (min)

100

Kandekott

Jah

Maksimaalne mälukaardi suurus

1 TB

Kaugselt juhitav

Jah

Eemaldatav aku

Yes

Sagedusriba

2.4 GHz/5.2 GHz/5.8 GHz/900 MHz

Aku pinge

14.76 V

Korpuse materjal

Polycarbonate (PC), ABS

Maksimaalne töökaugus

25000 m

Sisseehitatud aku

Yes

Toetatud videorežiimid

4K
1080p

AC-adapteri sisendpinge

100 - 240 V

Rahvusvaheline kaitse (IP) kood

IP43

GLONASS

Yes

Ekraani eraldusvõime

2048 x 1536 px

Toote värv

Grey

Hoiatused

In the event of a product failure, follow local regulations for the disposal of electronic devices and batteries.
The drone may pose health and safety risks if used incorrectly. Read the user manual before use.
The product contains lithium-ion batteries, which may be flammable. Avoid damaging them.

Galileo

Yes

Fikseeritud fookuskaugus

24 mm

Temperatuuri mõõtmisvahemik

-20°C do 150°C / 0°C do 550°C

Käivitusaeg

15 s

Käitatakse Android-seadmete kaudu

Yes

Laadimine USB-C kaudu

Yes

Kaamera eraldusvõime

8000 x 6000 pixels
