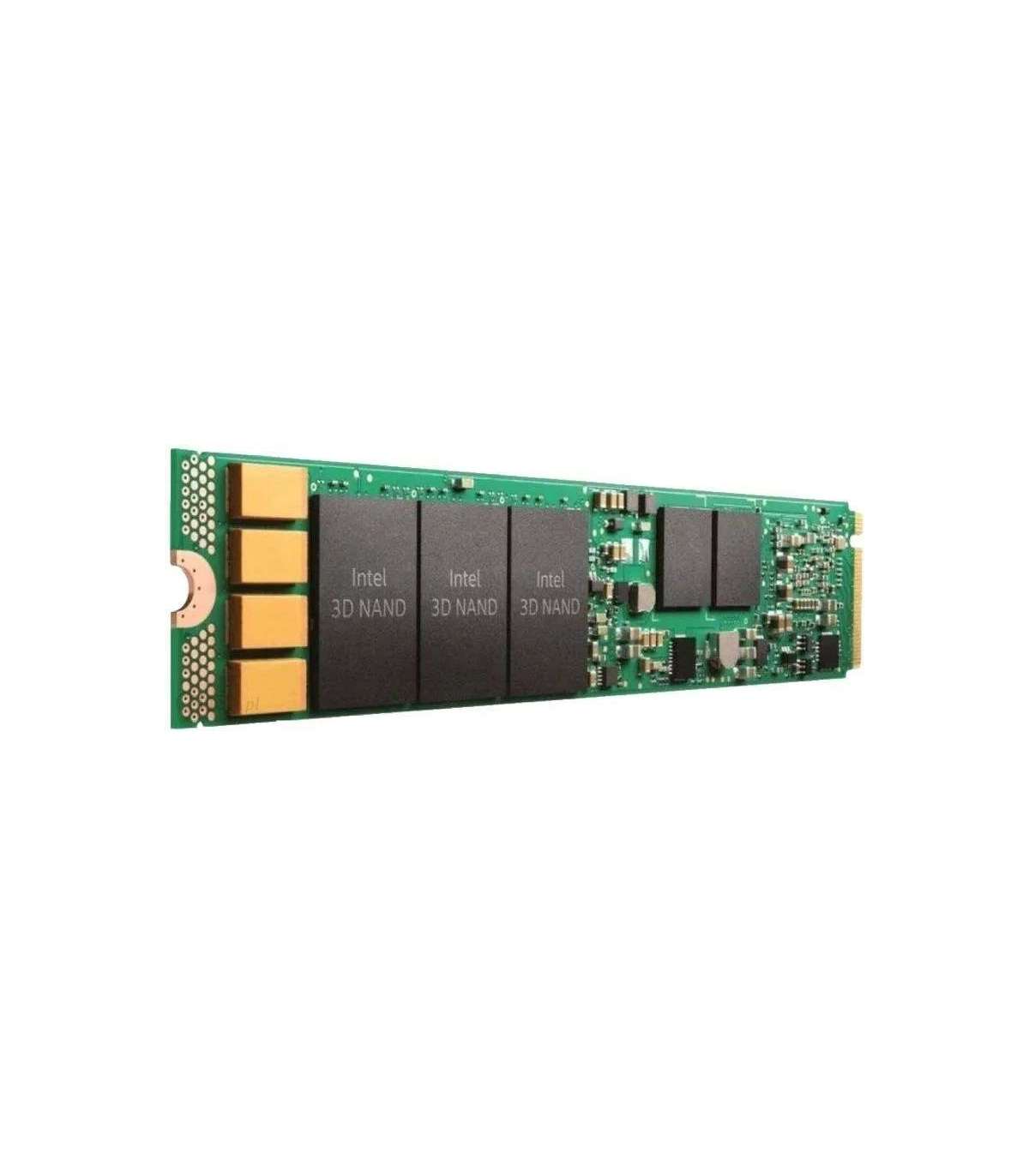

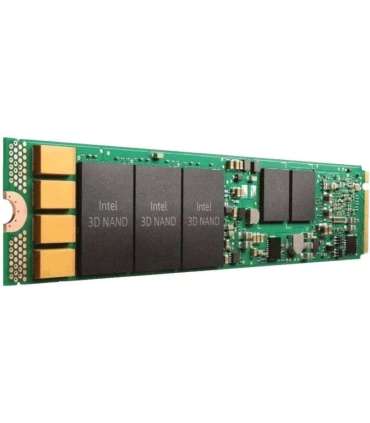

SSD Solidigm (Intel) S4520 480GB SATA M.2 (22x80) SSDSCKKB480GZ01 (DWPD up to 3)

Lisainfo

Kõrgus

22 mm

Laius

80 mm

Security algorithms

256-bit AES

Operating temperature (T-T)

0 - 70 °C

Harmonized System (HS) code

84717070

Data transfer rate

6 Gbit/s

Component for

Server/workstation

Interface

Serial ATA

Internal memory type

SATA 3.0 6Gb/S

Mean time between failures (MTBF)

2000000 h

Memory type

TLC 3D NAND

Processor family

Intel SSD D3

SSD capacity

480 GB

NVMe

No

SSD form factor

M.2

Non-operating vibration

3.13 G

Non-operating shock

1000 G

Operating vibration

2.17 G

Operating shock

1000 G

Commodity Classification Automated Tracking System (CCATS)

G162706

Status

Launched

Launch date

Q3'21

Export Control Classification Number (ECCN)

5A992C

Maximum operating temperature

70 °C

Write speed

500 MB/s

Hardware encryption

Yes

Read speed

550 MB/s

Random read (4KB)

85000 IOPS

Random write (4KB)

48000 IOPS

Power consumption (idle)

0.9 W

Power consumption (write)

3 W

Power consumption (read)

3 W

End-to-End Data Protection

Yes

SSD shock

1000G,0.5ms

SSD temperature monitoring

Yes

Product series

S4520

DWPD

3

Random read (100% span)

85000 IOPS

Random write (100% span)

48000 IOPS

Enhanced Power Loss Data Protection technology

Yes

SSD endurance rating

4.1 PBW

Sequential reading

550 MB/s

Sequential writing speed

500 MB/s

Power consumption (active)

3 W
