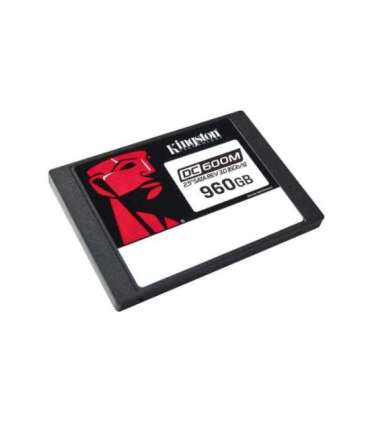

Kingston Technology 960G DC600M (Mixed-Use) 2.5” Enterprise SATA SSD

Lisainfo

Depth

100.1 mm

Kaal

69 g

Kõrgus

7 mm

Laius

69.8 mm

Package weight

91.2 g

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

0 - 70 °C

Package width

129.5 mm

Package depth

9.14 mm

Package height

184.2 mm

Warnings

Do not open the appliance casing, risk of damage.
In the event of damage, do not dispose of in the normal rubbish bin, contact the relevant electronics disposal unit.
Protect from moisture and extreme temperatures.

Data transfer rate

6 Gbit/s

Component for

Server/workstation

Interface

Serial ATA III

Mean time between failures (MTBF)

2000000 h

Memory type

3D TLC NAND

SSD capacity

960 GB

SSD form factor

2.5"

Non-operating vibration

20 G

Operating vibration

2.17 G

Master (outer) case height

69.8 mm

Master (outer) case width

135.9 mm

Master (outer) case length

203.2 mm

Master (outer) case gross weight

989.98 g

Products per master (outer) case

10 pc(s)

Use conditions

Server/Enterprise

Power consumption (average)

1.45 W

Write speed

530 MB/s

Hardware encryption

No

Read speed

560 MB/s

Random read (4KB)

94000 IOPS

Random write (4KB)

65000 IOPS

TBW rating

1752

Power consumption (idle)

1.3 W

Target workload

Mixed Use (MU)

Power consumption (write)

3.6 W

Power consumption (read)

1.6 W

Read latency

200 µs

Write latency

30 µs

Hot-Plug support

Yes

H/W PLP function

Yes
