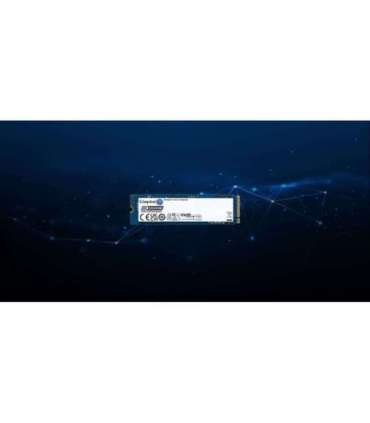

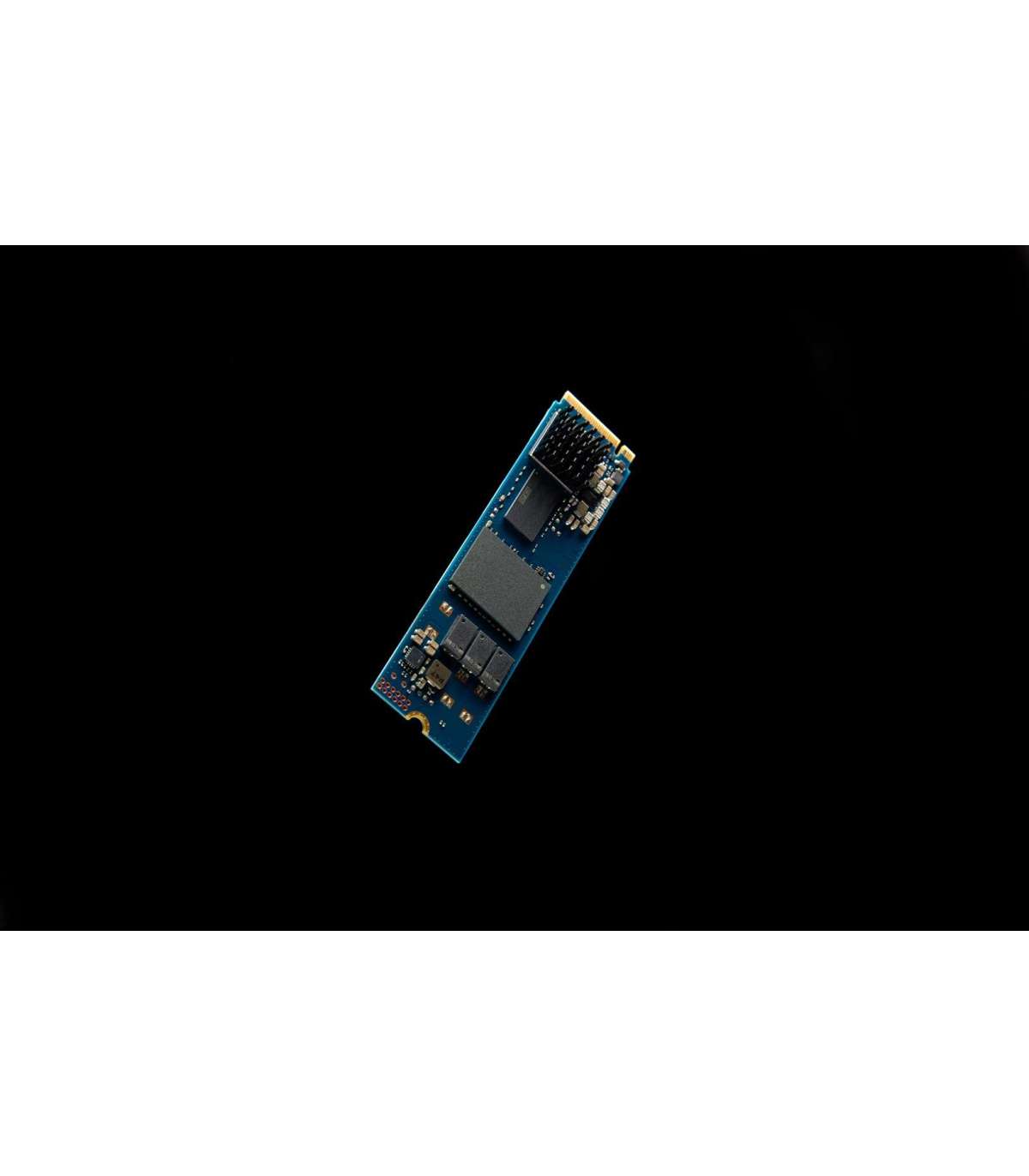

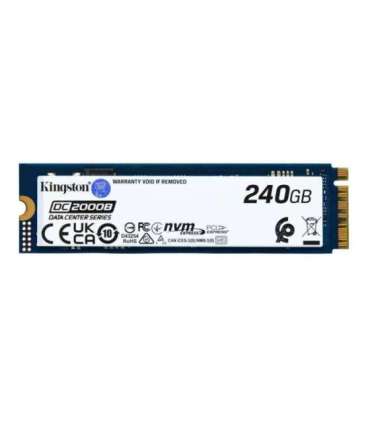

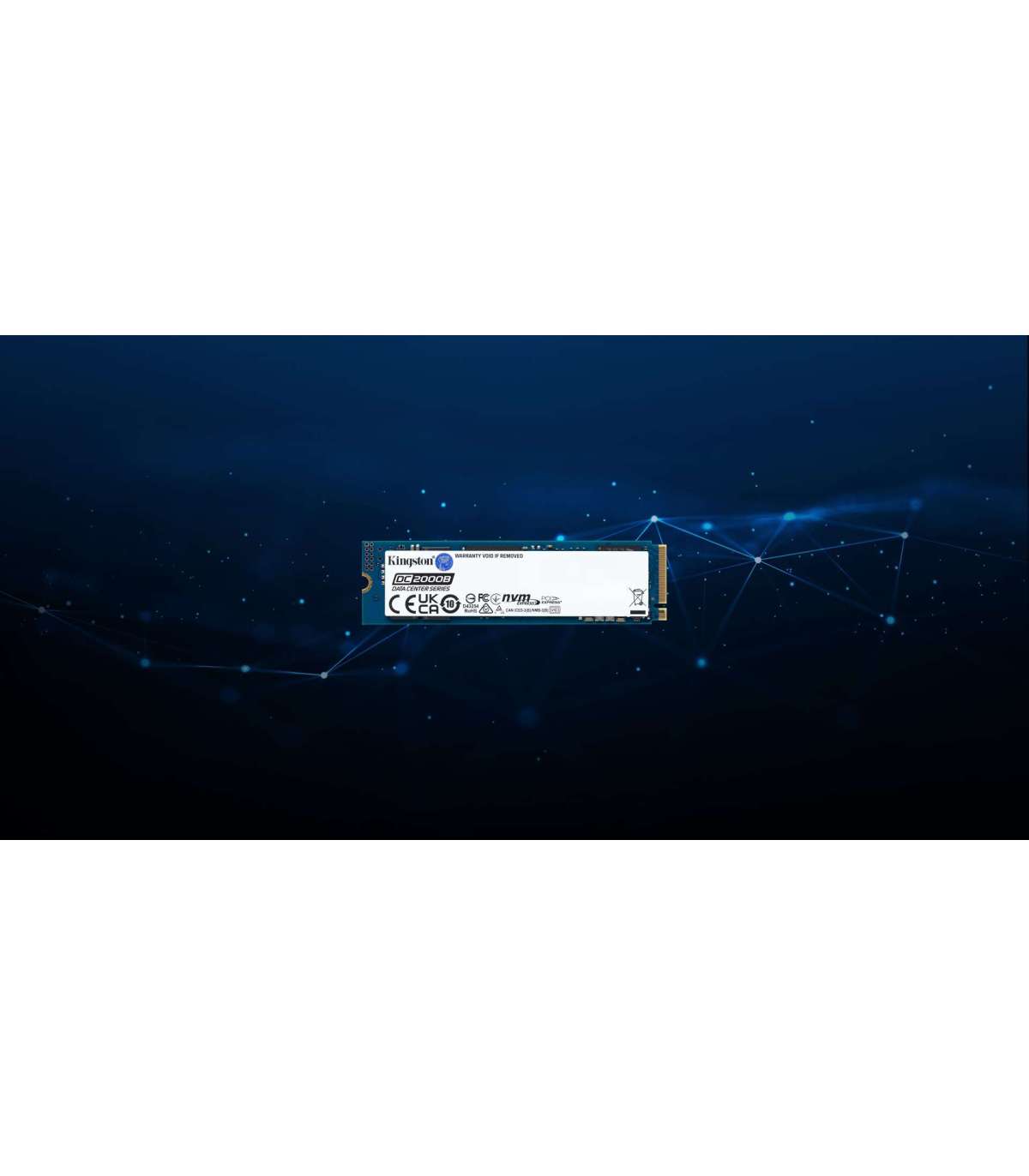

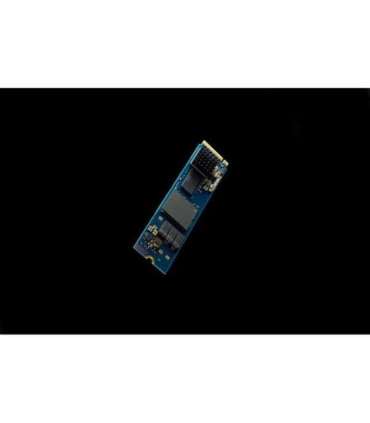

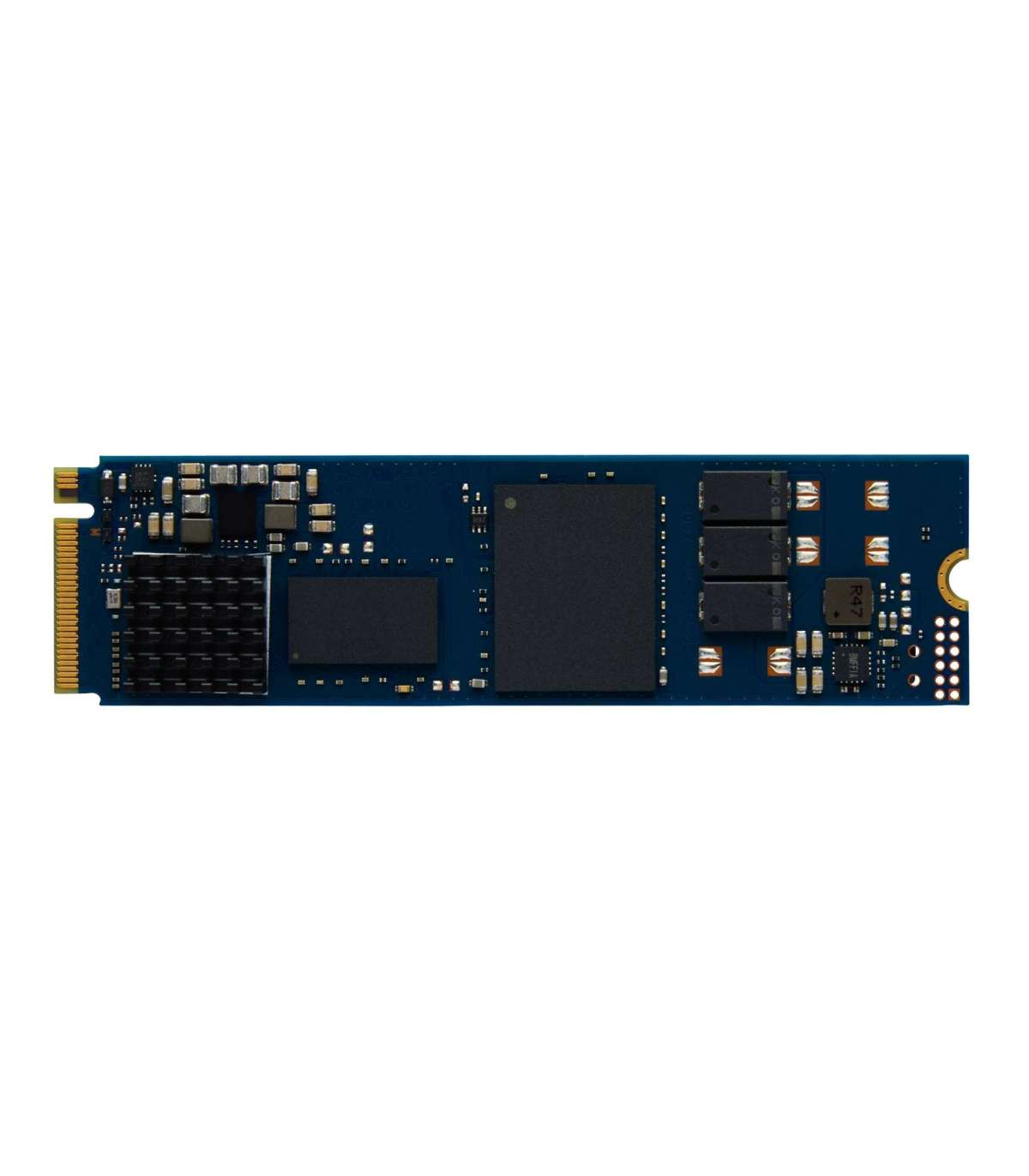

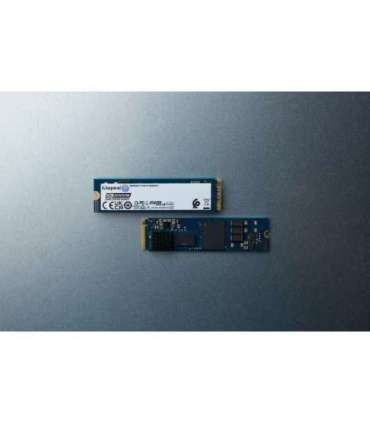

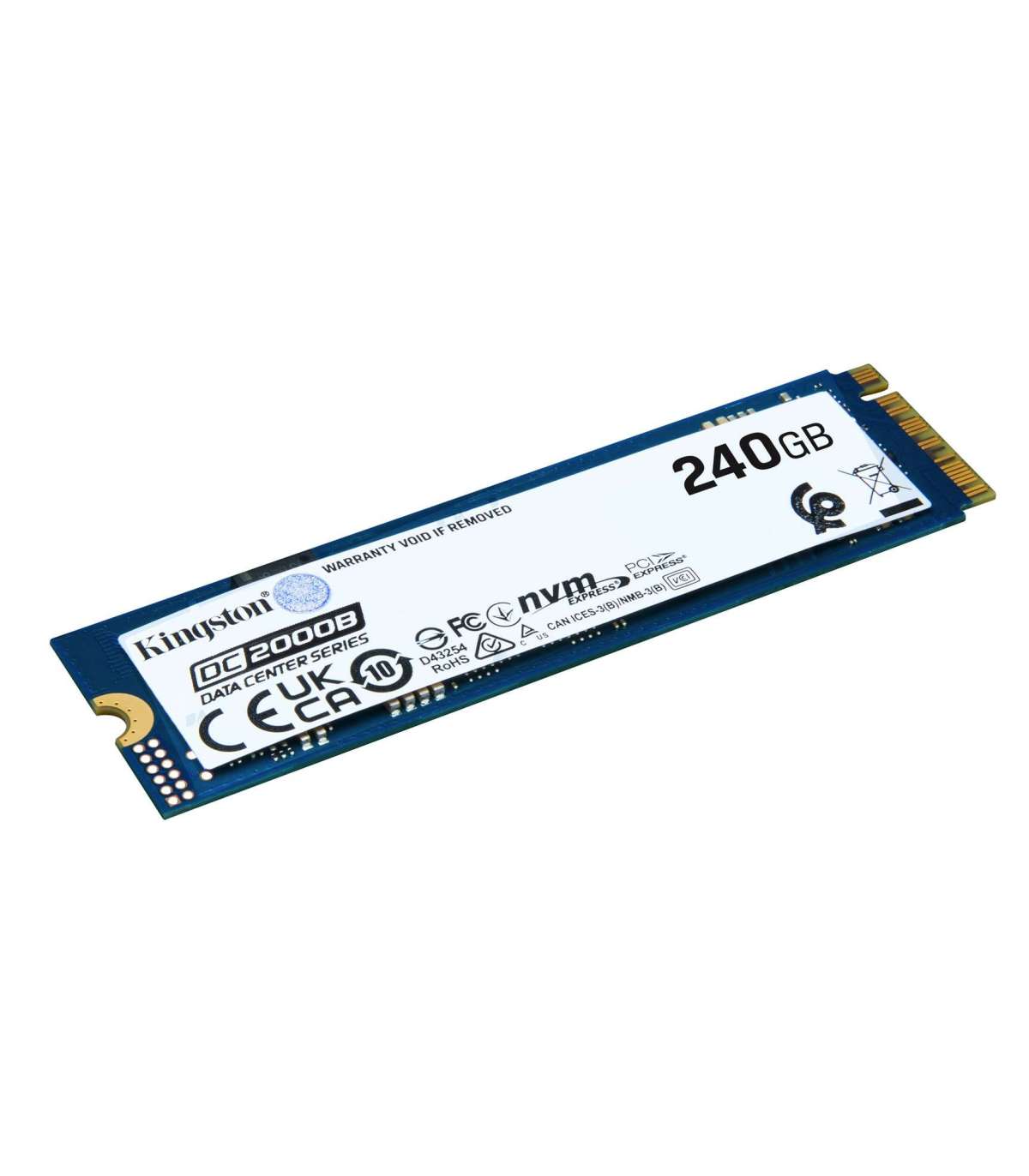

Kingston Technology 240G DC2000B PCIe 4.0 M.2 2280 Enterprise SSD

Lisainfo

Depth

80 mm

Kaal

9 g

Kõrgus

8.9 mm

Laius

22 mm

Package weight

33.77 g

Storage temperature (T-T)

-40 - 85 °C

Operating temperature (T-T)

0 - 70 °C

Package width

129.5 mm

Package depth

14.2 mm

Package height

184.2 mm

Component for

Server

Interface

PCI Express 4.0

Mean time between failures (MTBF)

2000000 h

Memory type

3D TLC

SSD capacity

240 GB

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Non-operating vibration

20 G

Master (outer) case height

69.8 mm

Master (outer) case width

135.9 mm

Master (outer) case length

203.2 mm

Master (outer) case gross weight

280.62 g

Products per master (outer) case

6 pc(s)

Cooling type

Heatsink

Write speed

400 MB/s

Read speed

4500 MB/s

Random read (4KB)

260000 IOPS

Random write (4KB)

18000 IOPS

S.M.A.R.T. support

Yes

TBW rating

175

PCI Express interface data lanes

x4

Power consumption (write)

4.09 W

Power consumption (read)

3.01 W

Average power consumption (read)

2.97 W

Average power consumption (write)

4.02 W

Read latency

70 µs

Write latency

53 µs

Drive writes per day (DWPD)

0.4

H/W PLP function

Yes
