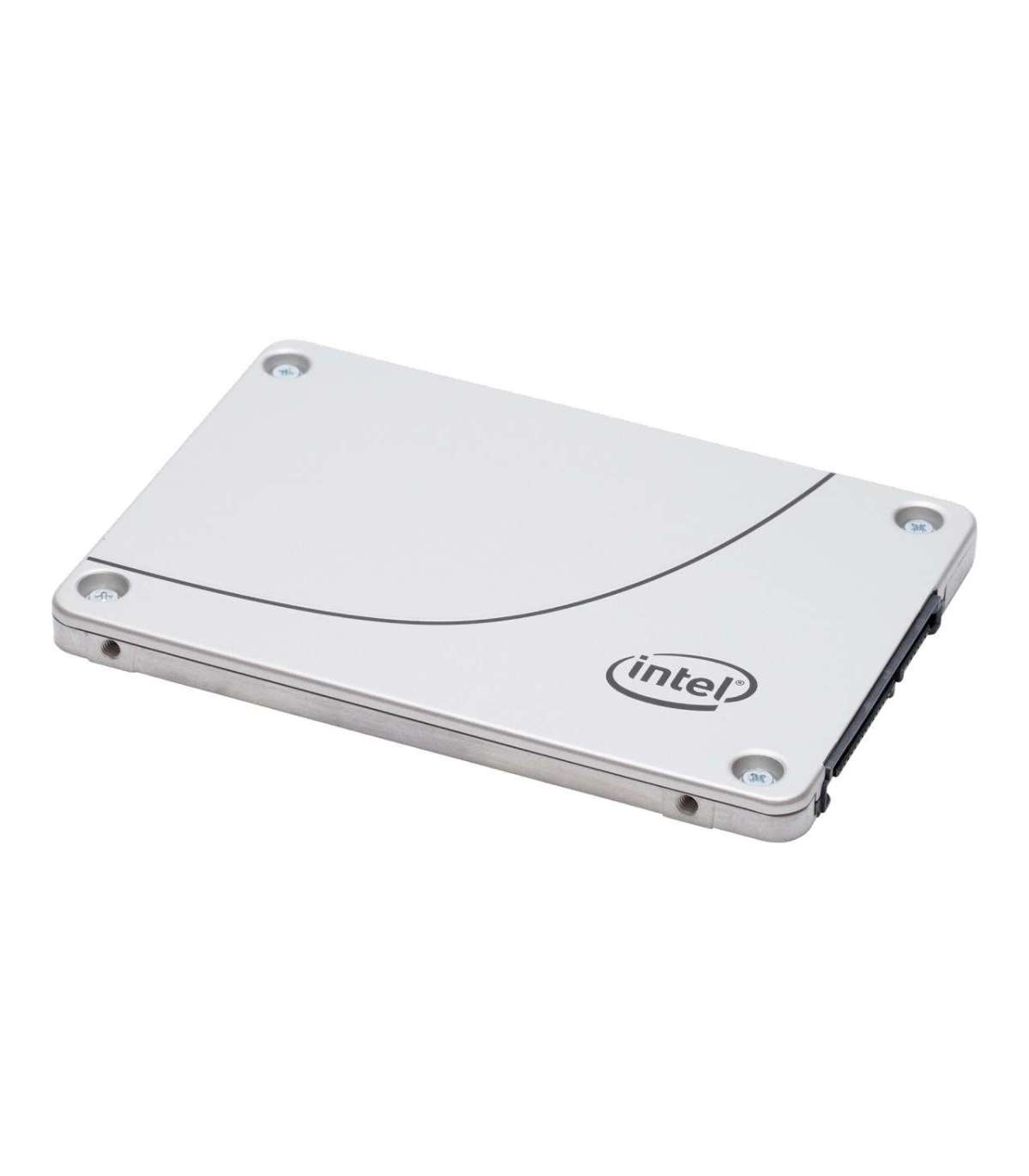

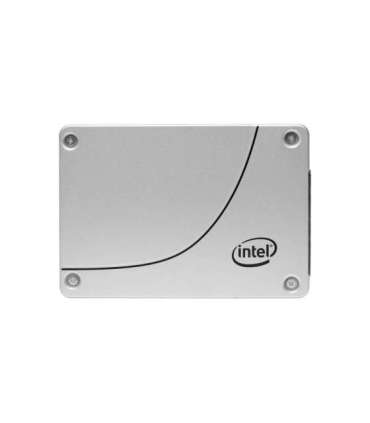

SSD Solidigm (Intel) S4510 480GB SATA 2.5" SSDSC2KB480G801 (DWPD up to 2)

Lisainfo

Product colour

Silver

Security algorithms

256-bit AES

Operating temperature (T-T)

0 - 70 °C

Harmonized System (HS) code

84717070

Warnings

Do not open the appliance casing, risk of damage.
In the event of damage, do not dispose of in the normal rubbish bin, contact the relevant electronics disposal unit.
Protect from moisture and extreme temperatures.

Data transfer rate

6 Gbit/s

Component for

Server/workstation

Interface

Serial ATA

Mean time between failures (MTBF)

2000000 h

Memory type

TLC 3D NAND

Processor family

Intel SSD D3

SSD capacity

480 GB

NVMe

No

SSD form factor

2.5"

Non-operating vibration

3.13 G

Non-operating shock

1000 G

Operating vibration

2.17 G

Operating shock

1000 G

Commodity Classification Automated Tracking System (CCATS)

G162706

Status

Launched

Launch date

Q3'18

Market segment

Server

Export Control Classification Number (ECCN)

5A992C

Maximum operating temperature

70 °C

Write speed

490 MB/s

Hardware encryption

Yes

Read speed

560 MB/s

Power consumption (idle)

1 W

NAND flash type

TLC (Triple Level Cell)

End-to-End Data Protection

Yes

Intel® Smart Response Technology

No

Read latency

36 µs

Write latency

37 µs

SSD shock

1000 G/0.5 msec

SSD temperature monitoring

Yes

Product series

Intel® SSD D3-S4510 Series
S4510

DWPD

2

Random read (100% span)

95000 IOPS

Random write (100% span)

18000 IOPS

Enhanced Power Loss Data Protection technology

Yes

SSD endurance rating

1.2 PBW

Sequential reading

560 MB/s

Sequential writing speed

490 MB/s

Temperature monitoring and logging

Yes

Product family

Data center SSD

SSD ARK ID

134920

Operating / non-operating shock

1000 G/0.5 msec

Drive capacity

480 GB

SSD power consumption (active)

3.0W

Product codename

Youngsville Refresh

SSD hardware encryption

AES 256 bit

SSD power consumption (idle)

1.0W

Intel Rapid Start Technology version

0.00

Remote Secure Erase (RSE) technology version

0.00

Last change

63903513

Intel® Remote Secure Erase

No

Intel Smart Response Technology version

0.00

Intel High Endurance Technology (HET)

No

Intel® Rapid Start Technology

No
