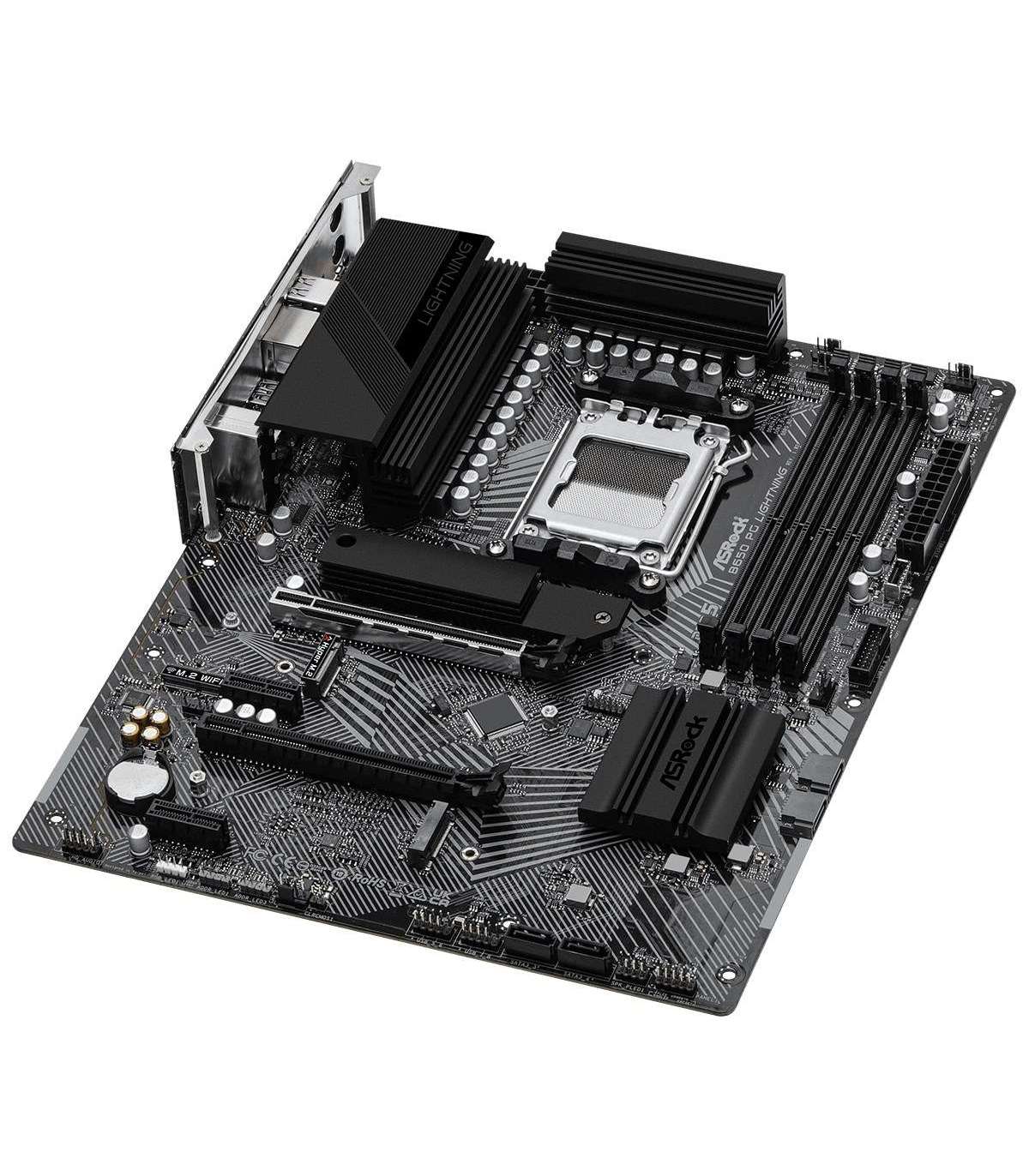

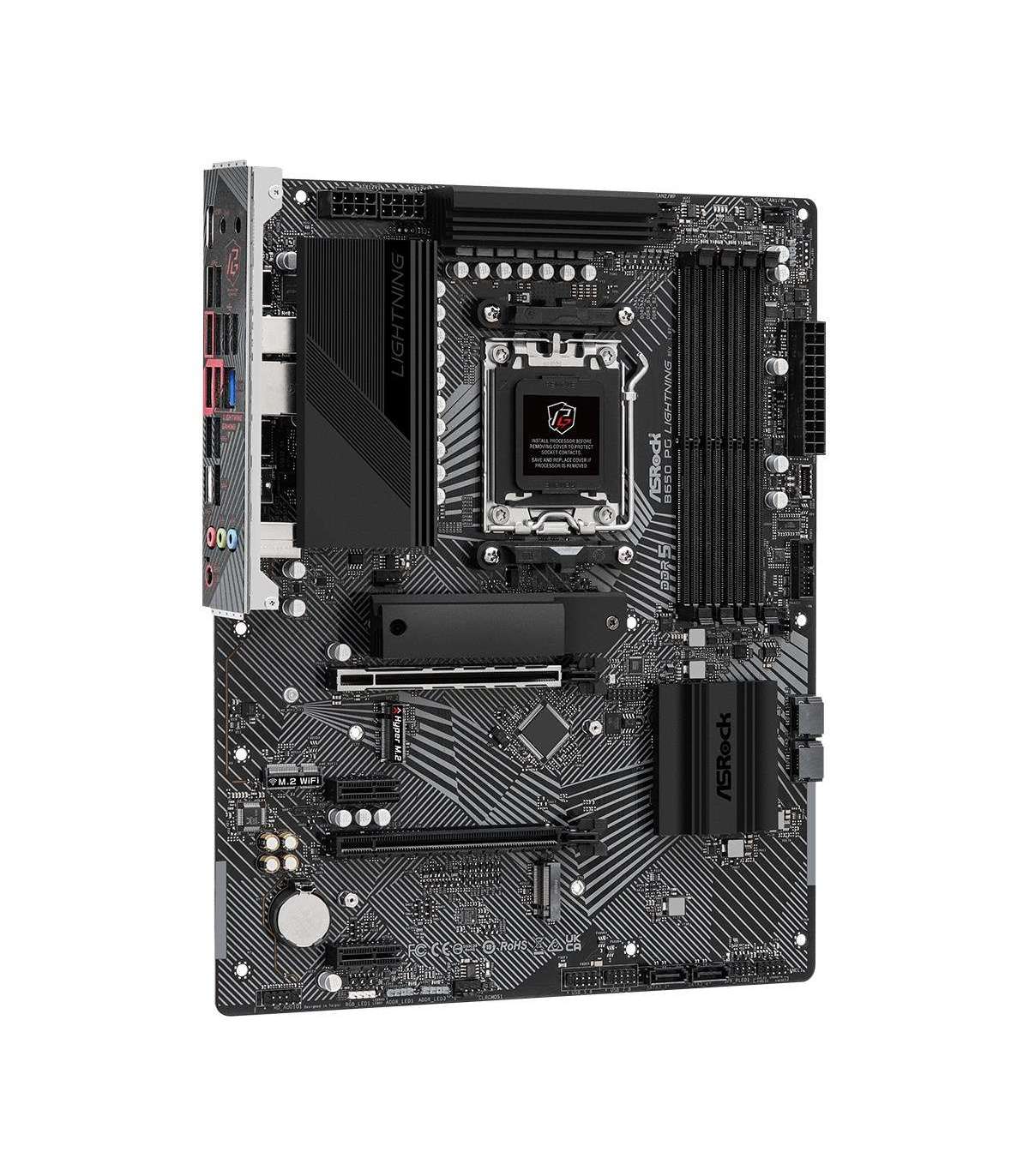

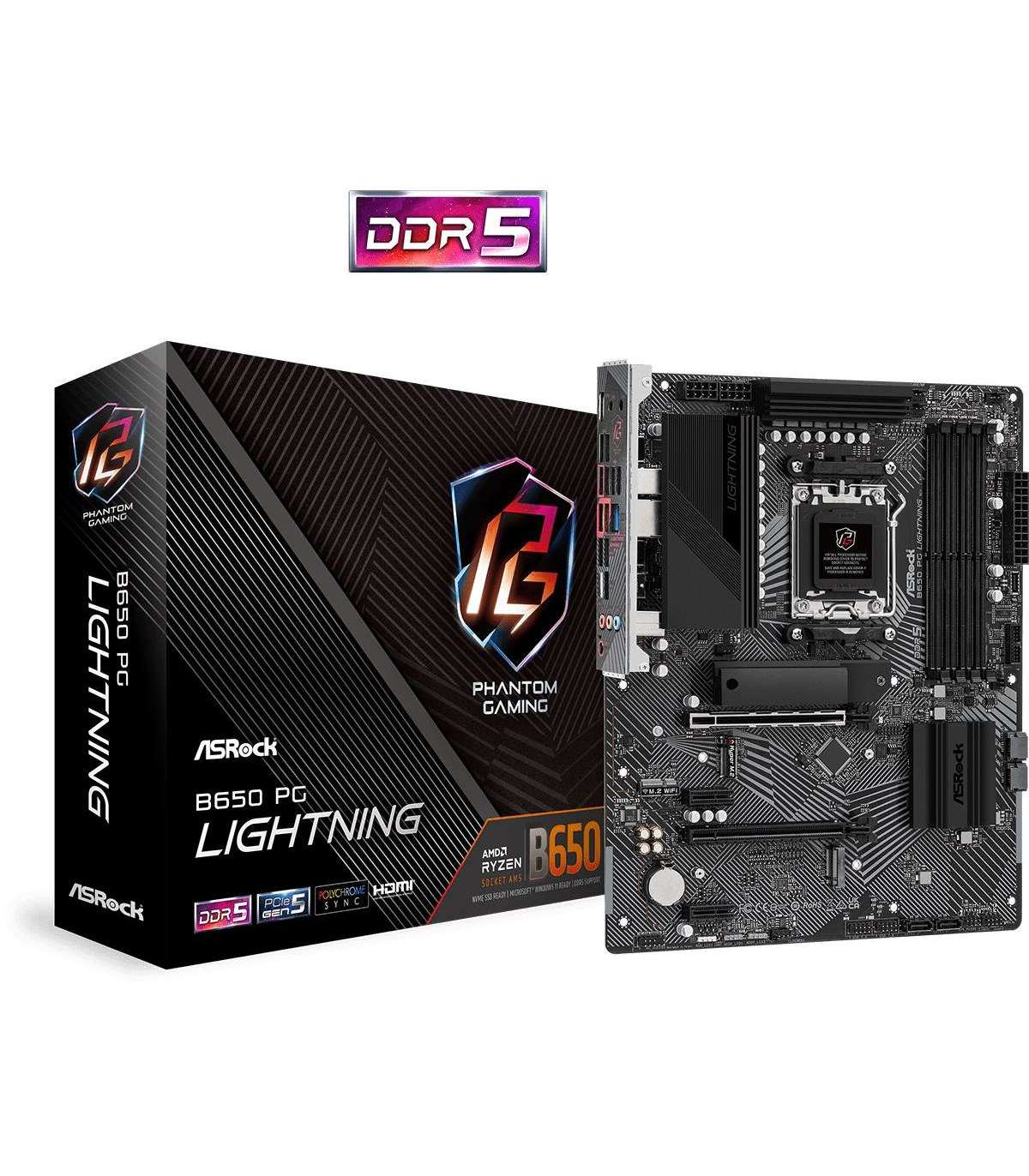

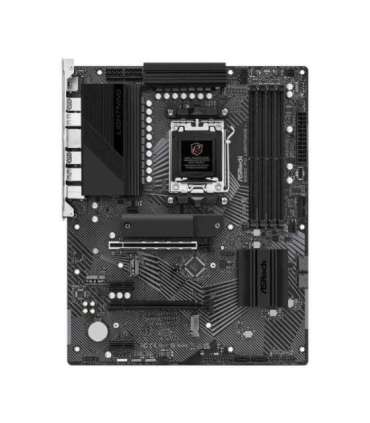

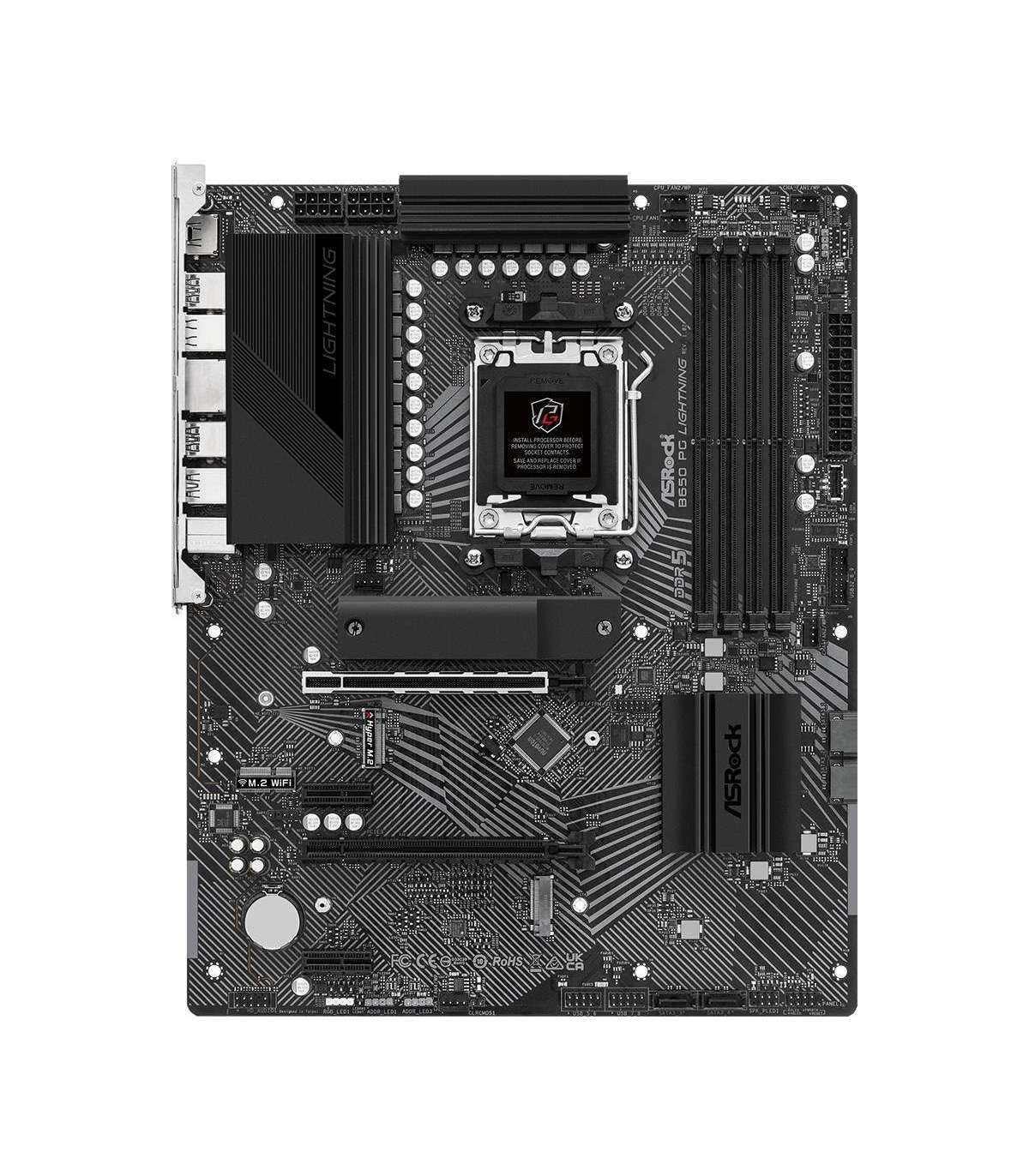

Asrock B650 PG Lightning AMD B650 Socket AM5 ATX

Lisainfo

Videokaardi mudel

AMD RDNA 2

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

7

USB 2.0 ports quantity

4

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

128 GB

Bluetooth

No

Motherboard chipset

AMD B650

HDMI ports quantity

1

Memory channels

Dual-channel

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 2.0 connectors

2

Graphics card family

AMD

Processor socket

Socket AM5

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

6400 MHz
6600
6666
6800

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Dragon RTL8125BG

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, SATA II

PCI Express x16 (Gen 3.x) slots

1

Number of SATA III connectors

4

RGB LED pin header

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

PCI Express x16 (Gen 4.x) slots

1

HDCP

Yes

EPS power connector (8-pin)

Yes

RAID support

Yes

Line-in

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

PCI Express x16 (Gen 5.x) slots

1
