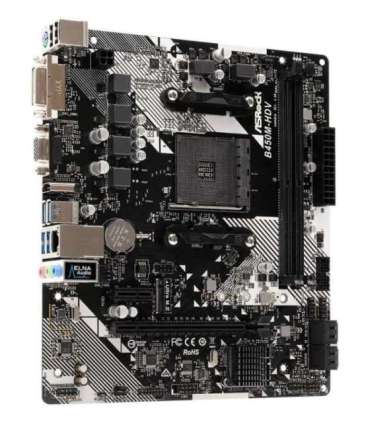

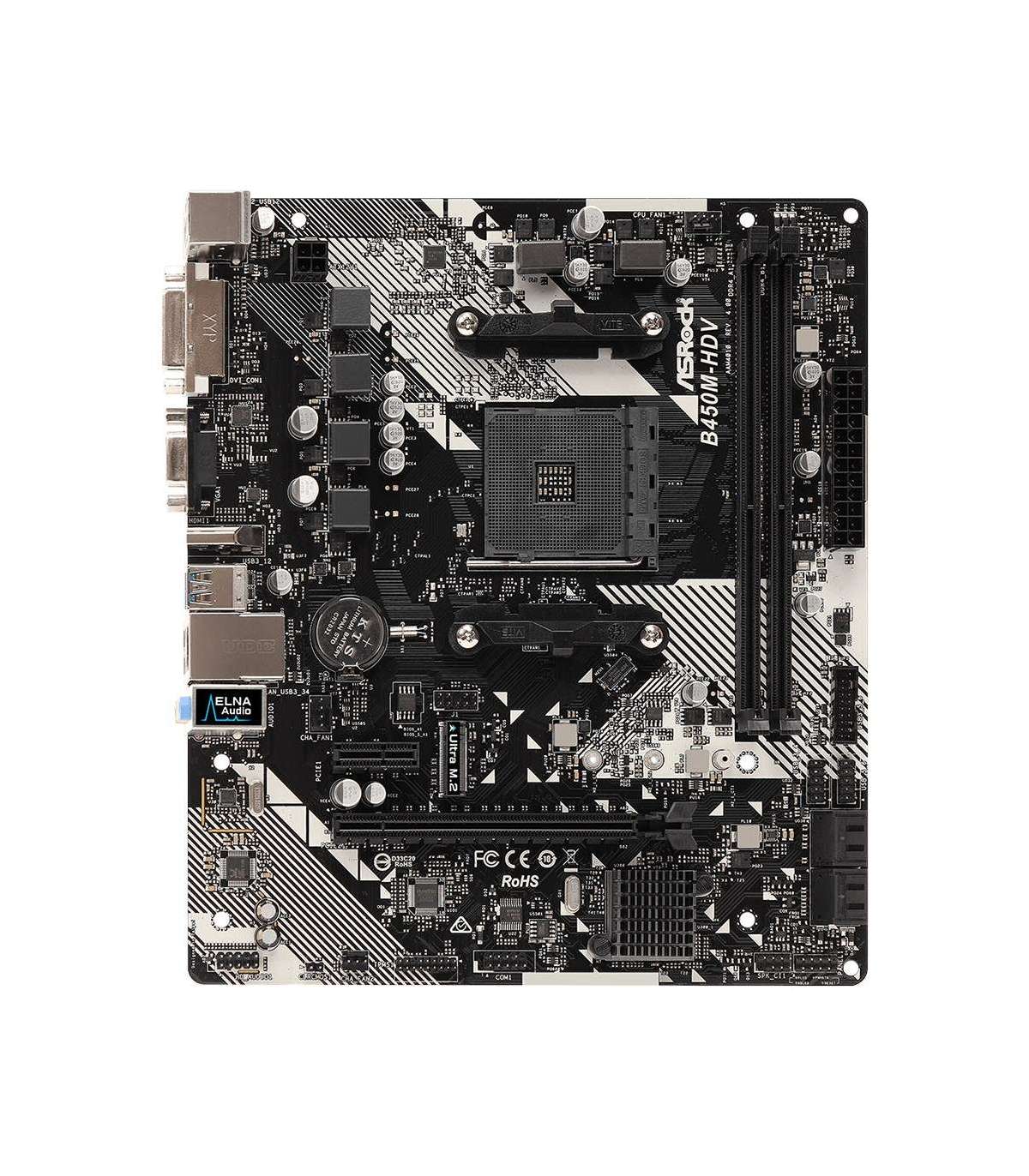

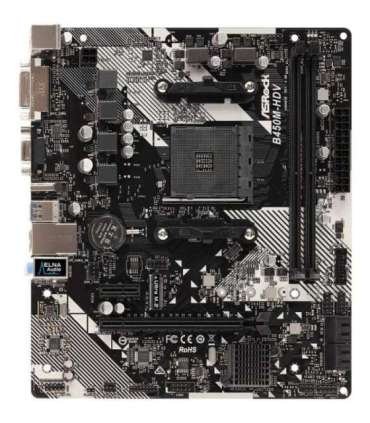

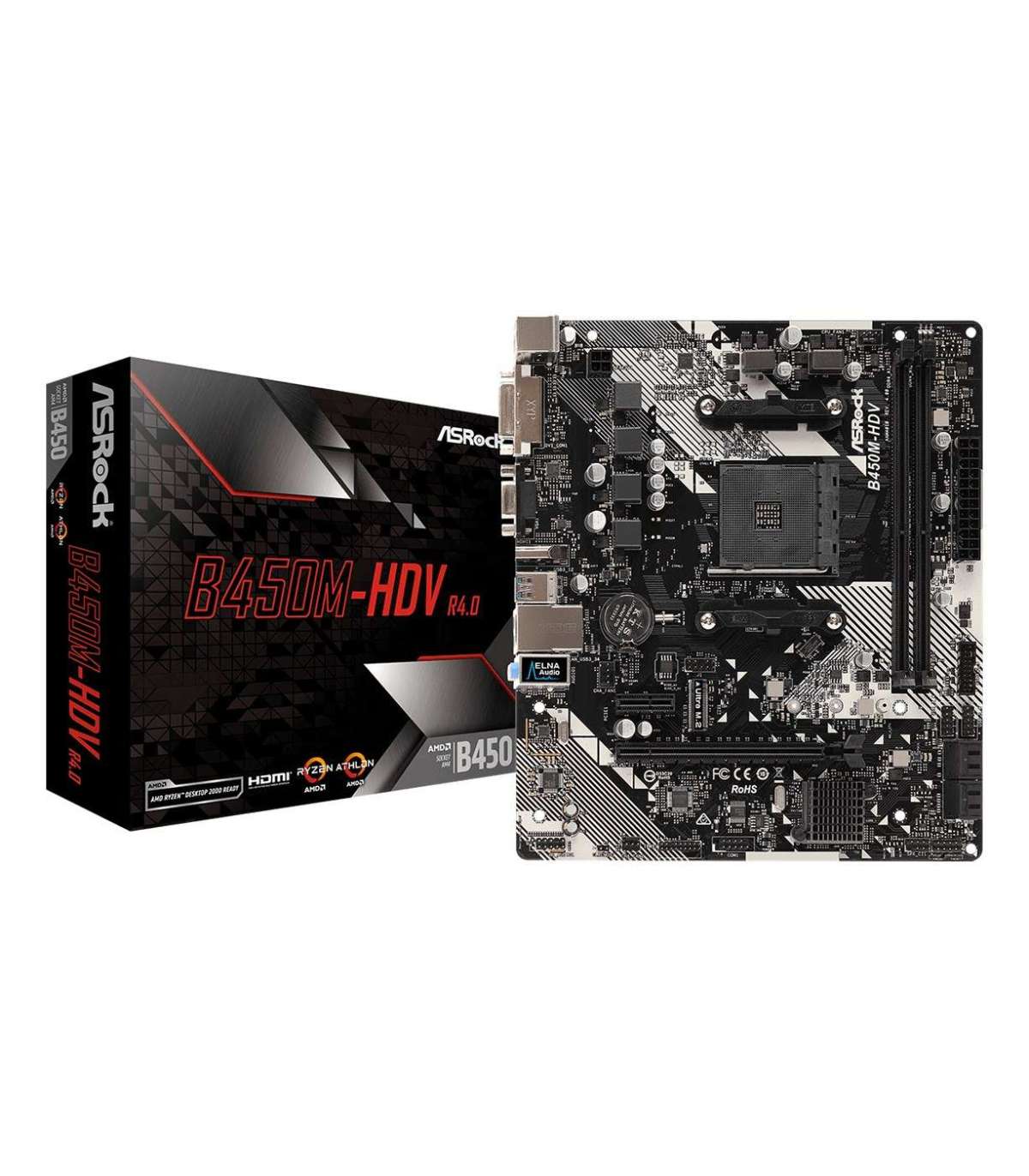

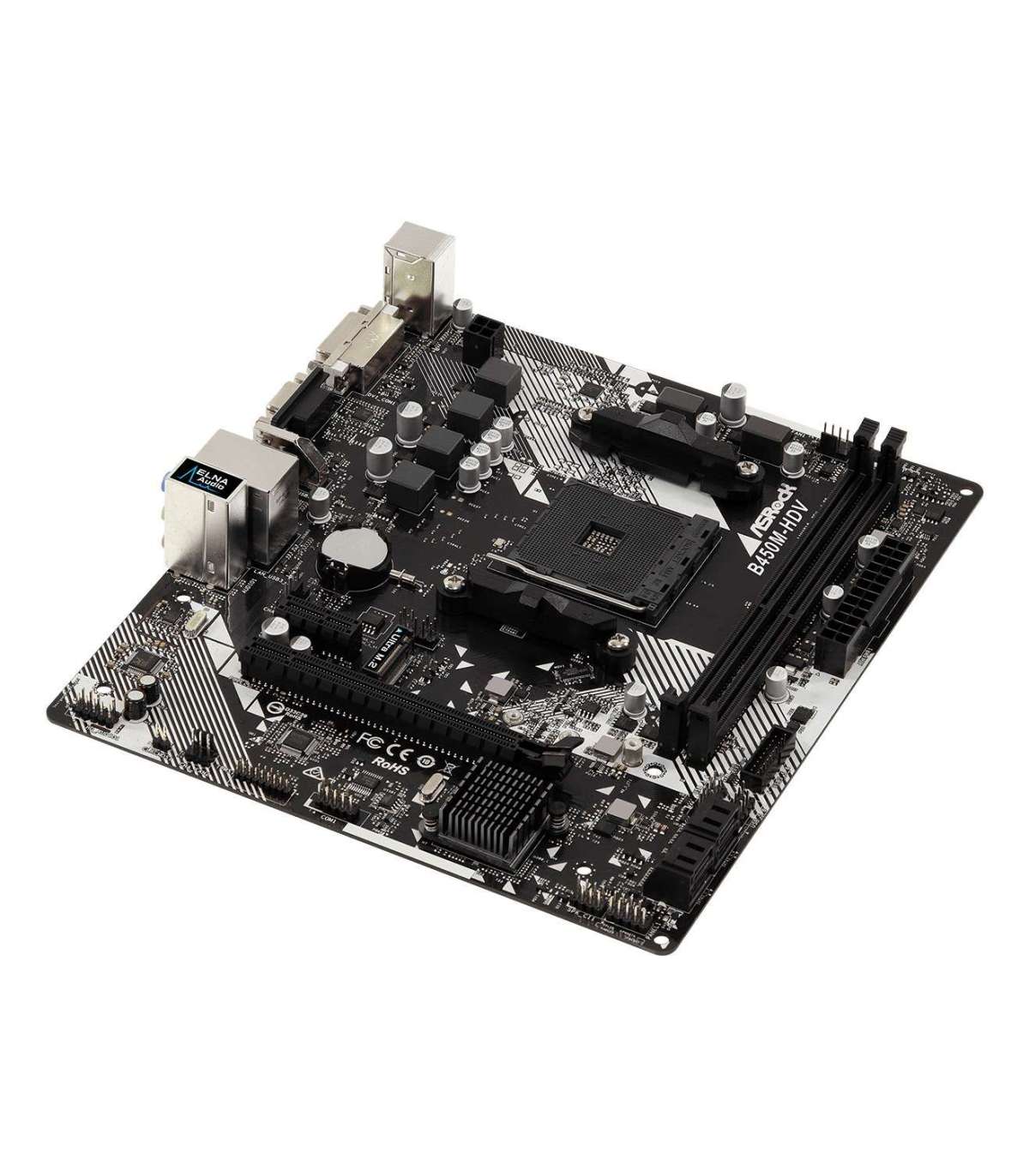

Asrock B450M-HDV R4.0 AMD B450 Socket AM4 micro ATX

Lisainfo

Depth

201 mm

Kaal

465 g

Kõrgus

70 mm

Laius

230 mm

Ethernet LAN

Yes

Cables included

SATA

Quick installation guide

Yes

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 Education x64
Windows 10 Enterprise x64
Windows 10 Home x64
Windows 10 Pro x64
Windows 10 x64

Harmonized System (HS) code

84733020

Warnings

Avoid direct contact with sensitive electronic components.
Dispose of according to local electro-waste regulations.
Store away from water and sources of moisture.

Certification

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wake-on-LAN ready

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

Yes

Maximum internal memory

32 GB

Motherboard chipset

AMD B450

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC887

Bundled software

AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Headphone outputs

1

USB 2.0 connectors

2

Graphics card family

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Athlon
AMD Ryzen 2000 Series
AMD Ryzen 3000 Series

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2667
2933
3200 MHz

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Number of chassis fan connectors

2

Front panel audio connector

Yes

Number of COM connectors

1

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

3

ECC сompatibility

ECC & Non-ECC

Drivers included

Yes

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Clear CMOS jumper

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
10

HDCP

Yes

DirectX version

12.0

DVI-D ports quantity

1

PCI Express x1 (Gen 2.x) slots

1

Utilities included

Yes
