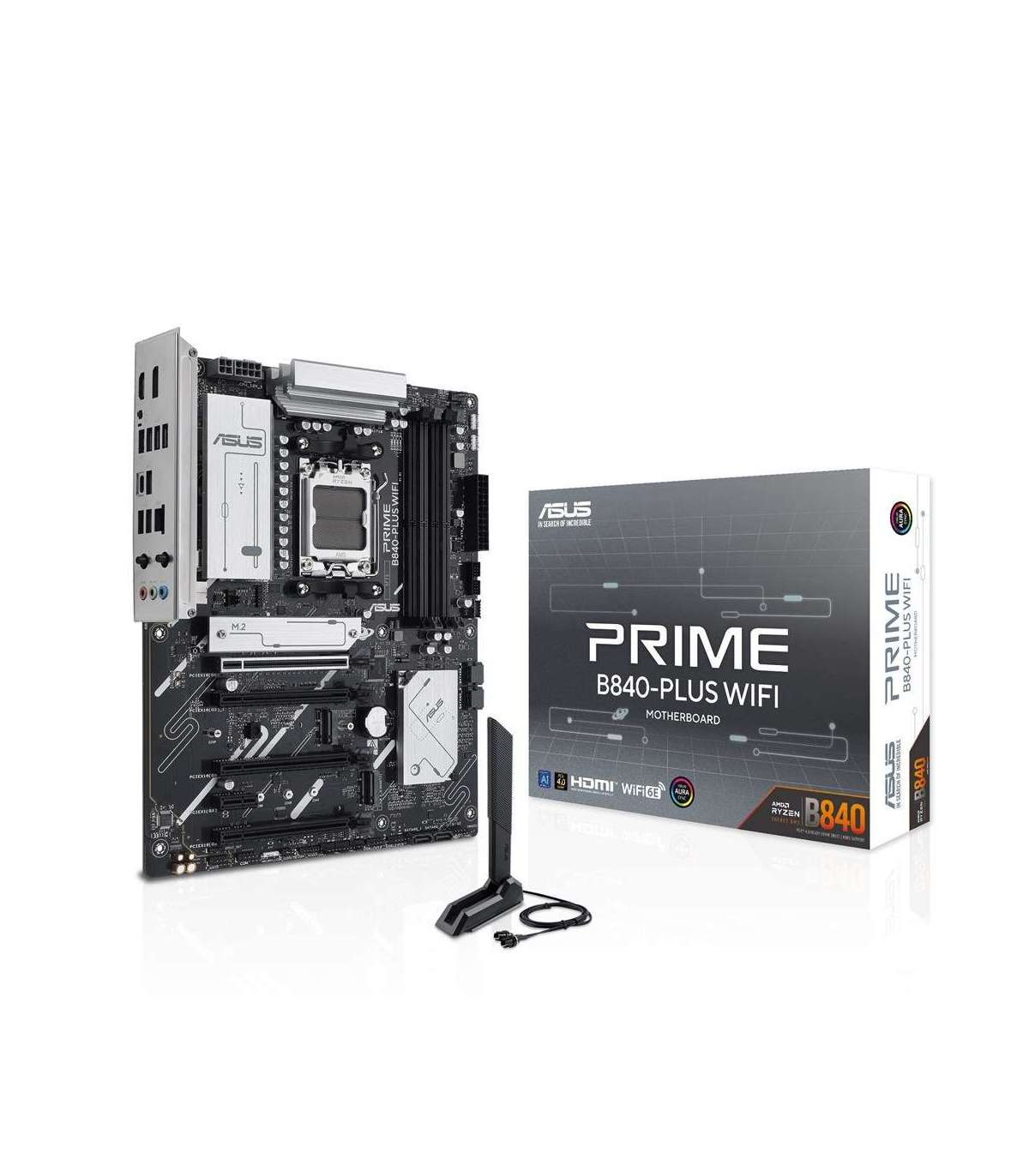

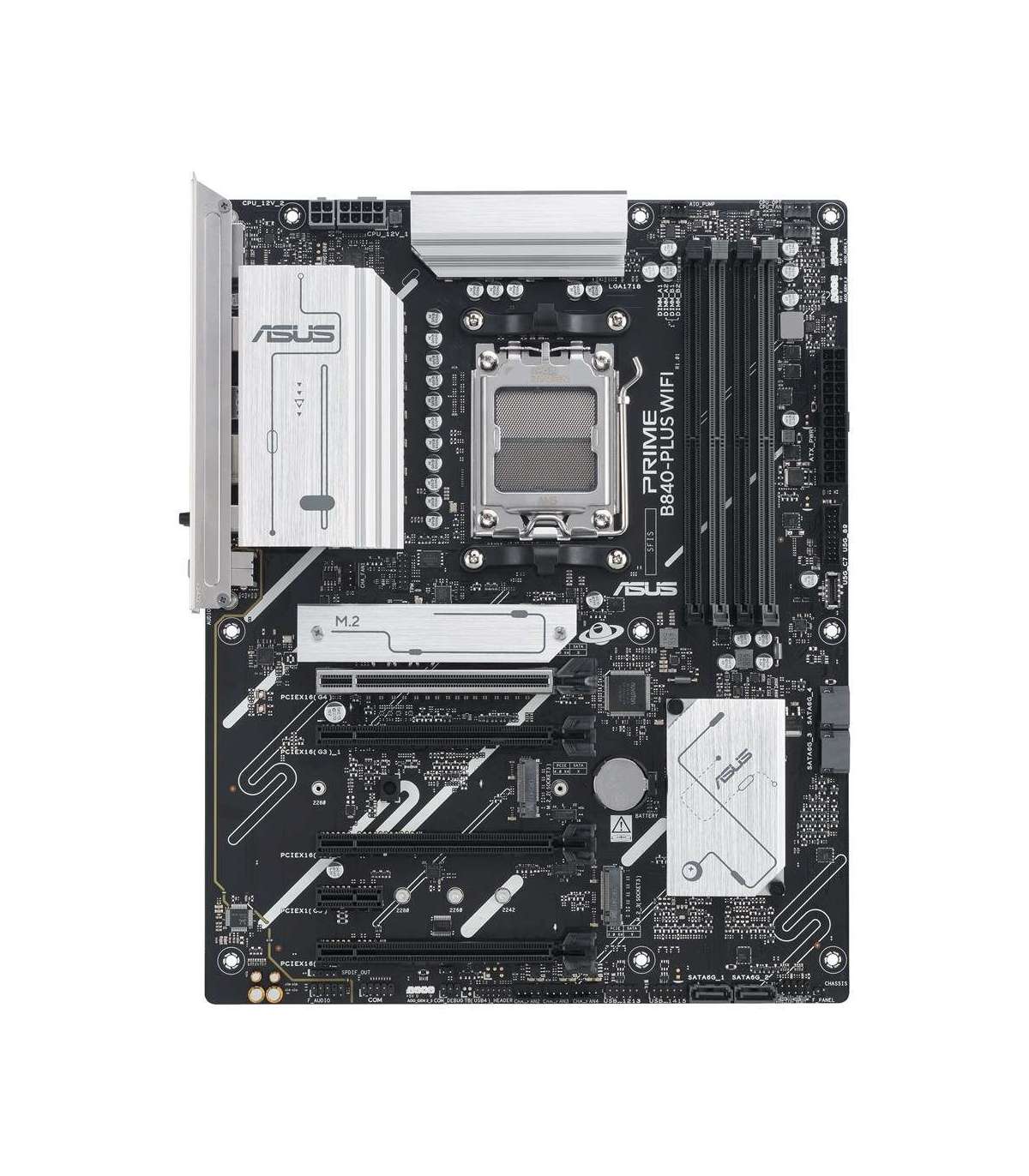

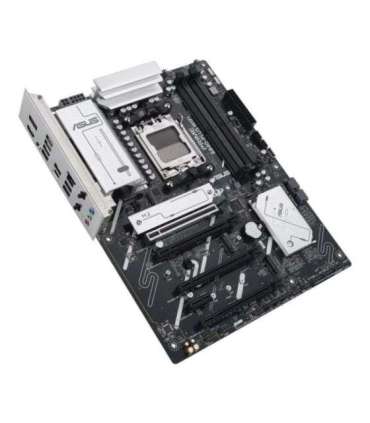

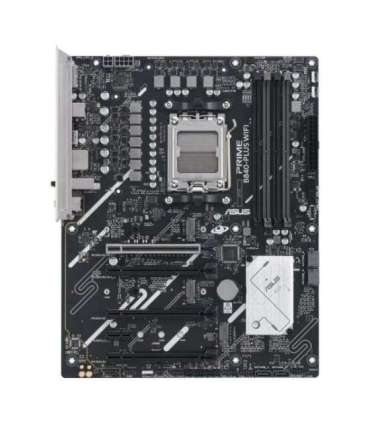

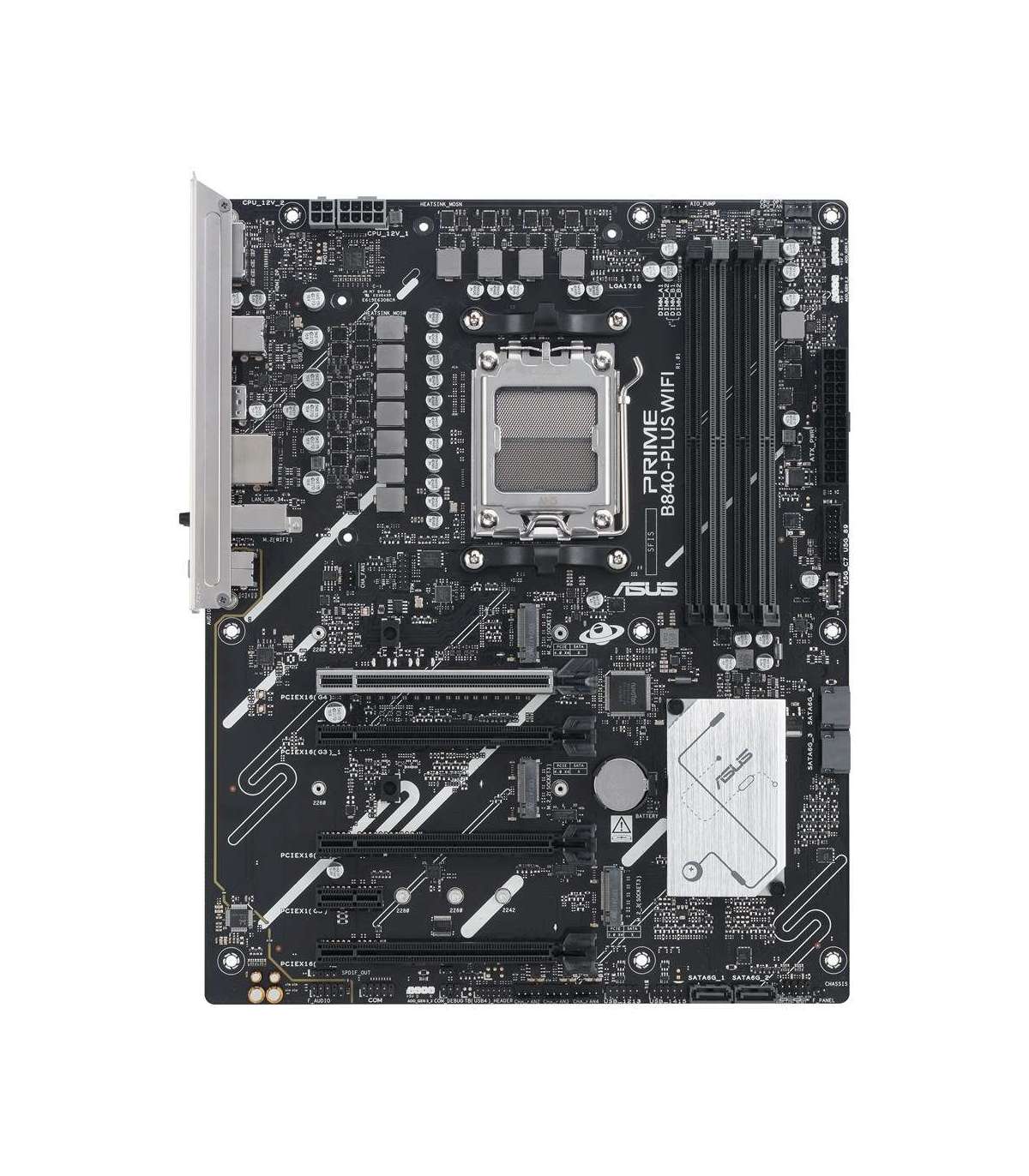

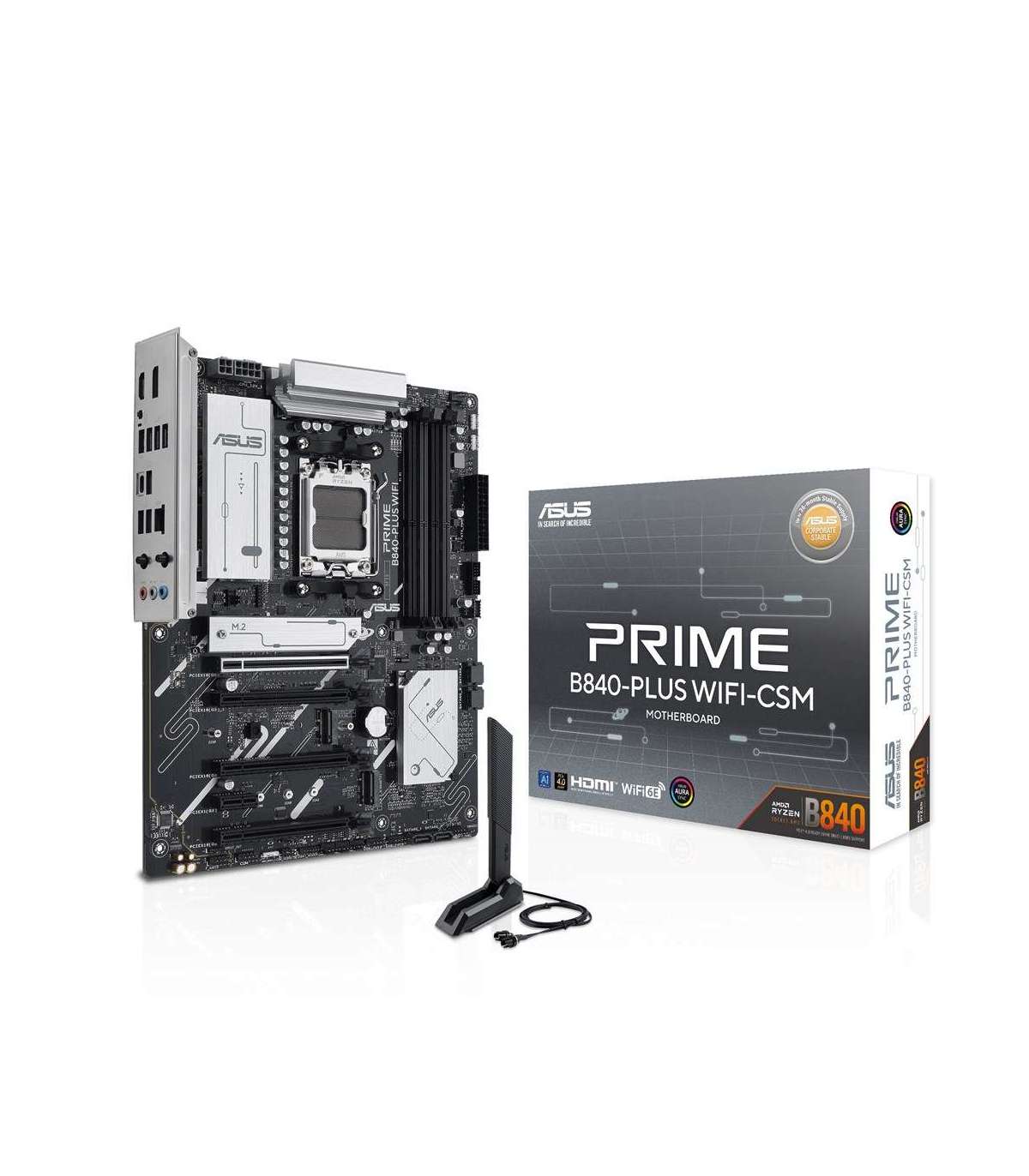

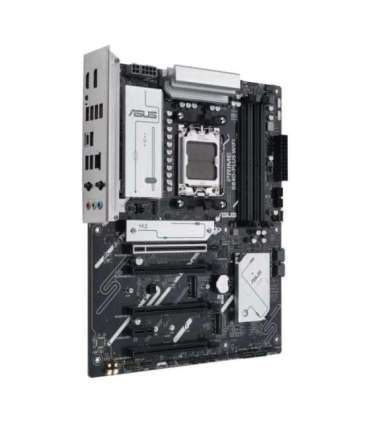

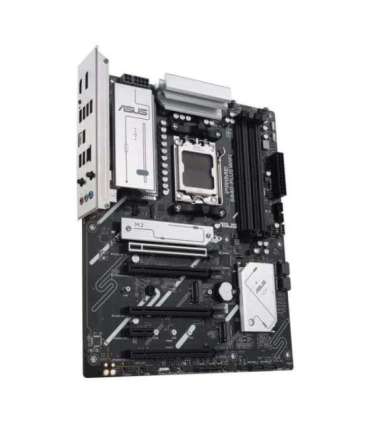

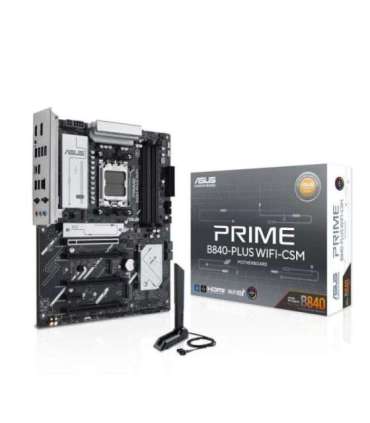

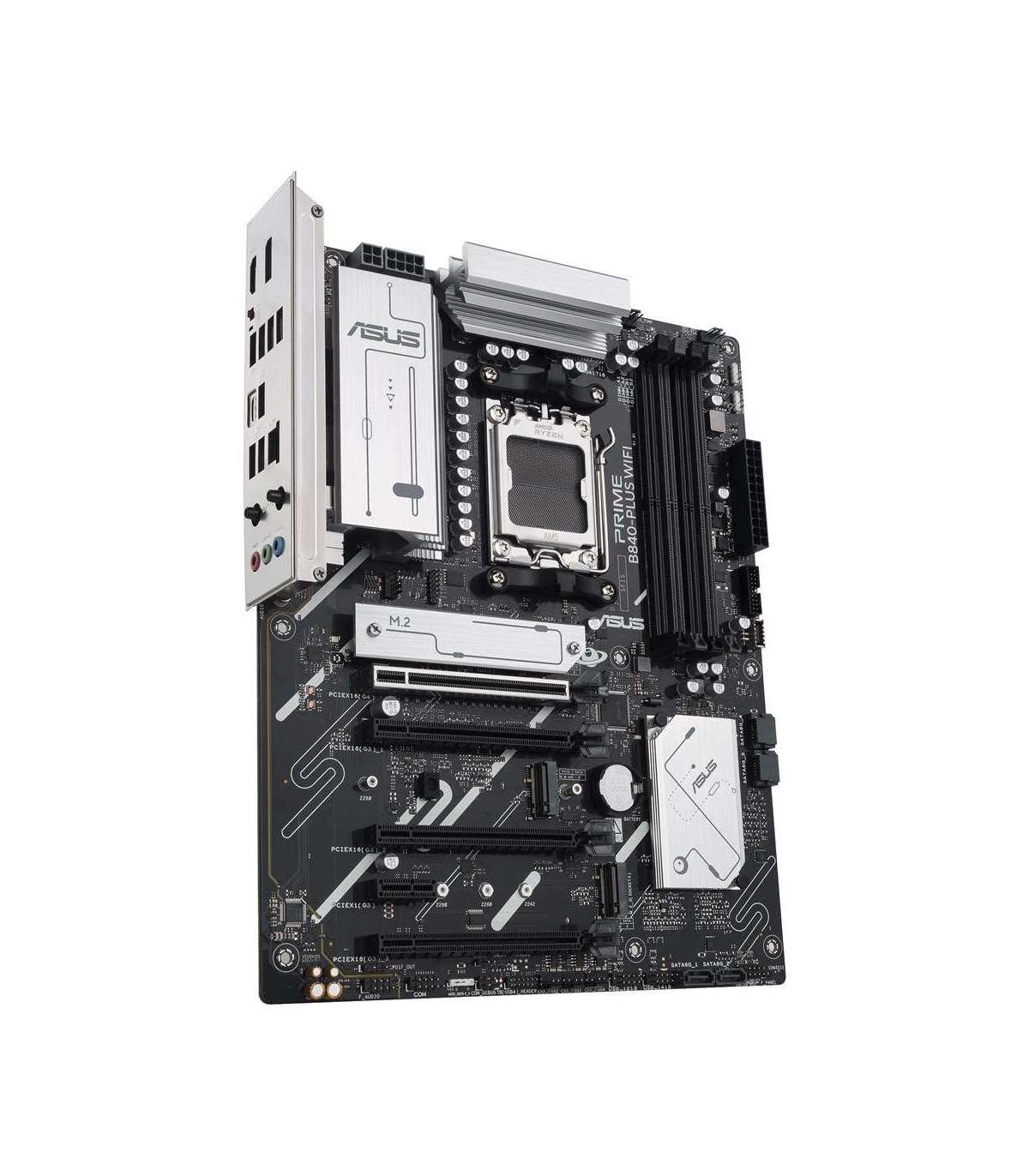

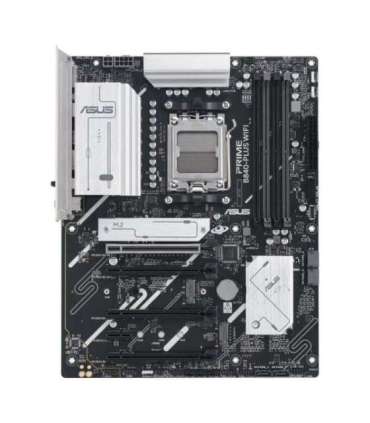

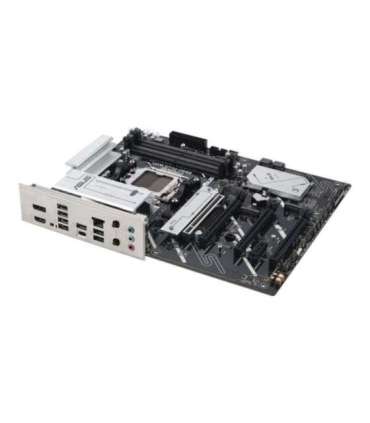

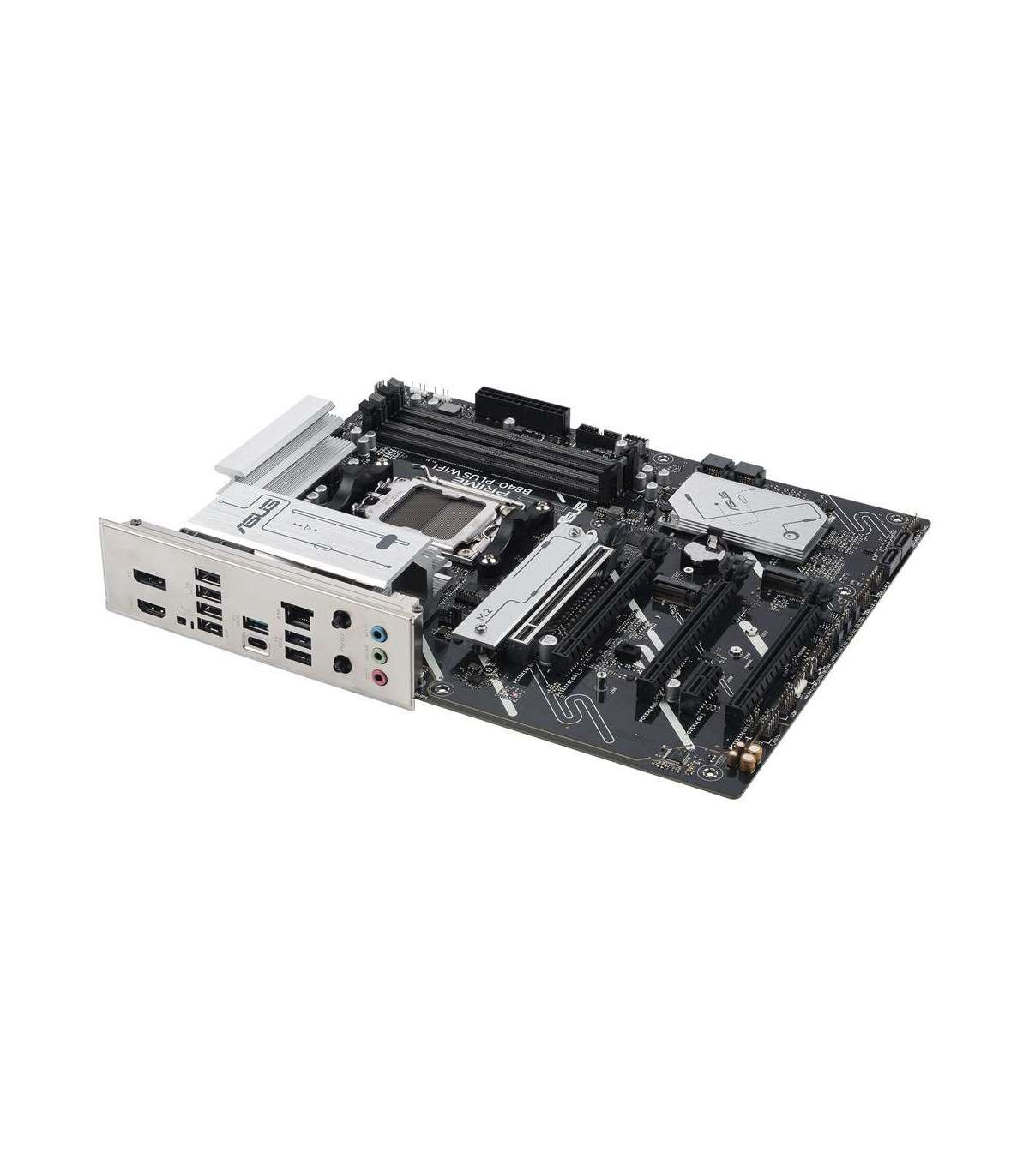

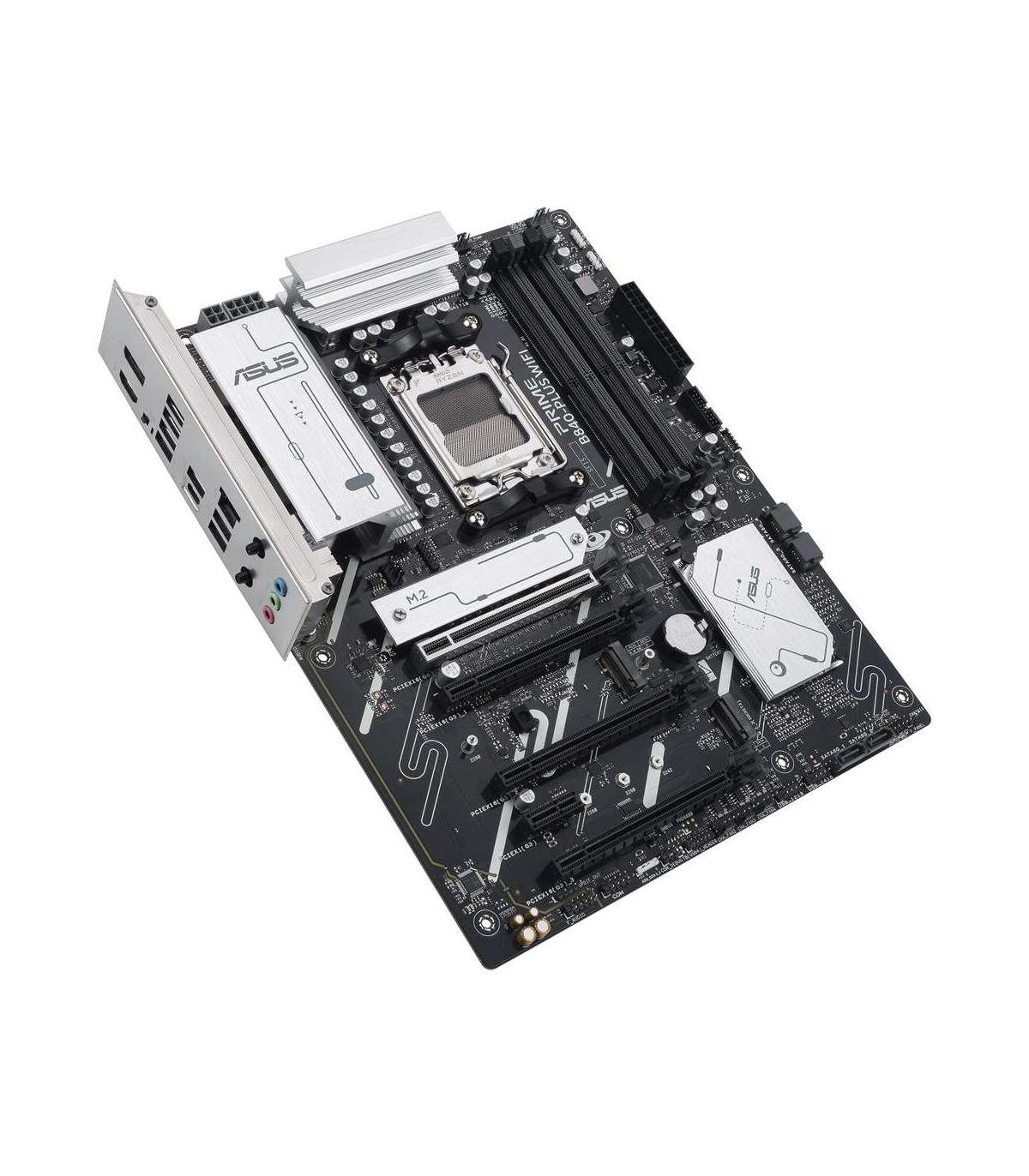

ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX

Lisainfo

Depth

244 mm

Laius

305 mm

Package weight

1.26 kg

Product colour

Aluminium
Must

Ethernet LAN

Yes

Cables included

SATA

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64
Windows 11

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Warnings

Do not disassemble to avoid damage to internal components and loss of warranty.

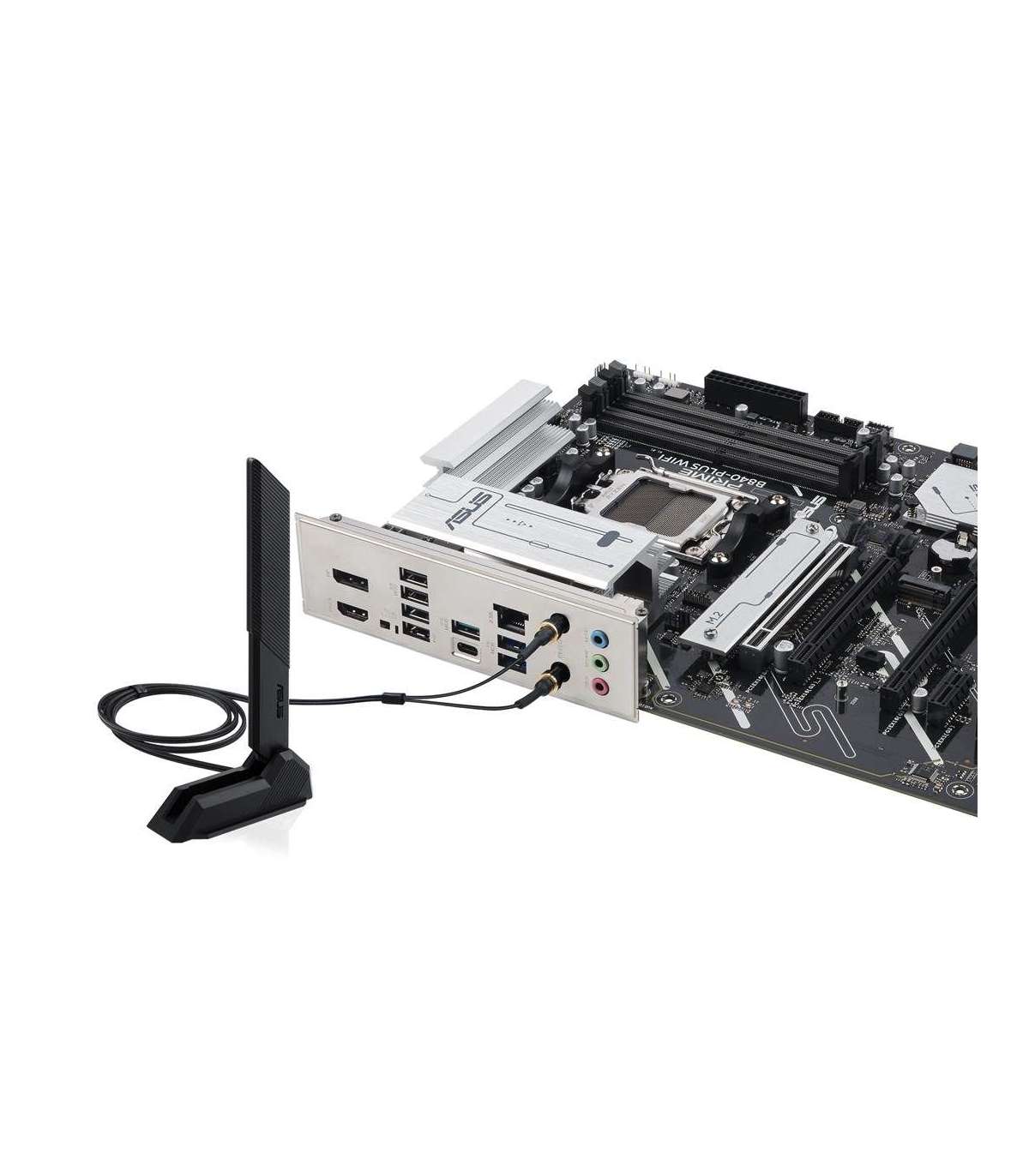

Antenna included

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

4

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

On-board graphics card

No

Maximum internal memory

192 GB

Bluetooth version

5.3

Bluetooth

Yes

Motherboard chipset

AMD B840

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Memory channels

Dual-channel

USB 2.0 connectors

2

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series
AMD Ryzen 8000 Series
AMD Ryzen 9000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Unbuffered memory

Yes

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR5-SDRAM

Number of chassis fan connectors

4

Front panel audio connector

Yes

Number of COM connectors

1

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

BIOS type

UEFI AMI

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

PCI Express x16 (Gen 3.x) slots

3

PCI Express x1 (Gen 3.x) slots

1

ECC сompatibility

ECC & Non-ECC

Parallel processing technology support

Not supported

Number of SATA III connectors

4

12V power connector

Yes

Chassis intrusion connector

Yes

TPM connector

Yes

Supported storage drive types

HDD & SSD

RAID levels

0
1
5
10

DisplayPorts quantity

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Number of storage drives supported

7

RAID support

Yes

S/PDIF out connector

Yes

Screws included

Yes

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

WiFi-AP antenna jack

1

Thunderbolt headers

1

3rd M.2 highest PCI Express generation

3.0

3rd M.2 largest key size

2280
