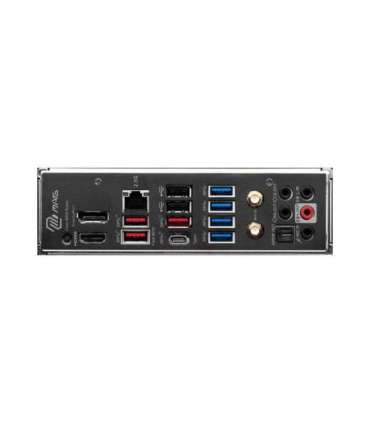

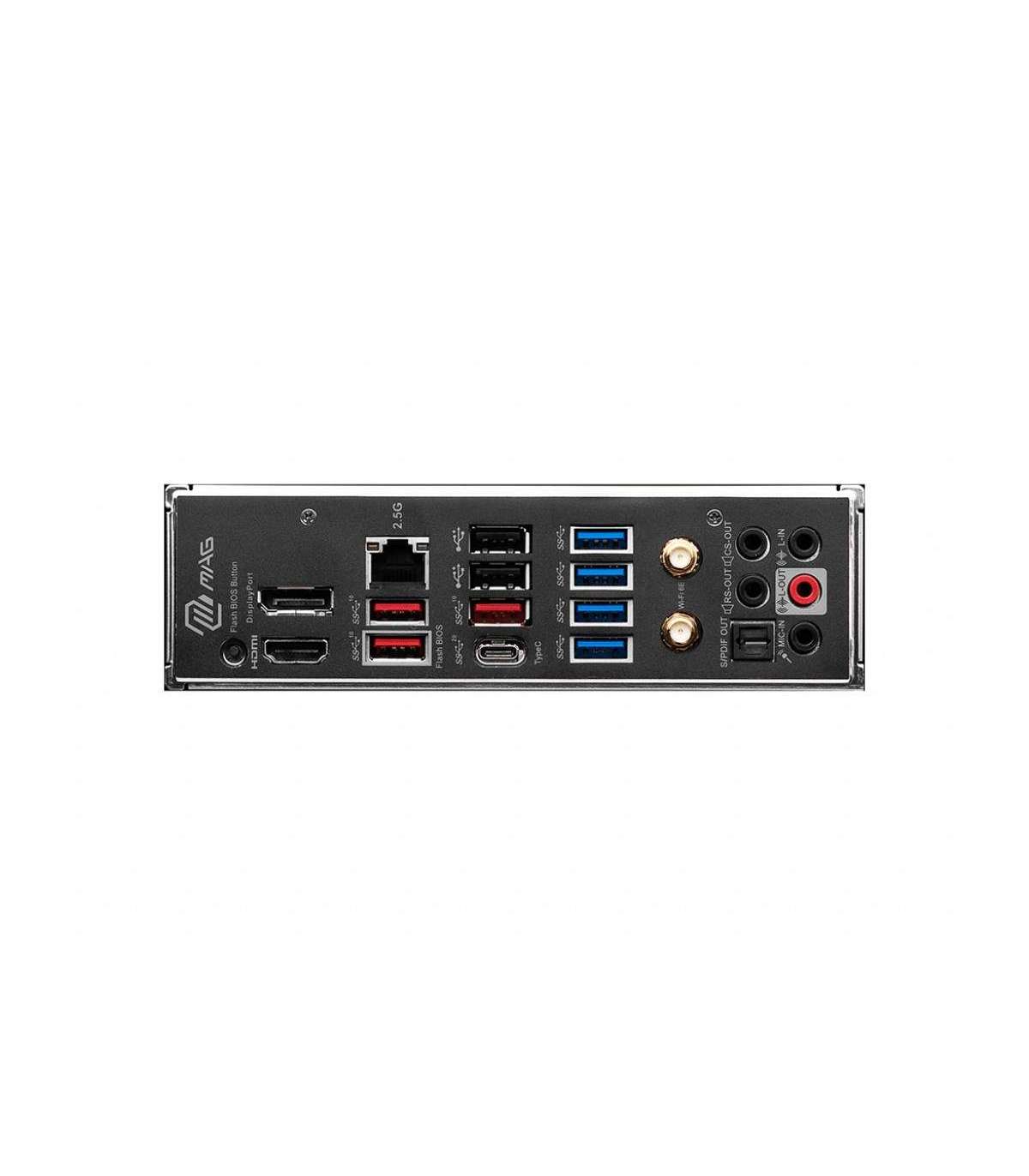

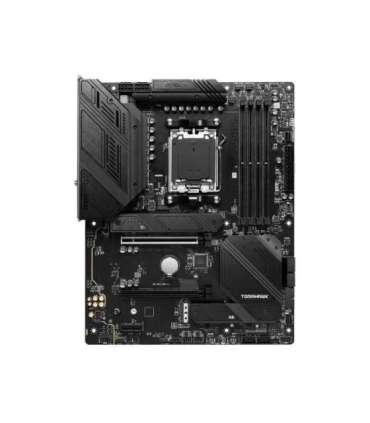

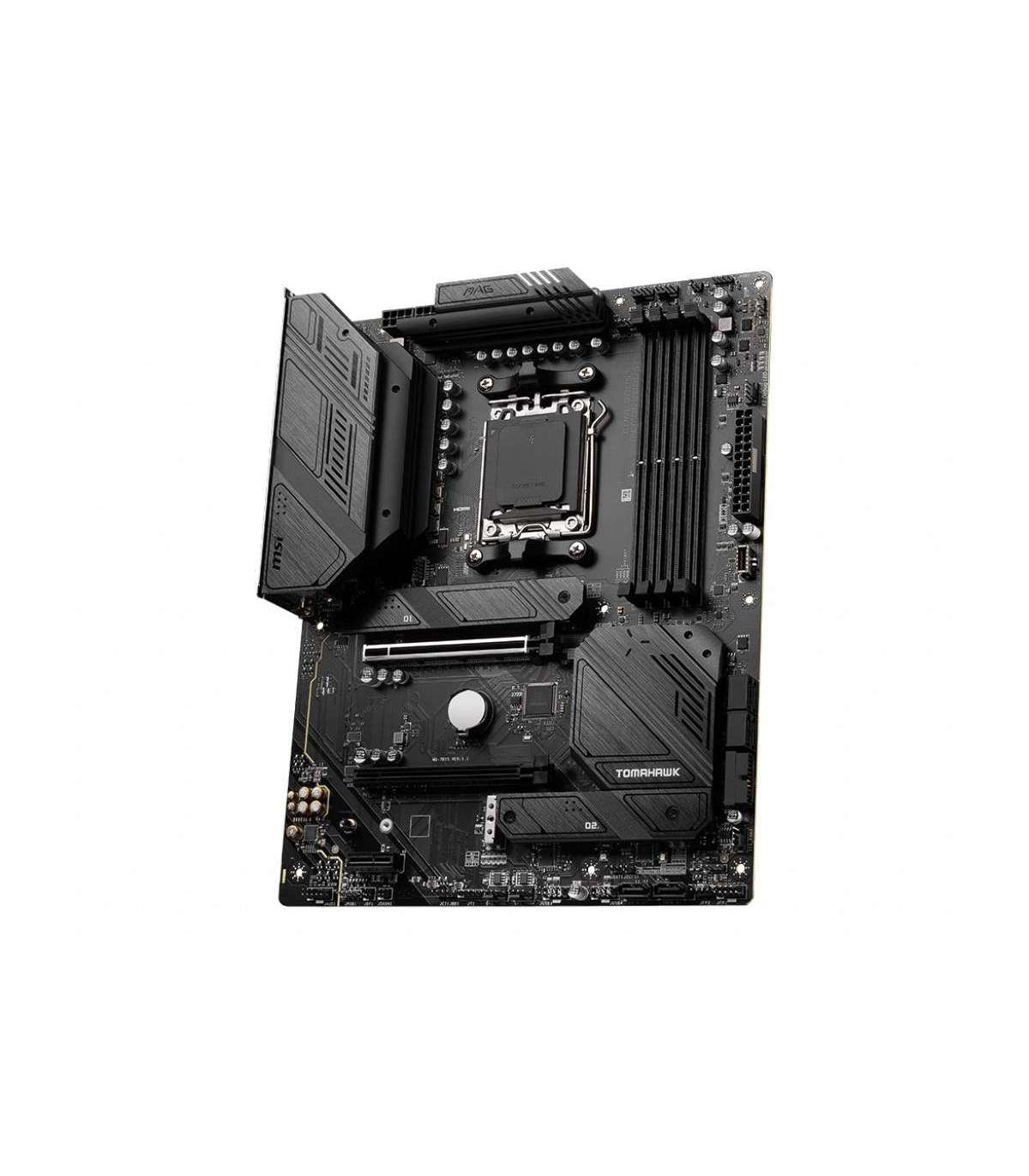

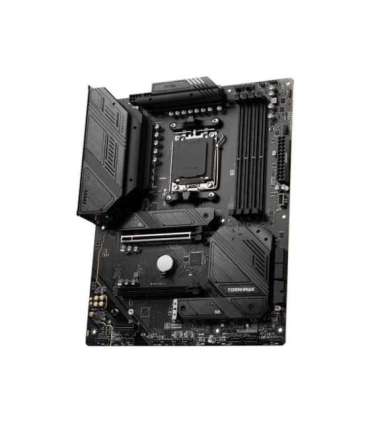

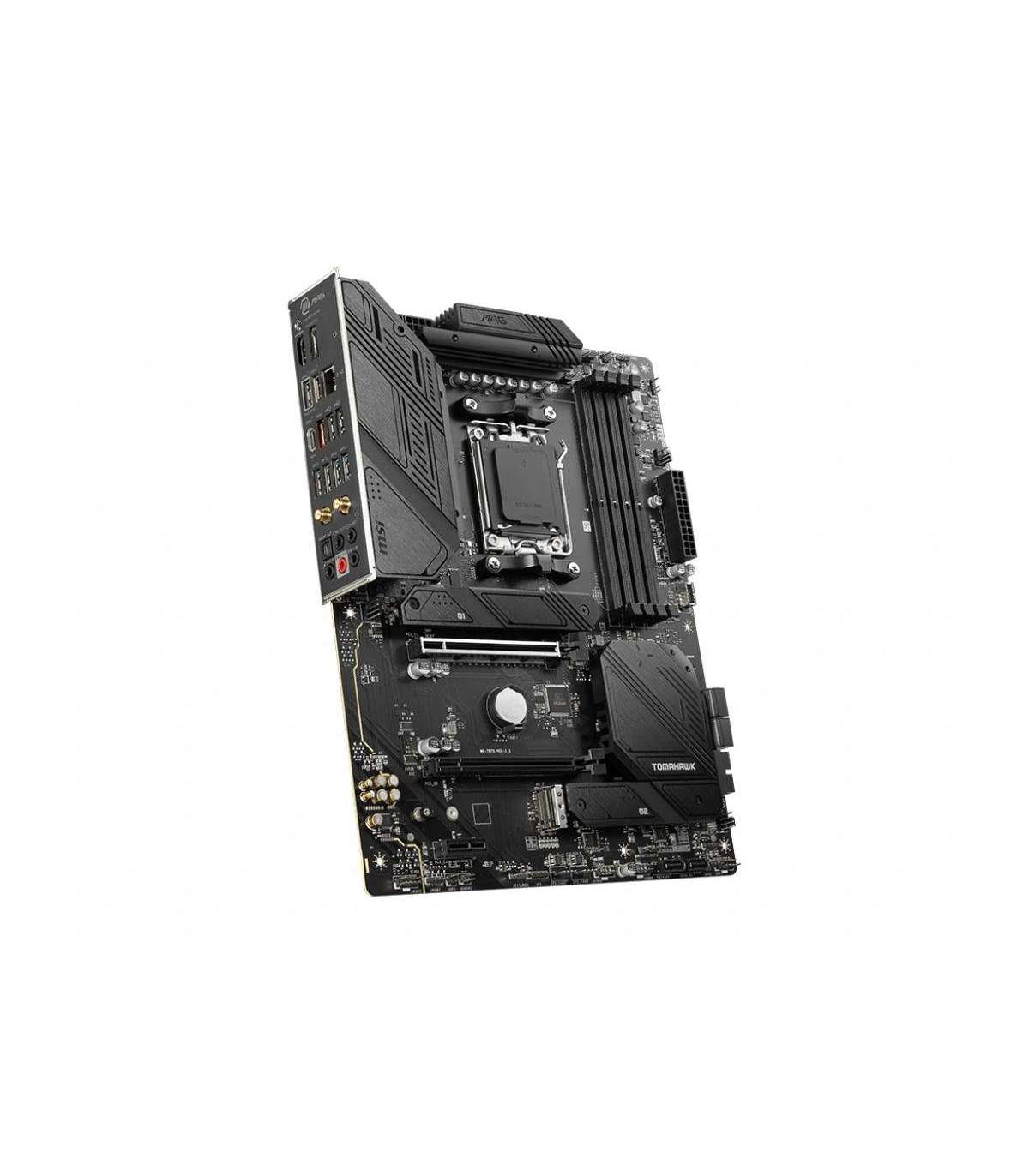

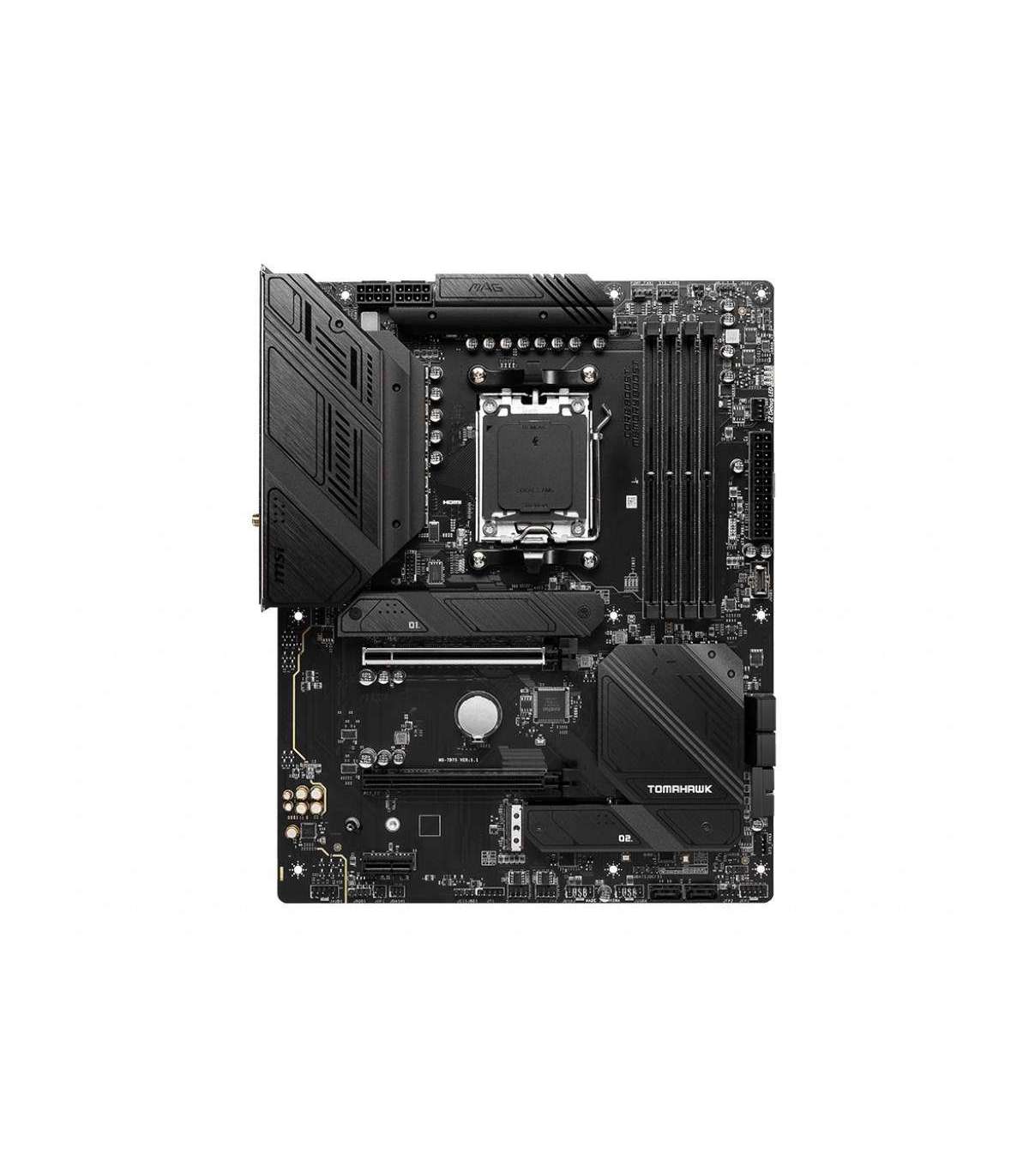

MSI MAG B650 Tomahawk WIFI AMD B650 Socket AM5 ATX

Lisainfo

Depth

243.8 mm

Laius

304.8 mm

Product colour

Must

Ethernet LAN

Yes

Wi-Fi standards

802.11a
802.11b
802.11g
Wi-Fi 4 (802.11n)
Wi-Fi 5 (802.11ac)
Wi-Fi 6E (802.11ax)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 11 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Bluetooth version

5.2

Bluetooth

Yes

Motherboard chipset

AMD B650

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

HDMI ports quantity

1

Audio chip

Realtek ALC4080

USB 3.2 Gen 2x2 Type-C ports quantity

1

Headphone outputs

1

USB 2.0 connectors

4

Processor socket

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

4800
5000
5200
5400
5600
5800
6000
6200
6400 MHz
6600

Number of memory slots

4

Supported memory types

DDR5-SDRAM

LAN controller

Realtek RTL8125B

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Supported storage drive interfaces

M.2, SATA

Microphone in

Yes

PCI Express x16 (Gen 3.x) slots

1

ECC сompatibility

Non-ECC

PC health monitoring

Fan

Number of SATA III connectors

6

Chassis intrusion connector

Yes

RAID levels

0
1
10

S/PDIF out port

Yes

Number of M.2 (M) slots

3

Supported processor sockets

Socket AM5

Front panel connector

Yes

RAID support

Yes
