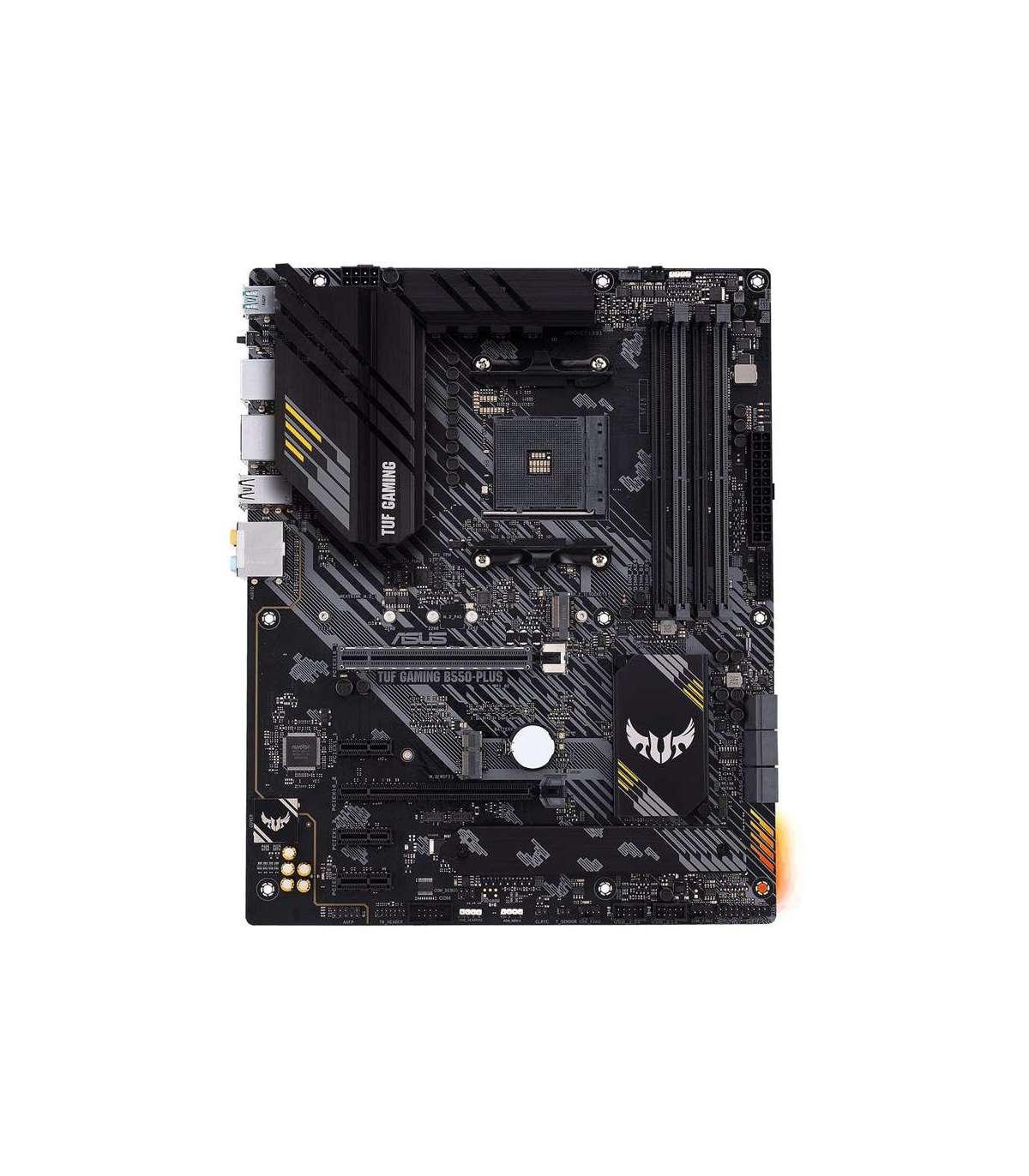

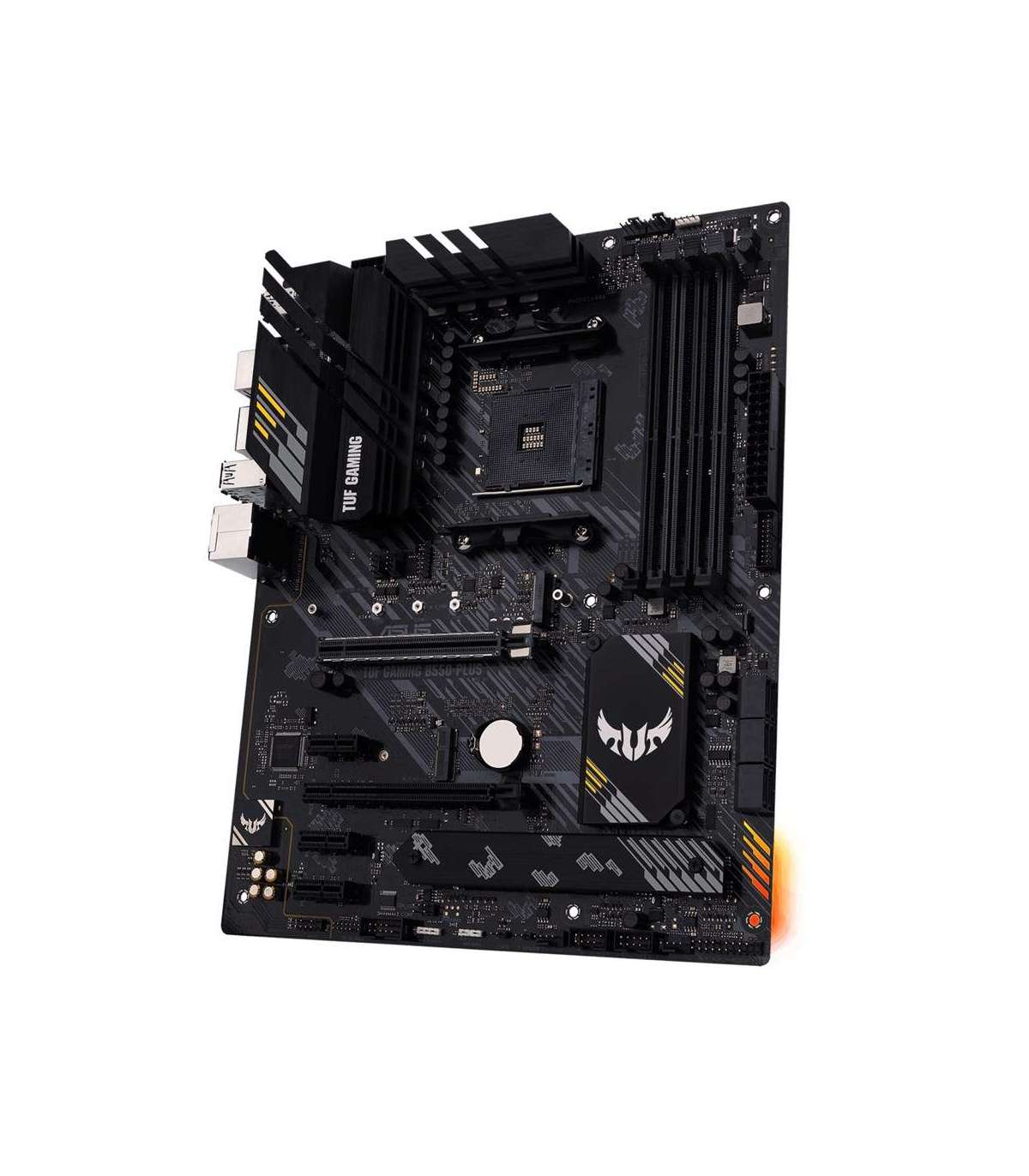

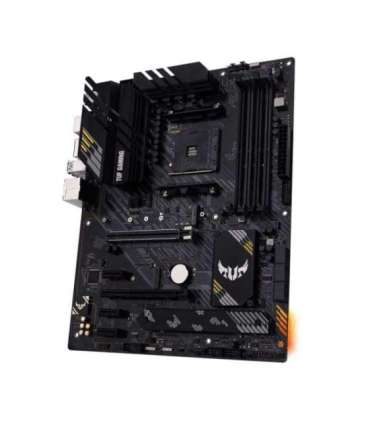

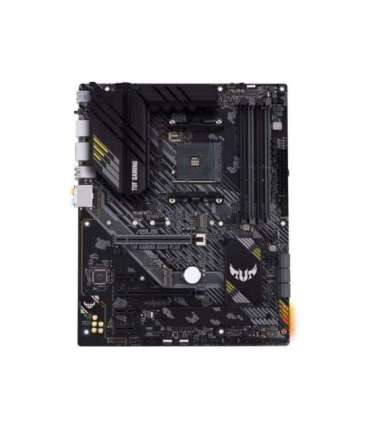

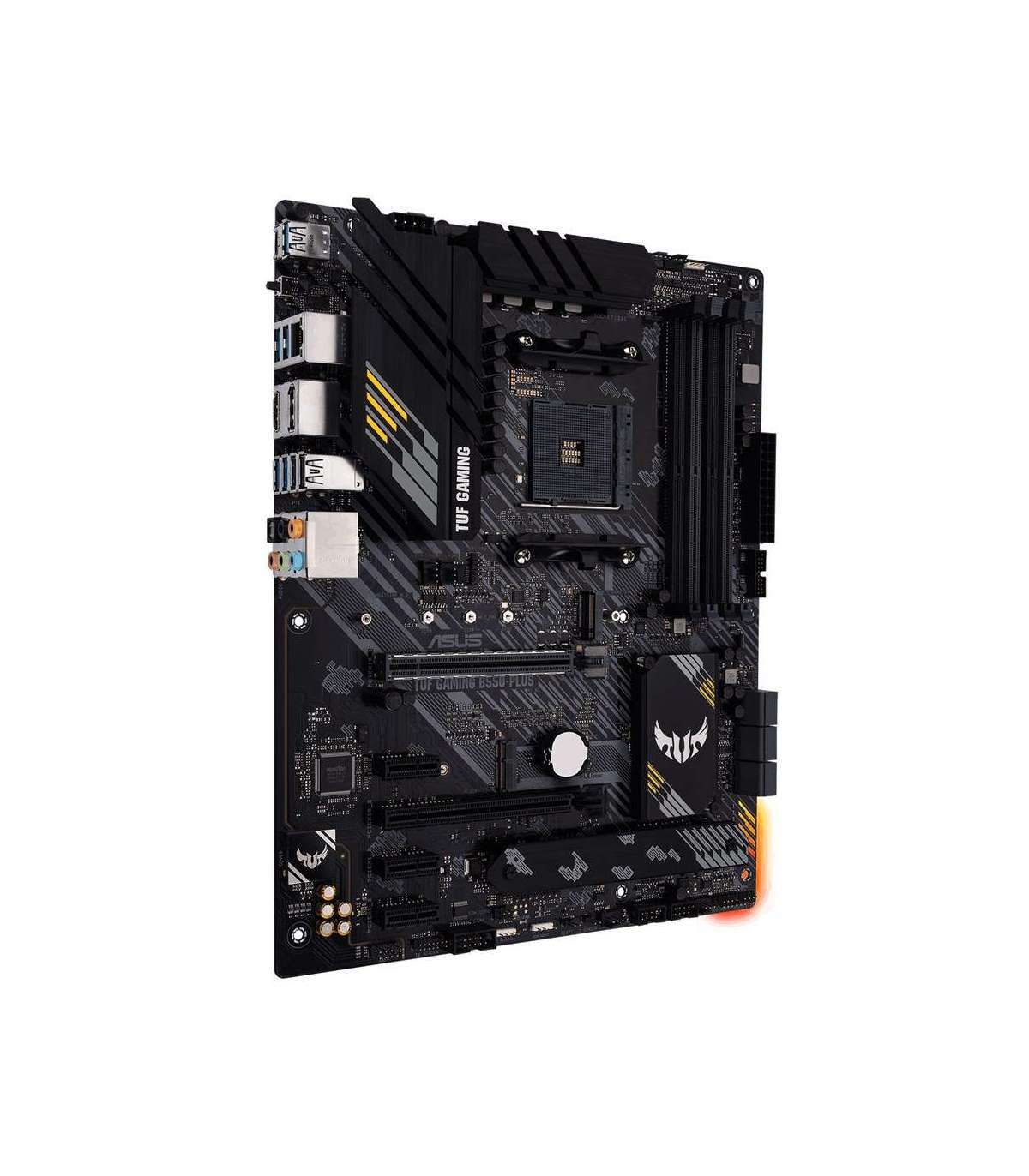

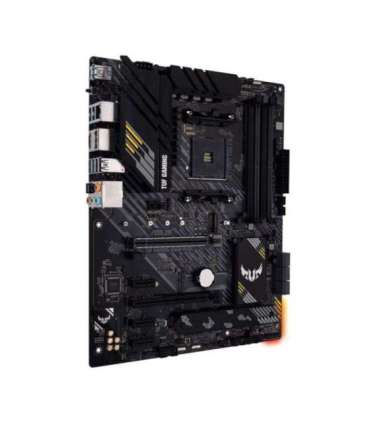

ASUS TUF Gaming B550-PLUS Socket AM4 ATX AMD B550

Lisainfo

Depth

244 mm

Laius

305 mm

Ethernet LAN

Yes

Cables included

SATA

Ethernet LAN (RJ-45) ports

1

Windows operating systems supported

Windows 10 x64

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Processor manufacturer

AMD

Maximum internal memory

128 GB

Motherboard chipset

AMD B550

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

HDMI ports quantity

1

Memory channels

Dual-channel

Audio chip

Realtek ALC S1200A

USB 2.0 connectors

2

Processor socket

Socket AM4

Compatible processor series

3rd Generation AMD Ryzen 5
3rd Generation AMD Ryzen™ 3
3rd Generation AMD Ryzen™ 7
3rd Generation AMD Ryzen™ 9

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Supported memory clock speeds

2133
2400
2666
2800
3000
3200
3333
3466
3600
3733
3866
4000
4133
4266
4400
4600

Memory slots type

DIMM

Number of memory slots

4

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8125B

Number of chassis fan connectors

3

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

BIOS type

UEFI AMI

Supported storage drive interfaces

M.2, Serial ATA

PS/2 ports quantity

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

3

Drivers included

Yes

Maximum number of SMP processors

1

Parallel processing technology support

2-Way CrossFireX

Number of SATA III connectors

6

TPM connector

Yes

Clear CMOS jumper

Yes

RAID levels

0
1
10

DisplayPorts quantity

1

S/PDIF out port

Yes

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Supported processor sockets

Socket AM4

EPS power connector (8-pin)

Yes

Number of SATA connectors

4
