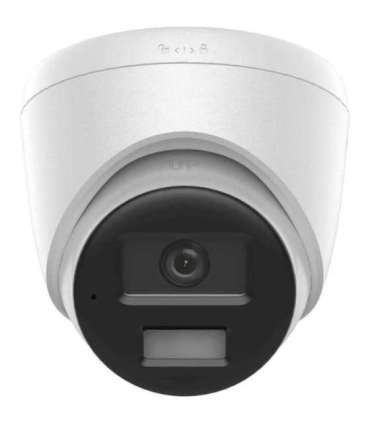

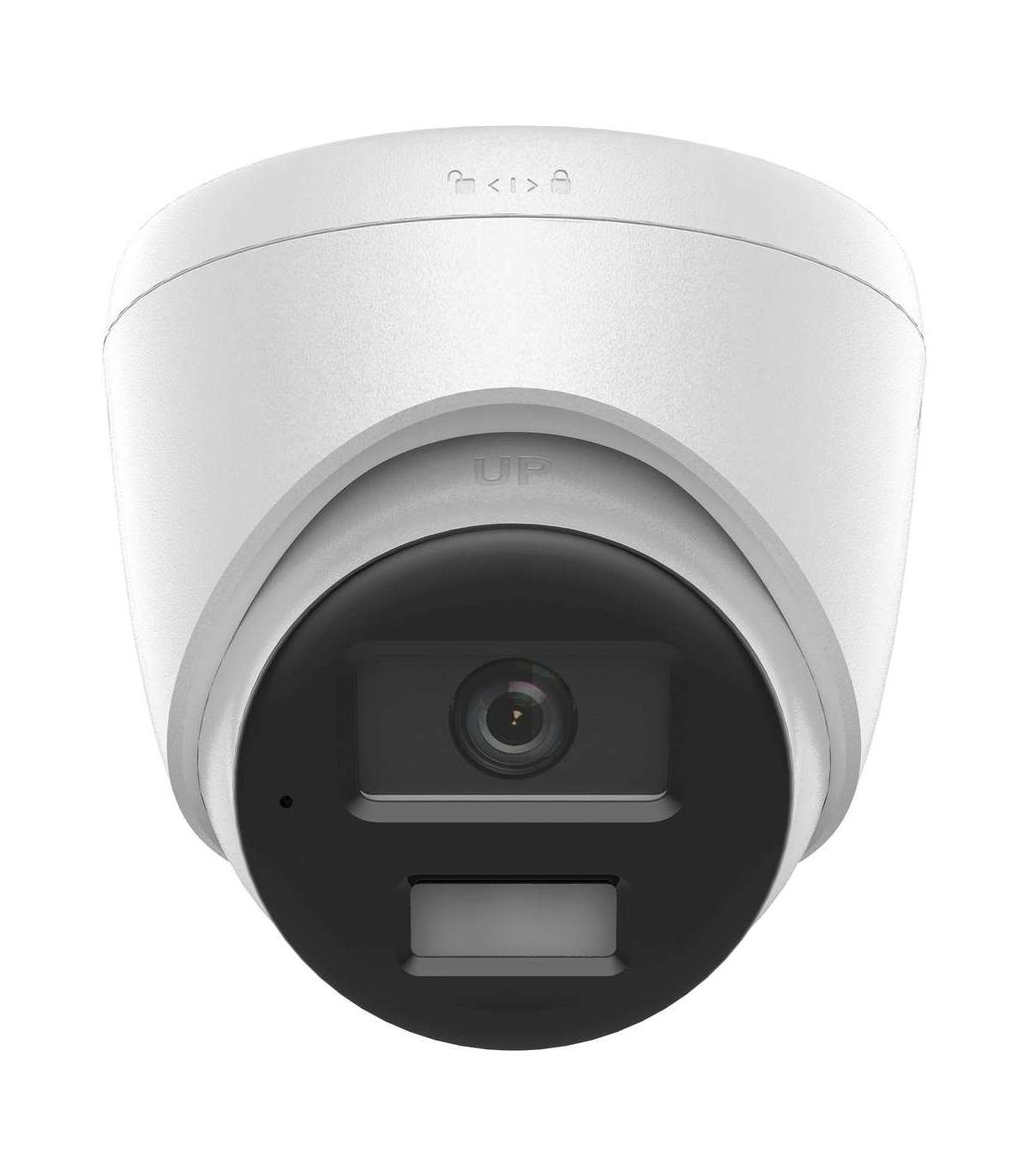

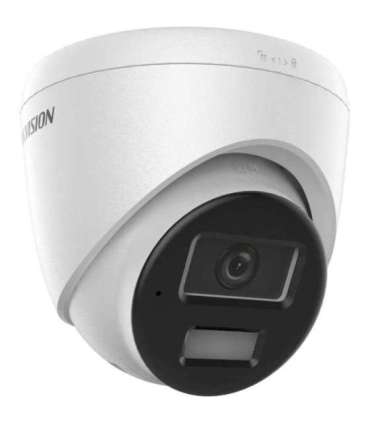

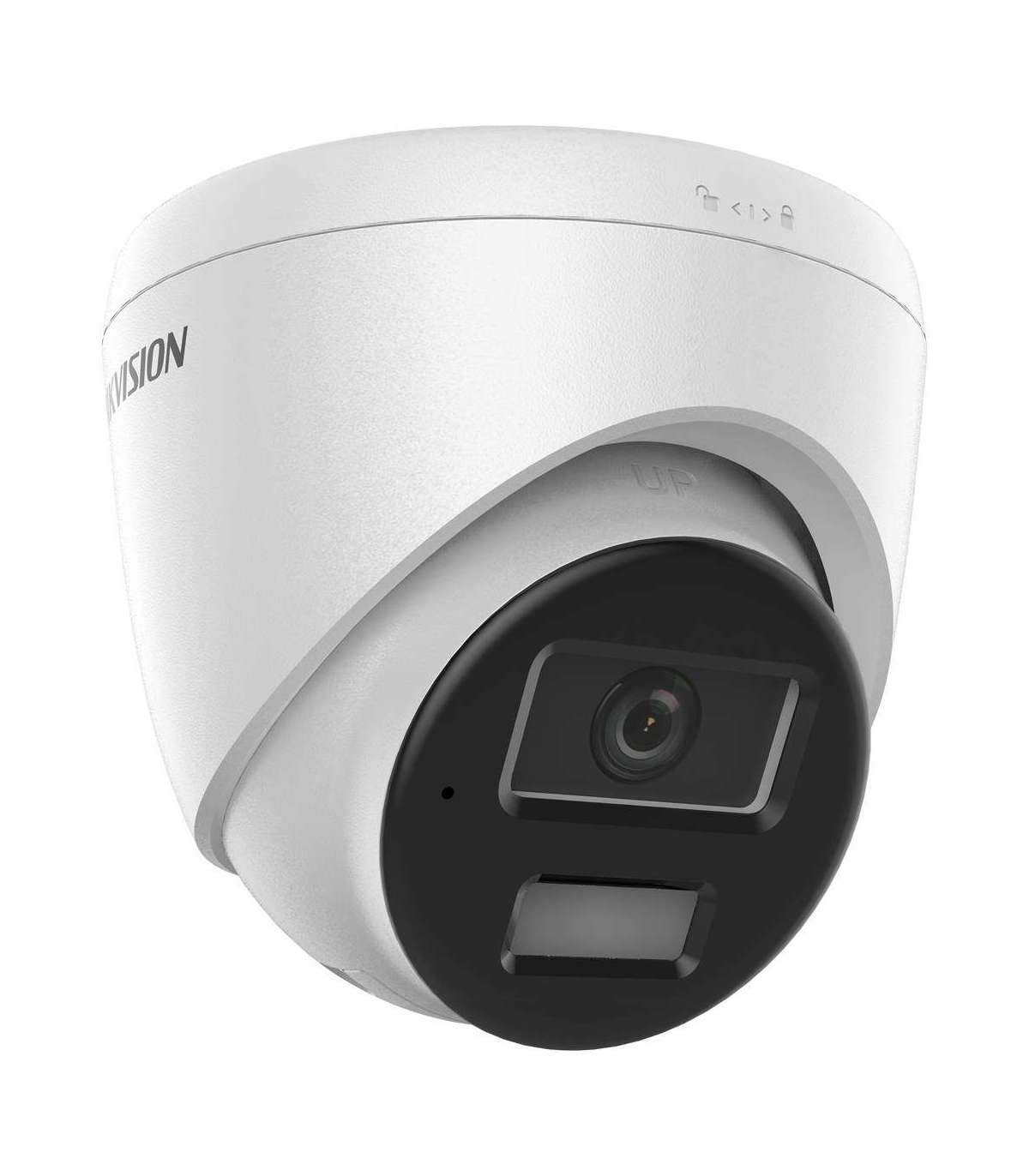

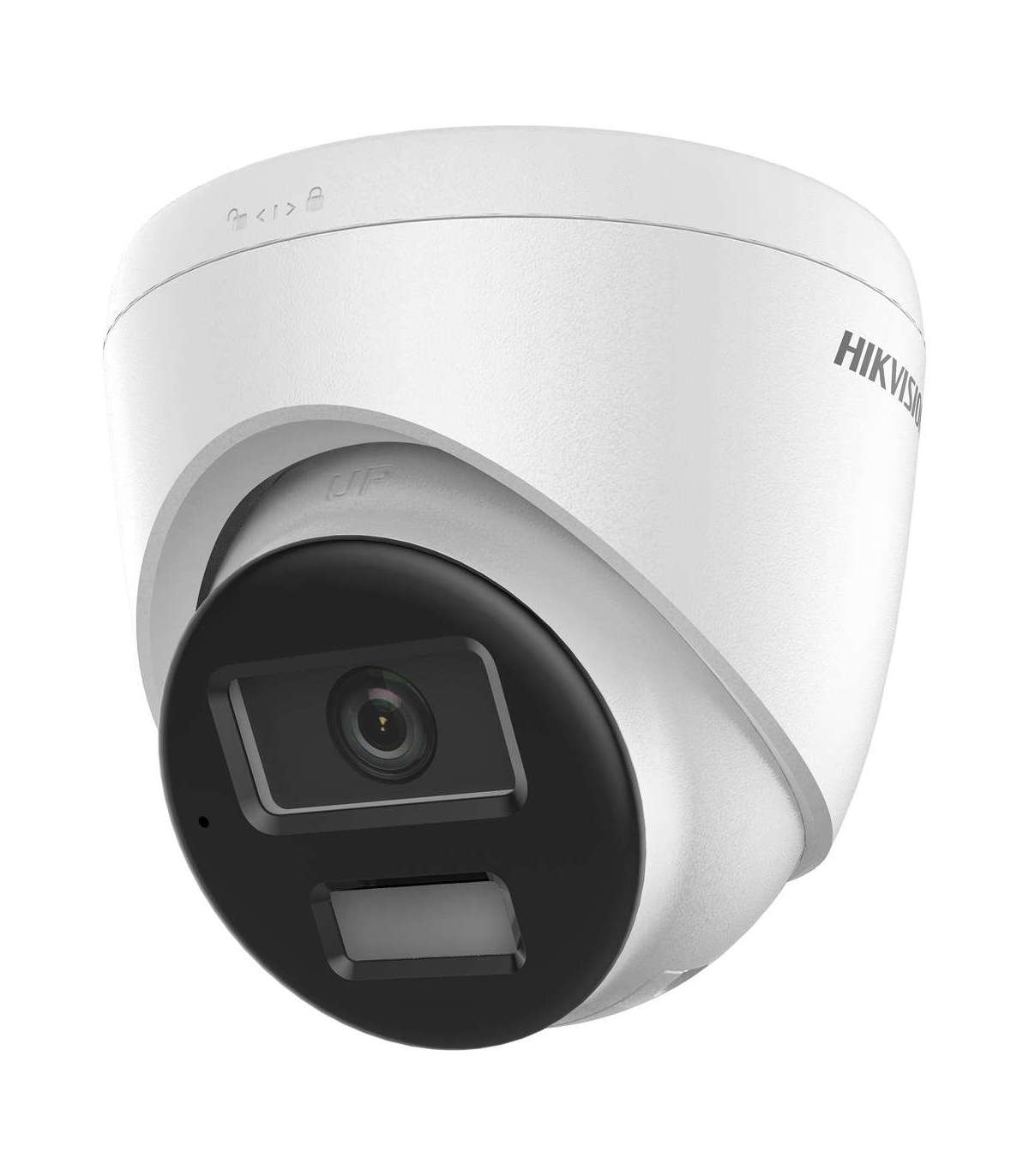

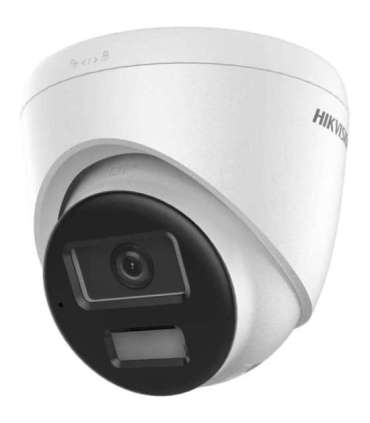

HIKVISION DS-2CD1343G2-LIUF/SL 2.8MM IP CAMERA

Характеристики

Weight

340 g

Height

102.7 mm

Package weight

560 g

Product colour

White

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Ethernet LAN data rates

10,100 Mbit/s

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Sustainability certificates

CE
REACH

Housing material

Metal
Plastic

Power over Ethernet (PoE)

Yes

Connectivity technology

Wired

International Protection (IP) code

IP67

Number of users

32 user(s)

Languages support

Polish

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Dome

Password protection

Yes

Built-in microphone

Yes

Maximum memory card size

512 GB

Optical sensor size

25.4 / 3 mm (1 / 3")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

2560 x 1440 pixels

Type

IP security camera

Diameter

11 cm

Number of cameras

1

Tilt angle range

0 - 75°

Placement supported

Outdoor

Power management

DC 12 V

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

DC output current

0.66 A

Video motion detection

Yes

Total megapixels

4 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR/White

Night vision

Yes

Lens viewing angle, vertical

54°

Lens viewing angle, diagonal

114°

Lens viewing angle, horizontal

98°

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Heartbeat

Yes

Number of languages

1

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Bit rate

32 Kbps - 8 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Minimum illumination

0.005 lx

Observe distance (wide)

25 m

PoE standard

IEEE 802.3af

Highlight Compensation (HLC)

Yes

Identify distance (wide)

6 m

Recognize distance (wide)

12 m

Detect distance (wide)

63 m

Sample rate

8 kHz / 16 kHz
