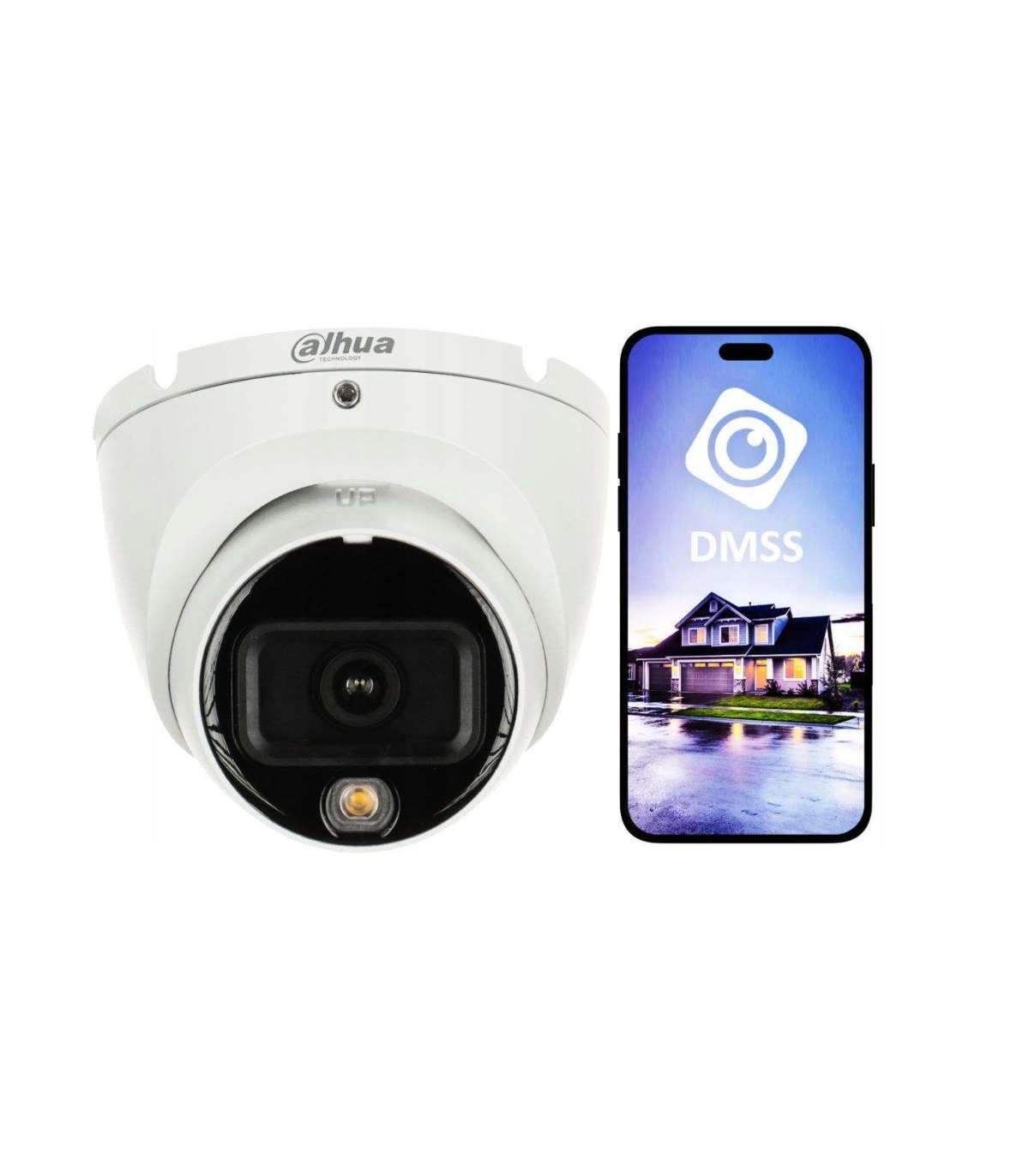

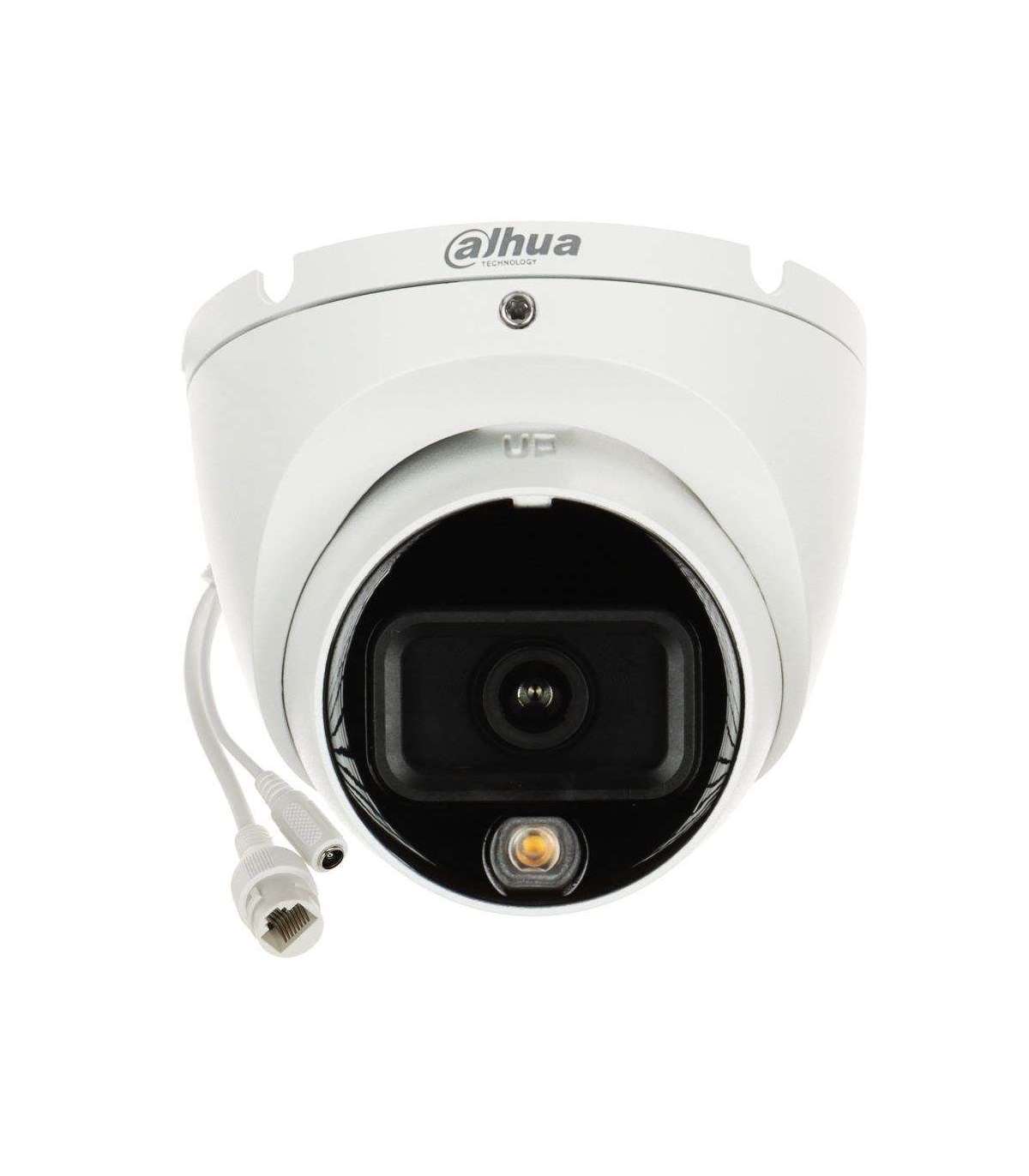

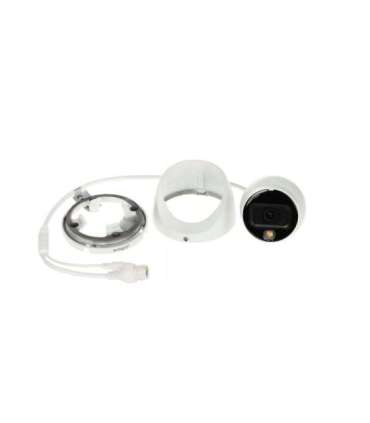

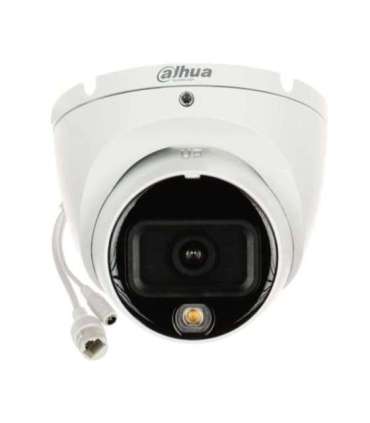

IP Camera DAHUA IPC-HDW1639T-A-IL-0280B-S6 White

Характеристики

Depth

192.7 mm

Weight

340 g

Height

66.4 mm

Width

70.5 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-40 - 60 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN (RJ-45) ports

1

Web-based management

Yes

Networking standards

IEEE 802.1x
IEEE 802.3af

Housing material

Metal

Additional information

D-WDR - Wide Dynamic Range of illumination 3D-DN
Human detection, ONVIF Port: 80, WEB Server: Built-in, Mobile phone access: Port: 37777/through the cloud (P2P)

Power consumption (typical)

3.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

10 Megabit Ethernet
100 Megabit Ethernet

Mobile operating systems supported

Android
iOS

Number of users

6 user(s)

RAM capacity

1024 MB

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Form factor

Bullet

Bluetooth

No

Built-in microphone

Yes

DC output voltage

12V

Built-in loudspeaker

Yes

Number of memory card slots

1

4G LTE

No

Maximum memory card size

256 GB

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Sensor type

1/2.7" CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Type

IP security camera

Number of cameras

1

Video streaming

Yes

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080 (HD 1080)
2048 x 1536 (QXGA)
2304 x 1296
2560 x 1440
2592 x 1944
2688 x 1520
3072 x 1728
3072 x 2048
3840 x 2160

Picture enhancement

D-WDR, 3D-DNR, ROI, BLC/HLC

Placement supported

External / Internal

Mounting type

Wall/ceiling

Signal-to-Noise Ratio (SNR)

56 dB

(cdm) Menu languages

PL, Eng, FR, DE and others

Alarm input/output

No

Number of sensors

1

Frame rate

25 / 30 fps

Total megapixels

8 MP

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

57°

Lens viewing angle, horizontal

110°

Progressive scan

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

5.4 W

Camera shutter speed

1/3 - 1/100000 s

Noise reduction technology

3D noise reduction

Web browser

Yes

Audio codecs

G.711a / G.711Mu / G.723 / G.726 / PCM

ROM capacity

128 MB

Number of illumination LEDs

1

Closest focusing distance

1.9 m

Two-way talk

Yes

Motion detection

Yes

Horizontal rotation angle

0 - 360°

People detection

Yes

Vertical rotation angle

0 - 90°

Lens type

Fixed focal length lens

Lens

Permanent

Adjustment shutter speed

Auto/Manual

Network interface

RJ-45 10/100

Audio RCA outputs

1

RCA input

1

Flip & mirror

Yes

Observe distance (wide)

35.7 m

Aperture type

Permanent
