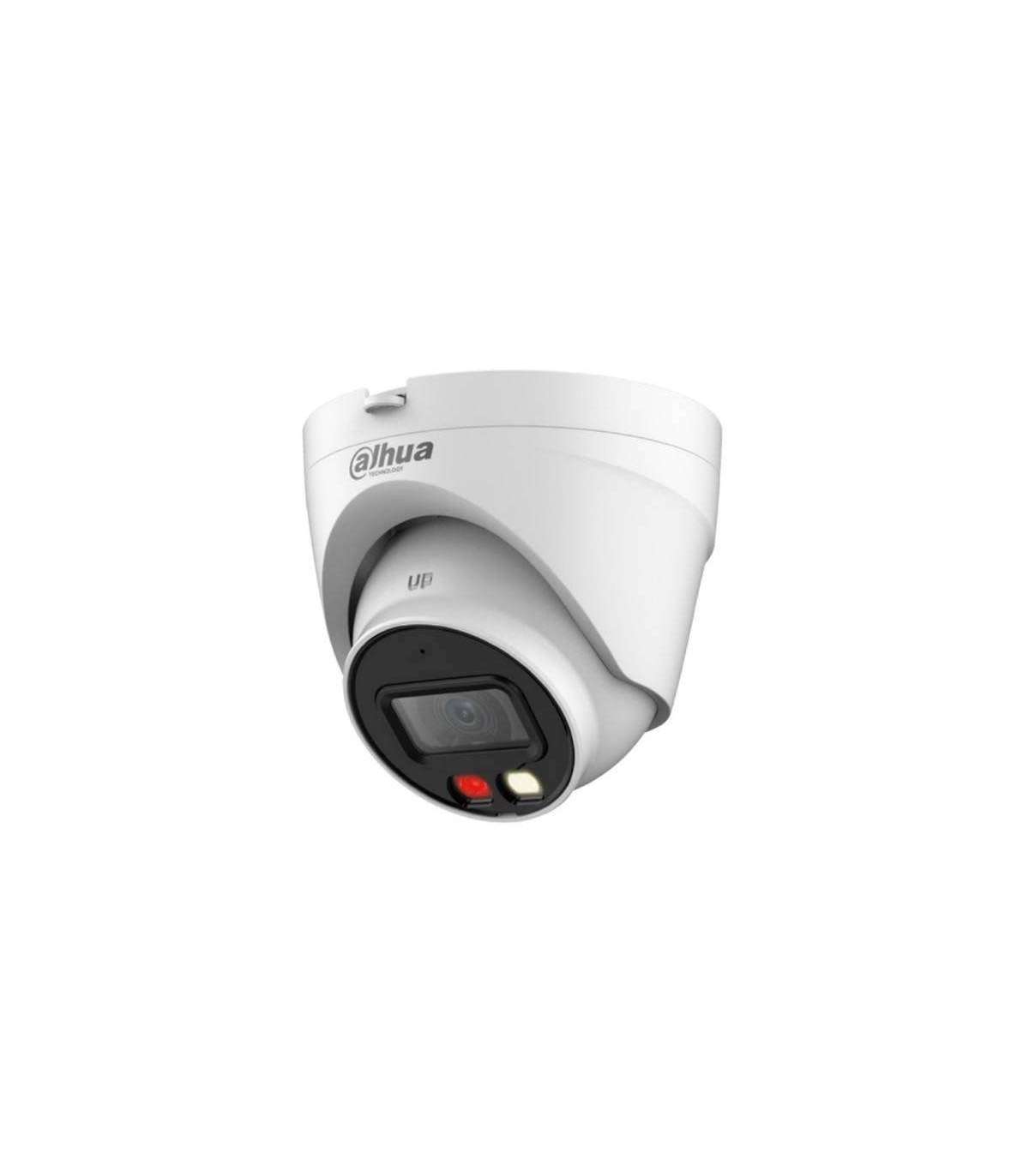

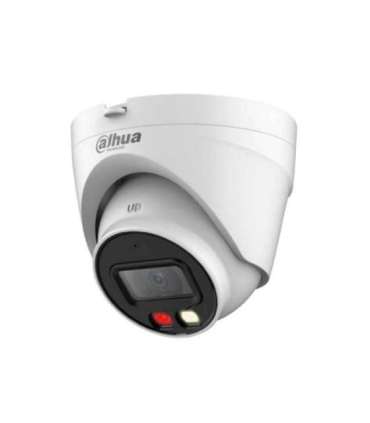

IP security camera DAHUA Technology IPC-HDW1439V-A-IL White

Характеристики

Depth

109.9 mm

Weight

330 g

Height

100.9 mm

Width

109.9 mm

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 70 °C

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Supported network protocols

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE-LVD: EN62368-1; CE-EMC:: Electromagnetic Compatibility Directive 2014/30/EU 2023-07-21

Internal memory

128 MB

Power consumption (typical)

2 W

Power consumption (max)

4.6 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Mobile operating systems supported

Android
iOS

Form factor

Dome

Built-in microphone

Yes

DC output voltage

12

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Supported video modes

720p
1080p

Sensor type

HD CMOS

Video compression formats

H.264
H.264+
H.264B
H.264H
H.265
H.265+

Maximum resolution

2560 x 1440 pixels

Noise reduction

Yes

Type

IP security camera

Smartphone/tablet remote support

Yes

Number of cameras

1

Video streaming

Yes

Tilt angle range

0 - 78°

Supported graphics resolutions

352 x 240
352 x 288
640 x 480 (VGA)
704 x 480
704 x 576
1280 x 720 (HD 720)
1280 x 960
1920 x 1080 (HD 1080)
2304 x 1296
2560 x 1440

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

56 dB

Video motion detection

Yes

Number of sensors

1

Frame rate

30 fps

Total megapixels

4 MP

Night vision distance

30 m

LED type

IR / White light LED

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

52°

Lens viewing angle, diagonal

111°

Lens viewing angle, horizontal

94°

Pan range

0 - 360°

Progressive scan

Yes

Back Light Compensation (BLC)

Yes

Focal length range

2.8 mm

Maximum aperture number

1.6

Power consumption (Power over Ethernet (PoE))

2.9 W

Wide Dynamic Range (WDR)

120 dB

Day/night mode

Yes

Camera shutter speed

1/3 -1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Gain control type

Auto

Digital Wide Dynamic Range (DWDR)

Yes

Bit rate

H.264: 32 - 4096Kbps; H.265: 12 - 4096Kbps

Power over Ethernet (PoE) voltage range

48 V

Active tampering alarm

Yes

Web browser

Yes

Management software

Smart PSS, Smart PSS Lite, DSS, DMSS, P2P

Streaming method

Multicast

Audio codecs

G.711a, G.711Mu, G.726, PCM

ROM capacity

128 MB

White balance

Auto
Manual
Natural
Outdoor
Street lamp

Camera shutter type

Electronic
Mechanical

Number of effective pixels (H x V)

2560 x 1440 pixels

Smart IR

Yes

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Number of illumination LEDs

1 / 1

Observe distance

25.6 m

Recognize distance

12.8 m

Detect distance

64 m

Identify distance

6.4 m

Closest focusing distance

1.1 m
