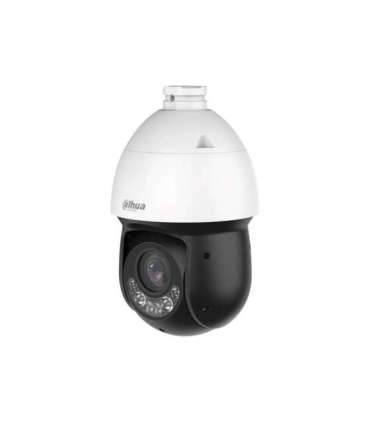

Dahua Technology D4D225MB-HNR - high-speed IP camera

Характеристики

Weight

2.4 kg

Height

270.4 mm

Product colour

Black
White

Power source type

PoE

Operating temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN (RJ-45) ports

1

Quality of Service (QoS) support

Yes

Cabling technology

10/100Base-T

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Certification

CE: EN55032/EN55024/EN50130-4

Power consumption (typical)

23 W

Connectivity technology

Wired

International Protection (IP) code

IP67

Mobile operating systems supported

Android
iOS

Number of users

20 user(s)

Digital zoom

16x

Sensor type

STARVIS CMOS

Video compression formats

H.264
H.264B
H.264M
H.265
M-JPEG
Smart H.264+
Smart H.265+

Maximum resolution

1920 x 1080 pixels

Type

IP security camera

Product diameter

160 mm

Number of cameras

1

Tilt angle range

-15 - 90°

Supported graphics resolutions

352 x 240
352 x 288
640 × 480
704 x 480
704 x 576
1280 x 720
1280 x 960
1920 x 1080

Mounting type

Ceiling

Signal-to-Noise Ratio (SNR)

-55 dB

Intelligent Video Surveillance (IVS) system features

Abandoned object
Crossing fence detection
Detection of a gathering of people
Human alarm classification
Intrusion
Line crossing detection
Missing object
Quick movement

Pan range

0 - 360°

Progressive scan

Yes

Maximum aperture number

3.5

Wide Dynamic Range (WDR)

Yes

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Web browser

Yes

Management software

DMSS; DSS Pro

Streaming method

Multicast
Unicast

ROM capacity

4000 MB

White balance

ATW
Auto
Indoor
Manual
Outdoor
Sodium lamp
Street lamp

Bit rate control

Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Highlight Compensation (HLC)

Yes

3D NR (Noise Reduction)

Yes

Electronic Image Stabilization (EIS)

Yes
