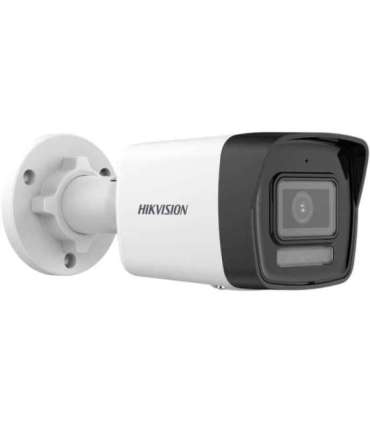

HIKVISION DS-2CD1061G2-LIU 2.8mm IP CAMERA

Характеристики

Weight

285 g

Height

69.1 mm

Width

66 mm

Package weight

481 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Web-based management

Yes

Package width

216 mm

Package depth

121 mm

Package height

118 mm

Compliance certificates

CB
CE
Low Voltage Directive (LVD)
RCM
REACH
RoHS
WEEE

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Sustainability compliance

Yes

Housing material

Metal
Plastic

Power consumption (max)

5 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

Polish

Form factor

Bullet

Password protection

Yes

Bluetooth

No

Built-in microphone

Yes

Privacy protection

Yes

DC output voltage

12

Audio formats supported

AAC-LC
G.711
G.722.1
G.726
MP2L2
PCM

Protection features

Waterproof

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3200 x 1800 pixels

Type

IP security camera

Length

170.8 mm

Number of cameras

1

Live view

Yes

Video streaming

Yes

Fixed focal length

2.8 mm

Tilt angle range

0 - 90°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800

Placement supported

Indoor & outdoor

Mounting type

Ceiling/wall

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

0.41 A

Video motion detection

Yes

Built-in HDD

No

Number of sensors

1

Total megapixels

6 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

55°

Lens viewing angle, diagonal

127°

Lens viewing angle, horizontal

105°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness
White balance

Back Light Compensation (BLC)

Yes

Maximum aperture number

1.6

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

6.5 W

Digital watermark

Yes

Heartbeat

Yes

Number of languages

1

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Privacy masking

Yes

Bit rate

32 Kbps - 16 Mbps

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

30 m

Recognize distance

15 m

Detect distance

76 m

Identify distance

7 m

Minimum illumination

0 lx

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Bit rate range

16 - 160 Kbit/s

Client interoperability

iVMS-4200, Hik-Connect

Fixed focus

Yes

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Sample rates

8 - 16 kHz
