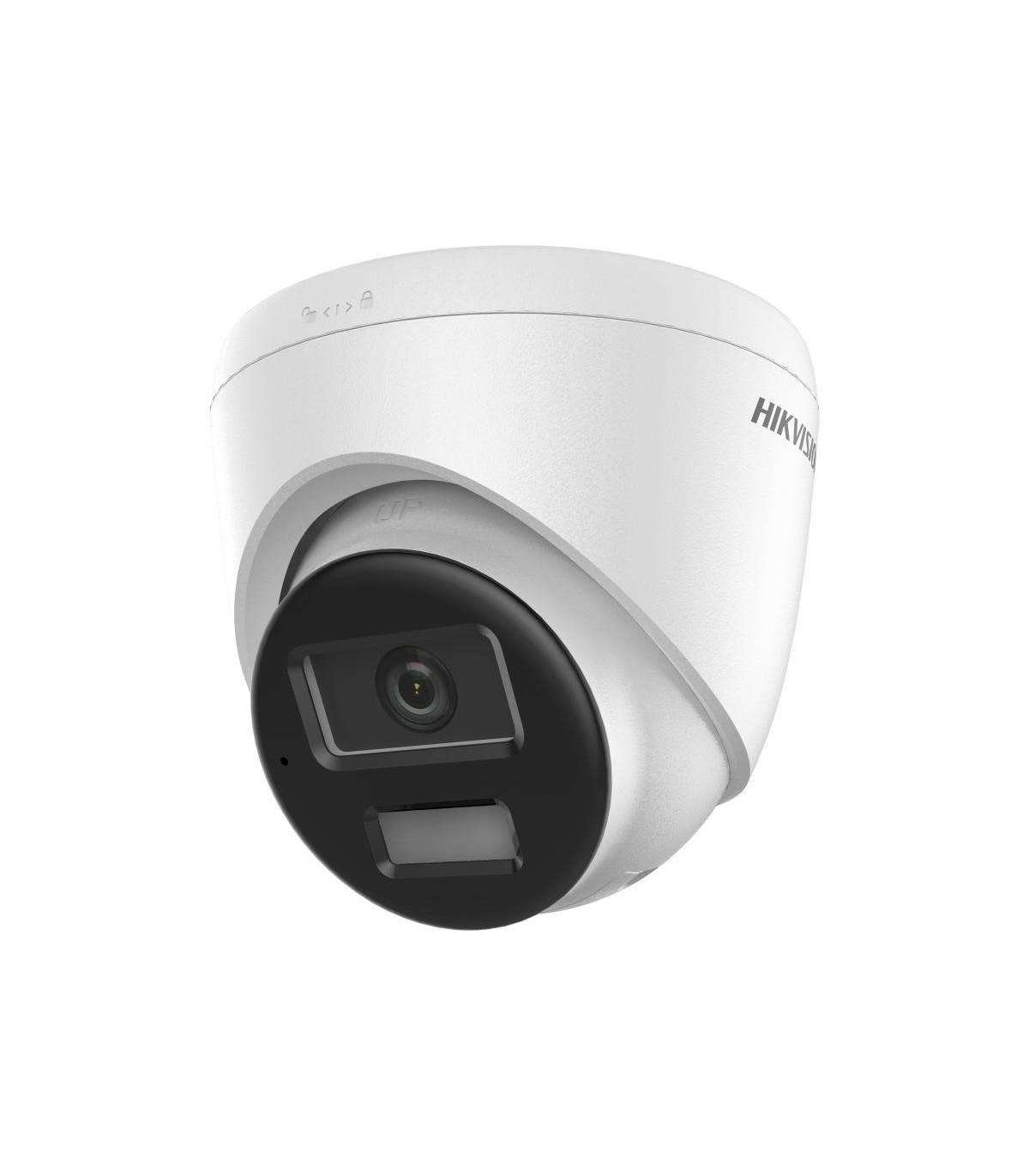

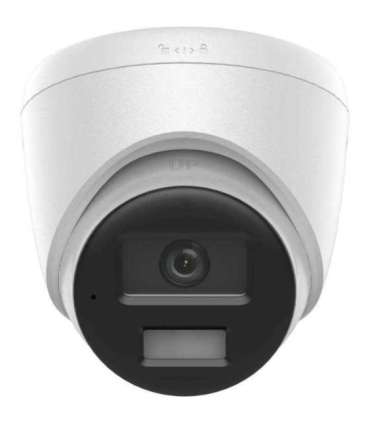

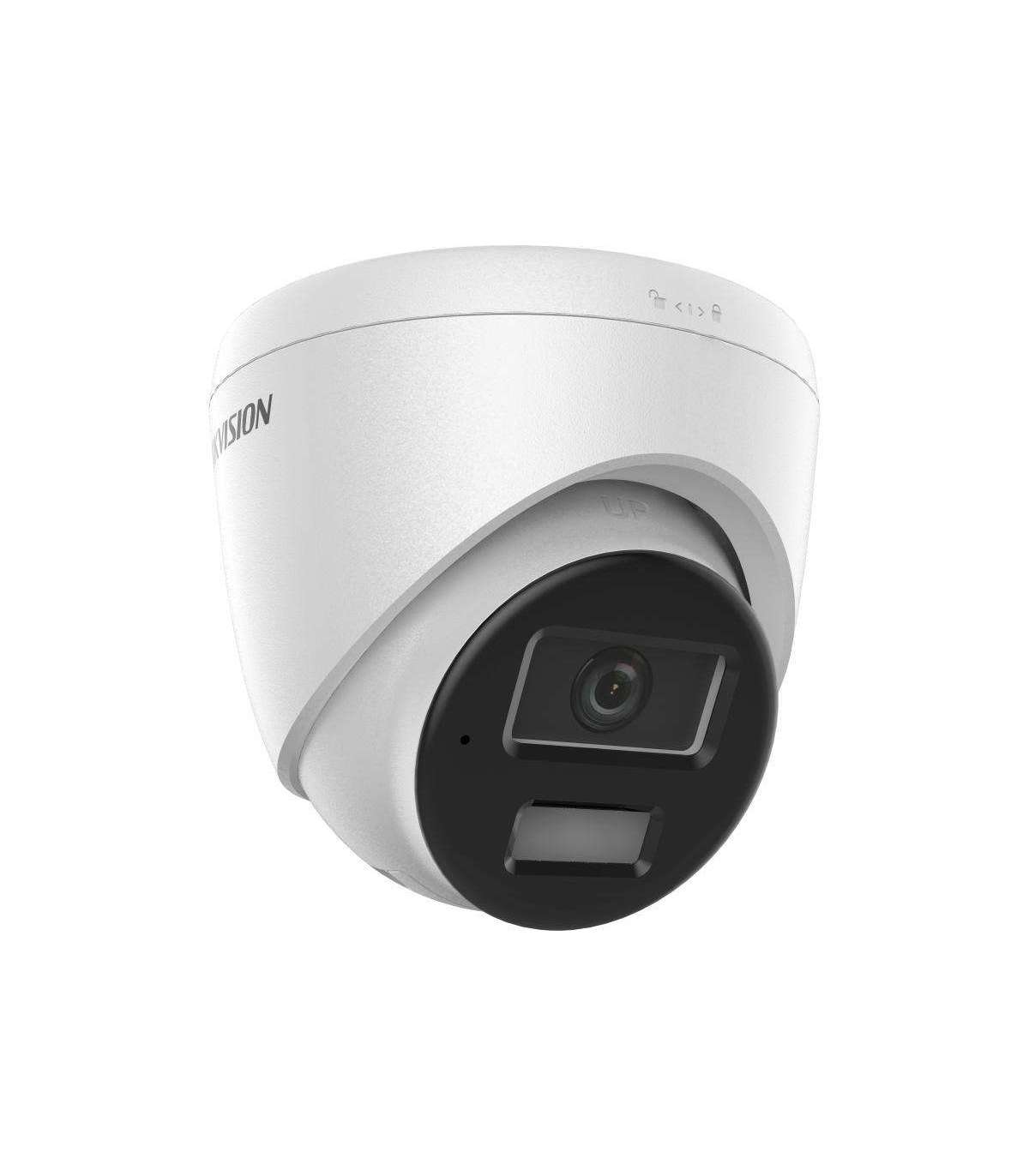

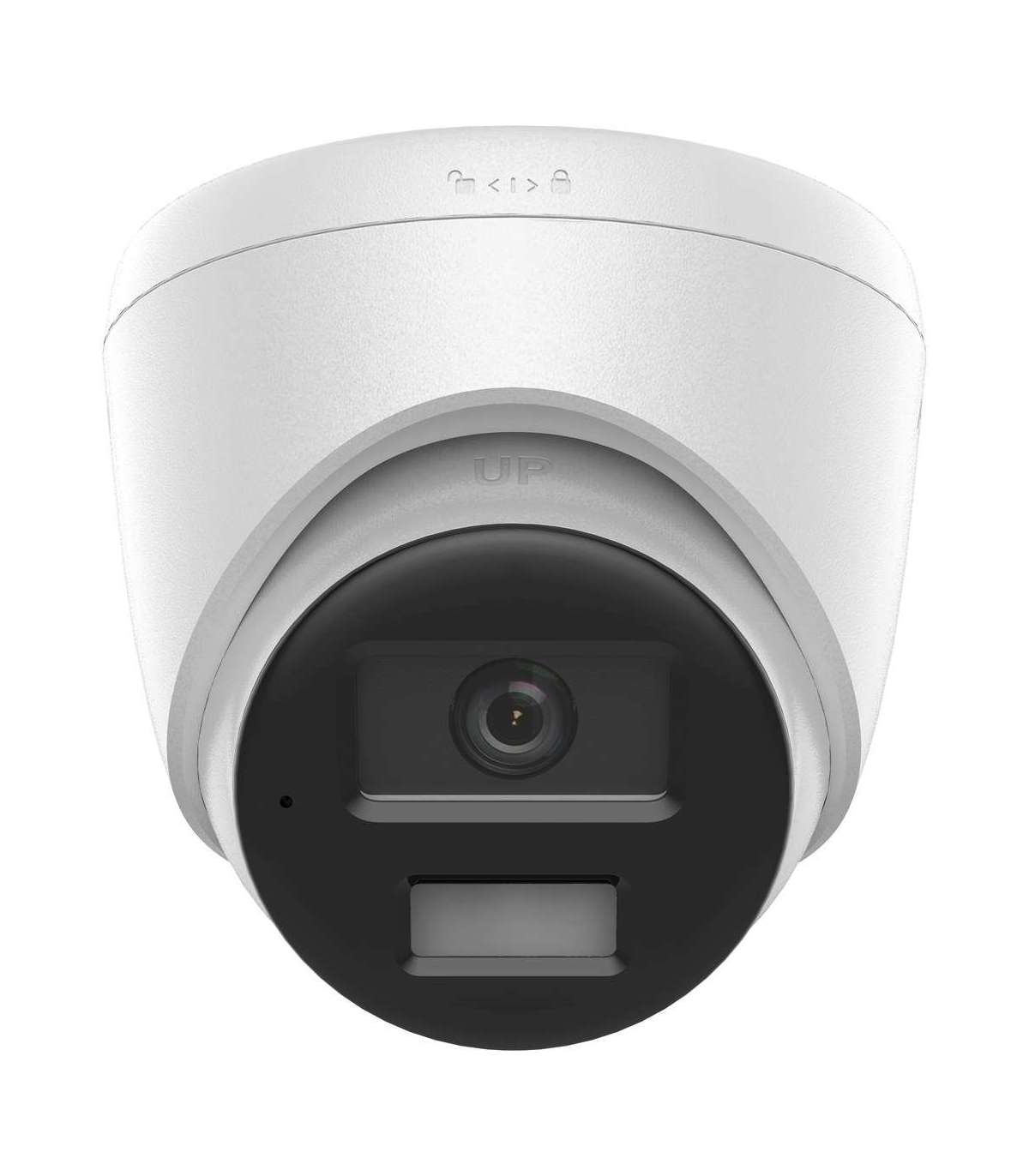

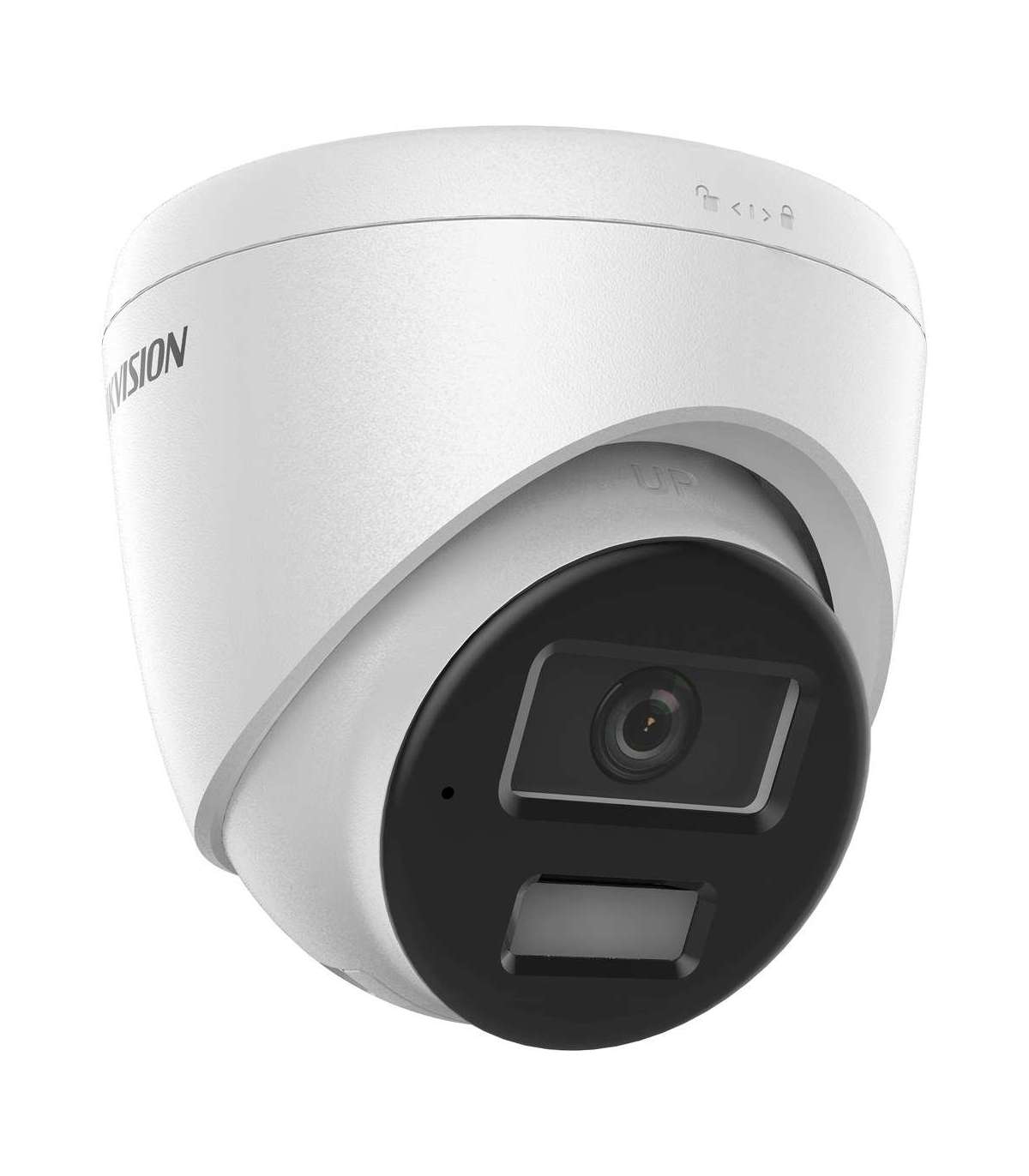

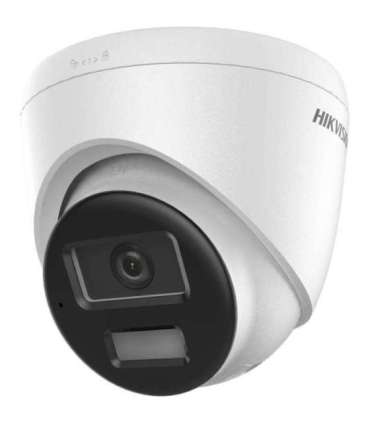

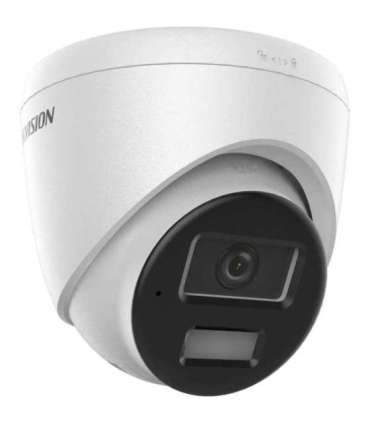

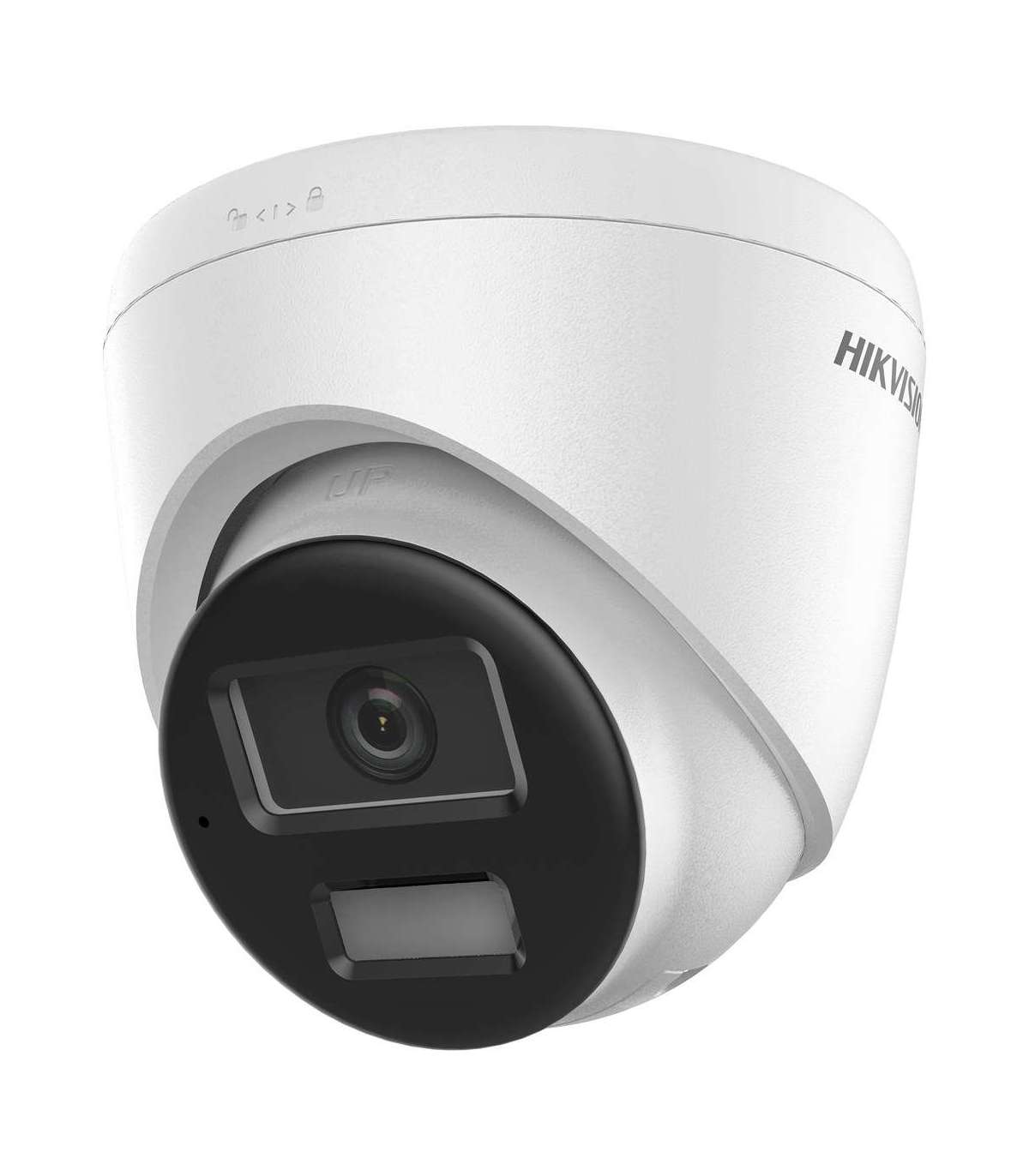

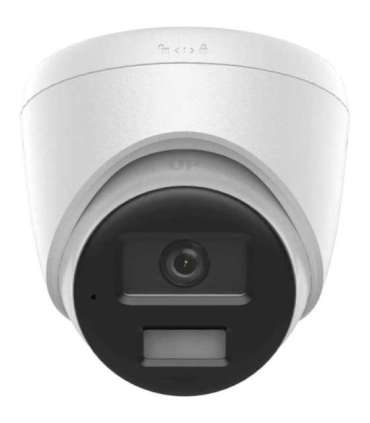

Hikvision Value Series 8 MP Smart Hybrid Light Fixed Turret Network Camera

Характеристики

Weight

385 g

Height

102.7 mm

Package weight

586 g

Product colour

White

Power source type

DC, PoE

Storage temperature (T-T)

-30 - 60 °C

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Reset button

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.3af

Package width

150 mm

Package depth

150 mm

Package height

141 mm

Compliance certificates

BIS
CB
CE
Electromagnetic Compatibility (EMC)
Low Voltage Directive (LVD)
RCM
REACH
RoHS
UL
WEEE

Supported network protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP

Housing material

Metal
Plastic

Power consumption (max)

8 W

Wi-Fi

No

Connectivity technology

Wired

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of users

32 user(s)

Languages support

English
Ukrainian

Compatible memory cards

MicroSD (TransFlash)
MicroSDHC
MicroSDXC

Card reader integrated

No

Form factor

Turret

Password protection

Yes

Bluetooth

No

Built-in speaker(s)

Yes

Built-in microphone

Yes

Audio system

2-way

DC output voltage

12

Audio formats supported

AAC-LC
G.711
G.722.1
G.726
MP2L2
PCM

Maximum memory card size

512 GB

Protection features

Dust resistant
Water resistant

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264+
H.265
H.265+
M-JPEG

Maximum resolution

3840 x 2160 pixels

Noise reduction

Yes

Type

IP security camera

Diameter

11 cm

Number of cameras

1

Fixed focal length

2.8 mm

Tilt angle range

0 - 75°

Supported graphics resolutions

640 x 360
640 x 480 (VGA)
1280 x 720 (HD 720)
1920 x 1080 (HD 1080)
2688 x 1520
3200 x 1800
3840 x 2160

Placement supported

Indoor & outdoor

Mounting type

Ceiling/Wall/Pole

Mirror

Yes

Signal-to-Noise Ratio (SNR)

52 dB

Built-in light

Yes

DC output current

0.66 A

Video motion detection

Yes

Built-in HDD

No

Total megapixels

8 MP

Infra-red wavelength

850 nm

Night vision distance

30 m

LED type

IR

Night vision

Yes

Number of lenses

1

Lens viewing angle, vertical

62°

Lens viewing angle, diagonal

134°

Lens viewing angle, horizontal

113°

Pan range

0 - 360°

Progressive scan

Yes

Image quality adjustment

Brightness
Contrast
Saturation
Sharpness

Back Light Compensation (BLC)

Yes

Maximum aperture number

2

Angle of rotation

360°

Power consumption (Power over Ethernet (PoE))

9.5 W

Digital watermark

Yes

Heartbeat

Yes

Number of languages

2

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Camera shutter speed

1/3 - 1/100000 s

Region of Interest (ROI) encoding

Yes

Noise reduction technology

3D noise reduction

Bit rate

32 Kbps - 16 Mbps

Active tampering alarm

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Observe distance

31 m

Recognize distance

15 m

Detect distance

79 m

Identify distance

7 m

Minimum illumination

0 lx

Number of Privacy masking areas

4

Highlight Compensation (HLC)

Yes

Lens mount interface

M12

Bit rate range

16 - 160 Kbit/s

Audit log

Yes

Digest authentication

Yes

Password reset via email

Yes

User access level

Administrator, Operator, User

Number of simultaneous live view channels

6 channels

Dynamic range

120 dB

Sample rates

8 - 16 kHz
