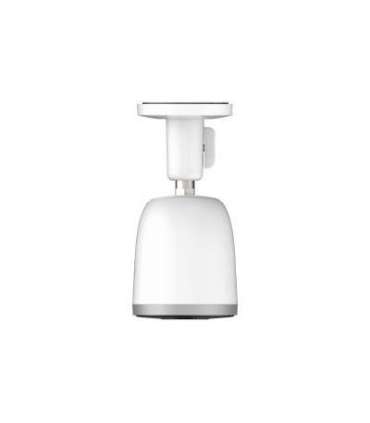

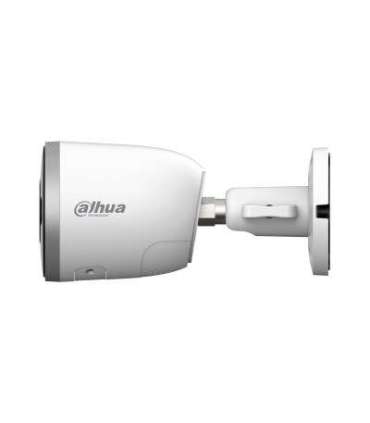

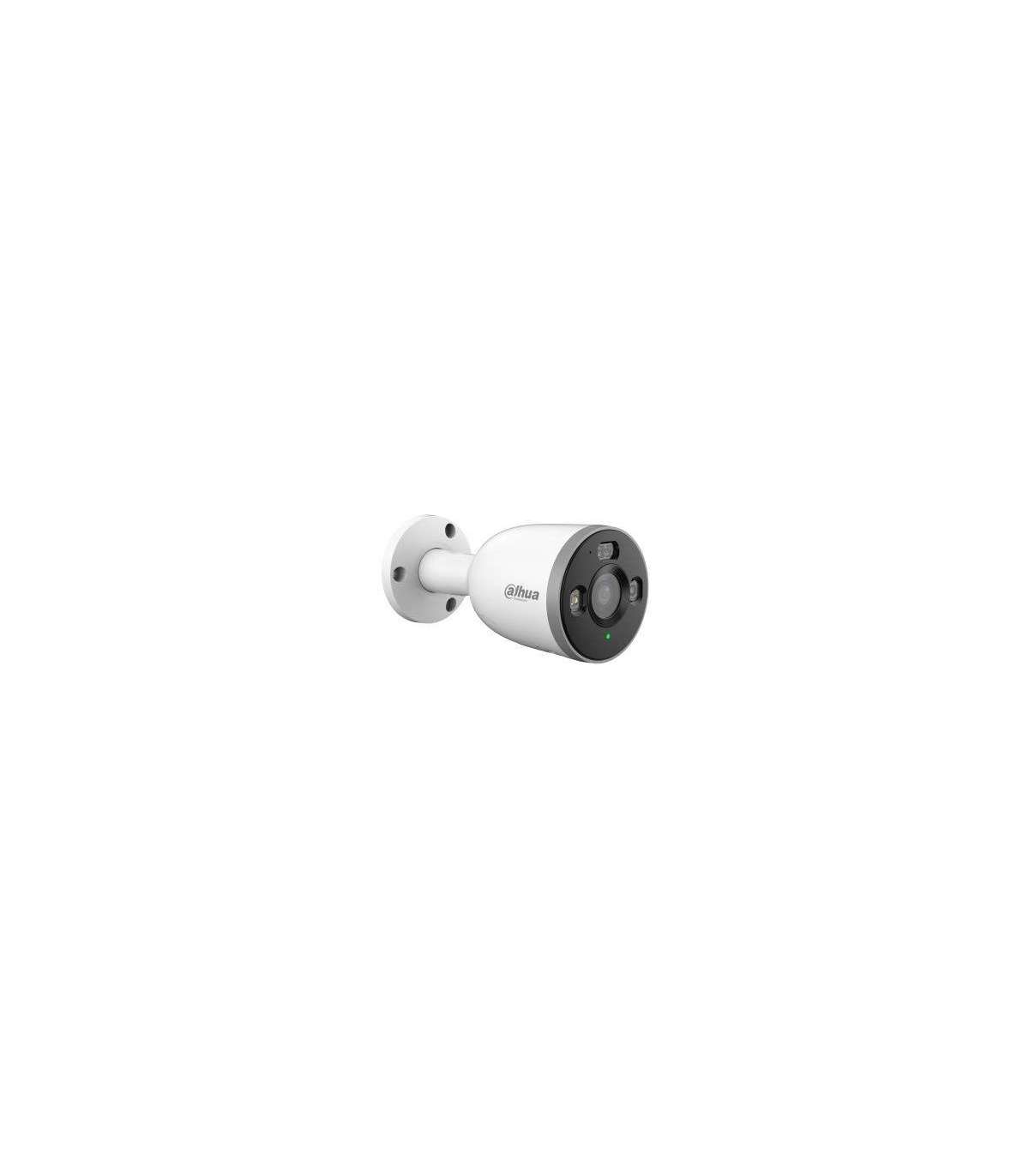

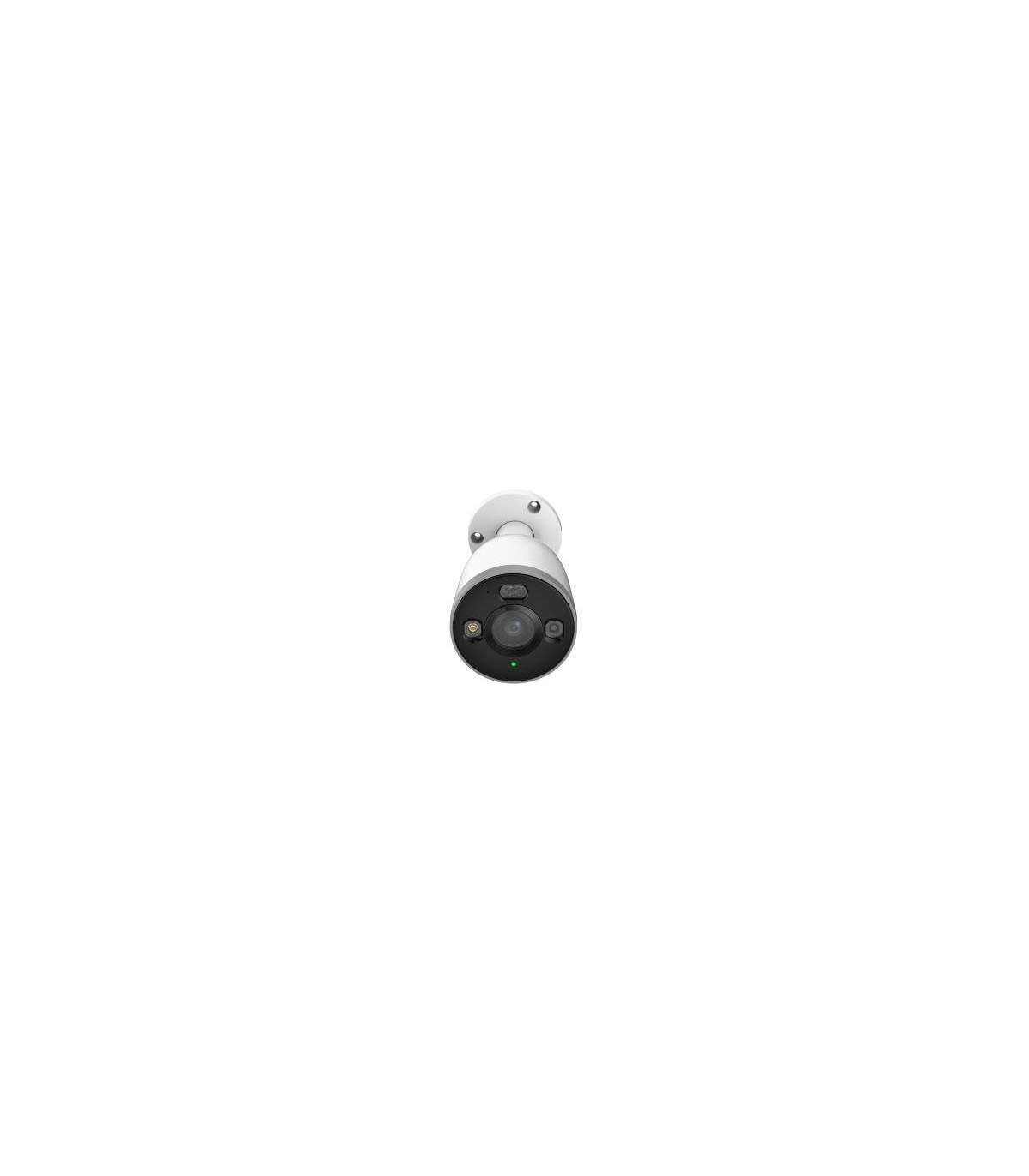

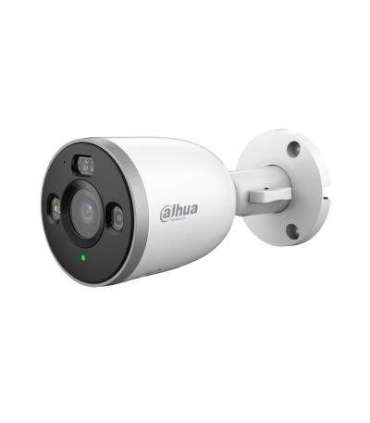

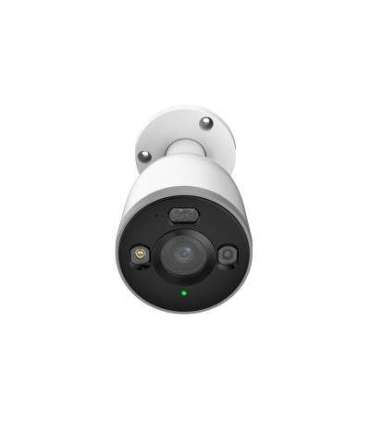

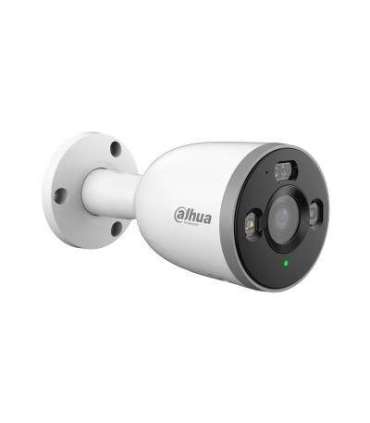

DAHUA F5D-PV-0280B WI-FI CAMERA

Характеристики

Weight

340 g

Width

158.3 mm

Product colour

White

Power source type

DC

Operating temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Networking standards

IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Warnings

Avoid direct contact with water to prevent electrical damage.
Ensure that the product is properly installed and protected against falling.
The product contains electronic components; do not dispose of with the normal household waste.

Housing material

Metal
Plastic

Power consumption (typical)

2.4 W

Power consumption (max)

7 W

International Protection (IP) code

IP67

Mobile operating systems supported

Android
iOS

Compatible memory cards

MicroSD (TransFlash)

Built-in microphone

Yes

DC output voltage

12

Built-in loudspeaker

Yes

Maximum memory card size

256 GB

Maximum frame rate

30 fps

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Sensor type

CMOS

Video compression formats

H.264
H.264B
H.264H
H.265

Maximum resolution

2880 x 1620 pixels

Type

IP security camera

Product diameter

76,8 mm

Number of cameras

1

Tilt angle range

0 - 90°

Video motion detection

Yes

Angle of rotation

360°

Wide Dynamic Range (WDR)

DWDR

Day/night mode

Yes

Management software

SmartPSS Lite; DSS; DMSS

Audio codecs

G.711a, G.711Mu, PCM

Minimum illumination

0 lx

Bitrate

H.264: 32 kbps–4096 kbps; H.265: 32 kbps–4096 kbps

Client interoperability

ONVIF, CGI

Viewing angle, horizontal (2.8mm lens)

104°

Viewing angle, vertical (2.8mm lens)

56°

Viewing angle, diagonal (2.8mm lens)

124°
